Photometric Filter 50x50 mm² SLOAN-g Baader Planetarium

PHOTOMETRIC FILTER 50x50 mm² SLOAN-g' BAADER PLANETARIUM

• Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
• Filter thickness identical to existing standards, with utmost care for parafocality
• Blackened edges all around, with indicator on the filter cable side in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
• Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
• Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment

TECHNICAL FEATURES

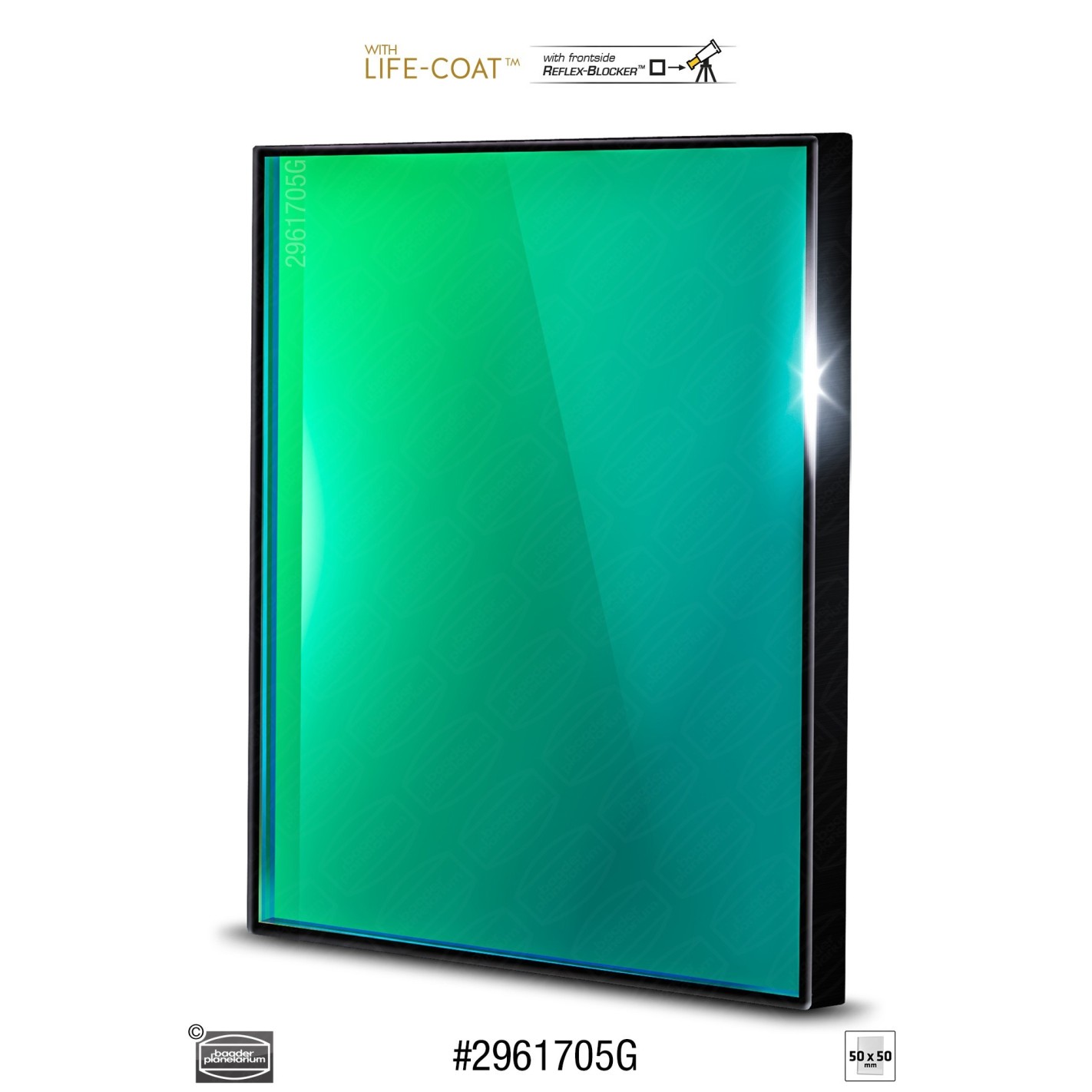

• 50 x 50 mm x 3 mm Baader Sloan-g' bandpass filter, suitable from f/15 to f/1.8
• SLOAN / SDSS photometric filter (g') with transmission to SLOAN specification
• Manufactured with the most advanced ion beam coating / daylight-proof technology
• Hard-coated and planoptically polished Reflex-Blocker™ with sealed coating edges (Life-Coat™)
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side
• Suitable for modern CMOS cameras as well as for older CCD camera technologies

MANUFACTURER Baader Planetarium
NET WEIGHT (Kg) 0.07
COLOR Black

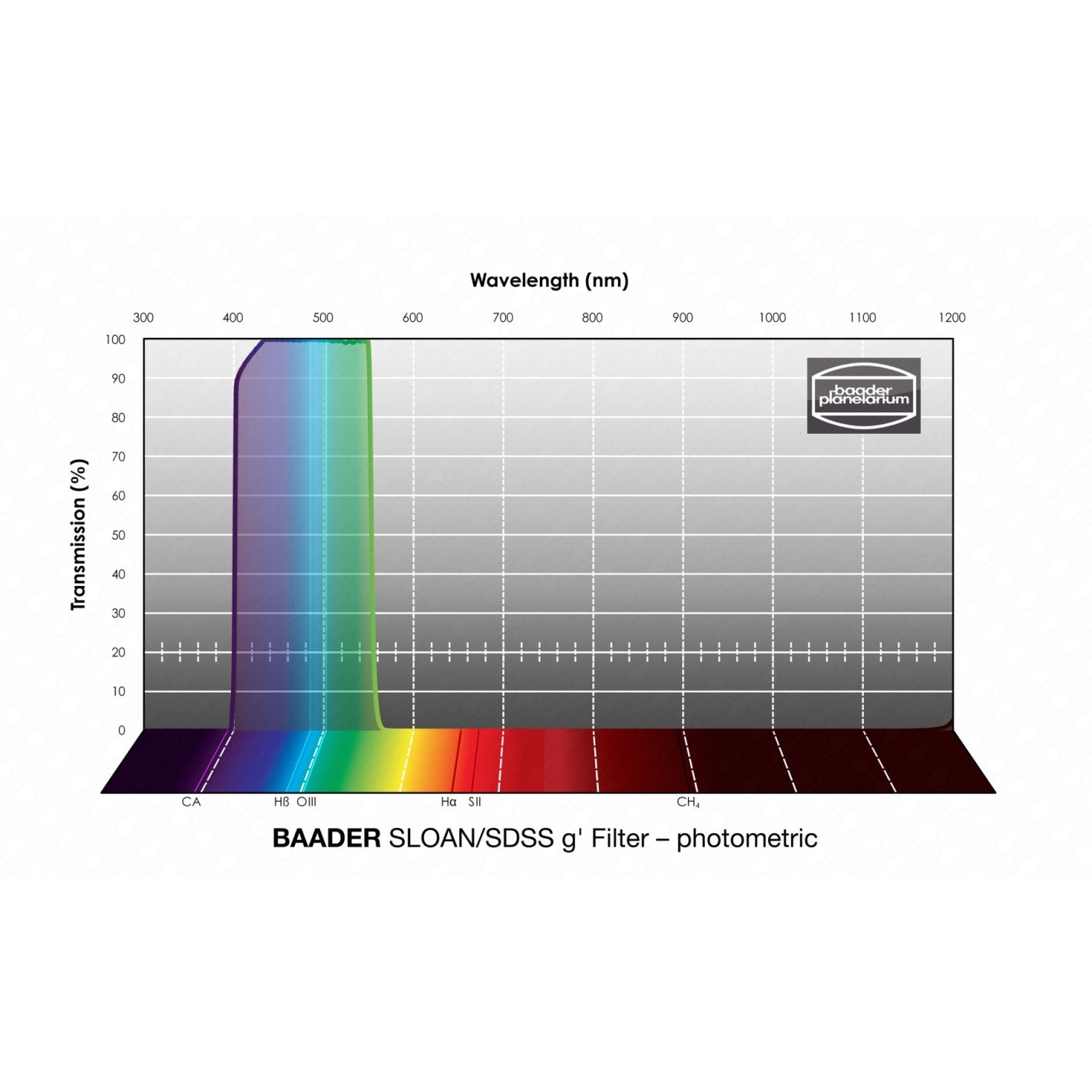

TRANSMISSION RANGE Transmission according to Sloan specification
FILTER THICKNESS (WITHOUT CELL) 3 mm
CWL (CENTER WAVE LENGTH) Sloan-G'
FILTER SIZE 50 x 50 mm
CMOS FILTER USAGE, CCD, SLOAN
FILTER MOUNTING Unmounted
FILTER TYPE Bandpass
SINGLE OR JOINT? Single filter
FILTER SHAPE Square

PHOTOMETRIC FILTER 50x50 mm² SLOAN-g' BAADER PLANETARIUM
