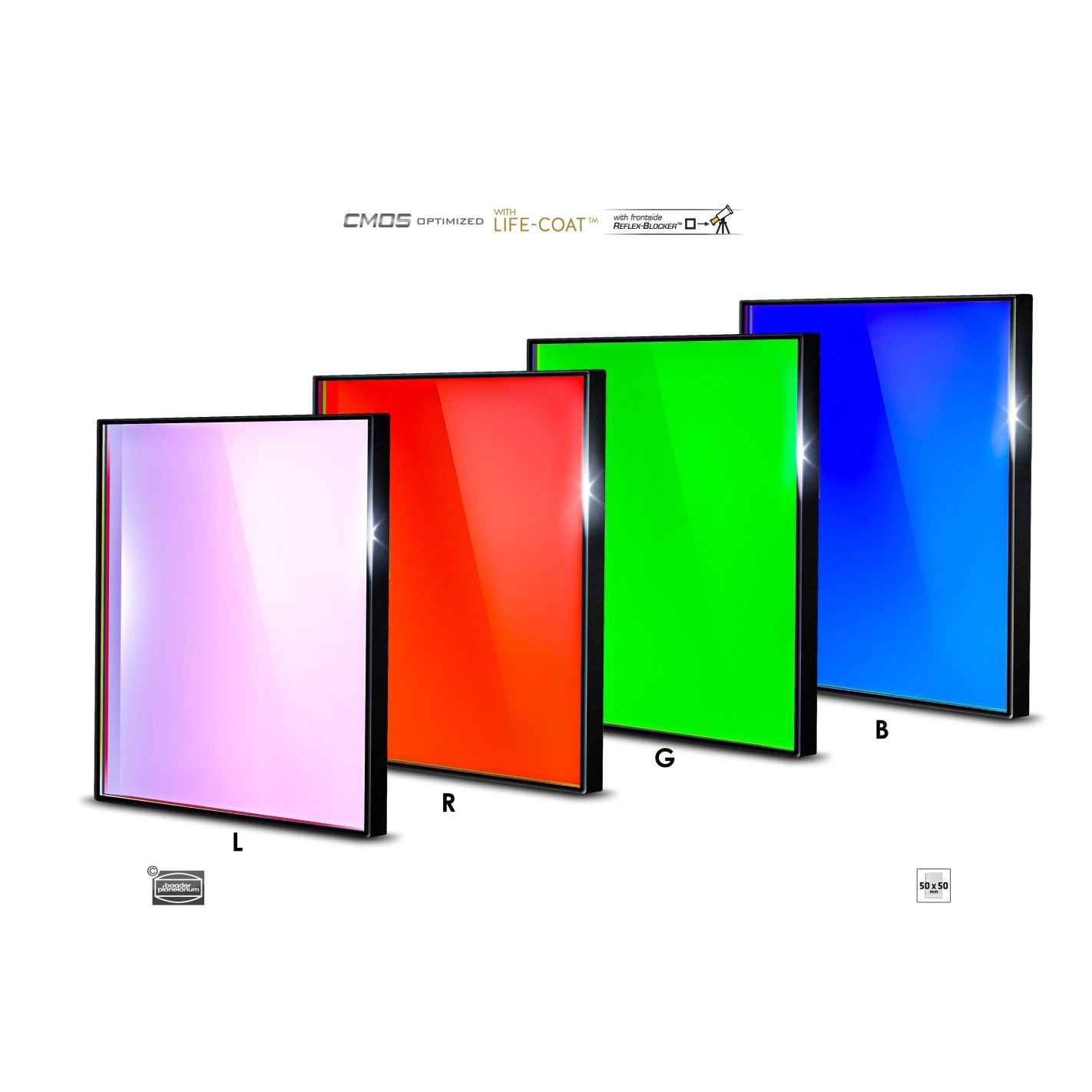

Set of 50x50 mm Baader LRGB filters optimized for CMOS

50x50 mm Baader LRGB filter set optimized for CMOS

This new generation of Baader CMOS filters features:

• CMOS-optimized Baader filters
• Higher contrast, combined with typical CMOS quantum efficiency and s/n ratio
• Reflex-Blocker™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
• Filter thickness identical to existing standards, with extreme care for parafocality
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
• Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
• Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment

General Features:

• Baader LRGB 50x50 mm x 3 mm bandpass filter set, suitable from f/15 to f/1.8
• Anti-reflective RGB filter (red / green / blue) with extremely high transmission of the respective color channel, simultaneously reducing stray light and reflections to an unprecedented level
• Including UV / IR cut-off (L-filter) with 98% transmission over the entire visible spectrum from 420 to 685 nm
• Balanced RGB design allows taking subframes with the same exposure time, which is extremely important for automated imaging tasks.
• Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side
• Optimized for modern CMOS cameras, but excellent for CCD camera technologies

Technical specifications:

• MANUFACTURER Baader Planetarium
• NET WEIGHT (KG) 0.07
• COLOR Black

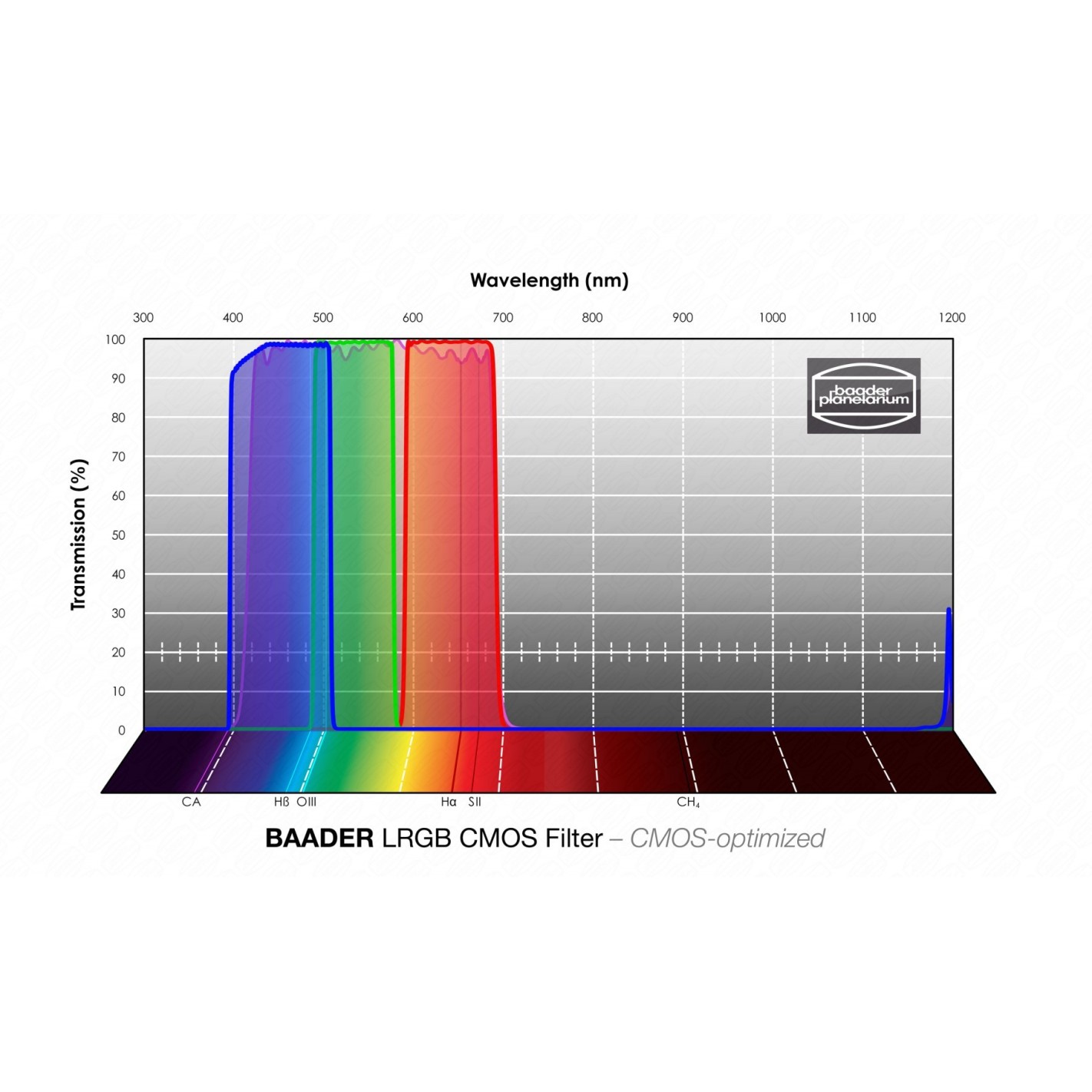

• TRANSMISSION RANGE L (420 - 685 nm) R (595 - 690 nm), G (490 - 580 nm), B (400 - 510 nm)
• FILTER THICKNESS (WITHOUT CELL) 3 mm
• CWL (CENTER WAVELENGTH) LRGB
• AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
• SPECIAL FEATURES Life-Coat ™ optimized CMOS
• FILTER SIZE 50x50 mm
• FILTER USE CMOS, CCD, IR-Cut, Luminance, RGB, UV-Cut
• FILTER ASSEMBLED Unmounted
• FILTER TYPE Bandpass
• aLONE OR AS A SET? Filter group
• FILTER SHAPE square

50x50 mm Baader LRGB filter set optimized for CMOS
