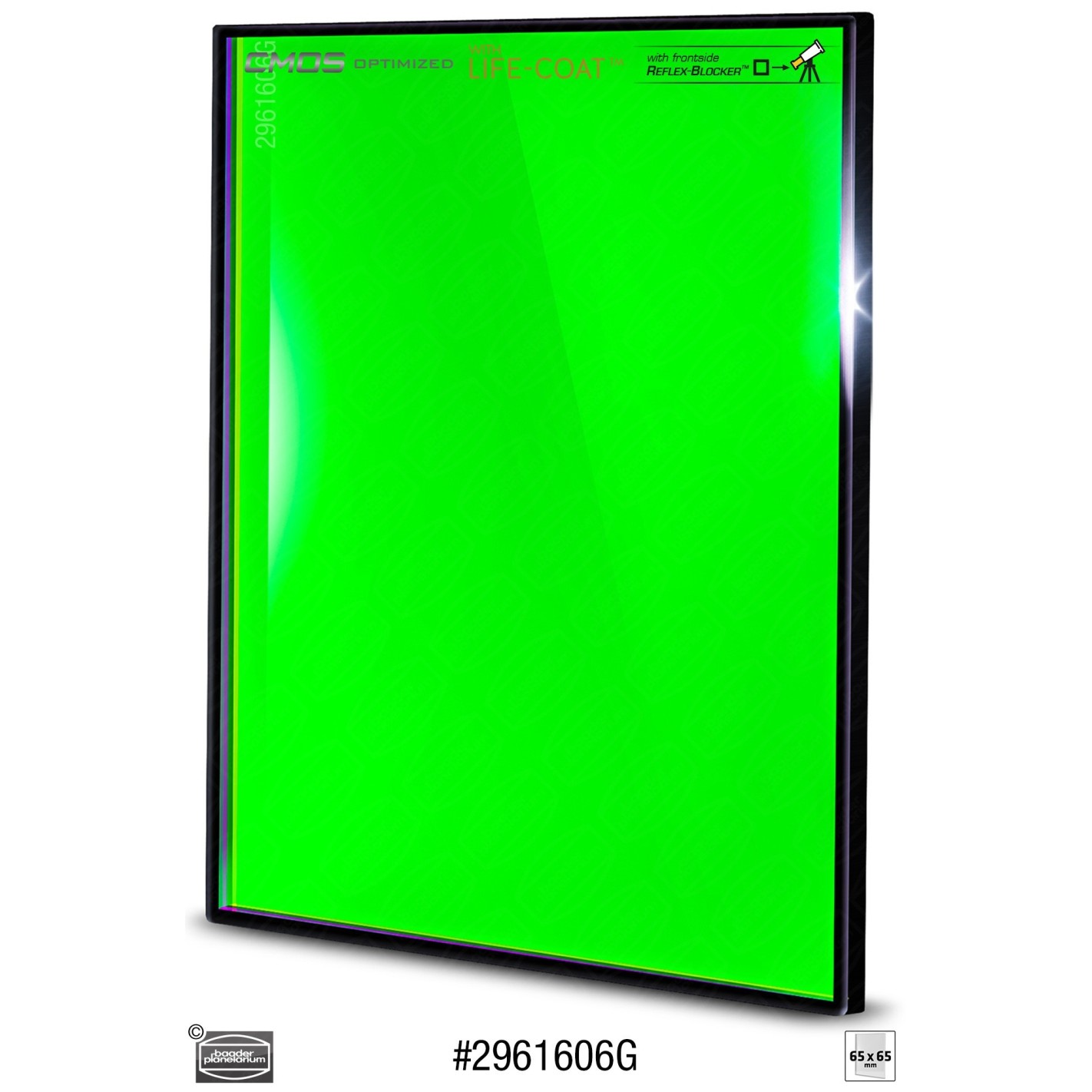

Baader RGB-G 65x65 mm filter optimized for CMOS 2961606G

65x65 mm Baader RGB-G filter optimized for CMOS

This new generation of Baader CMOS filters features:

• CMOS-optimized Baader filters
• Higher contrast, combined with typical CMOS quantum efficiency and s/w ratio
• Reflex-Blocker™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
• Filter thickness identical to existing standards, with extreme care for parafocality
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
• Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
• Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment

General Features:

• 65x65 mm x 3 mm (490 - 580 nm) Baader RGB-G bandpass filter (490 - 580 nm), suitable from f/15 to f/1.8
• RGB anti-glare filter (red / green / blue) with extremely high transmission of the respective color channel, simultaneously reducing stray light and reflections to an unprecedented level
• The balanced RGB design allows taking subframes with the same exposure time, which is extremely important for automated imaging tasks.
• Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side
• Optimized for modern CMOS cameras, but excellent for CCD camera technologies

Technical specifications:

• MANUFACTURER Baader Planetarium
• NET WEIGHT (KG) 0.09
• COLOR Black

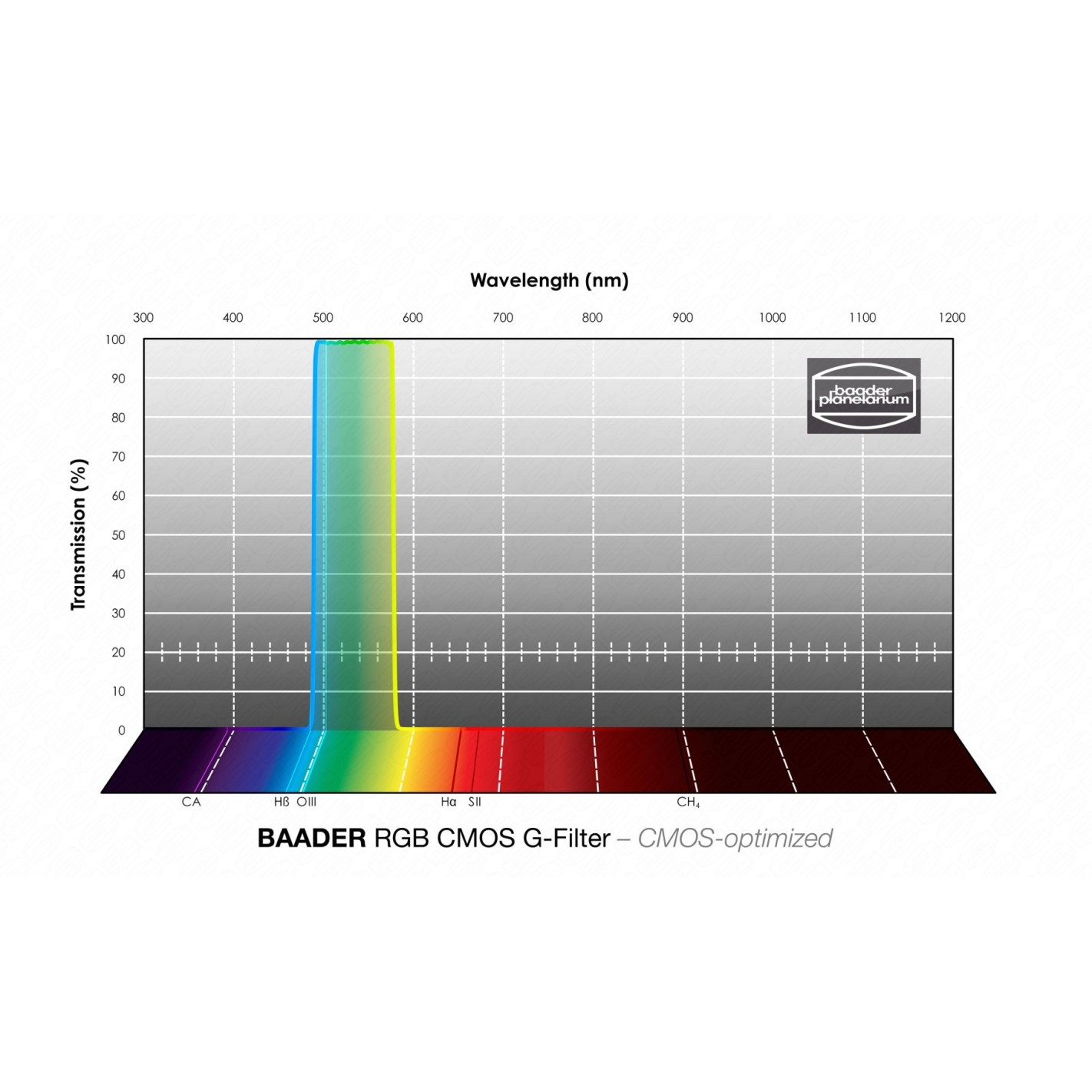

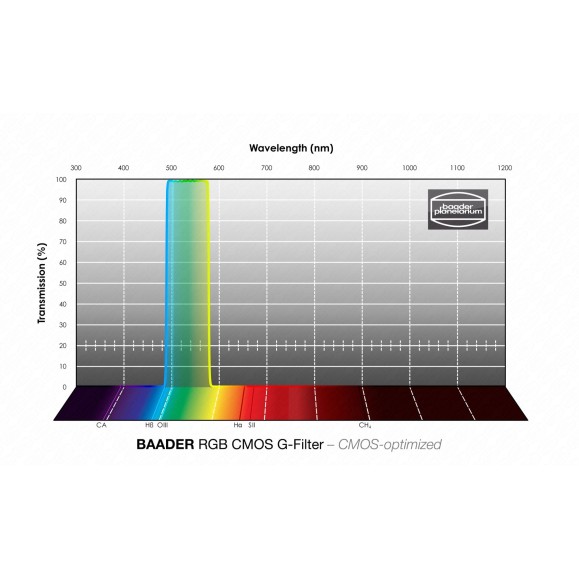

• TRANSMISSION RANGE 490 - 580 nm
• FILTER THICKNESS (WITHOUT CELL) 3 mm
• CWL (CENTER WAVELENGTH) RGB-G
• AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
• SPECIAL FEATURES Life-Coat ™ optimized CMOS
• FILTER SIZE 65x65 mm
• CMOS, CCD, RGB FILTER USAGE
• FILTER ASSEMBLED Unmounted
• FILTER TYPE Bandpass
• sINGLE OR SET? Single filter
• FILTER SHAPE square

Baader RGB-G 65x65 mm filter optimized for CMOS
