2" diameter Baader RGB-R filter optimized for CMOS
This new generation of Baader CMOS filters features:
- CMOS-optimized Baader filters
- Higher contrast, combined with typical CMOS quantum efficiency and s/w ratio
- Reflex-Blocker™ coatings, for the greatest freedom from halos, even under the most adverse conditions related to auxiliary optics
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
- Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment
General Features:

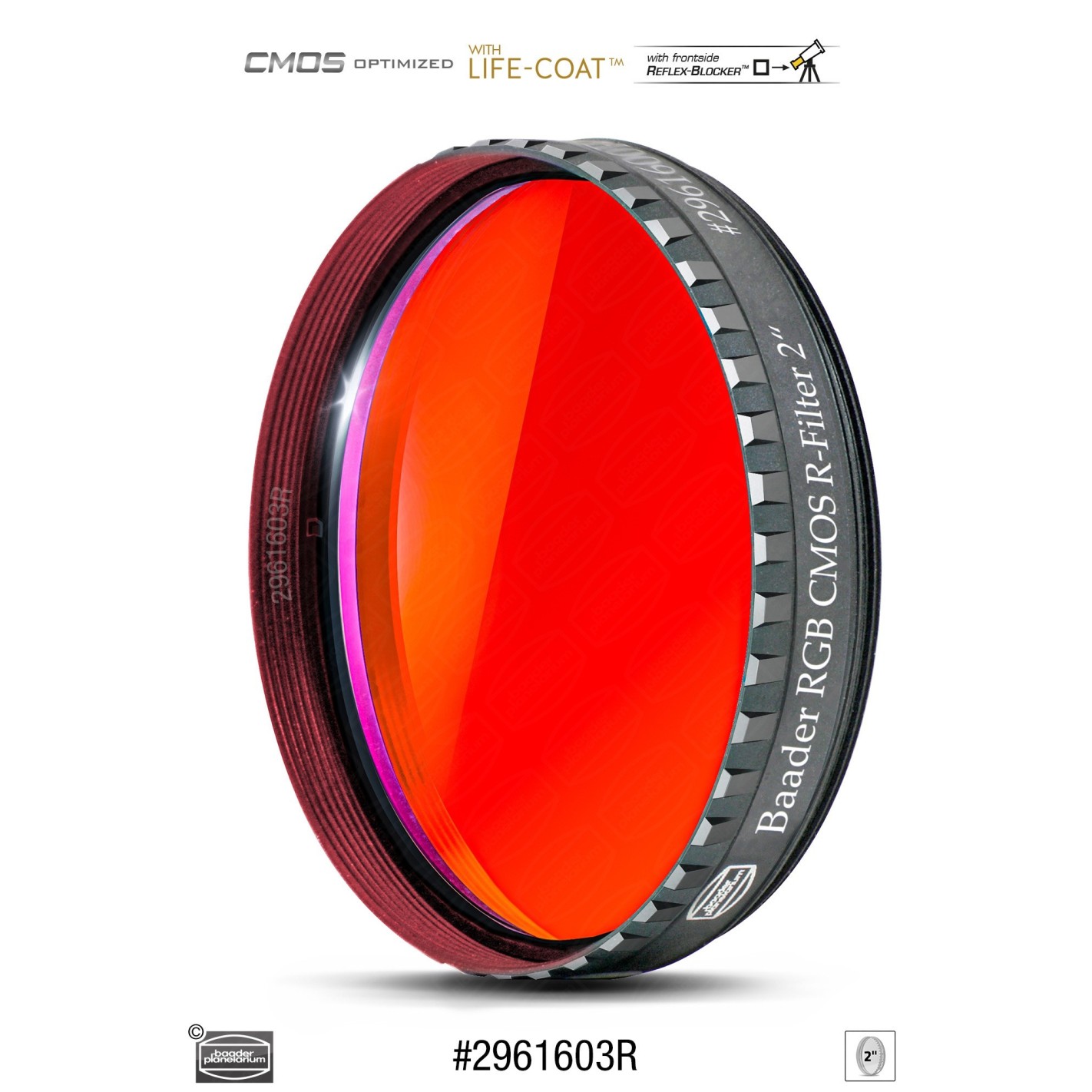

- 2" x 2 mm (595 - 690 nm) Baader RGB-R bandpass filter, suitable from f/15 to f/1.8 - with 2" (M48) filter thread
- RGB anti-reflective filter (red / green / blue) with extremely high transmission of the respective color channel, simultaneously reducing stray light and reflections to an unprecedented level
- The balanced RGB design allows taking subframes with the same exposure time, which is extremely important for automated imaging tasks.
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
- Mounted on Baader low profile filter cell (LPFC) - 6 mm high
Technical specifications:
- MANUFACTURER Baader Planetarium
- NET WEIGHT (KG) 0.07
- COLOR Black

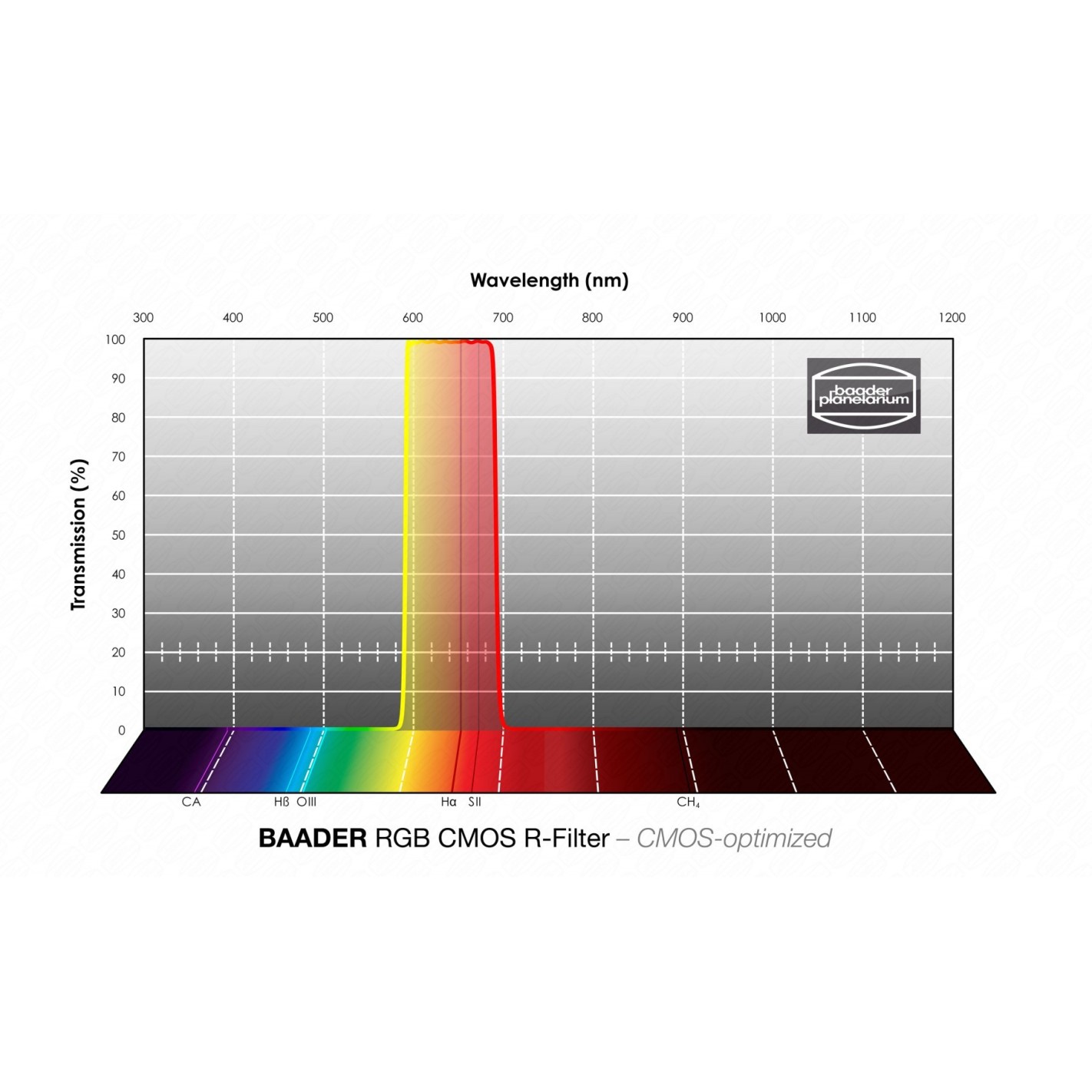

- TRANSMISSION RANGE 595 - 690 nm
- FILTER THICKNESS (WITHOUT FILTER CELL) 2 mm
- CWL (CENTER WAVELENGTH) RGB-R
- AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
- SPECIAL FEATURES CMOS optimized Life-Coat™ CMOS
- FILTER SIZE 2 in
- CMOS, CCD, RGB FILTER USAGE
- FILTER MOUNTED Mounted (LPFC 6 mm)
- FILTER TYPE Bandpass
- sINGLE OR SET? Single filter
- FILTER SHAPE round
2" Baader RGB-R filter optimized for CMOS
