Baader UV/IR-Cut / L Ø 50.4 mm filter optimized for CMOS

50.4 mm diameter Baader UV/IR-Cut / L filter optimized for CMOS

This new generation of Baader CMOS filters features:

• CMOS-optimized Baader filters
• higher contrast, combined with typical CMOS quantum efficiency and s/w ratio
• Reflex-Blocker™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
• Filter thickness identical to existing standards, with extreme care for parafocality
• Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
• Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
• Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment

General Features:

• 50.4 mm x 3 mm Baader UV/IR-Cut bandpass filter (420 - 685 nm), suitable from f/15 to f/1.8
• Reflects harmful thermal radiation in the infrared spectral range

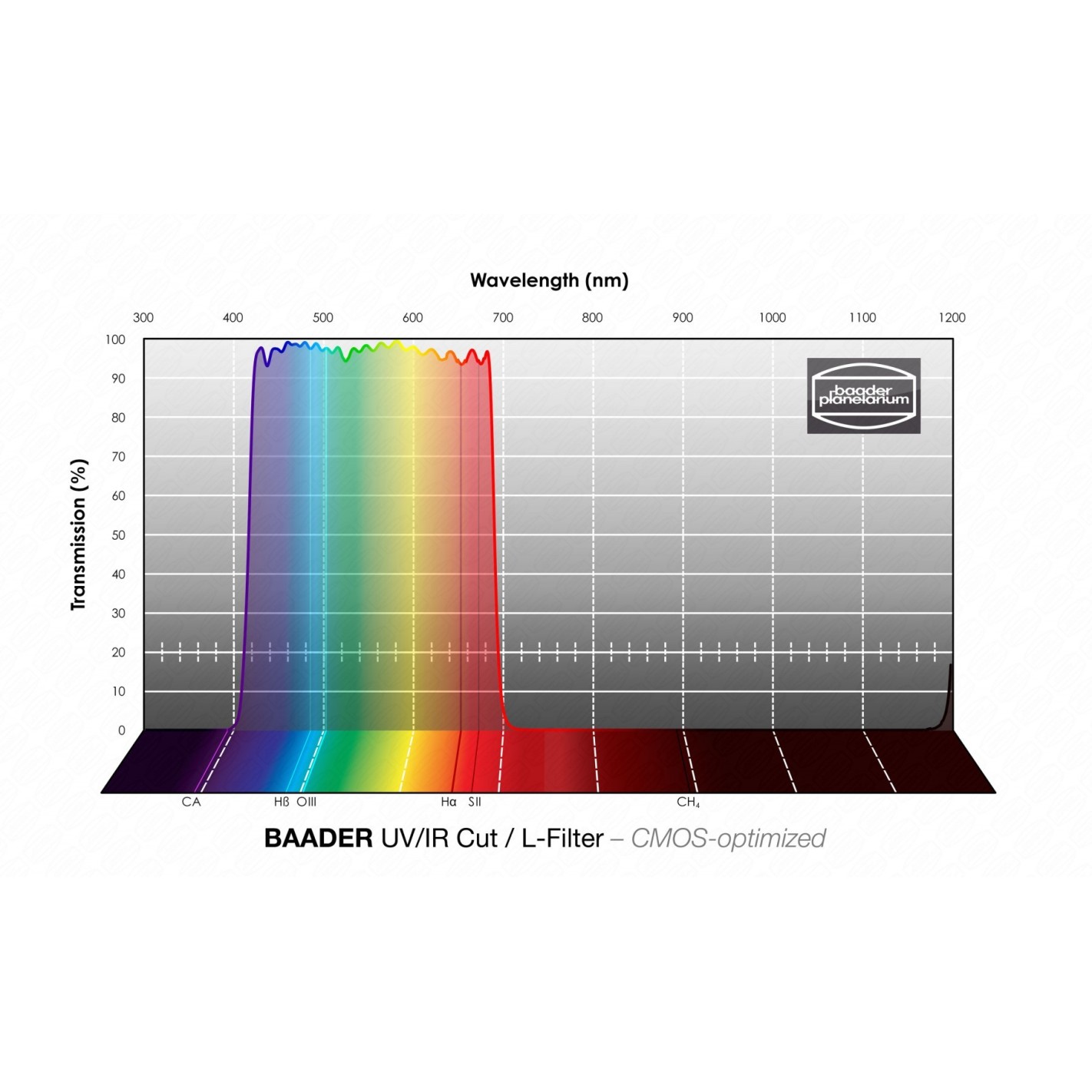

• Provides 98% transmission over the entire visible spectrum from 420 to 685 nm
• Avoids blurred star images with digital cameras and red-sensitive CCD/CMOS
• Hard-coated and planoptically polished Reflex-Blocker™ with sealed coating edges (Life-Coat™)
• Blackened edges all around, with filter lead side indicator in the form of black outer edge on the telescope side
• Optimized for modern CMOS cameras, but excellent for CCD camera technologies

Technical specifications:

• MANUFACTURER Baader Planetarium
• NET WEIGHT (KG) 0.07
• COLOR Black
• TRANSMISSION RANGE 420 - 685 nm
• FILTER THICKNESS (WITHOUT FILTER CELL) 3 mm
• CWL (CENTRAL WAVE LENGTH) UV/IR-Cut
• AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
• SPECIAL FEATURES CMOS-optimized Life-Coat™ CMOS
• FILTER SIZE 50.4 mm
• CMOS, CCD, IR-Cut, Luminance, UV-Cut FILTER USE
• FILTER ASSEMBLED Unmounted
• FILTER TYPE Bandpass
• sINGLE OR SET? Single filter
• FILTER SHAPE round

50.4 mm Baader UV/IR-Cut / L filter optimized for CMOS
