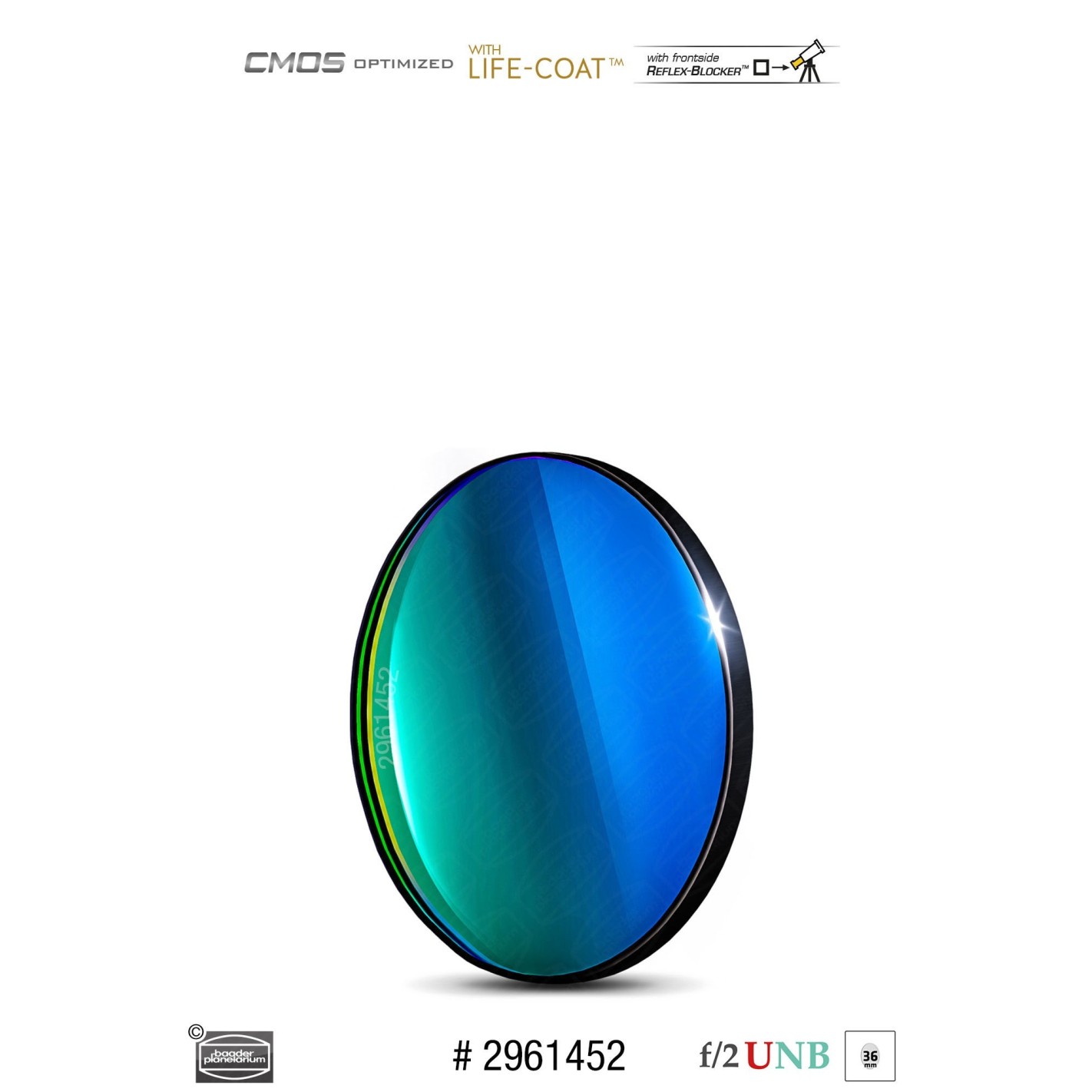

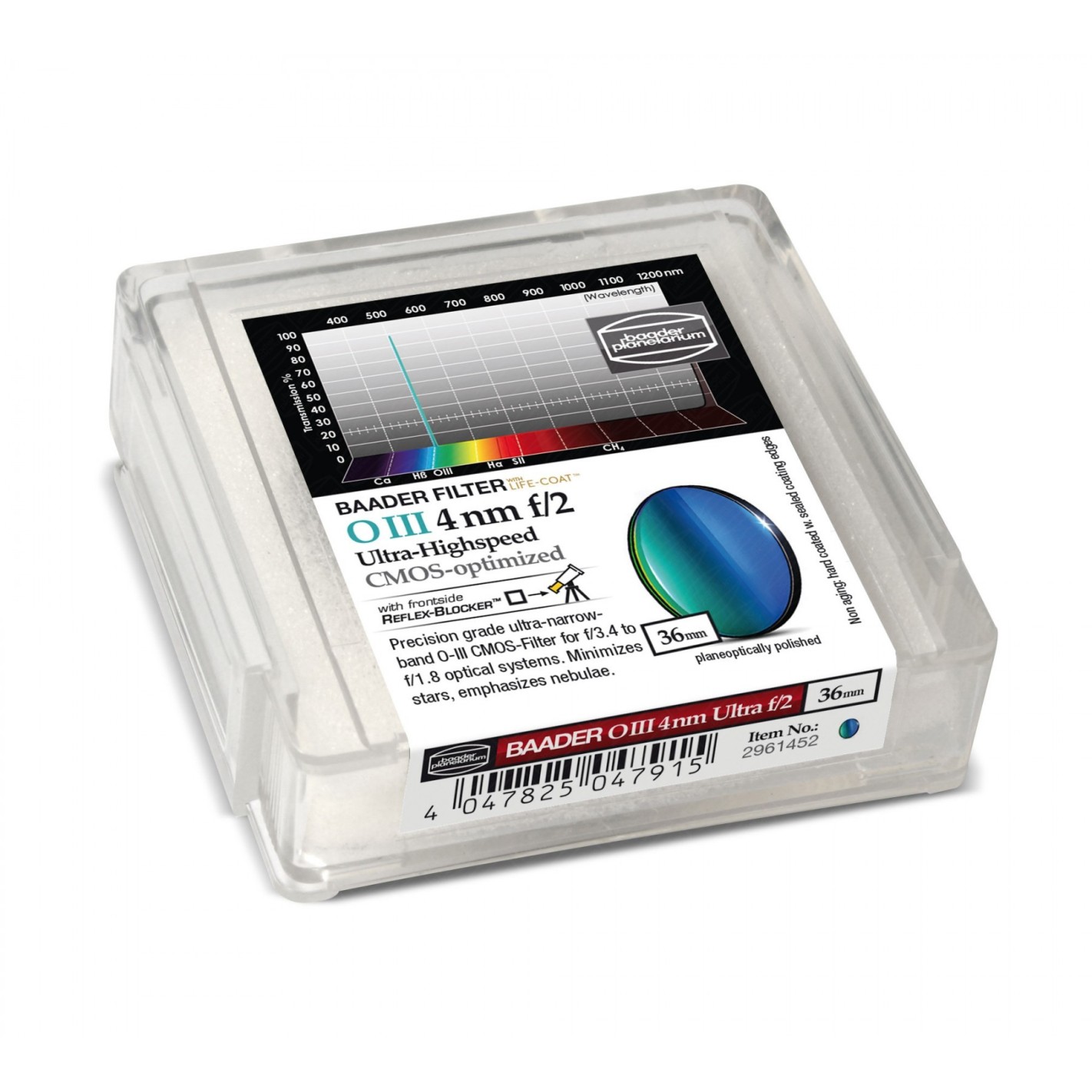

Baader O-III Ultra-Highspeed 4nm Ø 36 mm filter optimized for CMOS
Baader O-III Ultra-Highspeed 4nm Ø 36 mm filter optimized for CMOS
Baader O-III Ultra-Highspeed 4nm Ø 36 mm filter optimized for CMOS

Baader O-III Ultra-Highspeed 4nm Ø 36 mm filter optimized for CMOS

BAD2961452
Stock at Supplier
261.98
VAT excluded Shipping 5/7d

Baader O-III Ultra-Highspeed 4nm 36mm diameter filter optimized for CMOS

Buy it now and receive it between on Thursday, 9 January and Thursday, 16 January with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Thursday, 9 January - Thursday, 16 January

Home delivery - International

Home delivery - International

Estimated delivery:
Thursday, 9 January - Thursday, 16 January



36 mm diameter Baader O-III Ultra-Highspeed 4nm Ultra-Highspeed 4nm filter optimized for CMOS

This new generation of Baader CMOS filters features:

  • CMOS-optimized Baader filters
  • Increased contrast
  • Narrower and narrower pass bands
  • Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
  • FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/w ratio
  • Filter thickness identical to existing standards, with extreme care for parafocality
  • Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to additionally eliminate any reflections due to light falling on the edge of a filter
  • Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
  • Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment

General Features:

  • 36 mm x 2 mm Baader O-III ultrafast speed filter - Superior grade
  • 4 nm FWHM, recommended for f/3.4 to f/1.8 optical systems
  • Specially designed for special filter requirements when used with fast optics such as the Celestron RASA astrographs
  • For the highest contrast even with the strongest light pollution, minimizes star size, emphasizes the finest details of the nebula, indispensable under Bortle 9/8/7 / (6) skies
  • Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
  • Blackened edges all around, with filter lead side indicator in the form of a black outer edge on the front side
  • Optimized for modern CMOS cameras, but excellent for CCD camera technologies

Technical Specifications:

  • MANUFACTURER Baader Planetarium
  • NET WEIGHT (KG) 0.06
  • COLOR Black
  • TRANSMISSION RANGE O-III
  • FILTER THICKNESS (WITHOUT FILTER CELL) 2 mm
  • HBW (HALF WIDTH OF BAND) 4 nm

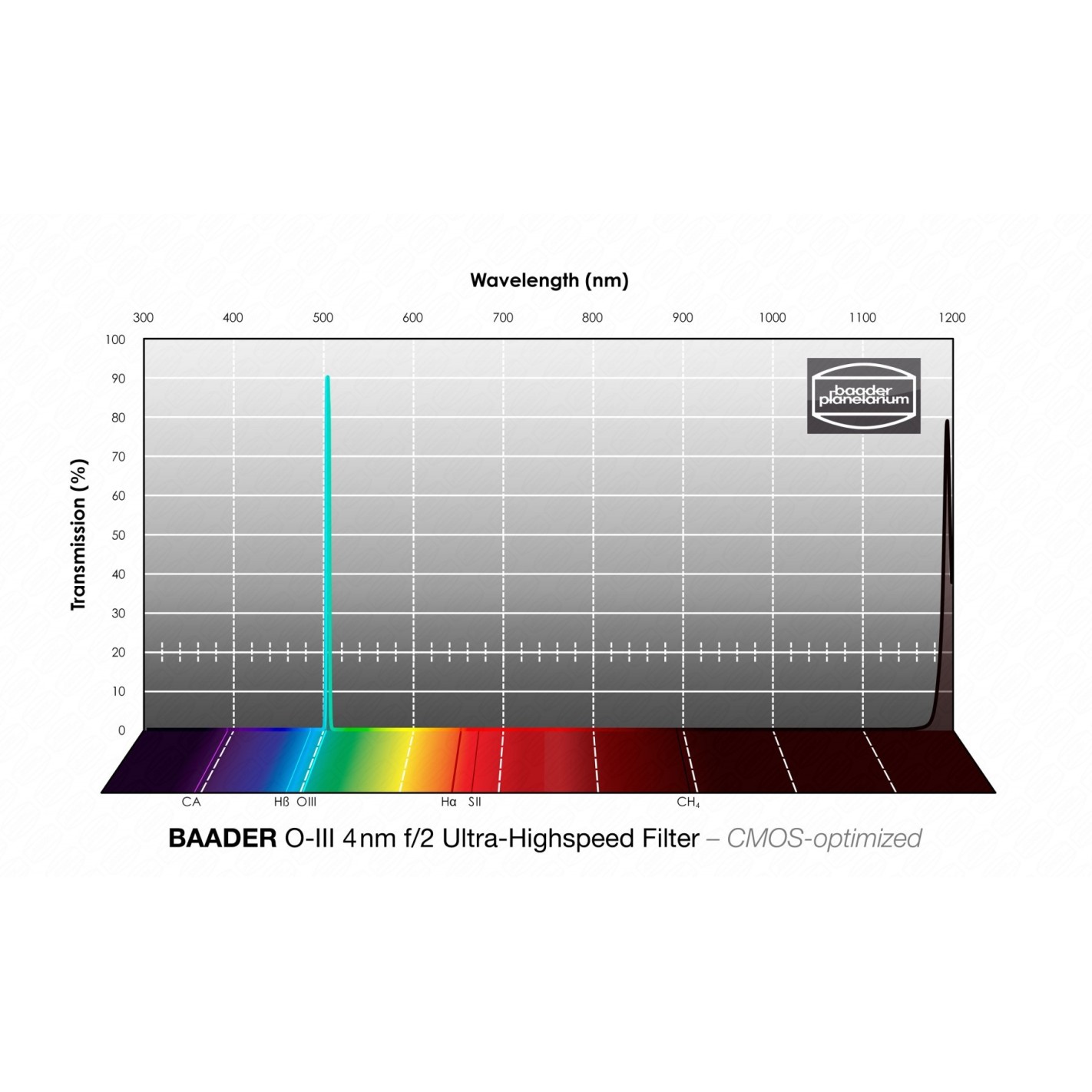

  • CWL (CENTER WAVE LENGTH) 500.7 nm
  • AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
  • SPECIAL FEATURES Life-Coat ™ optimized CMOS
  • FILTER SIZE 36 mm
  • CMOS, CCD, O-III FILTER USAGE
  • FILTER ASSEMBLED UNASSEMBLED
  • FILTER TYPE f/2 Ultra-Highspeed
  • sINGLE OR SET? Single filter
  • FILTER SHAPE round

36 mm Baader O-III Ultra-Highspeed 4nm Ultra-Highspeed 4nm filter optimized for CMOS
