Baader H-alpha Ultra-Narrowband filters 3.5nm Ø 1¼" optimized for CMOS
BAD2961325
Stock at Supplier
219.01
VAT excluded
Shipping 5/7d
Ultra narrow band filters H-alpha Baader Planetarium in 1¼" diameter and optimized to work with CMOS sensors
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 9 January - Thursday, 16 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 9 January - Thursday, 16 January
✖

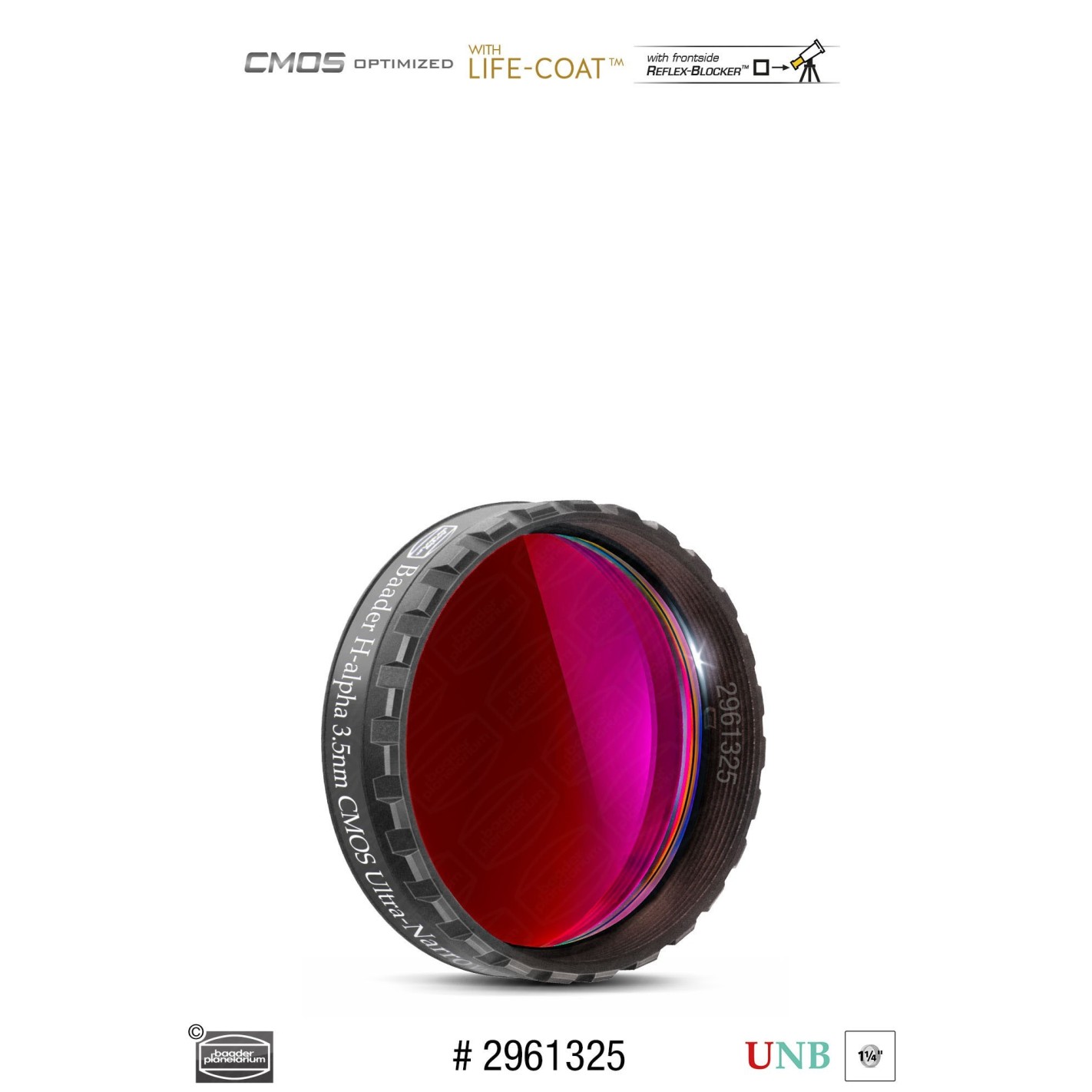

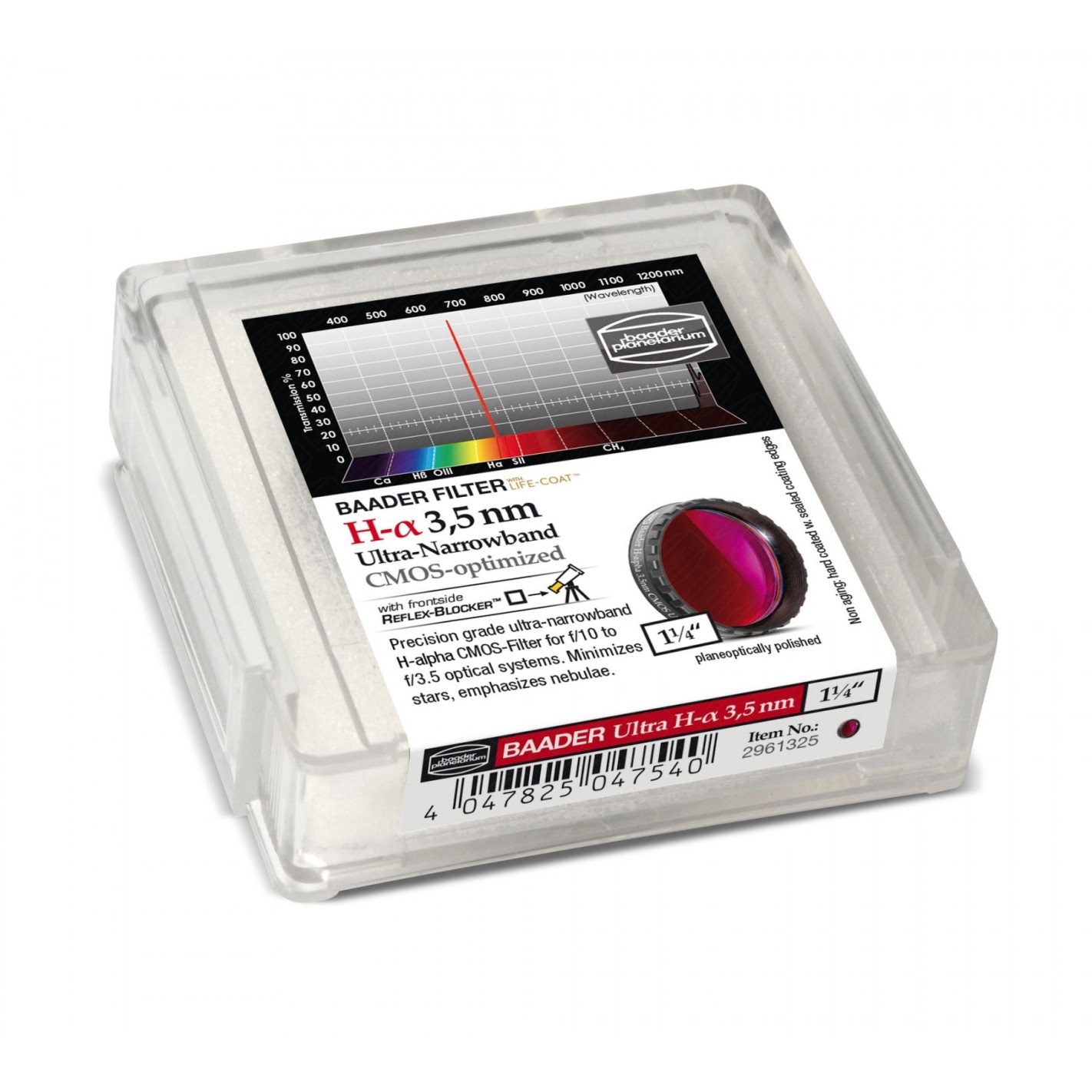

Baader H-alpha 3.5nm 1¼" Ultra-Narrowband Filters optimized for CMOS
This new generation of Baader CMOS filters features:
- CMOS-optimized Baader filters
- Increased contrast
- Increasingly narrower passbands
- Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/w ratio
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to additionally eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
- Life-Coat ™: increasingly harder coatings to allow for a coating that will not age for life, even in the harshest environment
Summary key features:
- 1¼"x 2 mm Baader H-alpha ultra narrow band filters - Precision grade - with 1¼" (28.5 mm) filter thread
- 3.5 nm FWHM (to harmonize exposure time with O-III / S-II), recommended for extremely fast f/10 to f/3.5 optical systems
- For the highest contrast even with the strongest light pollution, minimizes star size, emphasizes the finest details of the nebula, indispensable under Bortle 9/8/7 / (6) skies
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
- Mounted on Baader Low Profile Filter Cell (LPFC) - 6 mm high
MANUFACTURER Baader Planetary
NET WEIGHT(KG) 0.06
COLOR Black
TRANSMISSION RANGEH-alpha
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALF-BANDWIDTH) 3.5 nm
CWL (CENTER WAVELENGTH) 656.3 nm
AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE1 25 inch
FILTER USAGE CMOS, CCD, H-alpha
FILTER MOUNTED ON FILTER Mounted (LPFC 6 mm)
FILTER TYPEUltra-Narrowband
SINGLE OR CONJUNCTIVE? Single filter
FILTER SHAPE round
NET WEIGHT(KG) 0.06
COLOR Black
TRANSMISSION RANGEH-alpha
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALF-BANDWIDTH) 3.5 nm
CWL (CENTER WAVELENGTH) 656.3 nm
AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE1 25 inch
FILTER USAGE CMOS, CCD, H-alpha
FILTER MOUNTED ON FILTER Mounted (LPFC 6 mm)
FILTER TYPEUltra-Narrowband
SINGLE OR CONJUNCTIVE? Single filter
FILTER SHAPE round
Ultra-Narrowband Baader H-alpha 3.5nm 1¼" Ultra-Narrowband Filters optimized for CMOS
