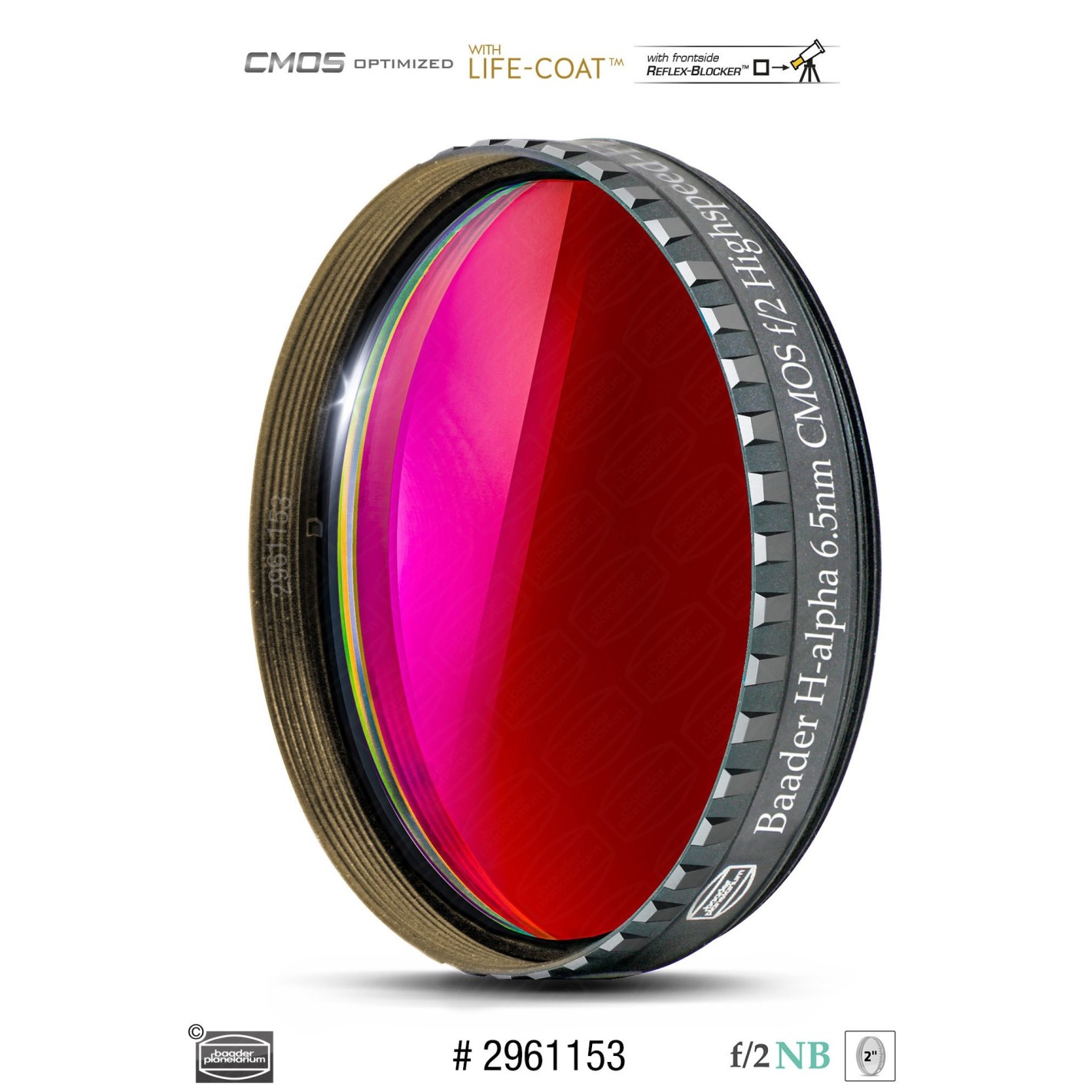

Baader H-alpha 6.5nm 2" Highspeed Filters optimized for CMOS
This new generation of Baader CMOS filters features:
- CMOS-optimized Baader filters
- Increased contrast
- Increasingly narrower pass bands
- Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/w ratio
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to additionally eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
- Life-Coat ™: increasingly harder coatings to allow for a coating that will not age for life, even in the harshest environment
Summary key features:
- Baader H-alpha 2 "x 2 mm high speed filters - Precision grade - with 2" (M48) filter thread
- 6.5 nm FWHM, recommended for f/3.4 to f/1.8 optical systems
- Specially designed for special filter requirements when used with fast optics like astrographs Celestron RASA
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
- Mounted on Baader low profile filter cell (LPFC) - 6 mm high
MANUFACTURER Baader Planetary
NET WEIGHT(KG) 0.07
COLOR Black
TRANSMISSION RANGEH-alpha
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALF-BANDWIDTH) 6.5 nm
CWL (CENTER WAVELENGTH) 656.3 nm
AR-COATING Reflex-Blocker ™ hard-coated, planoptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE2 inches
FILTER USAGE CMOS, CCD, H-alpha
FILTER MOUNTED ON FILTER MOUNTED (LPFC 6 mm)
FILTER TYPEf / 2 Highspeed
SINGLE OR JOINT? Single filter
FILTER SHAPE round
Highspeed Baader H-alpha 6.5nm 2" Highspeed Filters optimized for CMOS
