Set of Baader Highspeed 6.5nm Ø 1¼" filters optimized for CMOS (H-alpha / O-III / S-II)
BAD2961660
Stock at Supplier
346.28
VAT excluded
Shipping 5/7d
New set of BAADER PLANETARIUM high-speed filters in 1¼" diameter and optimized to work with CMOS sensors
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Wednesday, 2 October - Wednesday, 9 October |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Wednesday, 2 October - Wednesday, 9 October
✖

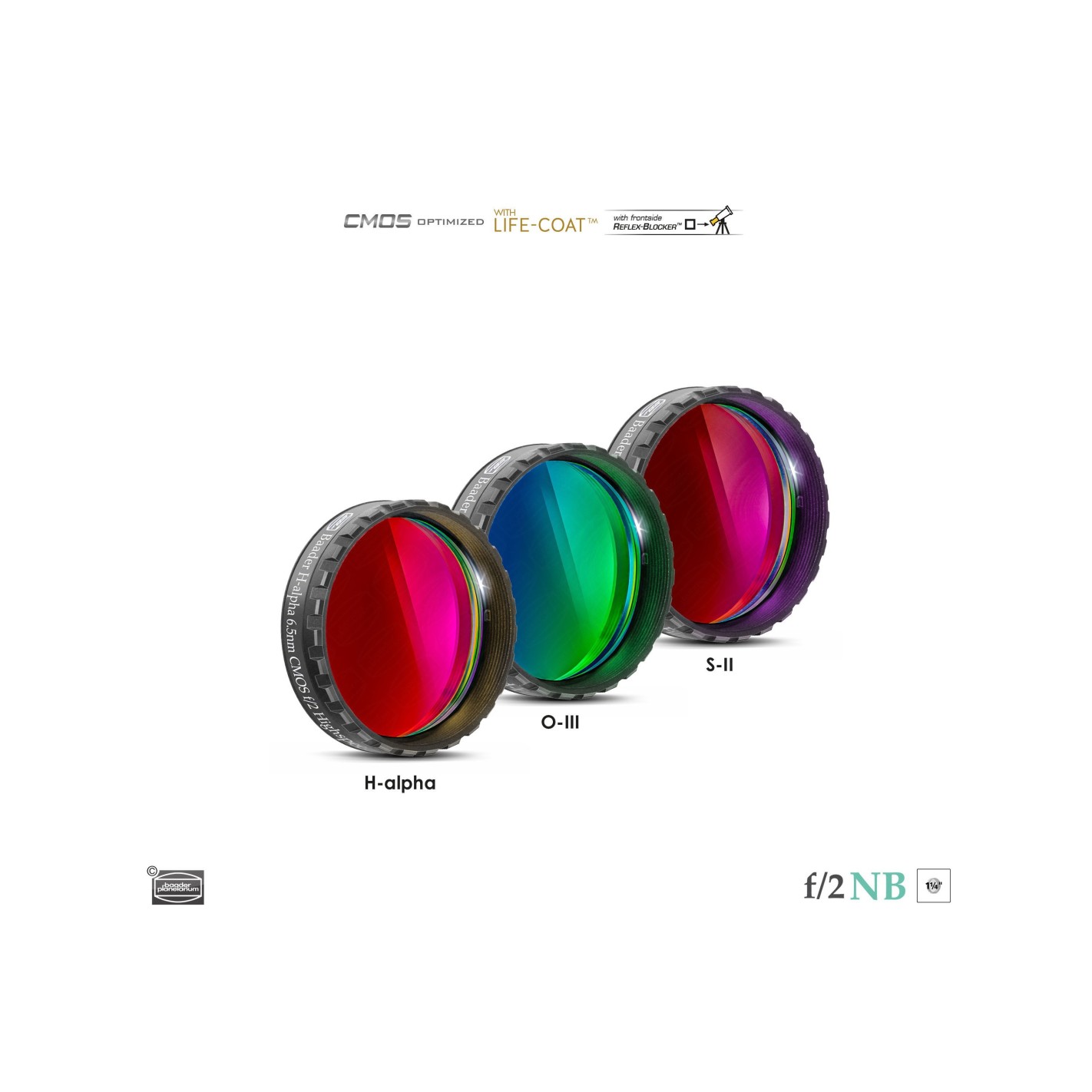

Baader Highspeed 6.5nm 1¼" CMOS optimized filter set (H-alpha / O-III / S-II)
This new generation of Baader CMOS filters features:
- CMOS optimized Baader filters
- Increased contrast
- Increasingly narrower pass bands
- Reflex-Blocker™ coatings for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/w ratio
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to additionally eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings)
- Life-Coat ™: increasingly harder coatings to allow for a coating that will not age for life, even in the harshest environment
Summary key features:
- Baader H-alpha / O-III / S-II 1¼" x 2 mm high-speed filter set - Precision grade - with 1¼" (28.5 mm) filter thread
- 6.5 nm FWHM, recommended for f/3.4 to f/1.8 optical systems
- Specially designed for special filter requirements when used with fast optics like astrographs Celestron RASA
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
- Mounted on Baader low profile filter cell (LPFC) - 6 mm high
MANUFACTURER Baader Planetary
NET WEIGHT(KG) 0.18
COLOR Black
TRANSMISSION RANGEH-alpha / O-III / S-II
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALF-BANDWIDTH) 6.5 nm
CWL (CENTER WAVE LENGTH) 656.3 nm / 500.7 nm / 671.7 nm
AR-COATING Reflex-Blocker ™ hard-coated, planoptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE1 25 inch
FILTER USAGE CMOS, CCD, H-alpha, O-III, S-II
FILTER-MOUNTED Mounted (LPFC 6 mm)
FILTER TYPEf / 2 Highspeed
SINGLE OR ASSEMBLY? Filter set
FILTER SHAPE round
NET WEIGHT(KG) 0.18
COLOR Black
TRANSMISSION RANGEH-alpha / O-III / S-II
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALF-BANDWIDTH) 6.5 nm
CWL (CENTER WAVE LENGTH) 656.3 nm / 500.7 nm / 671.7 nm
AR-COATING Reflex-Blocker ™ hard-coated, planoptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE1 25 inch
FILTER USAGE CMOS, CCD, H-alpha, O-III, S-II
FILTER-MOUNTED Mounted (LPFC 6 mm)
FILTER TYPEf / 2 Highspeed
SINGLE OR ASSEMBLY? Filter set
FILTER SHAPE round
Baader Highspeed 6.5nm 1¼" Highspeed filter set optimized for CMOS (H-alpha / O-III / S-II)
