Set of 3 Ultra-Narrowband-Filter-Set 50x50 mm - CMOS-optimized (H-alpha / O-III / S-II)
Baader H-alpha / O-III / S-II ultra narrow band filter set 50x50 mm x 3 mm - Top grade
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Wednesday, 4 December - Wednesday, 11 December |
Home delivery - International
Home delivery - International
Estimated delivery:
Wednesday, 4 December - Wednesday, 11 December

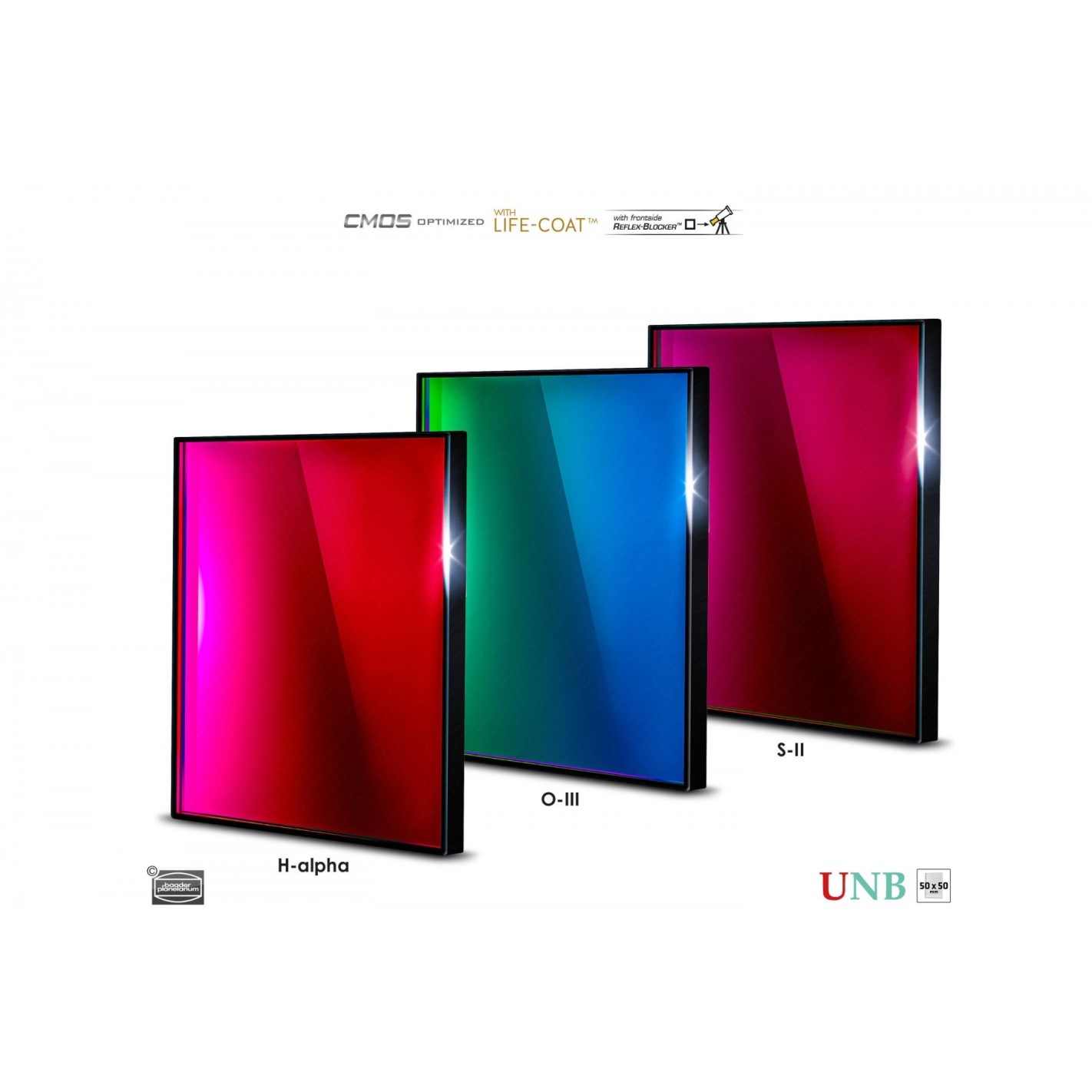

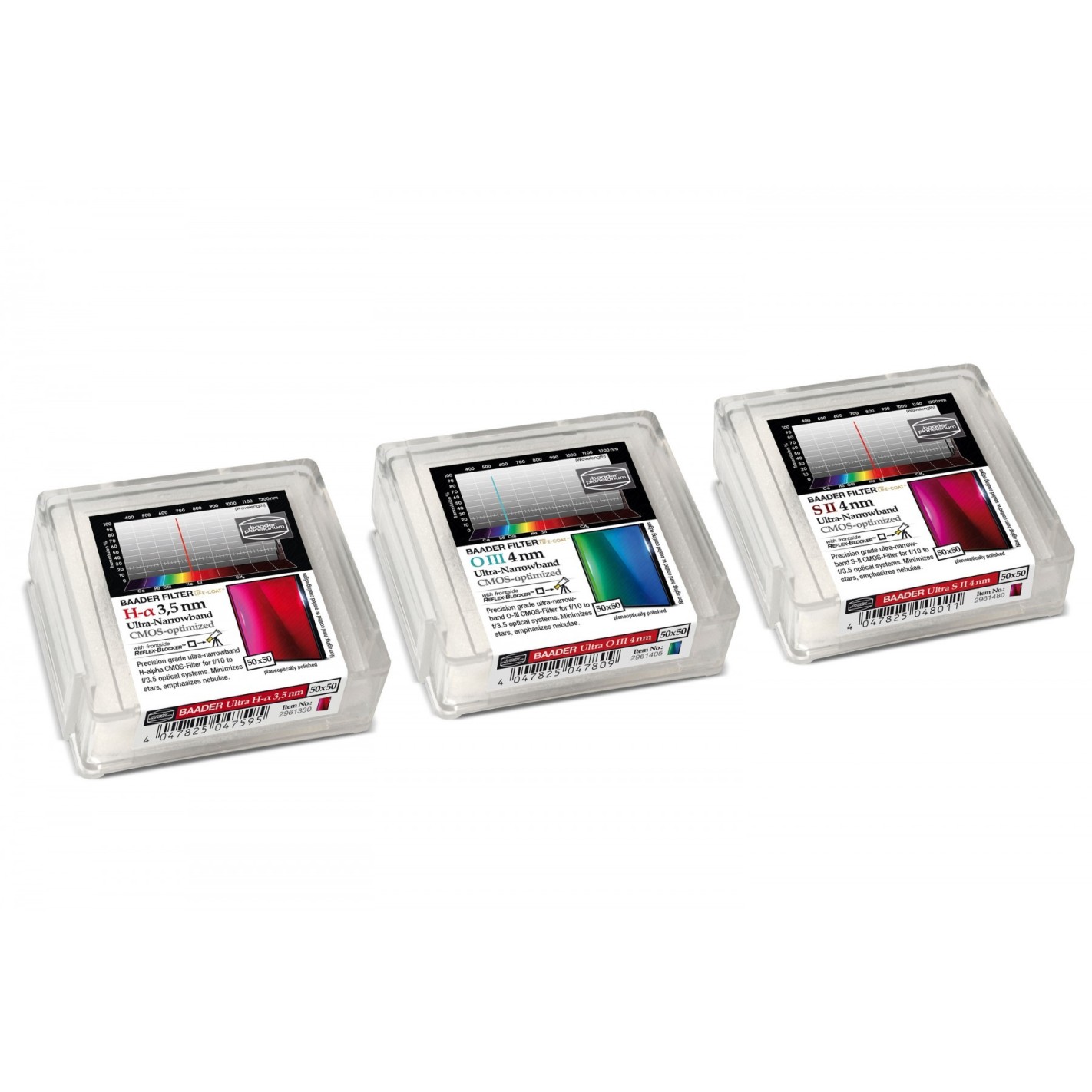

Baader H-alpha / O-III / S-II ultra narrow band filter set 50x50 mm x 3 mm - Top grade
3.5 / 4 nm FWHM (to harmonize H-alpha exposure time with O-III / S-II), recommended for f/10 to f/3 optical systems.5
For the highest contrast even with the strongest light pollution, minimizes star size, emphasizes the finest nebula details, indispensable under Bortle skies 9/8/7 / (6)
Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side
Optimized for modern CMOS cameras, but excellent for CCD camera technologies
MANUFACTURER Baader Planetarium
NET WEIGHT (KG) 0.22
COLOR Black
TRANSMISSION RANGE H-alpha / O-III / S-II
FILTER THICKNESS (WITHOUT CELL) 3 mm

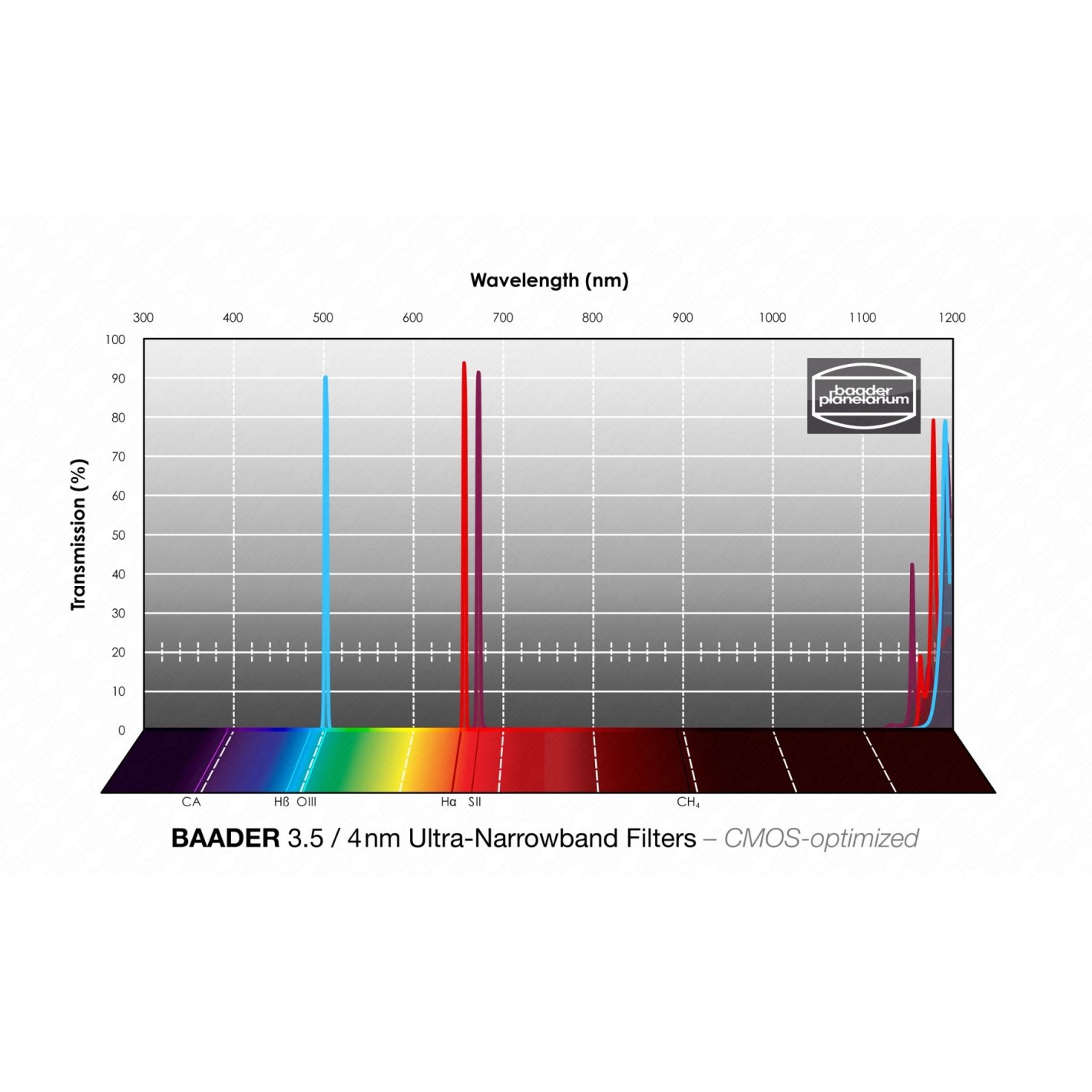

HBW (HALF BANDWIDTH) 3,5 nm (H-alpha) / 4 nm (O-III / S-II)
CWL (CENTER WAVE LENGTH) 656.3 nm / 500.7 nm / 671.7 nm
AR-COATING Reflex-Blocker ™ hard-coated, planoptically polished
SPECIAL FEATURES CMOS optimized with Life-Coat ™
FILTER SIZE 50x50 mm
FILTER USAGE CMOS, CCD, H-alpha, O-III, S-II
FILTER ASSEMBLED Unmounted
FILTER TYPE Ultra Narrow Band
SOLO OR ASSEMBLY? Filter assembly
FILTER SHAPE square
