This new generation of Baader CMOS filters features:
Baader filters optimized for CMOS
- Increased contrast, combined with typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings, read more)
- Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment
GENERAL FEATURES:

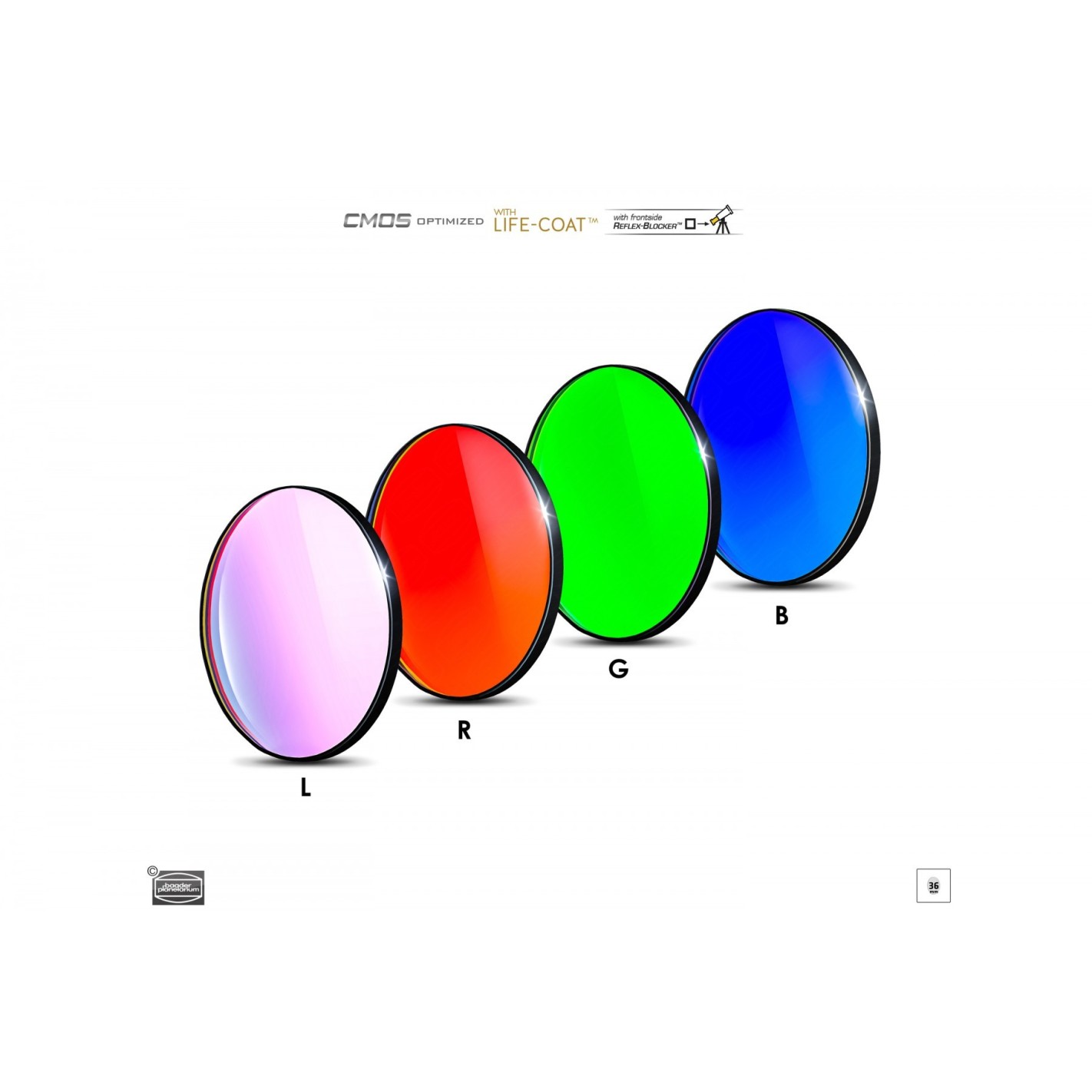

- LRGB Baader 36mm x 2mm LRGB bandpass filter set, suitable from f / 15 af / 1.8
- Anti-reflective RGB filter (red / green / blue) with extremely high transmission of the respective color channel, simultaneously reducing stray light and reflections to an unprecedented level
- Including UV / IR cut-off (L-filter) with 98% transmission across the entire visible spectrum from 420 to 685
- Balanced RGB design allows taking subframes with the same exposure time, which is extremely important for automated imaging tasks.
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the telescope side
- Optimized for modern CMOS cameras, but equally excellent for CCD camera technologies
Technical specifications:
- NET WEIGHT (KG) 0.06
- COLOR Black

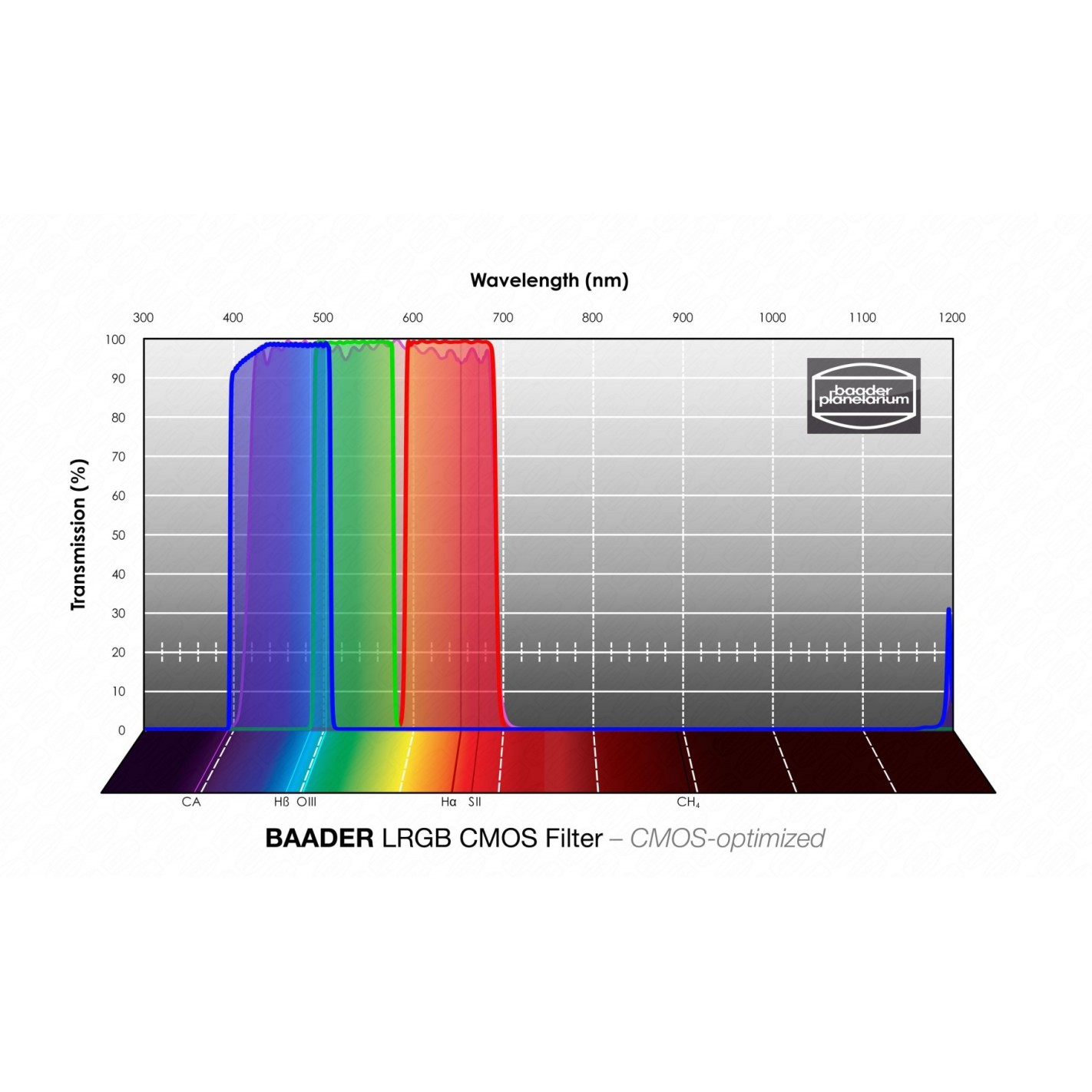

- TRANSMISSION RANGE L (420 - 685 nm), R (595 - 690 nm), G (490 - 580 nm), B (400 - 510 nm)
- FILTER THICKNESS (WITHOUT CELL) 2 mm
- CWL (CENTER WAVELENGTH) LRGB
- AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
- SPECIAL FEATURES Life-Coat ™ optimized CMOS
- FILTER SIZE 36 mm
- FILTER USAGE CMOS, CCD, IR-Cut, Luminance, RGB, UV-Cut
- FILTER ASSEMBLED Unmounted
- FILTER TYPE Bandpass
- sINGLE OR SET? Filter set
- FILTER SHAPE round
LRGB filter set Ø 36mm Optimized for CMOS from Baader Planetarium
