Baader H-alpha 6.5nm 2" filter optimized for CMOS

Baader H-alpha 6.5nm 2" filter optimized for CMOS

Name: Baader H-alpha 6.5nm 2" filter optimized for CMOS
Brand: Baader Planetarium
SKU: BAD2961103
Price: 194.21 EUR
Availability: PreOrder

Reference BAD2961103

Stock at Supplier

194.21

VAT excluded Shipping 5/7d

Baader Narrowband H-alpha 6.5nm 2" filter optimized for CMOS

Buy it now and receive it between on Friday, 15 November and Friday, 22 November with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Friday, 15 November - Friday, 22 November

Home delivery - International

Estimated delivery:
Friday, 15 November - Friday, 22 November

✖

Description
Product Details

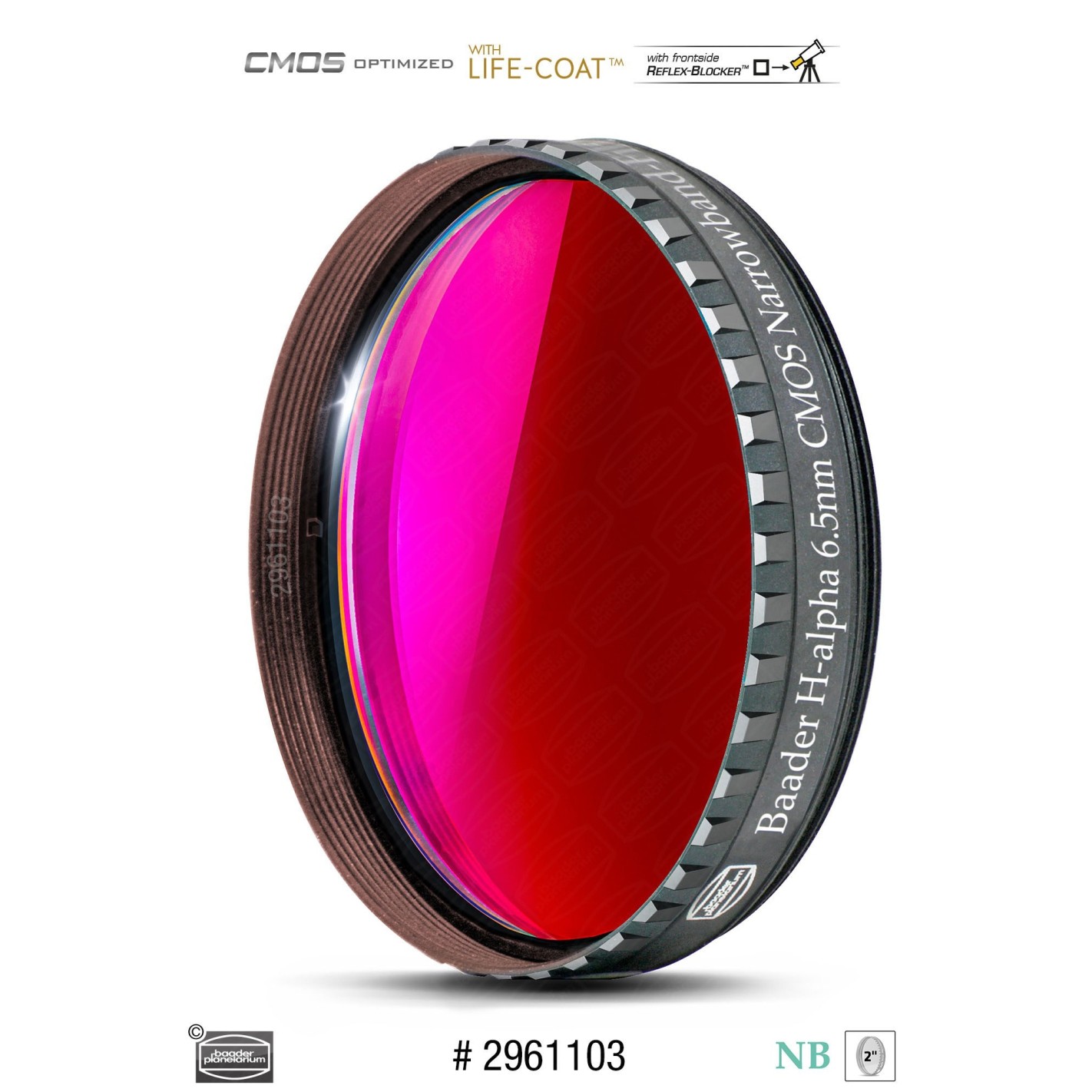

Baader H-alpha 6.5nm 2" Narrow band filter optimized for CMOS

This new generation of Baader CMOS filters features:

Increased contrast

Narrower and narrower pass bands
Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/n ratio
Filter thickness identical to existing standards, with extreme care for parafocality
Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to further eliminate any reflections due to light falling on the edge of a filter
Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings, read more)
Life-Coat ™: increasingly hard coatings to enable a coating that will not age for life, even in the harshest environment

General features:

2" x 2 mm Baader H-alpha narrow band filter - Precision grade with M48 thread
6.5 nm FWHM, recommended for f / 10 af / 3.5 optical systems
Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side
Optimized for modern CMOS cameras, but excellent for CCD camera technologies

Technical Specifications:

SKU (#) 2961103
EAN CODE 4047825046949
WEIGHT (KG) 0.07
COLOR Black
Transmission range H-alpha
Filter thickness (without cell) 2 mm
BANDWIDTH 6.5 nm

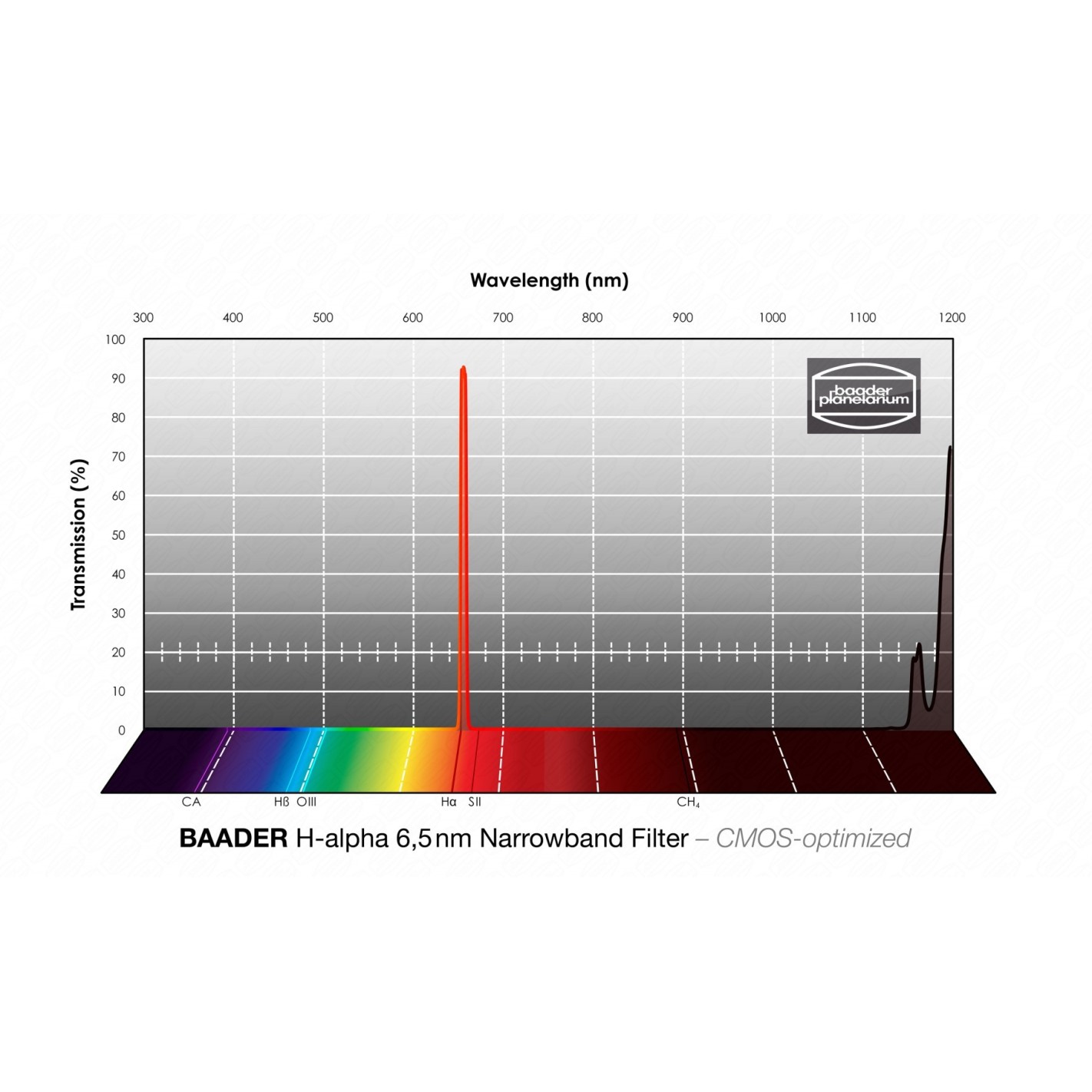

CWL (CENTRAL WAVELENGTH) 656.3 nm
AR-COATING Reflex-Blocker™ anti-scratch coating, planoptic polished
Diameter 2"
FILTER USAGE: CMOS, CCD, H-alpha
MOUNT 2" with M48 thread
FILTER TYPE Narrowband, Narrowband
FILTER SHAPE Round

Narrowband Baader H-alpha 6.5nm 2" filter optimized for CMOS
