Baader OIII Ultra Narrowband 4nm 36mm filter optimized for CMOS
Baader OIII Ultra Narrowband 4nm 36mm filter optimized for CMOS
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Wednesday, 4 December - Wednesday, 11 December |
Home delivery - International
Home delivery - International
Estimated delivery:
Wednesday, 4 December - Wednesday, 11 December
Baader OIII Ultra Narrowband 4nm 36mm filter optimized for CMOS
This new generation of Baader CMOS filters features:
- CMOS optimized Baader filters
- Increased contrast
- Narrower and narrower pass bands
- Reflex-Blocker ™ coatings, for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/n ratio
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to further eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings, read more)
- Life-Coat ™: increasingly hard coatings to allow for a coating that will not age for life, even in the harshest environment
General features:

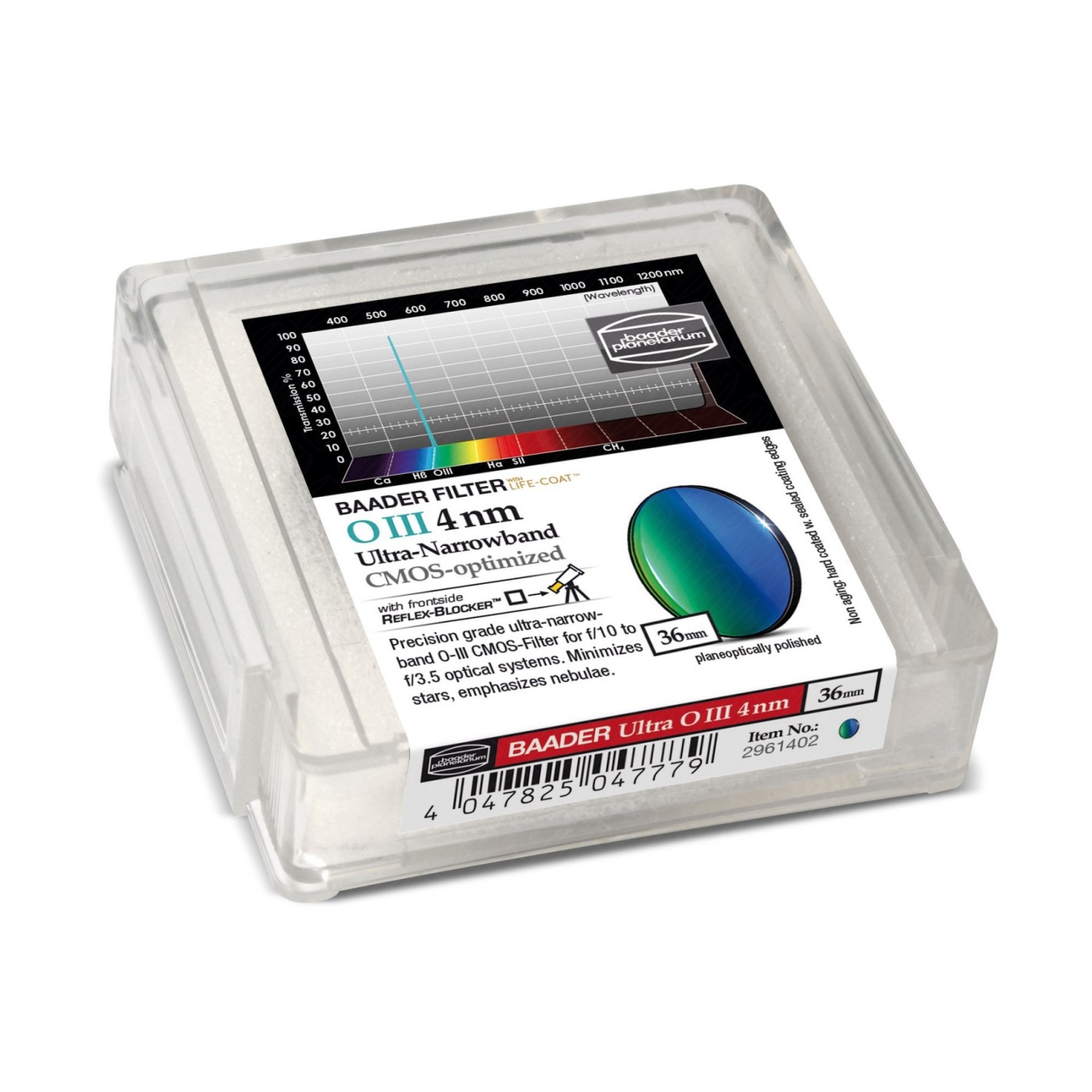

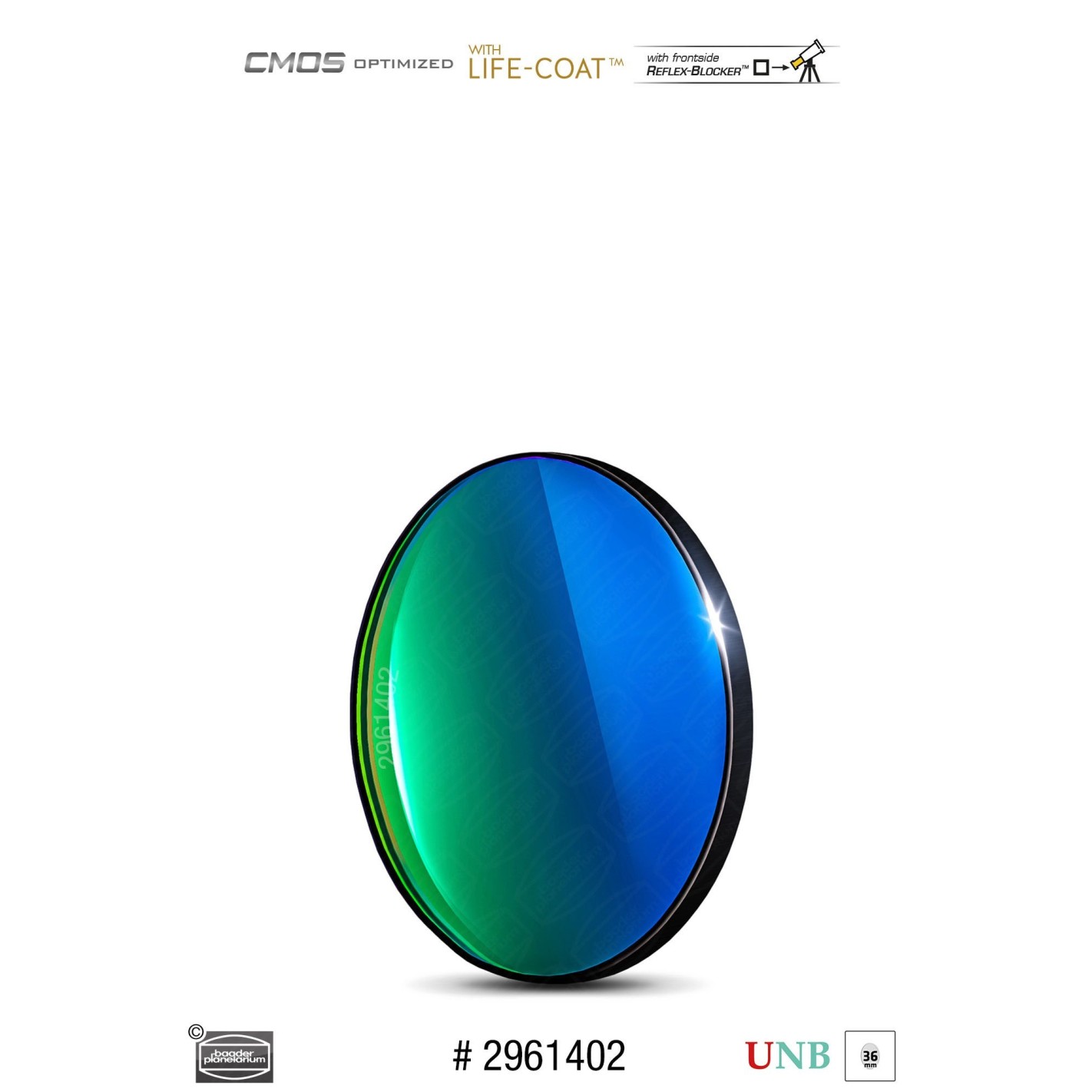

- 36 mm x 2 mm Baader O-III ultra narrow band filter - Superior grade
- 4 nm FWHM, recommended for f / 10 af / 3.5 optical systems
- For the highest contrast even with the strongest light pollution, minimizes star size, emphasizes the finest details of the nebula, indispensable under Bortle 9/8/7 / (6) skies
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
Technical Specifications:
- SKU (#) 2961402
- EAN CODE 4047825047779
- NET WEIGHT (KG) 0.06
- COLOR Black
- TRANSMISSION RANGE O-III
- FILTER THICKNESS (WITHOUT FILTER CELL) 2 mm

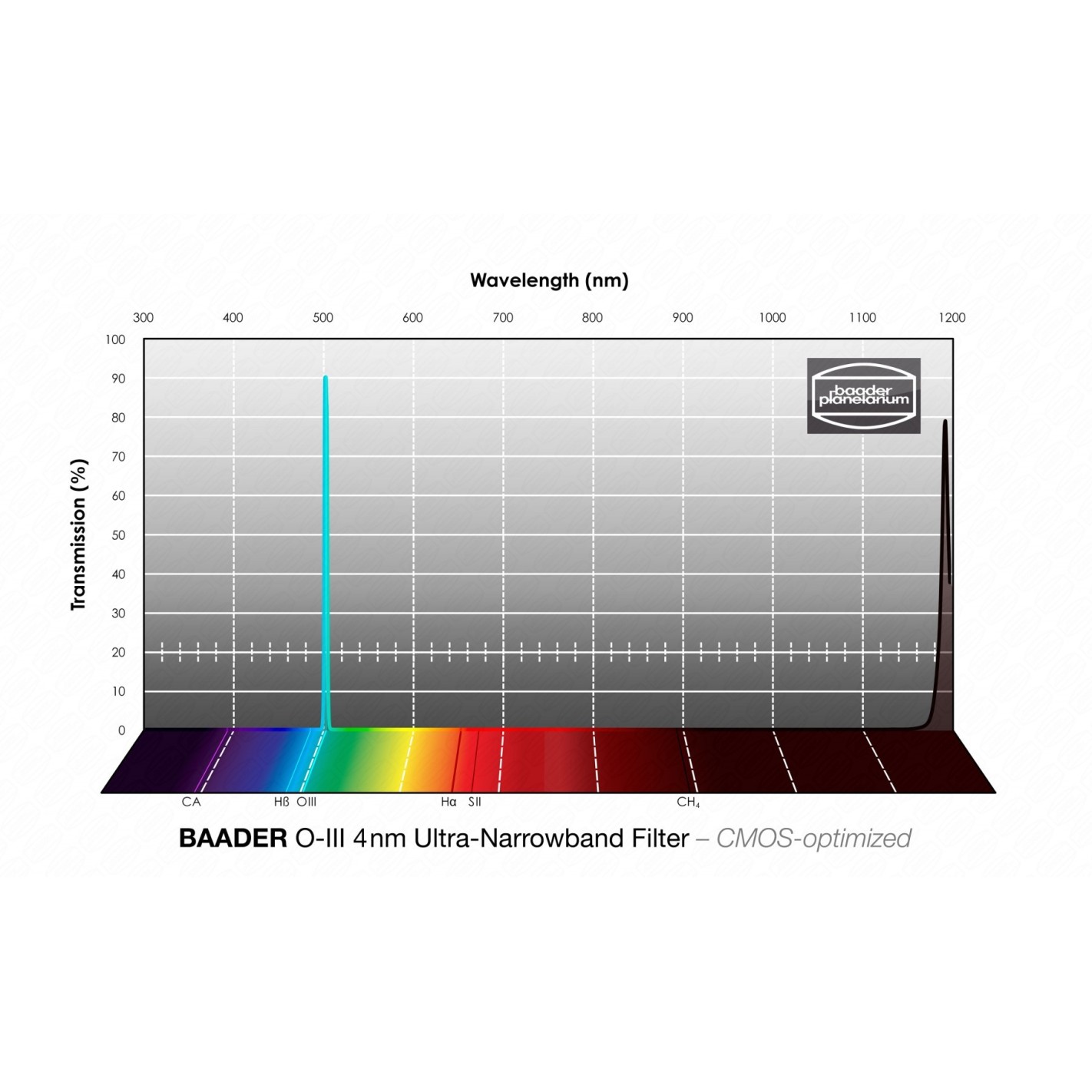

- HBW (HALF BANDWIDTH) 4 nm
- CWL (CENTER WAVELENGTH LENGTH) 500.7 nm
- AR-COATING Reflex-Blocker ™ hard-coated, planaroptically polished
- SPECIAL FEATURES Life-Coat ™ optimized CMOS
- FILTER SIZE 36 mm
- CMOS, CCD, O-III FILTER USAGE
- FILTER ASSEMBLED Unmounted
- FILTER TYPE Ultra Narrow Band
- sINGLE OR SET? Single filter
- FILTER SHAPE round
