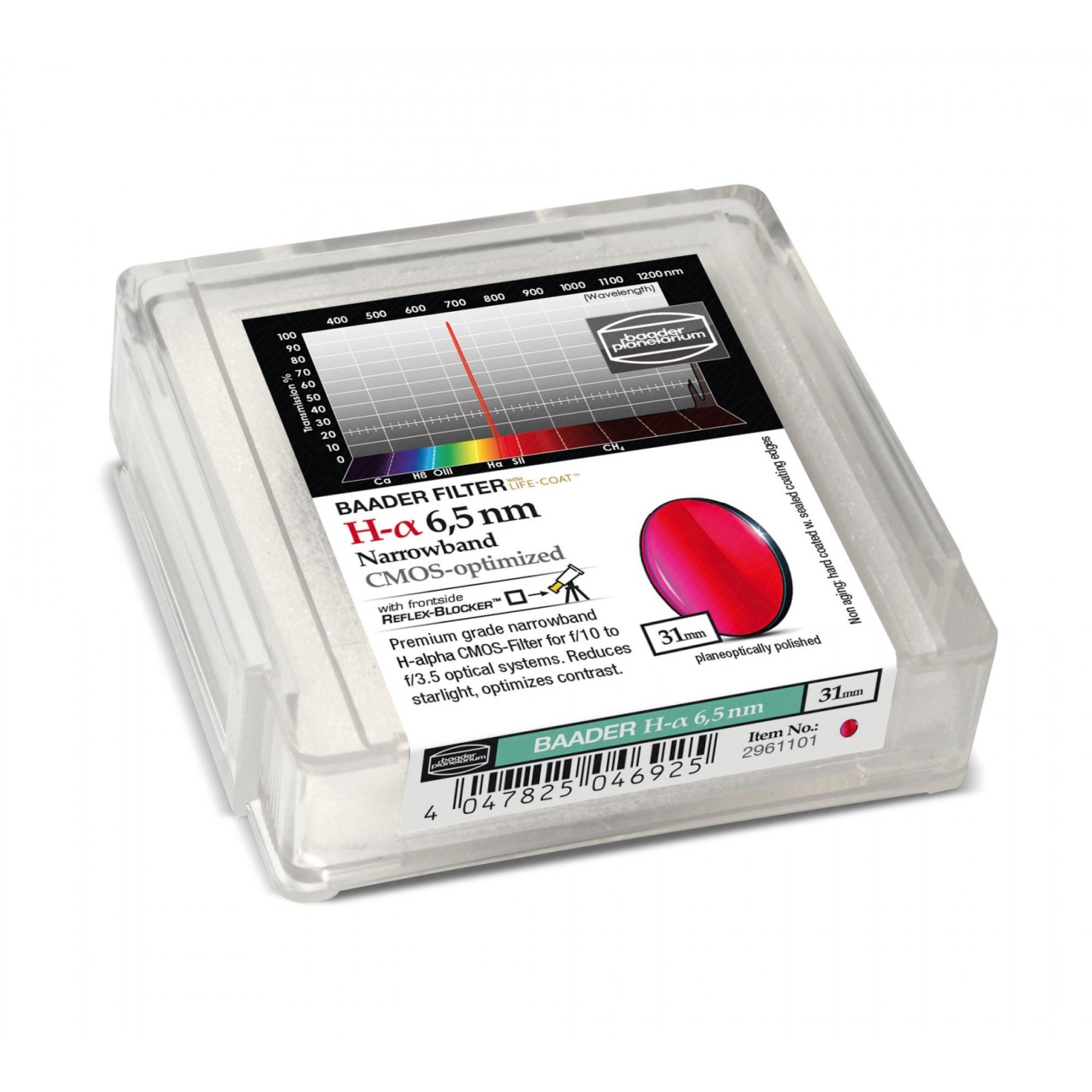

Baader H-alpha 6.5nm 31mm filter optimized for CMOS
BAD2961101
Last items in stock
119.83
VAT excluded
Shipping 24/48h
Baader H-alpha 6.5nm 31mm filter optimized for CMOS
Delivery Options
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Monday, 11 November - Monday, 18 November |
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 11 November - Monday, 18 November
✖
Baader H-alpha 6.5nm 31mm filter optimized for CMOS
This new generation of Baader CMOS filters features:
- Increased contrast
- Ever narrower passbands
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life - even in a most adverse environment
General features:

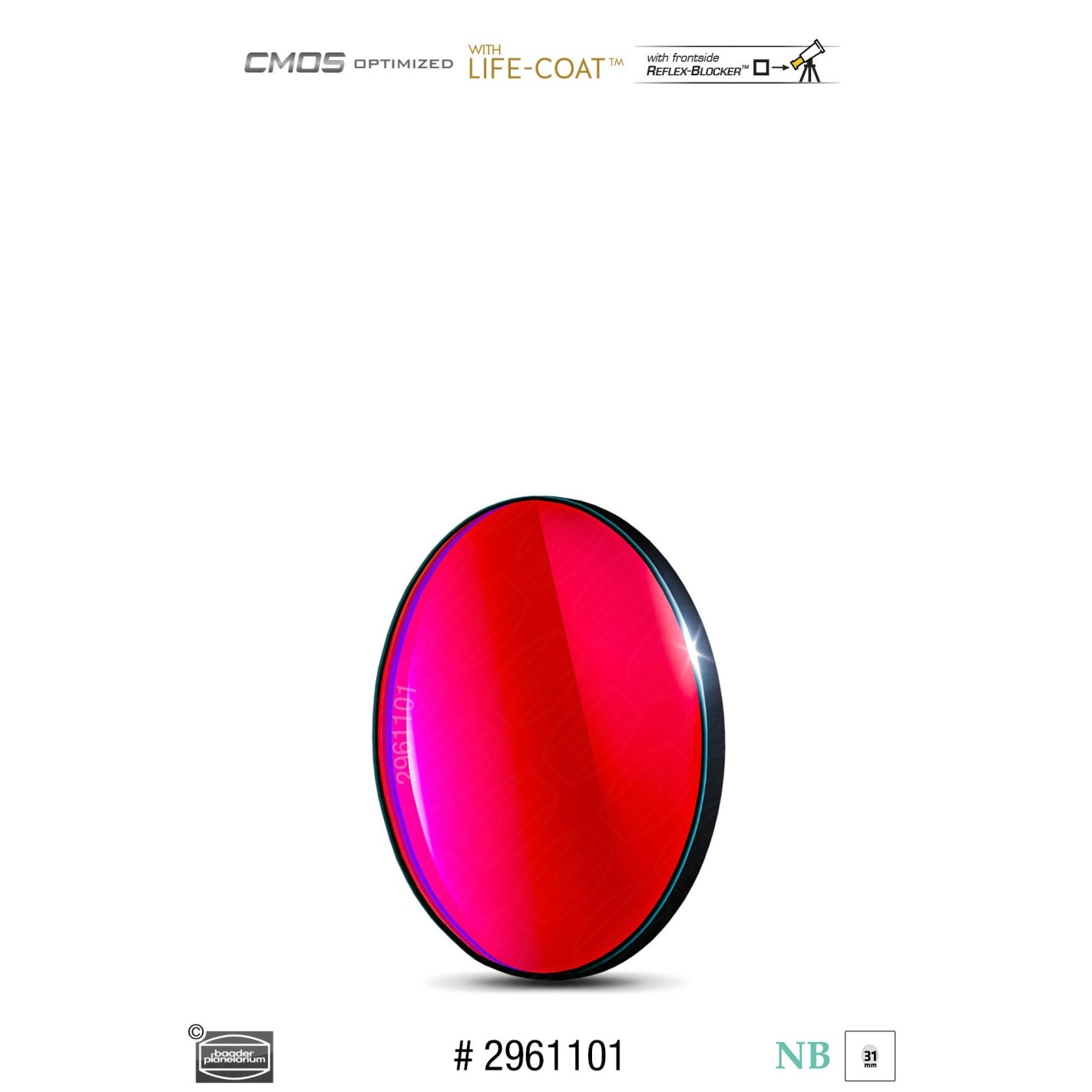

- 31 mm x 2 mm Baader H-alpha narrow band filter - Accuracy grade
- 6.5 nm FWHM, recommended for f / 10 af / 3.5" optical systems
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
Technical Specifications:
- SKU (#) 2961101
- EAN CODE 4047825046925
- WEIGHT (KG) 0.06
- COLOR Black
- Transmission range H-alpha
- FILTER THICKNESS (without cell) 2 mm

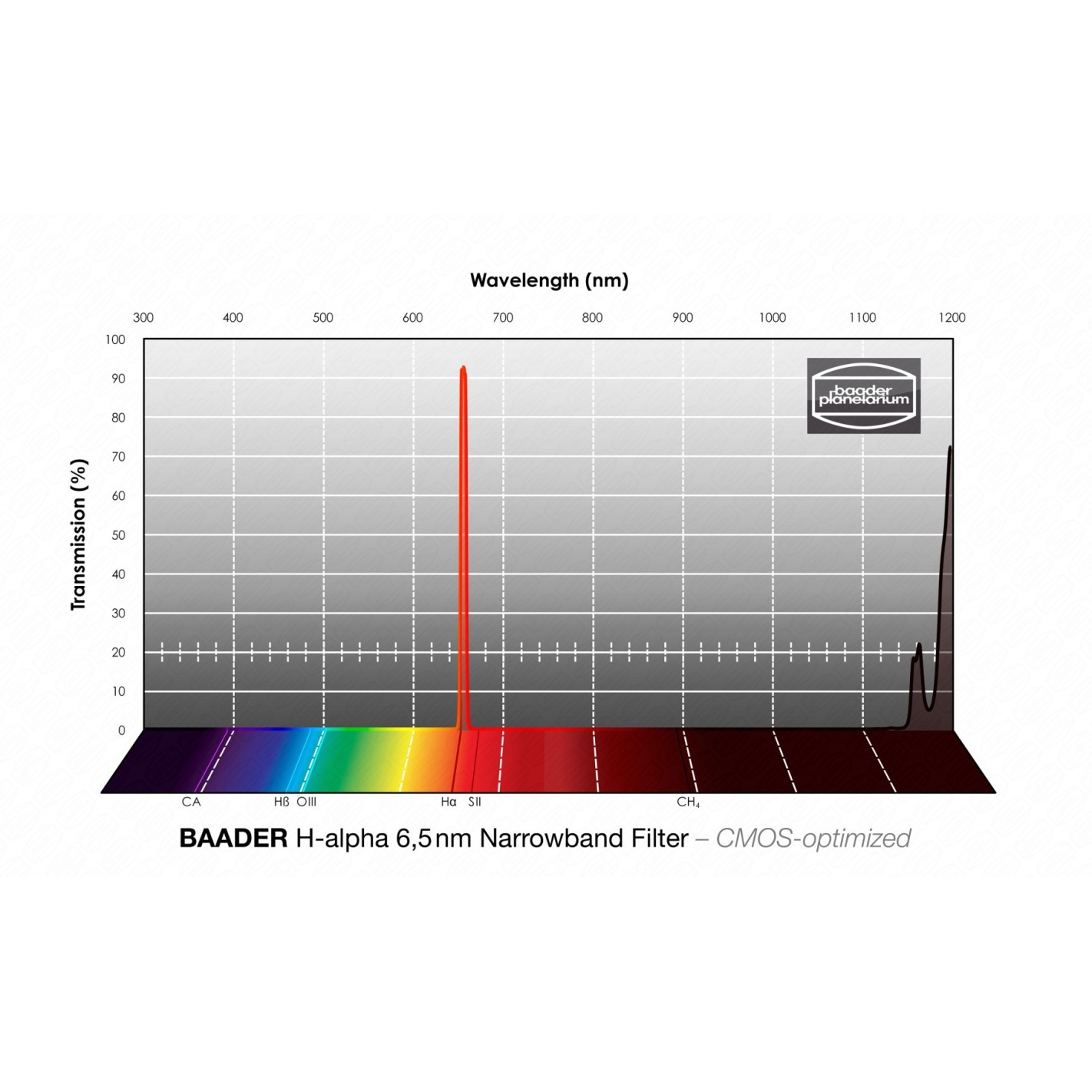

- BANDWIDTH 6.5 nm
- CWL (CENTRAL WAVELENGTH) 656.3 nm
- AR-COATING Reflex-Blocker™ anti-scratch coating, planoptically polished
- Diameter 31 mm
- FILTER APPLICATION: CMOS, CCD, H-alpha
- MOUNTING No mount, no cell
- FILTER TYPE Narrowband, Narrowband
- FILTER SHAPE Round
