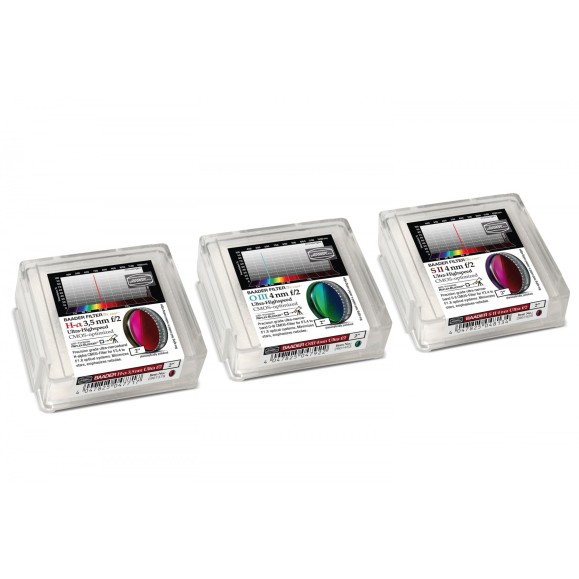

Set of Baader Ultra-Highspeed 3.5 and 4nm 2" filters optimized for CMOS (H-alpha / O-III / S-II)
New set of Baader Ultra-Highspeed 3.5 and 4nm 2" CMOS-optimized filters (H-alpha / O-III / S-II)
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Thursday, 5 December - Thursday, 12 December |
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 5 December - Thursday, 12 December

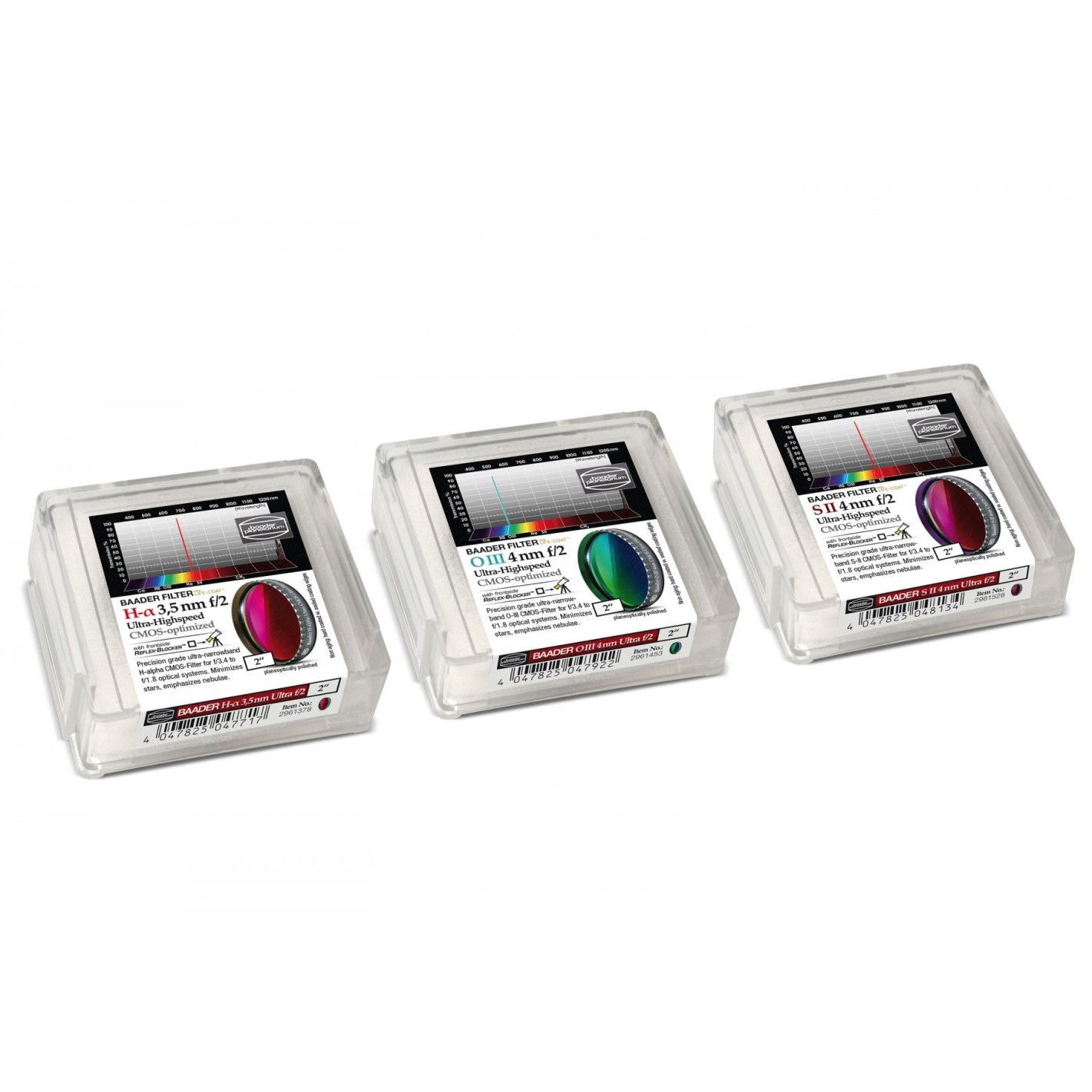

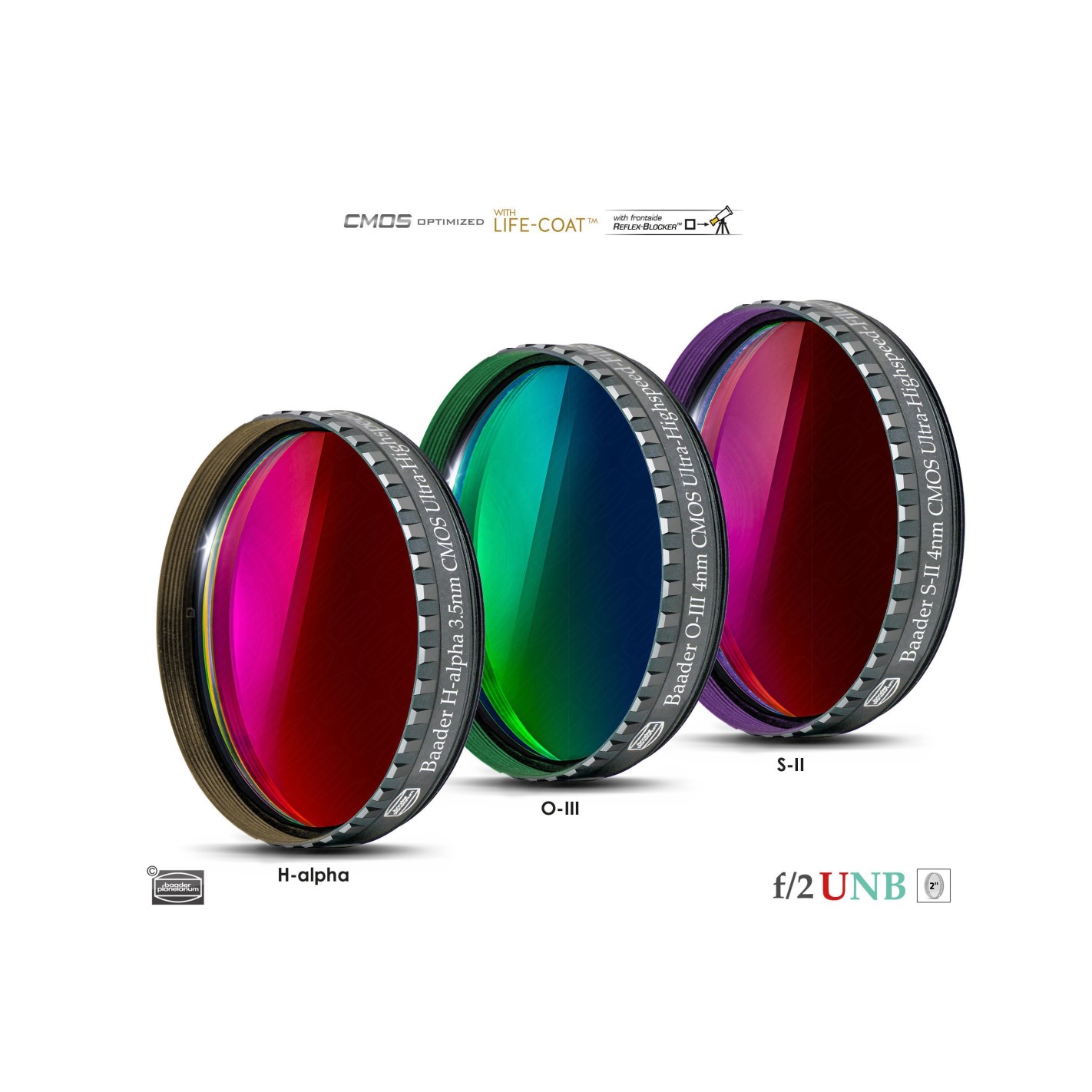

Baader Ultra-Highspeed 3.5 and 4nm 2" CMOS optimized filters set (H-alpha / O-III / S-II)
This new generation of Baader CMOS filters features:
- CMOS-optimized Baader filters
- Increased contrast
- Increasingly narrower pass bands
- Reflex-Blocker™ coatings for the greatest freedom from halos, even in the most adverse conditions related to auxiliary optics
- FWHM in each filter category carefully designed to allow 1: 1: 1: 1 exposures, combined for typical CMOS quantum efficiency and s/n ratio
- Filter thickness identical to existing standards, with extreme care for parafocality
- Blackened edges all around, with filter lead-side indicator in the form of a black outer edge on the front side, to further eliminate any reflections due to light falling on the edge of a filter
- Each filter individually coated, with sealed coating edge (NOT cut from a larger plate with exposed coatings, read more)
- Life-Coat ™: increasingly hard coatings to enable a coating that will not age for life, even in the harshest environment
Summary general features:
- Baader H-alpha / O-III / O-III / S-II f / 2 ultrafast speed filter set 2" x 2 mm - Premium grade - with 2" (M48) filter thread
- 3.5 / 4 nm FWHM (to harmonize the exposure time of H-alpha with O-III / S-II), recommended for extremely fast f / 3.4 af / 1.8 optical systems
- Specially designed for special filter requirements when used with fast optics such as the Celestron RASA astrographs
- For the highest contrast even with the strongest light pollution, minimizes the size of the star, emphasizes the finest details of the nebula, indispensable under Bortle 9/8/7 / (6) skies
- Reflex-Blocker ™ hard-coated and planoptically polished, with sealed coating edges (Life-Coat ™)
- Blackened edges all around, with filter lead side indicator in the form of a black outer edge on the front side
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
- Mounted on Baader low profile filter cell (LPFC) - 6 mm high
Technical Specifications:
- SKU (#) 2961683
- EAN CODE 4047825104137
- NET WEIGHT (KG) 0.20
- COLOR Black
- TRANSMISSION RANGE H-alpha / O-III / S-II
- FILTER THICKNESS (WITHOUT CELL) 2 mm
- HBW (HALF BANDWIDTH) 3.5 nm (H-alpha) / 4 nm (O-III / S-II)

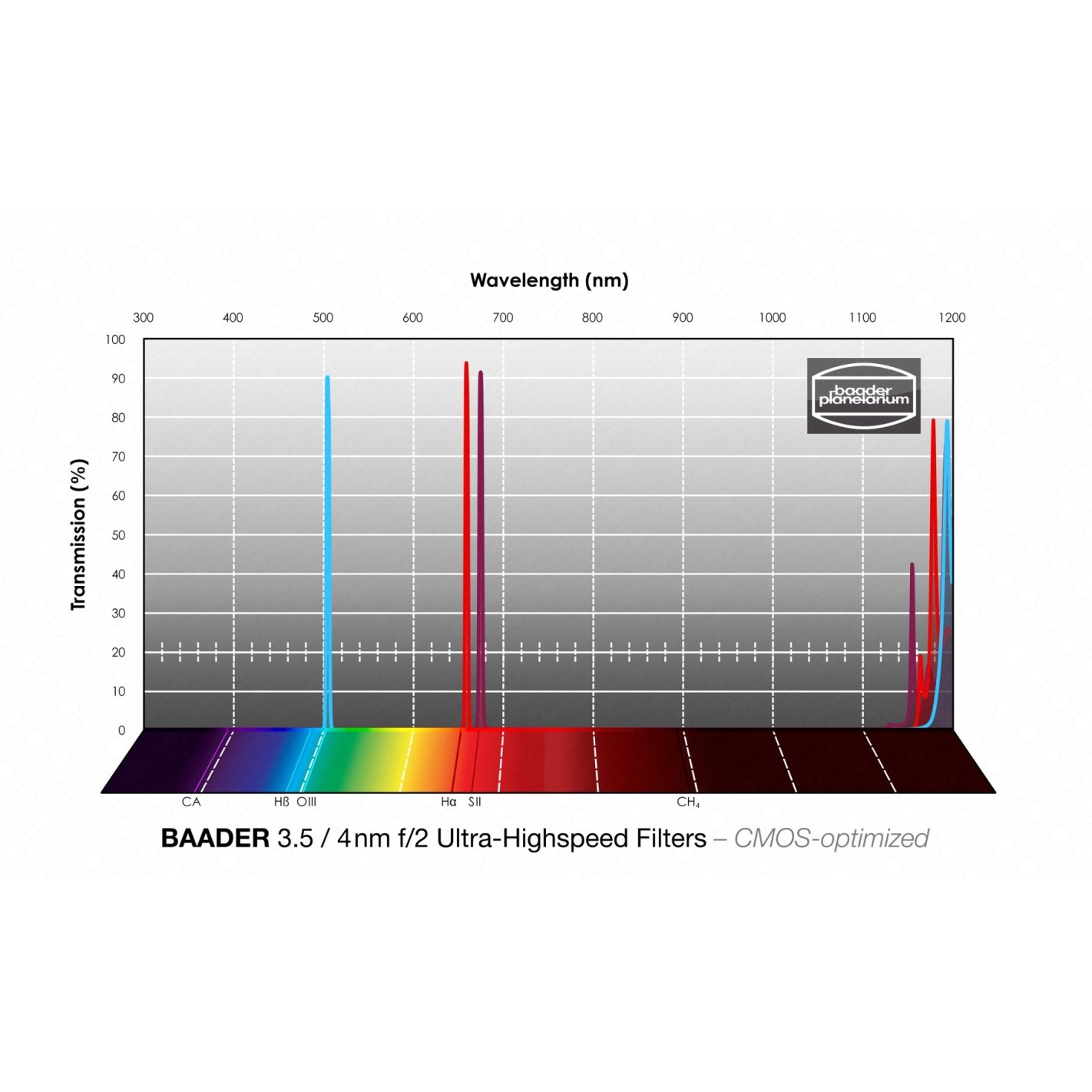

- CWL (CENTRAL WAVE LENGTH) 656.3 nm / 500.7 nm / 671.7 nm
- AR-COATING Reflex-Blocker ™ hard-coated, planoptically polished
- SPECIAL FEATURES CMOS optimized with Life-Coat™ CMOS
- FILTER SIZE 2 in
- CMOS, CCD, H-alpha, O-III, S-II FILTER APPLICATION
- FILTER MOUNTED Mounted (6 mm LPFC)
- FILTER TYPE f / 2 Ultra-Highspeed
- aLONE OR SET? Filter assembly
- FILTER SHAPE round
Baader Ultra-Highspeed 3.5 and 4nm 2" Ultra-Highspeed filter set optimized for CMOS (H-alpha / O-III / S-II)
