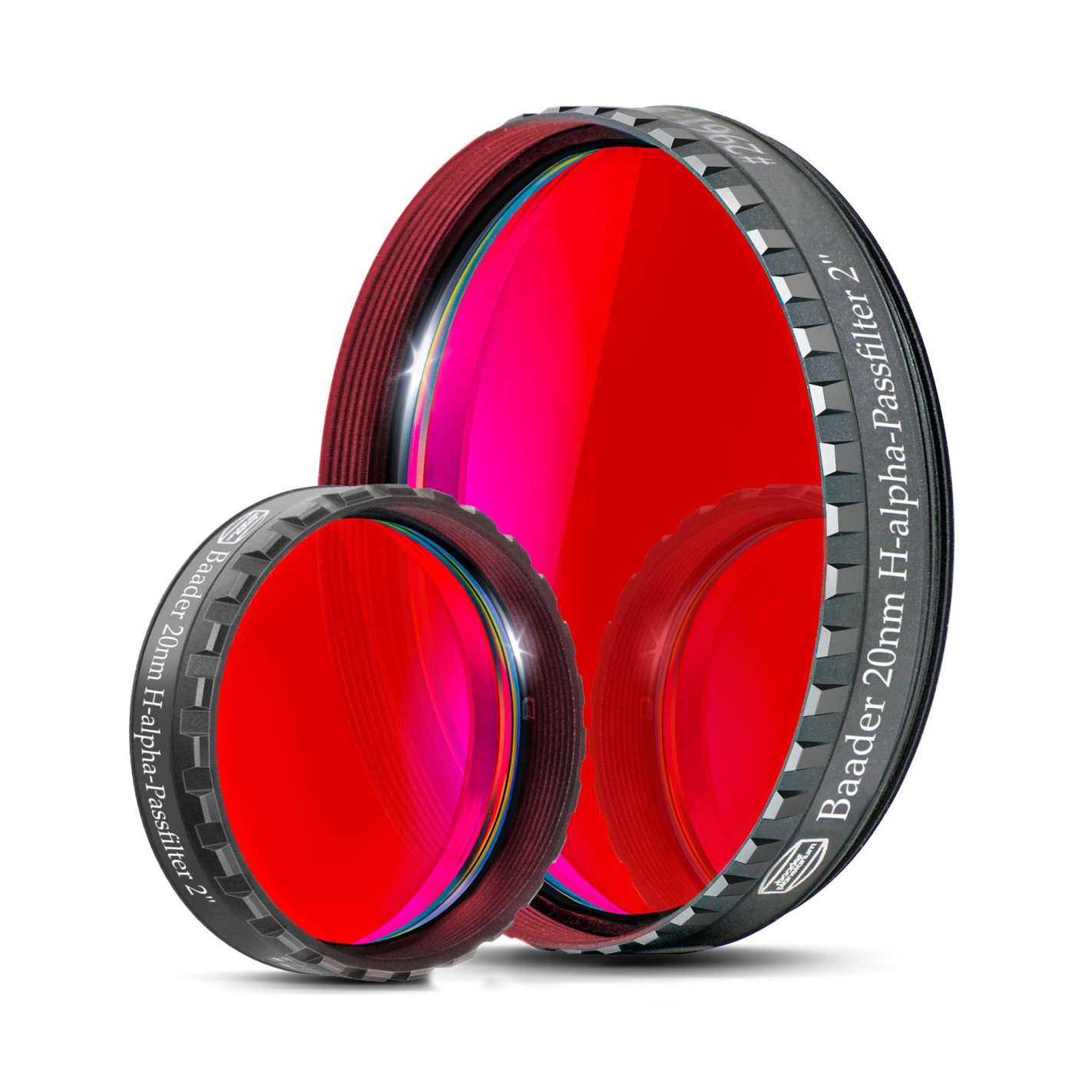

Baader H-alpha bandpass filter 1¼" (20 nm)
Baader H-alpha bandpass filter 1¼" (20 nm)

Baader H-alpha bandpass filter 1¼" (20 nm)

BAD2961850
Stock at Supplier
77.69
VAT excluded Shipping 5/7d

This 20 nm filter replaces the previous 35 nm H-alpha filter developed for interline CCD cameras. Thanks to advances in sensor technology, much narrower filters can now be used with color sensors.

Order it before 39 minutes and receive it between on Wednesday, 4 December and Wednesday, 11 December with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Wednesday, 4 December - Wednesday, 11 December

Home delivery - International

Home delivery - International

Estimated delivery:
Wednesday, 4 December - Wednesday, 11 December



Compared to the CMOS-optimized Baader (Ultra) Narrowband filters, the 20 nm H-alpha filter lets much more light through. This makes the stars in the image brighter, allowing easier focusing, and the filter can be used at all focal ratios: There is no need for pre-shift as with narrowband filters.

This filter is especially interesting for users of color cameras (which are less red-sensitive than monochrome cameras) who do not need extreme narrow-band filters and want to enrich their color images with H-alpha. At the same time, this filter is a valid alternative to a standard R filter of the RGB scheme. It blocks much more of the deteriorating light pollution and still passes all H-alpha for all focal ratios.

A notable difference to all H-alpha pass filters on the market is the fact that this filter includes highly efficient UV/IR blocking, being completely blocked down to 1400 nm, to eliminate blur ("thermal noise") caused by unfocused light in refracting optics.


The Baader H-alpha Bandpass filter (20 nm) has all the advantages of the new generation of CMOS-optimized Baader filters:

Higher contrast, tailored to typical CMOS quantum efficiency and s/n ratio.

Reflex-Blocker™ coatings, for the highest absence of halos, even in the most adverse conditions of auxiliary optics.

Filter thickness identical to existing standards, with maximum care for parfocality.

All-around blackened edges, with filter entrance side indicator in the form of a black outer edge on the telescope side, to additionally eliminate any reflections due to light hitting the edge of a filter, making additional front masks unnecessary.

Each filter is individually coated, with the coating edge sealed (NOT cut out of a larger plate with coatings left exposed, read more).

Life-Coat™: increasingly tougher coatings to enable a coating that will not age for life, even in the harshest environment.


Baader H-alpha Bandpass 1¼" filter with 1¼" (M28.5mm) filter thread

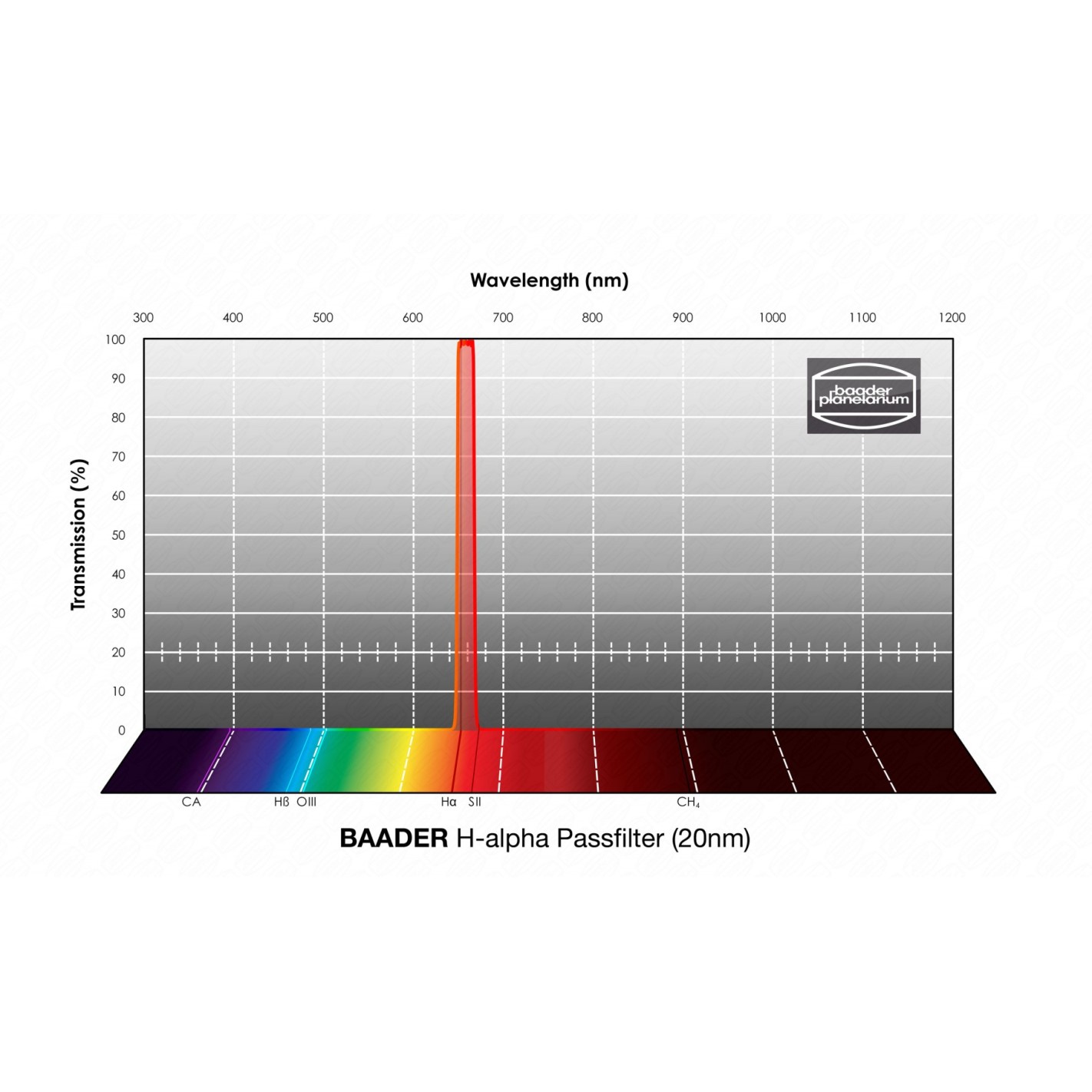

H-alpha filter with 20 nm FWHM (CWL 656.3 nm), therefore excellently suited for night visual - and photographic use with CCD and CMOS cameras on telescopes with all f-ratios. Attention: this filter alone is not suitable for direct observation of the sun!

With new highly effective UV/IR blocking coating from 300 nm to 1400 nm.

Similar to the O III Super G filter, the 20 nm H-alpha filter is an excellent high contrast deep sky H-alpha/red filter for RGB applications, optimized for all color CCD and CMOS chips. It enables high-contrast imaging of H-II regions (e.g., North American nebulae) even from light-polluted environments.

Hard-coated and polished plano-optical Front-Reflex-Blocker™ - with sealed coating edges (Life-Coat™).


Features:

NET WEIGHT (KG): 0.06
TRANSMISSION RANGE: H-alpha
FILTER THICKNESS (WITHOUT CELL): 2 mm
HBW (HALF-BANDWIDTH): 20 nm
CWL (CENTER WAVELENGTH): 656.3 nm
AR-COATING: dielectric coating, plano-optical polishing
FILTER SIZE: 1.25 inch
FILTER USAGE: CMOS, CCD, H-alpha, IR-Cut
FILTER MOUNTING: Mounted (LPFC 6mm)
FILTER TYPE: Narrow Band
SINGLE OR SET? Single filter
FILTER SHAPE: round
