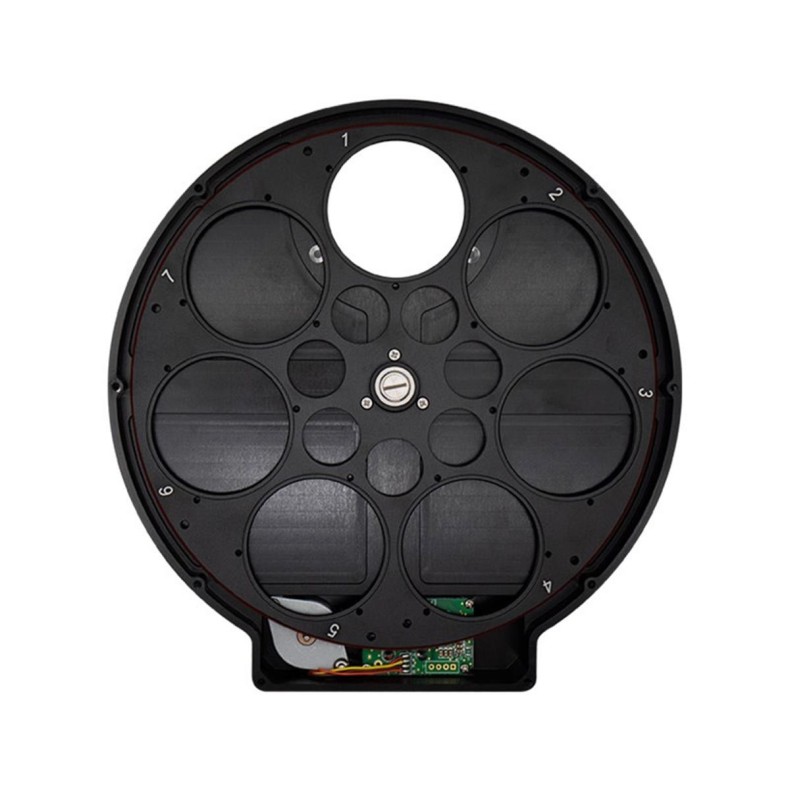

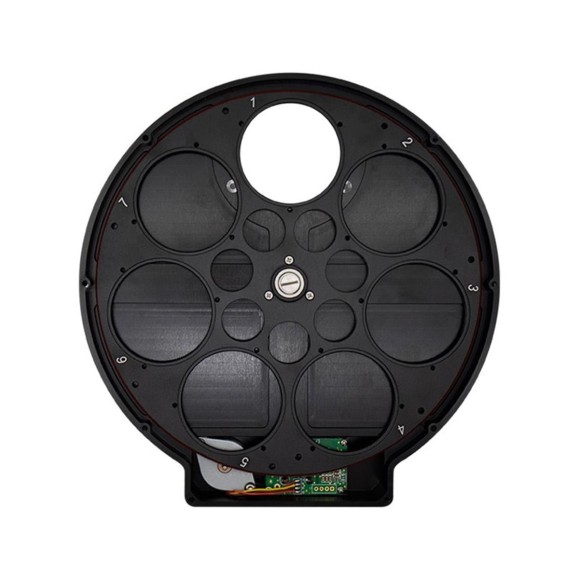

EFW filter wheel ZWO 7 positions 7x50.8mm (2")

EFW filter wheel ZWO 7 positions 7x50.8mm (2")

Name: EFW filter wheel ZWO 7 positions 7x50.8mm (2")
Brand: ZWO
SKU: ZWOEFW-7X2
Price: 421.45 EUR
Availability: InStock

Reference ZWOEFW-7X2

Last items in stock

421.45 436.36 -14.92

VAT excluded Shipping 24/48h

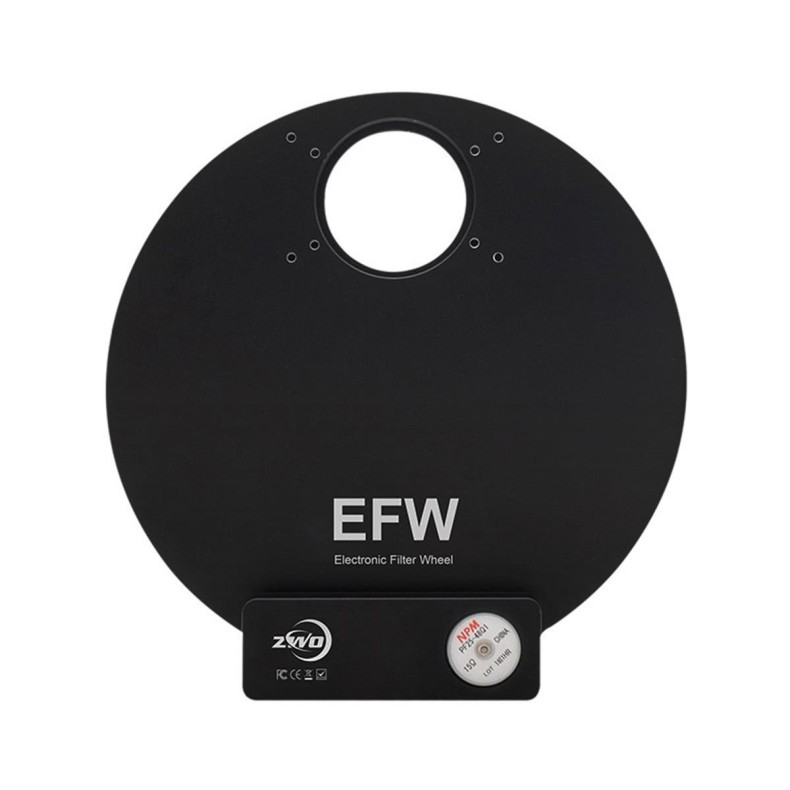

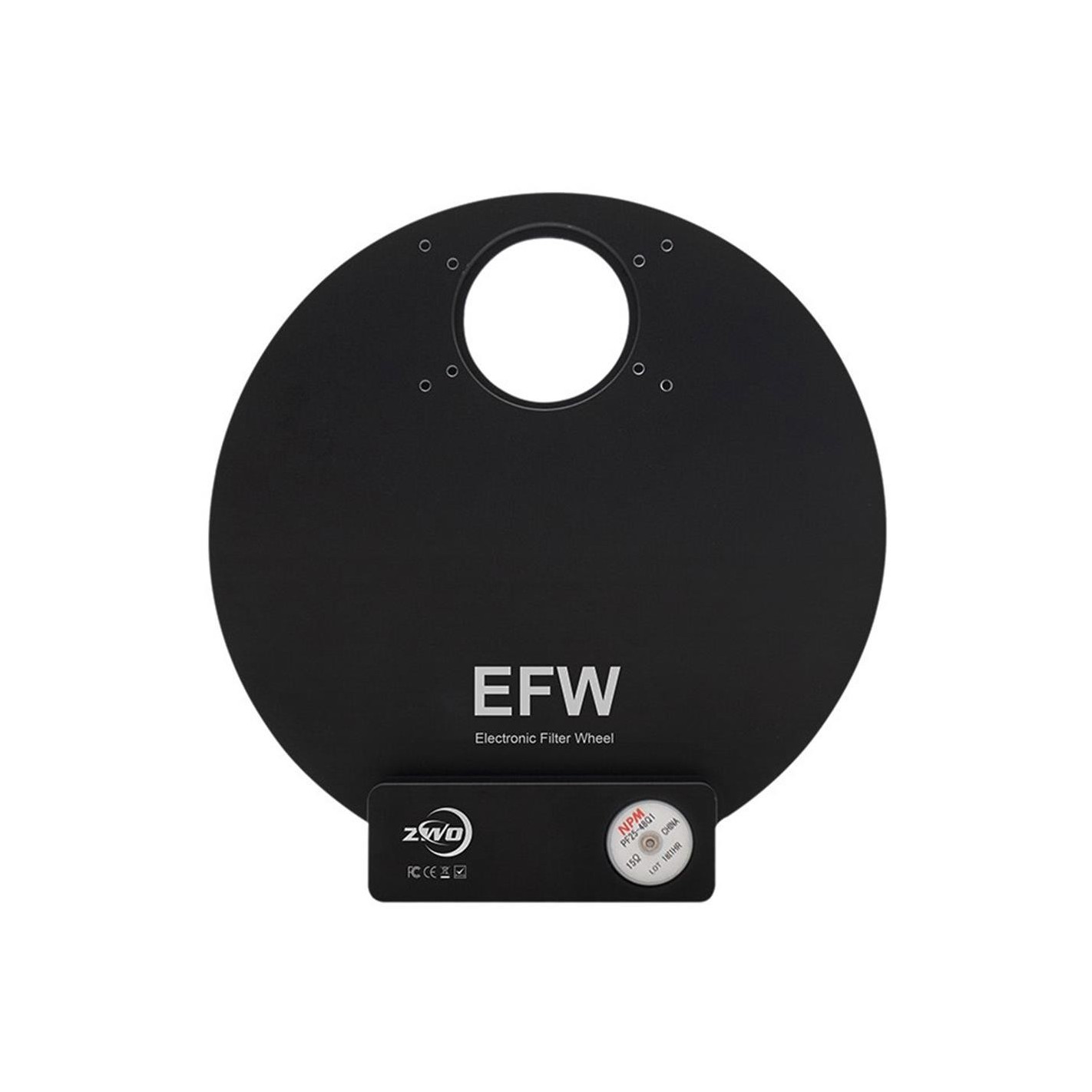

Filter holder wheel ZWO EFW with 7 positions for 2" filters.

Buy it now and receive it between on Friday, 3 January and Friday, 10 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Friday, 3 January - Friday, 10 January

Home delivery - International

Estimated delivery:
Friday, 3 January - Friday, 10 January

✖

Description
Product Details

Filter wheel EFW ZWO 7 positions 5x50.8mm (2")

The filter wheel is an interesting accessory for visual observation, but it is especially useful for astrophotographers, since it is possible to change the filter without having to remove the camera from the focuser. Another advantage is the protection for the filters offered by the filter wheel chassis against dust, moisture, shocks and scratches.

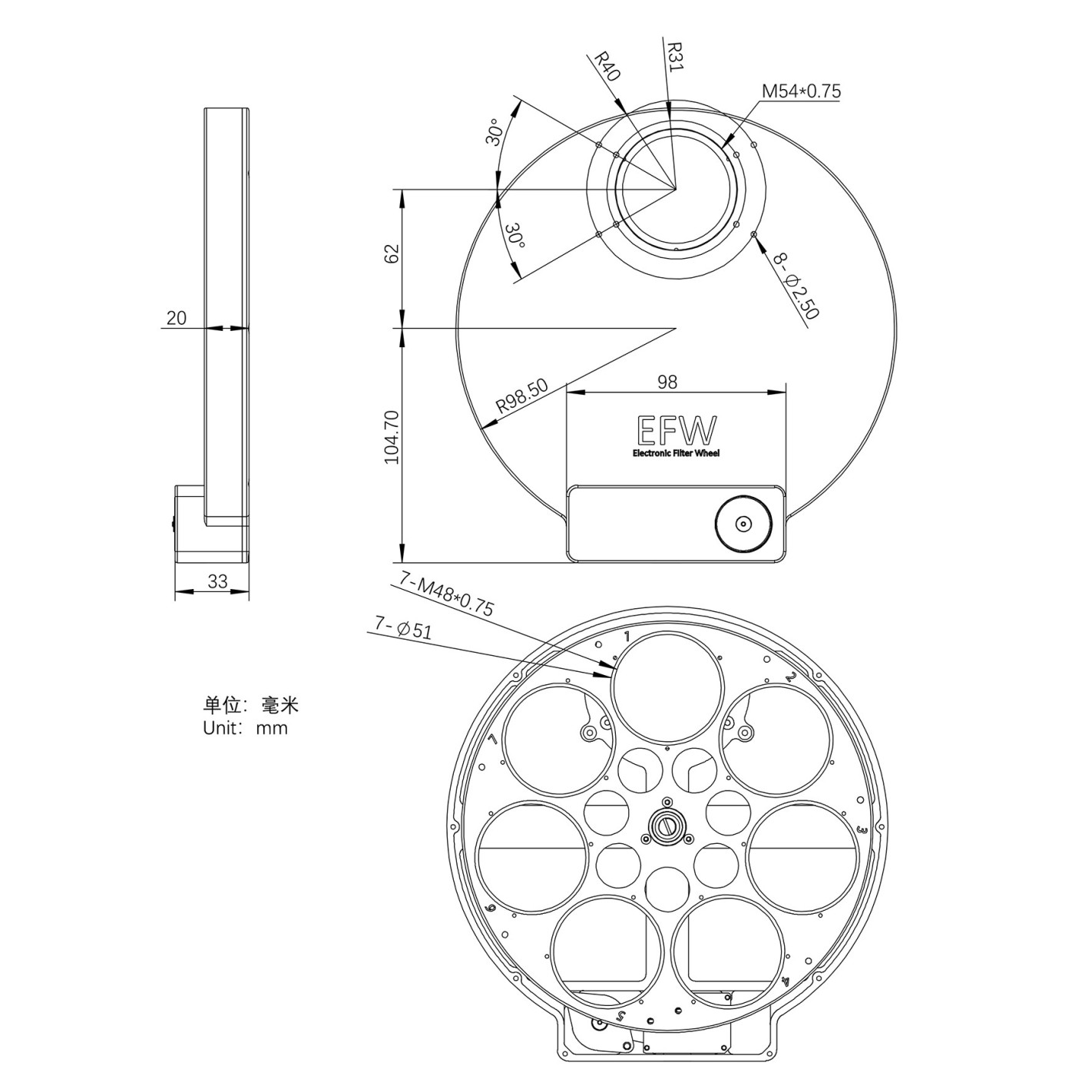

The body of the filter wheel is CNC milled from a block of aircraft-quality aluminum with an excellent finish, making it very thin and light: only 20 mm thick.

The central part of the EFW wheel is the high quality, reliable and high performance stepper motor, sourced from NPM, Japan.

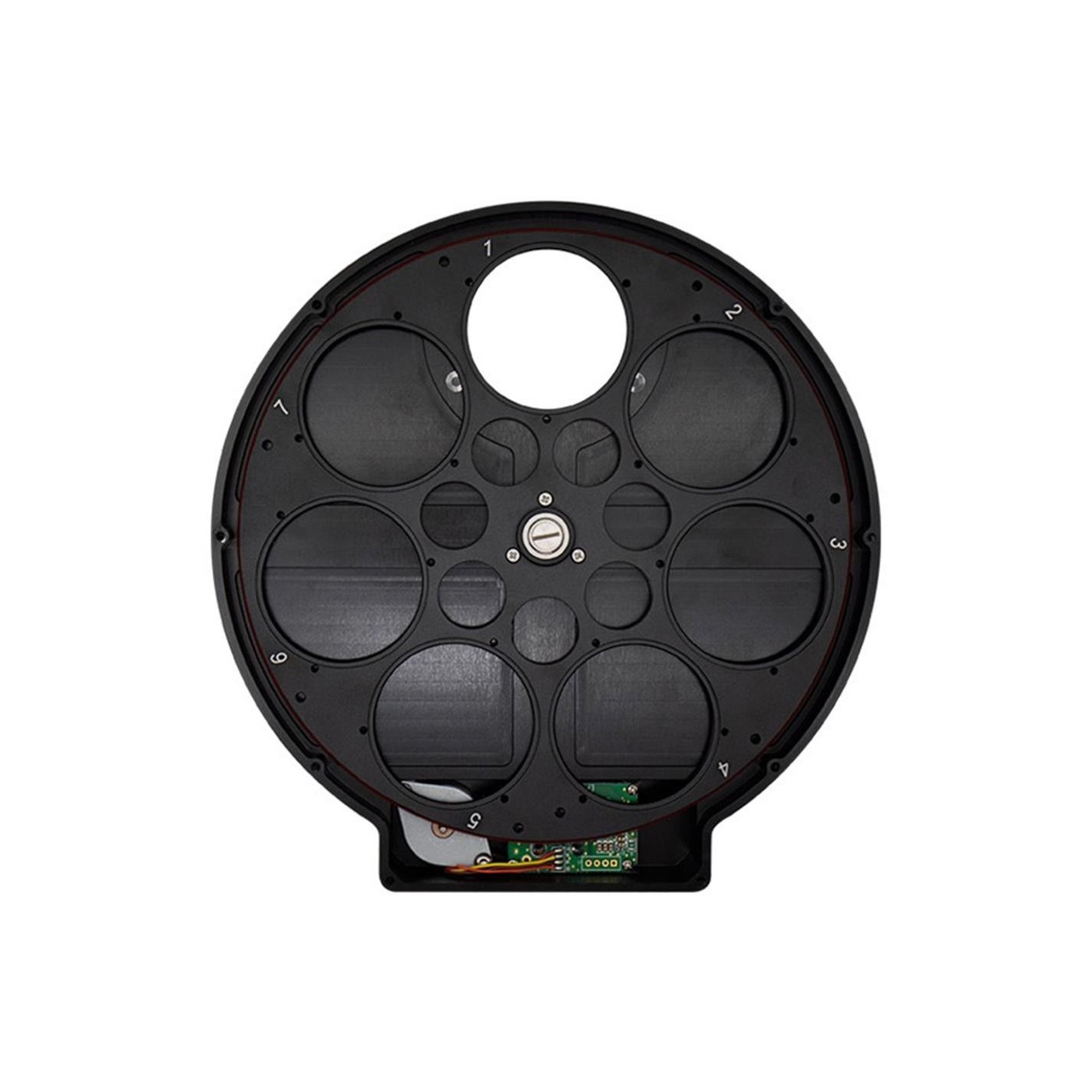

The 2" electronic filter holder wheel can be rotated both counterclockwise and clockwise to select the filter.

There is no need for multiple cables to power and control this wheel, just one USB cable does all the work. The maximum power consumption of this EFW is approximately 120 mAh at 5 V, which can be operated from the USB 2.0 port of the cooled CCD.

When connected to the ASI6200, the distance from the filter to the sensor is approximately 18 mm.

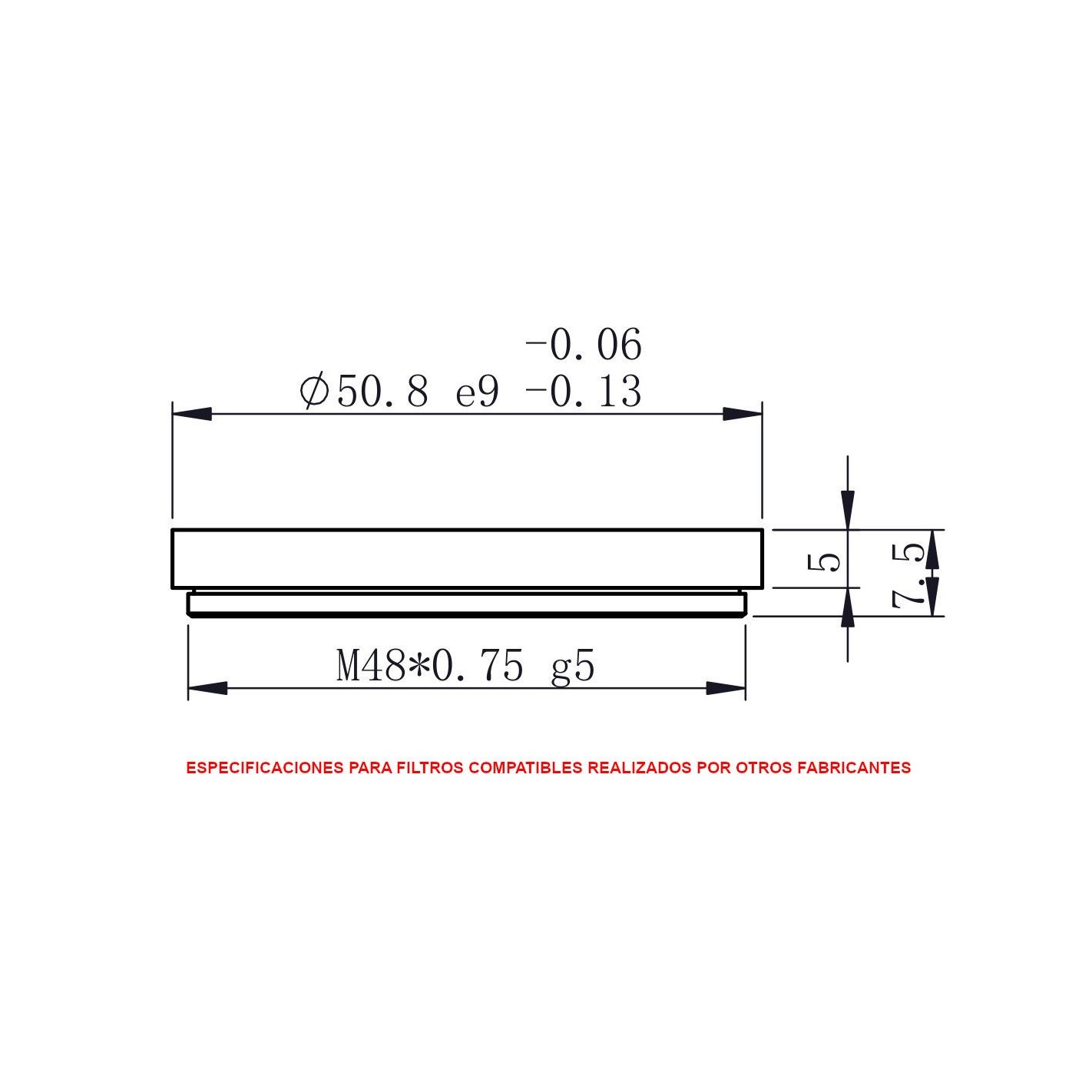

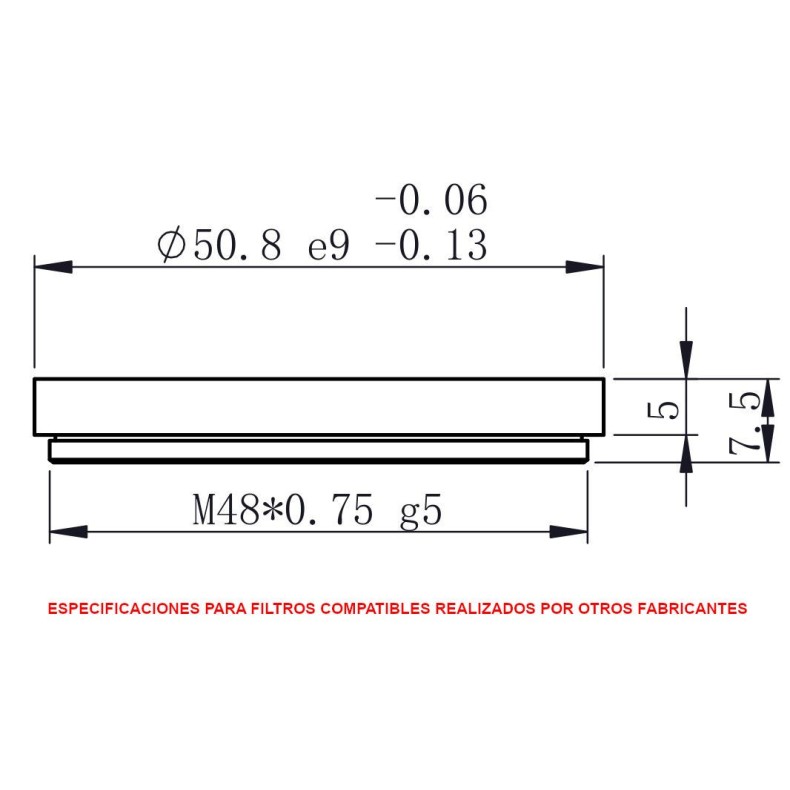

It is recommended to use our 2″ RGBL filters with the ASI6200MM Pro camera, as they offer an almost 1:1:1 RGB color balance. However, the attached image shows requirements that must be met when using 2" filters from other manufacturers.

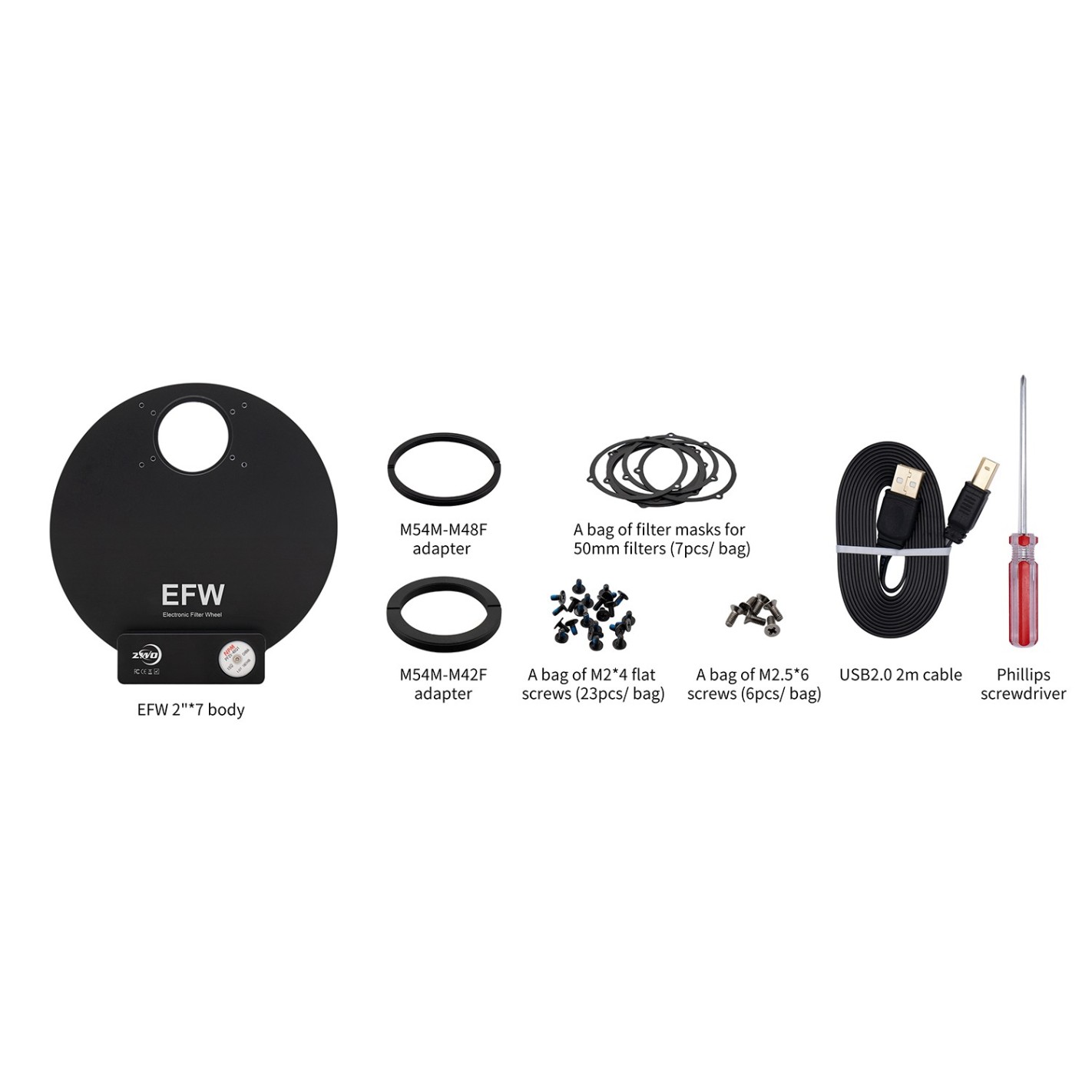

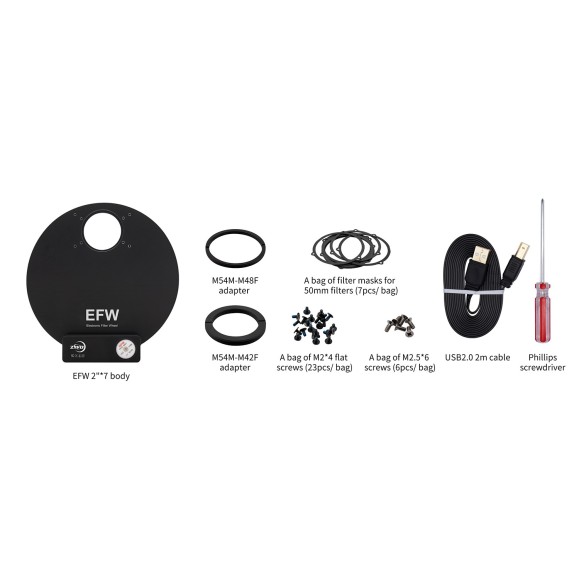

what is included in the package?

1. EFW2*7 body

2. 2m USB2.0 cable

3. Screw bag M2.5*6 (6 pcs / bag)

4. Bag of filter masks for 50 mm filters (7 pieces / bag)

5. Phillips screwdriver

6. Bag of M2*4 flat screws (23 pieces / bag)

7. Adapter M54M-M48F

8. Adapter M54M-M42F

Technical specifications:

Item weight: 650 g
Power supply: USB2.0 port
Control mode: ASCOM and SDK
Drivers: No drivers required
Supports 2″ threaded filters or unmounted filters 50.4mm ± 0.5mm

EFW filter holder wheel ZWO 7 positions 5x50.8mm (2")
