EFW filter wheel ZWO 5 positions 5x50.8mm (2")
ZWOEFW-5X2
In stock
301.61
309.92
-8.31
VAT excluded
Shipping 24/48h
Filter holder wheel ZWO EFW with 5 positions for 2" filters.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 26 December - Thursday, 2 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 26 December - Thursday, 2 January
✖
Filter wheel EFW ZWO 5 positions 5x50.8mm (2")
The filter wheel is an interesting accessory for visual observation, but it is especially useful for astrophotographers, since it is possible to change the filter without having to remove the camera from the focuser. Another advantage is the protection for the filters provided by the filter wheel chassis against dust, moisture, shocks and scratches.

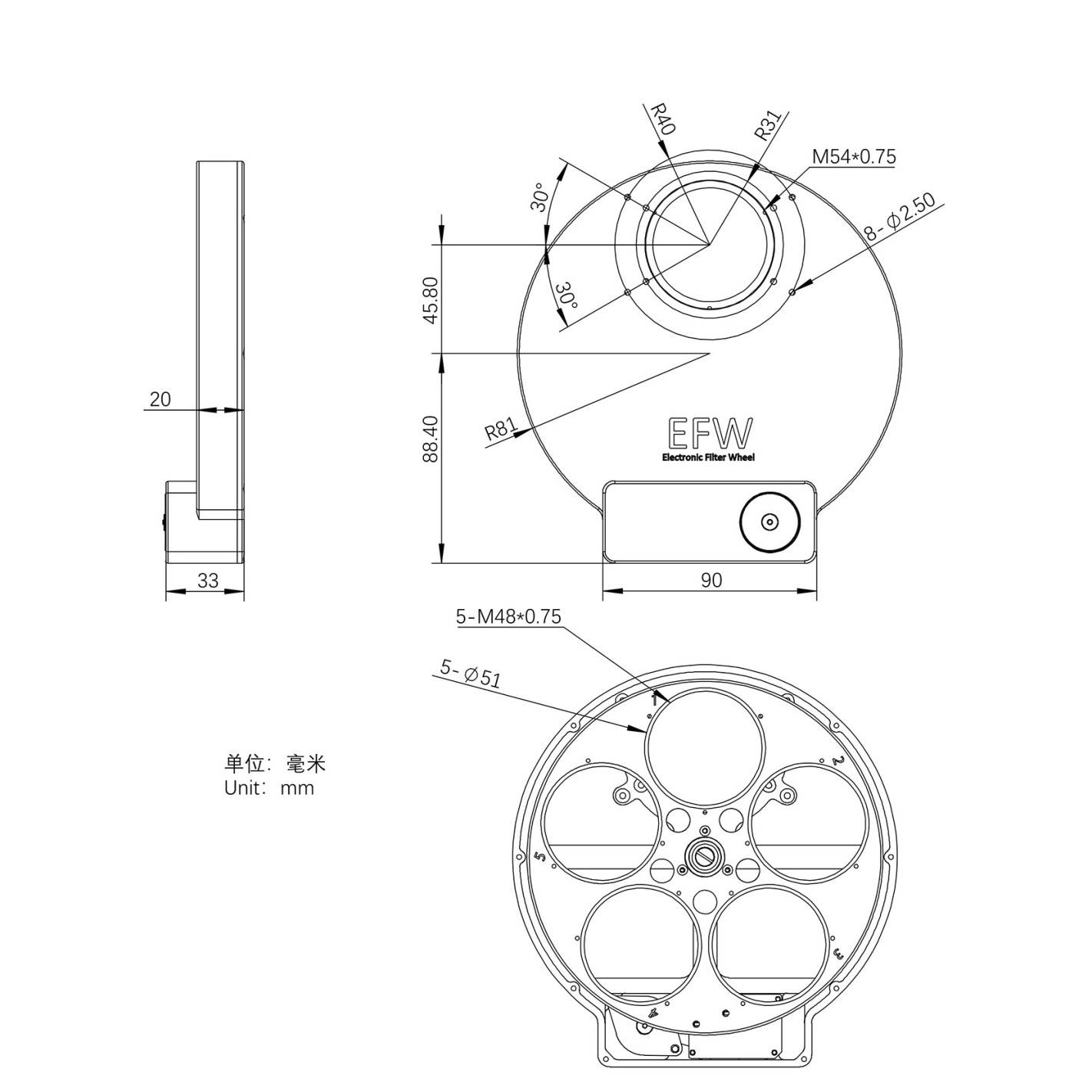

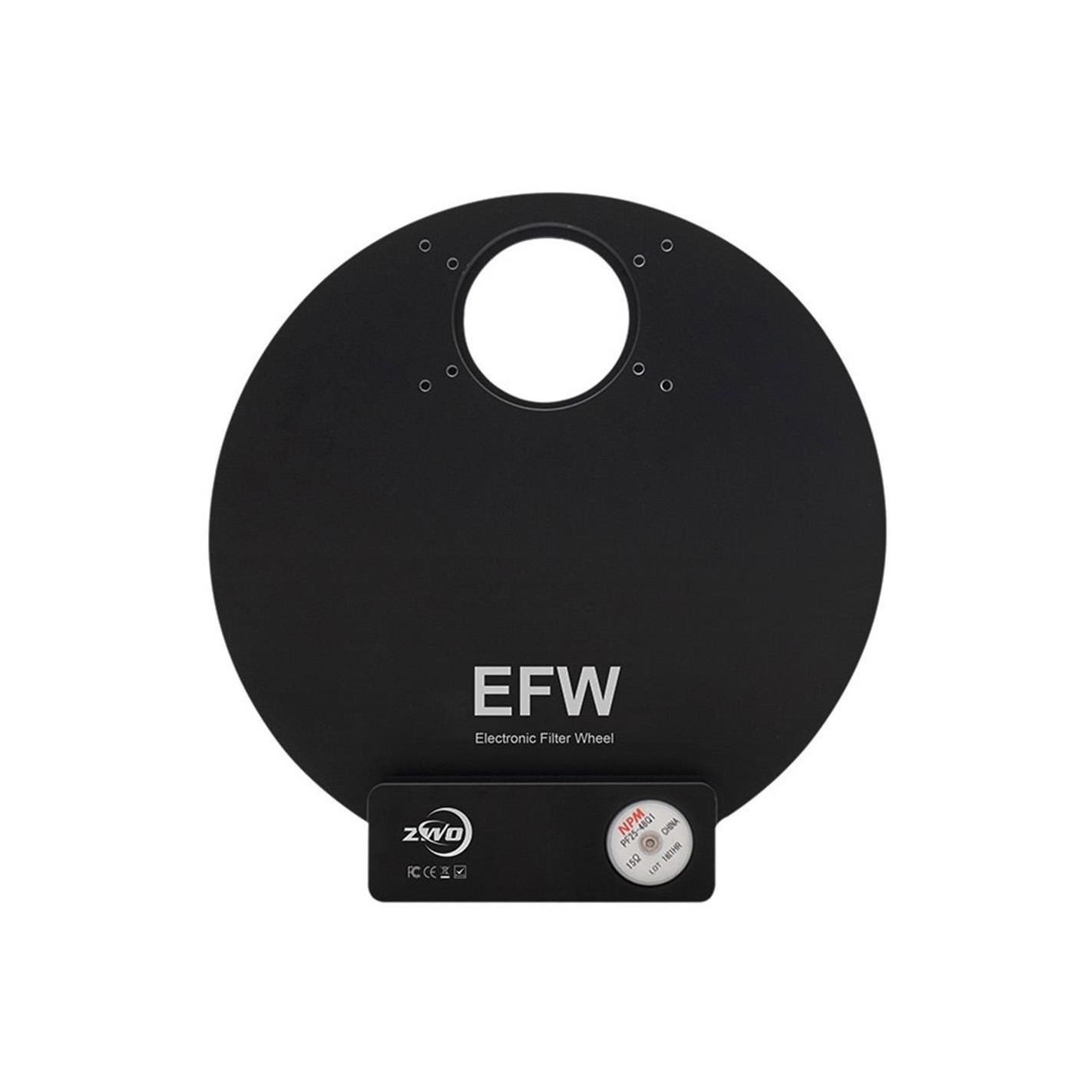

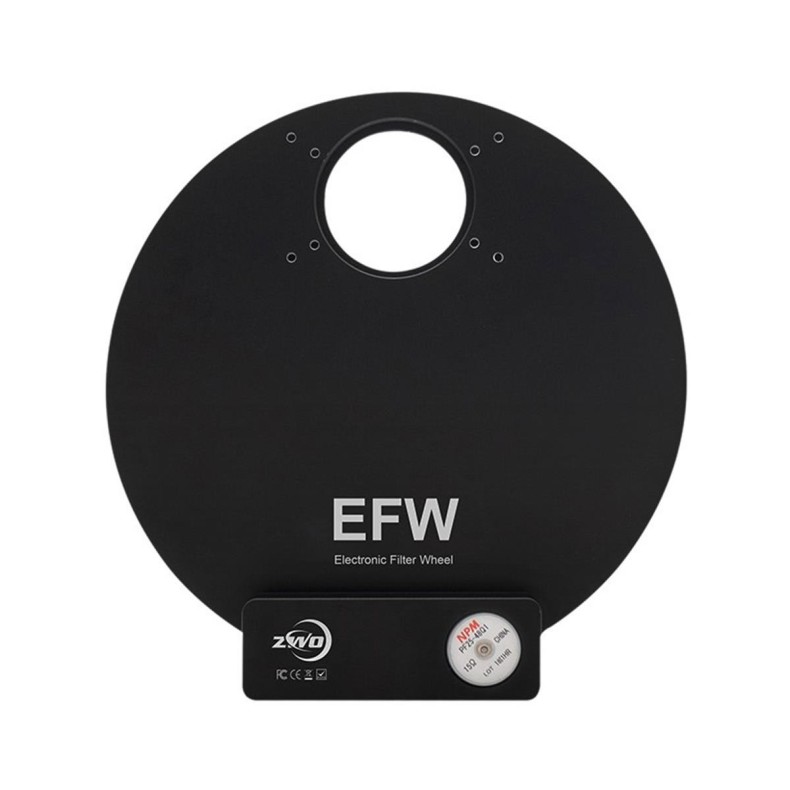

The body of the filter wheel is CNC milled from a block of aircraft-quality aluminum with an excellent finish, making it very thin and light: only 20 mm thick.
The central part of the EFW wheel is the high quality, reliable and high performance stepper motor, sourced from NPM, Japan.

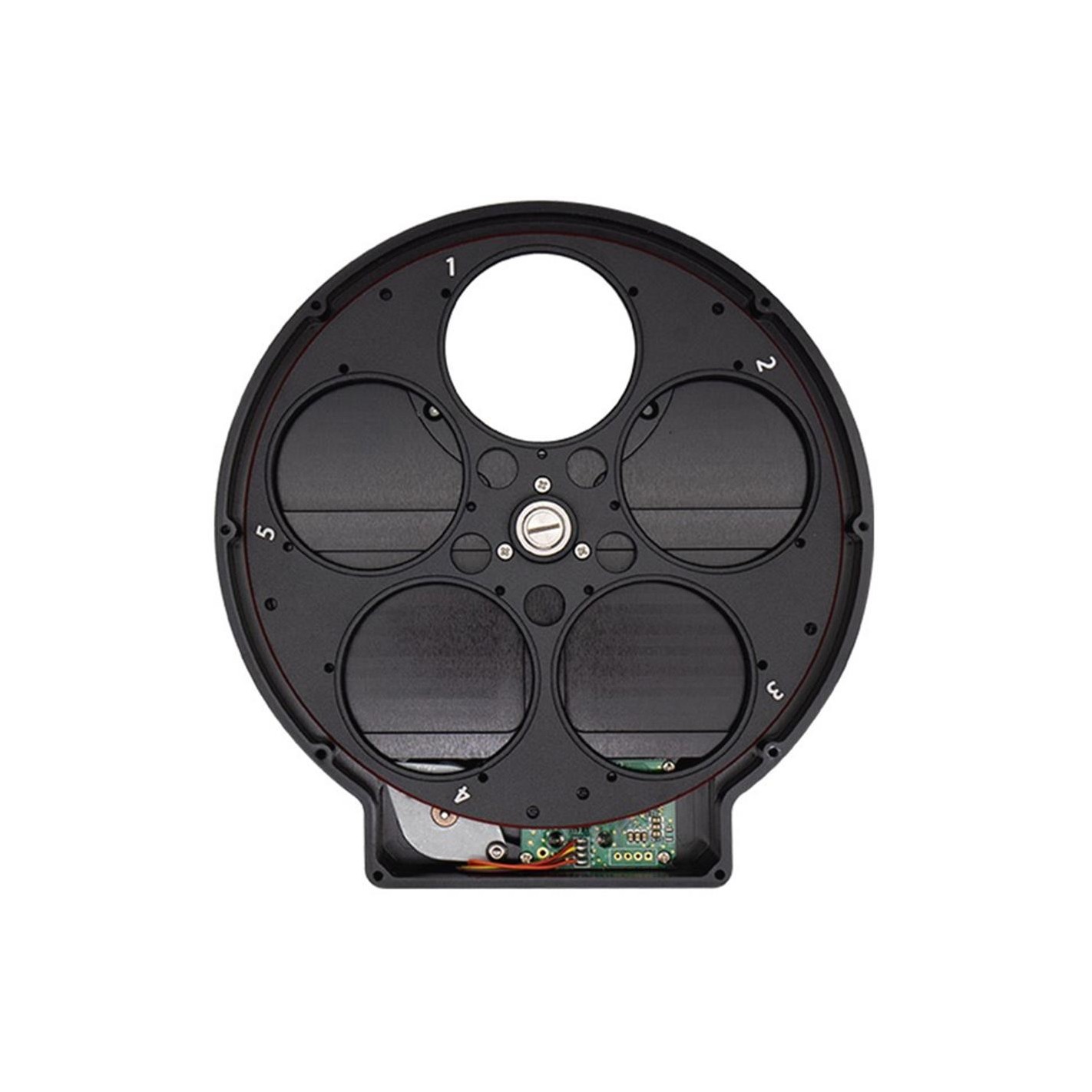

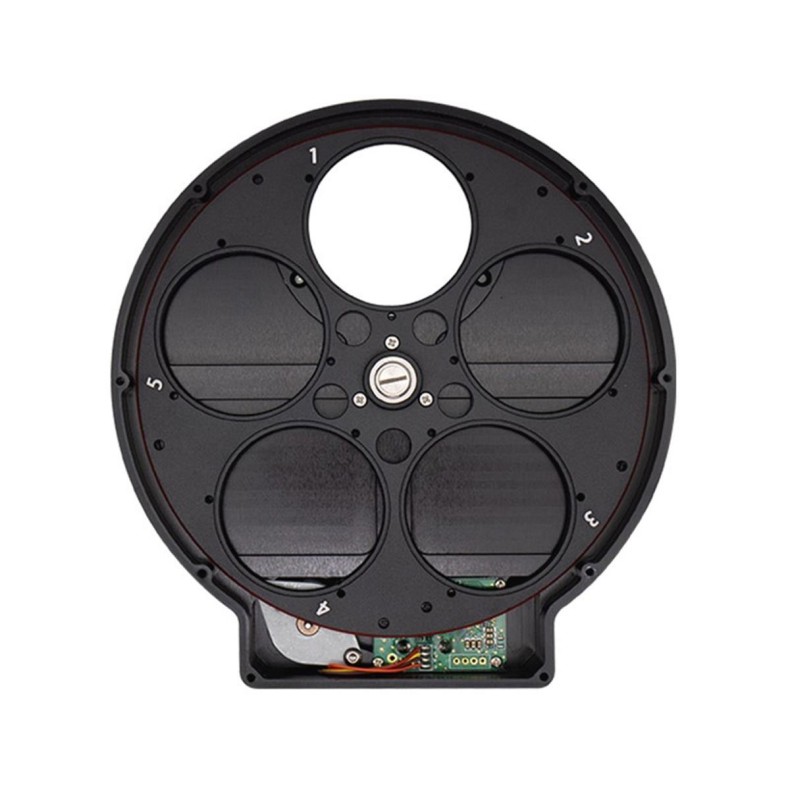

The 2" electronic filter holder wheel can be rotated both counterclockwise and clockwise to select the filter.
There is no need for multiple cables to power and control this wheel, just one USB cable does all the work. The maximum power consumption of this EFW is approximately 120 mAh at 5 V, which can be operated from the USB 2.0 port of the cooled CCD.
When connected to the ASI6200, the distance from the filter to the sensor is approximately 18 mm.

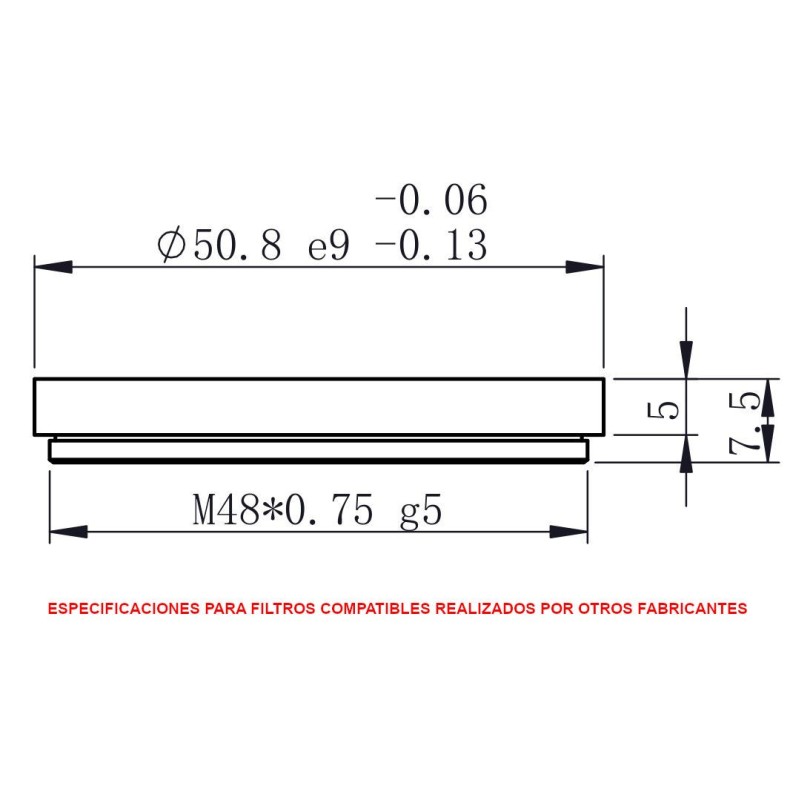

It is recommended to use our 2″ RGBL filters with the ASI6200MM Pro camera, as they offer an almost 1:1:1 RGB color balance. However, the attached image shows requirements that must be met when using 2" filters from other manufacturers.

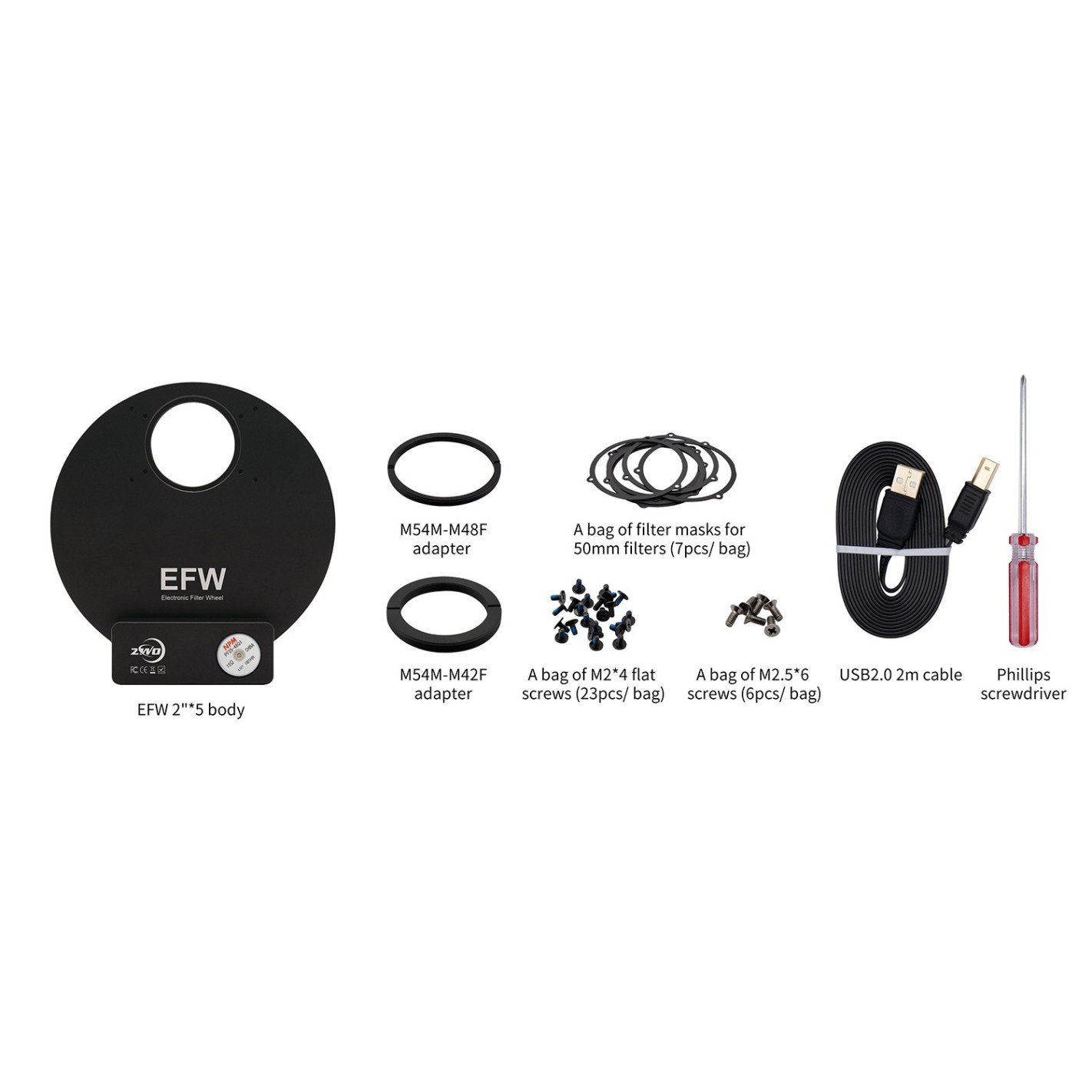

what is included in the package?
1. EFW2*5 body
2. 2m USB2.0 cable
3. Screw bag M2.5*6 (6 pcs / bag)
4. Bag of filter masks for 50 mm filters (7 pieces / bag)
5. Phillips screwdriver
6. Bag of M2*4 flat screws (23 pieces / bag)
7. Adapter M54M-M48F
8. Adapter M54M-M42F
Technical specifications:
- Item weight: 500 g
- Power supply: USB2.0 port
- Control mode: ASCOM and SDK
- Drivers: No drivers required
- Supports 2″ threaded filters or unmounted filters 50.4mm ± 0.5mm
EFW filter holder wheel ZWO 5 positions 5x50.8mm (2")
