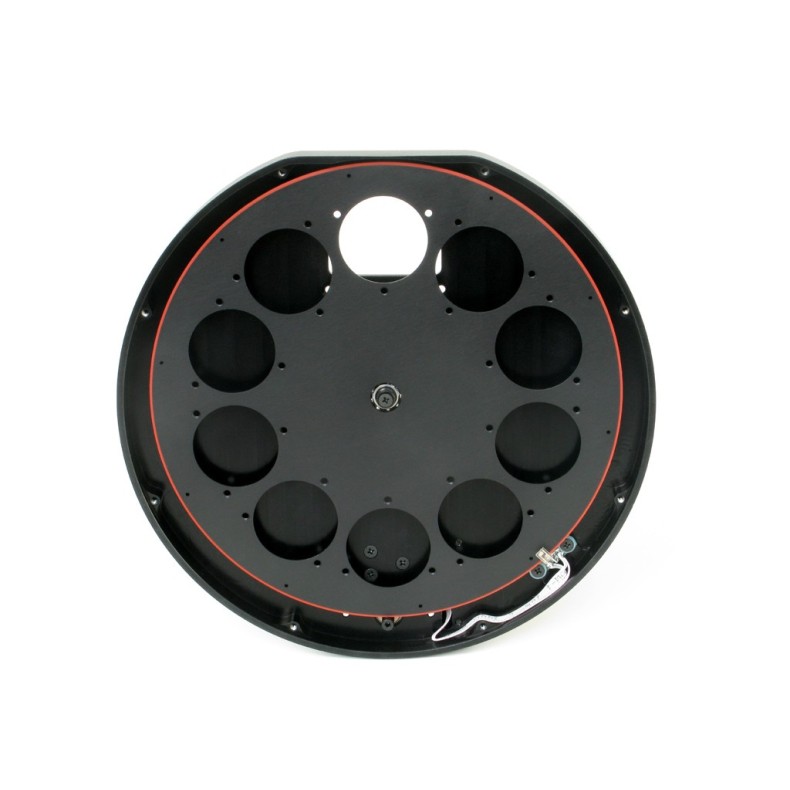

External filter holder wheel Moravian CCD-EFW-2S-10-II for G2 MARK II series CCD cameras

External Filter Wheel Moravian CCD-EFW-2S-10-II for G2 MARK II series CCD cameras

The wheel accepts 10 36mm non-cell filters and is compatible with the off-axis guide from Moravian, making it perfect for LRGB or narrow band tri-color photography.

The diameter of the filter holder wheel is 184mm.

Many astrophotographers prefer to have all their filters combined in one unit. The most commonly used filters are 3 narrow band filters O III, H-alpha, S II or the four LRGB filters. In this filter wheel, you will have room for additional filters, making it the perfect solution for optimal remote camera operation.

To enable trouble-free adaptation, the working distance is short.

The filter wheel receives power and camera control commands from a single cable with RJ45 connector.

The filter wheel is screwed directly to the camera. Even then, there is still enough space to use Canon telephoto lenses, for example.

The included SIPS software controls the wheel and drivers for MaximDL and AstroArt are also included.

As some cameras cannot control the filter wheels, the manufacturer offers a tool for the configuration of the internal and external filter wheels of the G2, G3 and G4 CCD cameras. The tool is available at: https://www.gxccd.com/cat?id=150&lang=409

Important tip: if you order a filter wheel and tell us the camera model and its serial number, Moravian will deliver the filter wheel already configured correctly for your camera.

Technical specifications:

• Motorized filter wheel
• Filter positions: 10
• Filter types: 36mm round filters without cell.
• For camera series: Moravian G2 MARK II

External Filter Wheel Moravian CCD-EFW-2S-10-II for CCD cameras G2 MARK II series
