Filter holder wheel ZWO EFW-Mini 5x31.75 or 5x31mm

Filter holder wheel ZWO EFW-Mini 5x31.75 or 5x31mm

Name: Filter holder wheel ZWO EFW-Mini 5x31.75 or 5x31mm
Brand: ZWO
SKU: ZWOEFW
Price: 190.05 EUR
Availability: InStock

Reference ZWOEFW

Last items in stock

190.05 198.31 -8.26

VAT excluded Shipping 24/48h

Filter holder wheel ZWO EFW-Mini, for ASI cameras and other models. Wheel with 5 positions for mounted 1.25" filters or for unmounted 31mm filters.

Order it before 11 hours and 48 minutes and receive it between on Thursday, 26 September and Thursday, 3 October with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 26 September - Thursday, 3 October

Home delivery - International

Estimated delivery:
Thursday, 26 September - Thursday, 3 October

✖

Description
Product Details

Filter holder wheel ZWO EFW-Mini 5x31.75 or 5x31mm

The motorized filter wheel ZWO is ultra compact and with its 300 g weight it is also extremely light. Only one USB cable is sufficient to power the device, the maximum power consumption is around 150 mA, so that it can be connected directly to the USB 2.0 hub of the ASI cold rooms of ZWO.

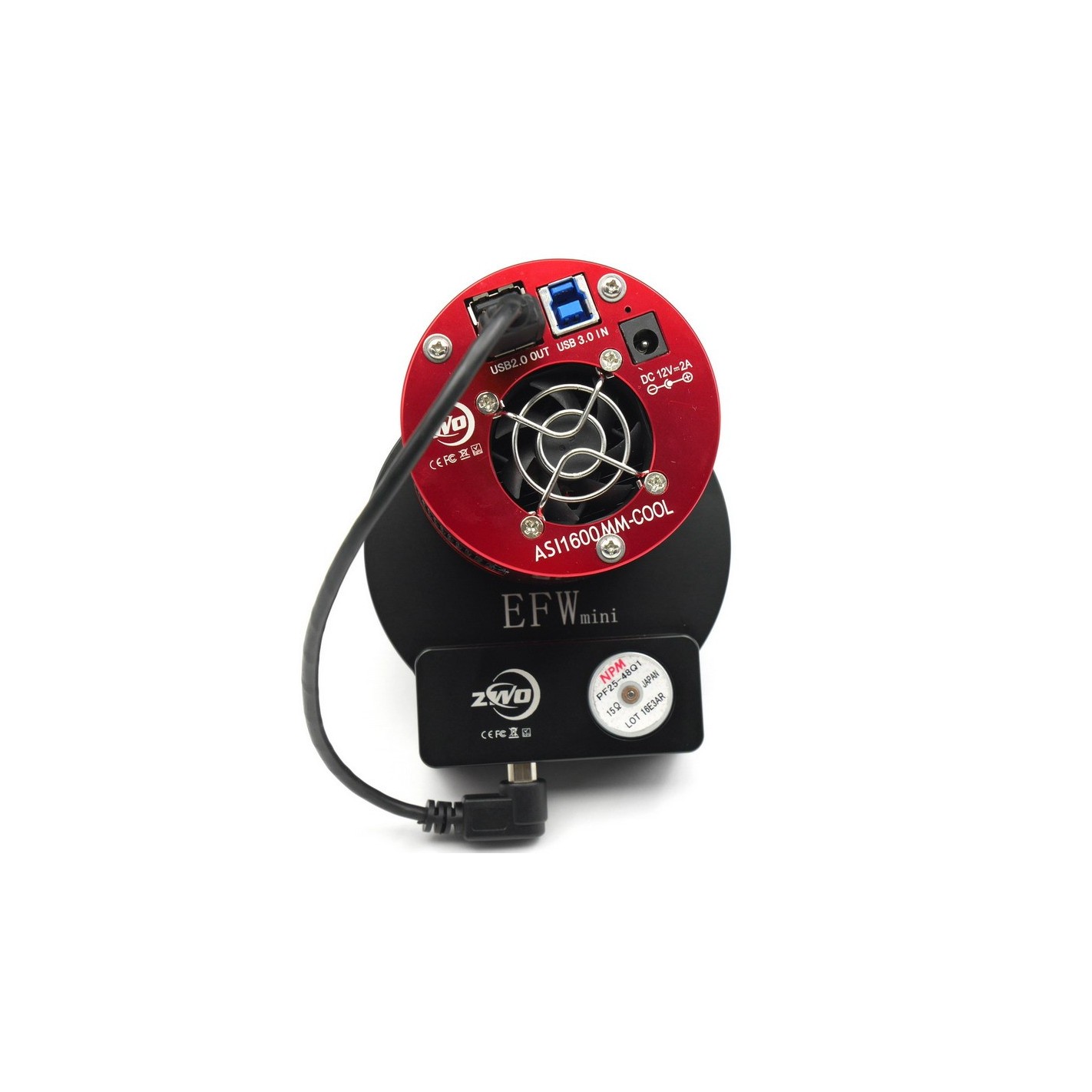

The distance between the filter and the sensor is around 10 mm, so there will be no vignetting with fast telescopes, even if an ASI1600 is used. If 31 mm filters are used, unmounted, even optics up to f/2 can be used without vignetting.

The ZWO EFW-Mini wheel is perfect for L-RGB imaging with ASI cameras. The filter wheel offers five filter positions, ideal for astrophotography with L-RGB filters on fast telescopes.

Technical features:

- - - - Telescope side connection: T2 (female) thread
      - Camera side connection: T2 thread (male)
      - Additional connections: 1.25" (via adapter - supplied)

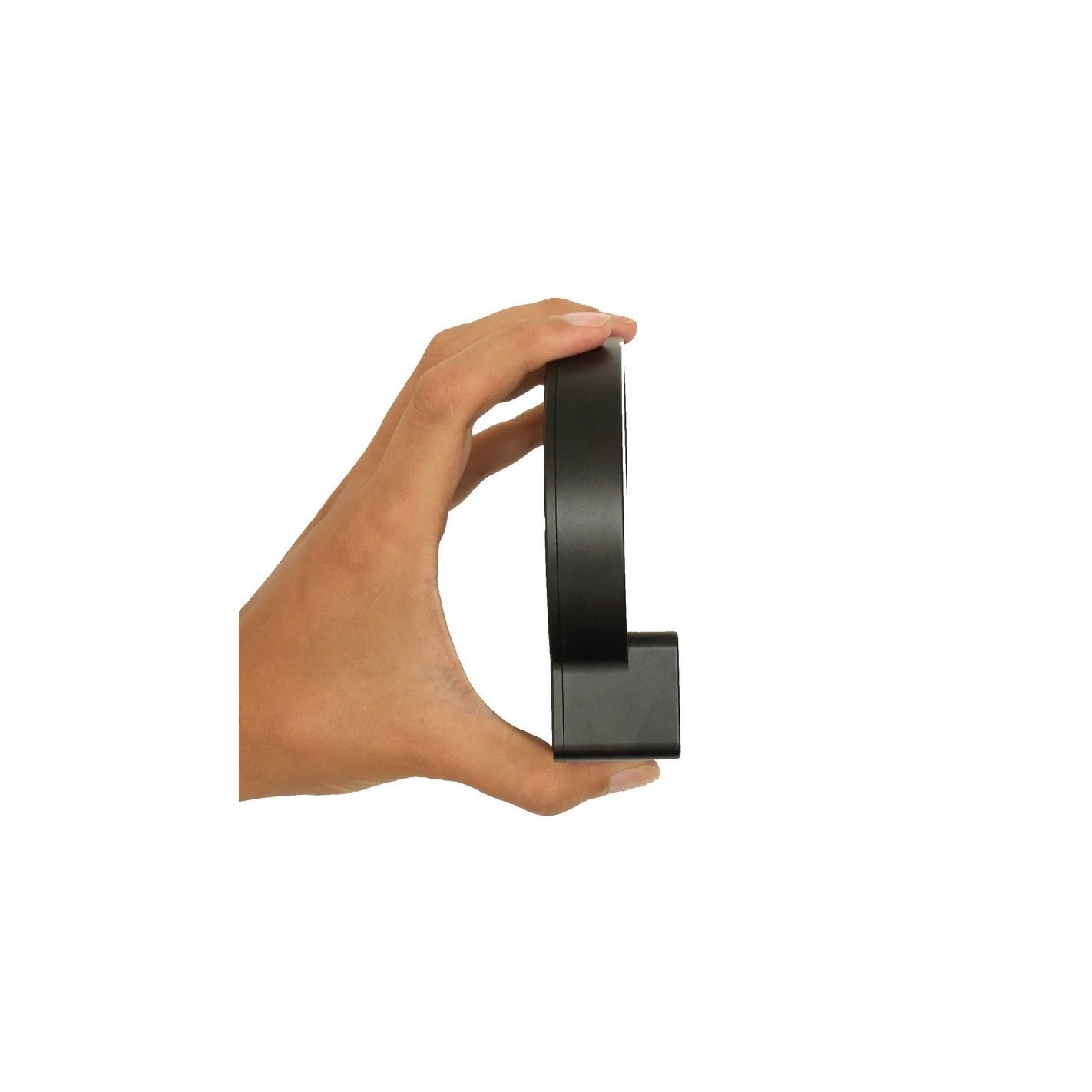

      - Length: only 20 mm optical path (T2 to T2)
      - Weight: less than 300 grams
      - CNC aluminum housing design
      - Stepper motor for filter change NGP, Japan

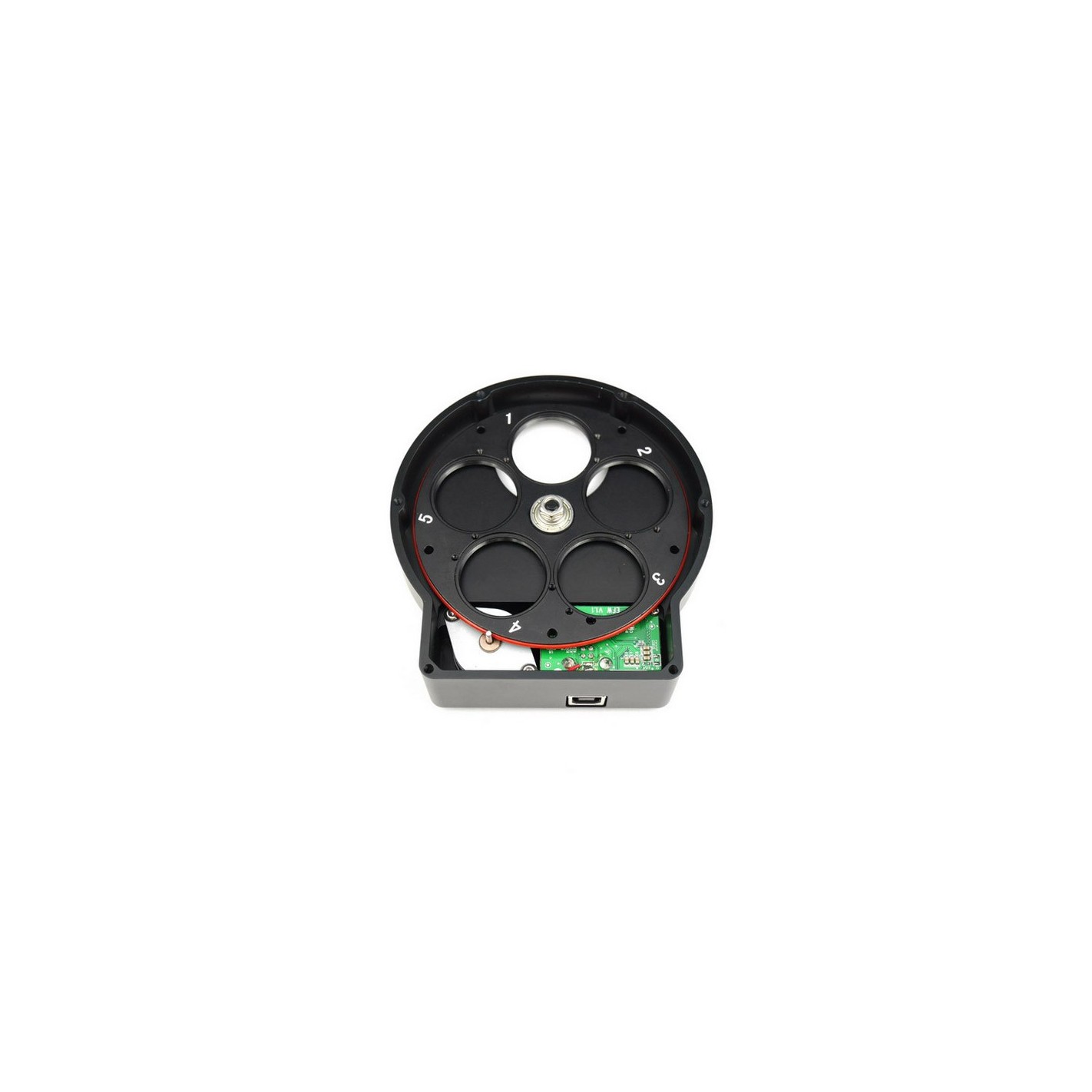

      - Suitable for 5x1.25" filters mounted, or 5x31mm filters not mounted
      - For mounting 31mm filters M2 screws and washers are required to hold the filters and are supplied as standard with this package.
      - USB powered - low power consumption
      - Fully equipped with 1.25" and T2 connectors, USB cable

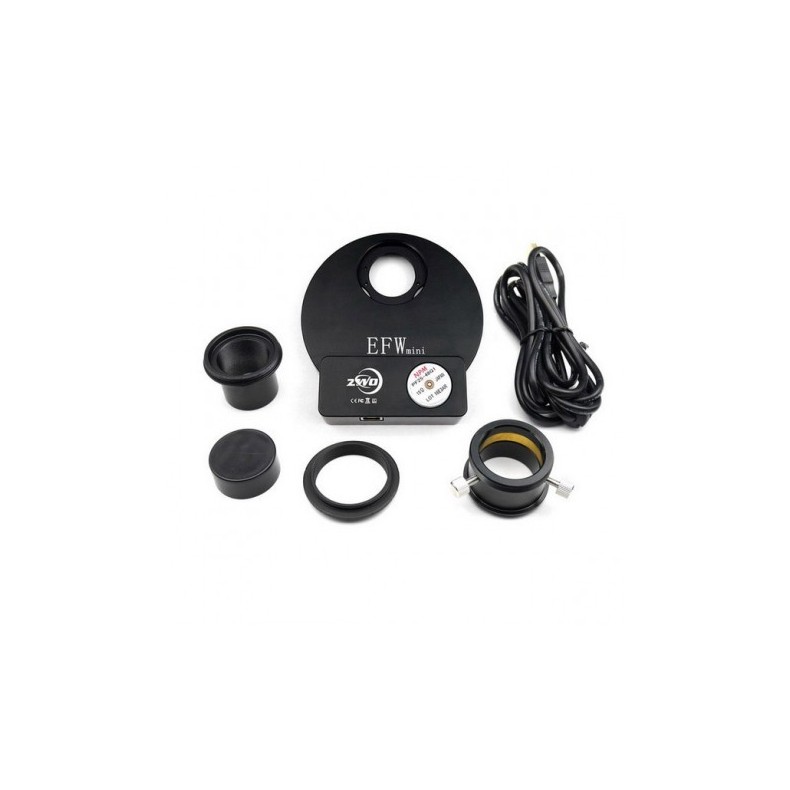

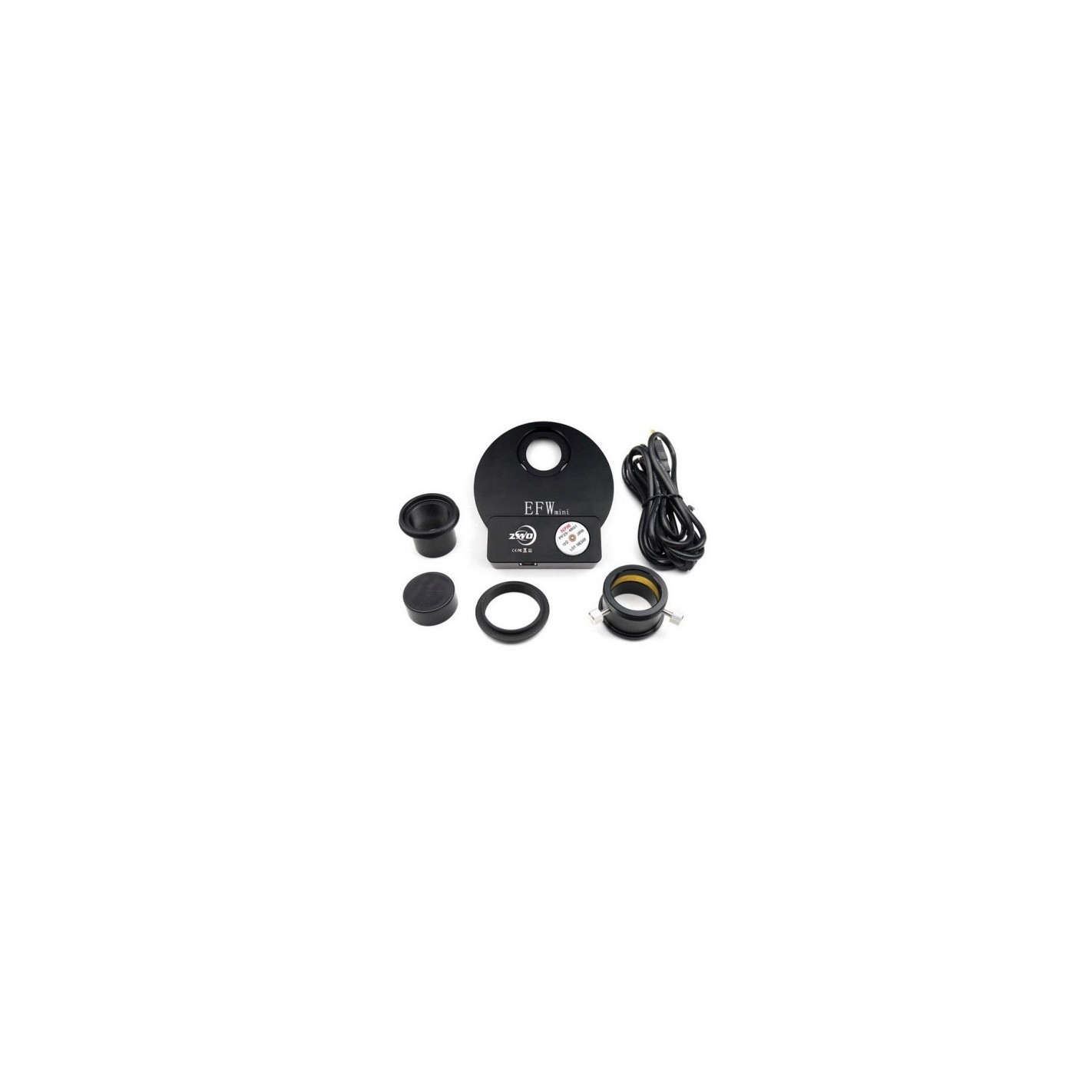

Box contains:

- - - - Motorized filter holder wheel
      - T2 connectors, 1 male, 1 female
      - T2-T2 converter ring, from female T2 to male T2
      - M2 screws and washers to attach 31mm filters
      - USB2.0 cable

Filter holder wheel ZWO EFW-Mini 5x31,75 or 5x31mm
