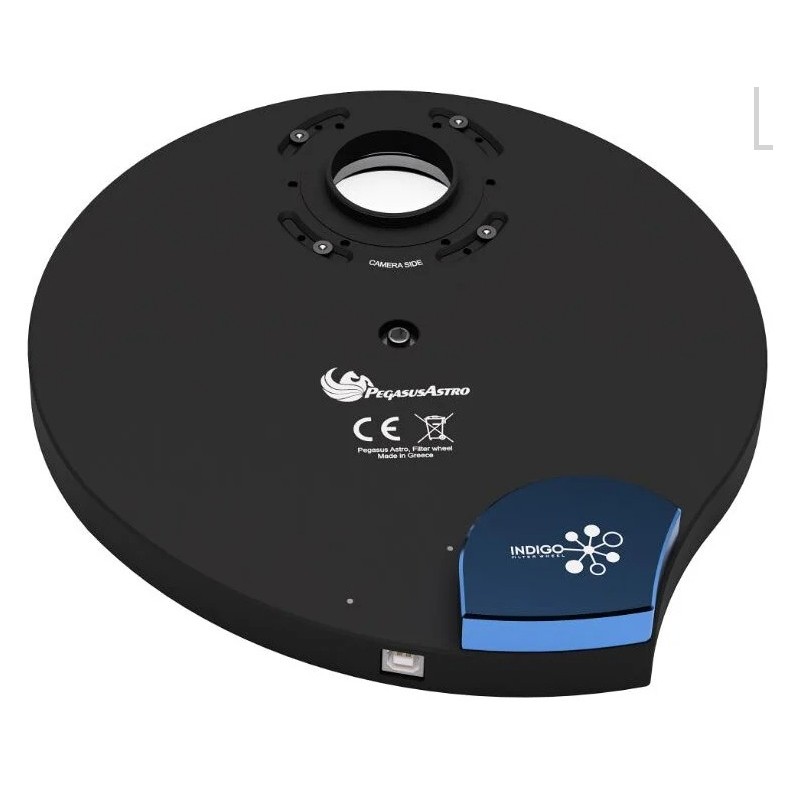

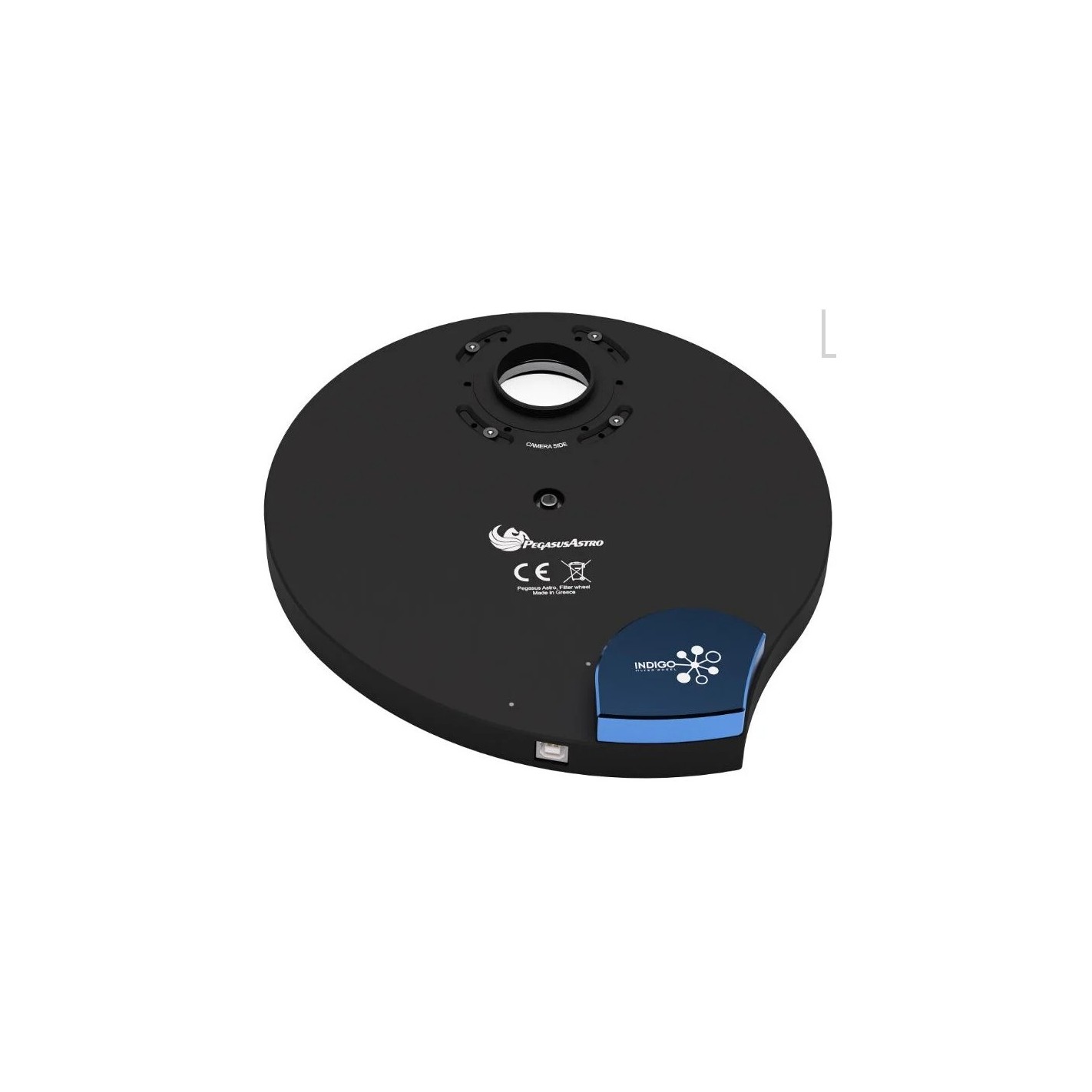

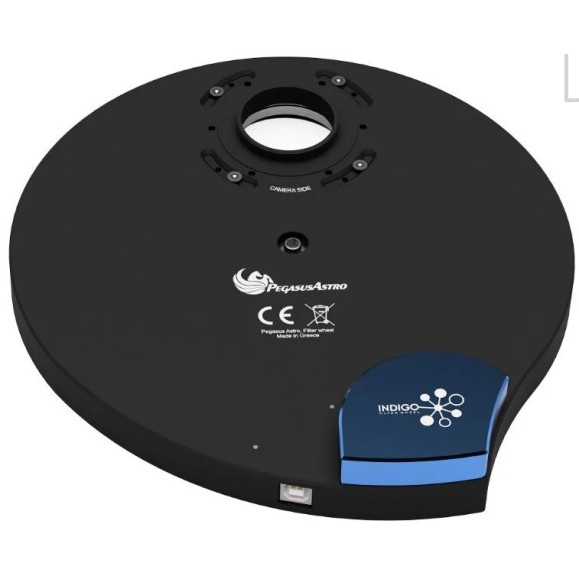

Pegasus Indigo 2" Filter Wheel

New high quality Indigo filter wheel has a 7-position carousel and can accommodate mounted 2" or unmounted 50mm filters.

Single cable operation

Filter Wheel requires only one USB2 (Type B) cable. This simplifies connectivity, as it does not require a separate power supply when used with USB control.

Slim design

The body of the Indigo Filter Wheel is CNC milled aluminum. The high quality aluminum alloy allowed us to design the filter wheel as slim as possible (19.0 mm, 19.6 mm with adapters installed on both sides).

Orientation on both adapters

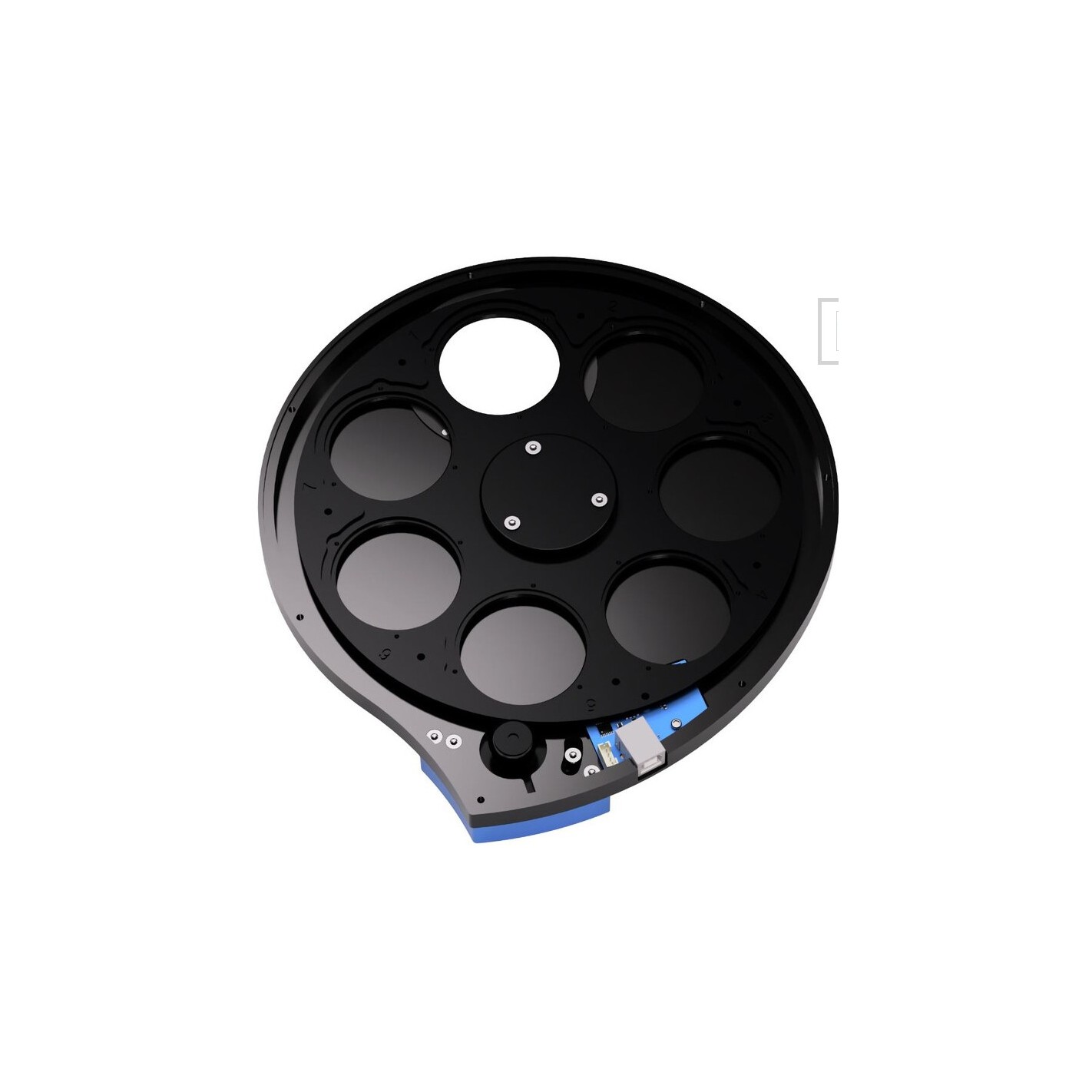

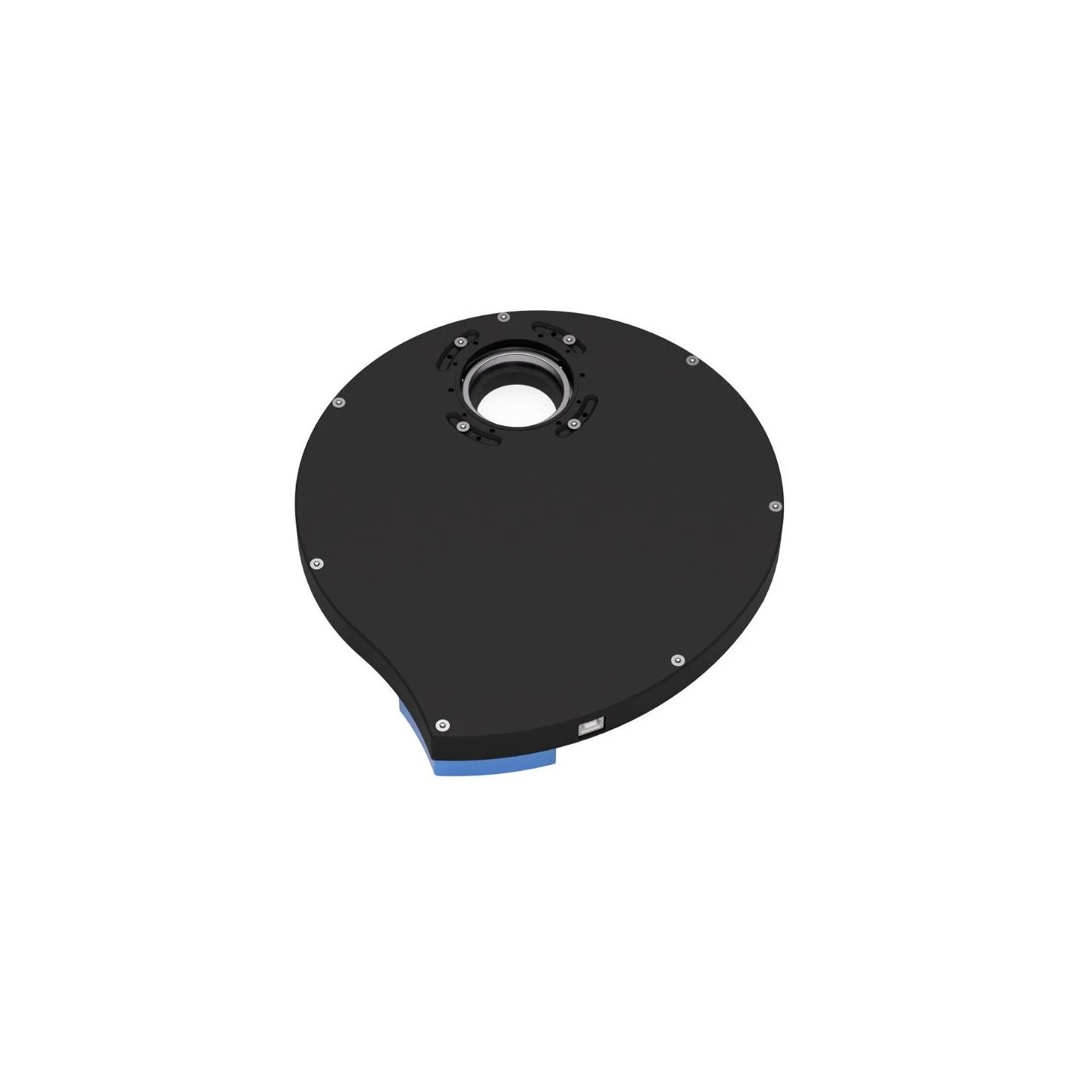

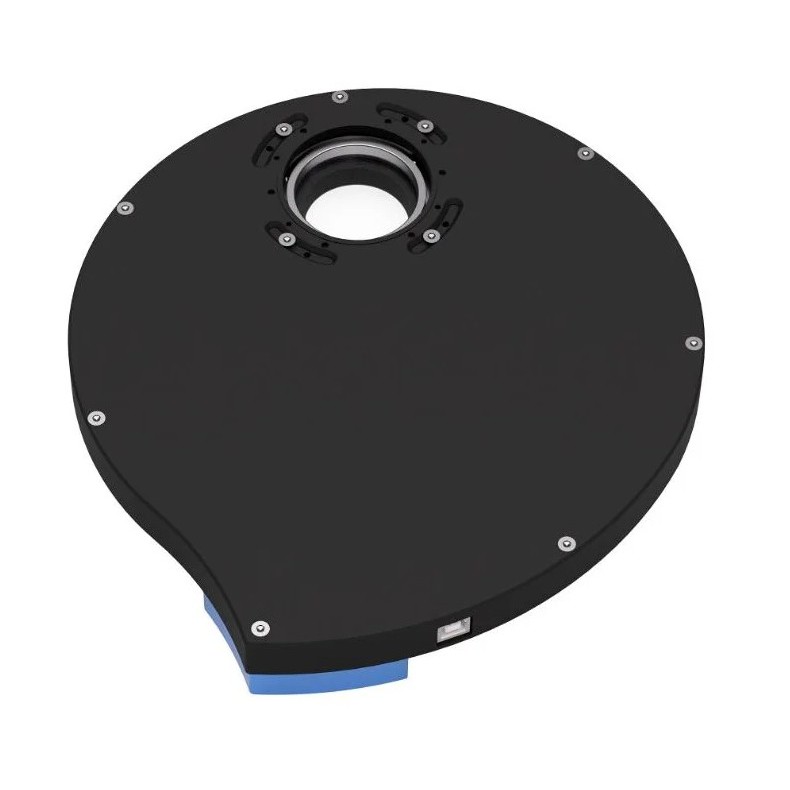

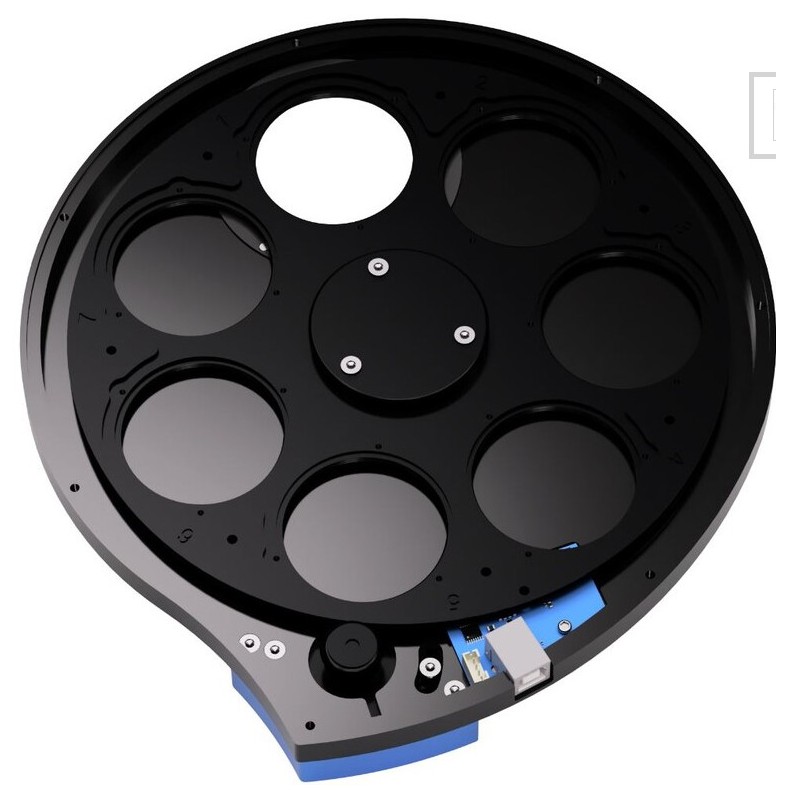

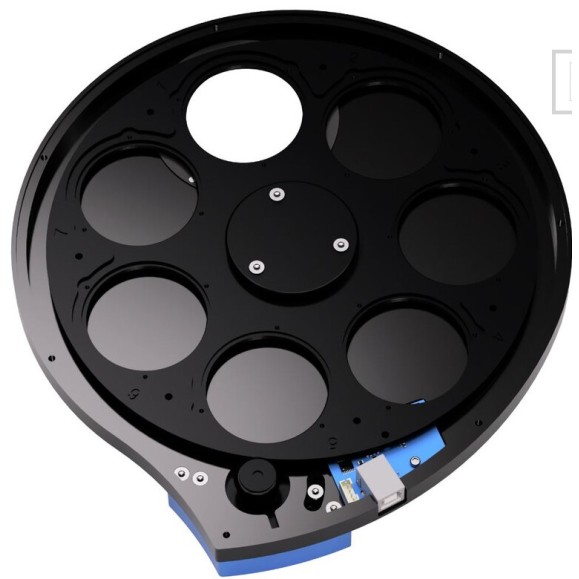

Both sides of the filter wheel have M54 openings. The sliding screw adapter (pictured below) allows you to correctly align the orientation of your camera or telescope side. Simply undo the screws and rotate the adapter to the desired orientation. The carousel has seven (7) slots and accepts 2-inch mounted or unmounted 50mm filters. The filter wheel rotates clockwise or counterclockwise to select the filter. A combination of a direct drive stepper motor and optical encoders ensures that your filter selection is precise and extremely accurate at each filter location.

Slim 18.6 mm design

The Indigo filter wheel body is CNC milled aluminum. The high quality aluminum alloy allowed us to design the filter wheel as thin as possible (19.0 mm, 19.6 mm with adapters installed on both sides).

Camera connection on the Pegasus Indigo 2" Filter wheel

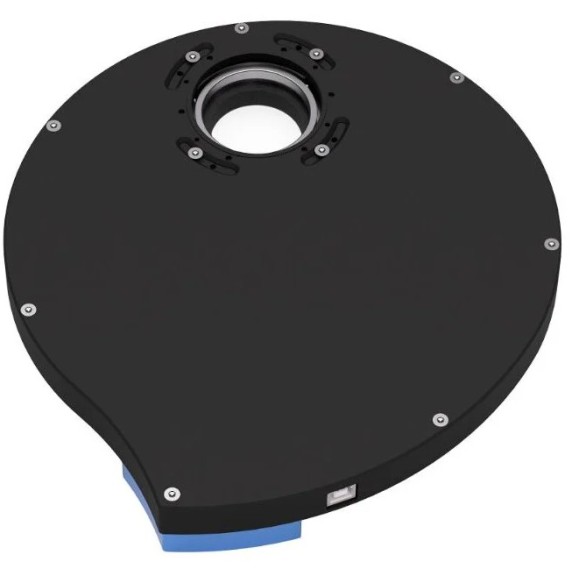

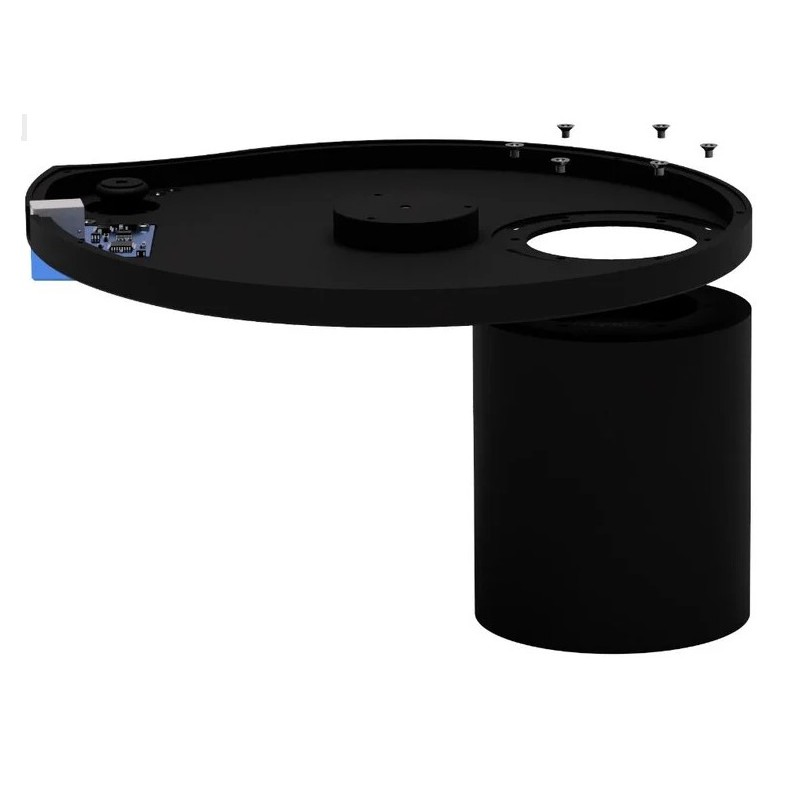

The 6 screw holes on the camera side allow direct connection to astronomical cameras that follow the same 6-hole pattern (62 mm diameter pattern). A neat feature allows you to reduce the total back focus instead of attaching adapters.

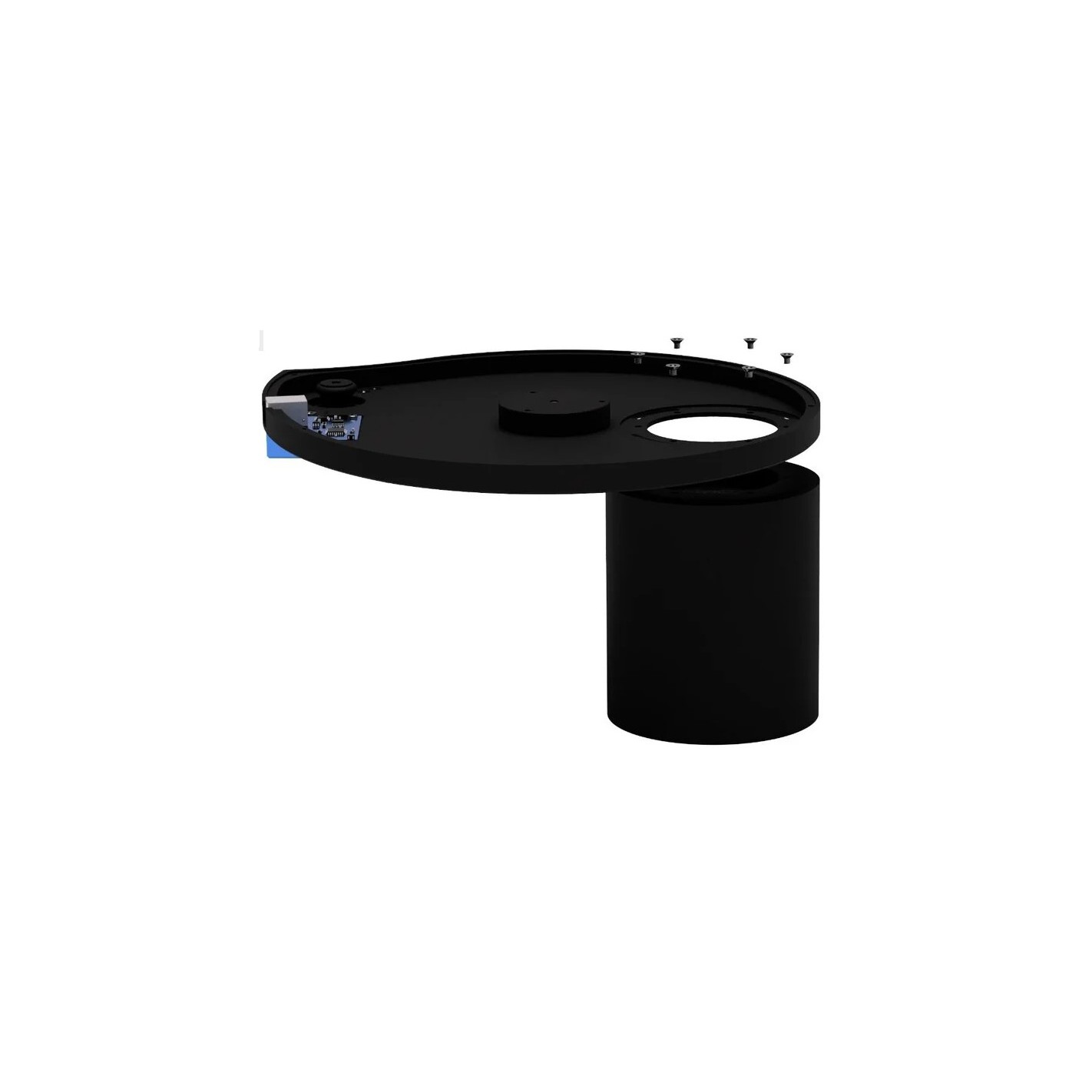

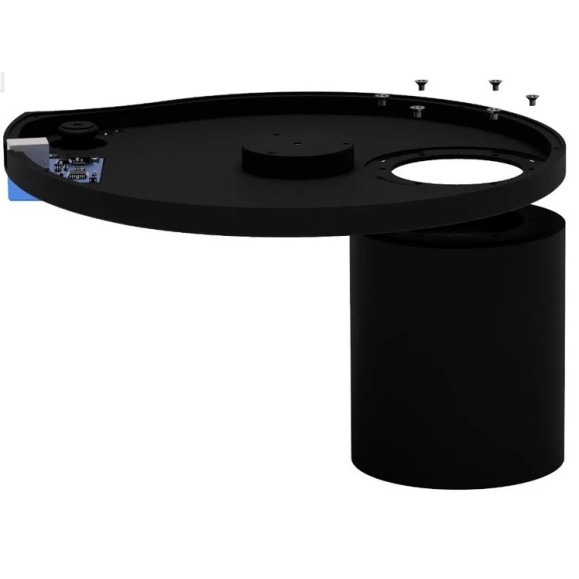

Mechanical design Pegasus Indigo 2" filter holder wheel
