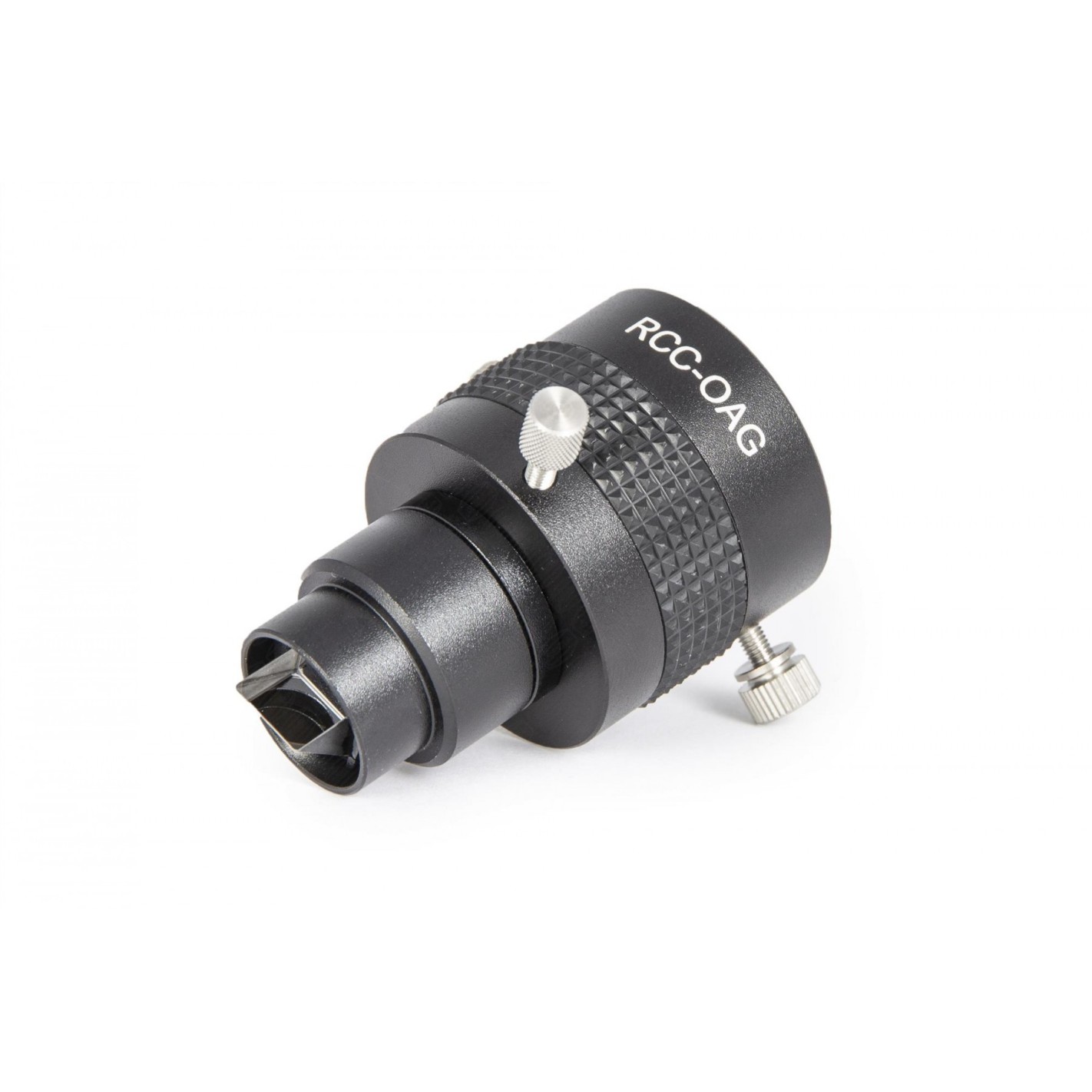

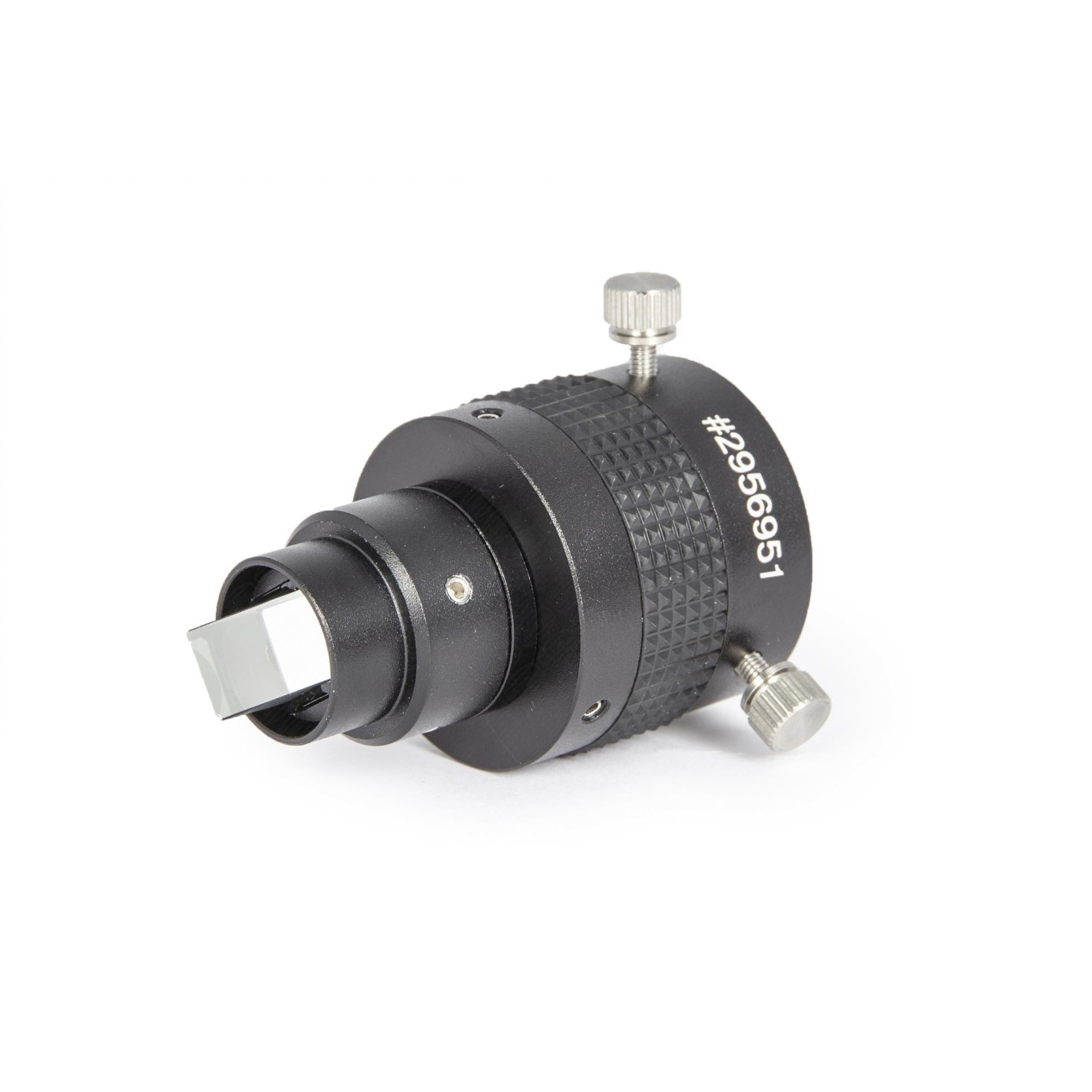

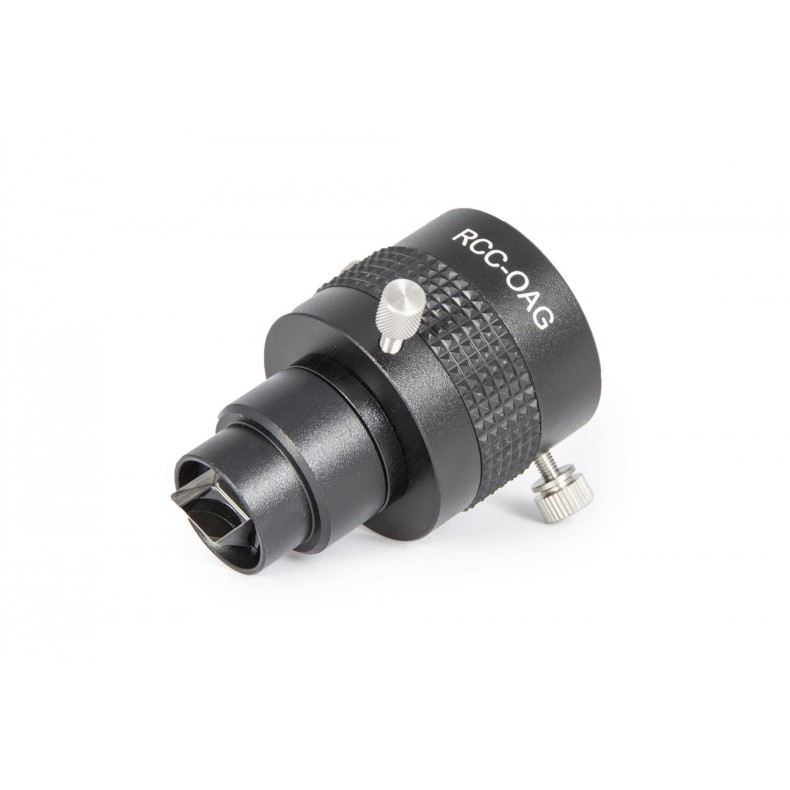

Off Axis Guider for Flip Mirror II Baader Planetarium

• Off Axis Guider (BFM-OAG) for direct connection to Baader FlipMirror II Star Diagonal (#2458055)
• Use the BFM-OAG to connect an autoguider camera to a Baader FlipMirror II diagonal mirror that works with all mirror positions.
• The distance between the optical axis and the center of the OAG prism is 17.5 mm, once the 4 mm spacer ring is removed. This distance provides the largest possible vignette-free field while retaining all the advantages of the large, movable prism.
• With one or two DT-4 #1905130 revolver extensions, you can place virtually any camera on the Off-Axis-Guider to be parafocal with the recording camera.
• The BFM-OAG is also part of the Off Axis Guider for RCC (RCC-OAG) #2956950
• Requires 24mm rear focus on BFM II

FEATURES

NET WEIGHT (KG) 0.07
OUTSIDE CONNECTION (SIDE LENS) Sleeve
INSIDE CONNECTION (EYE PIECE / CAMERA SIDE) Clamp, 1¼"
OPTICAL LENGTH 43 mm + 3.5 mm extension tube (requires 24 mm back focus on BFM II)
PRISM WIDTH 9.5 mm
OPTICAL DESIGN GUIDES
