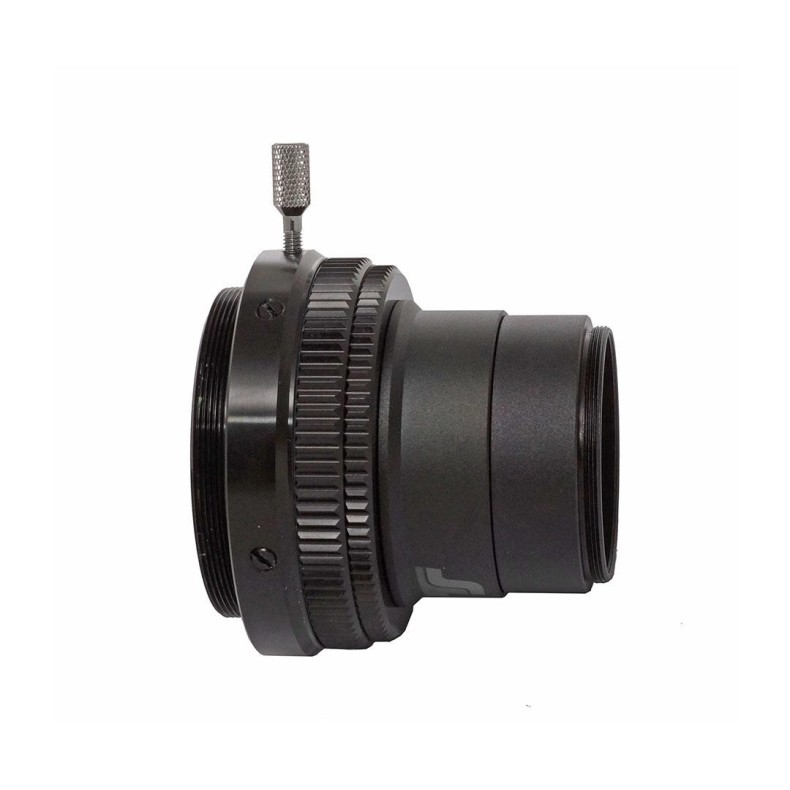

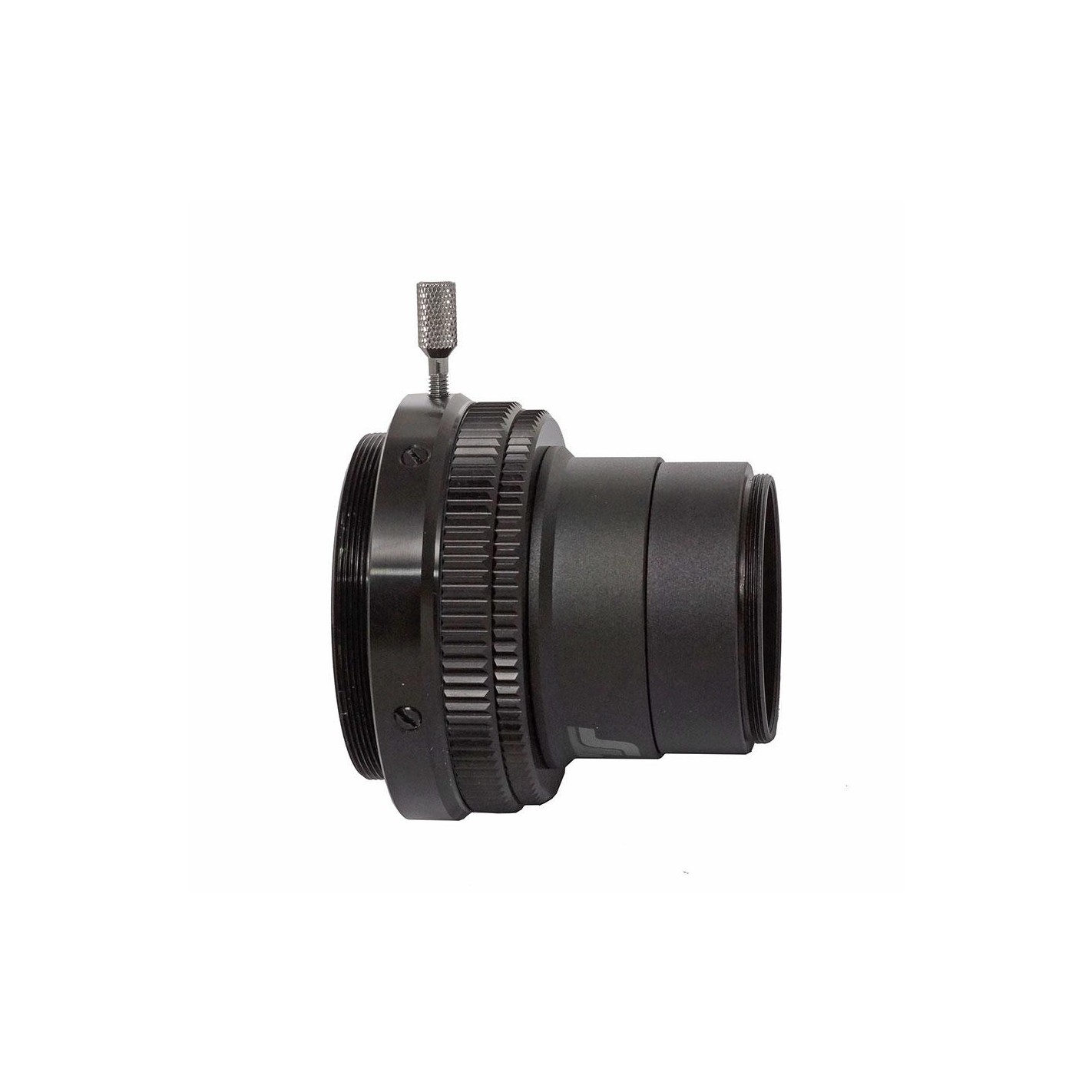

Field corrector flattener TS for 72 mm PhotoLine apo refractors

Field corrector TS for 72 mm PhotoLine apo refractors.

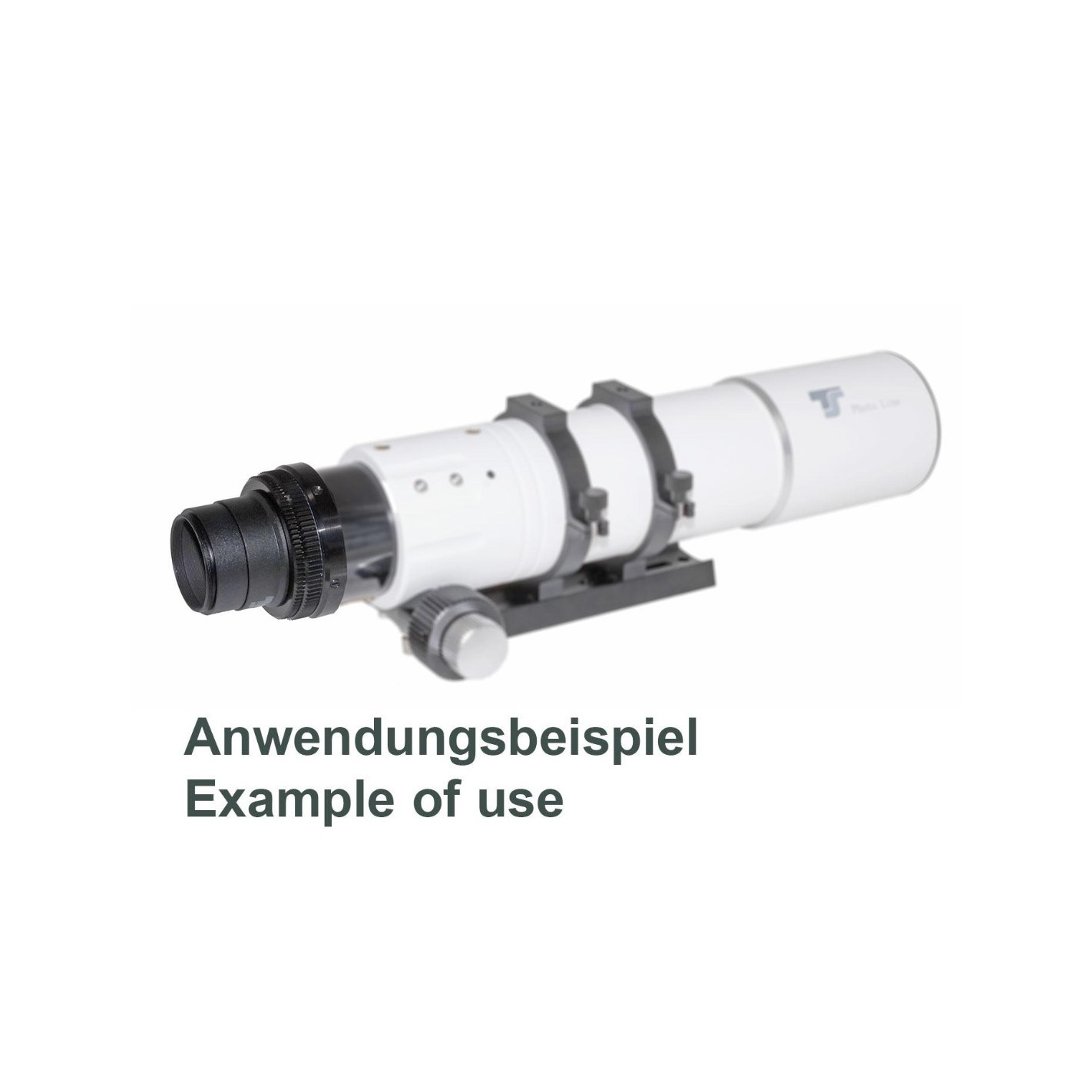

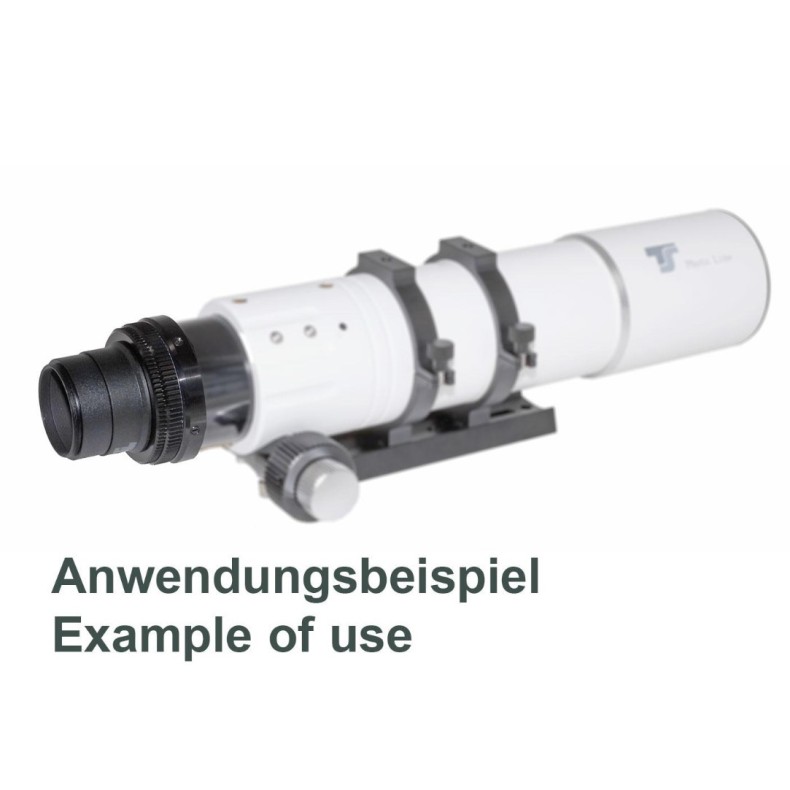

This flattening corrector TS is specially designed for Teleskop-Service's compact travel apochromats and produces optimum results with these telescopes. PhotoLine. It can be used with cameras with full-frame size sensors. The corrector is especially suitable for the models:

• TS-Optics PhotoLine 72 mm f / 6 Apo
• TS-Optics PhotoLine 72 mm f / 5.5 Apo

Main characteristics:

• Connection on the telescope side via a male thread M63x1 with 360° rotation. An additional M54x0.75 male thread without rotation is available. The connection is very robust to provide optimum stability.
• Inclusive 360° rotation system for focusers with M63x1 female thread. The reducer can also be connected directly to the focuser without rotation system. Adaptation is then carried out via M54.
• The corrector is specially designed for fast and compact apochromatics with an aperture of 72 mm.
• The M48x0.75 camera connector on the camera side provides 15% better illumination than traditional T2s and allows the use of full frame size sensors.
• Working distance of 55 mm from the M48 thread. With a suitable T adapter you will automatically get the correct distance if you use a DSLR. If you remove the extension ring, it increases the working distance to 70 mm, so you can adapt any astronomical camera.
• The corrector is completely multi-layer. In addition, the absolute absence of reflections is achieved by an internal matte black anti-reflective coating. Therefore, the image offers a very high contrast from which daylight photography (landscape, birds) also benefits.
• Illuminated and corrected field :42 mm
• Change in focal length :no change in focal length
• Flattening / corrector for astrophotography
• Connection on the telescope side : M63x1 and M54x0.75 (male)
• Connection on the camera side : M48x0.75 (male) - length 4 mm
• Working distance :55 mm from the M48 male thread
• Length :66 mm
• 360° rotation: included - length 19.5 mm

Field corrector leveller TS for 72 mm PhotoLine apo refractors.
