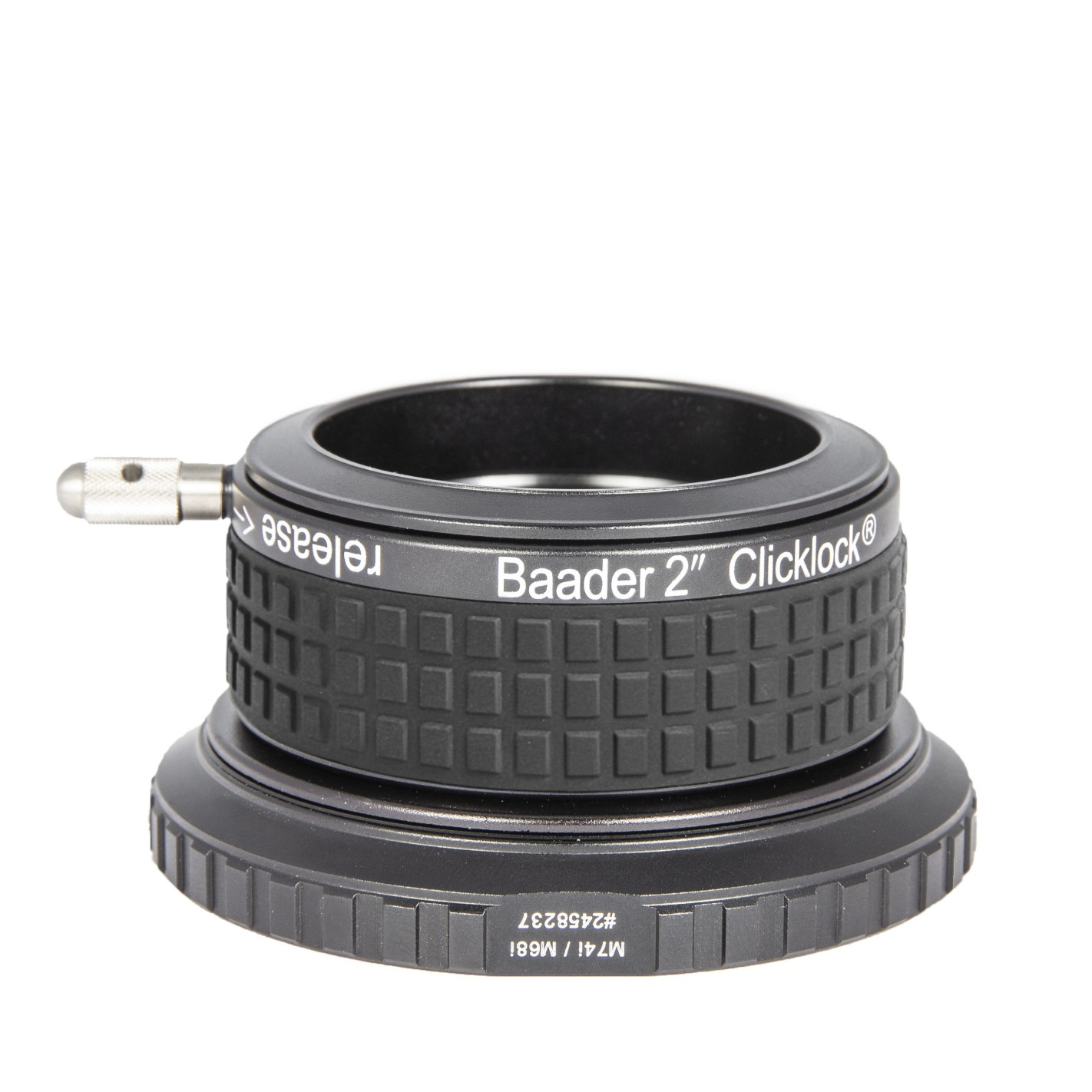

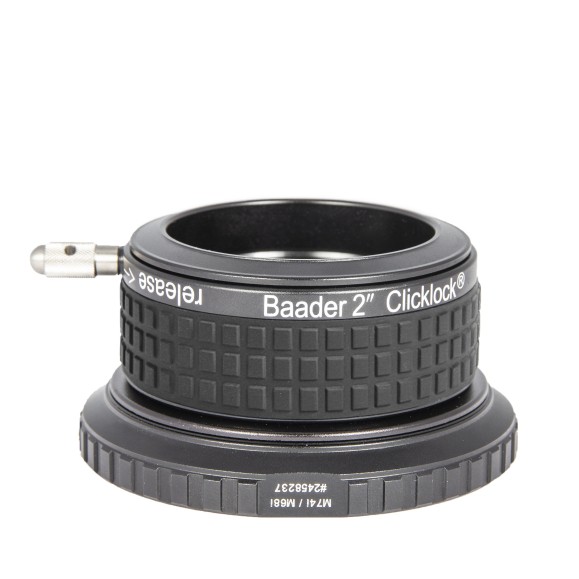

ClickLock M74i x 1 eyepiece holder Skywatcher Esprit, TS-Optics and Omegon OAZ
Baader ClickLock ClickLock M74i x 1 2" - for focusers with male thread M74 x 1, e.g., Skywatcher Esprit 120 & 150, TS-Optics and Omegon APOs 150/1000 with Linearpower focuser

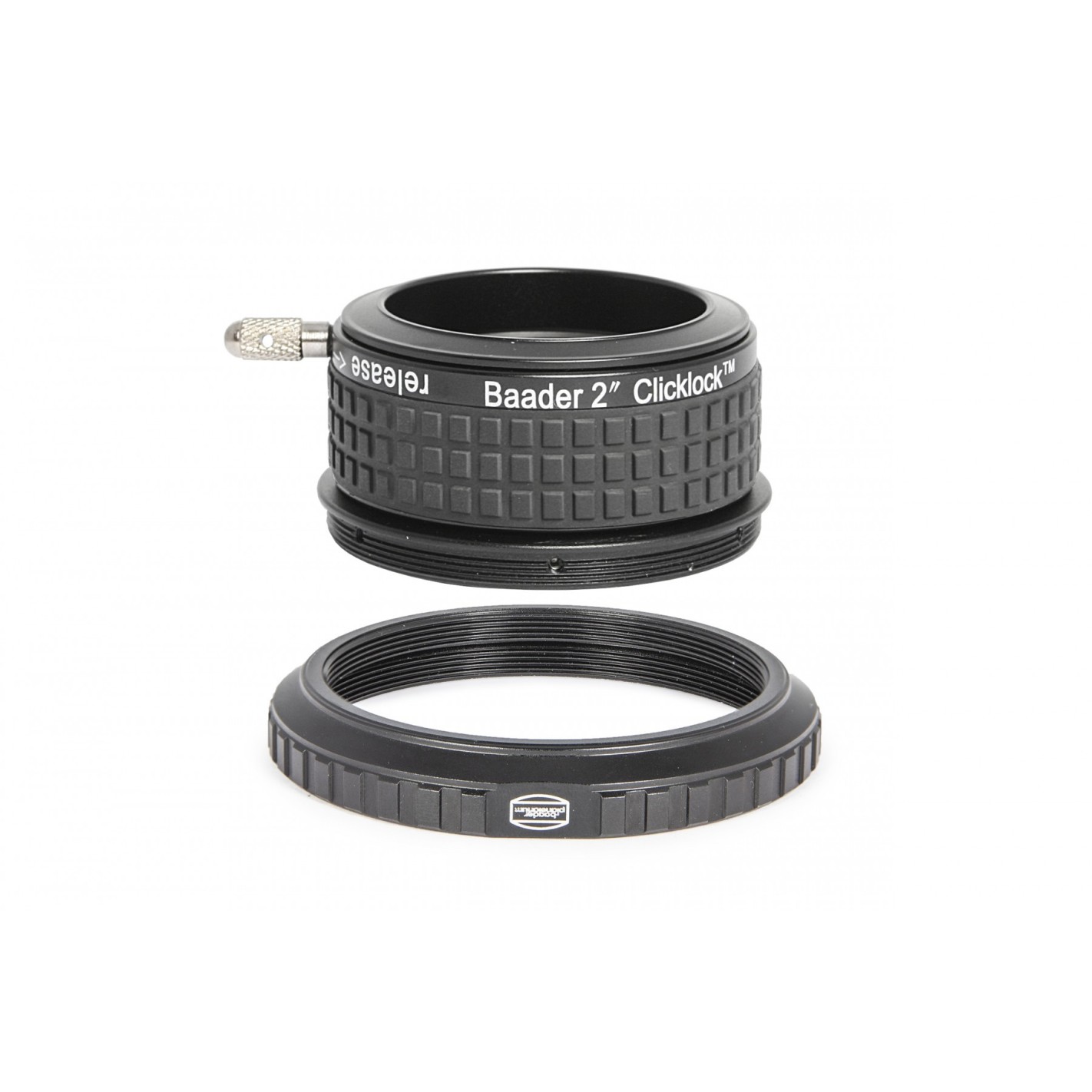

Consisting of a ClickLock M68a x 1 clamp (# 2956268) and a M68i x 1 to M74i x 1 inverter (# 2458237)
A small rotation of 20° with gentle fingertip pressure on the knurled lever is sufficient to securely clamp each 2" attachment. Optical height: 44 mm, Weight: 195 g
Ratchet function: features an acoustic and haptic display of the clamp position. This way you can hear and feel in the dark without looking whether the clamp is open or closed.
The thick-walled hard bronze compression tension ring keeps its shape even after many years of use and holds expensive accessories securely, without causing scratches or pressure points on your accessories.
FEATURES
NET WEIGHT (KG) 0.20
OPTICAL LENGTH (mm) 44
ClickLock CLAMP SYSTEM
USE quick-clamp every 2" accessory
INTERNAL DIAMETER / CLEAR OPENING 50.8mm (2")
INTERNAL CONNECTION (SIDE LENS) Thread, M74
OUTSIDE CONNECTION (SIDE LENS) Thread, M68 x 1
INSIDE CONNECTION (EYE PIECE / CAMERA SIDE) Clamp, 2" (50.8mm)
COMPATIBLE BRANDS Zeiss
ADAPTOR TYPE ClickLock, Eyepiece Clamp
NOTE: Image corresponds to similar eyepiece clamp
