BAD2459257
Stock at Supplier
367.77
VAT excluded Shipping 5/7d

Baader research-grade TZ-3 Telecentric System with 2" thread (3x focal length)

Order it before 11 hours and 31 minutes and receive it between on Thursday, 17 April and Thursday, 24 April with Home delivery - International

Delivery Options
Carrier Description Estimated Delivery
Home delivery - International Home delivery - International

Thursday, 17 April - Thursday, 24 April

Home delivery - International

Home delivery - International

Estimated delivery:
Thursday, 17 April - Thursday, 24 April

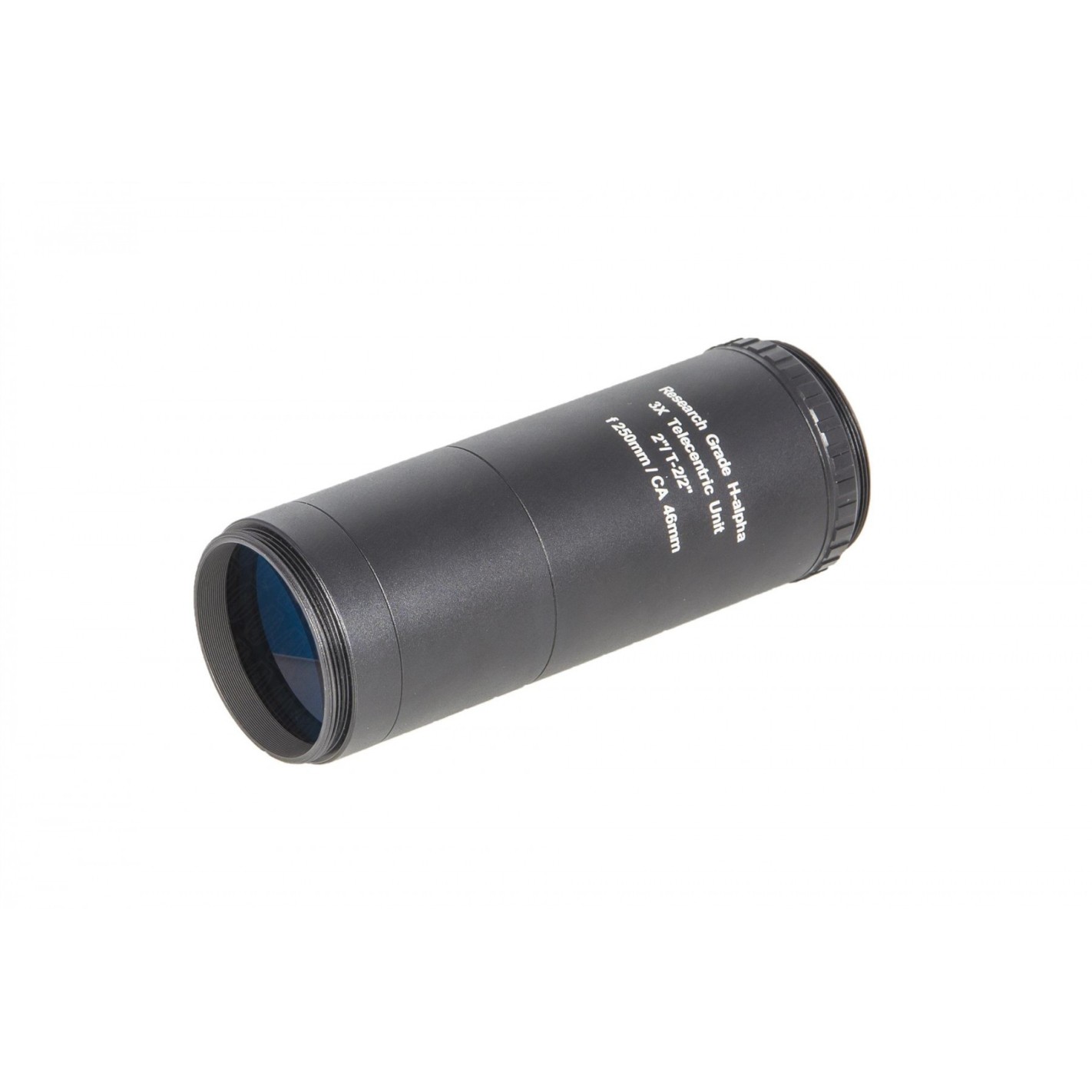

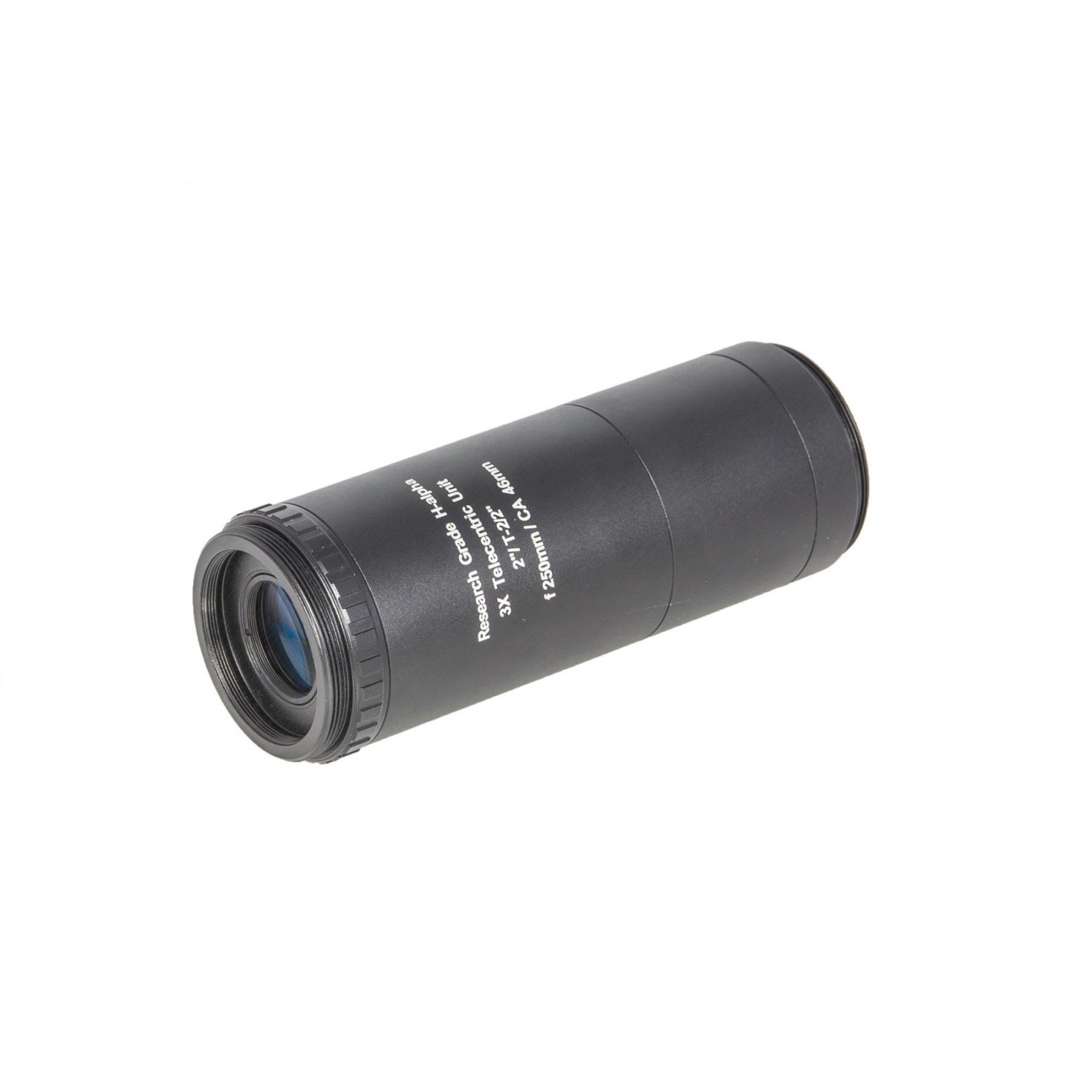

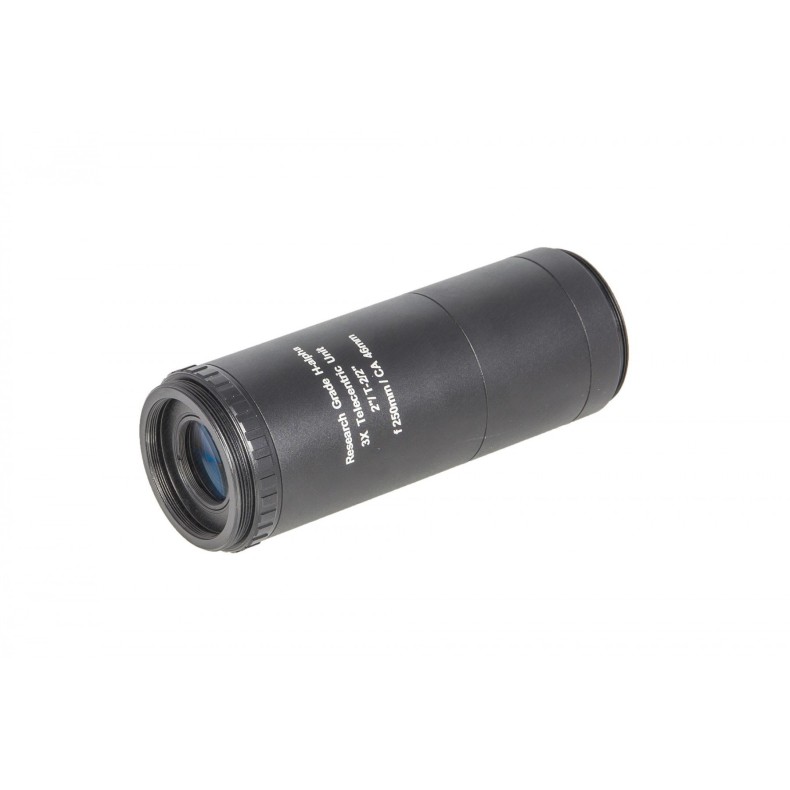

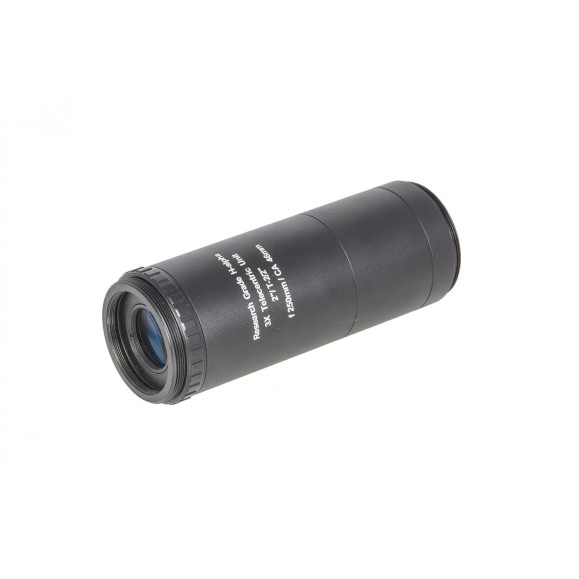

Baader Research Grade TZ-3 Telecentric System with 2" thread (3x focal length)

  • Research-grade telecentric unit, with a set of oversized pickup expansion lenses and 2" (50.8 mm) threads on both sides; T-2 adapter and 2" m/f inverter ring are included as standard accessories
  • 46 mm clear aperture on the inlet side of the H-alpha filter, suitable for research-grade SolarSpectrum H-alpha filters

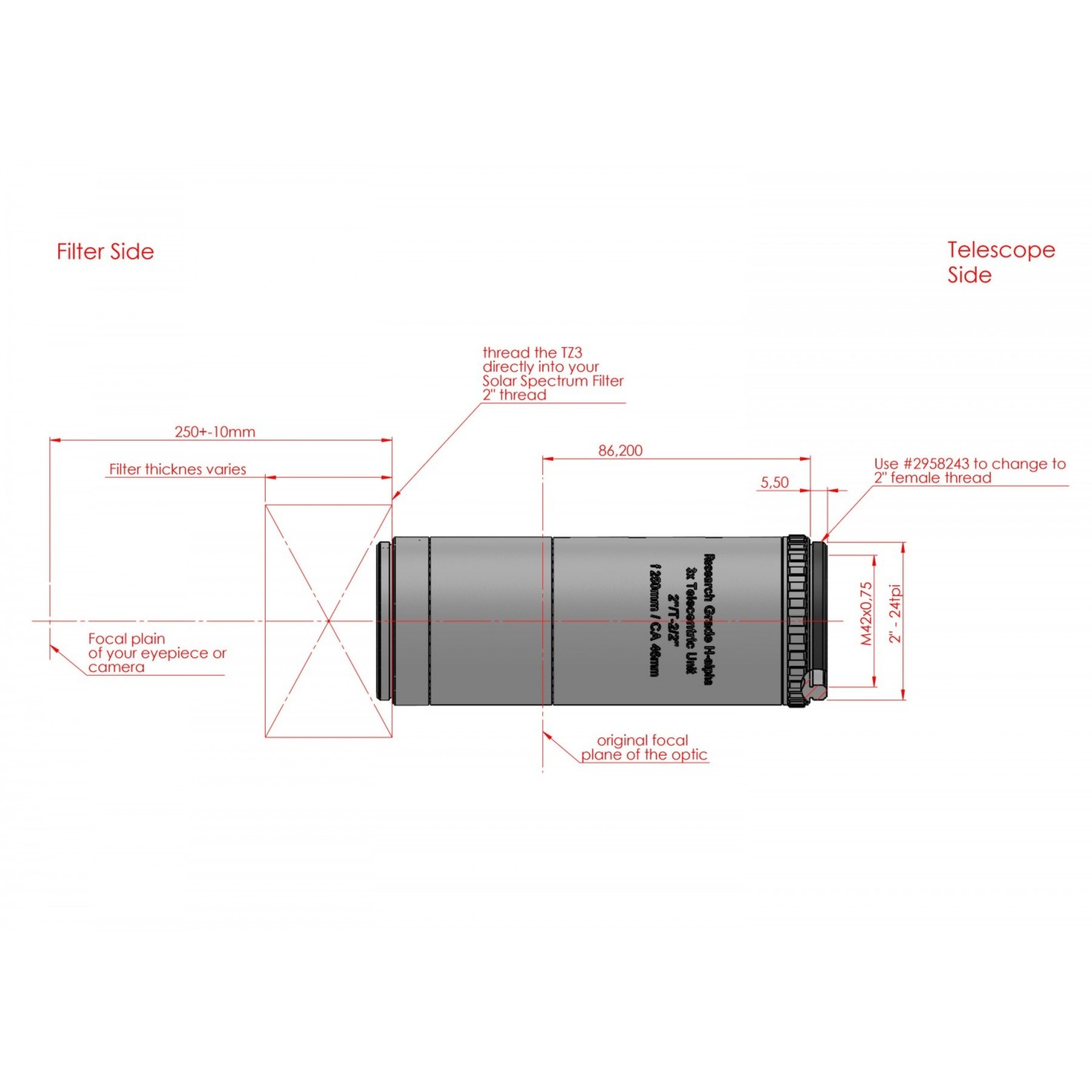

  • Large working distance of 250 mm for optimized focal length reduction with a telecompressor and adequate space to adapt a binocular viewfinder
  • Aplanatic, with 3x focal length extension to achieve an f/30 parallel beam together with ~ f/10 optical systems - no field curvature
  • Calculated and produced primarily for H-alpha at 656.3 nm, delivering 99% Strehl (99% brightness of definition)
  • Diffraction limited design also at 396 nm (CaK)

FEATURES

NET WEIGHT (KG) 0.21
FOCAL LENGTH EXTENSION 3x
USE For H-alpha observation with SolarSpectrum filters
INTERNAL CONNECTION (SIDE LENS) Thread, T-2 (M42x0.75), 2"(50.8mm)
EXTERNAL CONNECTION (SIDE LENS) Thread, 2"(50.8mm)
EXTERNAL CONNECTION (EYE PIECE/CAMERA SIDE) Thread, T-2 (M42x0.75), 2"(50.8mm)
