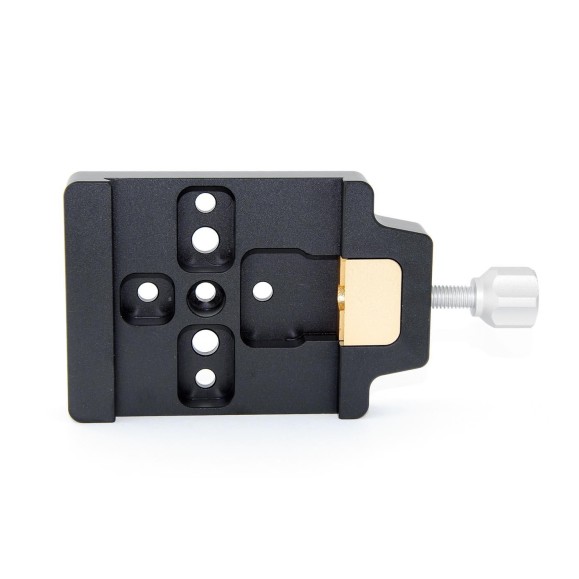

Female bracket TS-Optics Premium type Losmandy

Female bracket TS-Optics Premium Type Losmandy

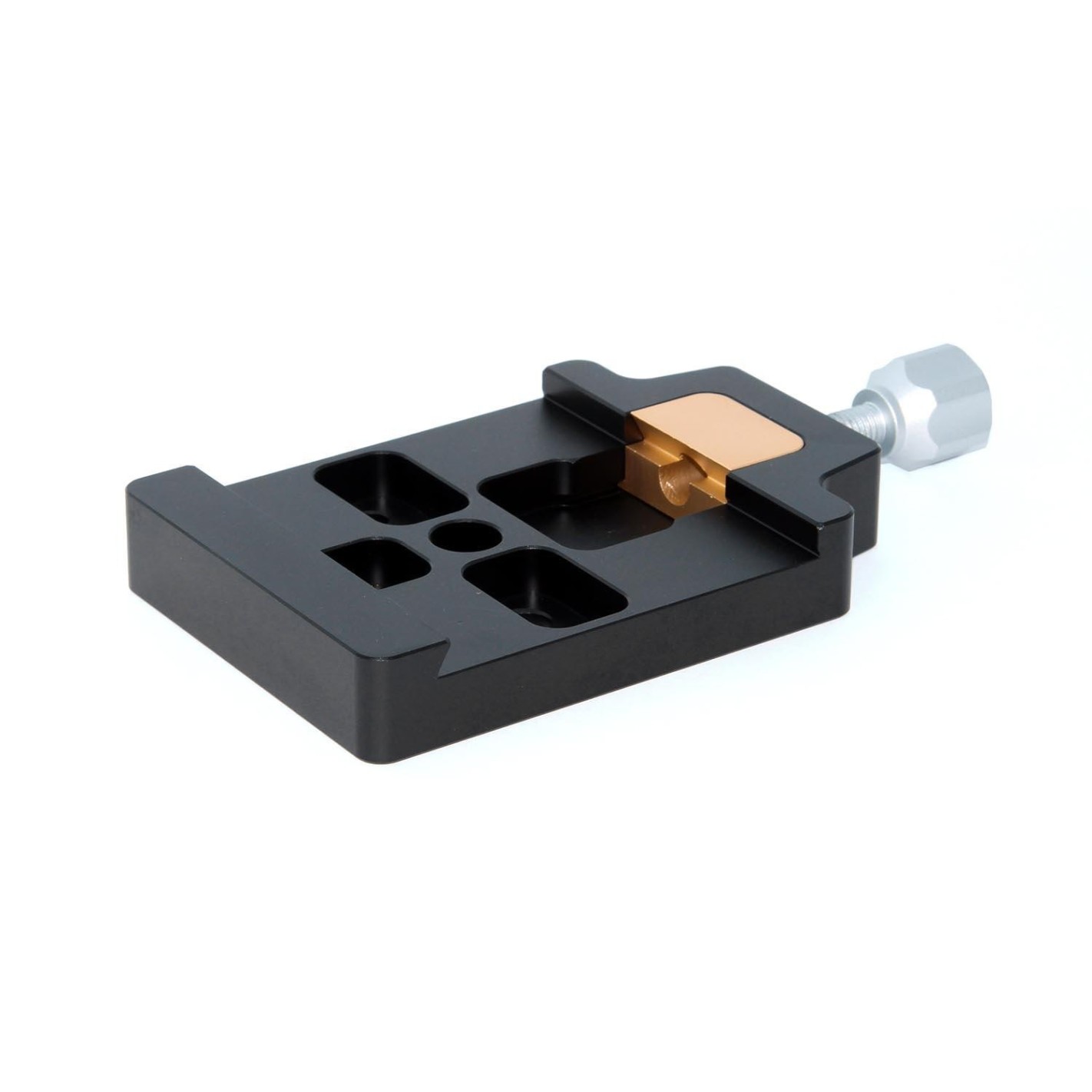

With the quick-coupling mount plate, you can attach your telescope to the mounts securely. Thanks to the areal clamping, a high clamping force is achieved. In addition, unsightly pressure marks are avoided.

The short mounting plate is particularly suitable for constructing double connections. Thanks to the flat bearing surface and countersunk holes, the clamp can be easily attached to dovetail rods.

A secure and precise attachment for your telescope or accessories
With the TSPKL8, you can attach even heavy accessories parallel to the main telescope. For example, the short mounting plate of only 80 mm fits on the same dovetail bar with which the telescope is attached to the mount and, for example, you can adapt a ball head to the mounting plate and use telephoto lenses parallel to the telescope.

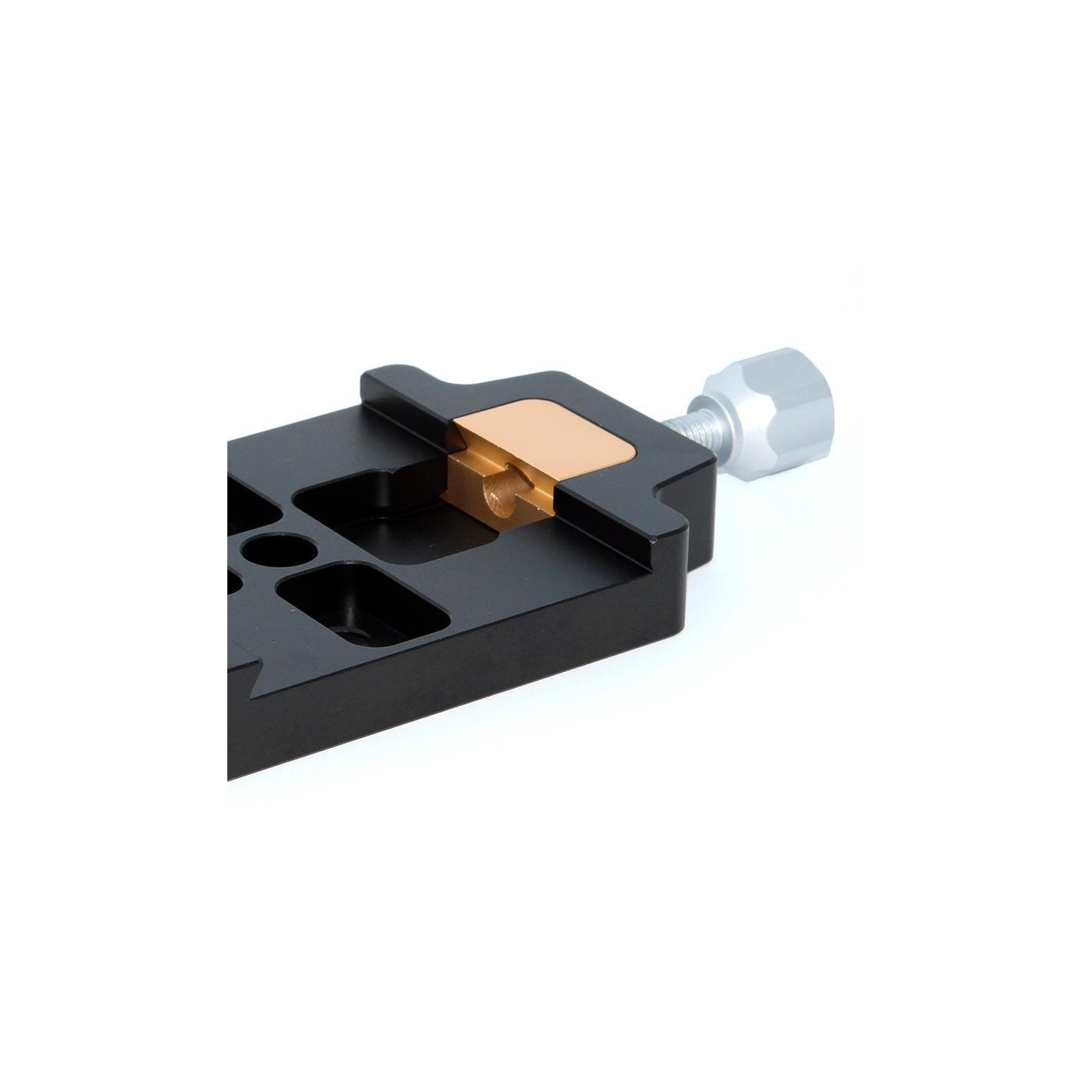

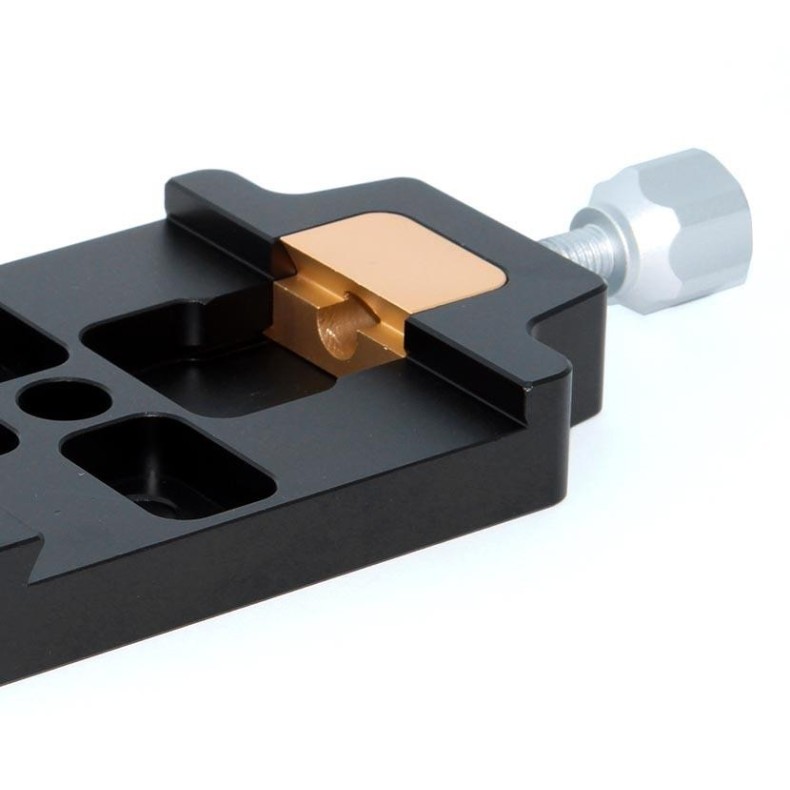

Despite the strong clamping, unsightly dents are avoided
Two generously dimensioned areas press the dovetail bar against the other side of the mounting plate. The pressure is not concentrated at one point, but over a larger area of 29 mm width. This has a positive effect on the load-bearing capacity. In addition, unsightly pressure marks are avoided.

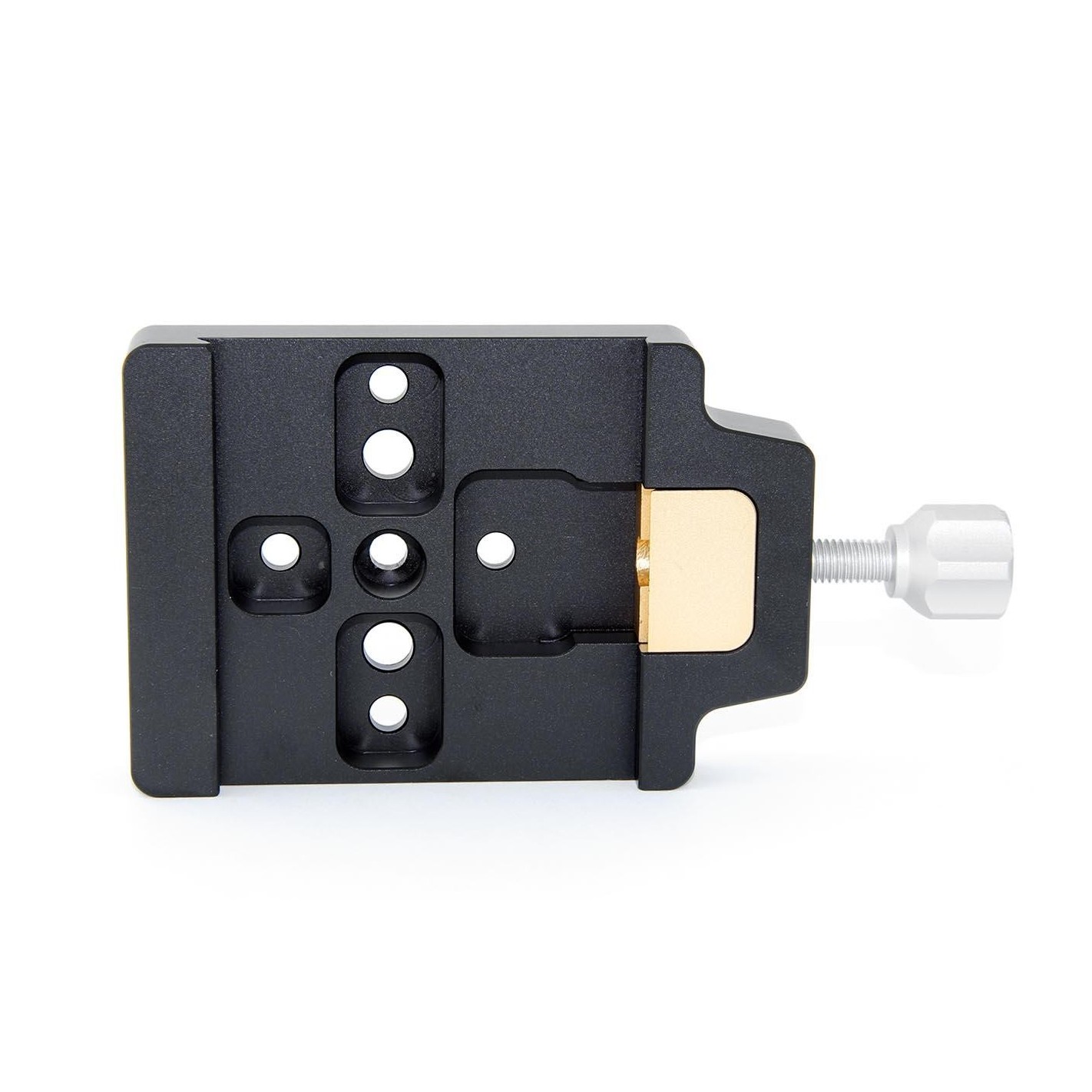

Extremely versatile thanks to 7 countersunk holes
Through 7 countersunk holes, the seat plate is very versatile. You can attach this clamp to your mount, thus equipping it with a level quick coupler Losmandy. Or you can attach tube rings or a camera mount to the base of the plate, allowing the use of heavy accessories parallel to your telescope.

General features:

♦ Securely and reliably holds all 3" level dovetail rods Losmandy.

♦ Particularly high capacity of up to 30 kg.

♦ Areal clamping - protects fixtures and provides a very stable hold

♦ All-aluminum seat plate in solid construction - no warping

♦ 7 countersunk holes allow attachment to almost all surfaces

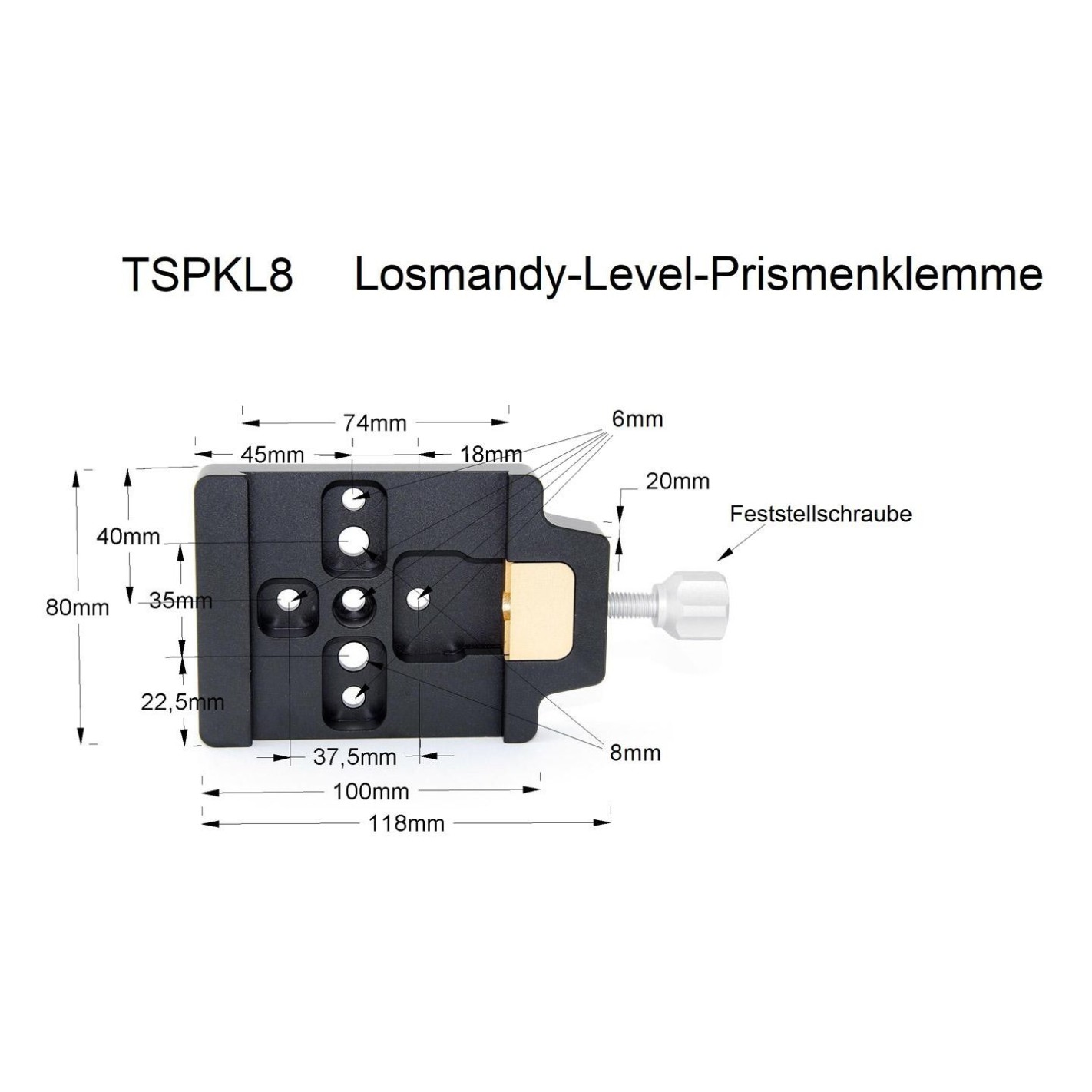

♦ Dimensions: length 80 mm - width 118 mm (without screws) - width with screws 153 mm

♦ Weight: only 320 grams with maximum stability

♦ Protection against excessive unscrewing of the fastening screws

Technical specifications:

• Suitable for: Dovetail bars Losmandy level 3
• Dimensions: length 80 mm - width 118 mm (without screws) - width with screws 153 mm
• Load capacity: approx. 30 kg
• Weight: only 320 grams
• M8 holes: two M8 holes - spacing 35 mm (middle to middle)
• M6 and 1/4" holes: five M6 holes at different distances lengthwise and crosswise to the center
