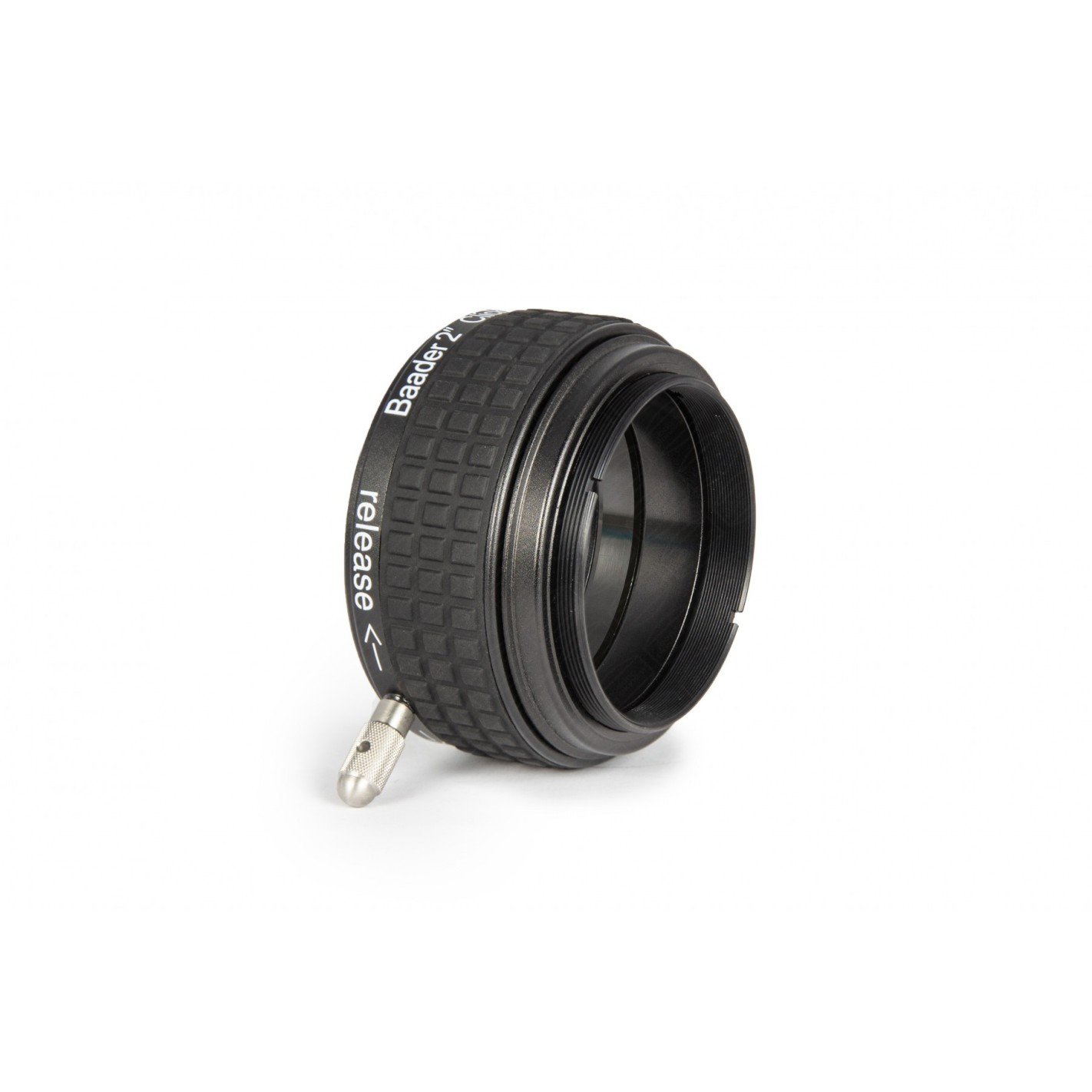

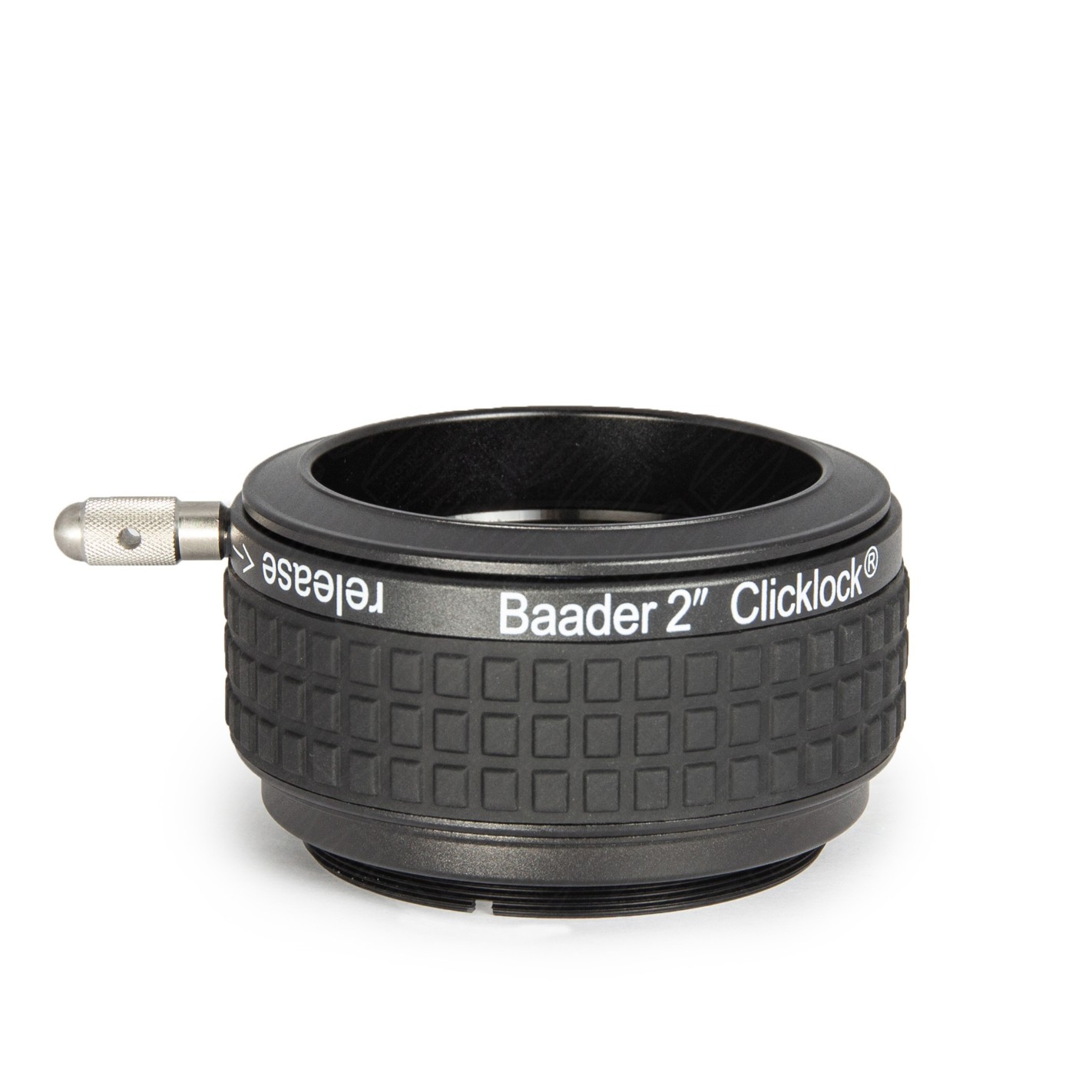

CLicklock eyepiece holder Ø 2" M54/0.75 from Baader Planetarium

CLicklock eyepiece holder diameter 2" M54/0.75 (TS-Optics / SkyWatcher/ Takahashi) from Baader Planetarium.

Baader Planetarium ClickLock Ø 2″ eyepiece holder system for mounting on Takahashi and other telescopes.

This model is with M54*.75 internal thread.

The ClickLock system is the ultimate system for holding Ø 2″ eyepieces and accessories without screws and without off-centering the optics.

It locks with a little pressure on the ClickLock Ø 2″ M54 eyepiece holder stop Baader Planetarium.

The Click Lock system of Baader Planetarium offers us a great comfort of use by not needing the classic tightening screws in most of the eyepiece holders.

It is a very effective and safe system, with a great load capacity and fixing capacity of the rear elements that we install in the telescope.

In addition, it perfectly centers the rear element, whether they are eyepieces, optical trains for photography or any accessory that we fix in the Click Lock.

A system that we can also get for most of the most common telescopes on the market, replacing the original fixings by the Click Lock system of Baader Planetarium.

Completely closed to avoid loss of internal parts, it also offers the possibility of adjusting the position of the locking knob to our liking, since once installed on the telescope, we can orient it with the small service key that comes as standard, to the position that is most comfortable for our use.

The ClickLock, in this case ClickLock Ø 2″ M54 Baader Planetarium, the definitive eyepiece holder system for our telescope is available in Ø 2″ and Ø 1¼" T2 systems.

This model is valid for Takahashi and other manufacturers' eyepiece holders.

• Baader ClickLock M54a x 0.75 2"-clamp for all focusers with female thread M54 x 0.75 (e.g. TS-Optics Photoline and some SkyWatcher instruments)
• Consists of ClickLock clamp M54i x 0.75 (# 2956253) and inverter ring M54a x 0.75 (# 2458061)
• A small rotation of 20° with gentle fingertip pressure on the knurled lever is sufficient to securely clamp each 2" attachment. Optical height: 35 mm, Weight: 134 g
• Ratchet function: features an acoustic and haptic display of the clamp position. This way you can hear and feel in the dark without looking whether the clamp is open or closed.
• Thick-walled hard bronze compression tension ring keeps its shape even after many years of use and holds expensive fittings securely, without causing scratches or pressure points on your fittings.

FEATURES

• NET WEIGHT / KG) 0.14
• OPTICAL LENGTH 35mm
• ClickLock® HOLDING SYSTEM
• USE QUICK CLAMP for each 2" accessory
• INTERNAL DIAMETER / CLEAR OPENING 50.8mm (2")
• OUTER DIAMETER 68mm (1")
• EXTERNAL CONNECTION (LENS SIDE) Thread, M54 x 0.75
• INTERNAL CONNECTION (OCCULAR / CAMERA SIDE) Clamp, 2" (50.8mm)
• COMPATIBLE BRANDS Baader Planetarium, Skywatcher, TS-Optics
• ADAPTOR TYPE ClickLock, Eyepiece Clamp

CLicklock eyepiece holder 2" diameter M54/0.75 (TS-Optics / SkyWatcher/ Takahashi) from Baader Planetarium.
