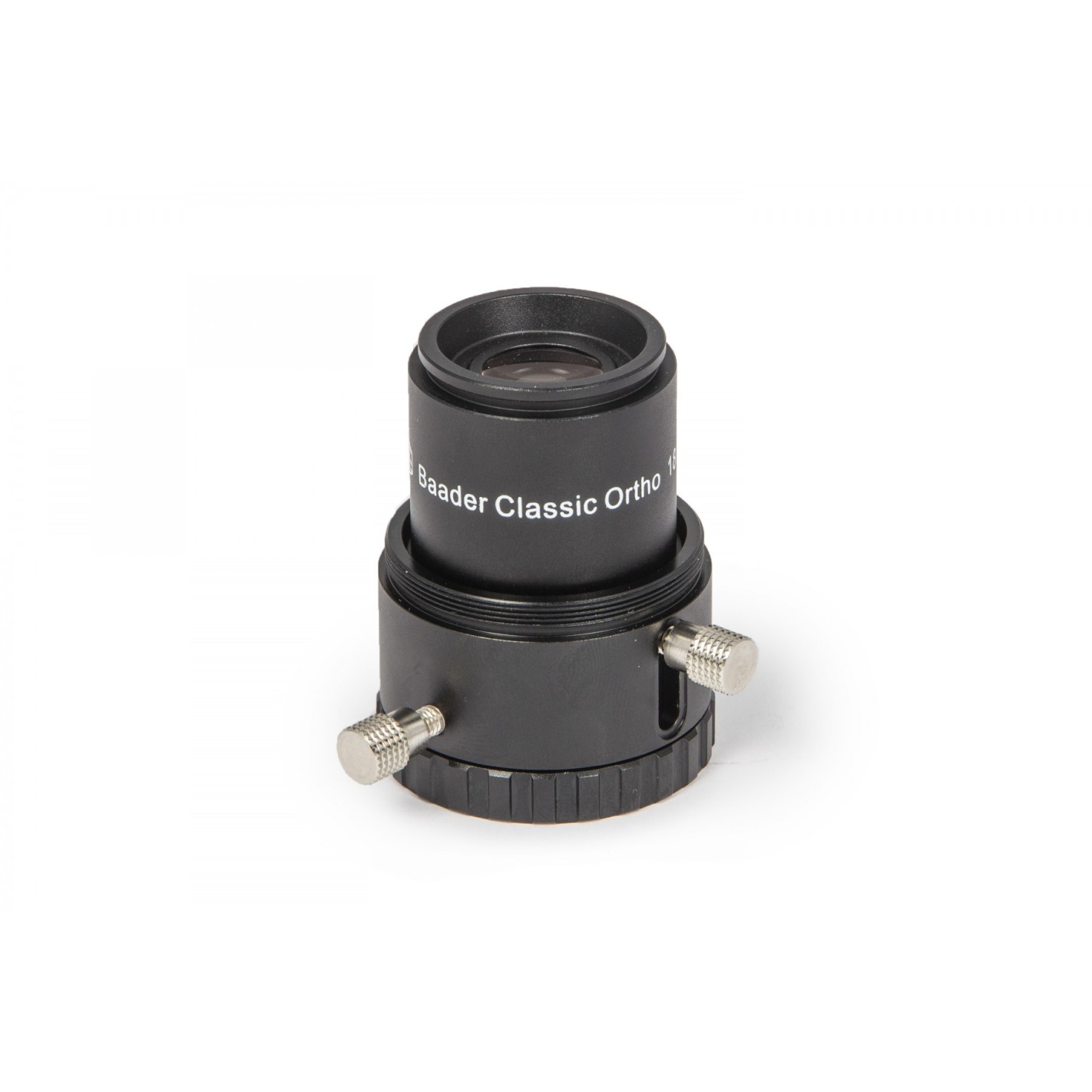

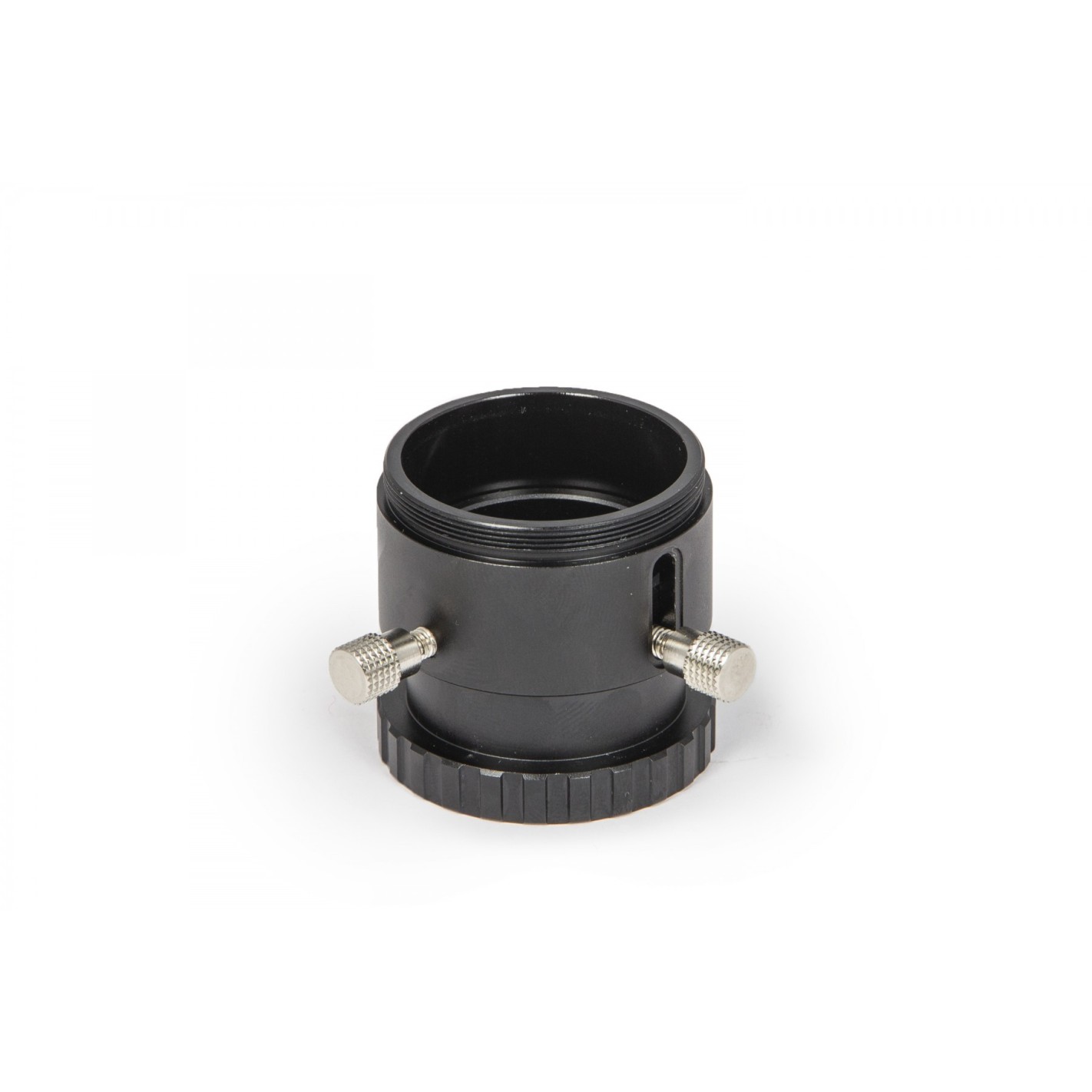

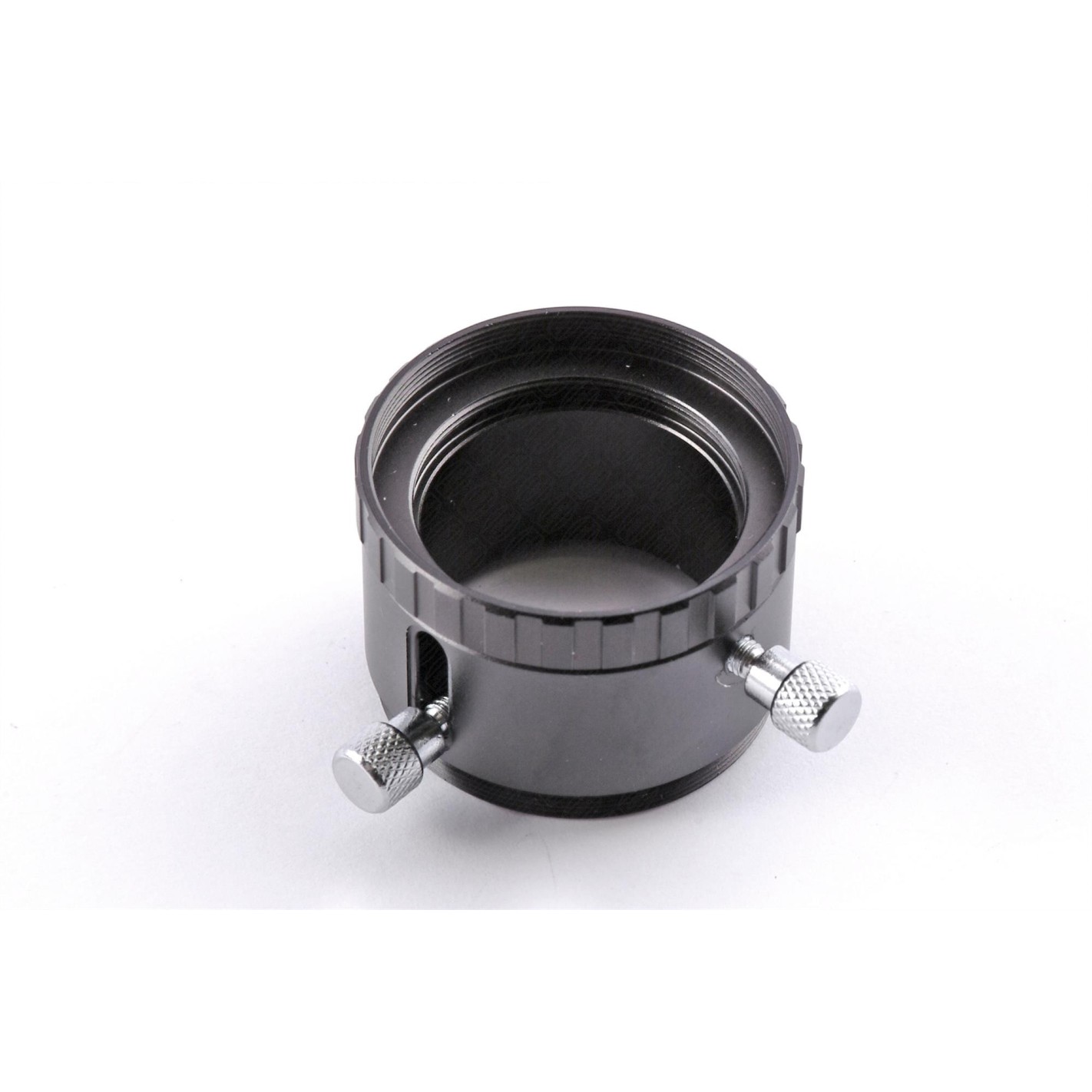

Sliding T2 eyepiece holder Baader Planetarium
For 1.25" eyepieces or OAG cameras. Focusing travel 10 mm
Telescope side T-2 (internal thread M42x0.75)
Focusing side 1¼" insertion sleeve for 1¼" eyepieces and T-2 male thread
Optical path length 27.5 mm to 38.5 mm
FEATURES
NET WEIGHT (KG) 0.06
OPTICAL LENGTH 27.5mm - 38.5mm
FASTENING SYSTEM Screw Clamps
T-2 PART # 24
SCREW TYPE M4 and M4 Feststellschraube
INTERNAL DIAMETER / CLEAR OPENING 31,75mm (1¼")
OUTSIDE DIAMETER 45mm
INSIDE CONNECTION (LENS SIDE) Thread, M34, T-2 (M42 x 0.75)
OUTSIDE CONNECTION (EYE PART / CAMERA SIDE) Thread, T-2 (M42 x 0.75)
COMPATIBLE BRANDS Astro T-2, Baader Planetarium
ADAPTOR TYPE Extension
