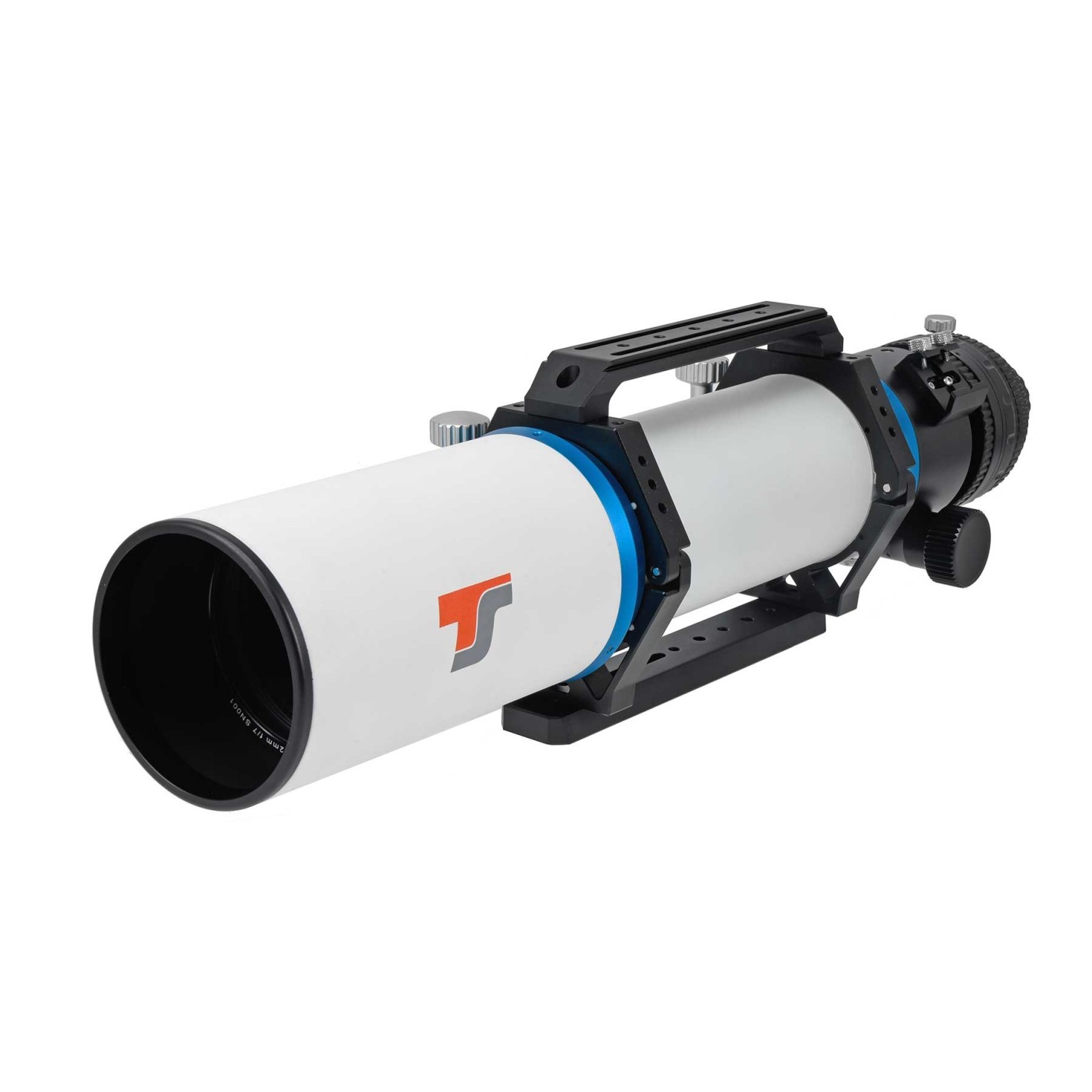

Telescope TS 102 mm f/7 FPL55 Triplet APO Refractor with certificate

TS CF-APO 102/714 mm FPL55 triplet apochromatic

The apochromatic refractor with an aperture of 102 mm and a focal length of 714 mm offers the highest optical performance and first-class mechanics for astrophotography and amateur astronomy.
♦ Aperture 102 mm

♦ Focal length 714 mm / focal ratio f / 7

♦ First-class color correction via triplet lens FPL55

♦ Interior apertures

♦ High quality metal tube with CNC tube rings

♦ Retractable spray shield

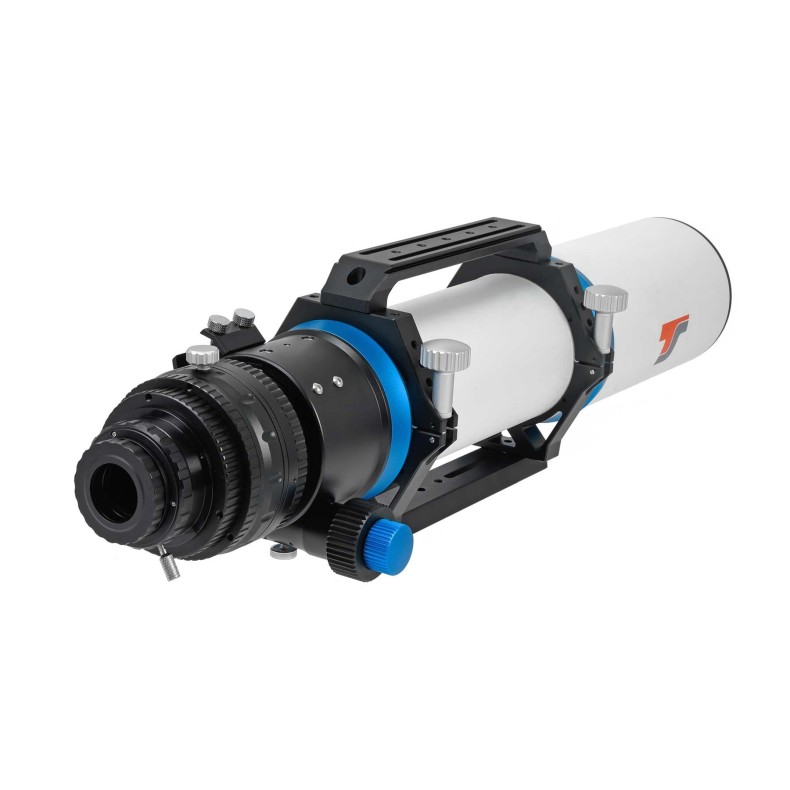

♦ 3.7" RAP focuser - ball bearing with M92x1, M82x1 and M63x1 connection threads for correctors

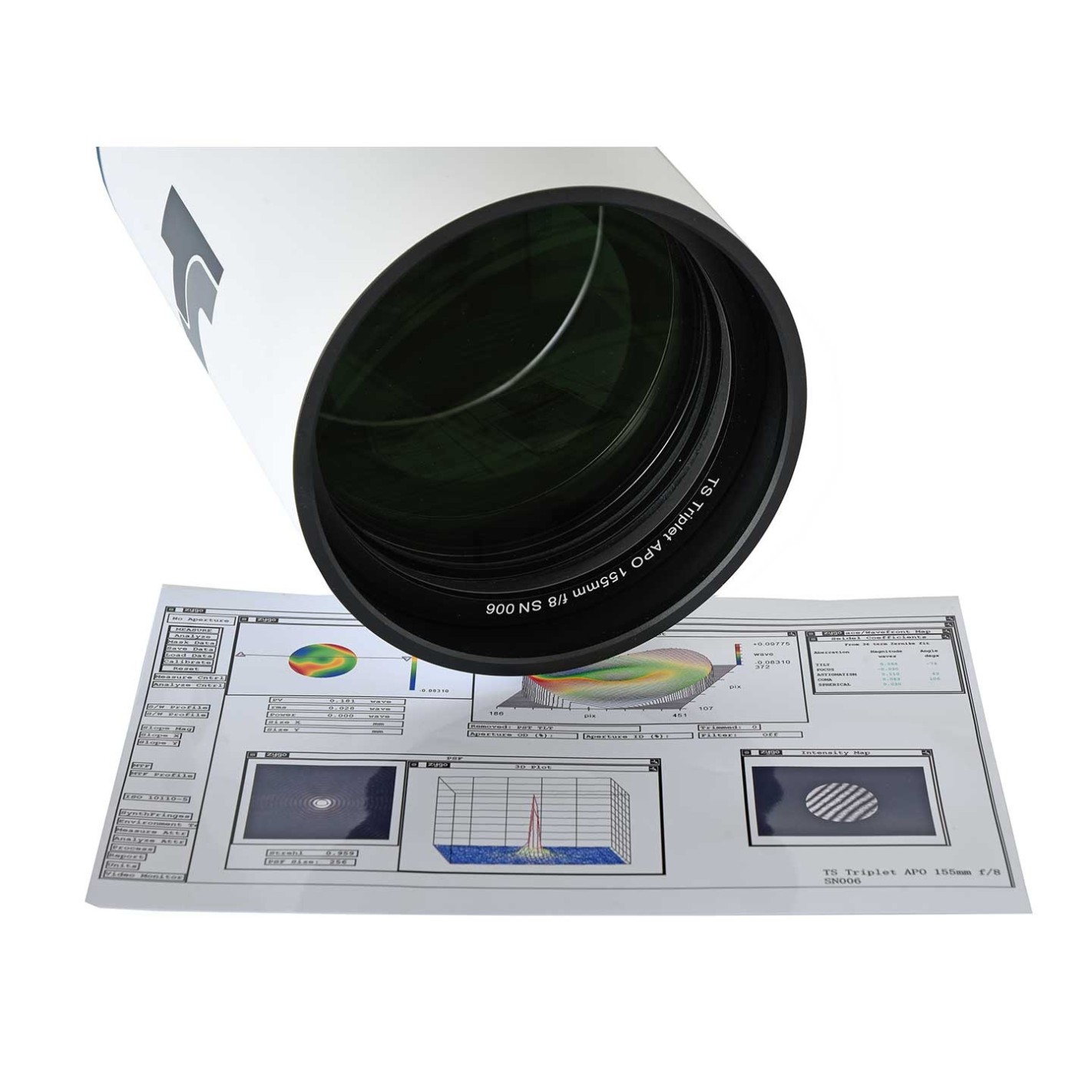

♦ Each TS-Optics CF-APO is delivered with test certificate and serial number

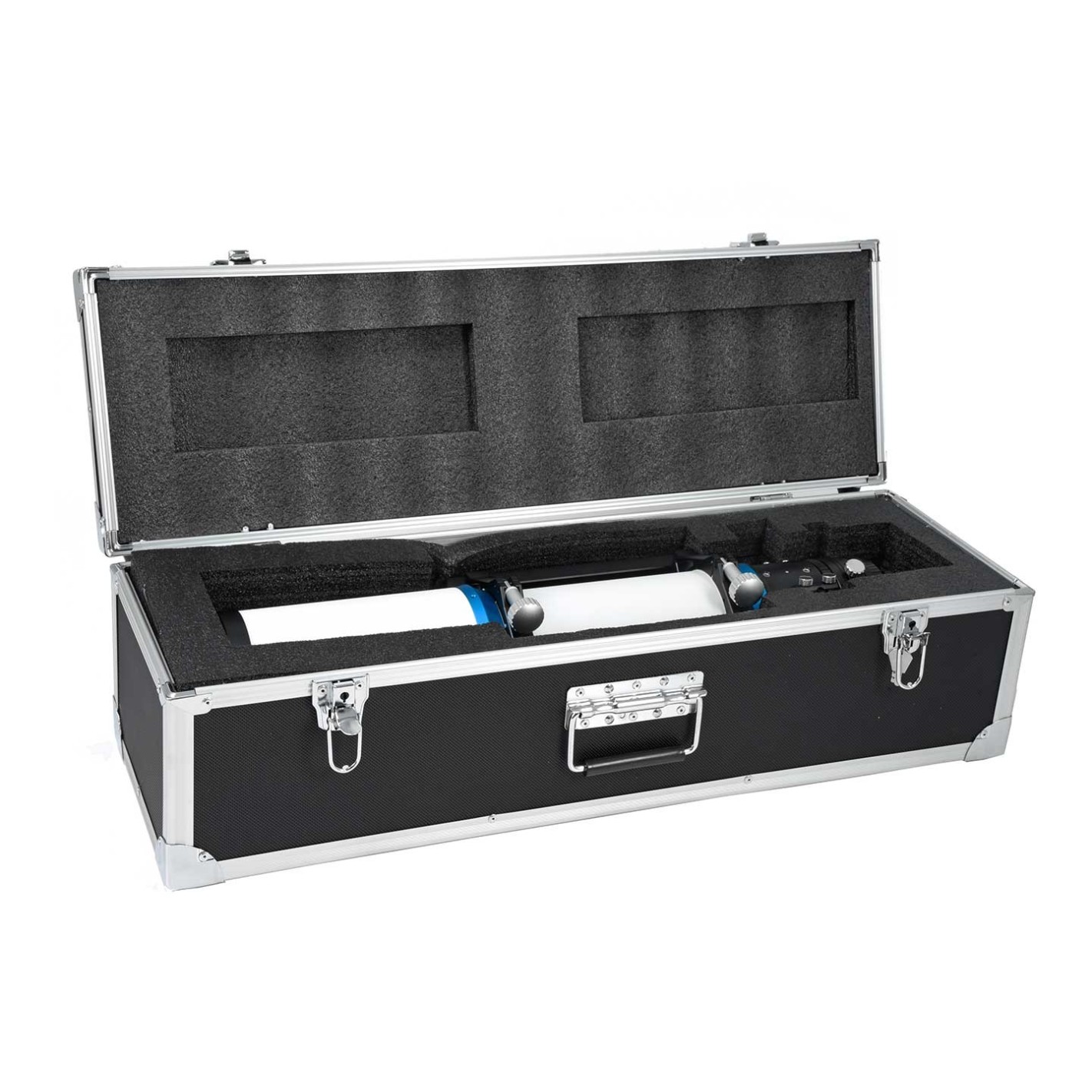

♦ Rugged carrying case, carrying handle and dovetail bar included in delivery

The 102 mm pure color apochromatic is equally suitable for visual observation and astrophotography. Thanks to the FPL55 APO element, the images are first-class and, in practice, indistinguishable from Russia's world-famous LZOS lenses.

The apo is easily transportable and is well supported by dovetails of the EQ5 class or Losmandy GM-8. That is, the tube is supplied with dovetail type Vixen.

The 102 mm apo objective:
The triplet objective with an aperture of 102 mm and a focal length of 714 mm meets the criteria of a full apo. Even at magnifications of around 300x, the image is free of distracting chromatic aberrations. Even bright stars show up in astrophotographs without disturbing blue fringes.

The APO element consists of FPL55, which is comparable to the well-known FPL53. Another special glass supports the chromatic correction. The triplet lens with air gap is fully adjustable. Each optical glass air surface is multi-coated. The lens is in an adjustable cell with temperature compensation.

Aperture: 102 mm
Focal length: 714 mm
Focal ratio: f / 7
Lens: Triple APO multi-coated lens with two special glasses
Tube: CNC metal tube
Extension: 3.7" RPA ball bearing rack and pinion focuser with two-speed adjustment
Focuser travel: 38 mm
Eyepiece side connections: m92x1, M82x1 and M63x1 female threads and 2"1.25" connection
Spray shield: retractable, 122 mm diameter
Weight: 7.6 kilograms
Tube length: 650 mm
Tube diameter: 104 mm
Focuser connection thread: 102x1 female at rear of tube
