The apochromatic refractor with an 80 mm aperture and 480 mm focal length offers the highest optical and mechanical performance for astrophotography and amateur astronomy.
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Monday, 13 January - Monday, 20 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 13 January - Monday, 20 January
TS CF-APO 80/480 mm FPL55 Triplet Apochromatic
The 80 mm apo has pure color and bright light, and is equally suitable for visual observation and astrophotography. Thanks to the FPL55 APO element (comparable to the FPL53), the image is first-class and, in practice, indistinguishable from Russia's world-famous LZOS lenses.

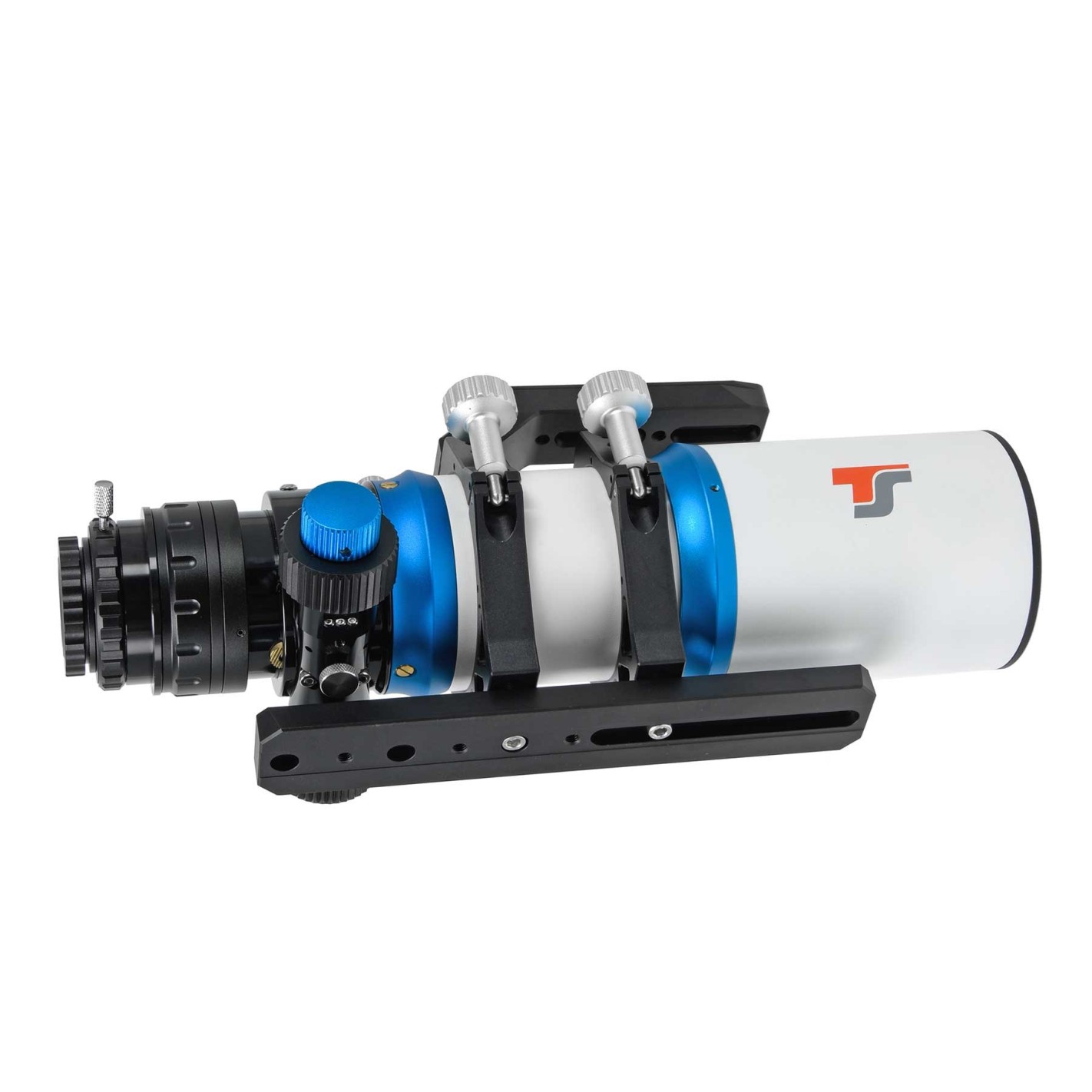

The APO is very compact and well supported by small EQ3 class mounts. It is ideal for mobile use. The extra-long prism rail makes it possible to use heavy cameras and keep the telescope balanced on the mount or photo tripod.

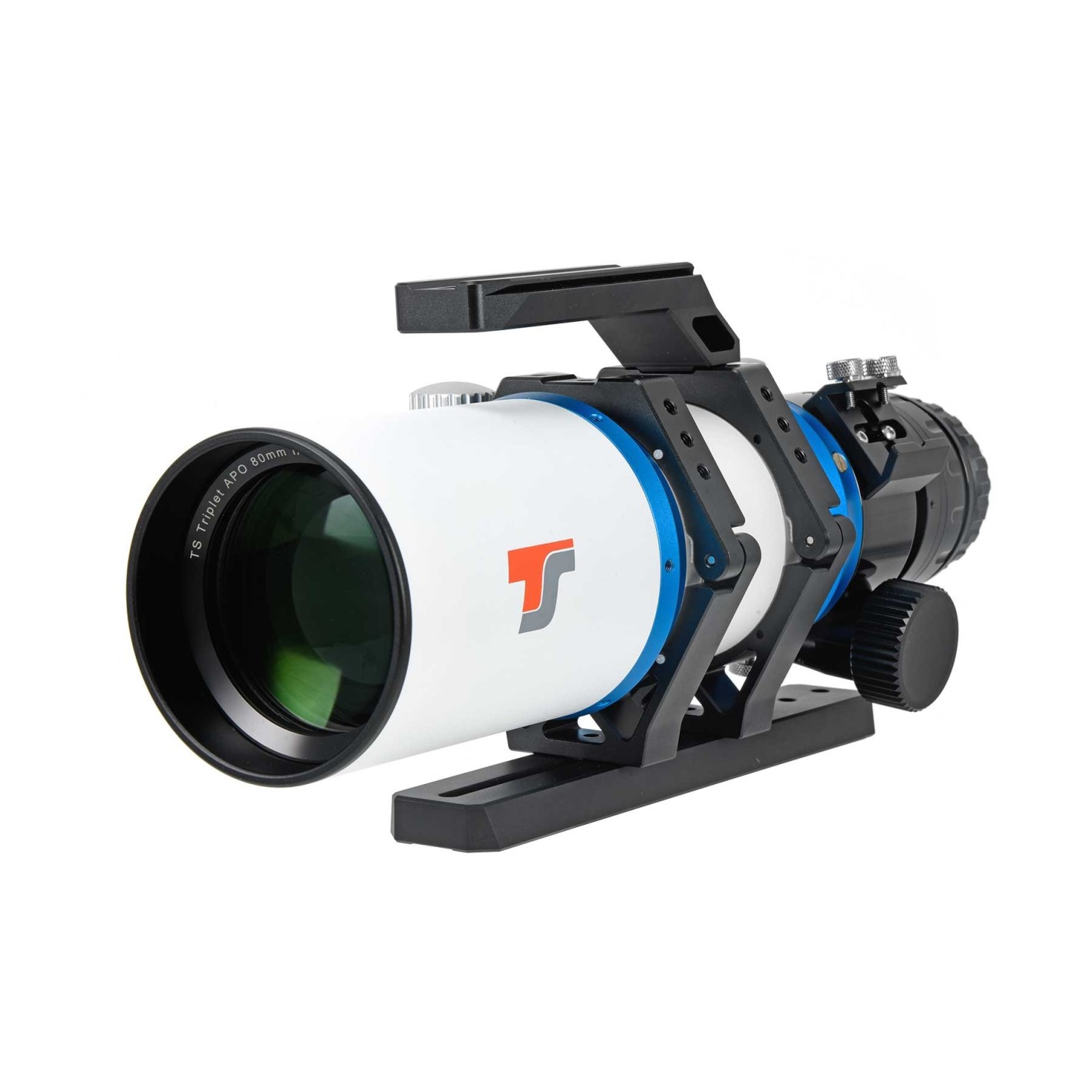

The 80 mm apo lens:
The triplet lens with an 80 mm aperture and 480 mm focal length meets the criteria of a full apo. Even at magnifications of 300x, the image is free of annoying chromatic aberrations. Even bright stars show up in astrophotographs without disturbing blue fringes.
The APO element consists of FPL55. Another special glass supports chromatic correction. The triplet lens with air gap is fully adjustable. Each air-glass optical surface is multi-coated. The objective is in an adjustable cell with temperature compensation.

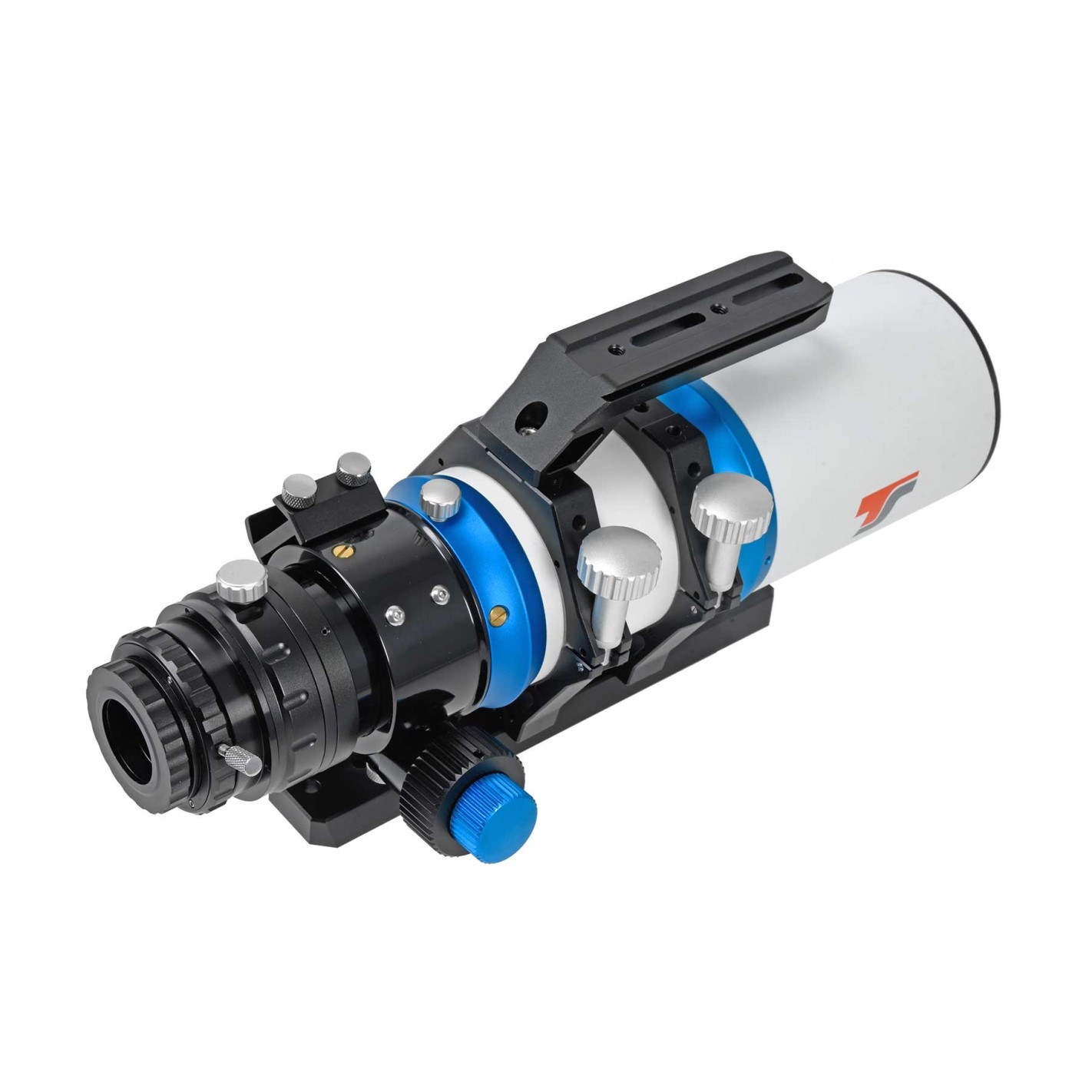

The 2.5" rack and pinion photographic focuser:
The 2.5" CNC focuser is optimized for photography and can withstand a load of up to 6 kg. Adjustment of the extraction tube is gear driven. We also offer motorized focusing for the focuser. An internal M63x1 thread is available for screw-on adaptations.
Astrophotography with the APO
To achieve the optimum image in the field, a corrector is needed. The corrector is screwed directly to the M63 thread of the apo. We recommend two correctors, both suitable for cameras up to full format. The working distance from the M48 thread to the sensor is 55 mm.
You might also like
The TSCFRED80 focal corrector and reducer is designed for the TSCFAPO80 and TLAPO804 and allows astrophotography through this telescope.
