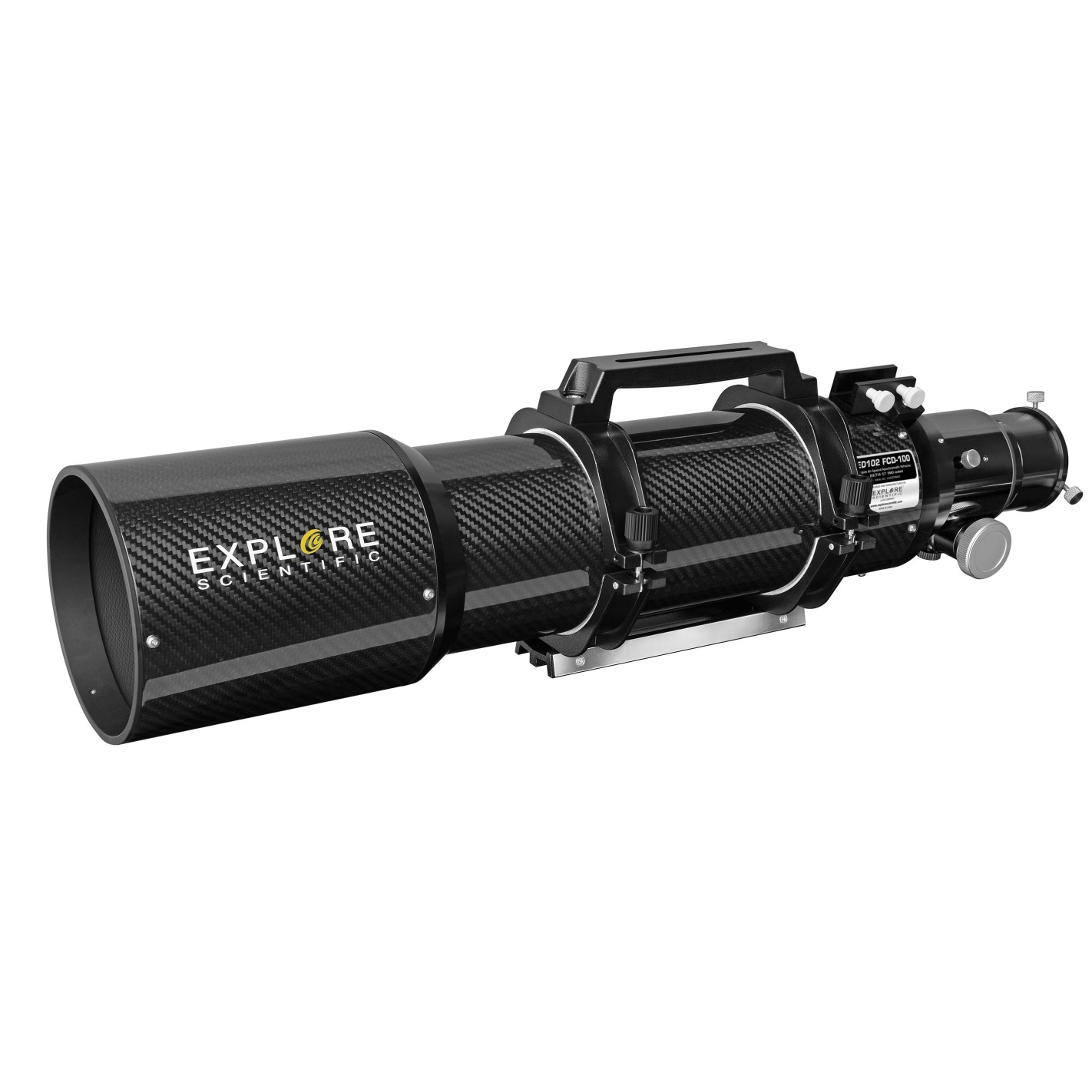

EXPLORE SCIENTIFIC ED APO 102MM F/7 FCD-100 CF HEX Telescope

EXPLORE SCIENTIFIC ED APO 102MM F/7 FCD-100 CF HEX Telescope

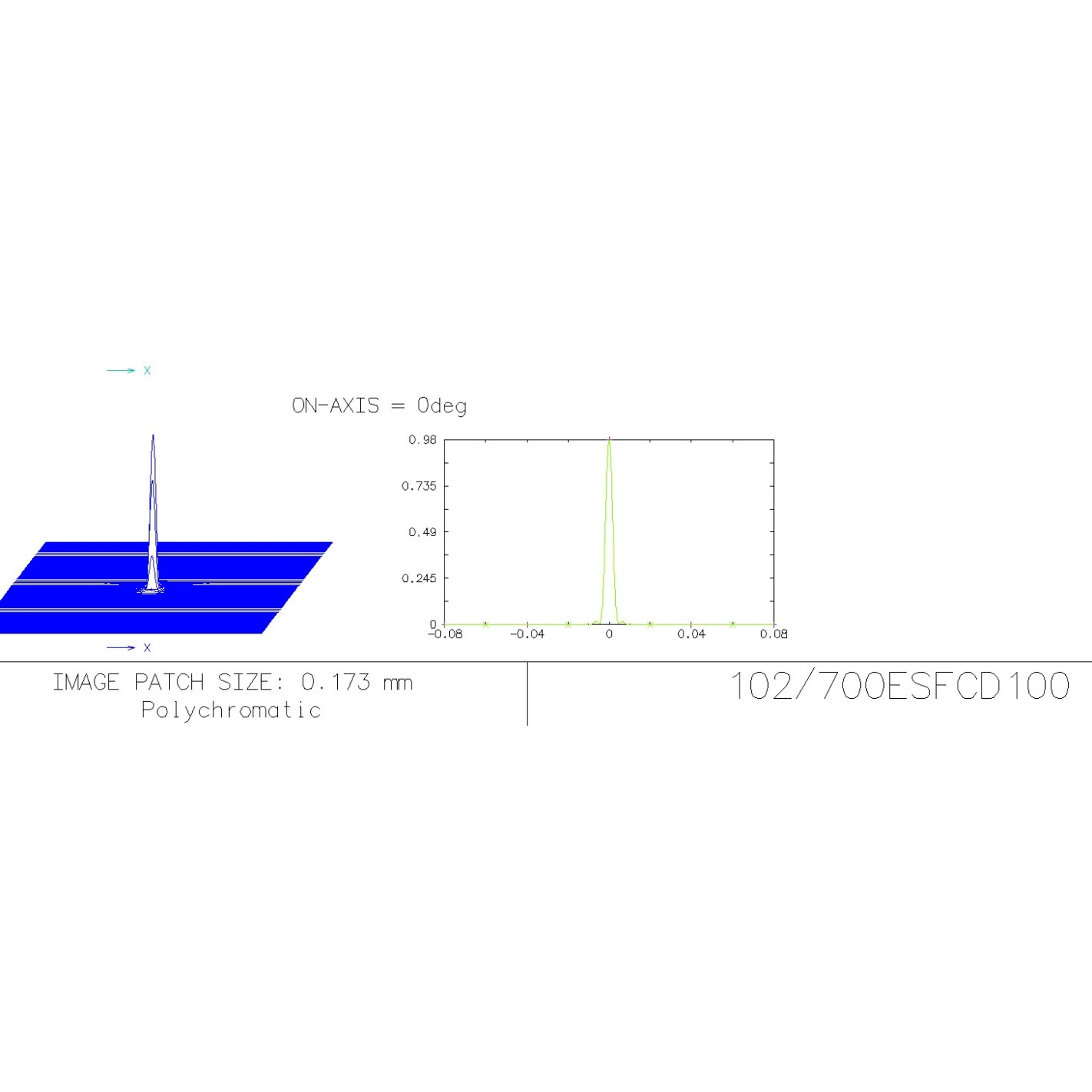

Apochromats are the measure of all things in the small and medium aperture range: combining the aspects of ease of transport, very high image contrast and sharpness, with the excellent characteristics these devices offer for astrophotography, they are second to none. Advances in glass production in recent years have made it possible to manufacture high-quality apochromats for wider consumer groups. With the new EXPLORE SCIENTIFIC FCD-100 CF Hex, this evolution has reached a new high point: the color purity of this device sets new standards in this price class. The design of the optics achieves a Strehl ratio of 0.97, a value that represents maximum correction.

This excellent apochromatic is a very versatile device: the fast aperture ratio of f/7 allows short exposure time in astrophotography, while its high sharpness and outstanding contrast make it possible to make general observations of the North America nebula or the Andromeda galaxy as well as planets with great sharpness. It is a very light and compact device: the dew protection cover can be inserted to save space. With ultra-modern glass and precision manufacturing, telescopes have been created for maximum observing enjoyment. In addition, this telescope is not only highly recommended for travel, but also for quick observations and astrophotography. The high-quality 2.5'' HEXAFOC eyepiece focuser with 1:10 reduction completes the picture of this versatile device: thanks to the large free diameter of 65 mm, there is no vignetting through the eyepiece focuser, even in astrophotography with large chips, as can happen in the case of smaller diameters.

The popular EXPLORE SCIENTIFIC Triplet ED APOs are offered in the following 3 product series:

Essential Line:
HOYA FCD-1 glass element, AL tube, 2.0" Rack&Pinion focusing mechanism with 1:10, 2.0" diagonal mirror and 99 % reflectivity.0" and 99 % reflectivity (see item number: 0112084(AL), 0112106(AL), 0112132(AL), 0112156(CF + 3 "FT))

Professional Line:
HOYA FCD-100 glass element, AL/CF tube, 2.5" HEXAFOC focusing drive with 1:10, diagonal mirror 2.0" and 99 % reflectivity (see item number: 0112086(AL), 0112108(AL), 0112109(CF), 0112134(AL), 0112135(CF))

High-End Line:
OHARA FPL-53 glass element, carbon tube (CF), 3.0" focusing mechanism with 1:10, 2.0" diagonal mirror and 99% reflectivity (see item number: 012165(CF))

TECHNICAL DATA

• Aperture: 102 mm
• Focal length: 714 mm
• Aperture ratio: f/7
• Tube weight: 3.3 kg, considerable weight reduction due to the carbon tube
• Focal position: 150 mm from attachment
• Three-lens apochromatic with two air chambers and central FCD-100 element

SCOPE OF DELIVERY

• Optical tube

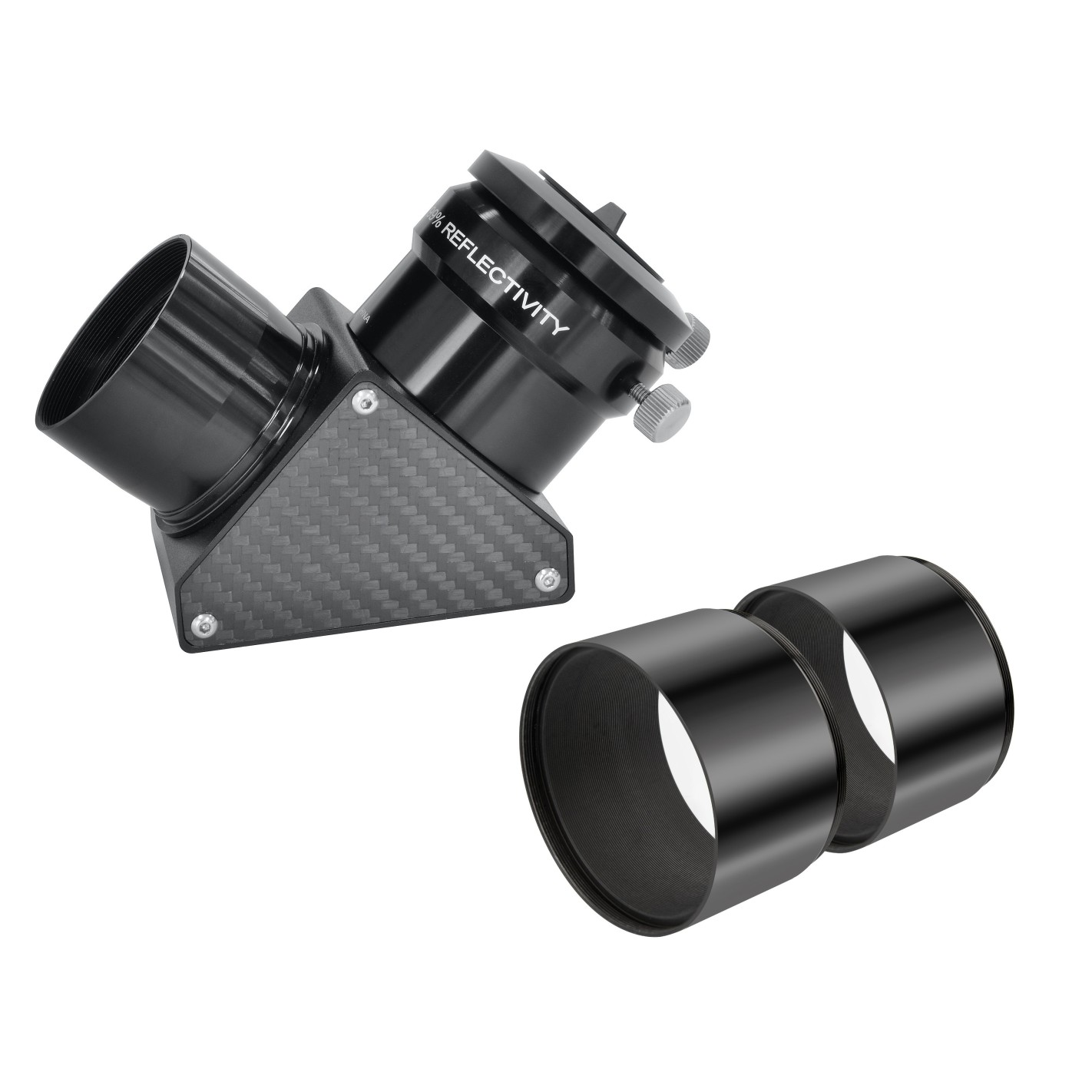

• 2'' 99 % diagonal mirror
• Two extension sleeves for eyepiece focuser
• Clamps for adapter plate and carrying handle
• Dust protection caps for objective and focusing mechanism
• Shoe for universal finder

SUMMARY OF GENERAL FEATURES

• Three-lens apochromatic with two air chambers
• Aperture 102 mm; focal length 714 mm; f/7
• HOYA FCD-100 glass for maximum color fidelity
• Tube weight: 3.3 kg, made possible by the carbon tube

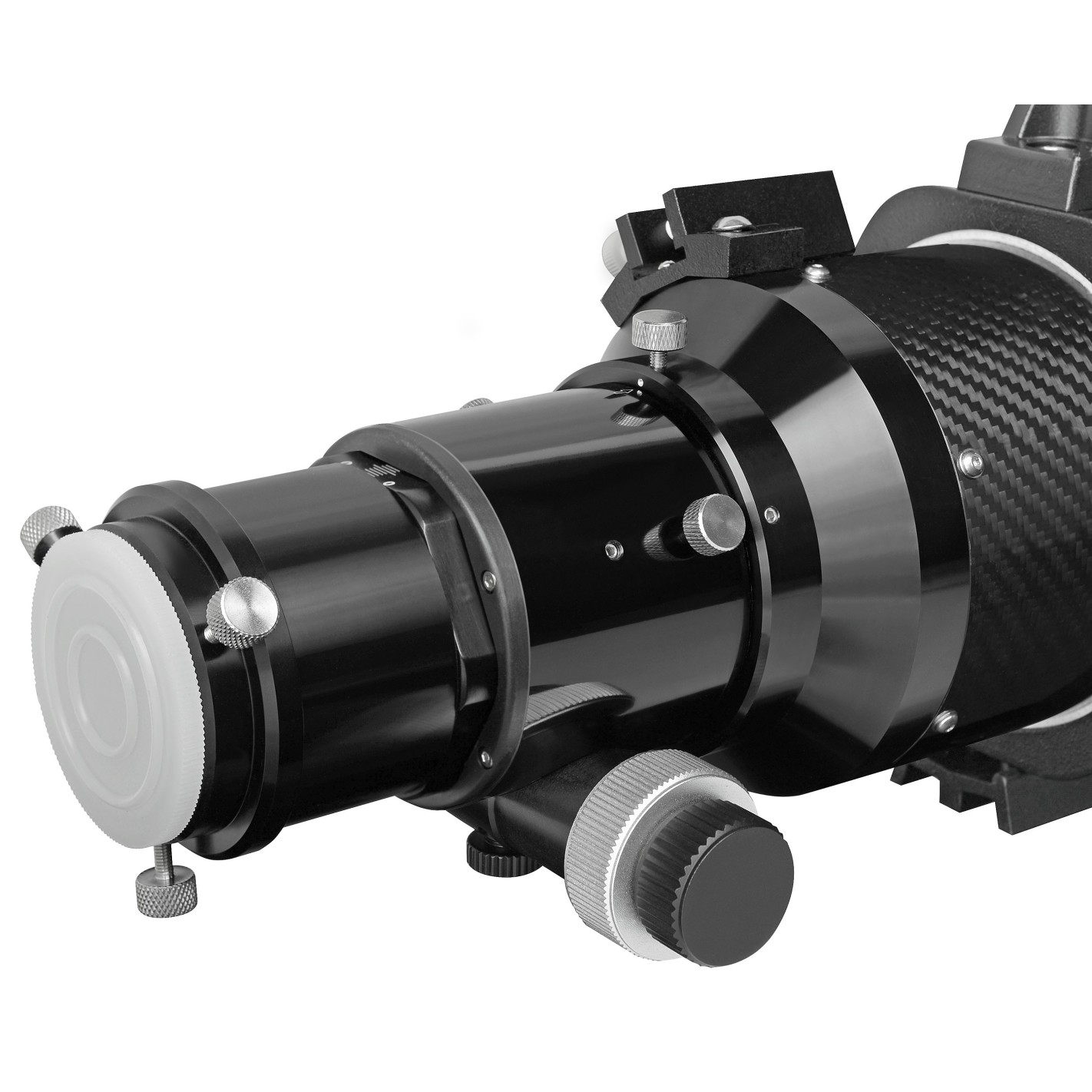

• 2.5" Hexafoc DeLuxe focusing mechanism with 10:1
• Includes 2" 99% diagonal mirror,
• Two extension sleeves for ocular focuser
• Handle with mounting options for cameras and smartphones
• 44 mm universal dovetail with stainless steel protection (compatible with Super/Great Polaris, EQ5, LXD75, EXOS-II)
• Dew protection cap can be inserted for easy transportation
