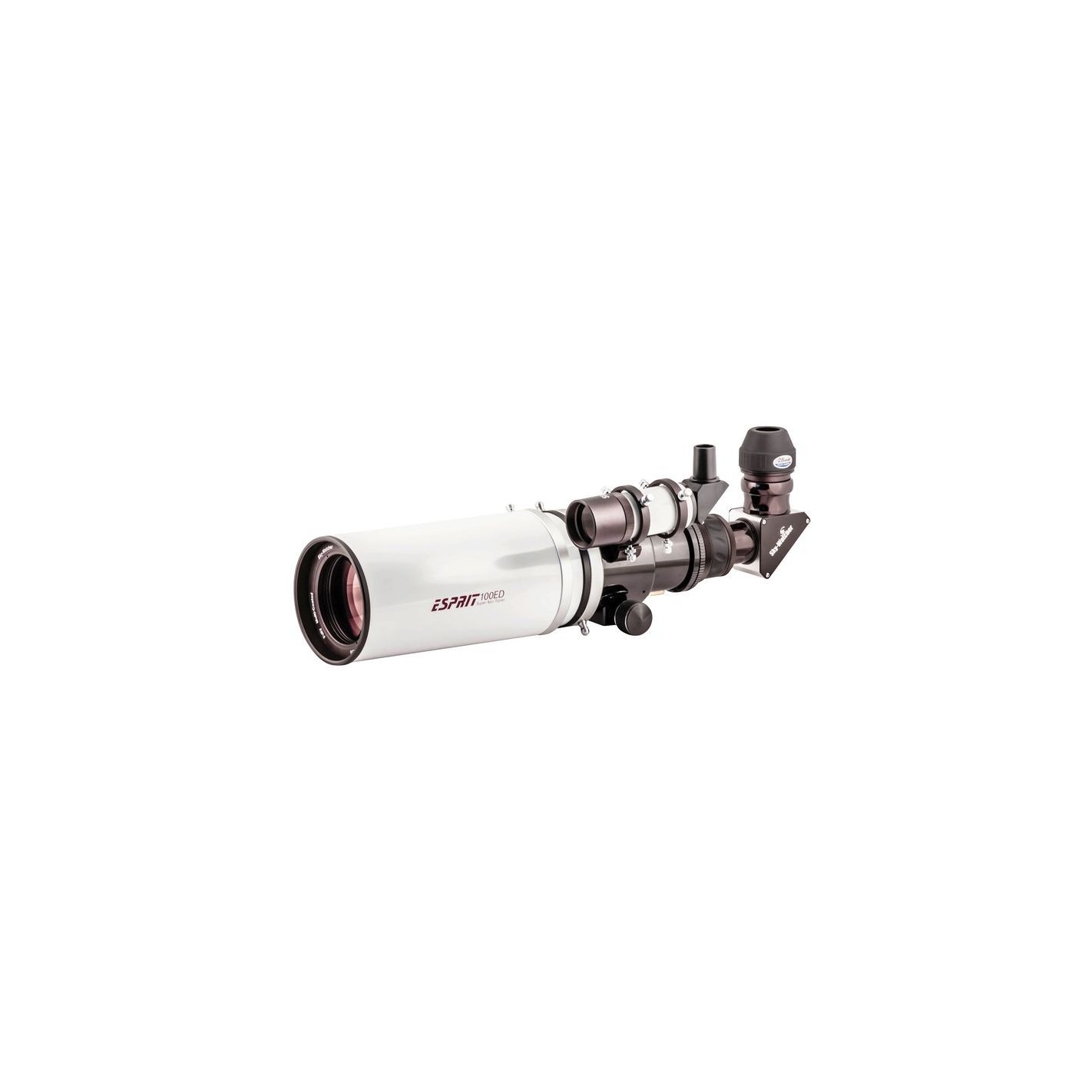

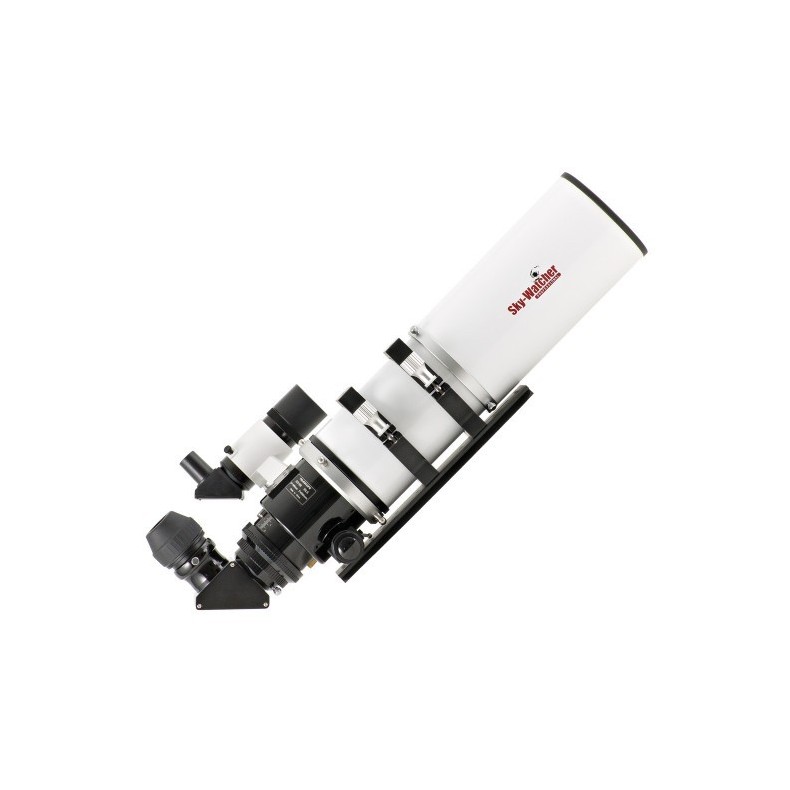

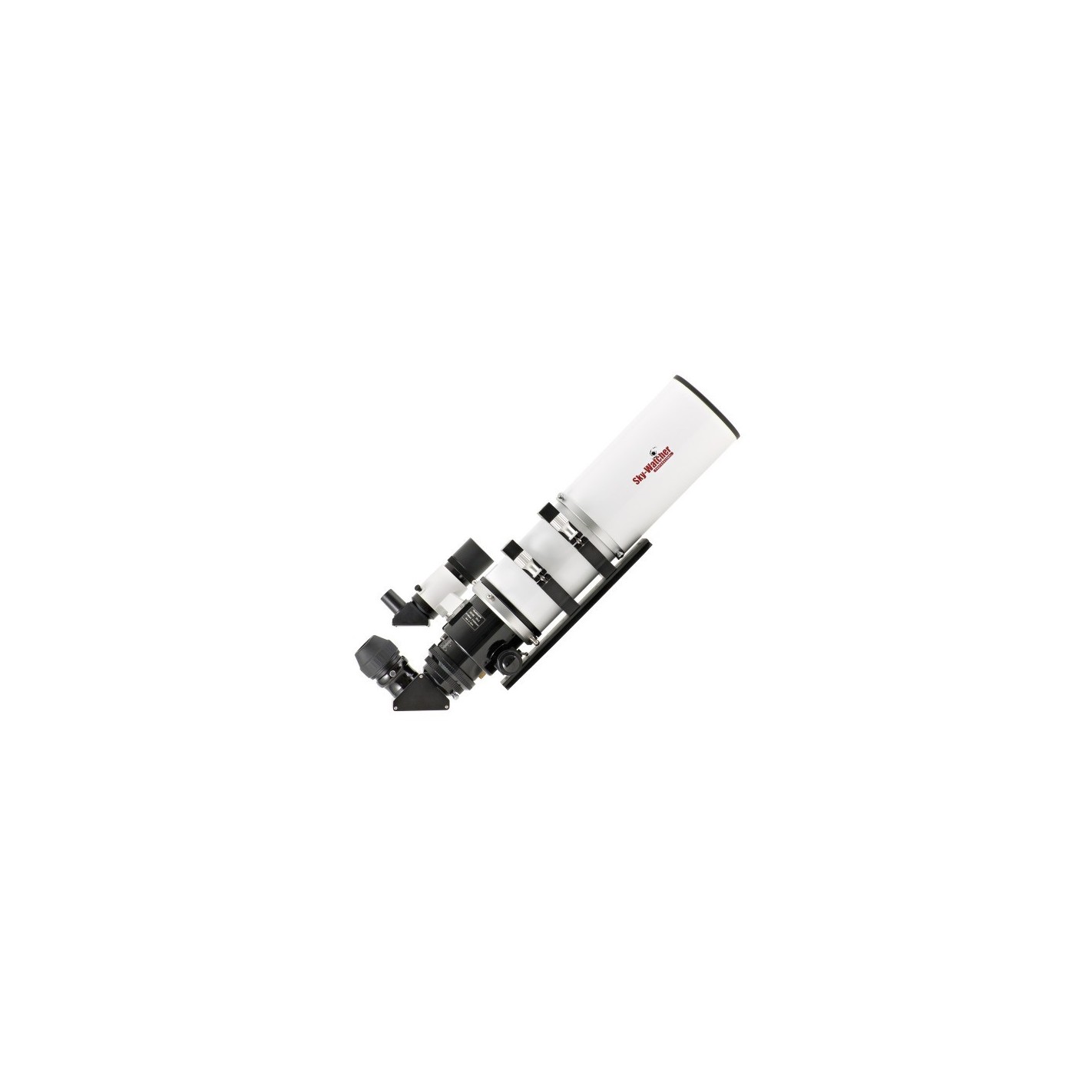

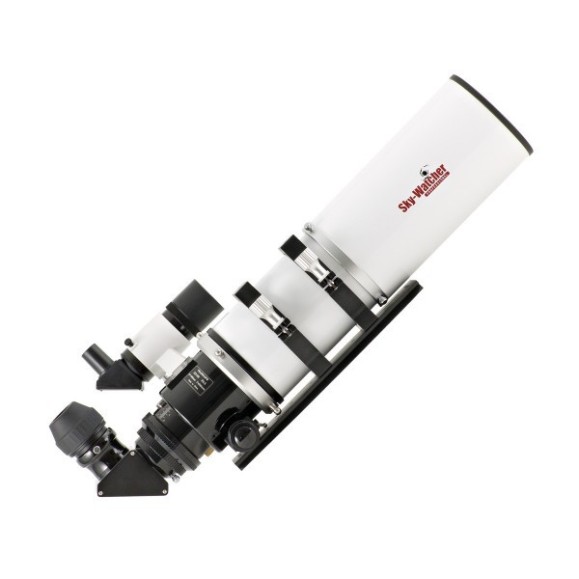

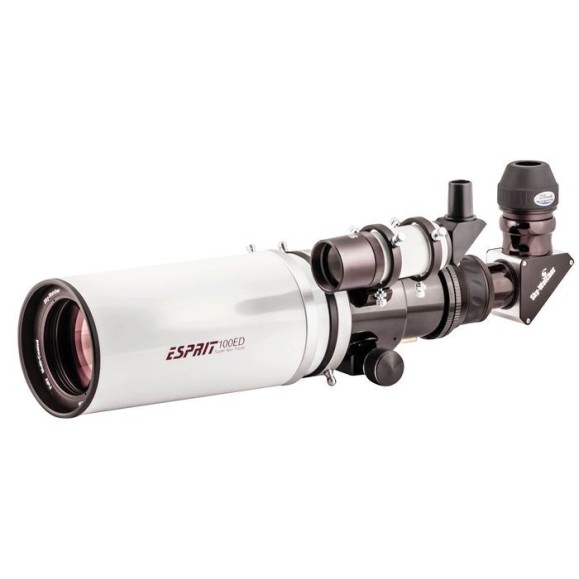

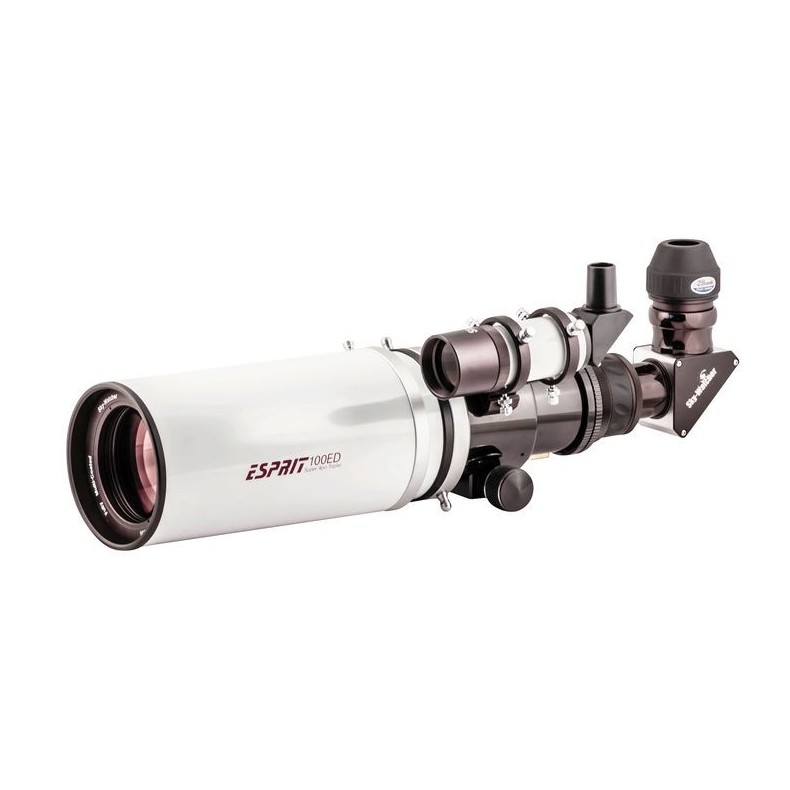

Sky-Watcher Esprit 100ED Pro apochromatic refractor telescope with EQ6-R.
Large refractor telescopes are a dream for many people who want to obtain impressive planetary observations as well as inspiring deep sky images. The absence of central obstruction, the resulting image sharpness and the significant field of view, attract more and more of the amateur astronomy community to this optical configuration, valid for both observing and astrophotography.
To satisfy the most demanding users this new product line includes a high quality ED triplet. With an Ohara FPL-53 center element and two Schott lenses, Sky-Watcher has turned to the high quality of the Esprit to offer high optical performance in planetary and deep sky imaging.
Designed for the advanced amateur astronomer, with its unique three-lens air-spaced design, chromatism is completely under control, image delivery is spectacular thanks to exceptional contrast.
The field corrector with two 48 mm lenses offers a perfectly flat field with a diameter of 44 mm. Its oversized lenses offer a wider and clearer aperture and have no internal reflection.
With this equipment you can enjoy the giants Jupiter and Saturn as never before, rediscover the Moon, and with its large diameter, you can photograph the most beautiful nebulae with the stars well spotted even at the edges of the field. With the 100 diameter you won't miss anything in the deep sky (this tube is 2.25 times larger than an 80 mm diameter instrument).
The absence of chromatic aberration, the focal ratio of 5.5 and the field flattener will allow you to obtain amazing results with an APS-C format sensor.

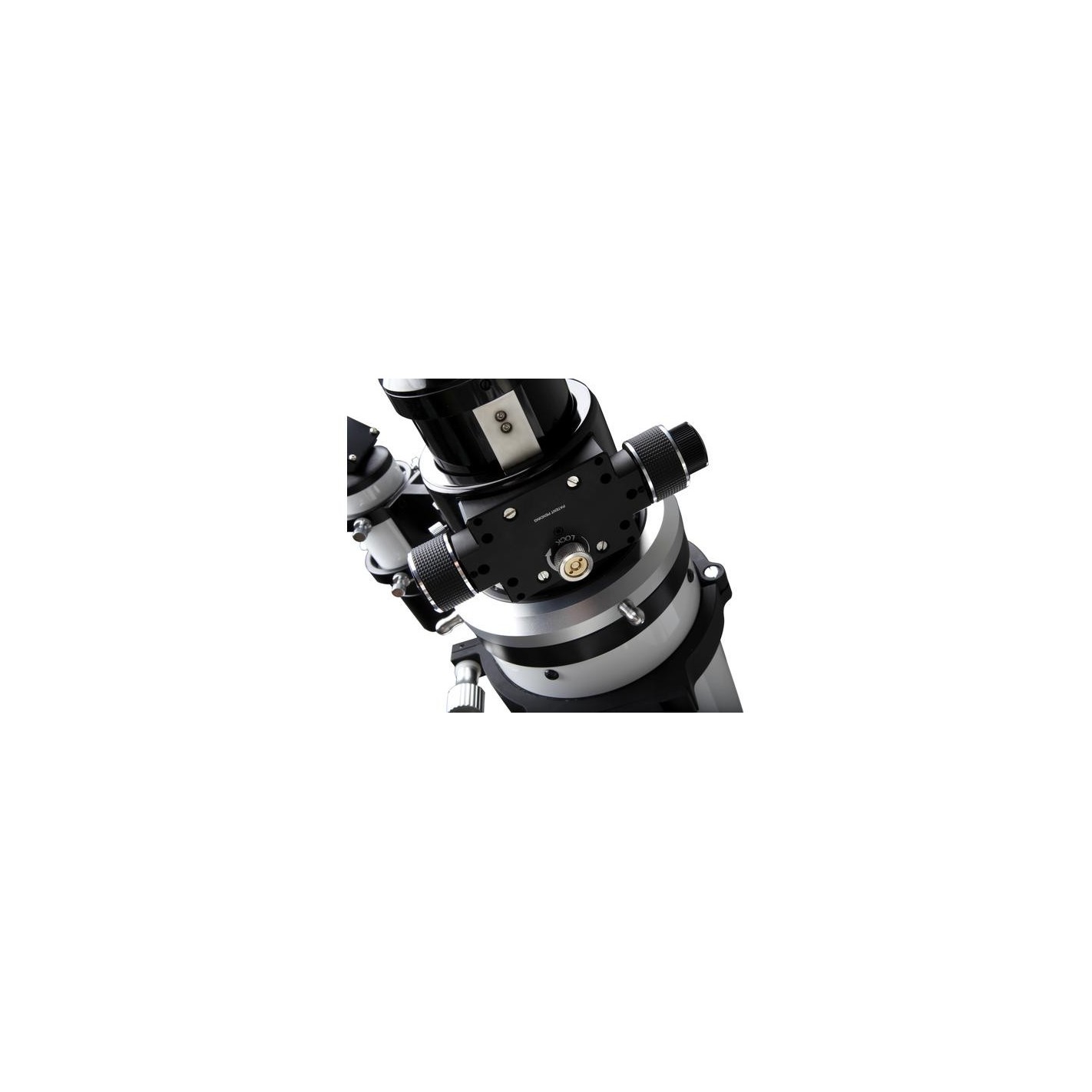

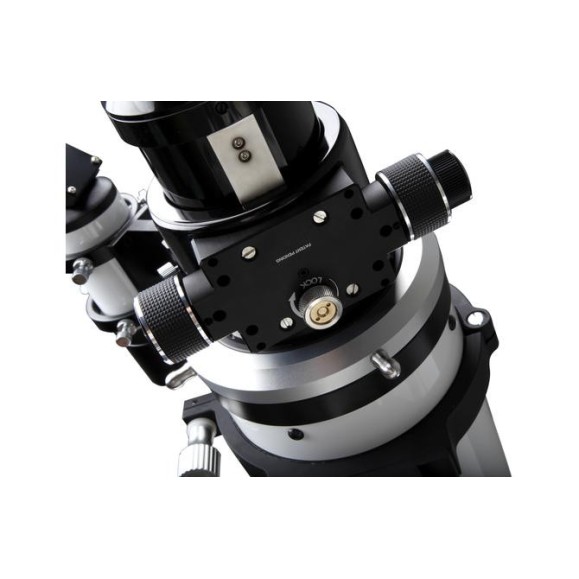

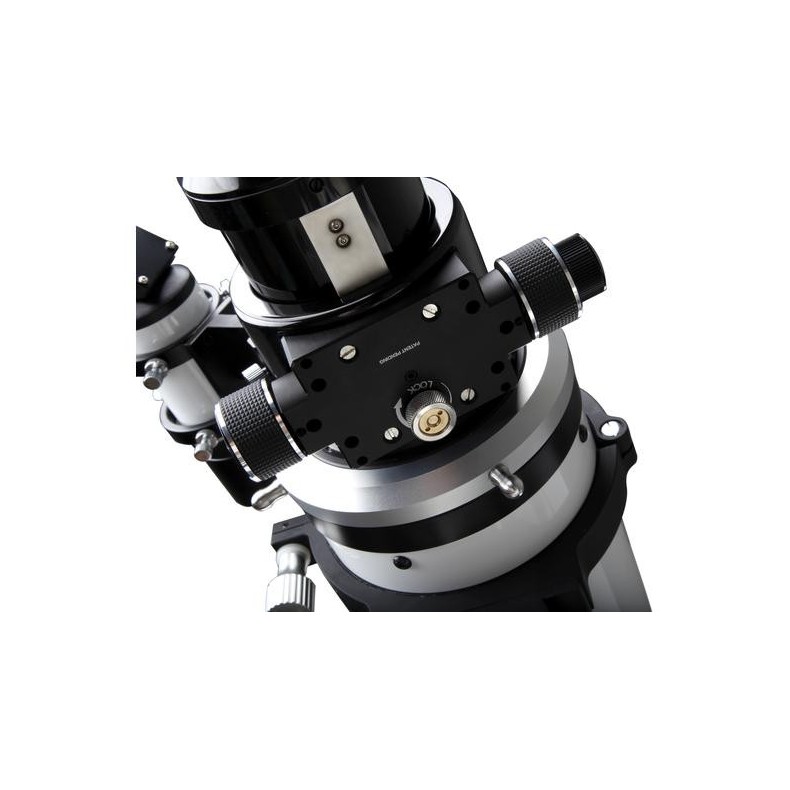

The telescope mounts a Crayford dual-speed 01:10 linear power focuser. To exploit this focuser to the fullest Sky-Watcher has designed a new 3'' eyepiece of patented design. The focuser is of CNC construction and its 01:11 development is smooth and precise, indispensable for obtaining a sharp image at high magnifications in visual or astronomical photography. The eyepiece holder is rotatable, which will greatly facilitate your framing to give your shots a unique touch.
The optical tube is machined from aluminum, with retractable spray shield to make it more compact, and the interior is specially designed to reduce stray light. As a high quality detail, the lenses have a very high light transmission rate thanks to various metal deposits.
what is included in the tube box?
- Field flattener
- Crayford Linear Power 3" (can be rotated)
- Integrated dovetail
- Retractable sunshade
- Aluminum case with foam
- 9x50 angled finder
- Dielectric diagonal 50.8/31.75mm
- Deluxe rings as dovetail type Losmandy
Technical specifications tube:
- Diameter: 100 mm
- Optical tube: aluminum.
- Lens design: 3 air-spaced APO type lens elements
- Focal length: 550 mm
- Focuser: 01:11 linear power Crayford eyepiece holder with rotation collar built into the tube
- Tube weight: 6.15 kg
- Length: 465 mm tube length (spray shield retracted)
- Magnification limit: 12.5
- Magnification 200x
- Visual back focus: 185 mm
- Back focus behind field corrector: 63 mm
- Field of view: 40 mm
- Carrying case
- 9x50 finder

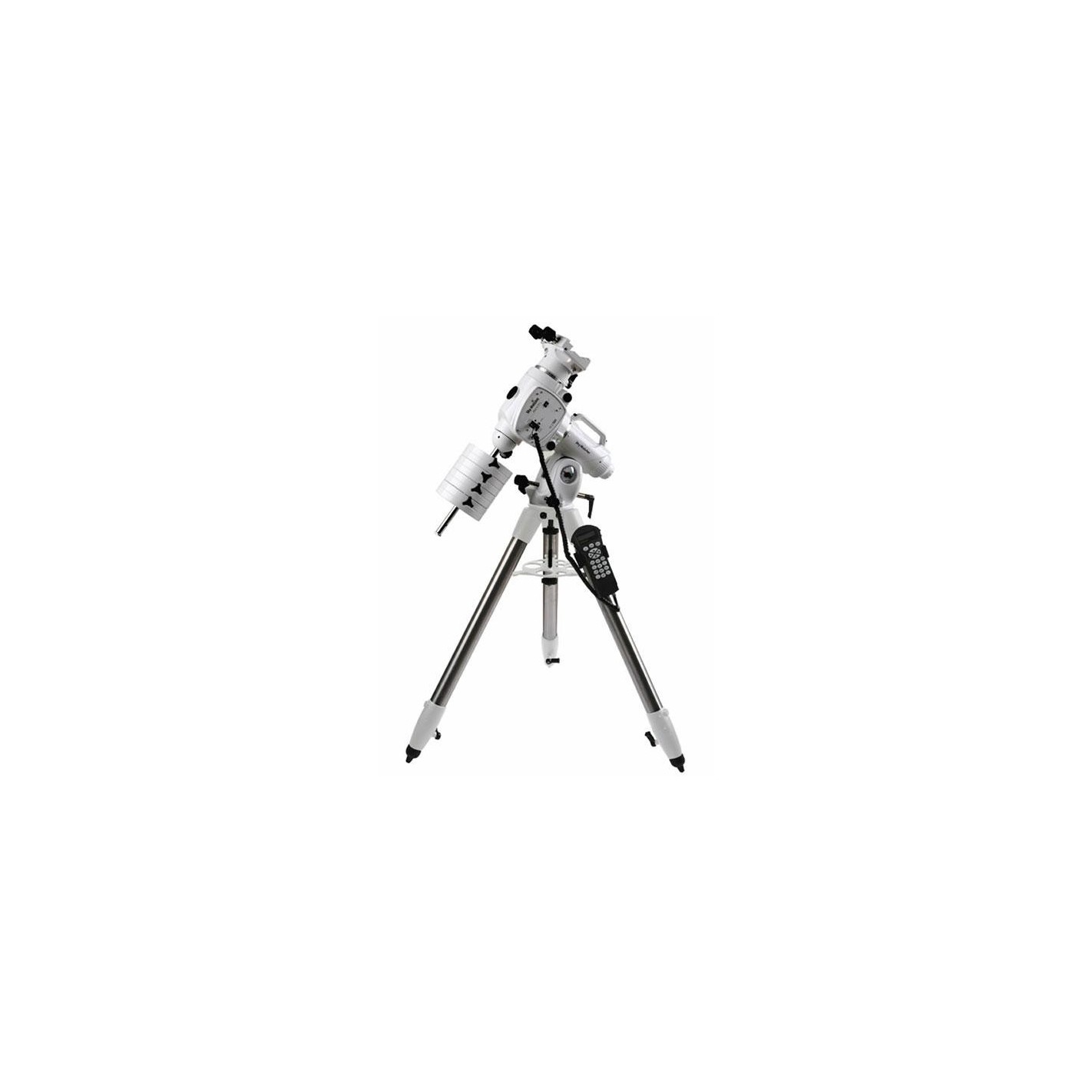

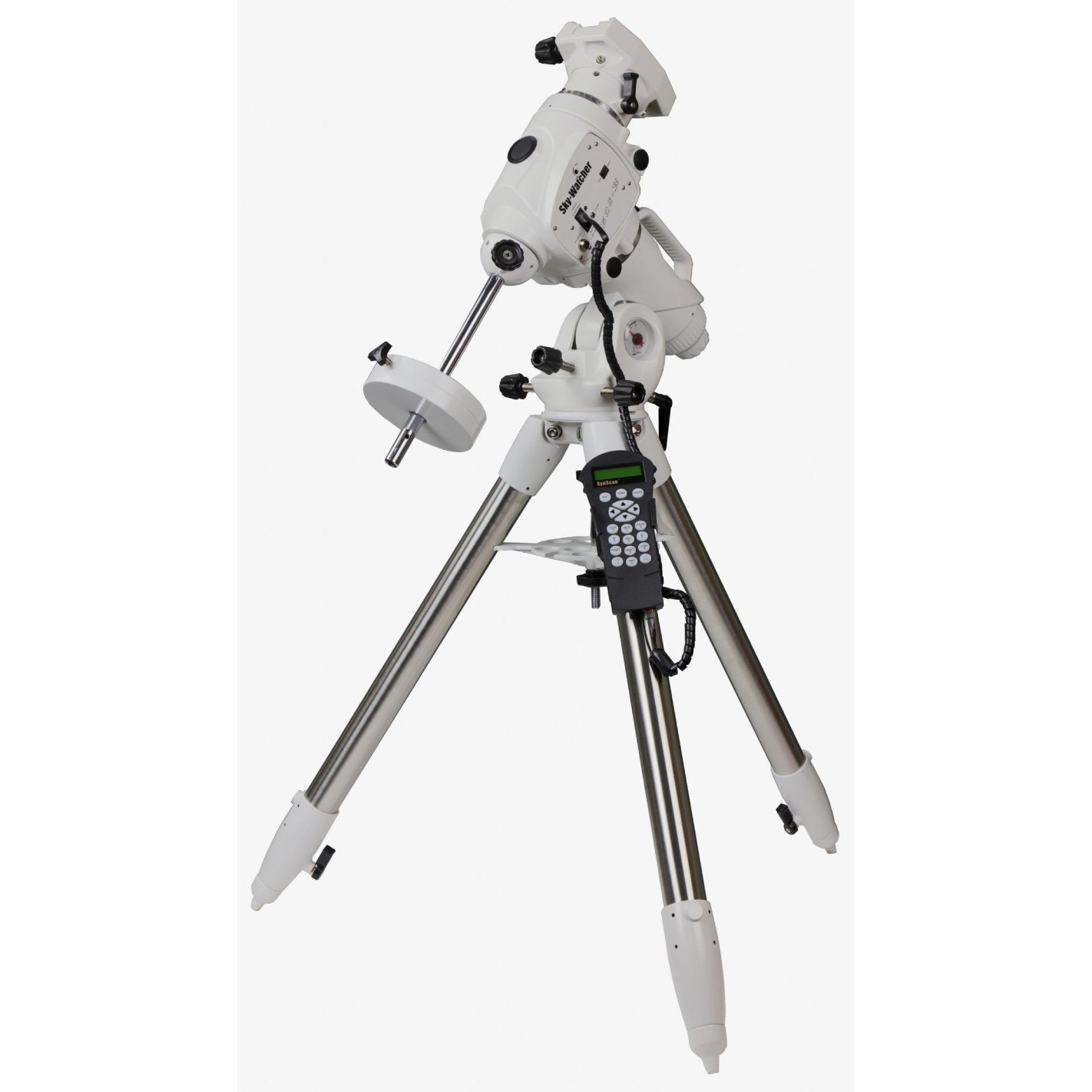

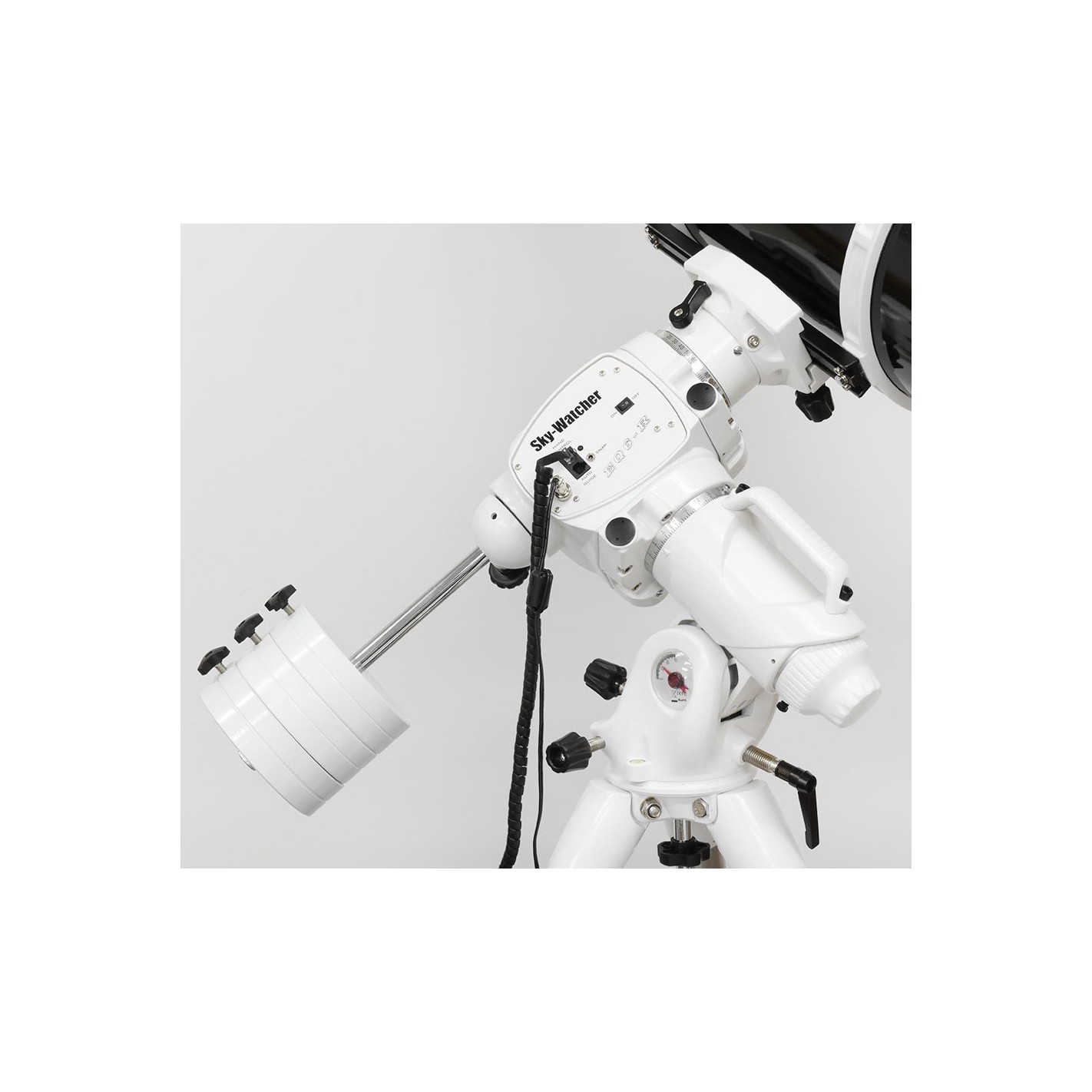

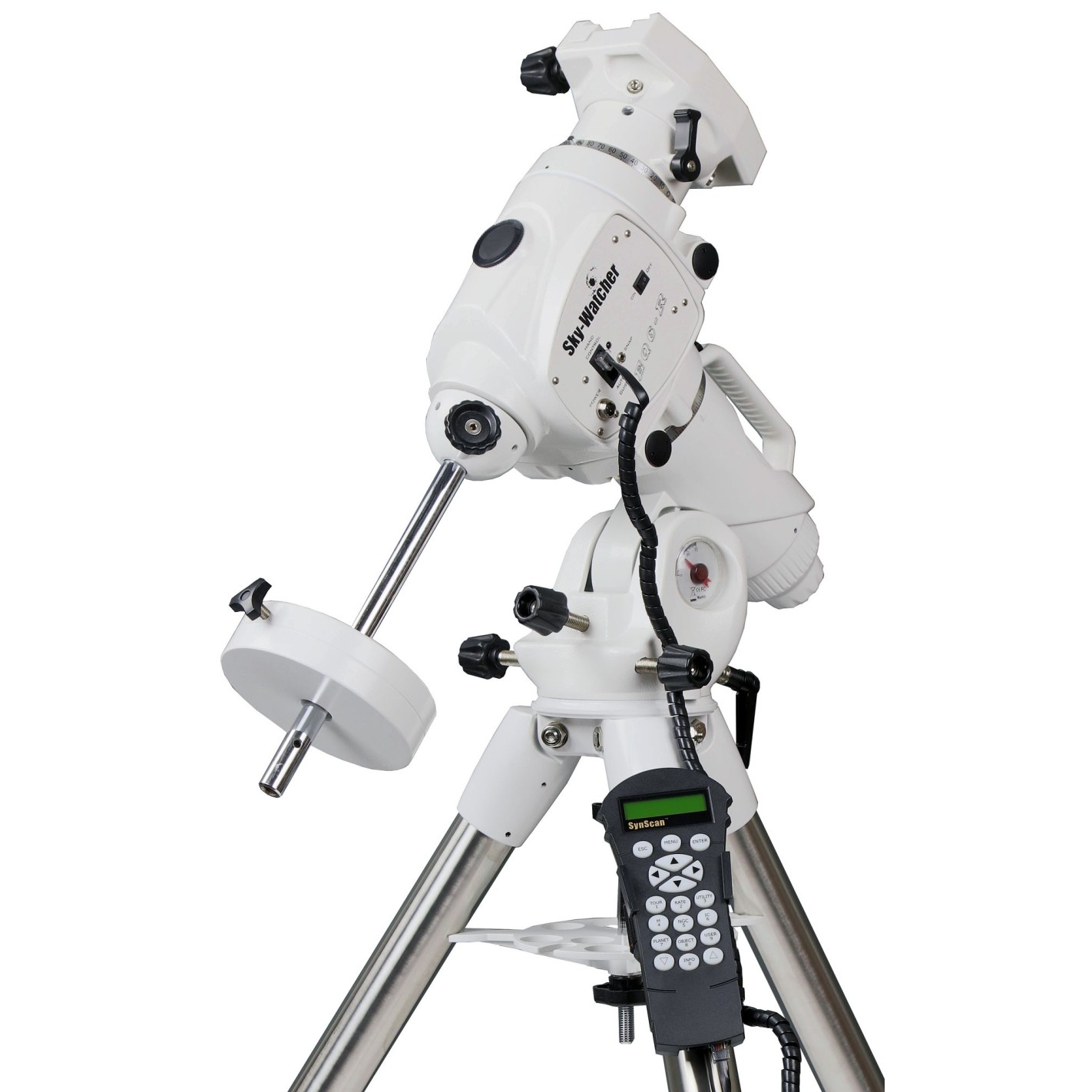

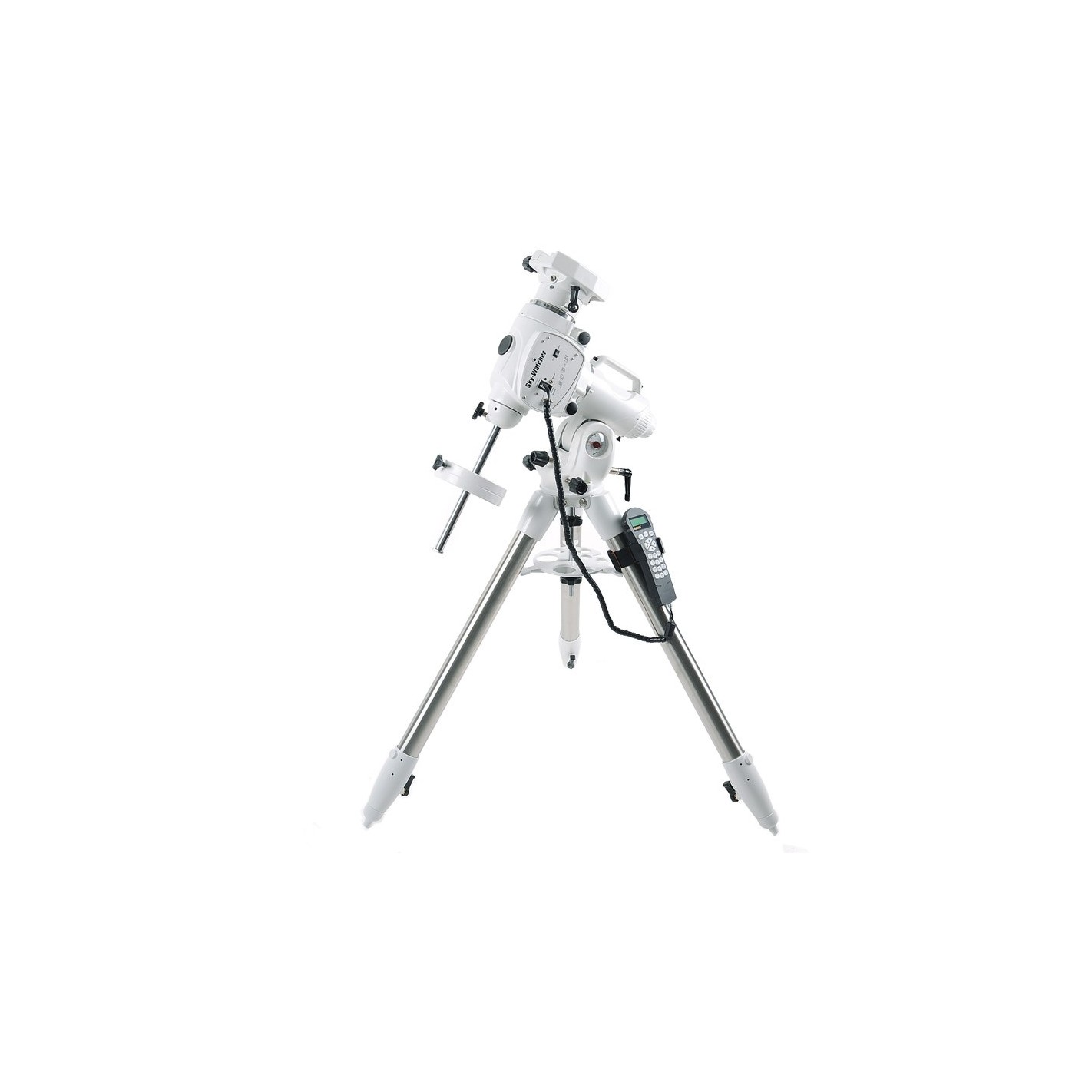

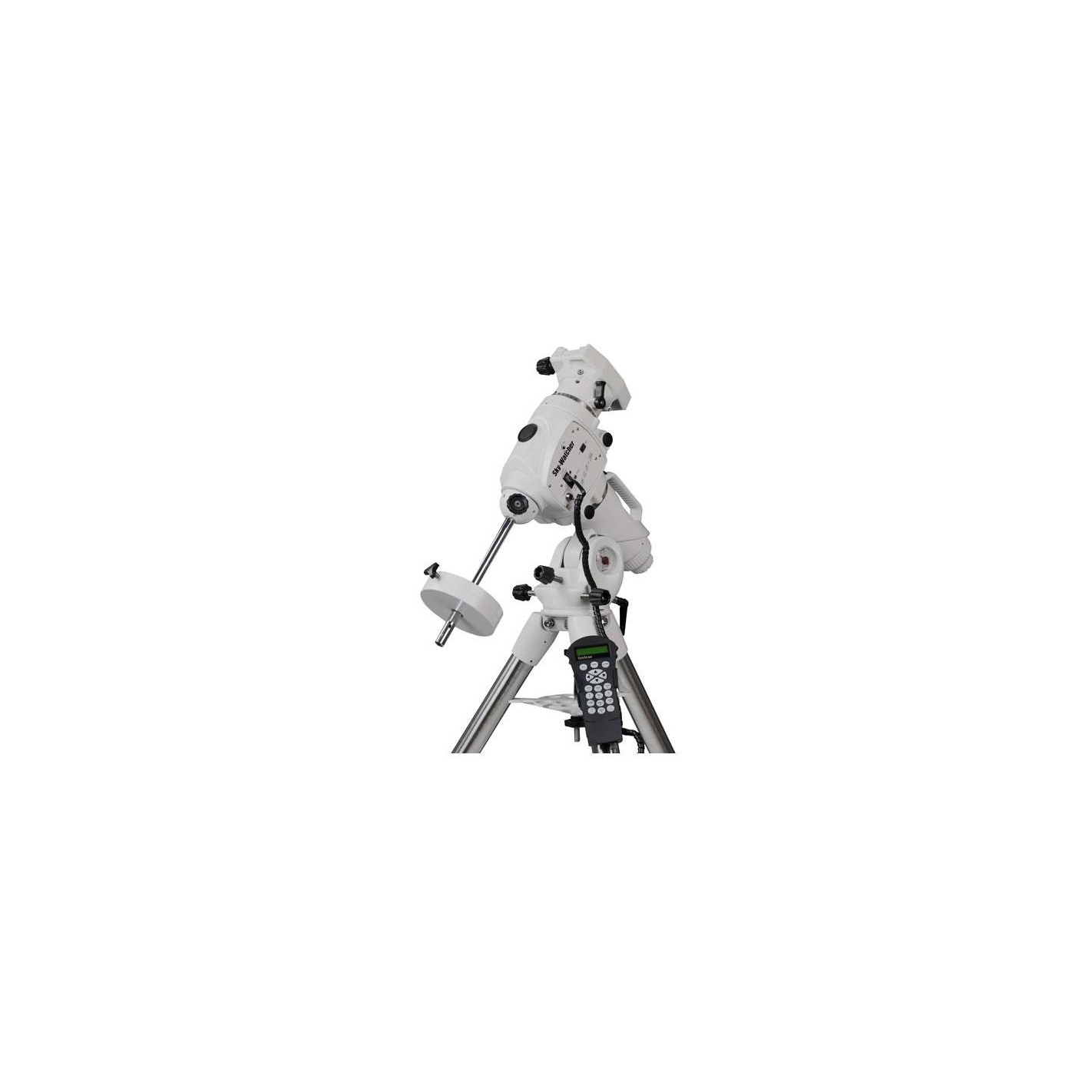

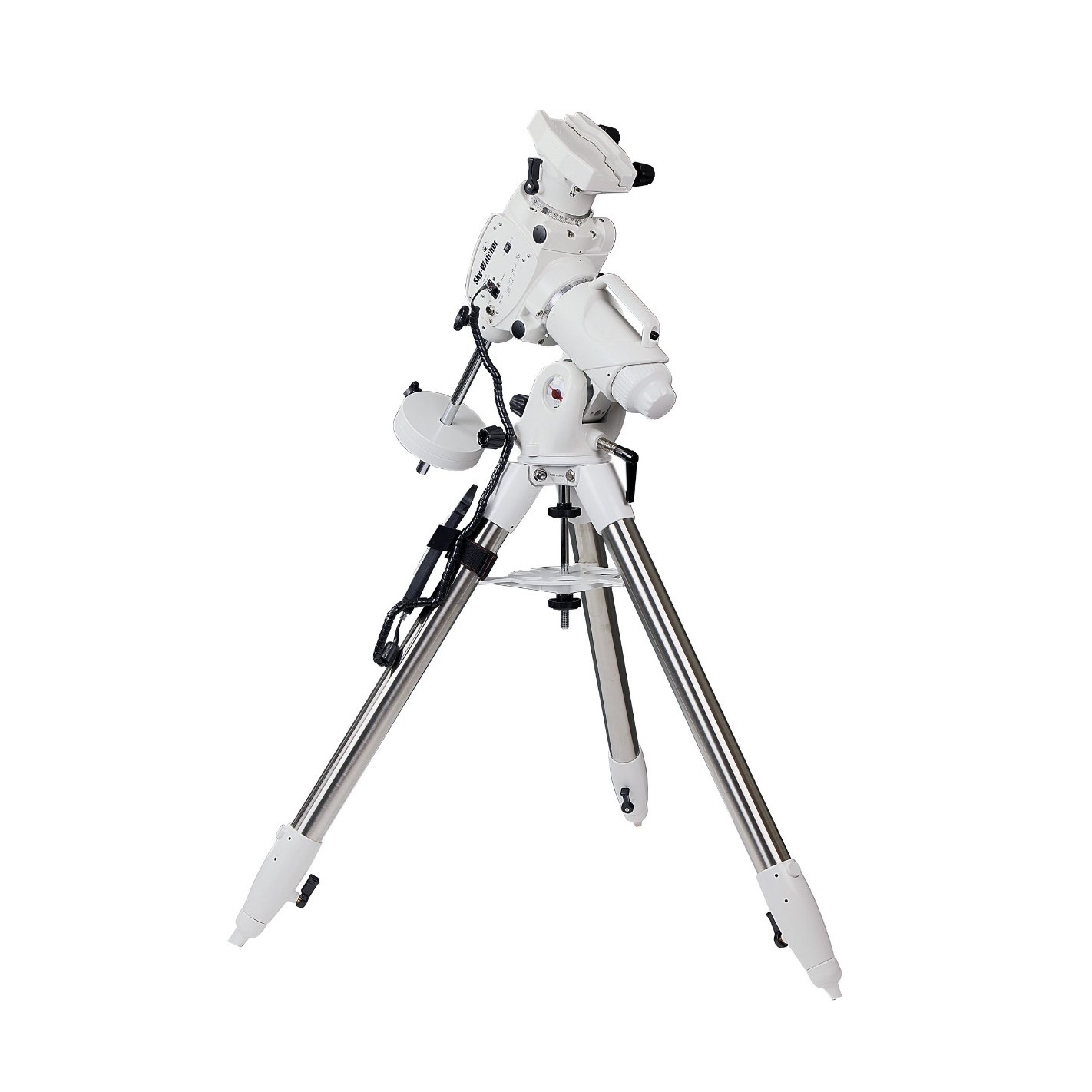

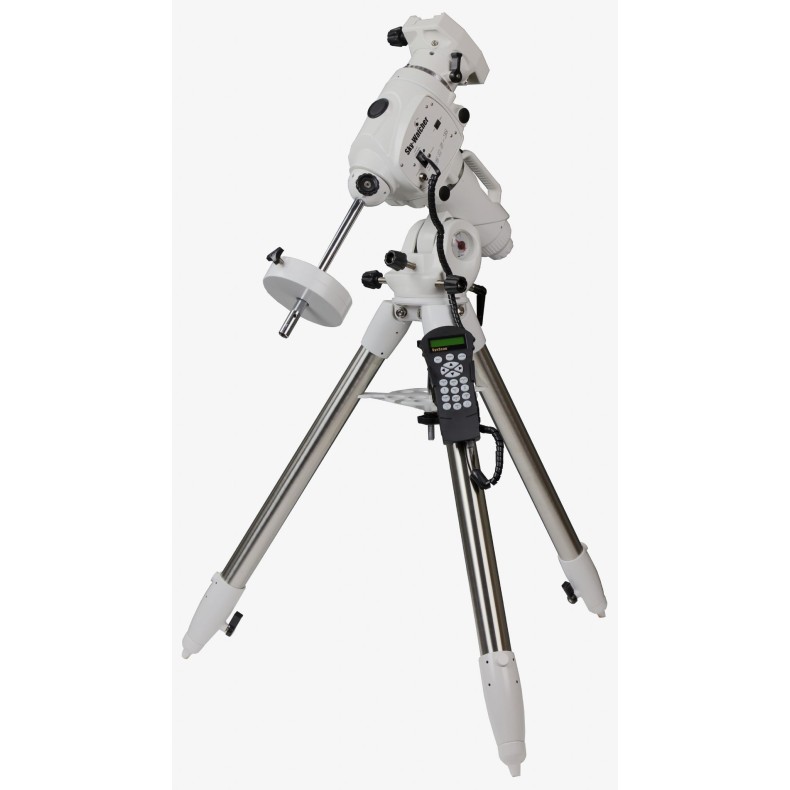

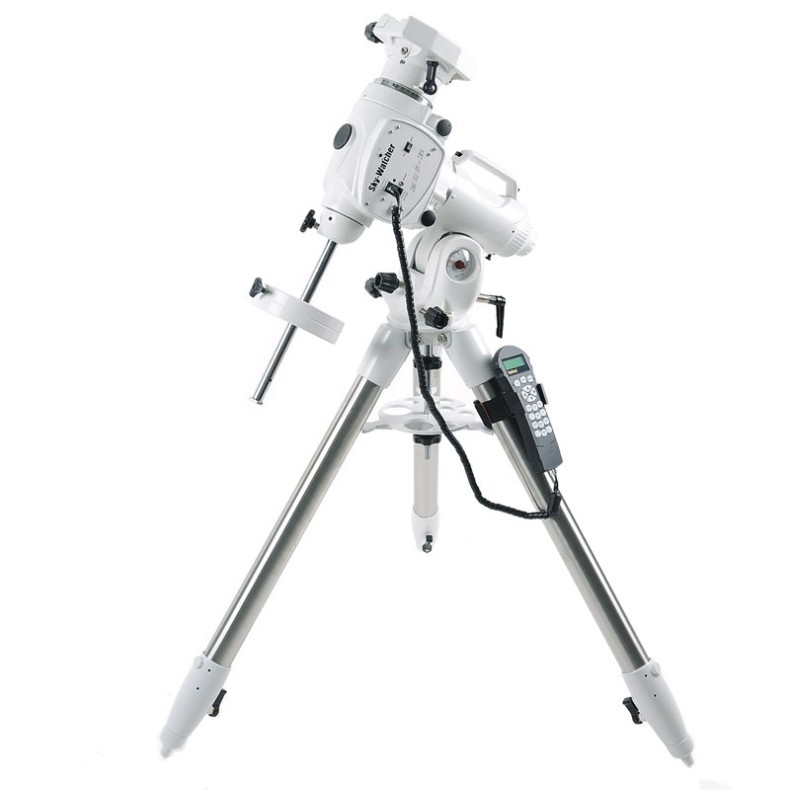

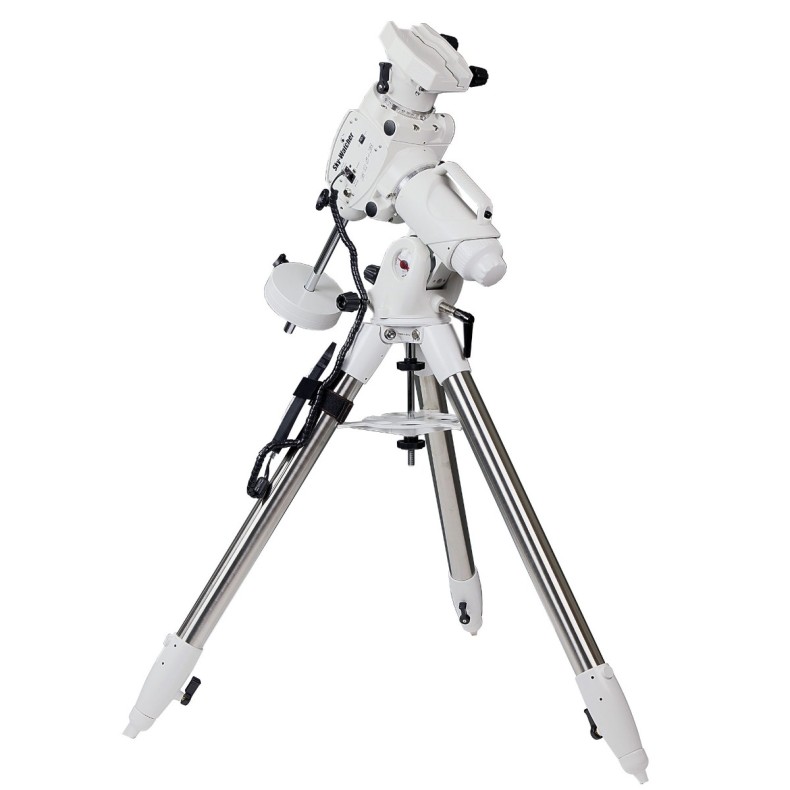

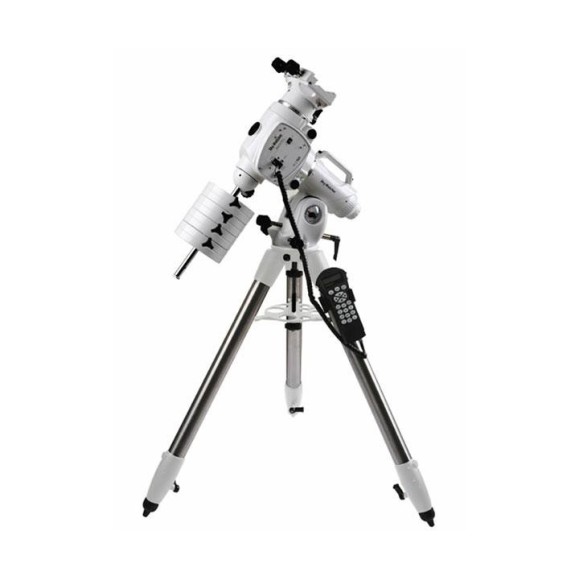

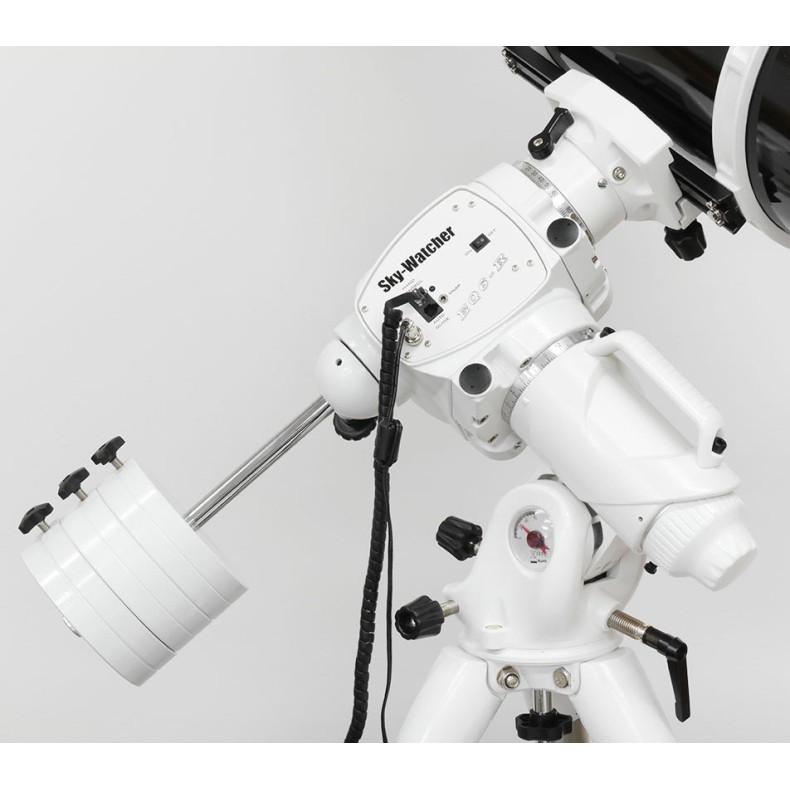

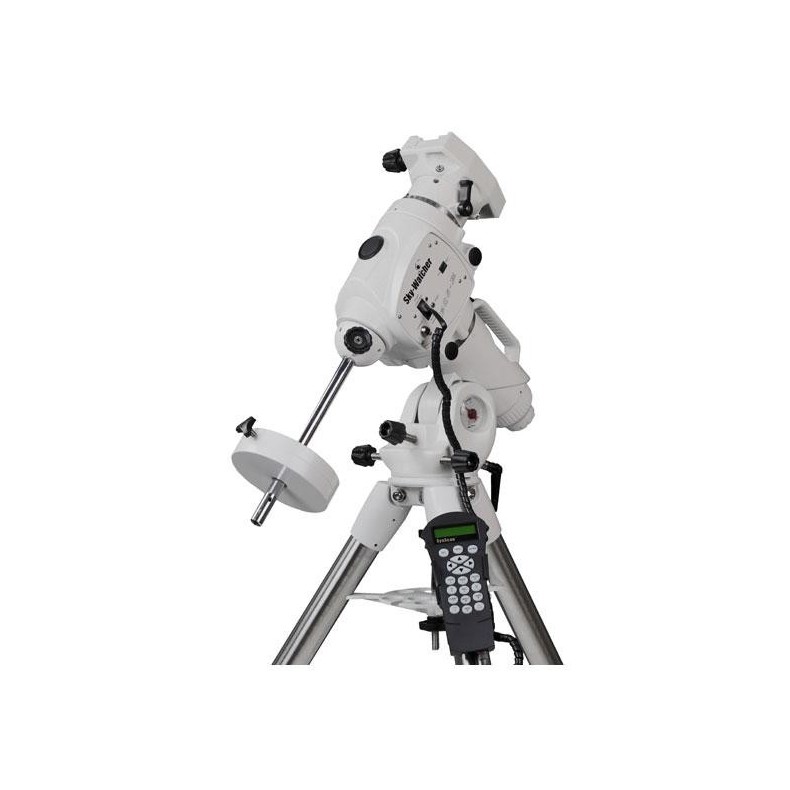

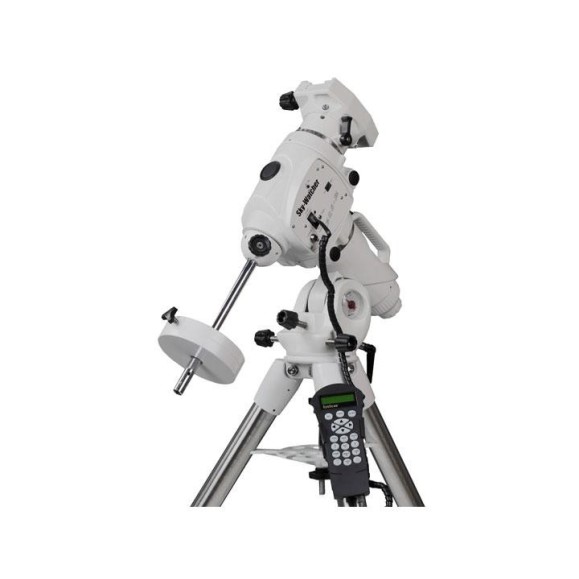

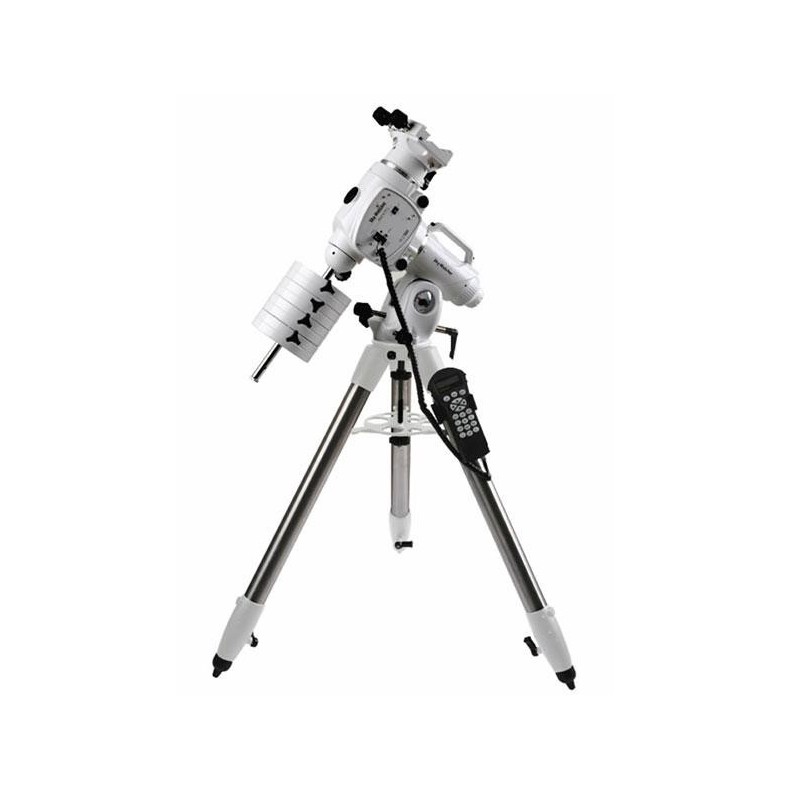

EQ6R mount. EQ6-R PRO SYNSCAN ™ - A NEW LEGEND IS BORN!
The new EQ6-R PRO Synscan ™ computerized mount is an exciting evolution of the legendary EQ6 PRO mount. The modern optimized design of the EQ6-R PRO incorporates new features that the most demanding astrophotographers will immediately appreciate, such as:
- Increased ruggedness and increased payload capacity of 20kg for astrophotography
- Even quieter, smoother operation and better guiding results, thanks to new motors and gearing
- Precise, backlash-free power transmission thanks to synchronous belt drive
- Improved latitude adjustment controls for greater accuracy and wider range of latitudes possible
- Built-in SNAP camera control port
- PPEC and periodic error correction function with enhanced electronics with microstepping module and increased torque for optimum accuracy even without guidance
- Improved, built-in ergonomic carrying handle for comfortable and safe transportation
- Selection of desired menu language (English, French, German, etc.)
Technical features:
- Mount type: German equatorial
- Maximum load (without counterweights): 20 kg (for astrophotography)
- Latitude adjustment range: 5º to 65º
- Azimuth adjustment range: approximately ± 9º
- Weight of the mount (without tripod): 17.3 kg
- Counterweights supplied: 2 x 5kg
- Complete weight: 34.8 kg
- Tripod supplied: 2 inch stainless steel legs, 7.5 kg weight
- Counterweight rod: diameter 18mm, length 240mm + 180mm
- Power supply: DC11 ~ 16V 4A
- Motors: 1.8th hybrid stepper motors
- Transmission: 180:1
- Fine transmission: + 48:12
- Timing belt drive: + 64 microsteps
- 1.8º stepper motor drive
- Gear Ratio: 720
- Resolution: 9216000 Counts/Revolution, approx. 0.14 arc seconds
- Maximum slew rate: 4.2 degrees/second
- Tracking speed: sidereal, solar, lunar
- Tracking mode: equatorial
- Auto-guiding speed: 0.125X, 0.25X, 0.5X, 0.75X, 1X
- PEC: 100 Permanent PEC Segments (PPEC)
- Manual controller: SynScan ™
- Command language configurable to different languages
- Database: + 42000 Objects
- Celestial Objects Catalog: Messier, NGC, IC, SAO, Caldwell, Double Stars, Variable Stars, Major Stars, Planets
- Pointing accuracy: up to 5 arcminutes (RMS)
- Integrated SNAP camera control port
- Dual coupling head for 45 mm / 75 mm dovetails
- Illuminated polar finder
