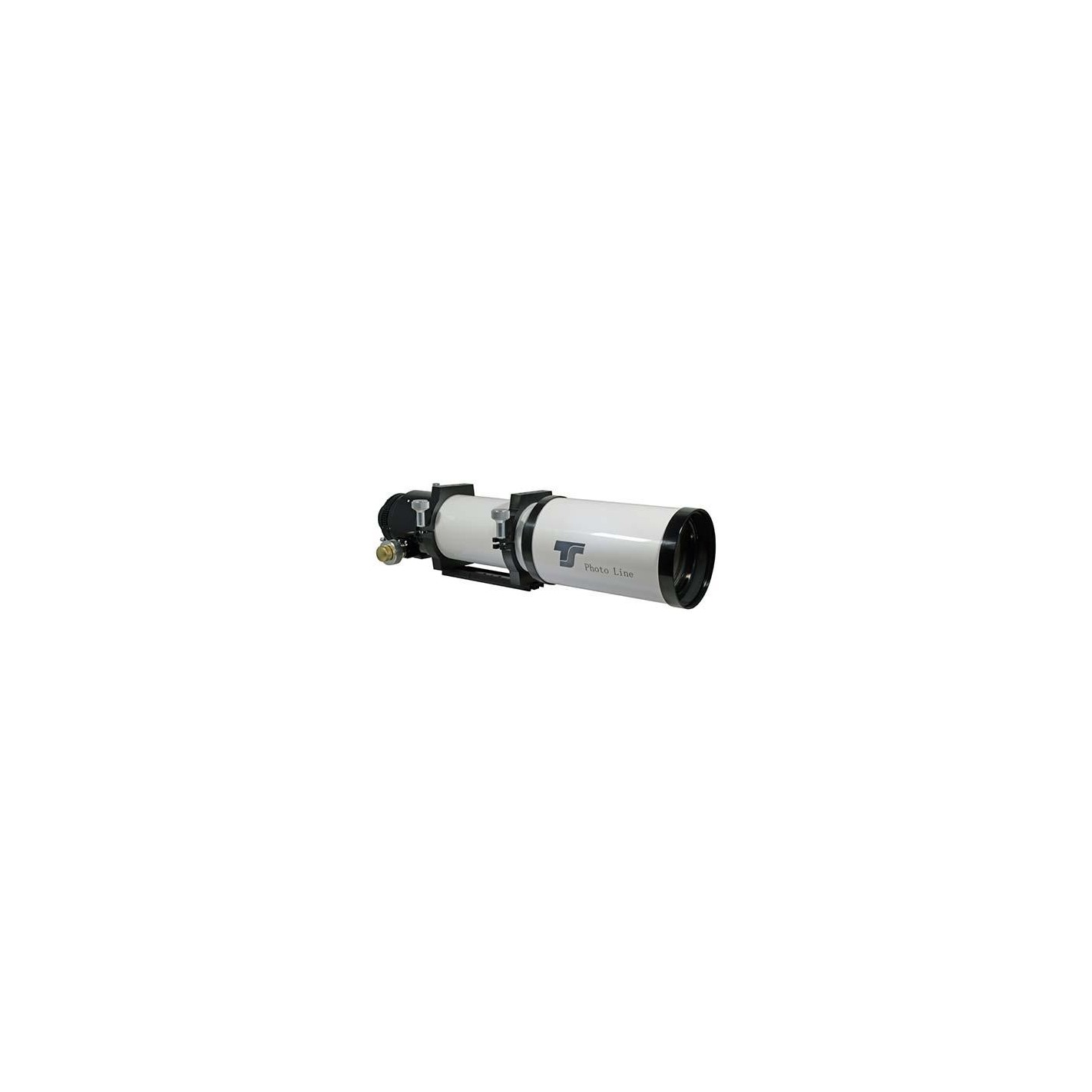

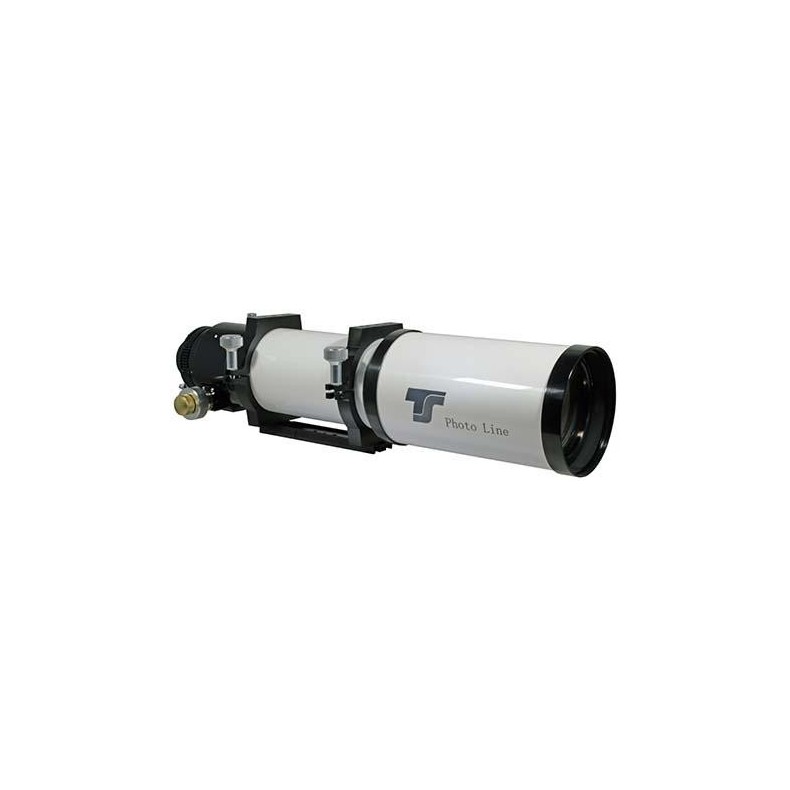

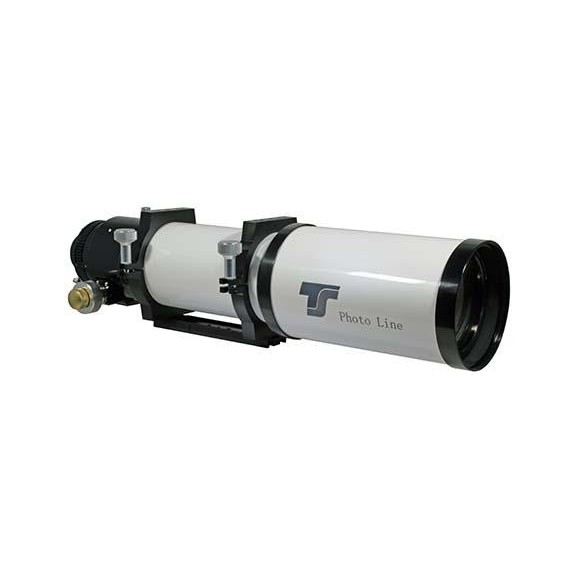

Refractor telescope ED TS 110 mm f / 7.
Our telescope TS ED Apo 110/770 mm convinces with a high degree of color correction and a wide photographic field for full-format DSLR cameras. Its precise 3" Crayford focuser offers a vignetting-free field with much more stability compared to a standard 2" focuser. The APO TS ED is the new generation of refractors specially designed for stunning deep sky imaging.
Advantages of TS Photoline 110 mm ED APO:
- Highly corrected and adjustable ED doublet
- Compact and transportable with retractable dew shield
- Robust, oversized 3" Crayford focuser with dual-speed 1:11 drive (includes 2" and 1.25" reducer)
- CNC-machined metal rings for a strong connection to your mount

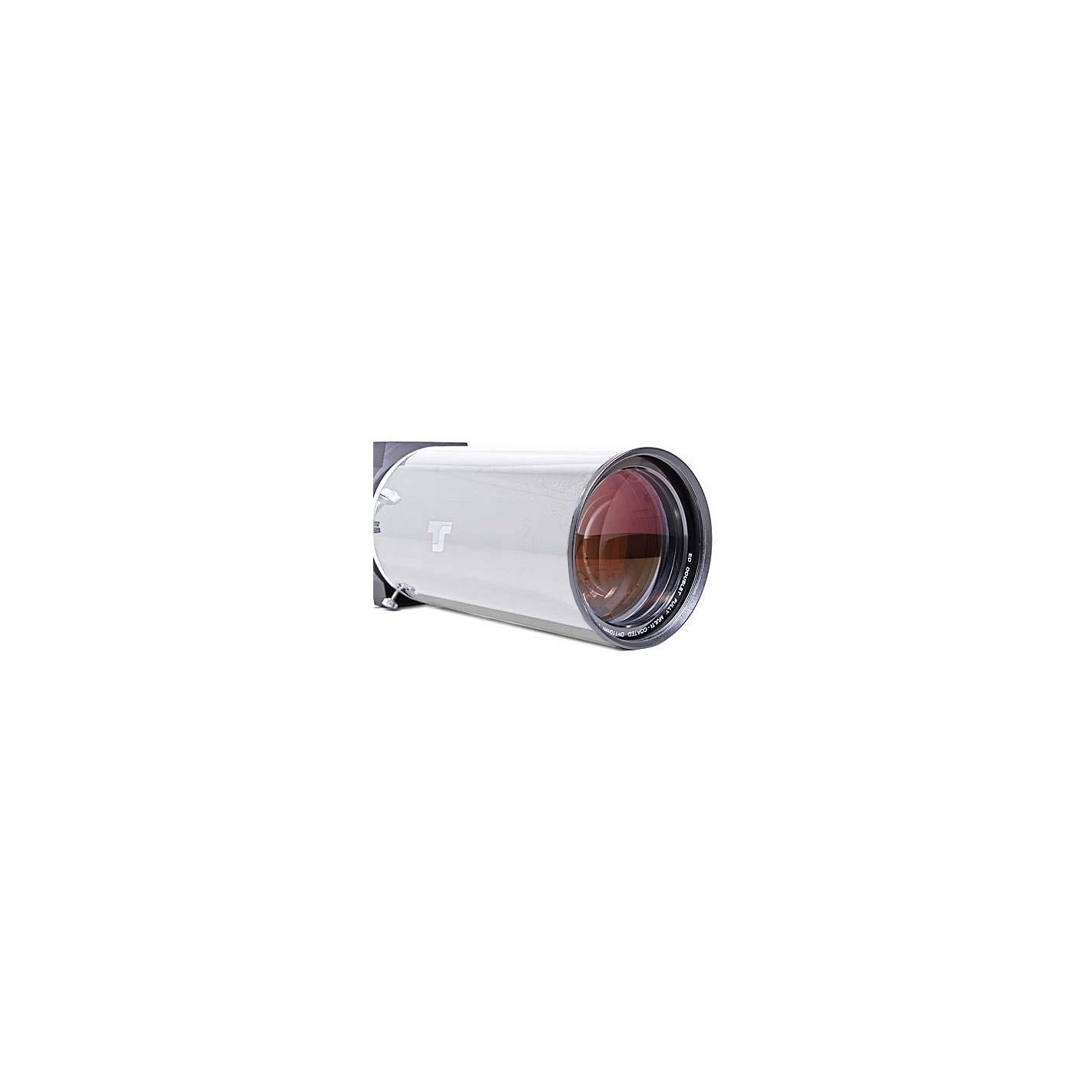

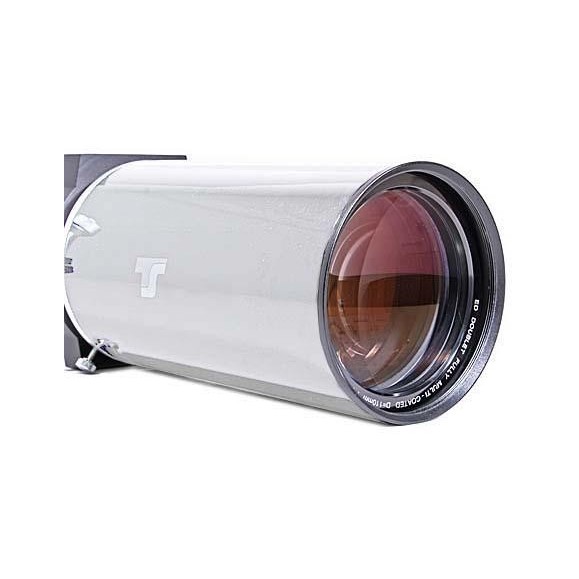

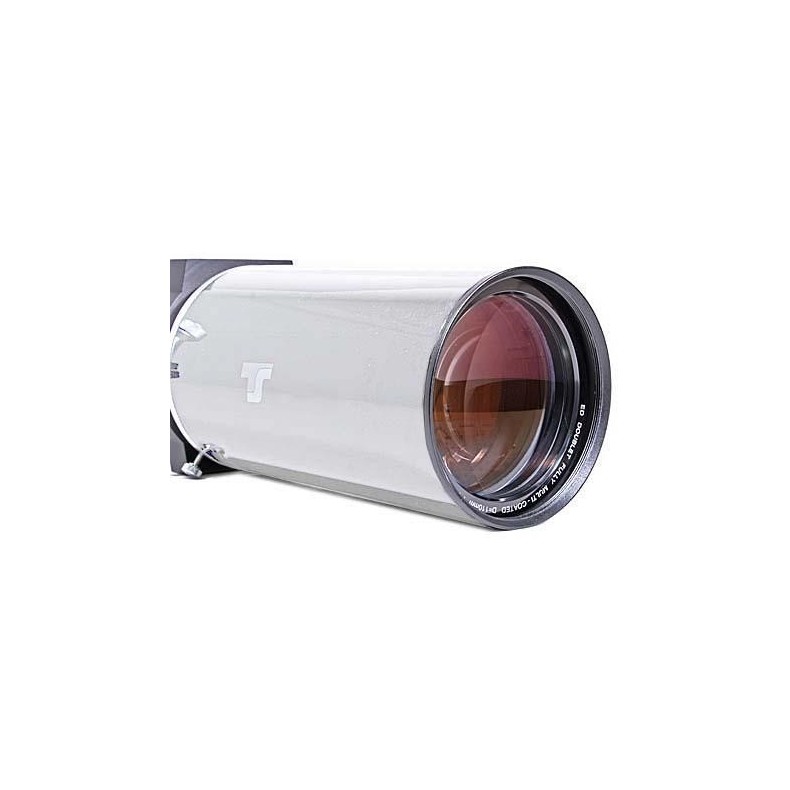

The handcrafted ED element lens is equipped with an adjustable, temperature-compensated cell.

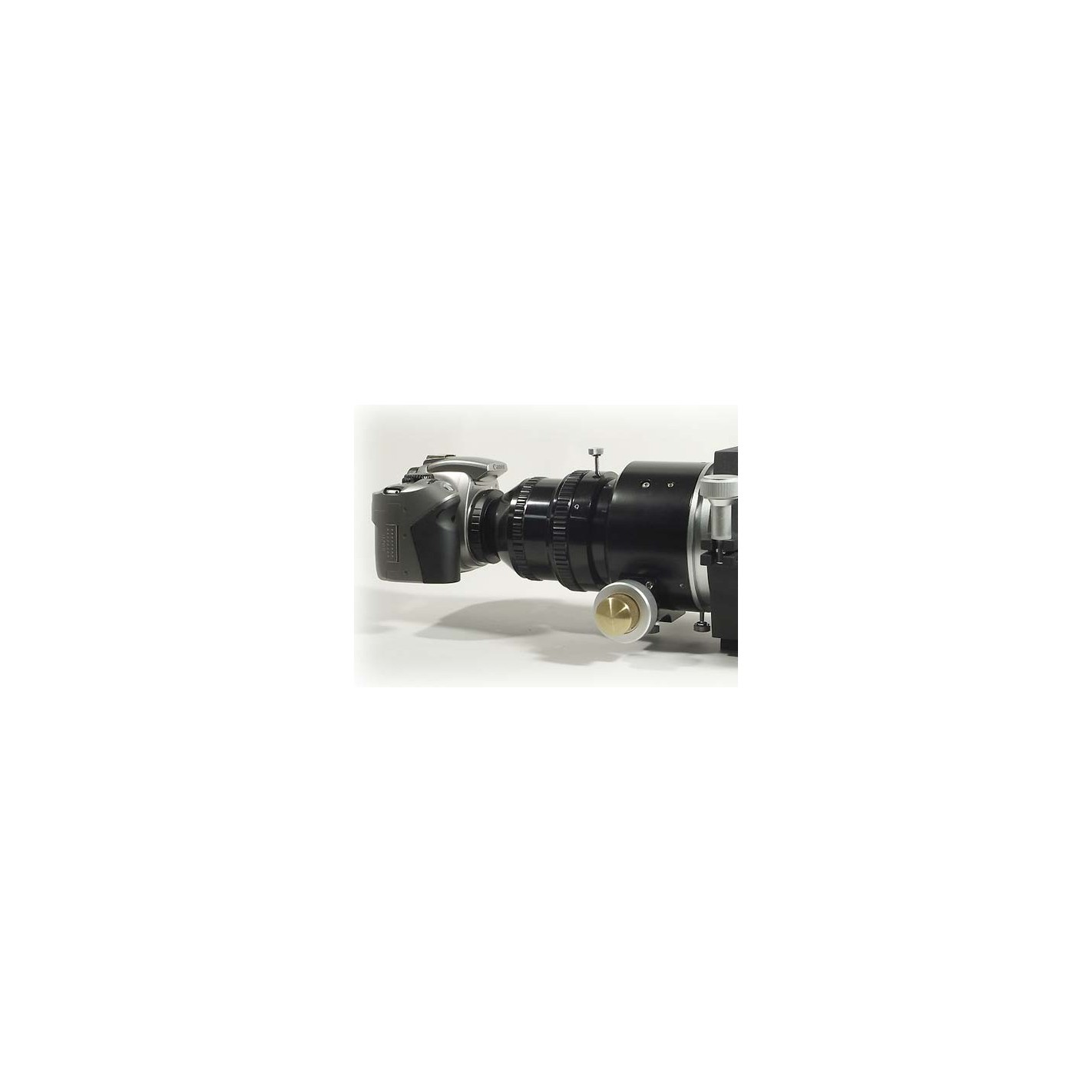

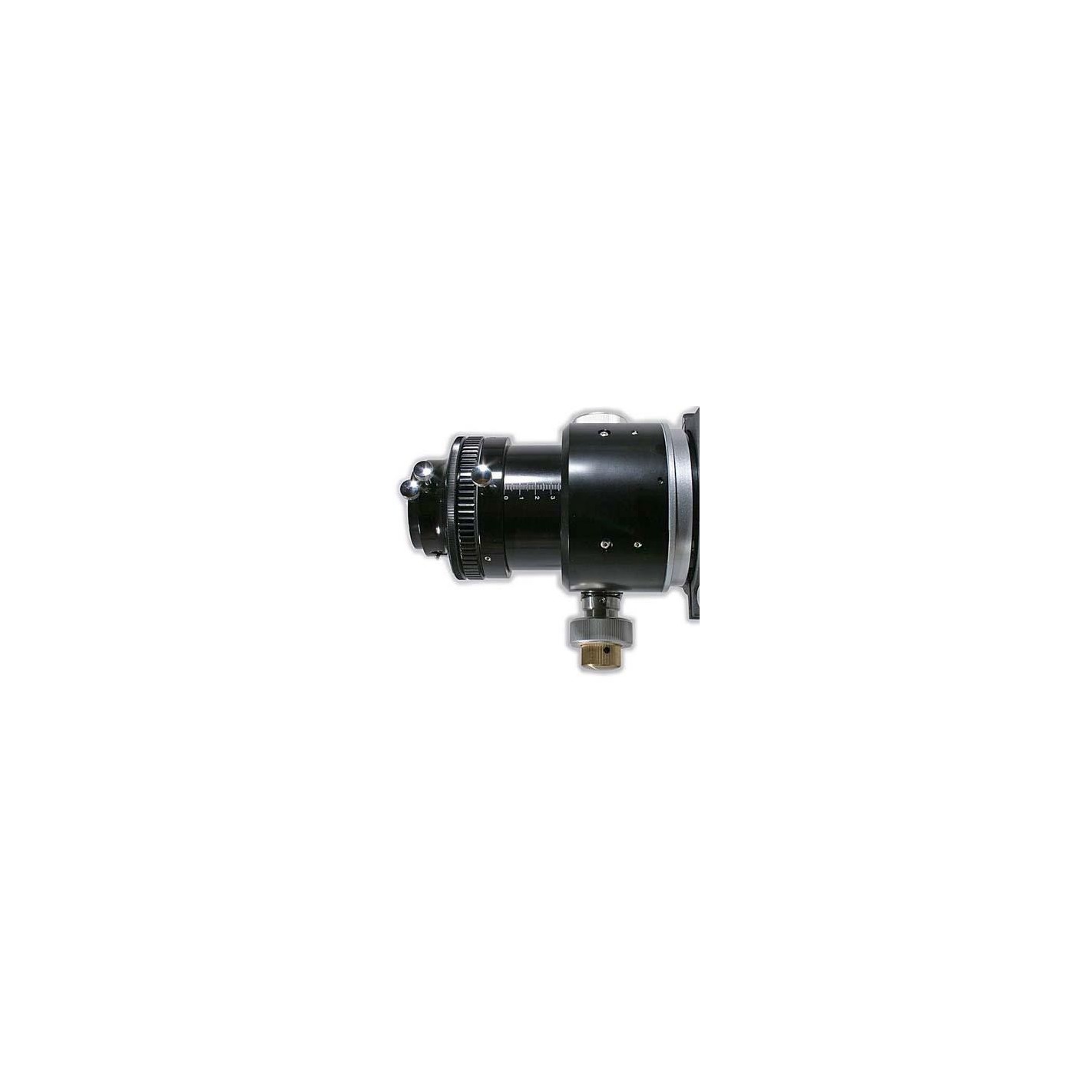

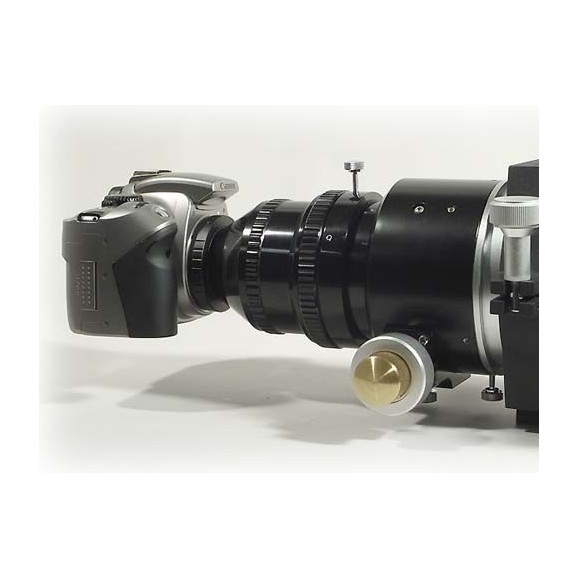

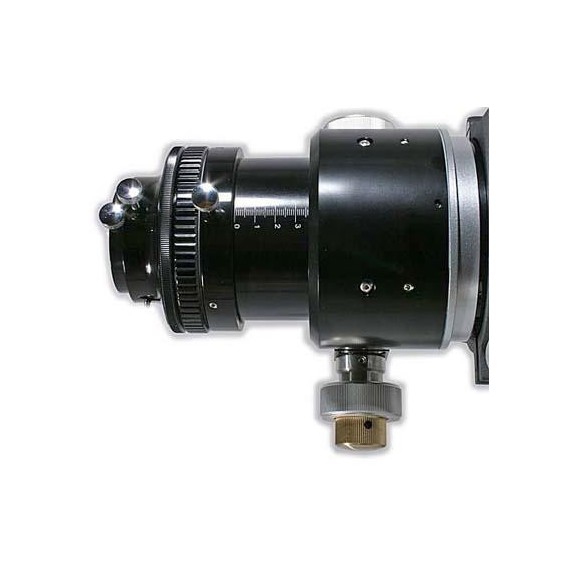

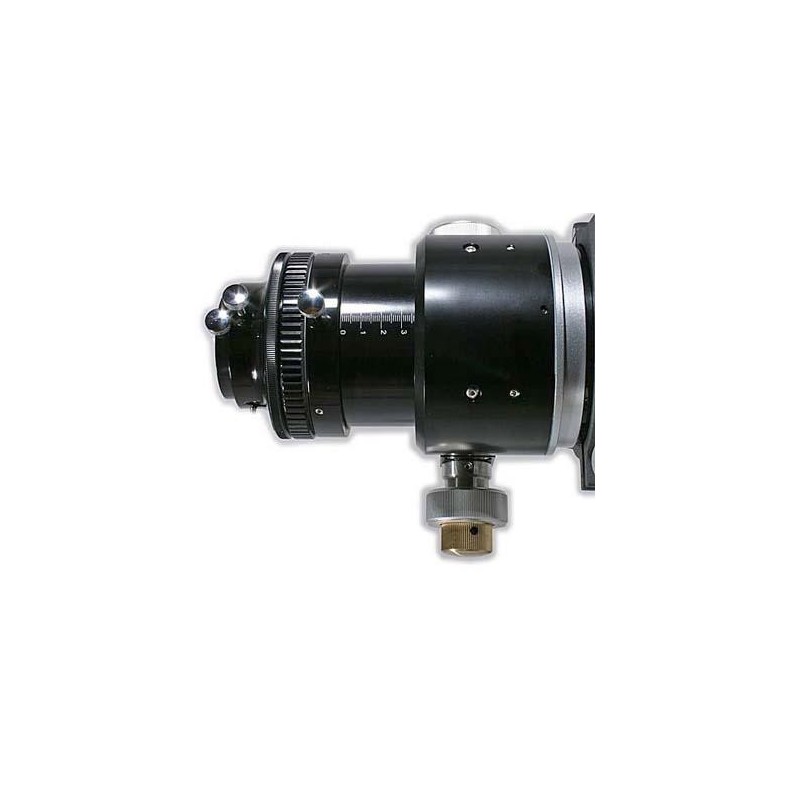

The 3" Crayford focuser is a great enhancement for working with large sensor cameras.

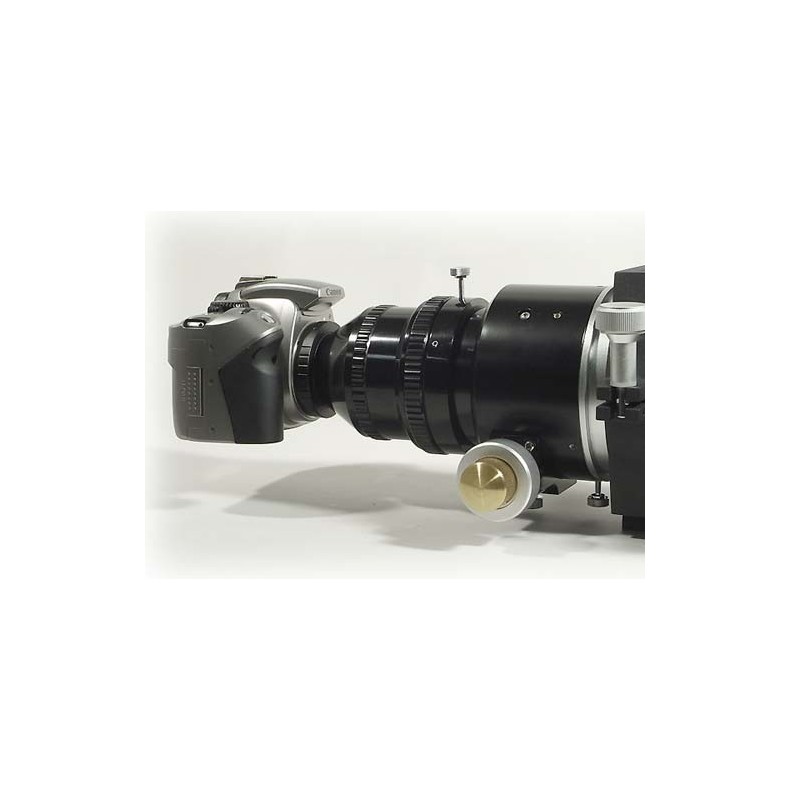

A 2" focuser causes vignetting when used with a large format sensor and a fast optical system. The larger 3" focuser supplied with this telescope ensures an optimal field of view and photographic field for sensors up to 24x36mm. It also provides better mechanical stability thanks to its large ball bearings. It allows 360° rotation for perfect framing .It is a 1:11double speedfocuser for high focusing precision. The coupler has a free aperture of 68 mm and comes with a T2 reduction.
Technical details TS ED APO 110/770 mm:
- Handmade and adjustable 110mm f / 7 doublet with ED element, fully multi-layer coated
- 3" Crayford focuser with 2" and 1.25" reducer
- Dual speed - Micro transmission for precise focusing
- Blackened lens edges for suppression of internal reflections
- Retractable sprayhood
- CNC machined tube rings
- OTA weight incl. tubular rings: 5.9 kg
- OTA dimensions: min.length64 cm, 14.5 cm dew-diameter, 11.7 cm OTA diameter
Included:
- Optical tube with adjustable ED lens
- Front anti-fogging
- 2" and 1.25" reducer with brass compression ring
- CNC rings
ED refractor telescope TS 110 mm f / 7.
