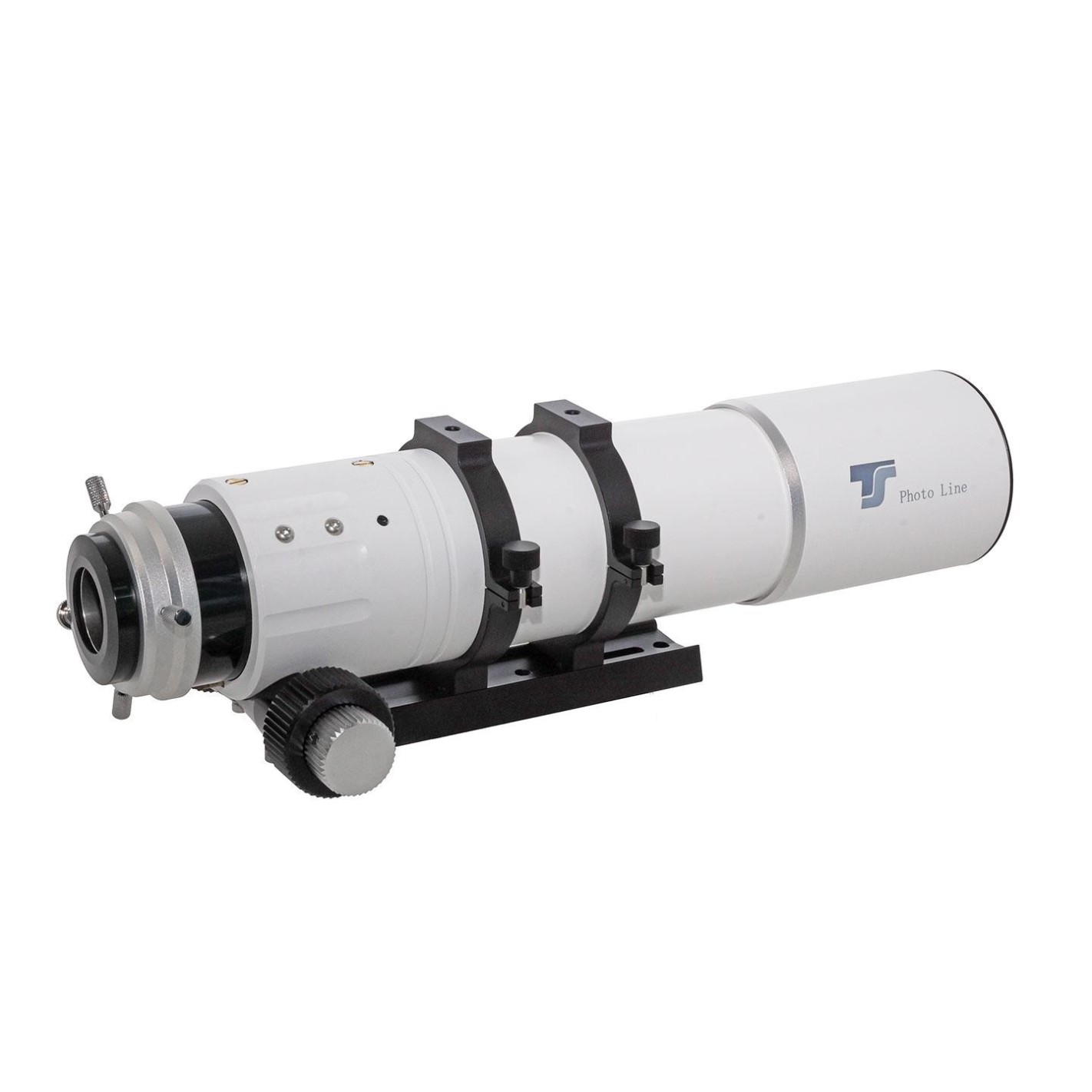

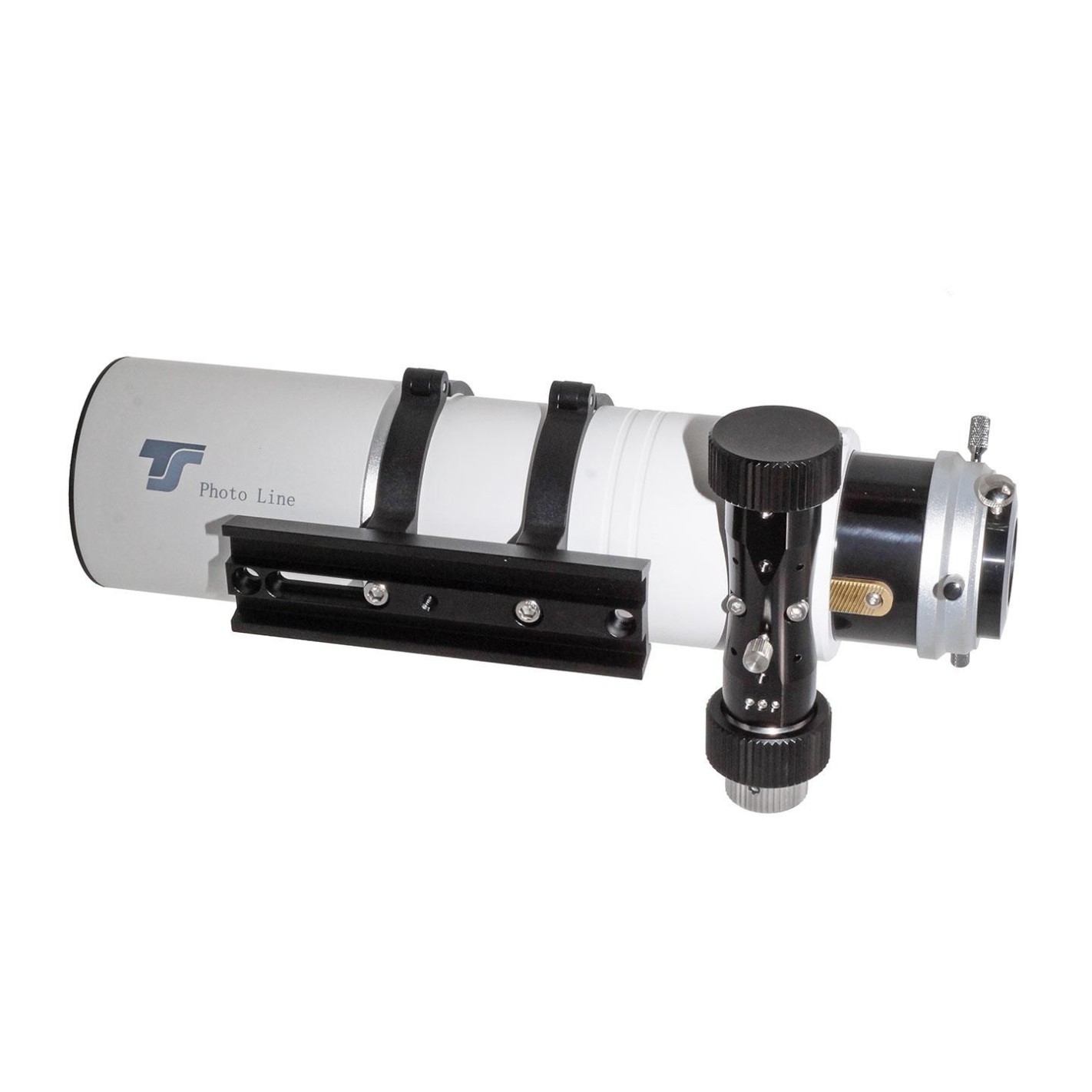

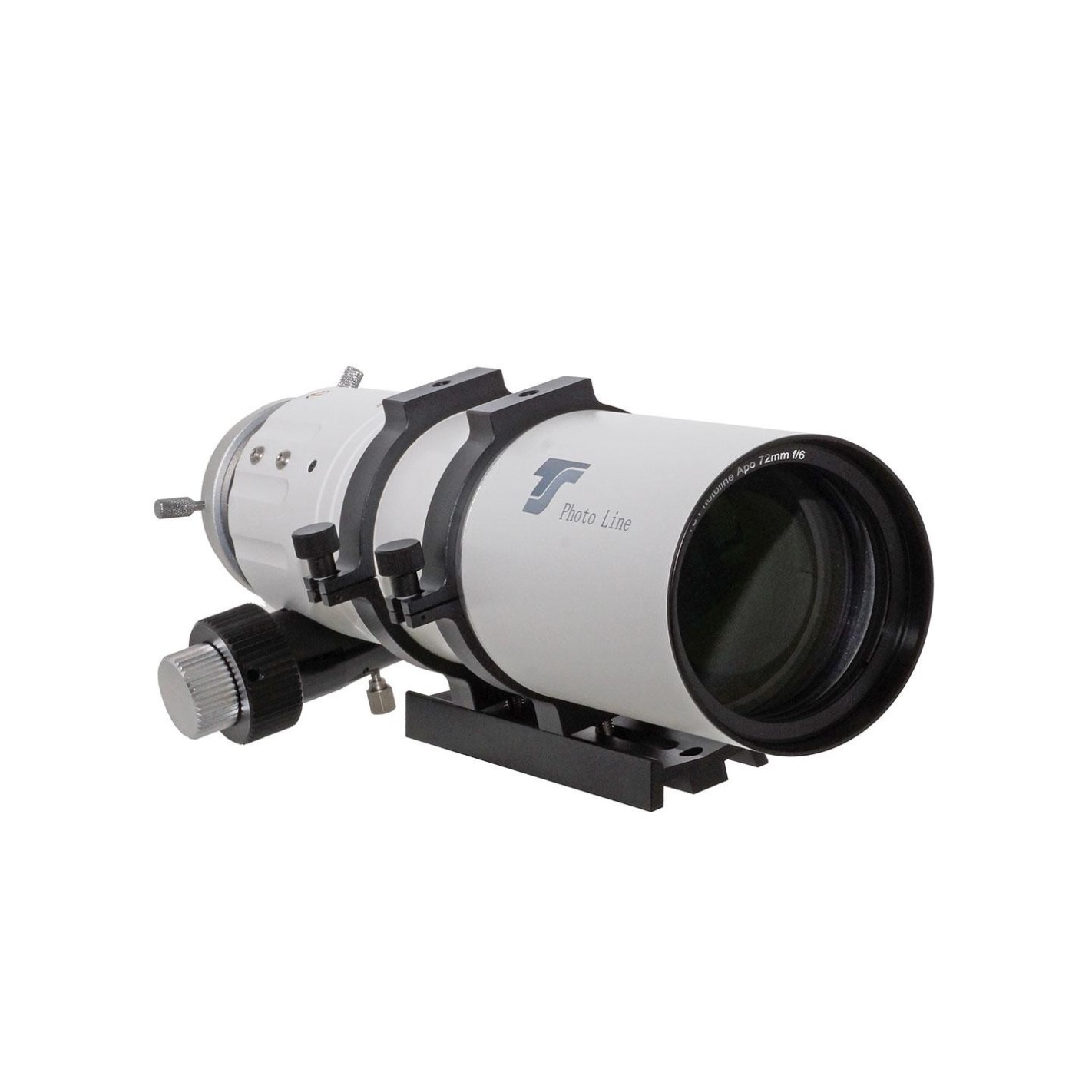

Telescope TS Photoline 72mm f/6

• Powerful, aberration-free apochromatic refractor with 72 mm aperture and 432 mm focal length.
• Fast focal ratio: f/6
• FPL53 doublet (Ohara Japan), air-spaced - additional lanthanum element, so no chromatic aberration
• 2.5" dual-speed rack-and-pinion - ball bearing mounted for maximum load
• Retractable dew cap - the apo even fits into the hand luggage
• CNC tube rings with versatile dovetail bar - EQ5 style and with photo tripod connection.
• Weight only 1.86 kgs - transport length only 31 cm

Lead-managed by Teleskop Service, this high-quality Photoline apo with an FPL53 element from Ohara (Japan) was created. The goal was to construct a compact and powerful telescope which is also attractive for the demanding astrophotographer. For this reason, we have equipped the telescope with a modern 2.5" rack and pinion focuser which can hold even heavy accessories like CCD cameras. Despite very good mechanics, the apo is a true lightweight with only 2.18 kg, and with a length of only 31 centimeters, the telescope has space even in the hand luggage.

The apo has a large back focus of 135 mm from the 2" receptacle of the focuser. This allows for trouble-free operation of our optional field correctors. A corrector is always necessary for maintaining good sharpness to the edge.

TSFLAT2 - Corrector without change of focal length - The corrector leaves the focal length at 432 mm and the focal ratio at f/6. The corrector offers full correction and a good illumination up to full-frame sensors. The optimal working distance from the M48 connecting thread to the camera sensor is 55 mm.

TSRED279 - Photoline corrector with focal length reduction - The corrector shortens the focal length of the apo from 420 mm to 331 mm and improves the focal ratio to f/4.74. We recommend the corrector for DSLR cameras up to APS-C sensors and also for CCD cameras with medium sized sensors like the KAF-8300. The optimal working distance from the T2-thread of the reducer to the sensor is 65 mm.

Correctors and adapters are linked at the accessory recommendations, of course.

The generous working distance of the apo allows even using 2" eyepieces at full illumination. Thus a gigantic magnification range with high field of view is available to you.

By using a 2" Paragon ED 35 mm eyepiece and a 2" star diagonal, a true field of view of 5.7 degrees can be obtained, at 12x magnification. Observations of animals and the countryside with maximal image brightness even in twilight become possible, also observing extended nebula regions with nebula filters.

The 72 mm APO lens, free from color aberrations, allows magnifications up to approximately 200x. See fine details of the moon's surface or observe the planets of our solar system. The contrast performance of the apo will surprise you in this field, too.

The TS Photoline is a universal telescope for all areas of observation and photography and, of course, for astronomy.

The focuser holds accessories up to approx. 5 kg without tilting. The drawtube is adjusted using a rack which is non-interacting with the bearing itself, thus allowing precise adjustment even at maximum load. The 1:11 dual speed transmission offers precise focusing also for astrophotography.

Afemale M63x1 thread on the drawtube allows screwed connections.

The 72 mm FPL53 triplet lens

Without doubt, the heart of the refractor is the multi-coated 72mm f/6 objective with the FPL53 APO element from Ohara (Japan) and lanthanum glass element as second special glass. This high-quality lens offers an image free of false color even in the high magnification range.

The air-spaced objective is adjustable mounted, of course. For maximum contrast, each lens is supplied with the best possible multi-coating offered by the manufacturer.
