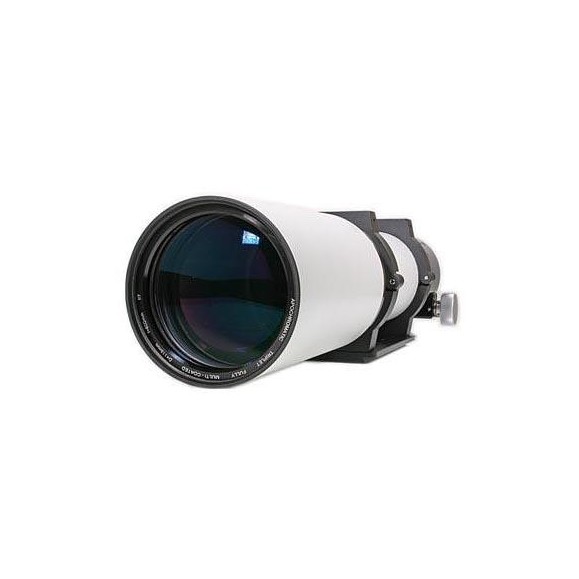

Telescope TS PHOTOLINE APO 115 f/7 Triplet APO

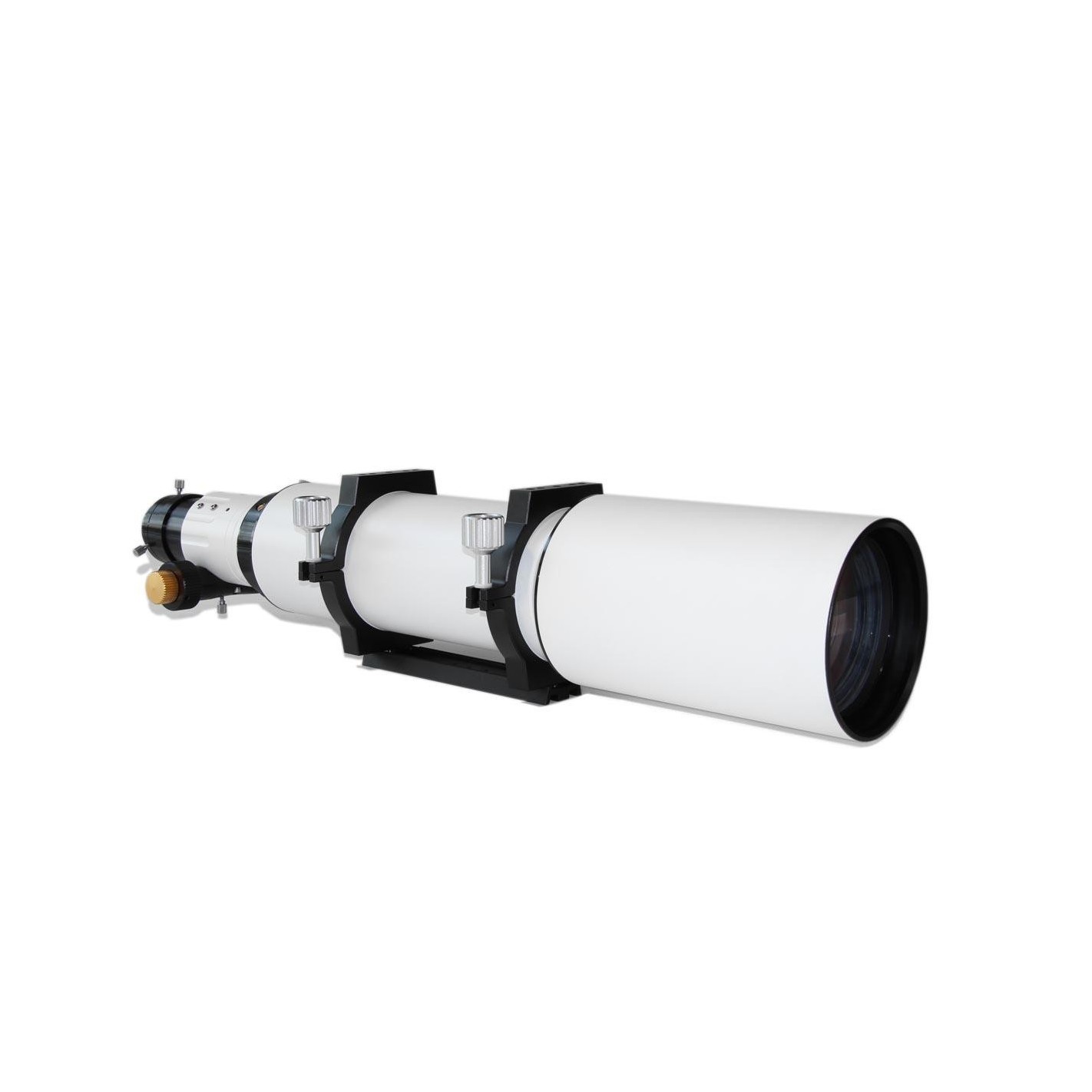

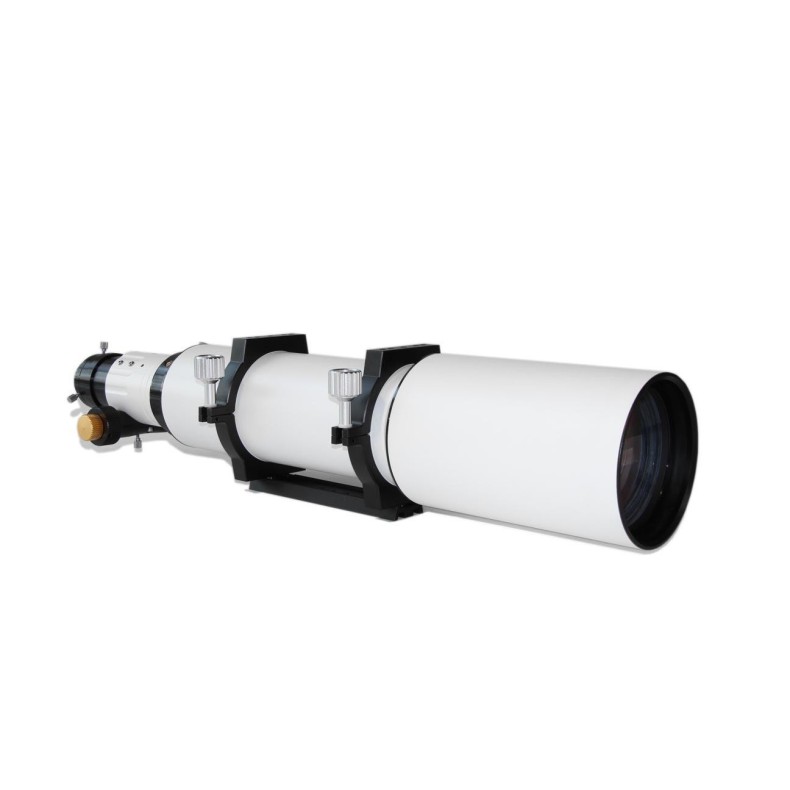

Telescope TS PHOTOLINE Triplet APO 115/800mm with 2.5" RPA focuser - Triplet APO O'Hara Objective (Japan)

The TS PHOTOLINE triplet APOtelescopes deliver high quality images at levels of performance previously available only from much more expensive equipment. Chromatic aberrations have been virtually extinguished and color correction is much better than that offered by standard ED doublet refractors. Undoubtedly, the TS PHOTOLINE telescopes guarantee high performance ideal for astrophotographers, with the ability to fully illuminate large CCD sensors and with temperature compensated lens sustaining cells.

The lens is air spaced and not cemented. This avoids problems arising from thermal variations that often occur with triplet objectives that are cemented (physically bonded together, in contact). The TS PHOTOLINE 115/800mmtelescope when used with a field flattener can give better photographic results than a similar 110mm diameter telescope. The telescopeTS PHOTOLINE 115/800mm can be recommended without reservation to work with CCD's up to 45mm diagonal.

APOCROMATIC objective:

Triplet APO multi-coated with 115mm diameter objective and 800mm focal length.
The image is free of chromatic aberrations and false colorations.Under proper seeing conditions, up to 300x magnification is possible.

The TS PHOTOLINE APO telescopes offer highly efficient color correction and capture a useful photographic field for full-frame cameras.

The precise 2.5" RPA focuser offers a vignetting-free field and greater stability compared to a standard 2" focuser.

The TS PHOTOLINE APOtelescopes are a new generation of refractor telescopes specially designed for deep sky (wide field) astrophotography.

Advantages and technical features of the TS PHOTOLINE 115mm f/7 Triplet Apochromatic telescope:

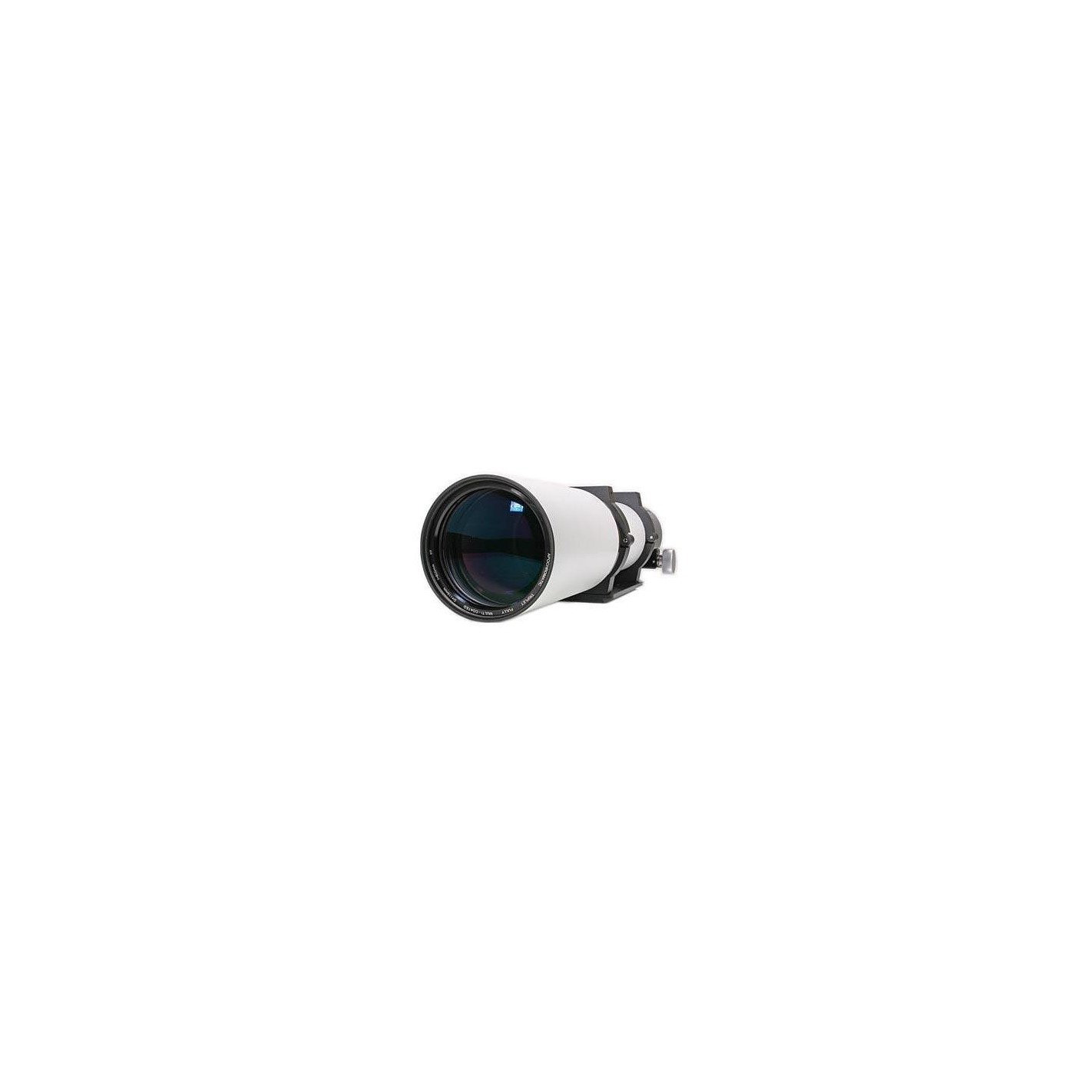

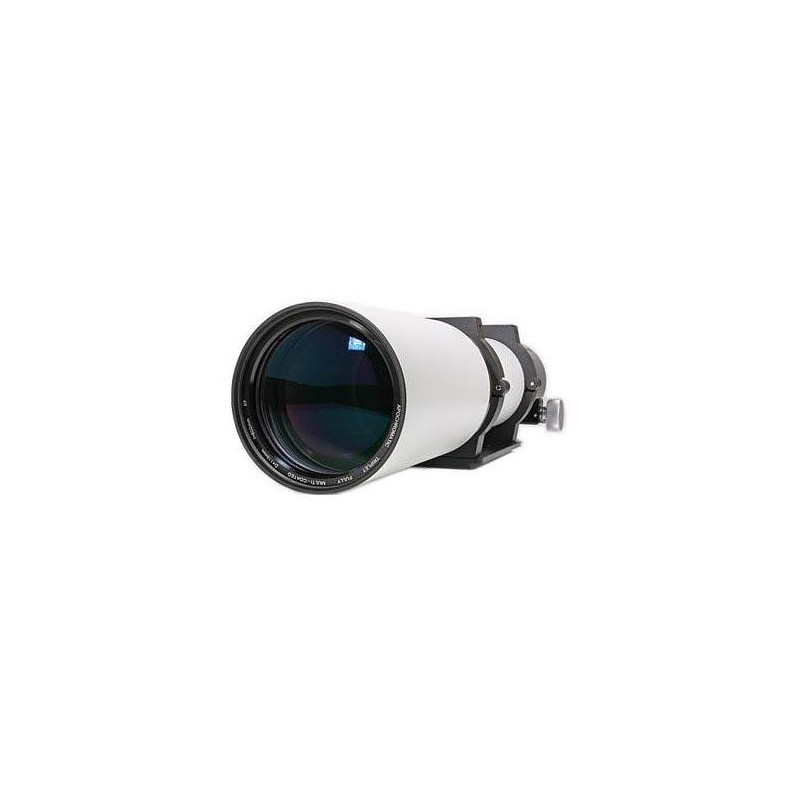

115mm diameter air-spaced triplet objective (with Lanthanum element). APO f/7 refractor with hand-corrected objective. Fully multi-coated lens. 800mm focal length.

Robust mechanics.

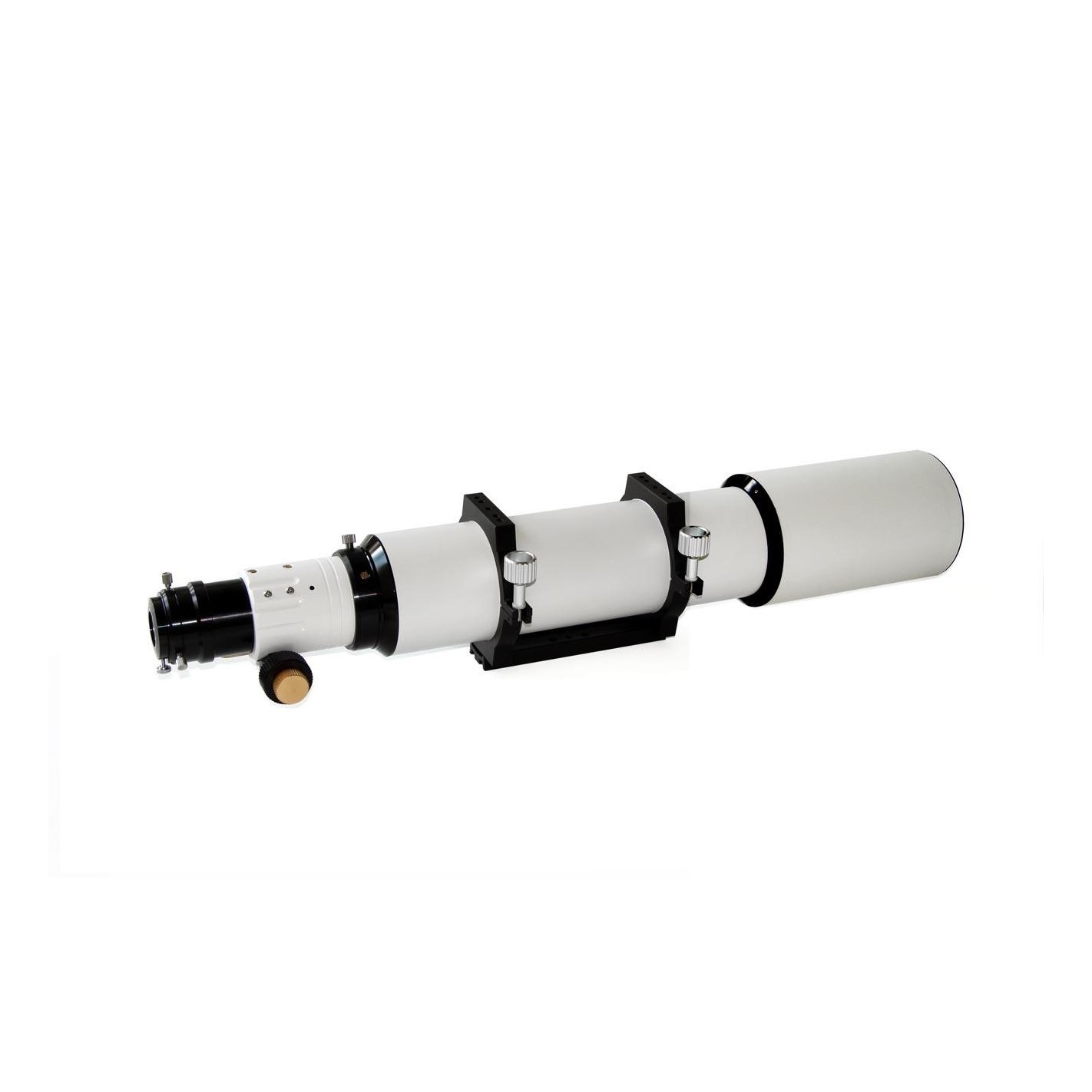

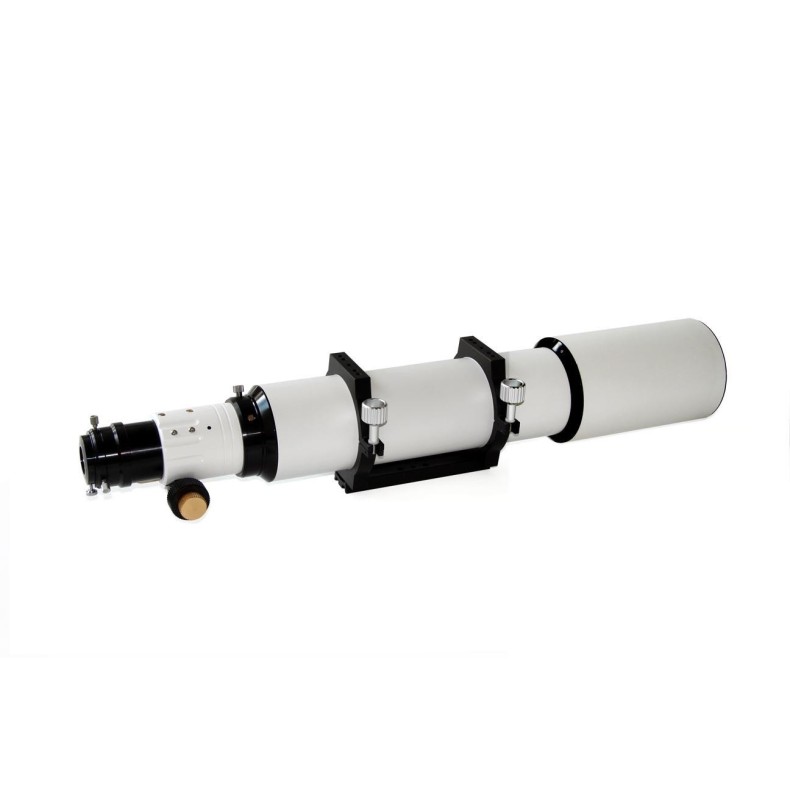

Transportable thanks to its retractable lens hood. When retracted the tube is only 68cm long.

CNC rings with flattened sides.

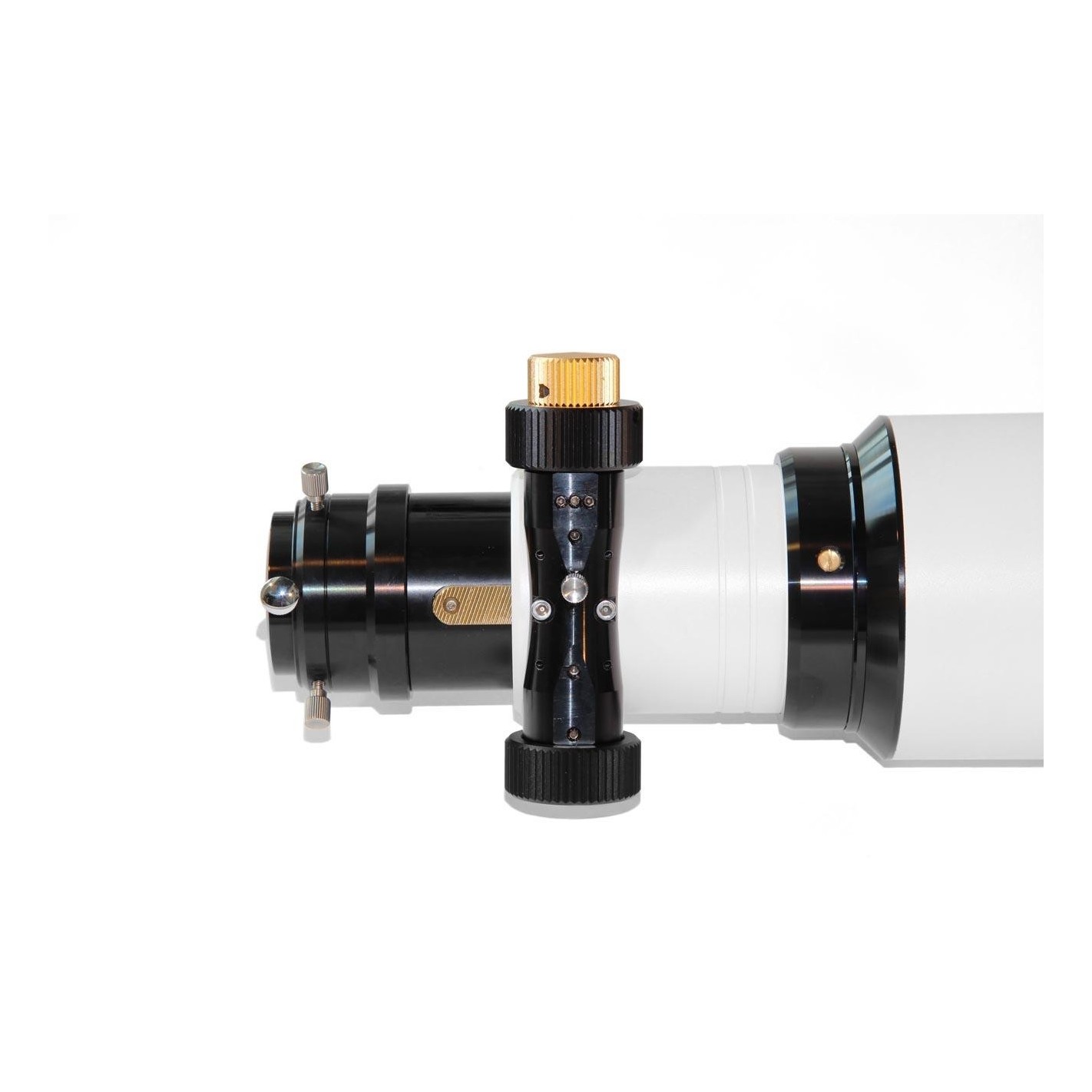

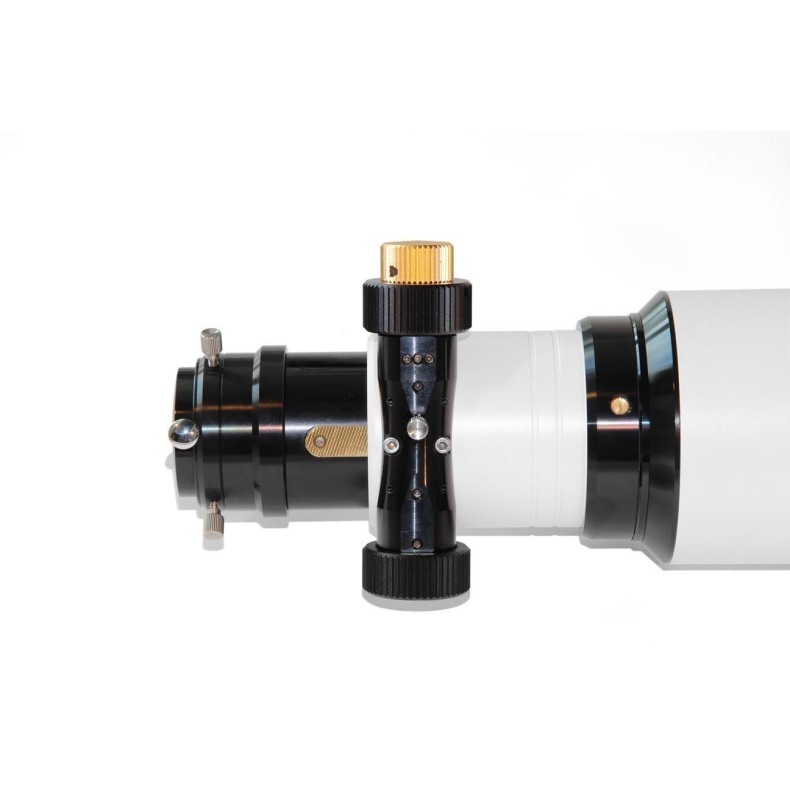

2.5" RPA focuser for greater load capacity, double speed 1:11 for focus optimization. Includes adapters for 2" and 1.25" accessories.

Adjustable lenses. Specially designed for astrophotography.

Blackened lens edges to eliminate internal reflections.

Tube weight: 6.4 Kg.

what comes with the telescope?

Telescope TS 115mm f/7 Triplet APO
CNC rings
Dovetail type Vixen (narrow for GP mounts)
