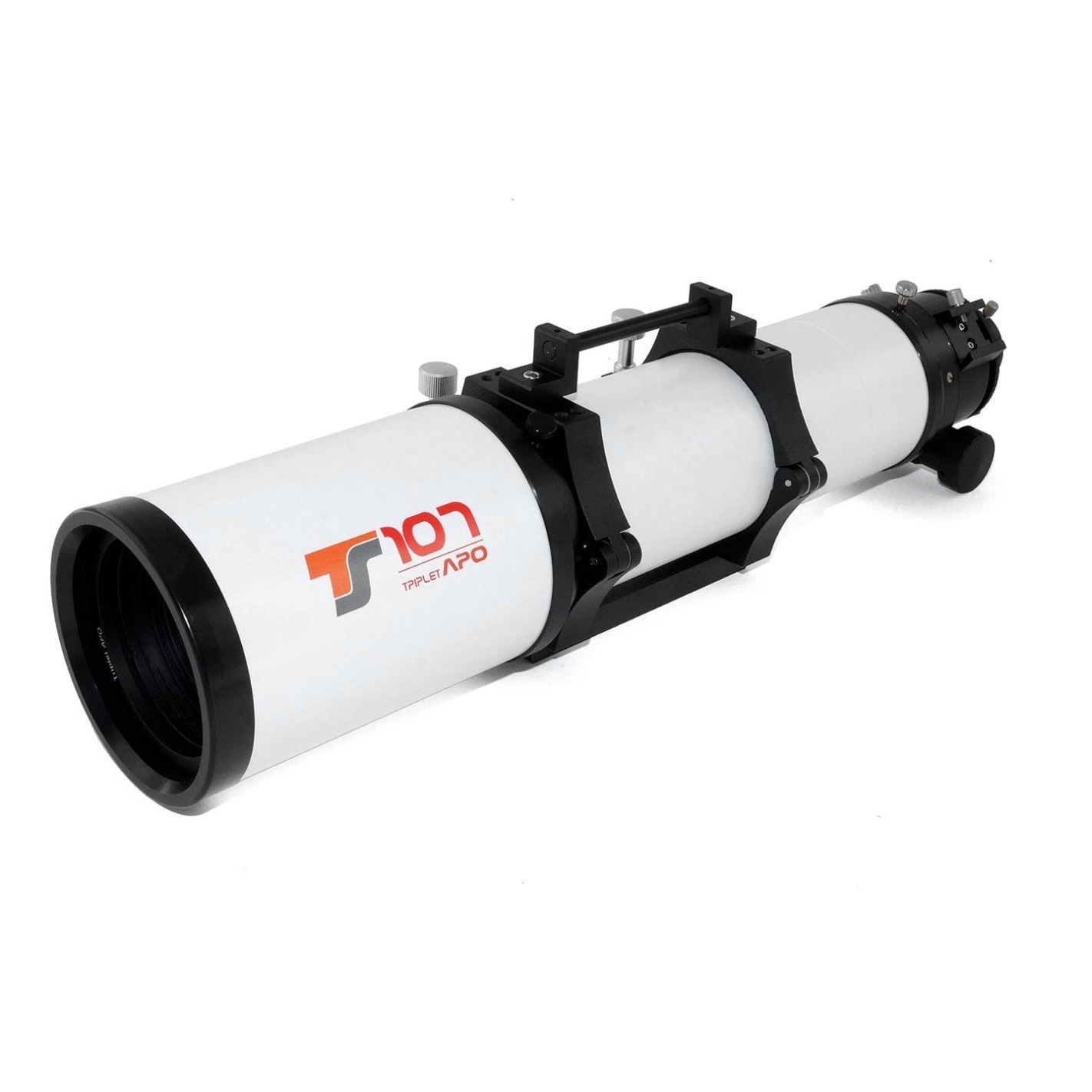

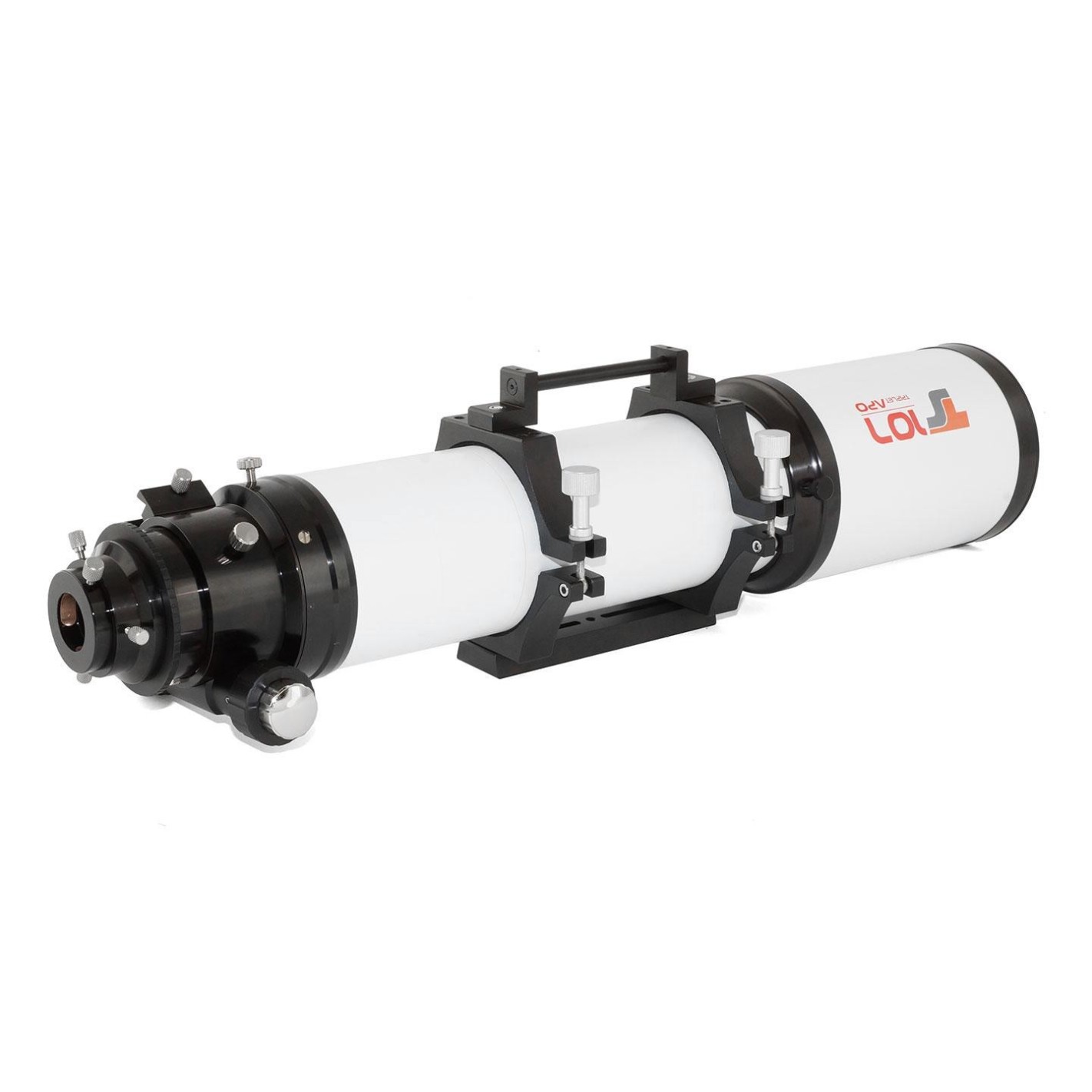

Telescope TS PHOTOLINE APO 107 Triplet f/6.5

Telescope TS PHOTOLINE 107 Super Triplet f/6.5 with 3" RPA rack and pinion focuser - Triplet APO FPL-53 O'Hara (Japan) objective and divisible tube.

The TS PHOTOLINE triplet APOtelescopes offer high quality images reaching performance levels that until now were only available with much more expensive equipment . Chromatic aberrations have been virtually extinguished and color correction is much better than that offered by standard ED doublet refractors. Undoubtedly, the TS PHOTOLINE telescopes guarantee high performance ideal for astrophotographers, with the ability to fully illuminate large CCD sensors and with temperature compensated lens sustaining cells.

The lens is air spaced and not cemented. This avoids problems arising from thermal variations that often occur with triplet objectives that are cemented (physically bonded together, in contact). The telescope TS PHOTOLINE 107/700mm can be recommended without reservation to work with CCD's up to 45mm diagonal.

APOCROMATIC objective:

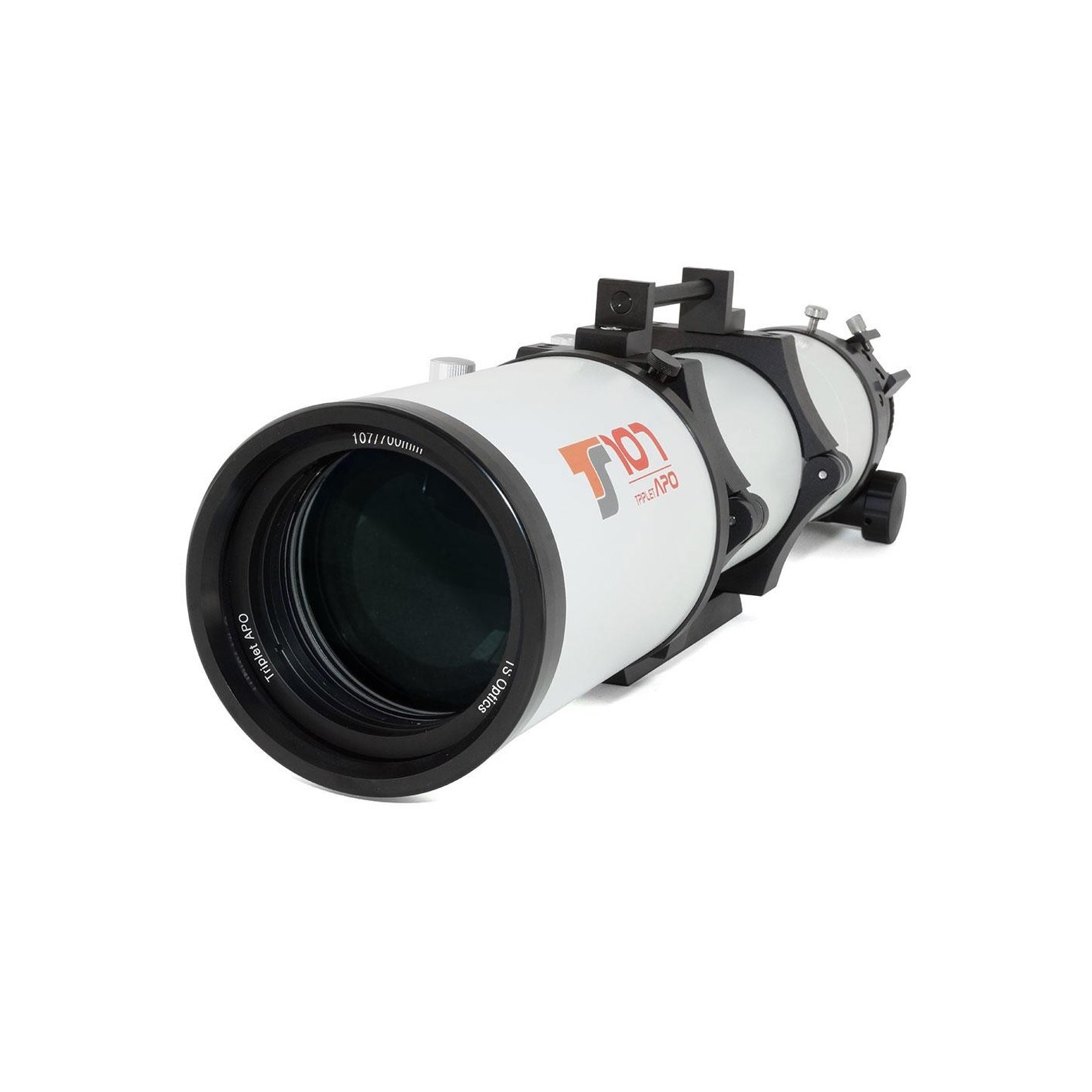

Triplet APO multi-coated with 107mm diameter objective and 700mm focal length.
The image is free of chromatic aberration and false coloration. The TS 107mm triplet f/6.5 is a refractor equipped with one of the best lenses in its class on the market, including an FPL-53 O'Hara element. The temperature-compensated lens cell keeps the lens free of stress even when operating below 0°C. A solid metal tube and the new Photoline 3" RPA focuser make this a highly recommended choice for both the observer and the astrophotographer.

The TS PHOTOLINE APOtelescopes are a new generation of refractor telescopes specially designed for deep sky (wide field) astrophotography.

Each telescope is tested on our optical test bench and is shipped perfectly collimated. In addition, this model is constructed with three adjustable segments. This adjustment allows you to focus at multiple focal lengths to be able to observe and photograph without problems with a multitude of accessories, reducers, field flatteners...

Advantages and technical characteristics of the telescope TS PHOTOLINE 107mm f/6.5 Triplet Apochromatic FPL-53 O'Hara:

-- Air-spaced triplet objective with an O'Hara FPL-53 element
-- Temperature compensated and fully adjustable objective cell

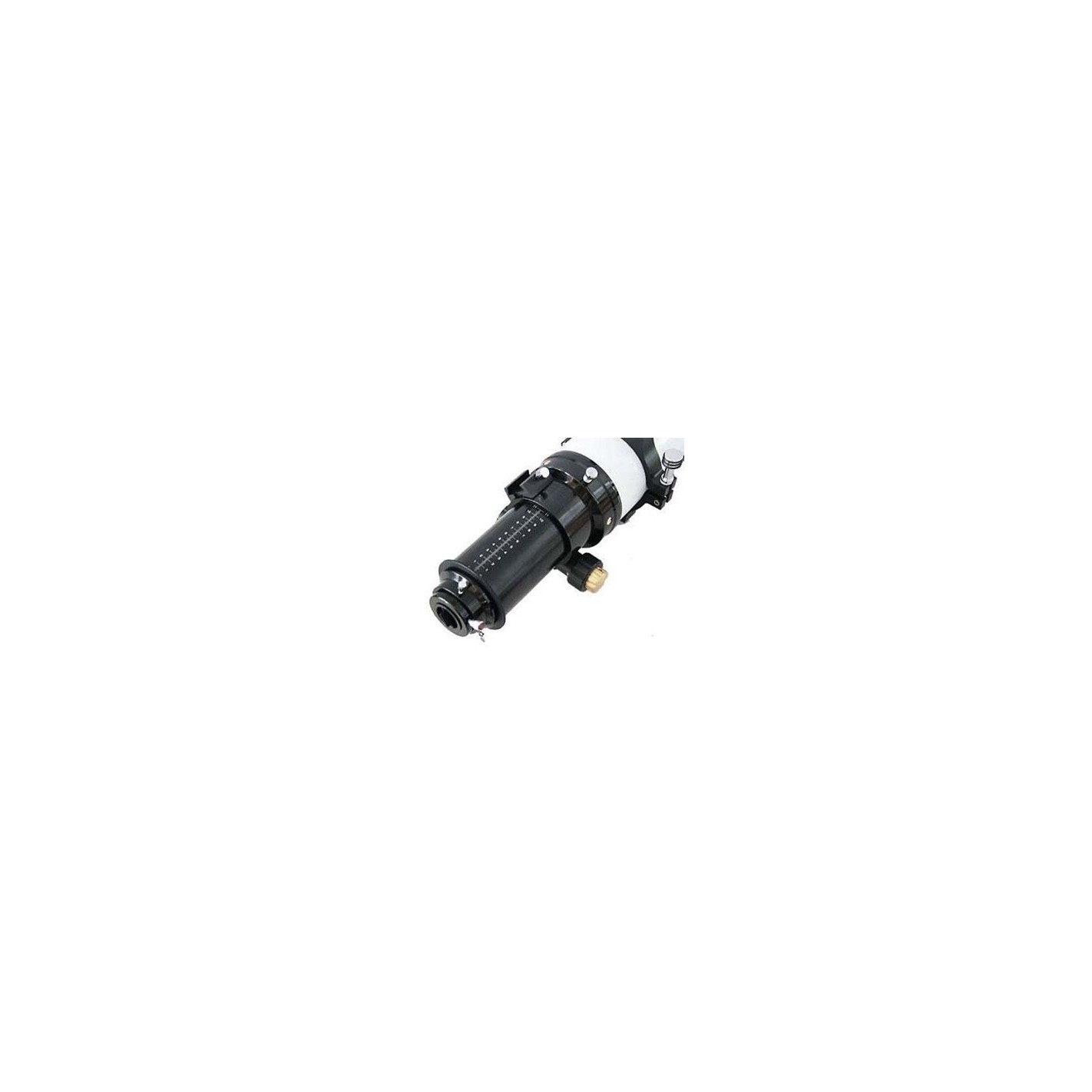

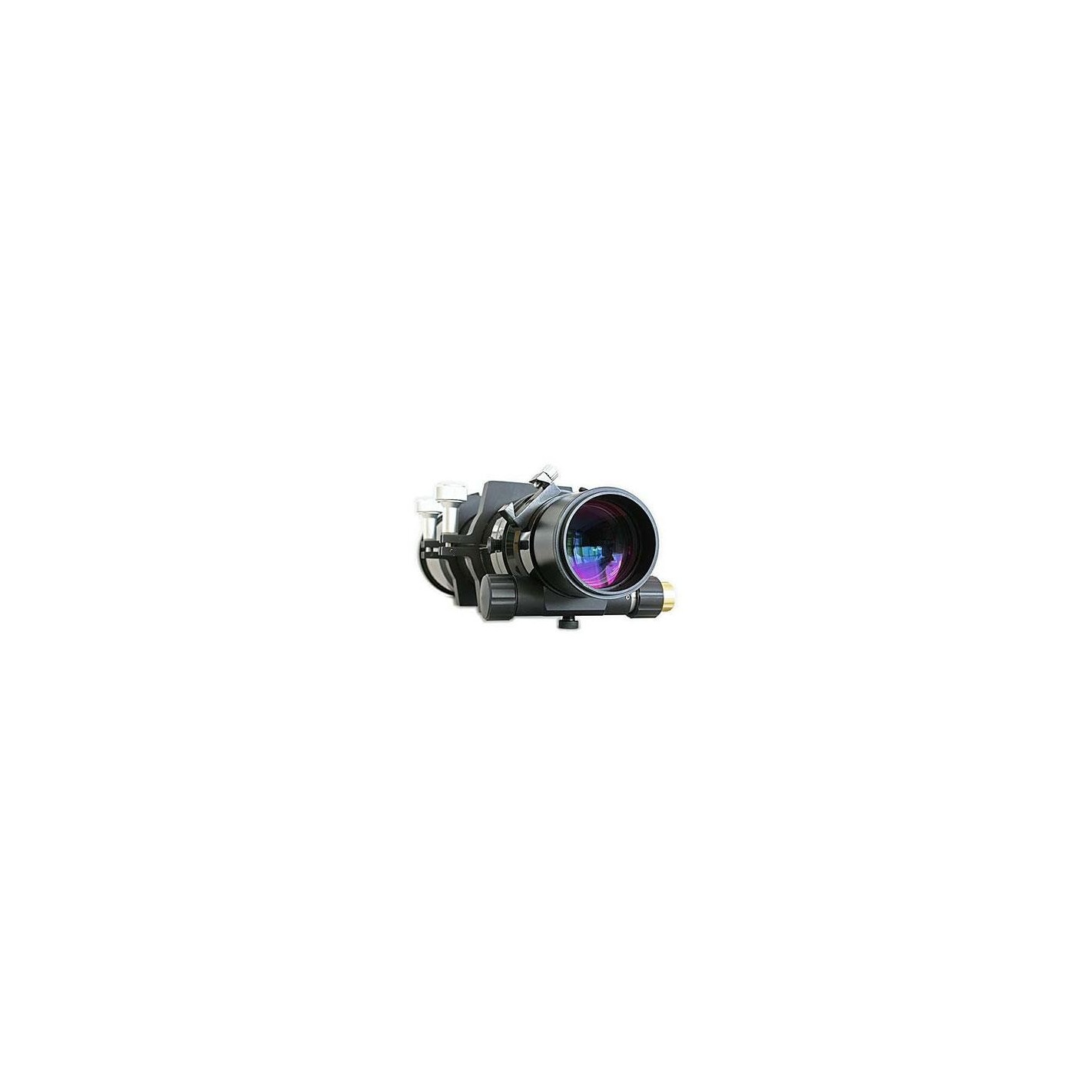

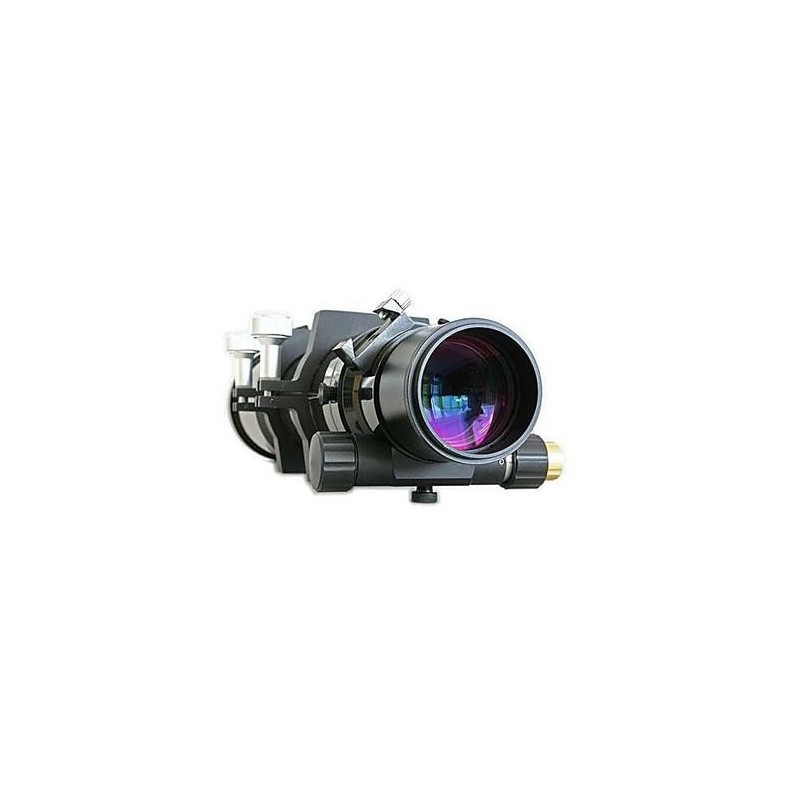

-- Photoline 3" RPA rack and pinion focuser with dual reduction 10:1 and load capacity up to 6Kg, dual speed and 360º swivel
-- Direct thread to M68 and M78 (Zeiss ) for reducer/Corrector
-- Rigid aluminum tube with internal baffles to avoid internal reflections

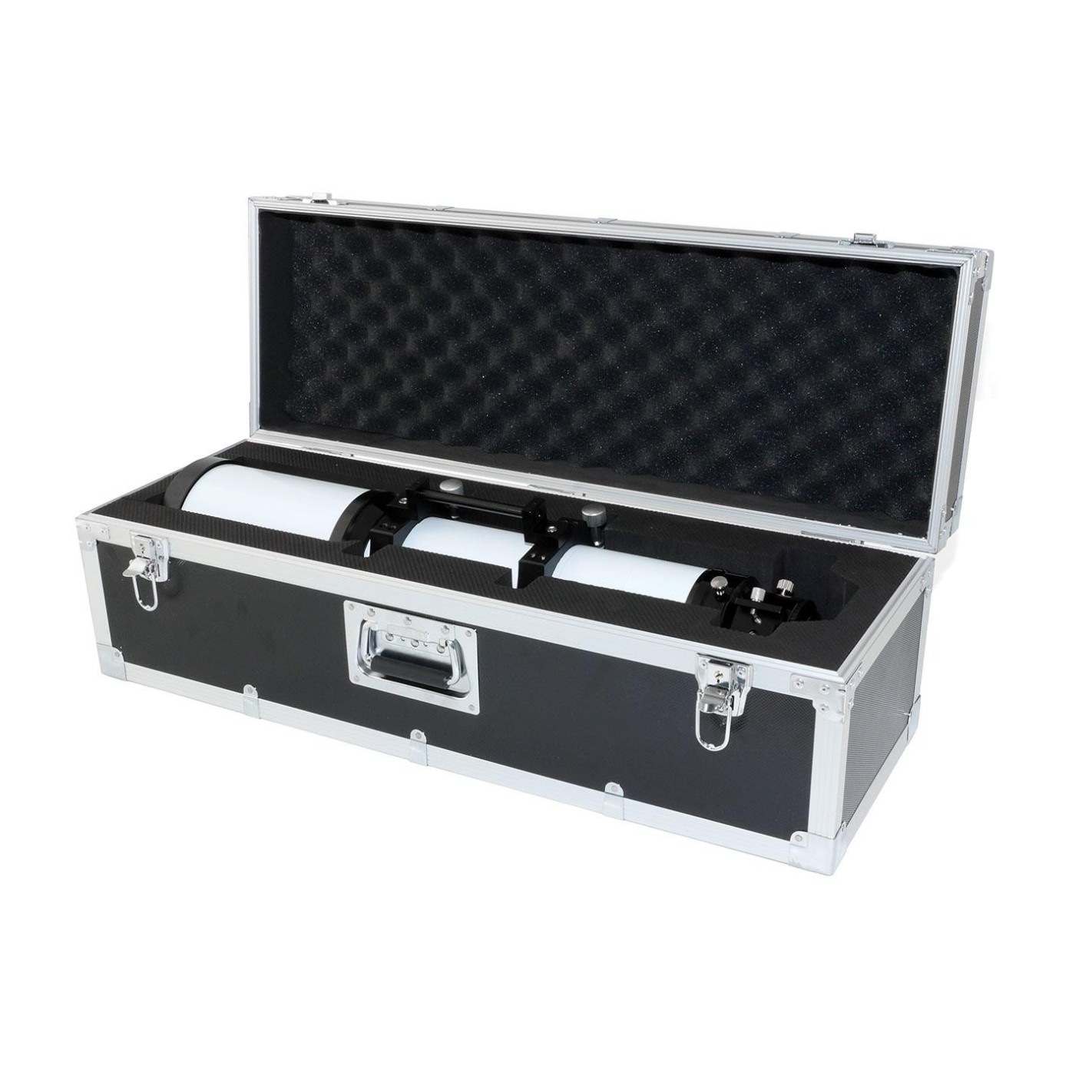

-- Aluminum carrying case

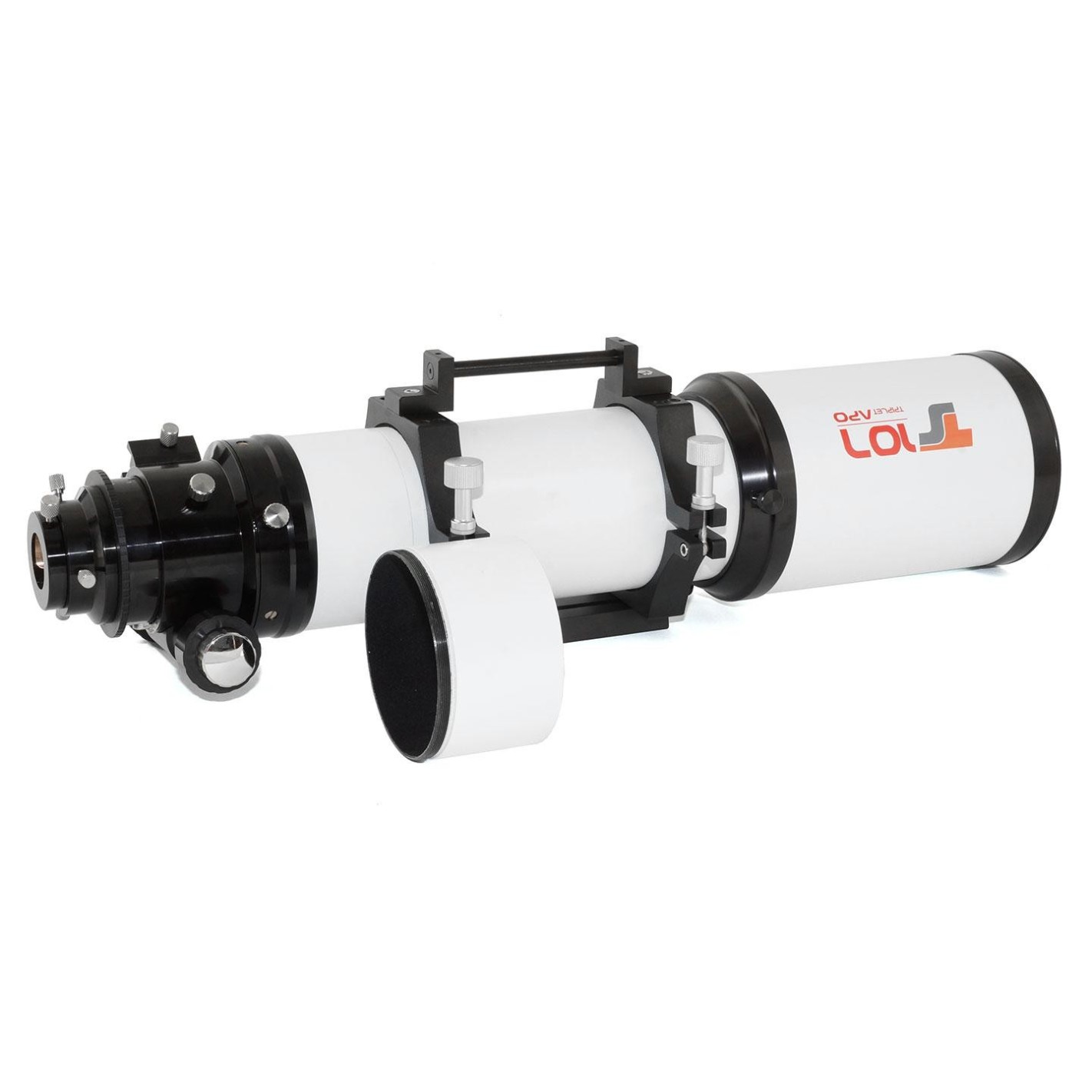

-- Retractable sunshield (transport length: 700mm)
-- Tube weight: 6.5 Kg
-- CNC machined rings with GP type dovetail (Vixen )
-- Segment length: 2 x 59 mm
-- Back focus: from 60mm to 230mm depending on tube segment.
-- Maximum recommended magnification: approx. 214 x
-- Sunshield diameter: 150 mm
-- Carbon fiber tube diameter: 113 mm

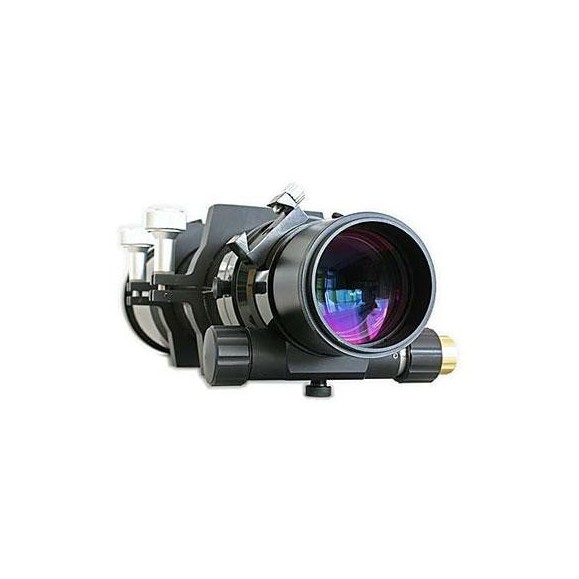

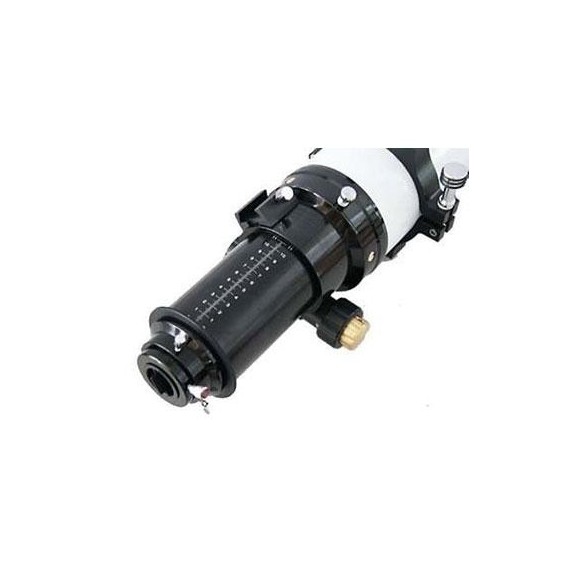

The RPA focuser is an alternative to the Starlight Instruments Feather Touch focuser with a quality very close to that of the Feather Touch focuser but for a much more reasonable cost. Load capacity up to 6Kg without slipping or flexing.

-- No friction drive so no slippage.
-- M82 and M68 output thread typical of Zeiss for threaded accessories.
-- 2" and 1.25" self-centering adapters
-- Focuser travel: 114 mm with scale
-- Free aperture: 77 mm with anti-reflection treatment
-- Focusing motor available as an option

Photographic use with two focal lengths (optional):

• 525mm focal length (f / 4.9) withOPTIONAL RICCARDI reducer .
• Using the 0.75x Riccardi reducer, the resulting focal length is 525mm, so that sensors up to 42mm in diameter will be fully illuminated.
• The reducers are screwed to the M82 thread of the focuser using the TSM78-M82 adapter. The back focus with M82 is 78.3 mm.

• 700mm focal length (f / 6.5) with 2.5" full-size coupler
• This coupler illuminates even full size sensors at 100%. The back focus with M69 female thread is 99mm.

what is delivered with the telescope?

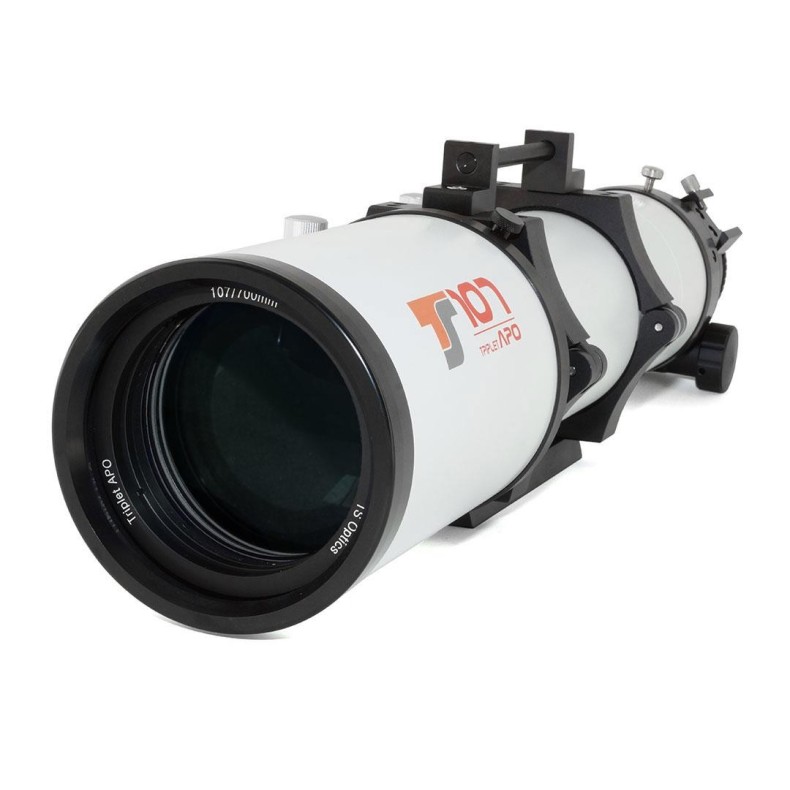

-- Telescope TS Photoline 107mm f/6.5 Triplet APO, metal tube
-- CNC clamping rings

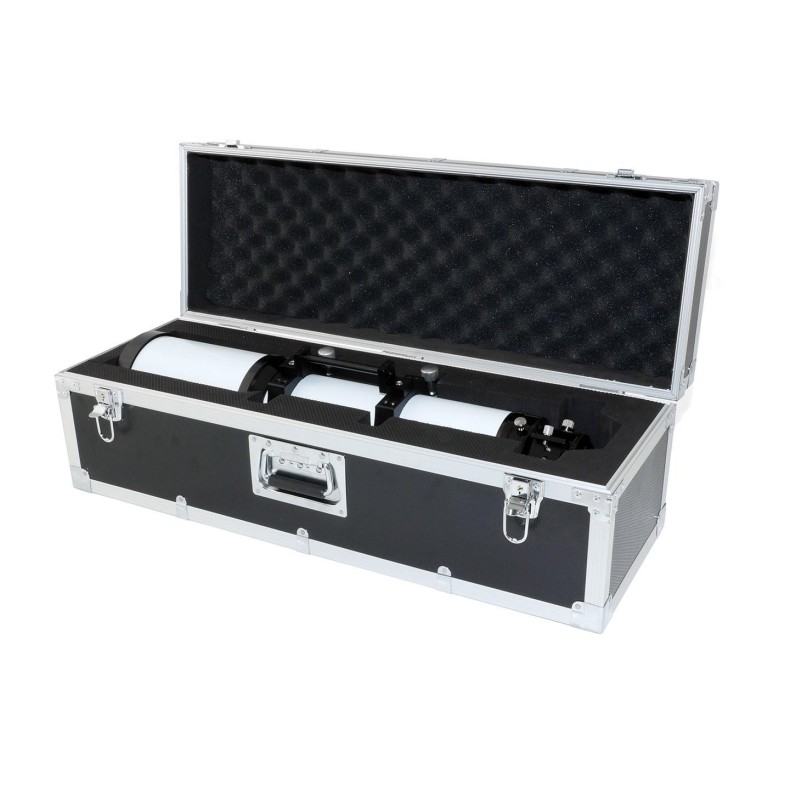

-- Robust aluminum carrying case
-- Tube with two segments

Telescope TS PHOTOLINE 107 Super Triplet f/6.5 with RPA 3" rack and pinion focuser - Triplet APO FPL-53 O'Hara Objective
