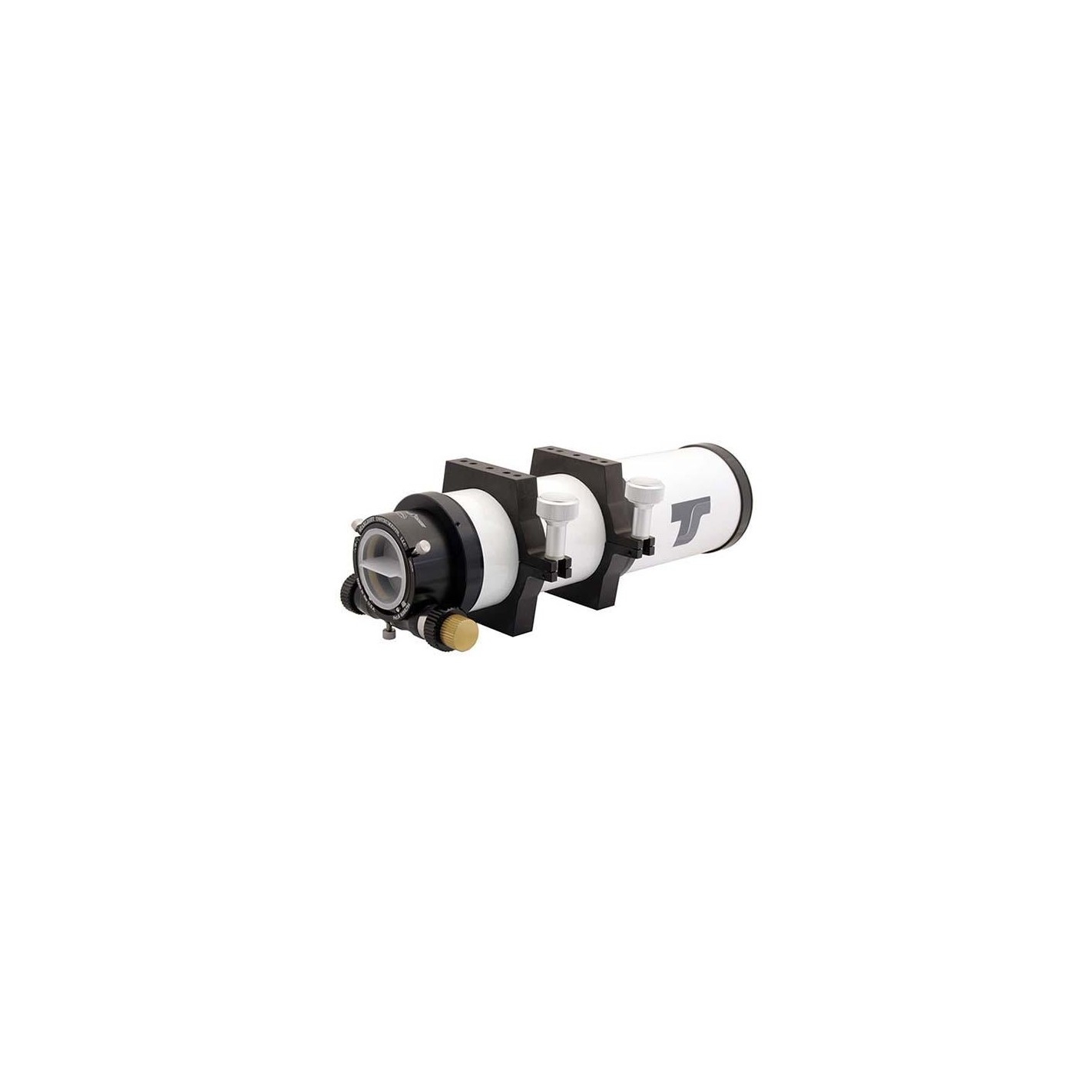

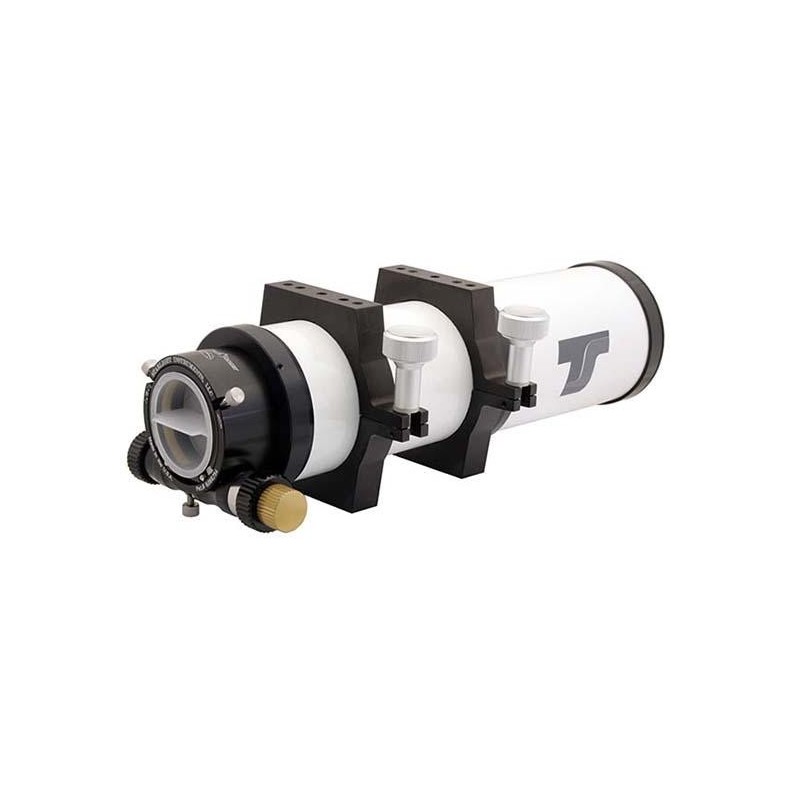

Telescope TS PHOTOLINE 80 F/6 with FeatherTouch

TS PHOTOLINE 80 F/6 Telescope with FeatherTouch

The TS PHOTOLINE triplet APOtelescopes offer high quality images reaching levels of performance that until now were only available with much more expensive equipment . Chromatic aberrations have been virtually extinguished and color correction is much better than that offered by standard ED doublet refractors. Undoubtedly, the TS PHOTOLINE telescopes guarantee high performance ideal for astrophotographers, with the ability to fully illuminate large CCD sensors and with temperature compensated lens sustaining cells.

The lens is air spaced and not cemented. This avoids problems arising from thermal variations that often occur with triplet objectives that are cemented (physically bonded together, in contact). The TS PHOTOLINE 80/480mmtelescope when used with a field flattener can give better photographic results than a similar 110mm diameter telescope.The TS PHOTOLINE 80/480mm telescope can be recommended without reservation for working with CCD's up to 45mm diagonal.

The TS PHOTOLINE APO telescopes offer highly efficient color correction and capture a useful photographic field for full-frame cameras.

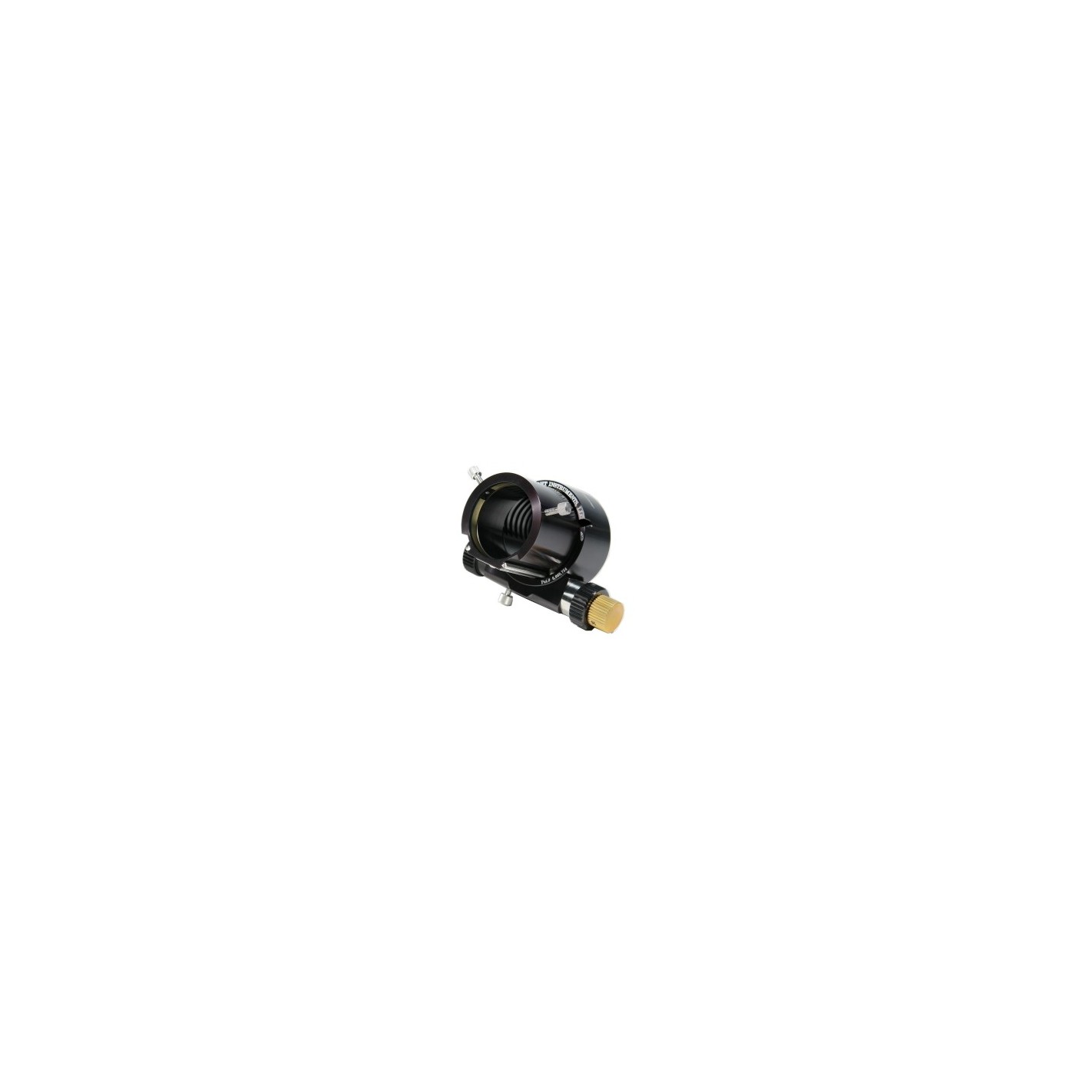

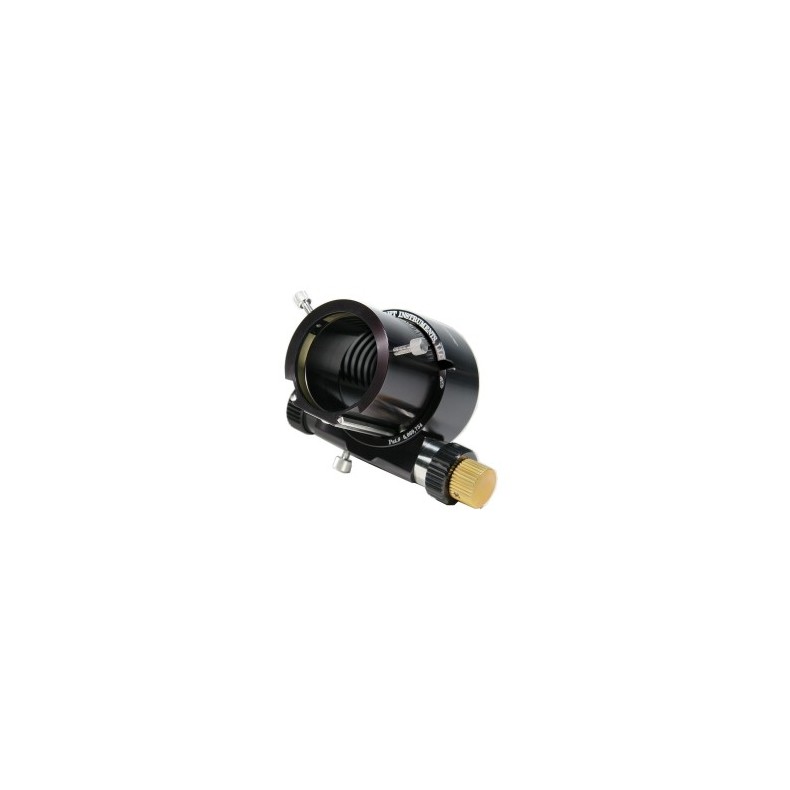

The precise 2" FEATHER TOUCH FTF2025BCR Crayford focuser offers a vignetting-free field and greater stability compared to a standard 2" focuser.
The TS PHOTOLINE APOtelescopes are a new generation of refractor telescopes specially designed for deep sky (wide field) astrophotography.

Advantages and technical features of the telescope TS PHOTOLINE 80mm f/6 Triplet Apochromatic:

On camera side: M80x1 thread, M68x1 thread, 2" adapter with clamping ring and 1.25" adapter with clamping ring.
360º rotation.
Focuser Crayford 2" FEATHERTOUCH FTF2025BCR with 63mm focusing travel.
Focuser motorization possible (optional).
Super-APO air-spaced triplet objective 80/480mm.
FPL-53 O'HARA for optimum color correction.
Retractable lens hood - 318mm transport length possible.
Dovetailed hot shoe ( Vixen style) with ¼" thread for photographic tripod.
Impressive 5.5º field of view with the appropriate 2" eyepiece.
With one of the best optical treatments available on the market - No annoying reflections.
Supplied with a sturdy Aluminum case.

Technical Specifications:

• Triplet Super-APO air spaced objective lens with FPL-53 element.
• 80mm diameter
• Focal length of 480mm with f/6 focal ratio
• Fully multi-coated lens.
• Tube length (with hood retracted): 318mm
• Tube weight: 2.7 Kg with the CNC rings
• Tube diameter: 89mm and 112mm at the hood
• Tube made of CNC Aluminum and CNC rings.
• Backfocus from 2" eyepiece holder: 180mm
• Focuser travel: 63mm

what comes with the telescope?

APO Triplet Telescope TS 80mm f/6
Crayford 2" FeatherTouch FTF2025BCR focuser

Telescope TS PHOTOLINE 80 F/6 with FeatherTouch
