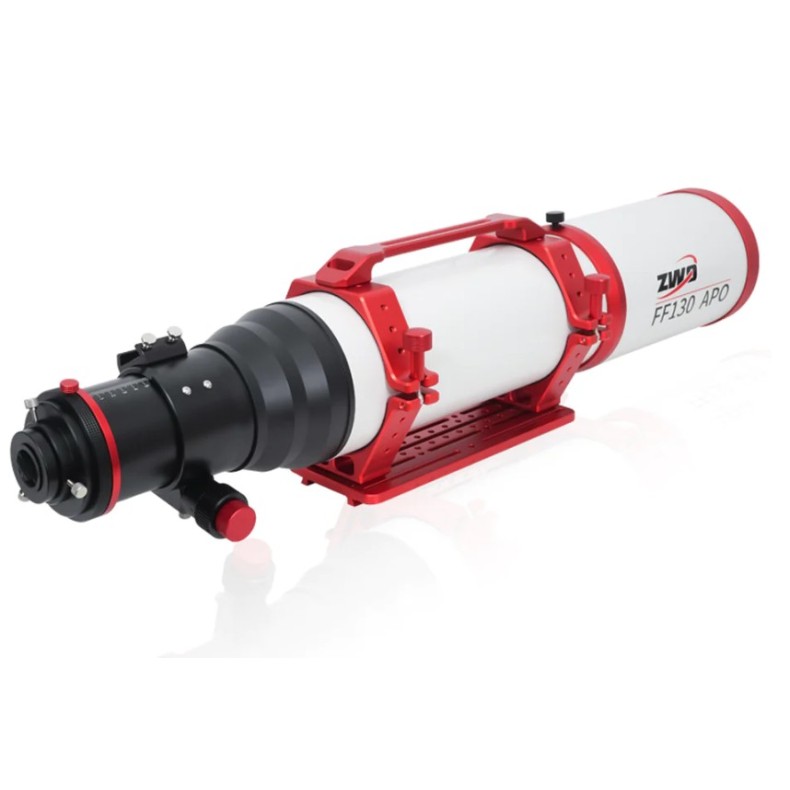

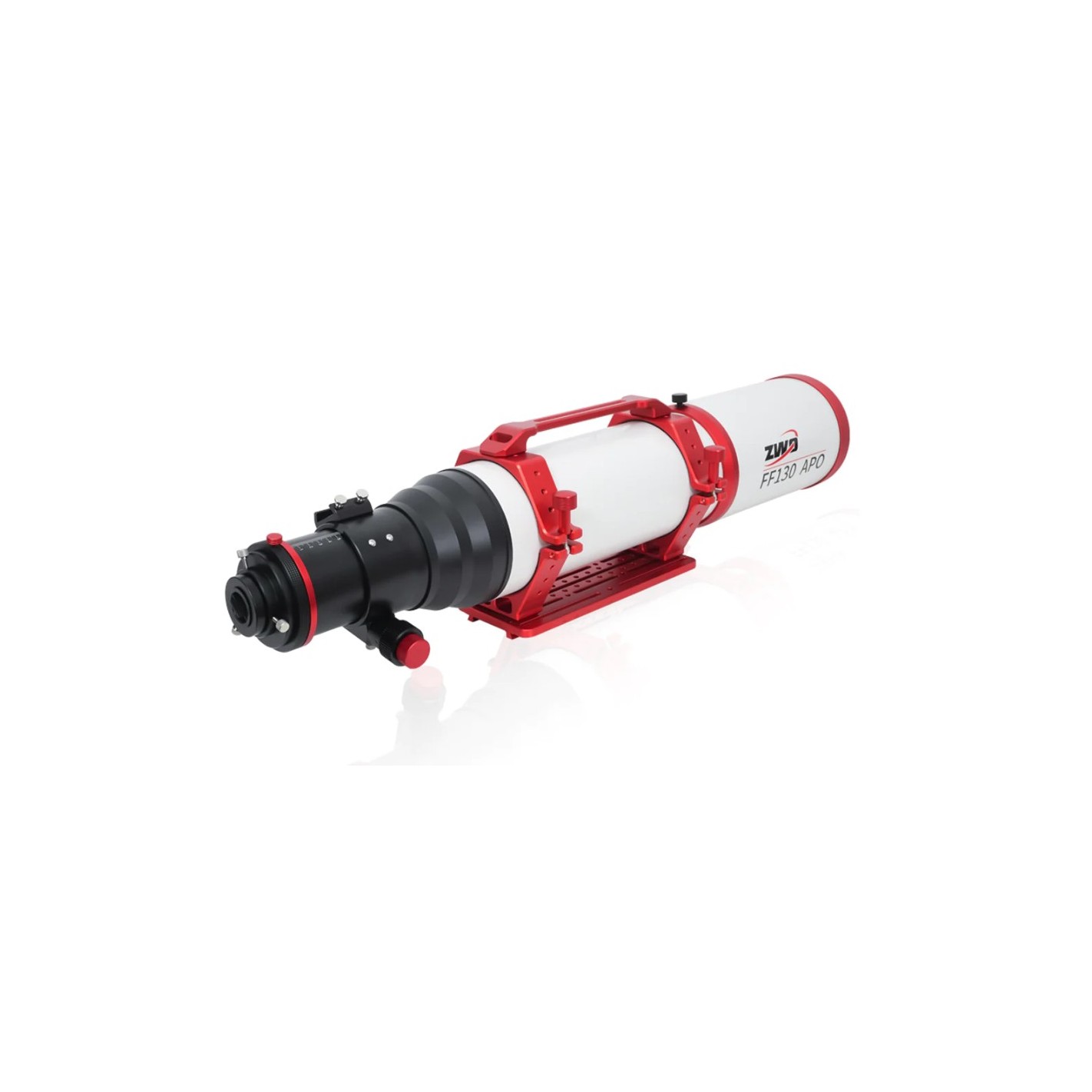

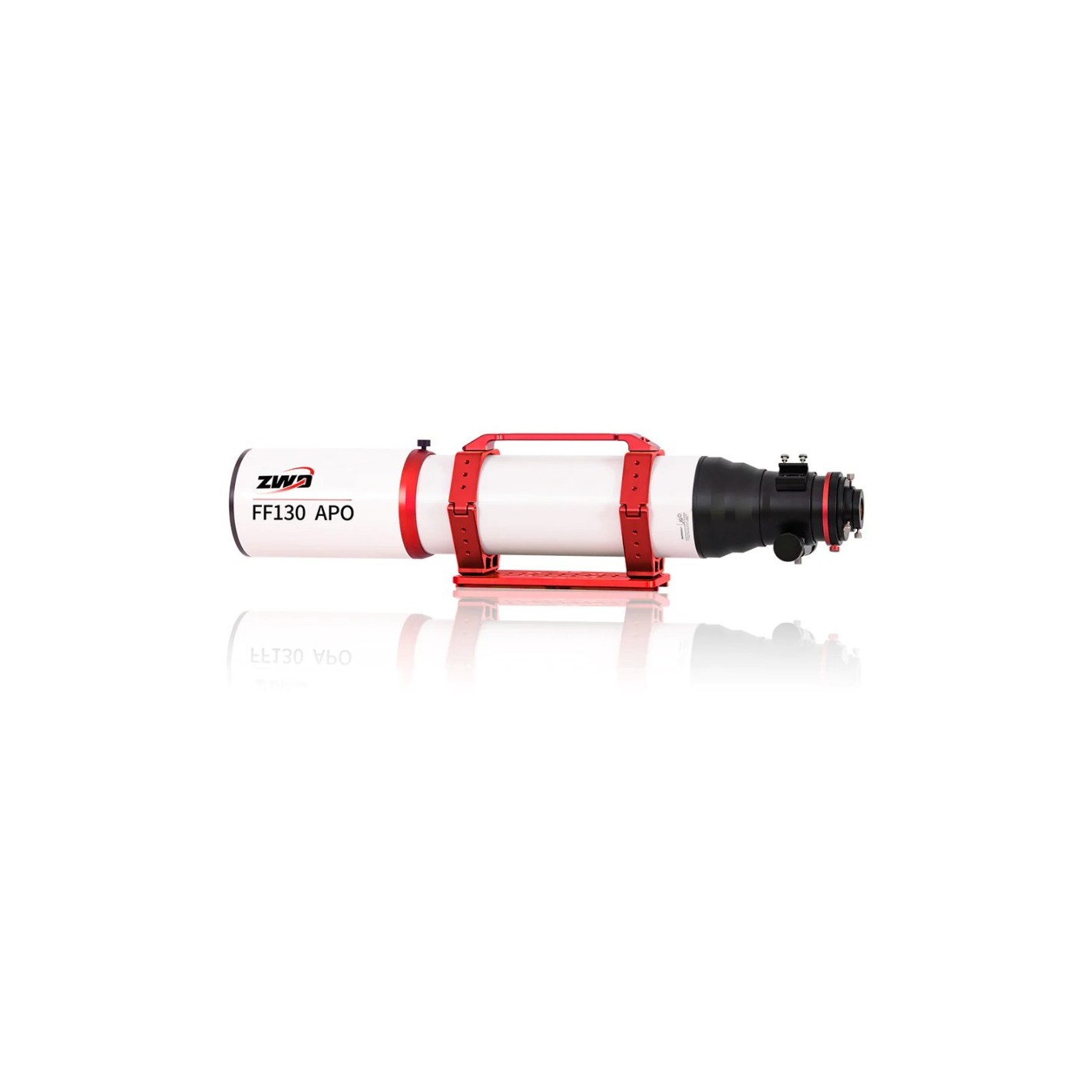

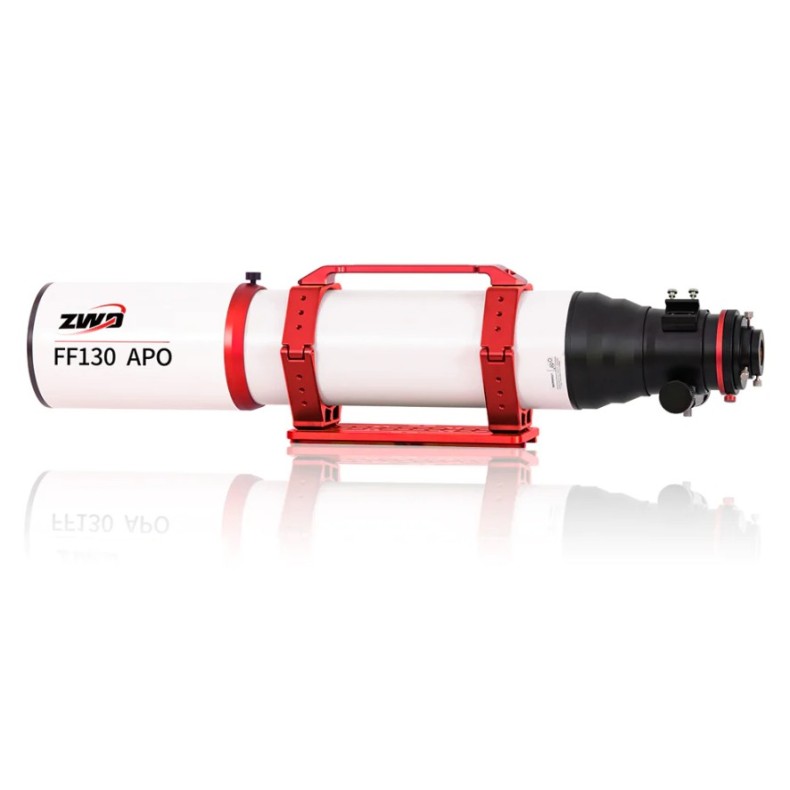

Telescope Astrógrafo Cuadruplete ZWO FF130 APO

The FF130 includes two Extra Low Dispersion glass elements for superb chromatic aberration correction. The FF130 is compatible with medium format cameras such as the ASI461MM Pro, with an RMS center radius of only 2 microns.

Unlike standard ED refractors, the FF130 features a Petzval design that does not require the sensor to be set at a specific distance from the last lens. This leaves the freedom to use any filter wheel, any off-axis guide or accessory without worrying about calculating the correct distance from the flattener.

With a large 60mm image circle and a focal ratio of f/7.7, this is the perfect astrophotographer for the advanced astrophotographer.

The large 3.4" rack and pinion focuser is natively compatible with the ZWO EAF without the need for additional adapters, and can be rotated 360° to perfectly frame the subject and has a 10:1 reduction gear for precise focusing.

SPECIFICATIONS:

• Quadruple apochromatic air-spaced optical design
• Lens diameter 130 mm
• Focal length 1000 mm
• Focal ratio f/7.7
• Resolution power 1.06 arcseconds
• Stellar limiting magnitude 13.27
• Maximum magnification 325 x
• Light gathering power 344.9 times the human eye
• Attachment Dovetail plate style Losmandy (300 mm length)
• Focuser Double speed rack and pinion (10:1) 34" diameter
• Connecting adapters included M86 x 1, M68 x 1, M54 x 0.75, M48 x 0.75 (with 2" filter thread)
• Rear focus 186 mm from M86 thread, 156 mm from M68 thread, 136 mm from M54 thread, 116 mm from M48 thread
• Tube weight 12.5 kg (including tube rings and dovetail bar)
• Tube diameter 146 mm
• Diameter of spray guard 162 mm

• ZWO FF130
• Pair of tube rings
• Dovetail bar style Losmandy
• Carrying handle
• Adapter M86 x 1 to M68 x 1
• Adapter M68 x 1 to M54 x 0.75
• Adapter M54 x 0.75 to M52 x 0.75
• Adapter M52 x 0.75 to M48 x 0.75 with filter thread 2
• Manual
