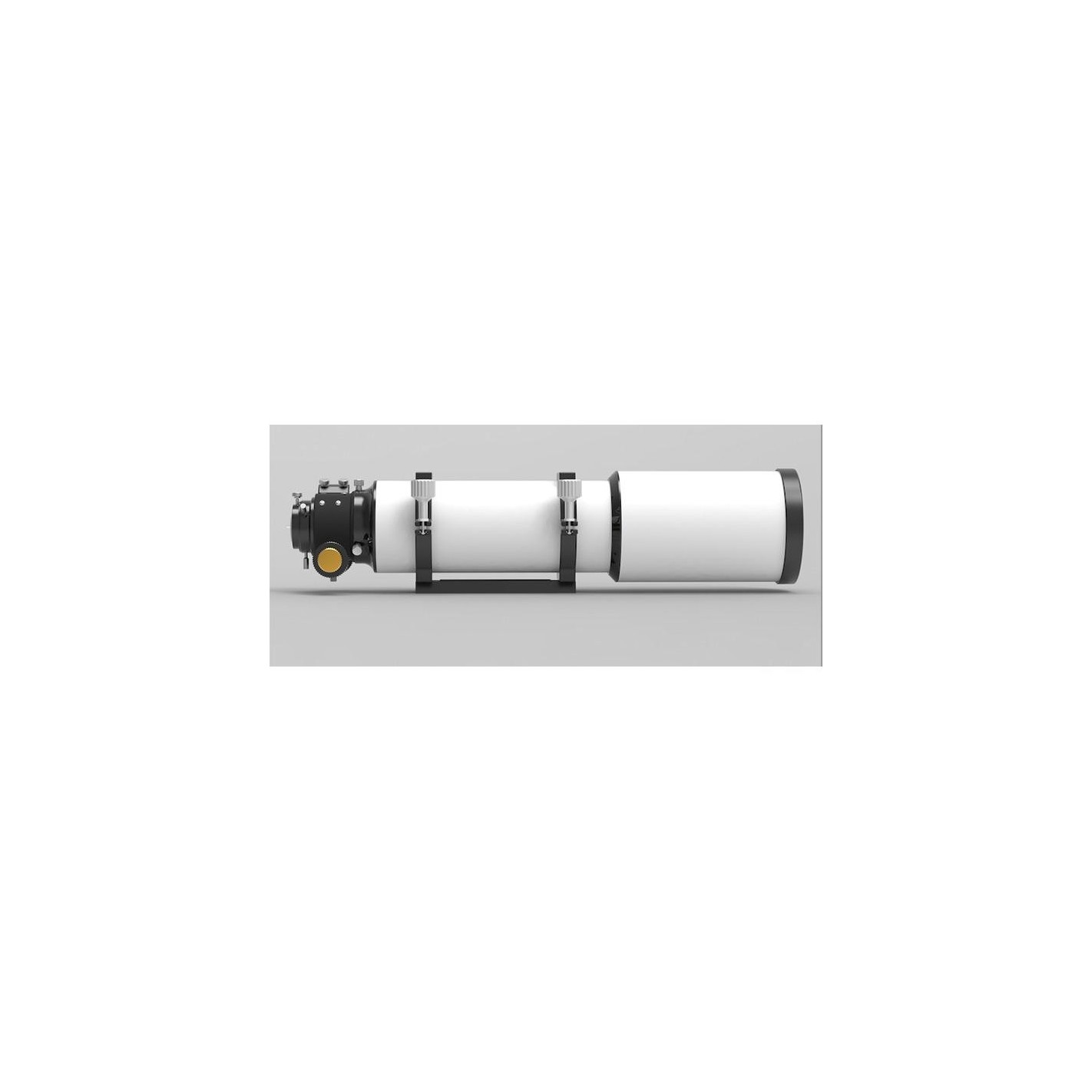

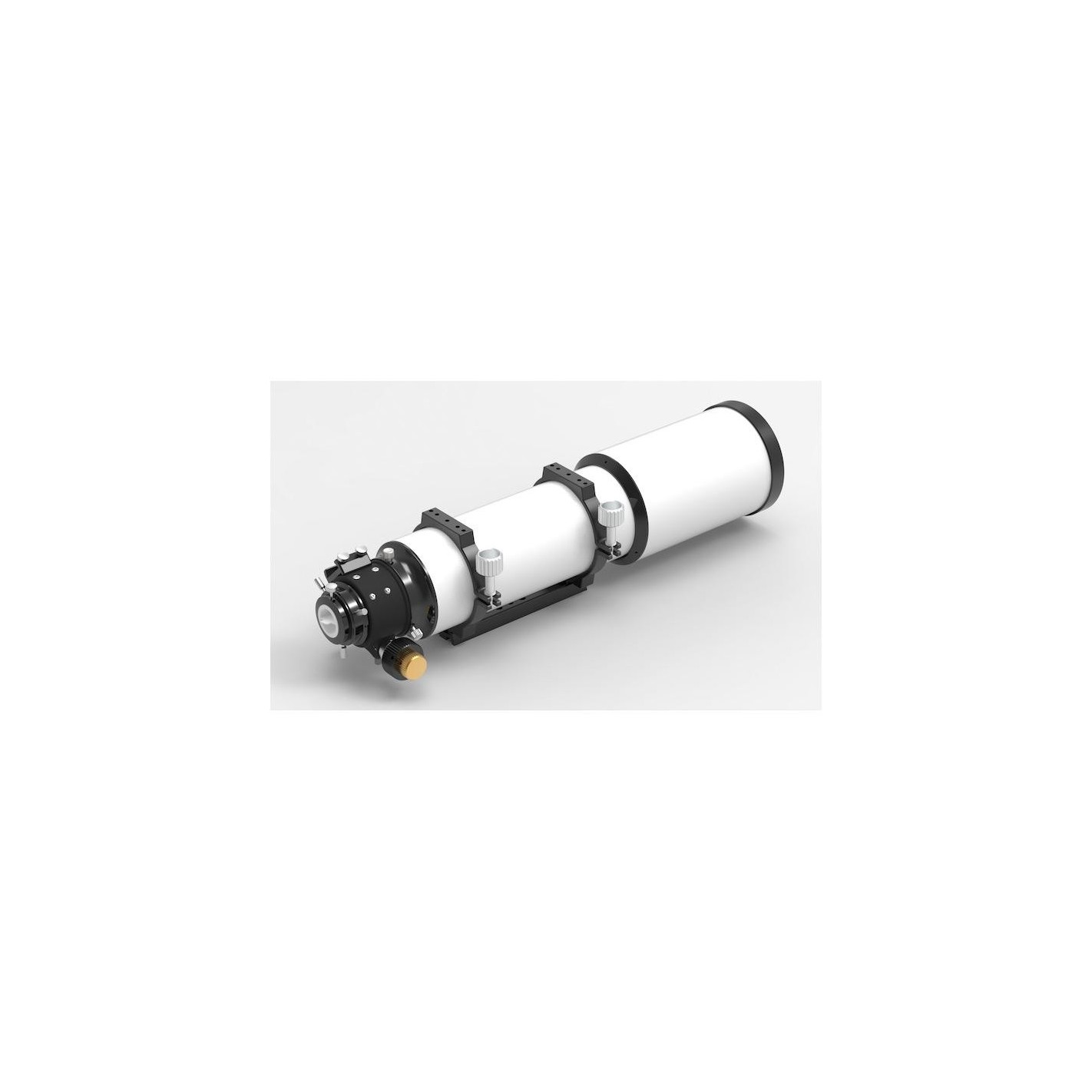

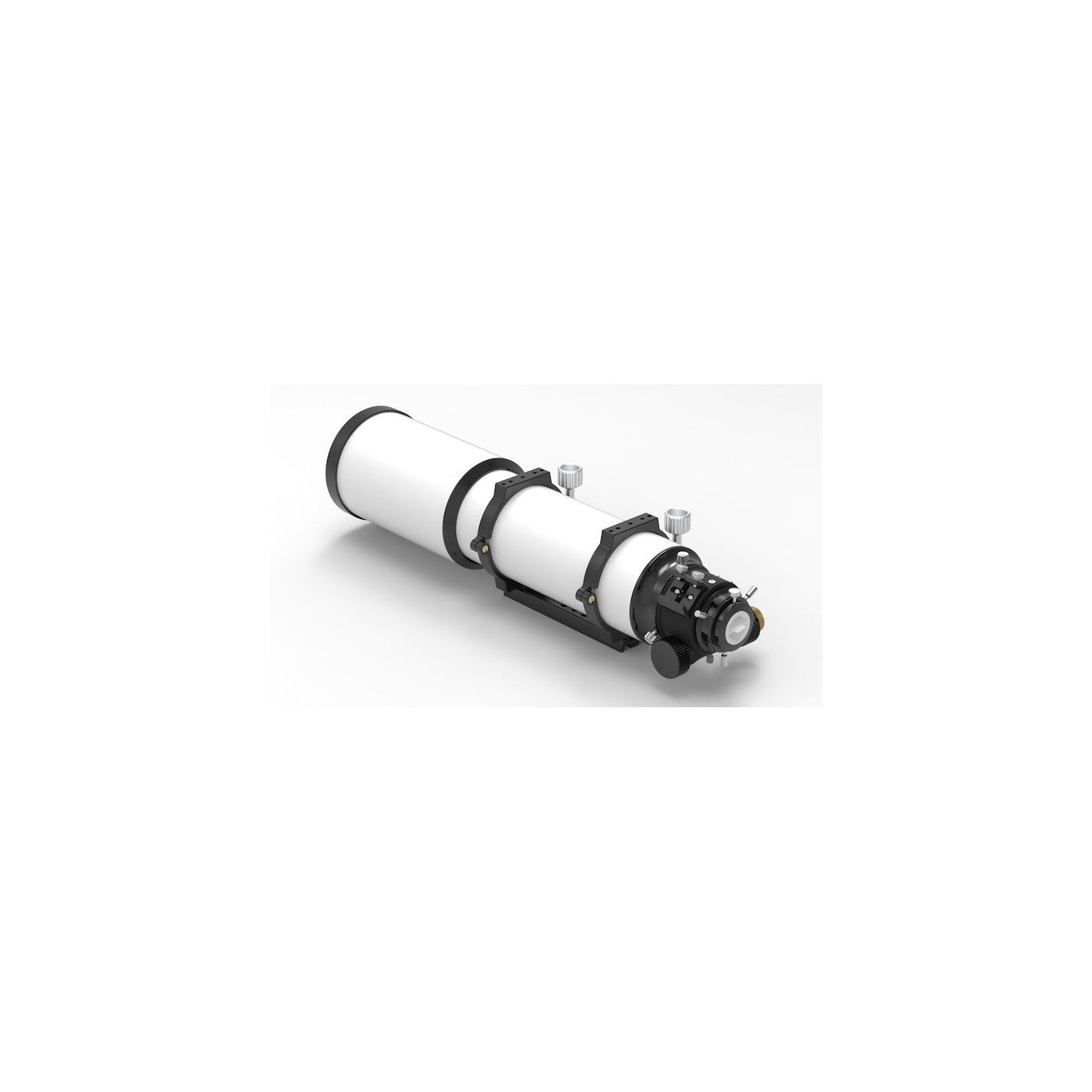

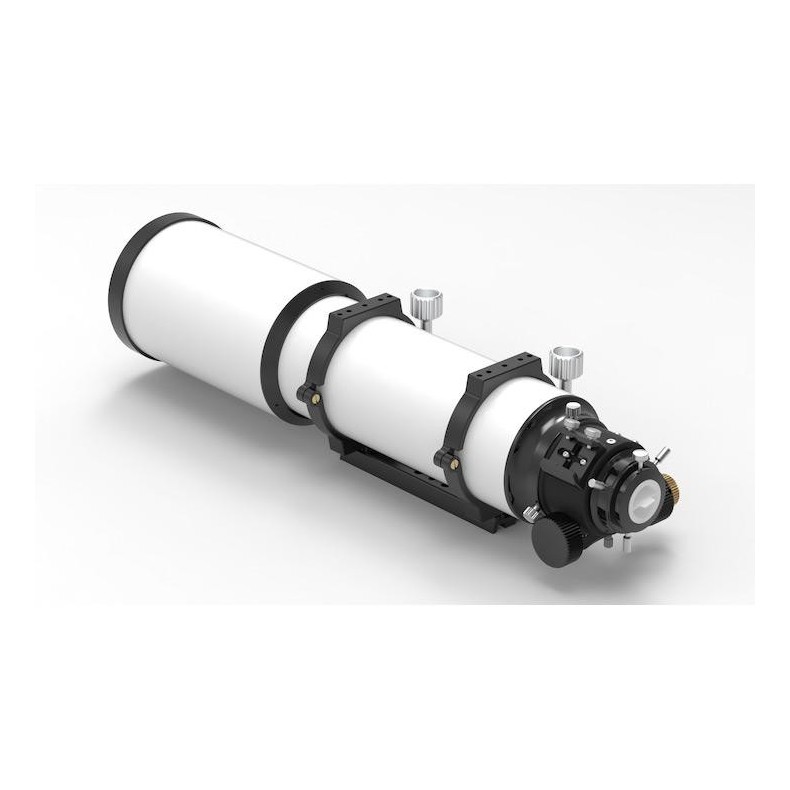

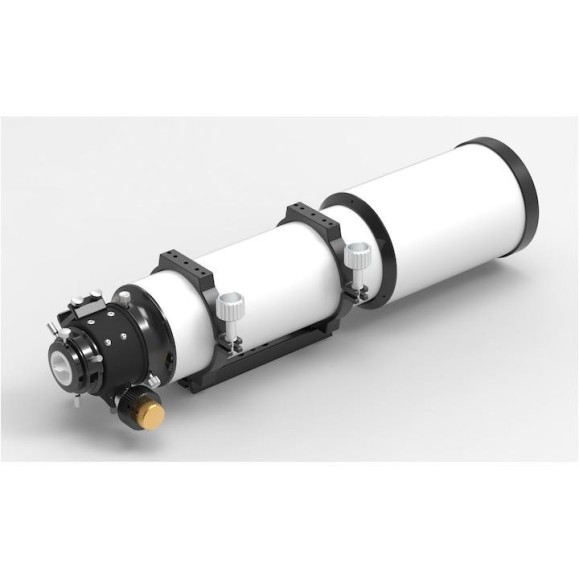

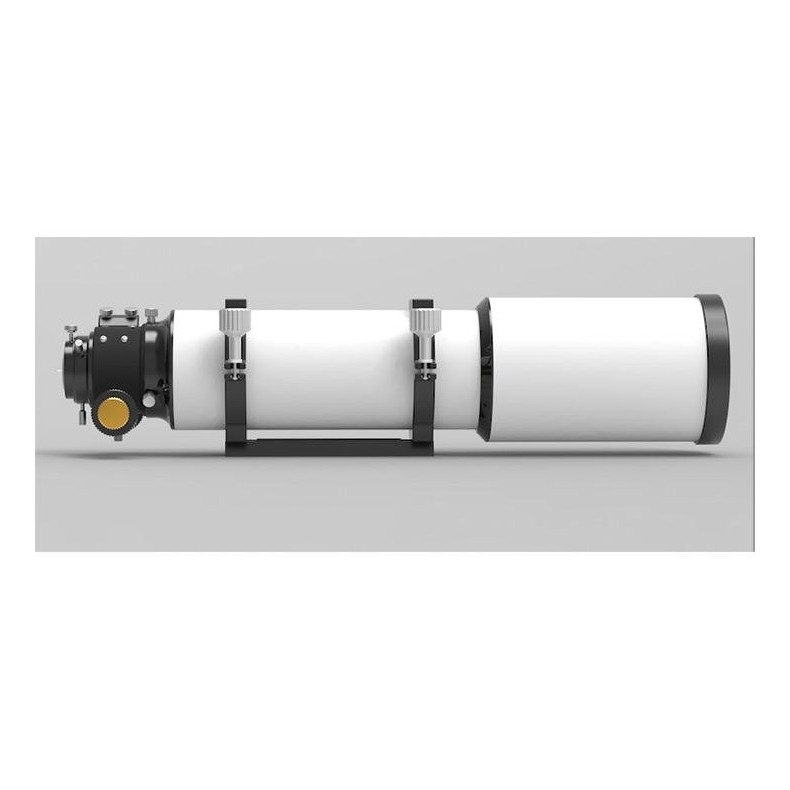

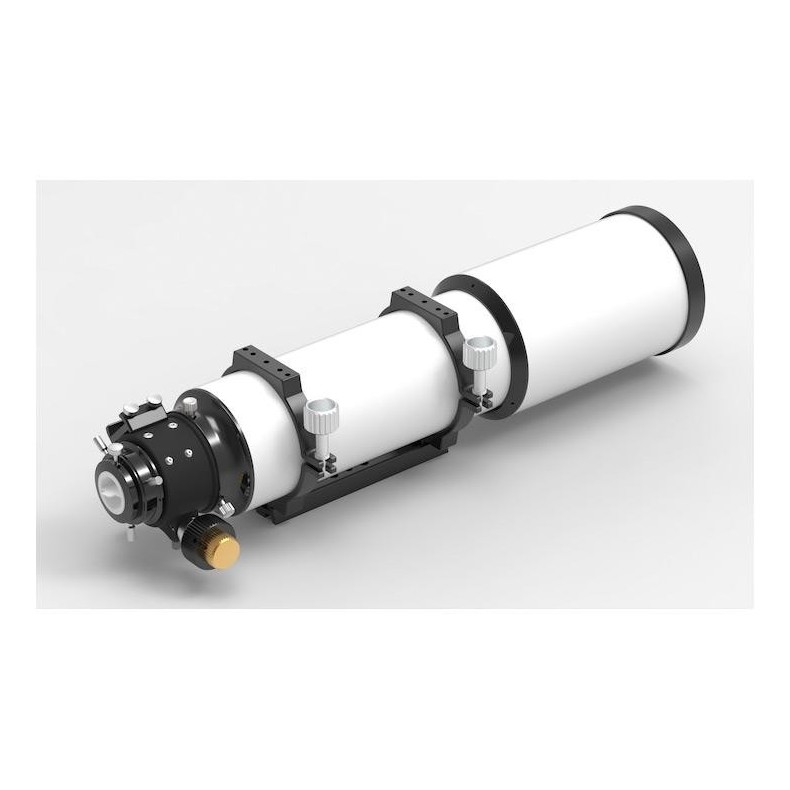

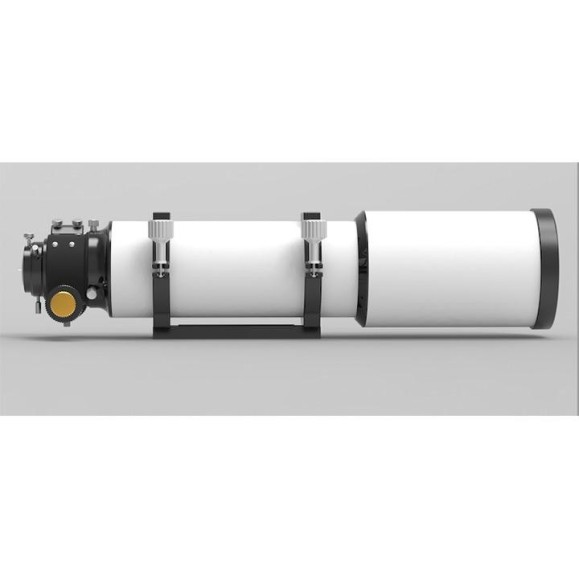

ED refractor telescope TS-Optics 110 mm f/7 with focuser 2.5" RAP

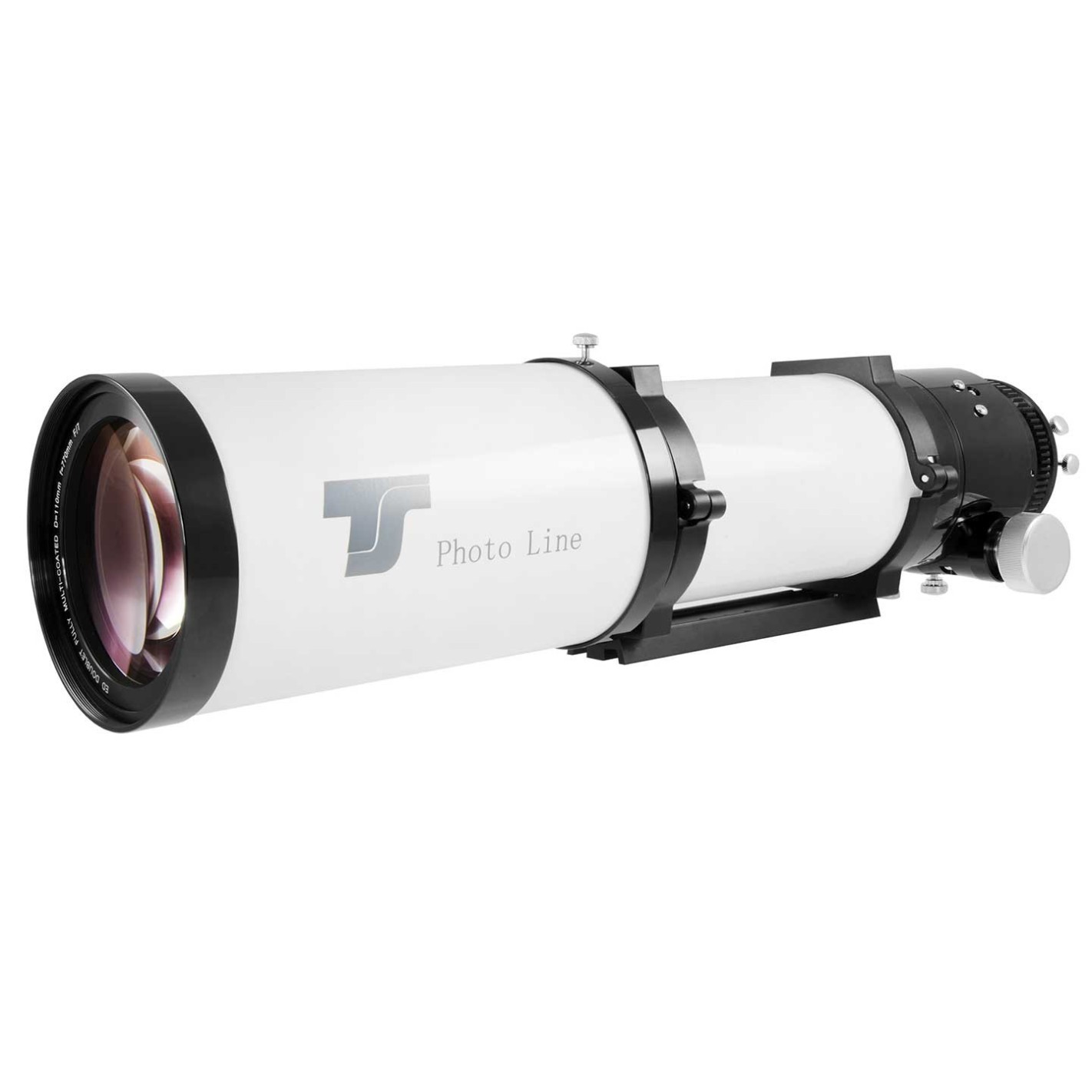

Refractor Telescope ED TS-Optics 110 mm f/7 with 2.5" RAP Focuser

Refractor TS 110 mm f/7 ED with 2.5" RAP focuser - for observation and photography
The TS 110 ED offers higher resolution and 16% more light than a 102 mm refractor with similar weight and size. The refractor can still carry well with EQ5 class mounts, even for astrophotography. The 110-mm ED is a well-transportable telescope for astrophotography as well as observing.

The robust 2.5" RAP focuser opens up new possibilities
A special feature is the modern focuser. The focuser provides better illumination than 2" focusers. The focuser is an advantage for observation and also for astrophotography.

♦ 360° rotation for selecting the correct field of view.
♦ Micro-reduction for precise sharpness adjustment
♦ Adjustment via a serrated rail - decoupled from the bearing
♦ Motorized focusing systems can be connected
♦ Correctors can be screwed directly onto the auxiliary thread
♦ 2" and 1.25" adapters with ring clamps are included.

Astrophotography with the refractor TS 110 mm f/7 ED
The ED lens provides a good image for astrophotography. Color error is reduced due to the 2-element ED lens. To ensure sharpness in the image field, you will need the appropriate correctors, which are linked in the accessories section.

WiflatM48 1.0x image field corrector:
The corrector is simply inserted into the 2" plug-in sleeve of the focuser. It is not possible to tilt it. The focal length remains unchanged. The working distance from the M48 connection thread on the camera side is 55 mm.

TSRED110 - 0.8x focal length reducer and image field corrector:
The reducer is connected via the 2" barrel and shortens the focal length to 616 mm. Speed increases from f/7 to f/5.6. The large eyepiece extension also provides good illumination here and allows the connection of cameras with sensors up to APS-C format and even larger. The working distance from the T2 thread (M42x0.75) to the sensor is 55 mm, ideal for DSLR cameras, for example.

General features:

♦ Aperture 110 mm / focal length 770 mm / focal ratio f/7

♦ ED Dublet lens with Ohara glass (Japan).

♦ Good color error correction by ED element up to magnifications around 220x

♦ Stable 2.5" RAP focuser with 2", 1.25" ring clamp and auxiliary thread for screw adaptations

♦ Micro-reduction and 360° rotation of the focuser - important for astrophotography

♦ 0.8x reducer and corrector for astrophotography specially calculated for TS 110 mm f/7 ED available

♦ Only 65 cm transport length and 6.8 kg weight - it is well supported by an EQ5 class mount

♦ Optimized CNC tube with retractable spray cap and CNC clamps with M6 female thread connection

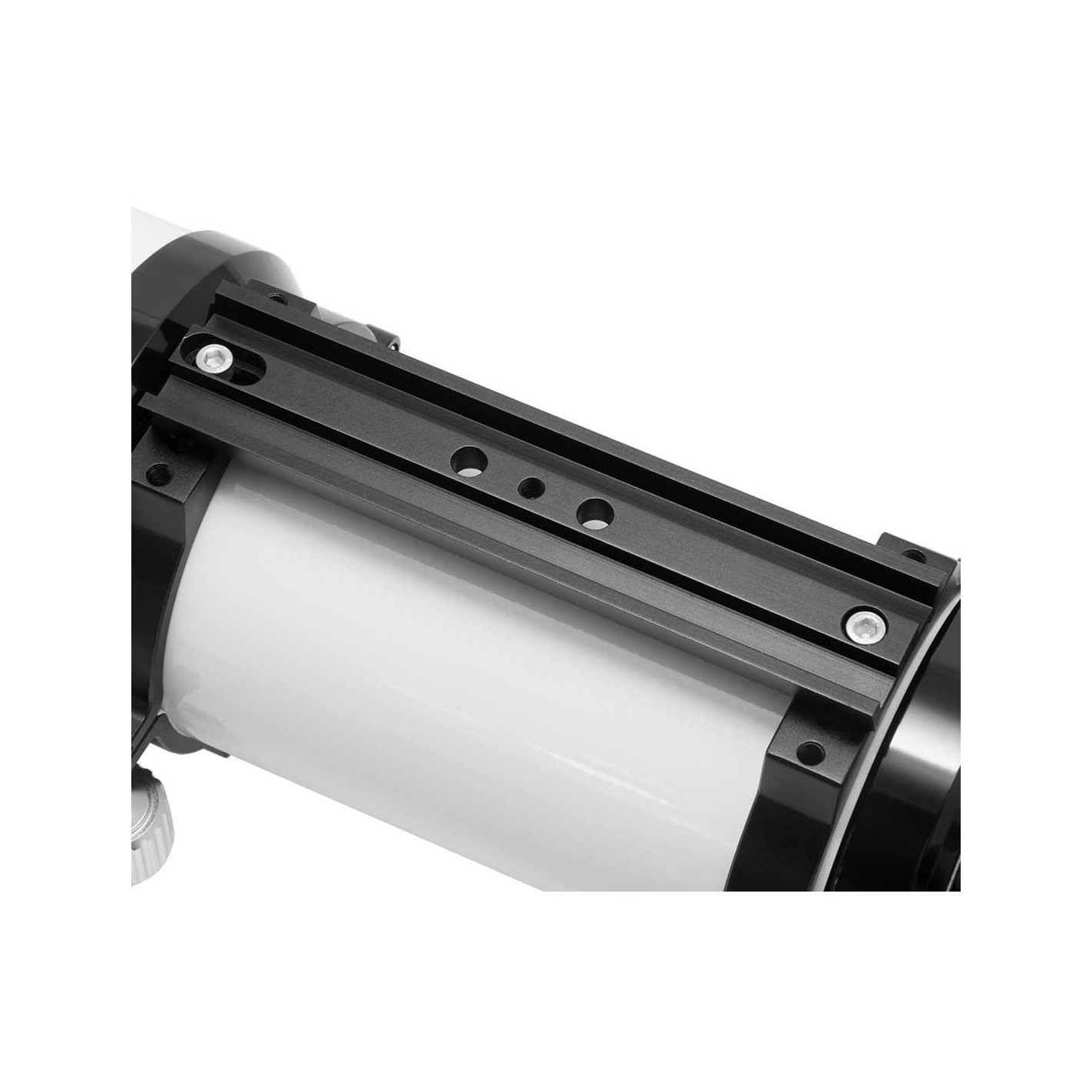

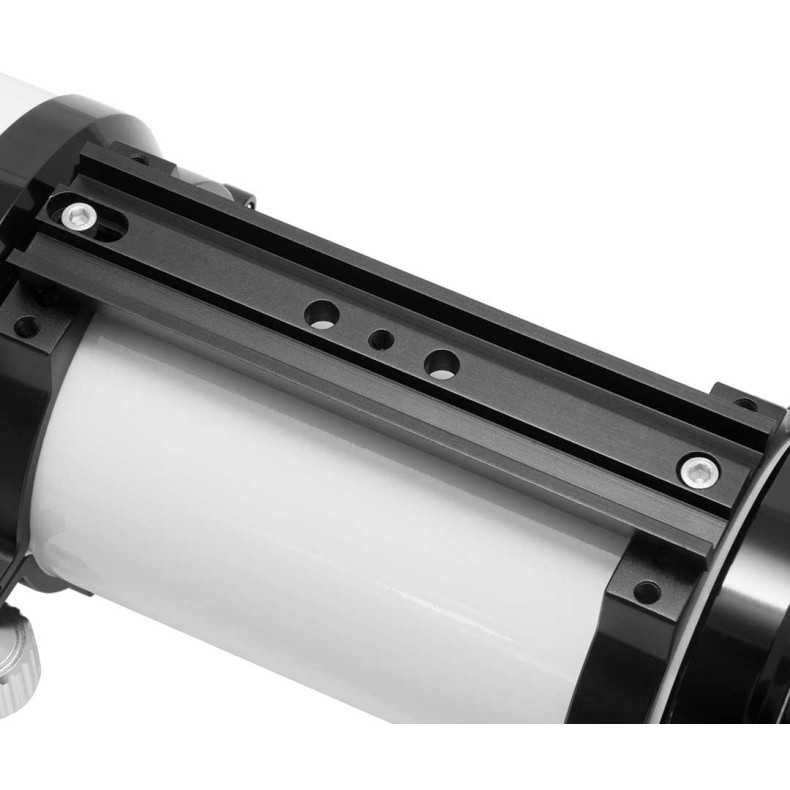

♦ Level dovetail bar Vixen with photographic tripod connection thread included

Technical specifications:

• Aperture: 110 mm
• Focal length: 770 mm
• Focal ratio: f/7
• Lens: 2-element ED lens (Ohara - Japan)
• Focuser extension: 2.5" RAP focuser with M68x1 female thread and 2" and 1.25" connector
• Micro reduction: yes
• Rotation: 360° rotation
• Tube length: 64 cm length with spray cap inserted
• Tube diameter: 117 mm
• Diameter of spray cap 145 mm
• Weight: 6.8 kg

what is included in the box?

♦ 110 mm f7 ED
♦ Dust caps for objective and focuser
♦ CNC tube clamps
♦ Level dovetail bar Vixen / EQ5

Refractor telescope ED TS-Optics 110 mm f/7 with focuser 2.5" RAP
