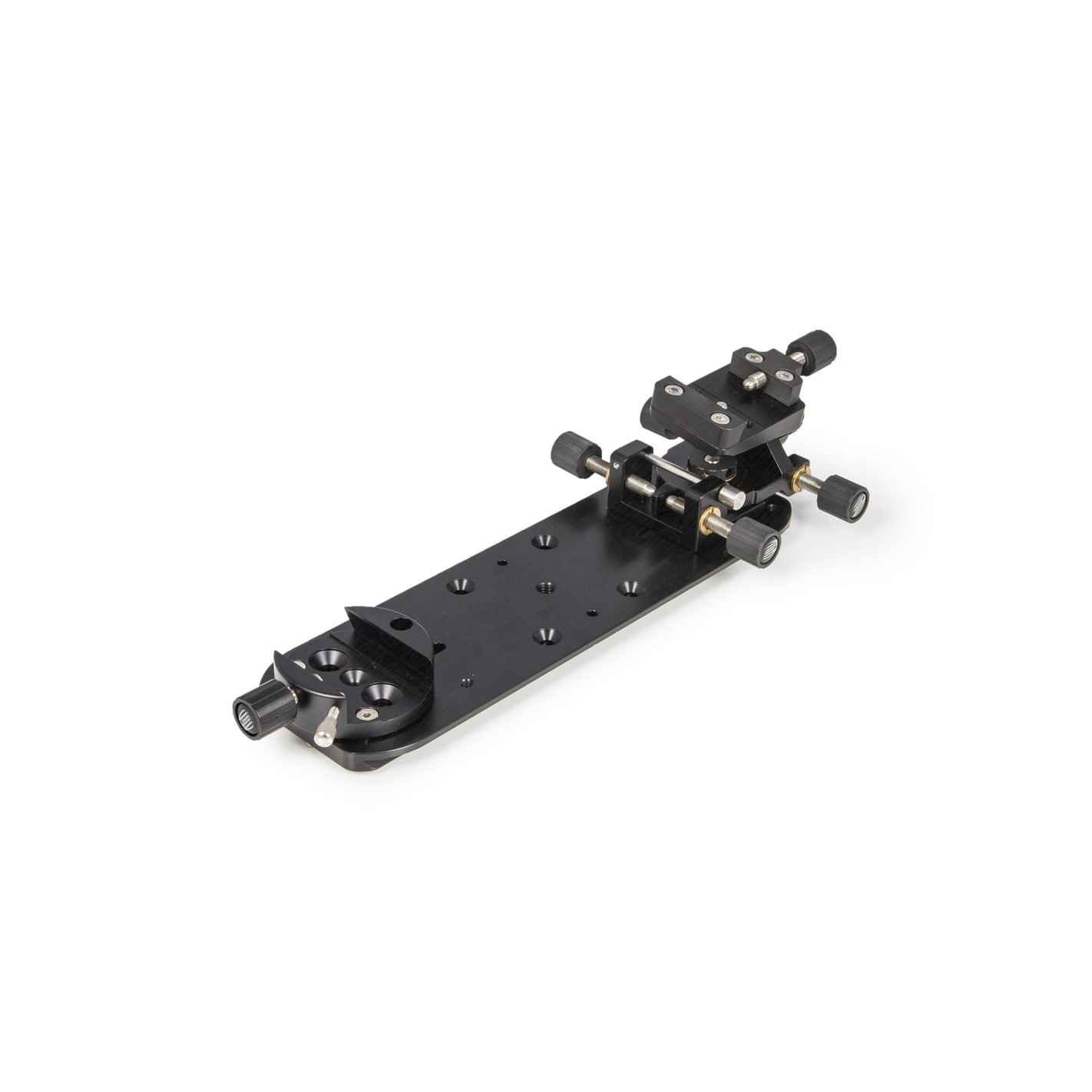

Baader 3" Parallel Telescope Double Balancing Plate Set, V-clamp and Stronghold

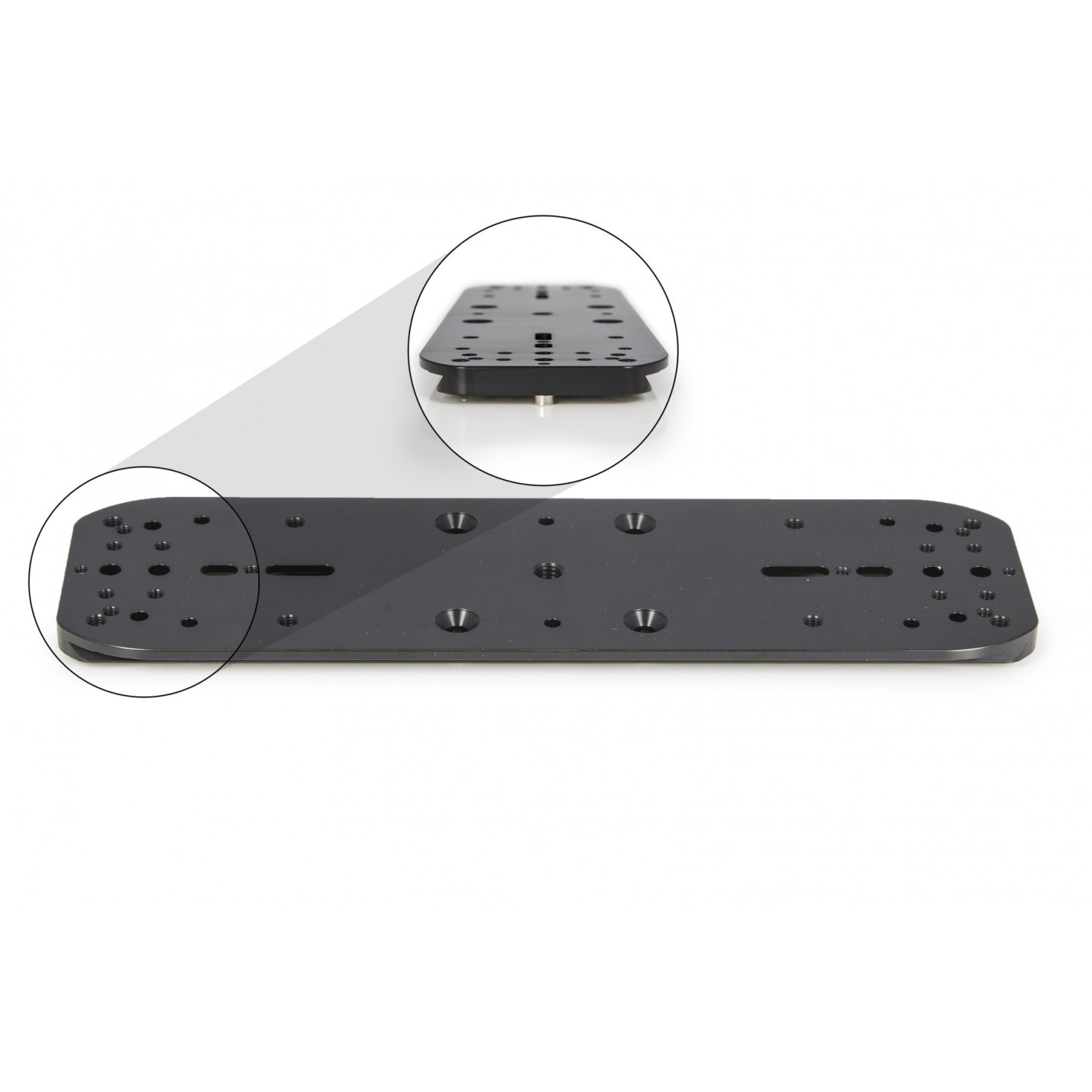

For precision parallel alignment, mounted on a 3" balanced dovetail platen
Overall length of dovetail platen 300 mm / width of platen 100 mm
This platen can also be center mounted with four screws at 10Micron (GM2000) and many asf. Astro Physics dec-heads - which use the standard 3.2" spacing hole pattern. A 3/8" photo-thread is placed straight down the middle of the deck, to allow the deck to be mounted on a rigid photo-tripod as well.
Plate surface also pre-drilled for other Baader clamps: Baader Pan 3"/ EQ Dual clamp 230mm (for Losmandy and Vixen-standard) (#2451566) and Baader PAN-EQ-Clamp V190 (EQ Standard) (#2451525)
The plate fits on all 3" dovetail clamps (Losmandy-Norm). It also attaches to AP #140 1128 (13") as well as #140 1129 (16") plates to mount the Baader guide telescope rings parallel to the main OTA and also in this way use two telescopes side by side
Alternatively, the plate can serve as a 3" mounting plate to hold Baader BP I guide rings - 60-120 mm (#1500201) and Baader BP II guide rings - 110-160 mm (#1500202),
