NOTE: The price DOES NOT include transport to destination or assembly. Contact Telescopiomania for quotation.

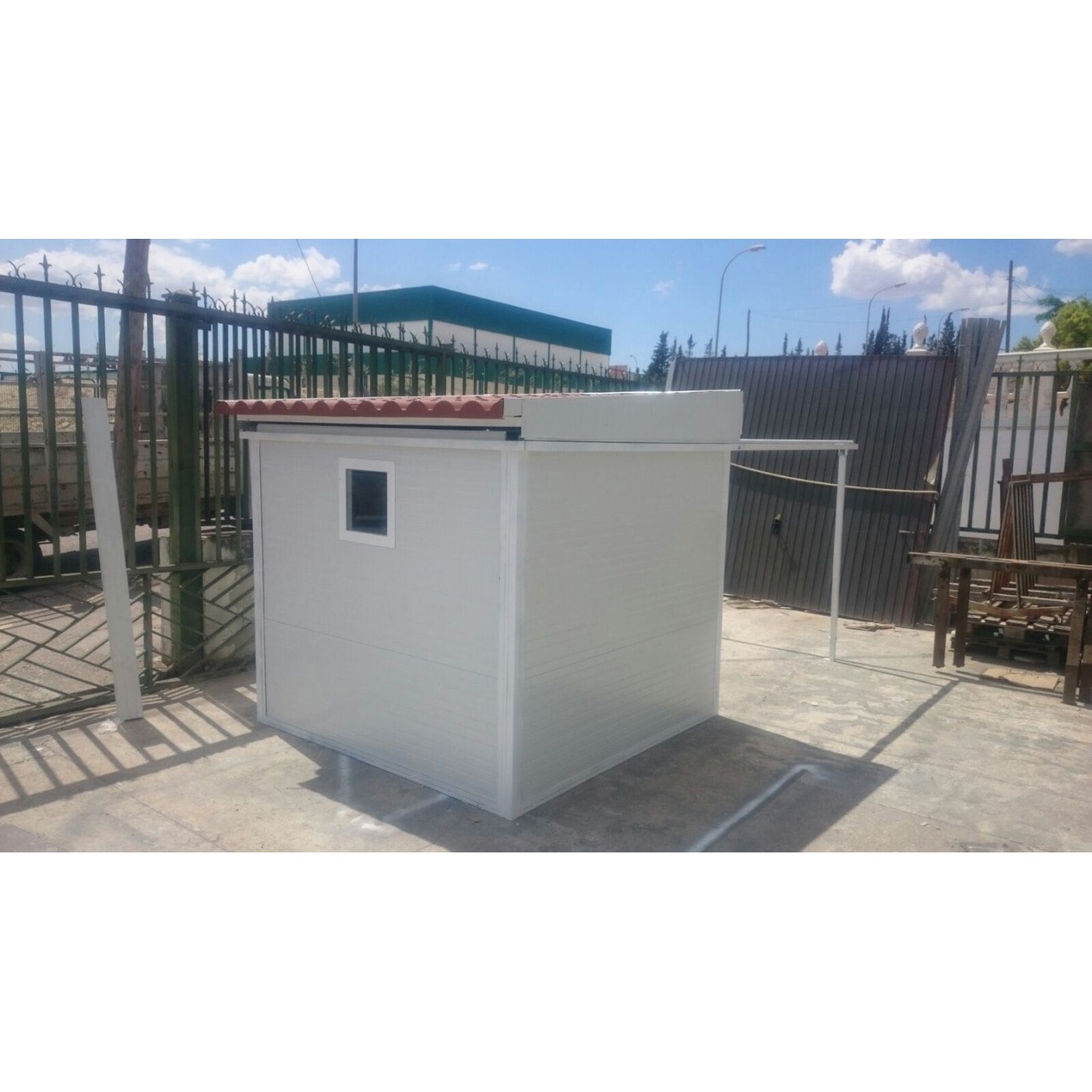

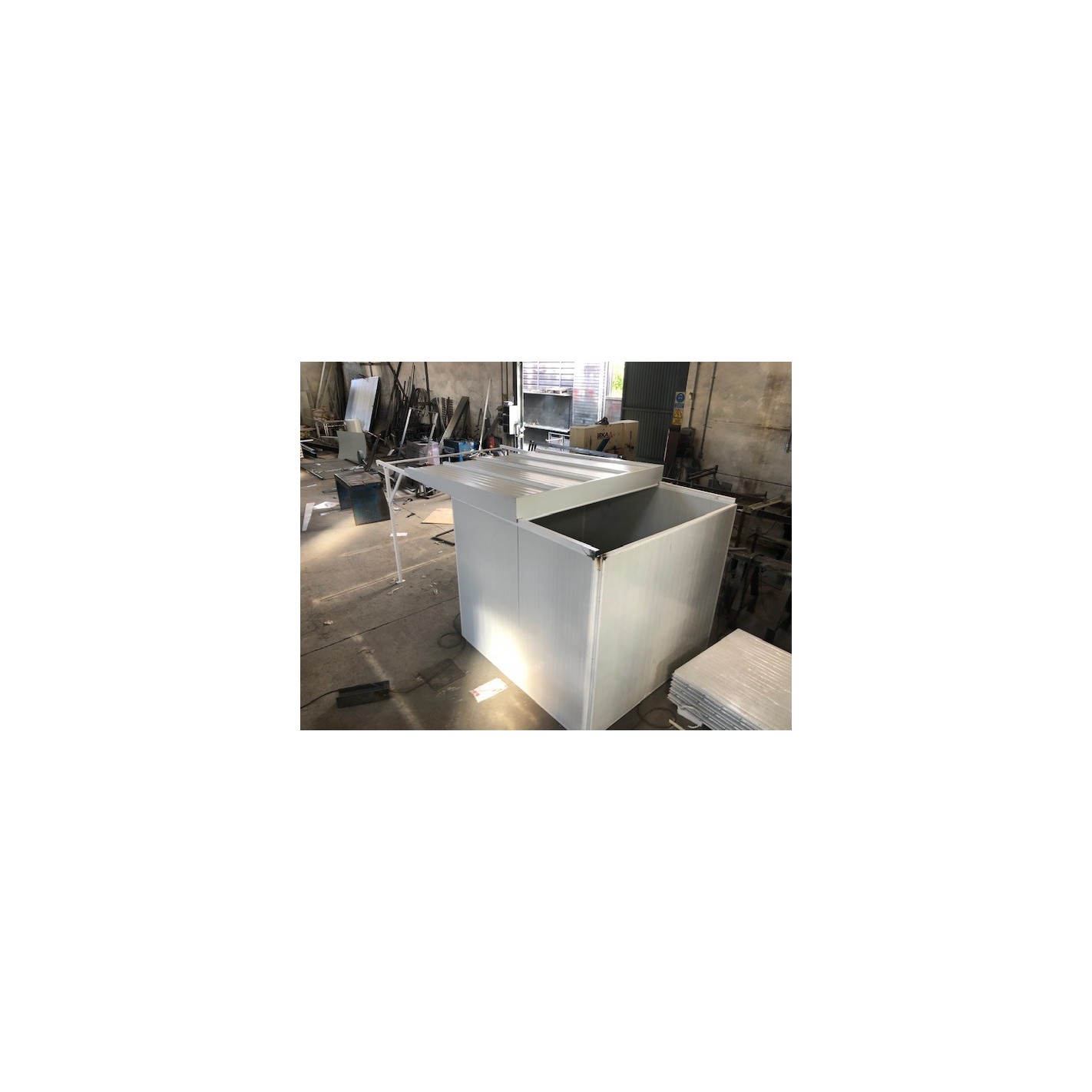

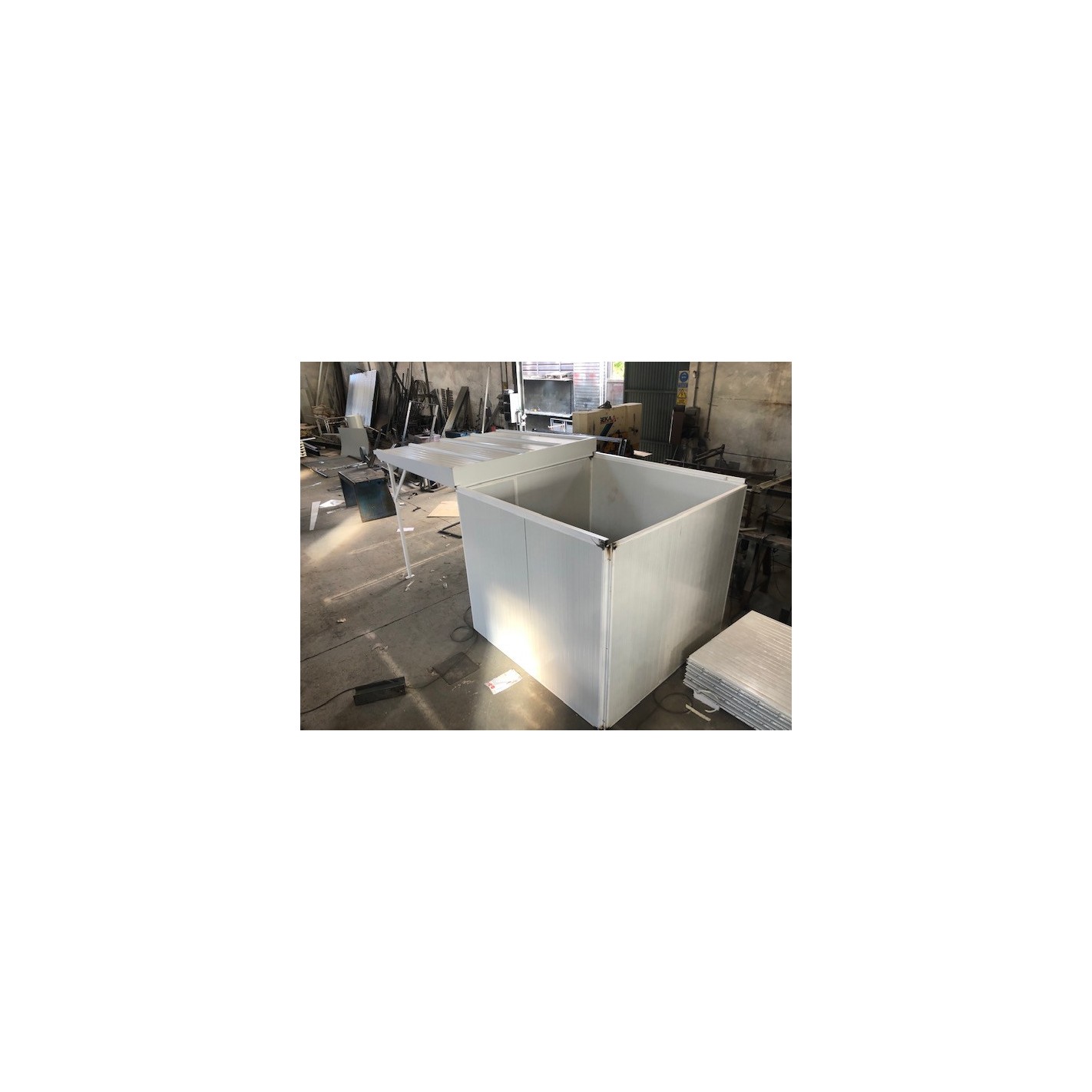

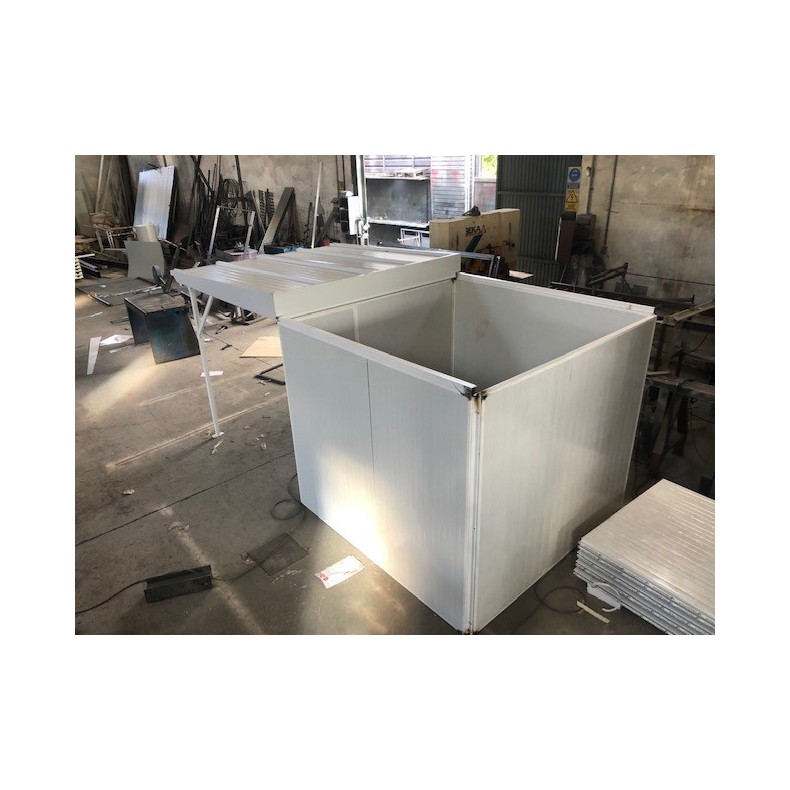

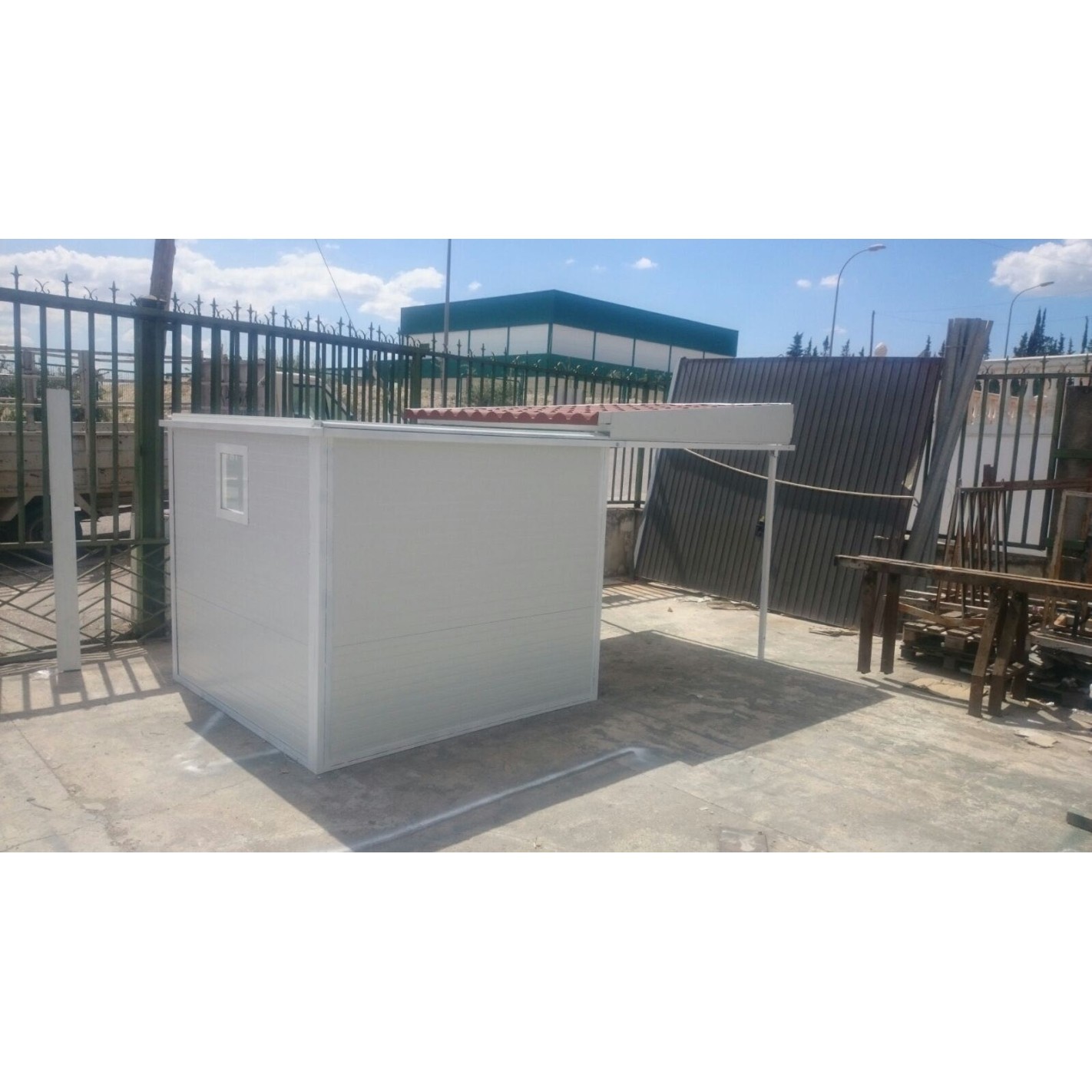

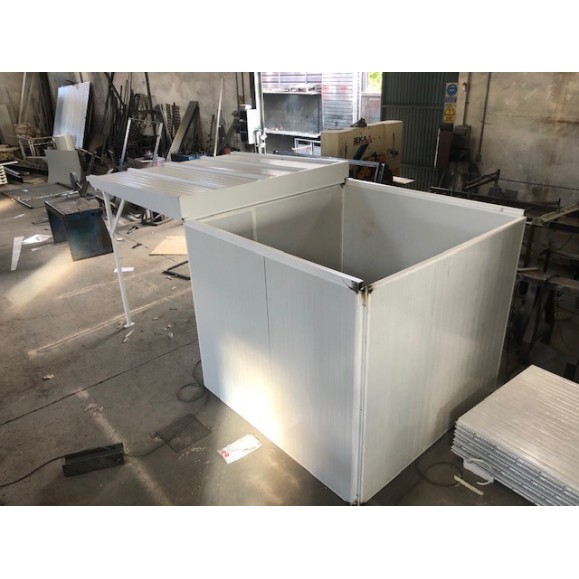

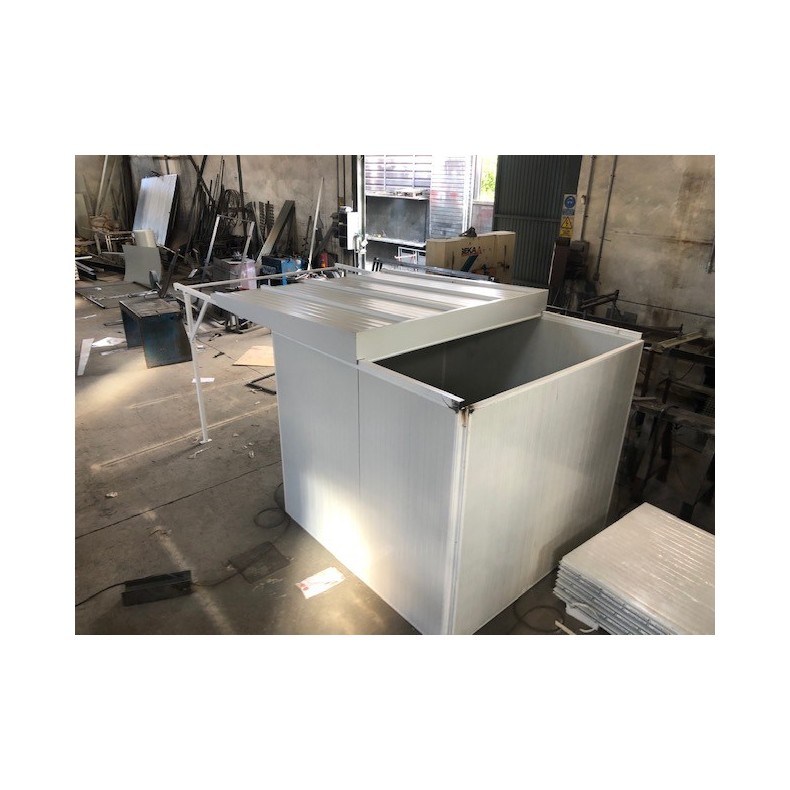

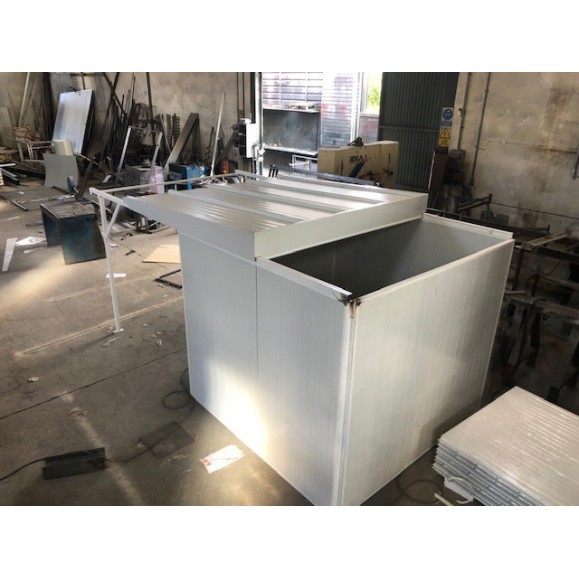

ECS observatories model ProAm 3 are small and versatile square section observatories with a sliding roof and access door. These observatories can be assembled by the buyer himself as they are extremely easy to install. They are supplied with all anchors and metal fasteners.

The ProAm observatories are ideal for amateur astronomers, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups, astronomical groups and many others. In fact, the compact and easy to use format makes the ProAm observatories can be used in different areas.

Technical Characteristics

1.Materials

-Structure: It consists of a white lacquered aluminum structure, designed so that the four side panels, made of 30 mm thick sandwich plate, access door and roof, fit perfectly with screws.

-Side panels: Sandwich sheet panel, formed by a layer of polyurethane (PUR) with high thermal insulation capacity covered by two ribbed steel plates and exterior pre-lacquered.
Fire and acoustic resistance according to regulations.

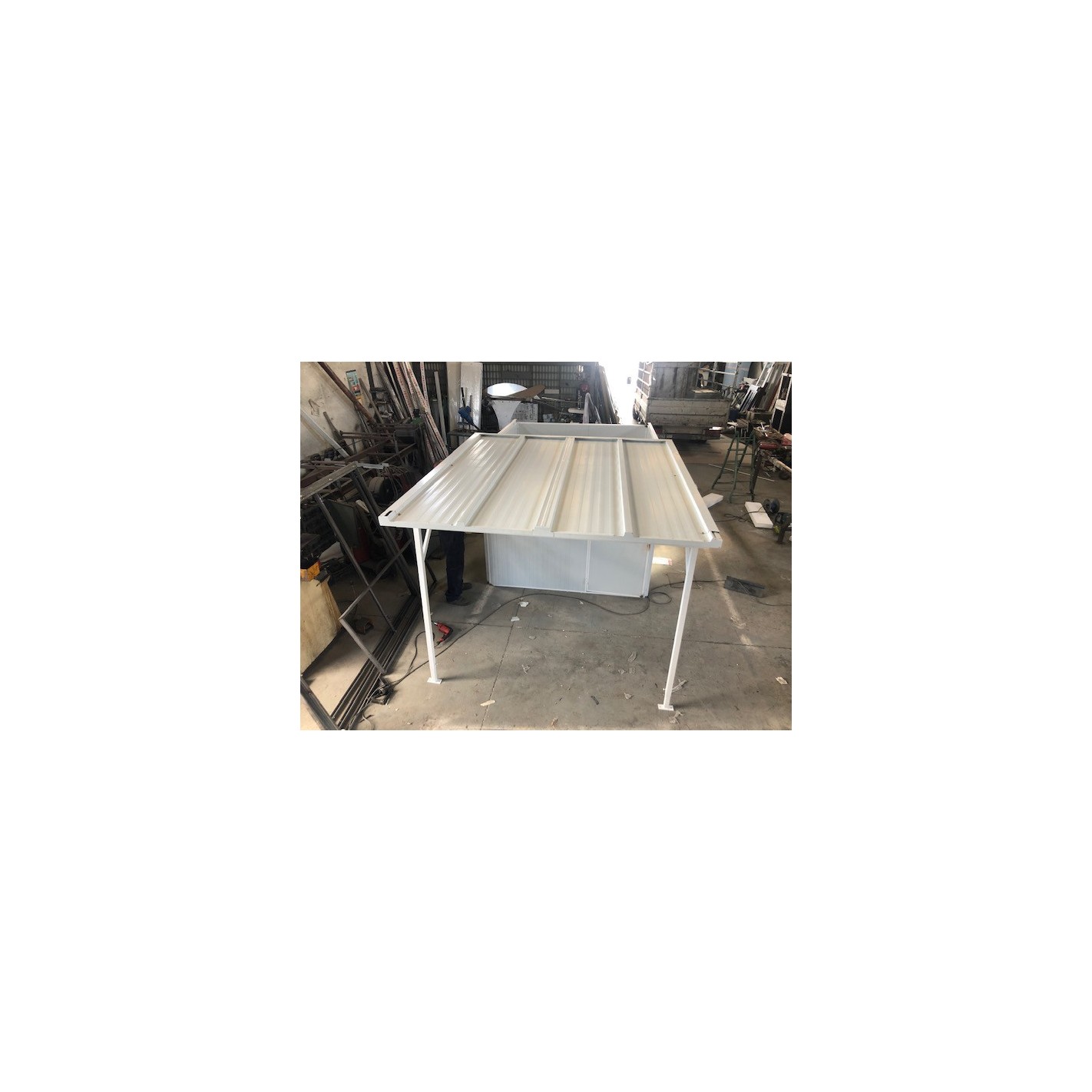

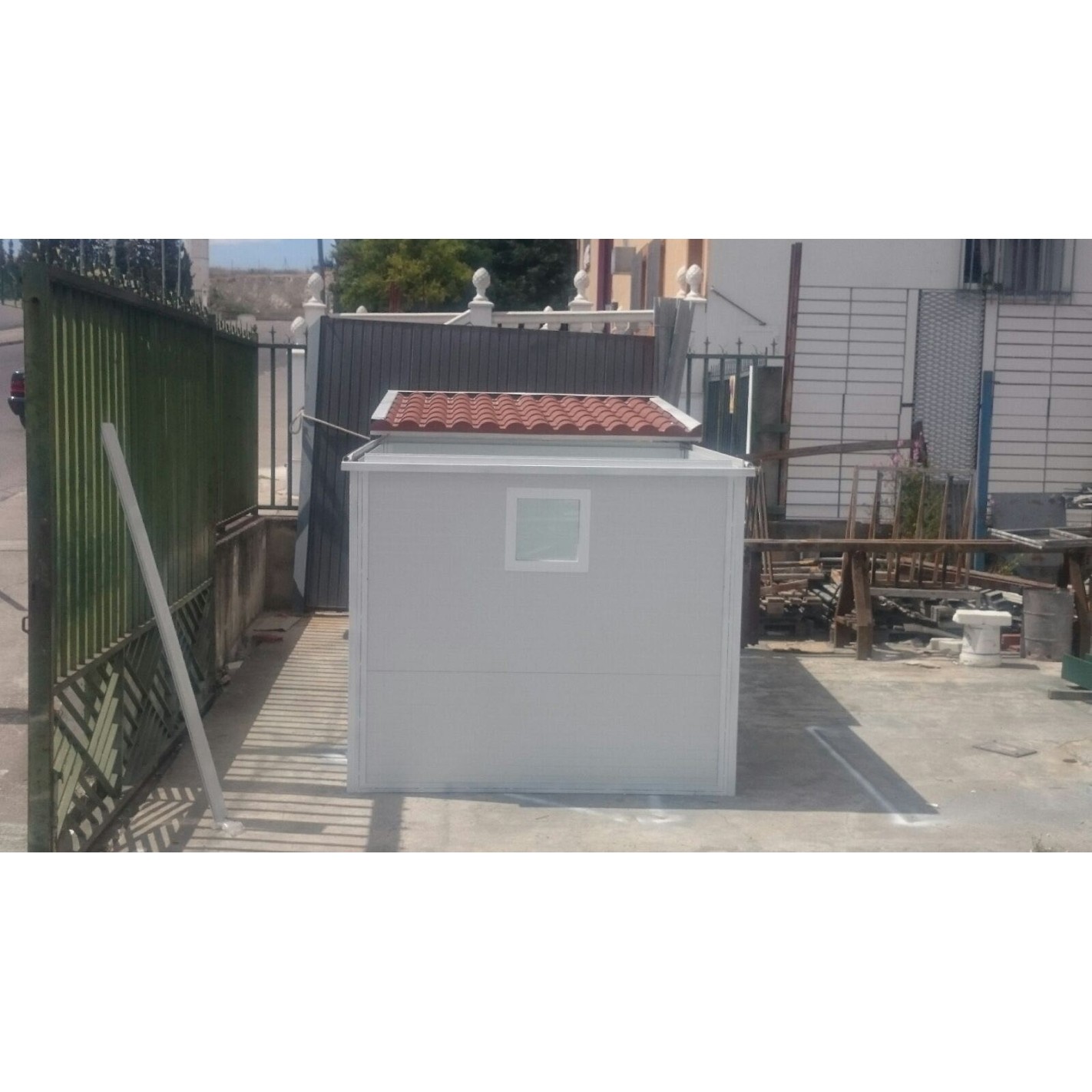

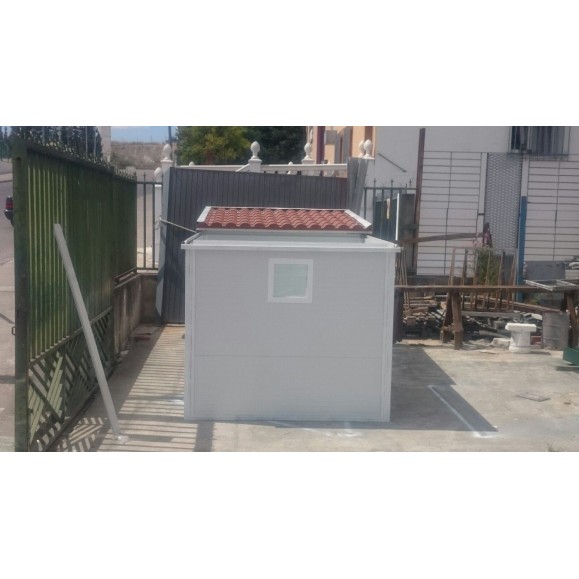

-Roof(tile or smooth): Roof panel with an exterior sheet in tile imitation and insulating core of high density PUR or PIR foam, about 40 kg/m3. It is a sandwich panel with an outstanding aesthetic finish, as well as high mechanical strength and high thermal insulation. Smooth 40 mm thick sandwich panel with specific coating and watertightness of the roof.

Fire and acoustic resistance according to regulations.

Finishes: red tile, aged alabaster and slate gray.

-Access door: It is made to measure, in white lacquered aluminum and with security lock

2. Assembly

-Self-assembly: The ProAm Observatory is supplied disassembled. It is installed following the order described in the instruction manual (included in the shipment). Screws and anchors are included. All the elements that make up the observatory are easily manipulated for transport and assembly.

3. Weight and dimensions

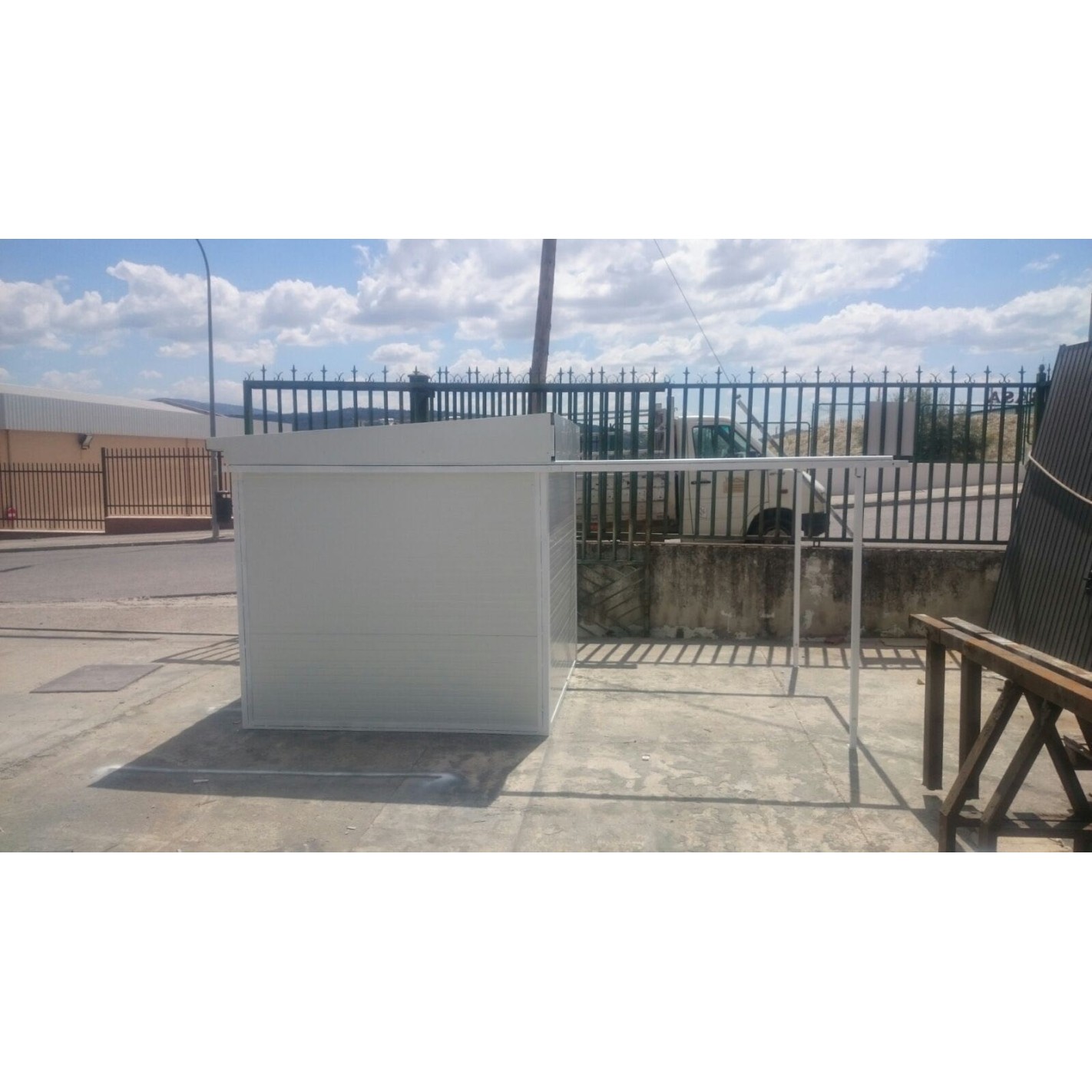

This model admits flat or gable roof.

• WEIGHT: 400 Kg
• DIMENSIONS CLOSED: 3 x 3 x 2,2 meters (width, length, height)

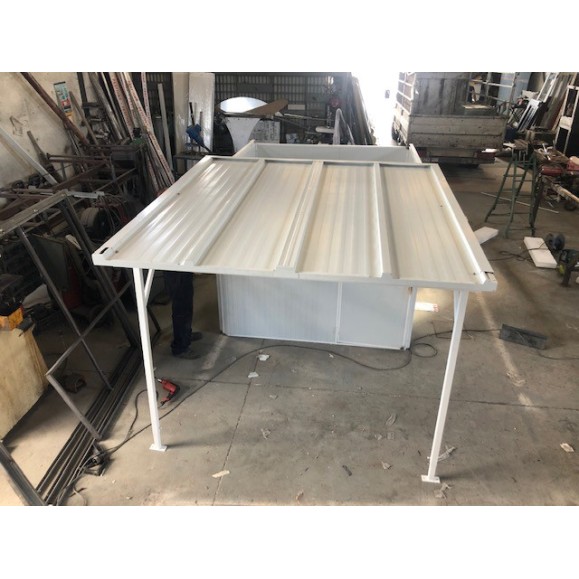

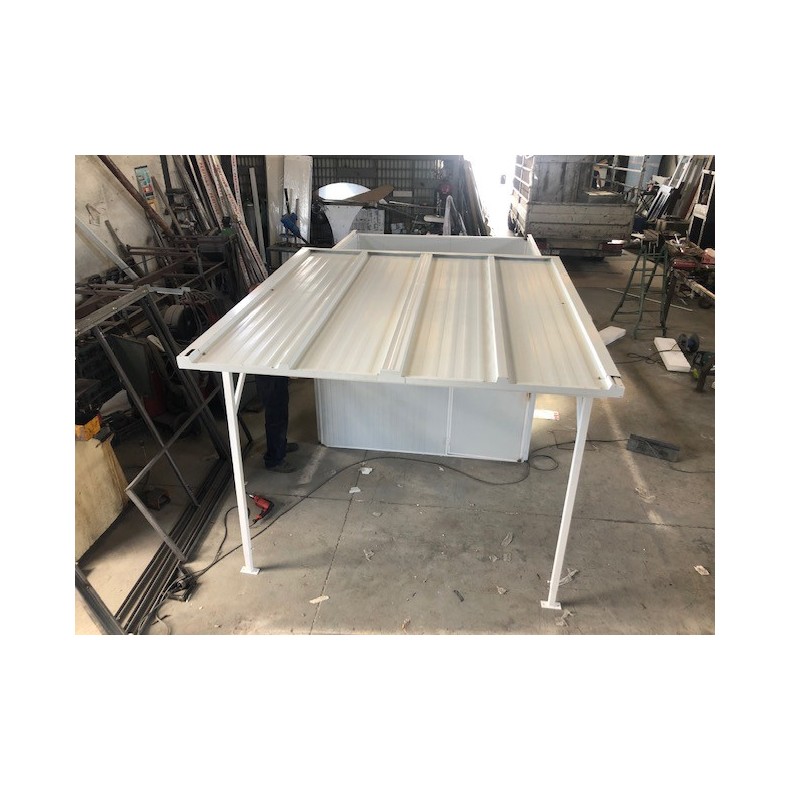

• OPEN DIMMENSIONS: 3 x 6 x 2,2 meters (width, length, height)
