Dome ScopeDome 2m manual dome without cylinder

Dome ScopeDome of 2 meters in diameter without cylinder.

THE PRICE OF TRANSPORT TO DESTINATION MUST BE QUOTED SEPARATELY

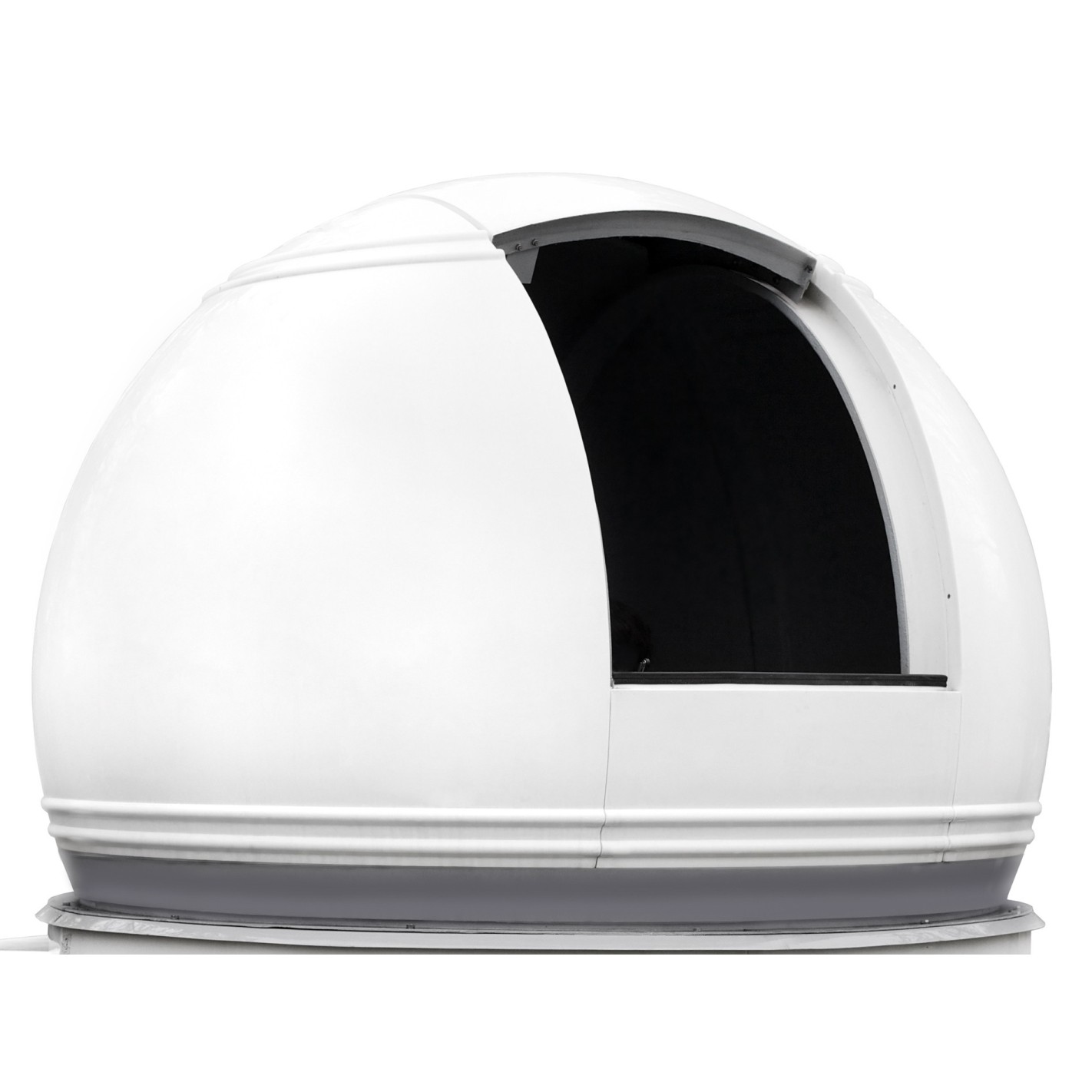

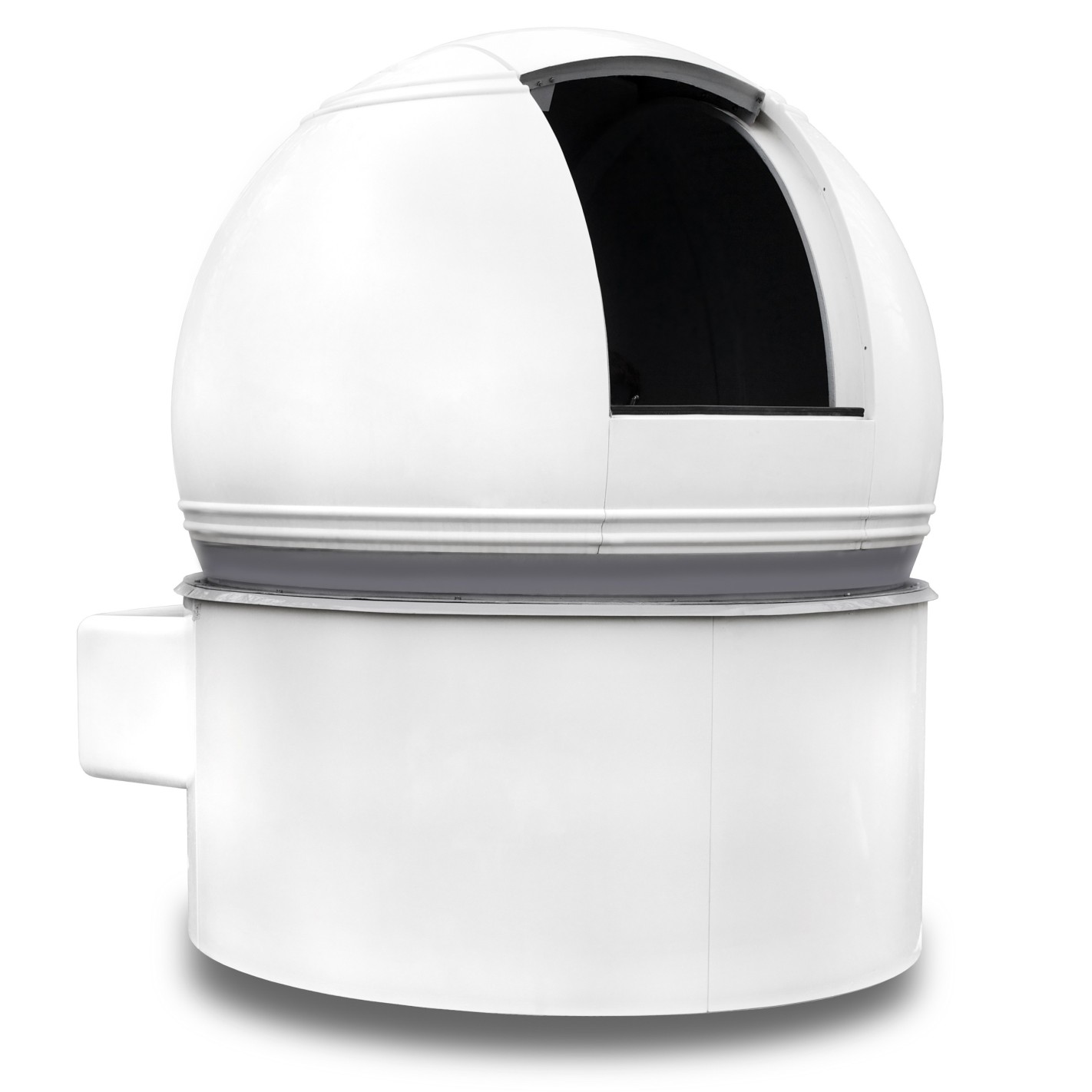

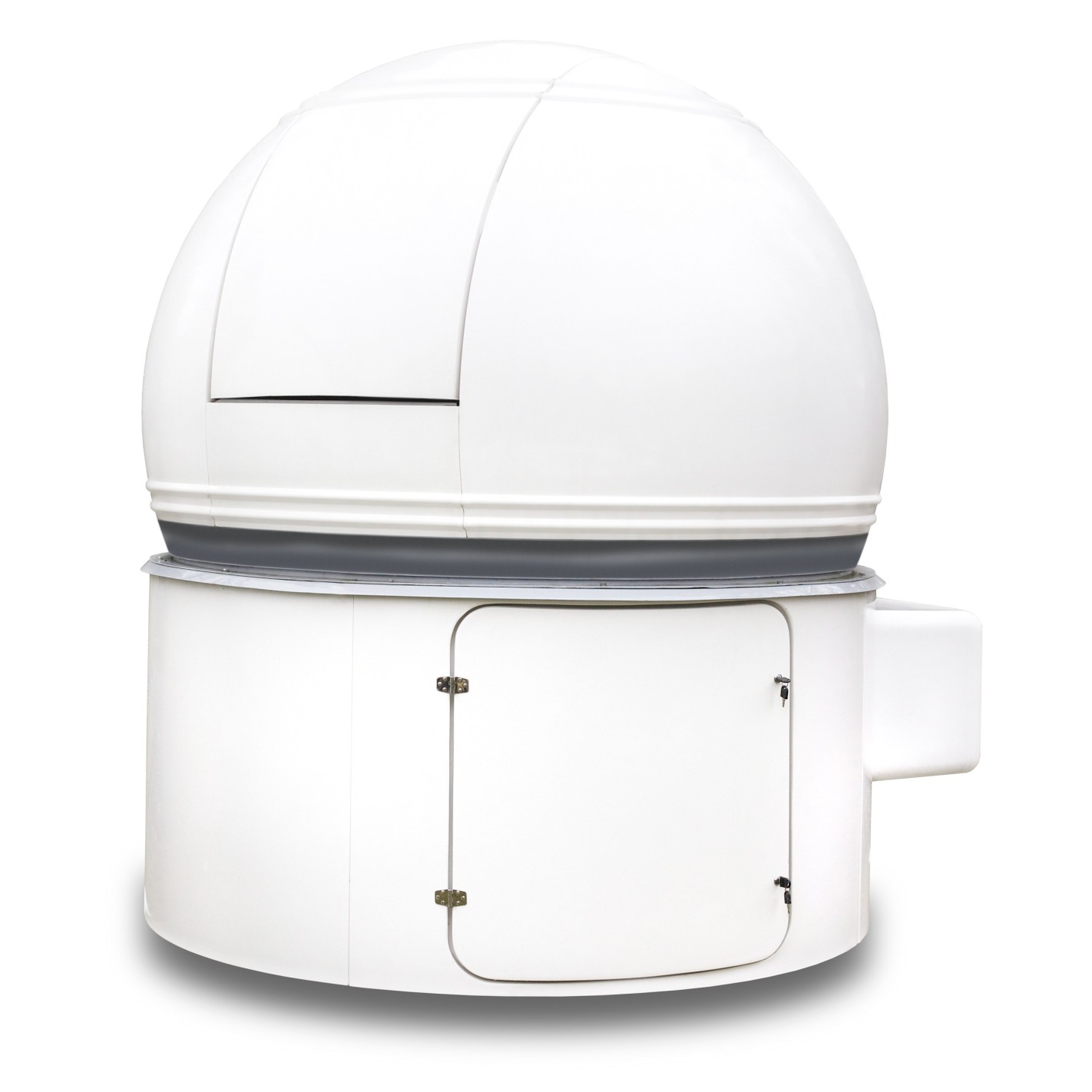

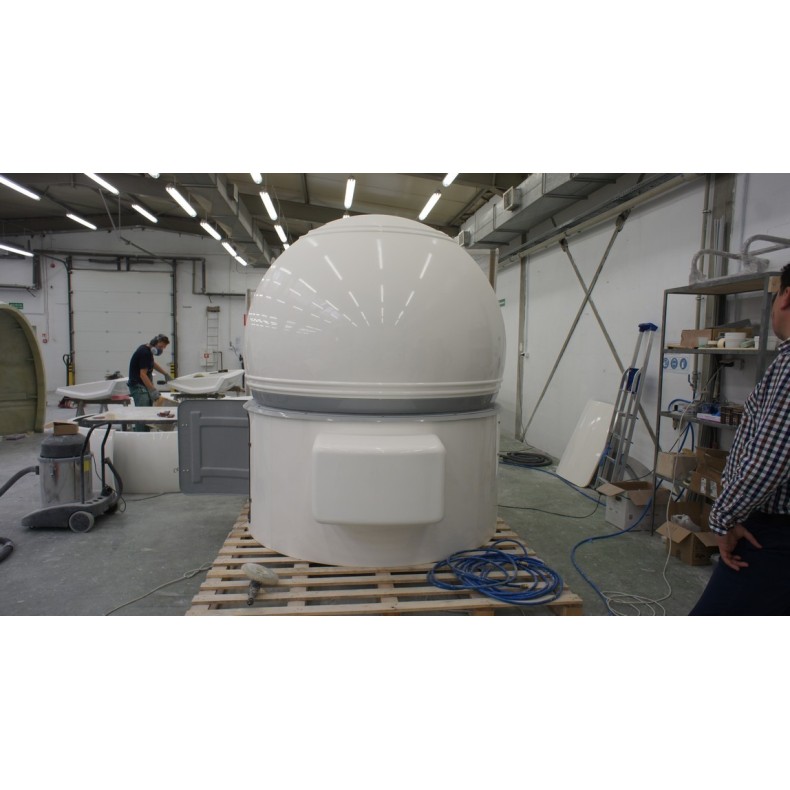

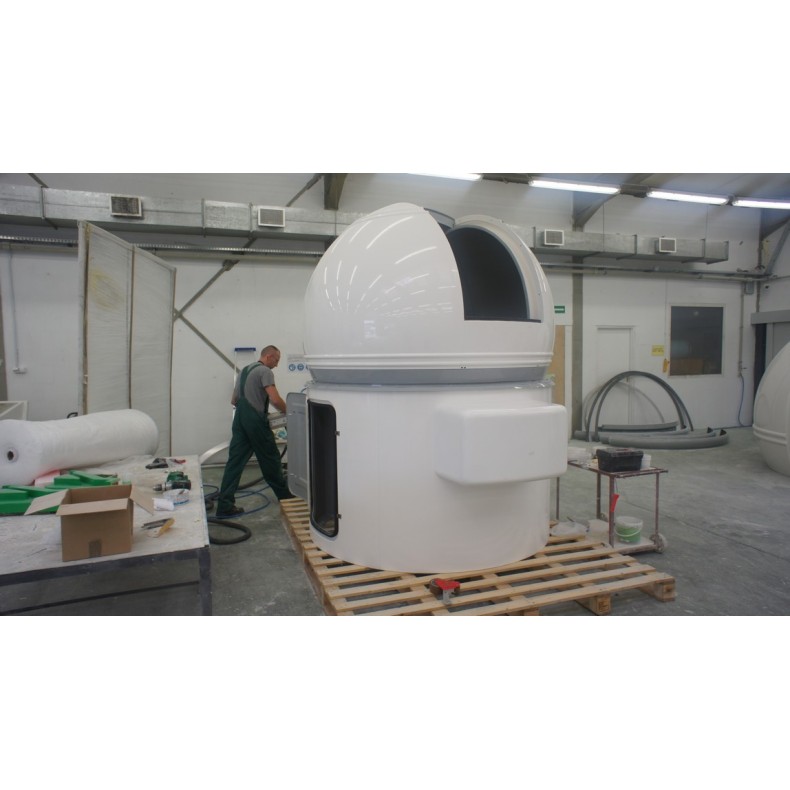

Dome of 2 meters ScopeDome, manually operated, without cylinder. Made of fiberglass with high quality standards.

With this fantastic dome you can easily and comfortably install your own observatory, protecting your equipment and avoiding the tedious task of assembling and disassembling the telescope in each observation.

The 2 meter diameter ScopeDome allows you to keep your equipment permanently installed in your observing site. This way, the instrument will always be aligned with the sky: you can keep either the polar alignment (if you have an equatorial mount), or the alignment stars (if your mount supports the parking function). Forget all the hard work that needs to be done every time you want to use your telescope, and spend more time having fun: every time you want to use the instrument to discover the wonders of the Universe, it will be ready to use in seconds!

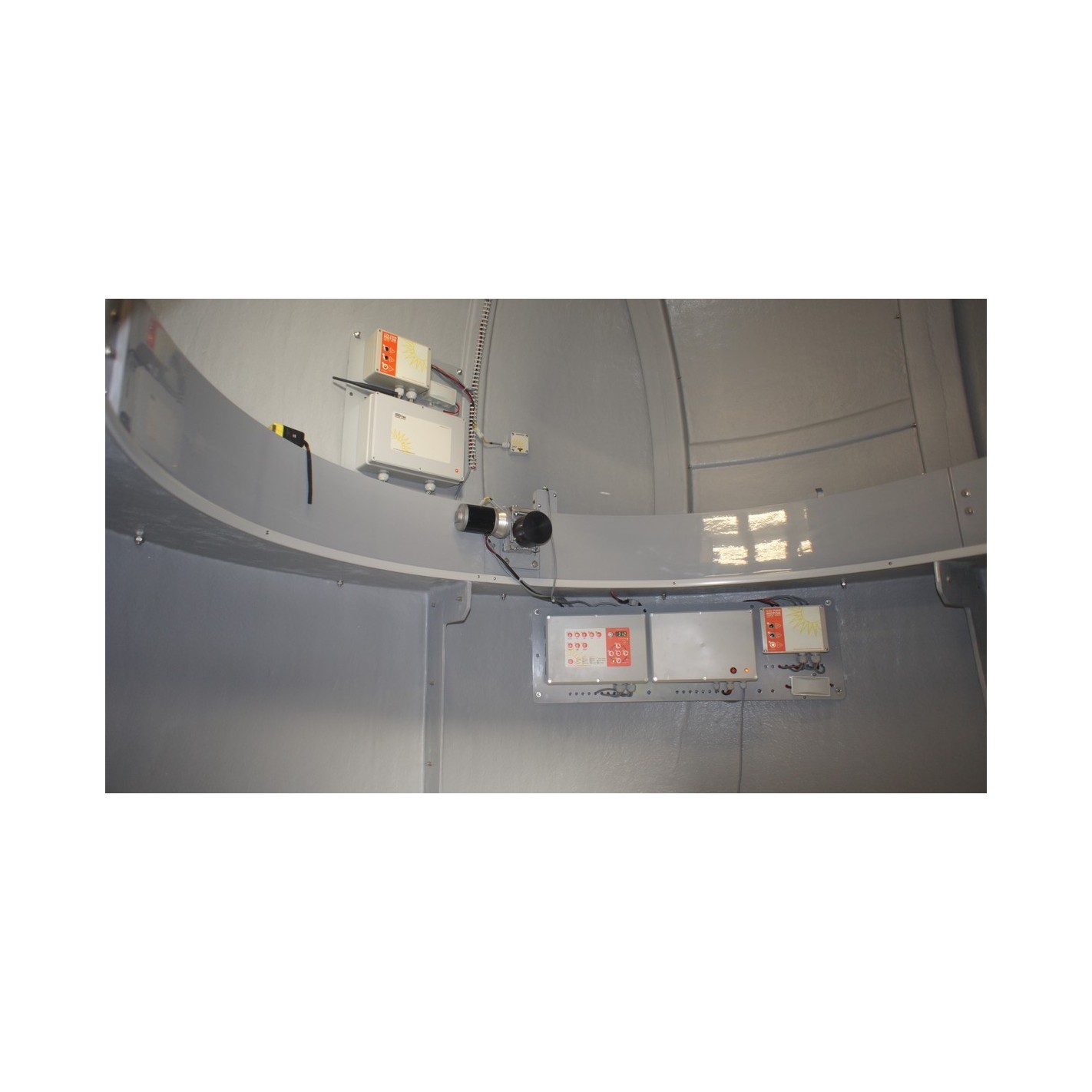

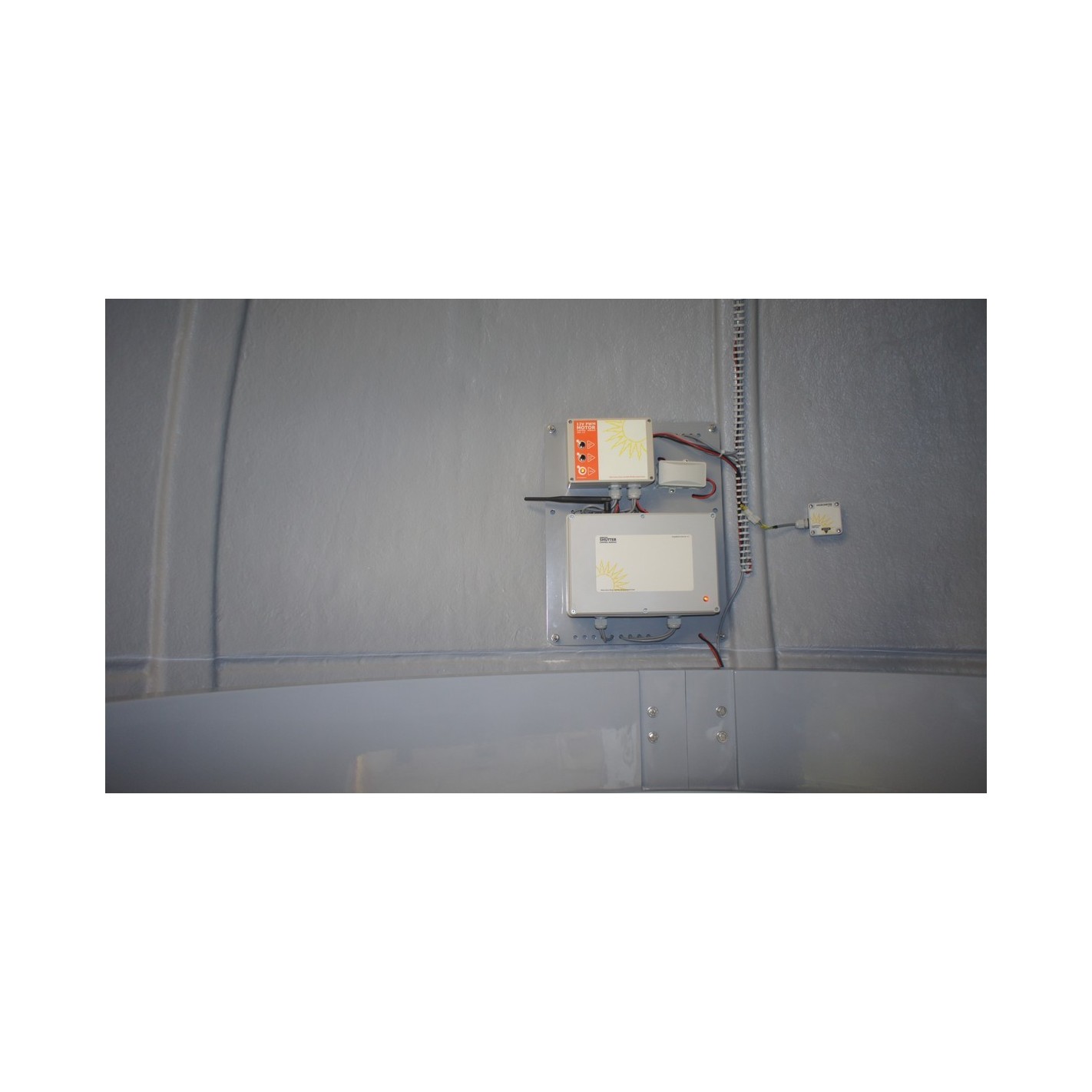

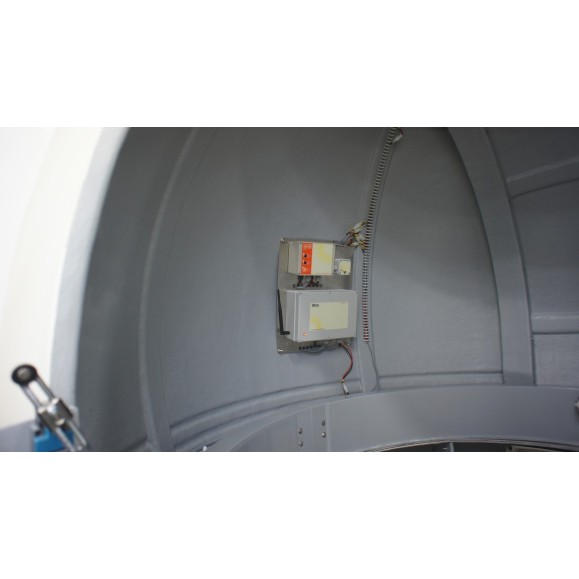

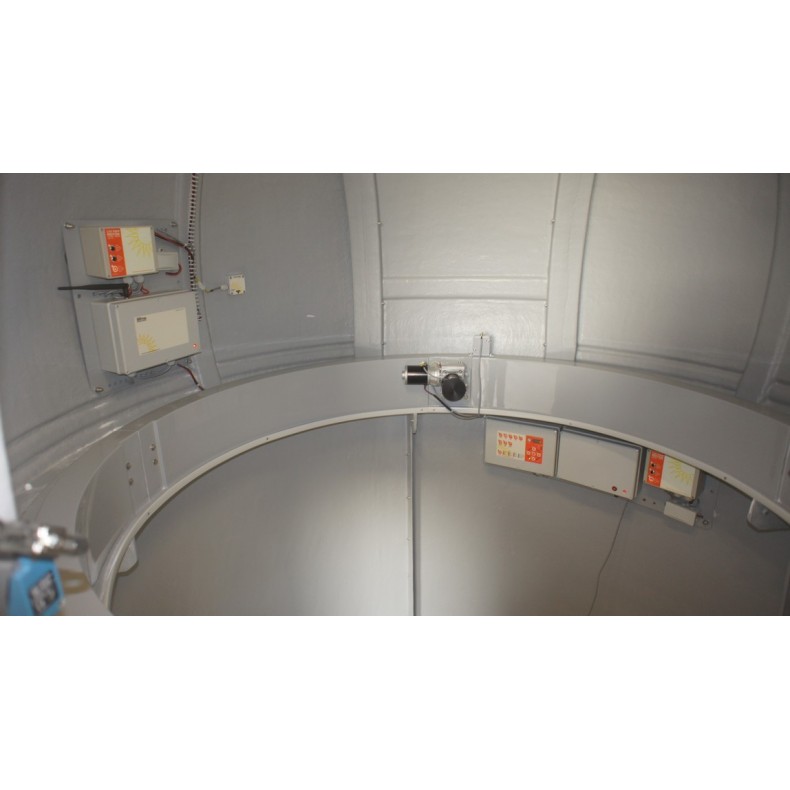

The dome ScopeDome offered by Telescopiomania, can be optionally supplied fully motorized and automated to allow software control and operation thanks to the compatibility with the ASCOM platform and USB port connection.

The dome ScopeDome can be installed on any flat surface made of masonry or wood. In order to help you with the installation, we include, together with the materials required for the installation of the dome and the instructions for use, a brief guide with instructions for the correct sizing of the dome base. Attention: under this reference only the manual dome is supplied, without the support cylinder and only with the ring for adaptation to the ceiling or to the concrete cylinder.

The basic version of the dome is designed to be mounted on the crown of the observatory, on the ring located on the roof, for example.

For fixing, it is suggested to use Hilti anchors and to seal all contact surfaces of the base ring with the dome with silicone.

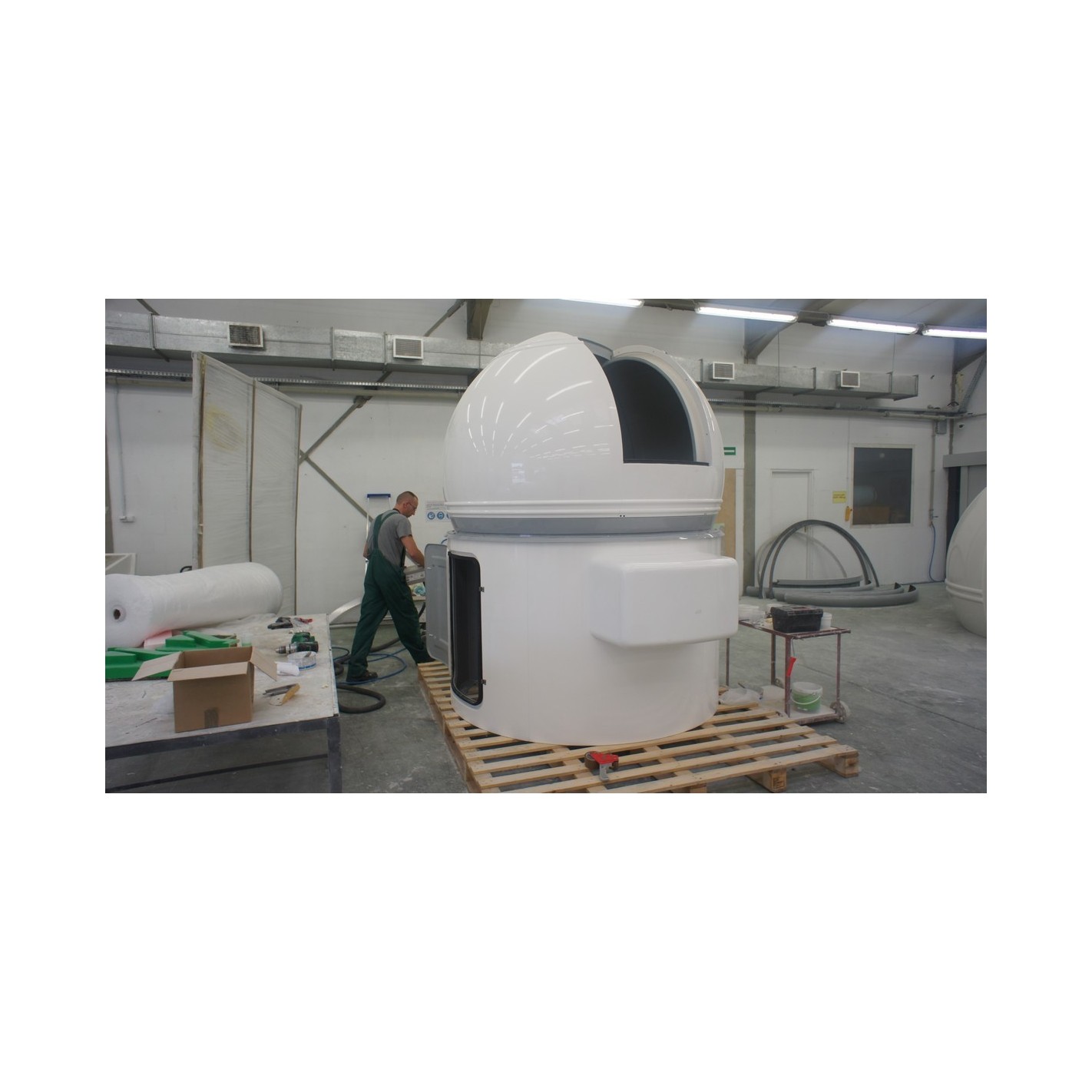

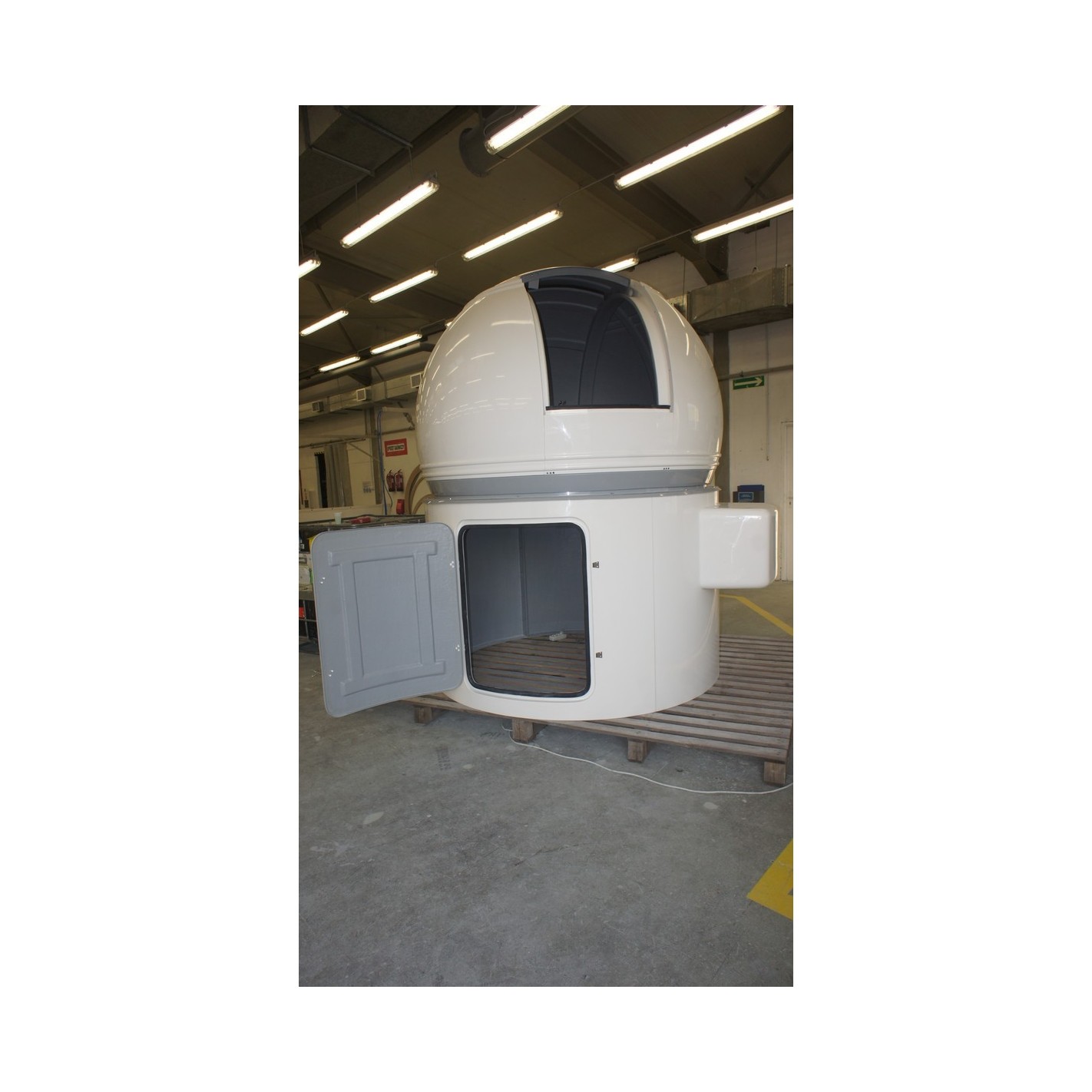

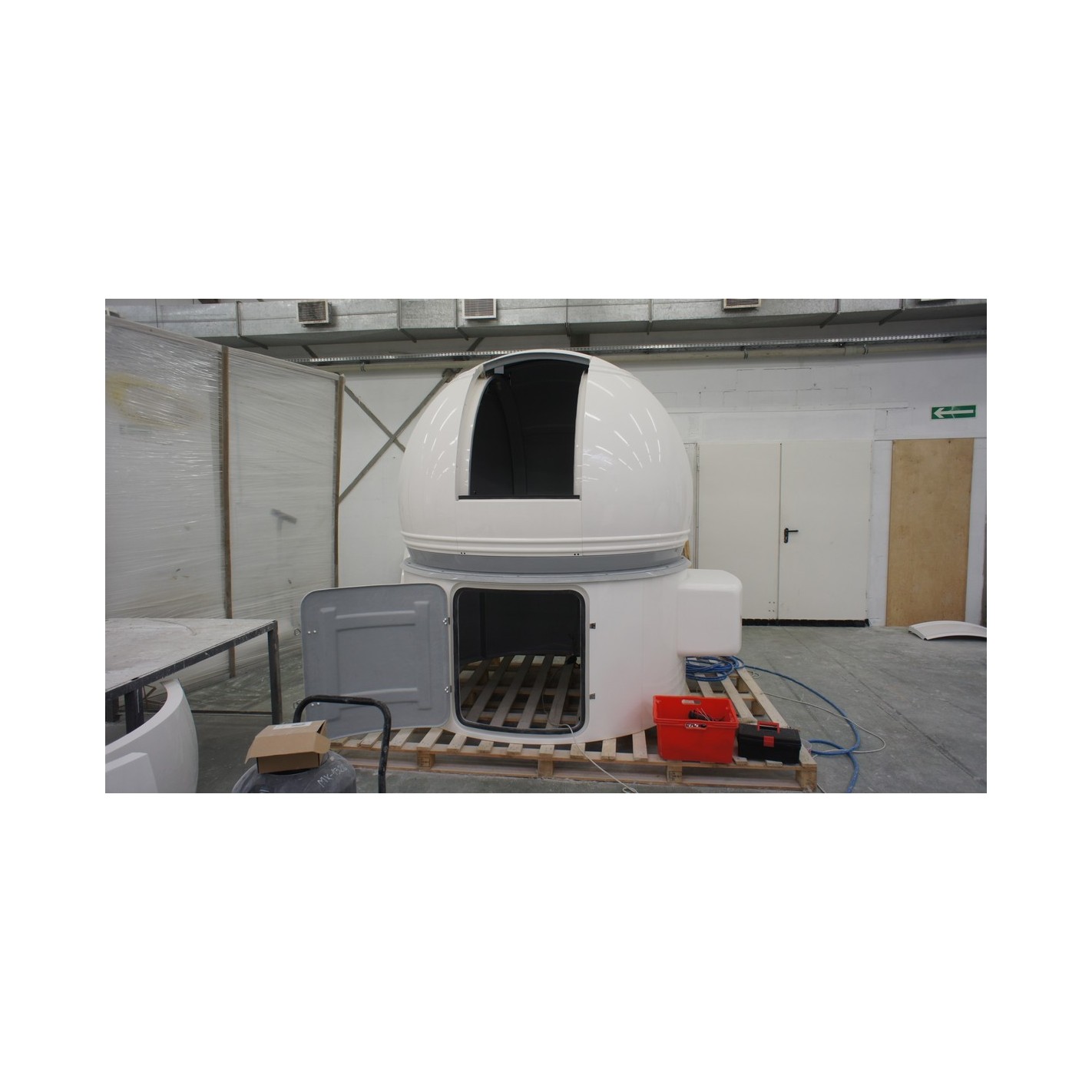

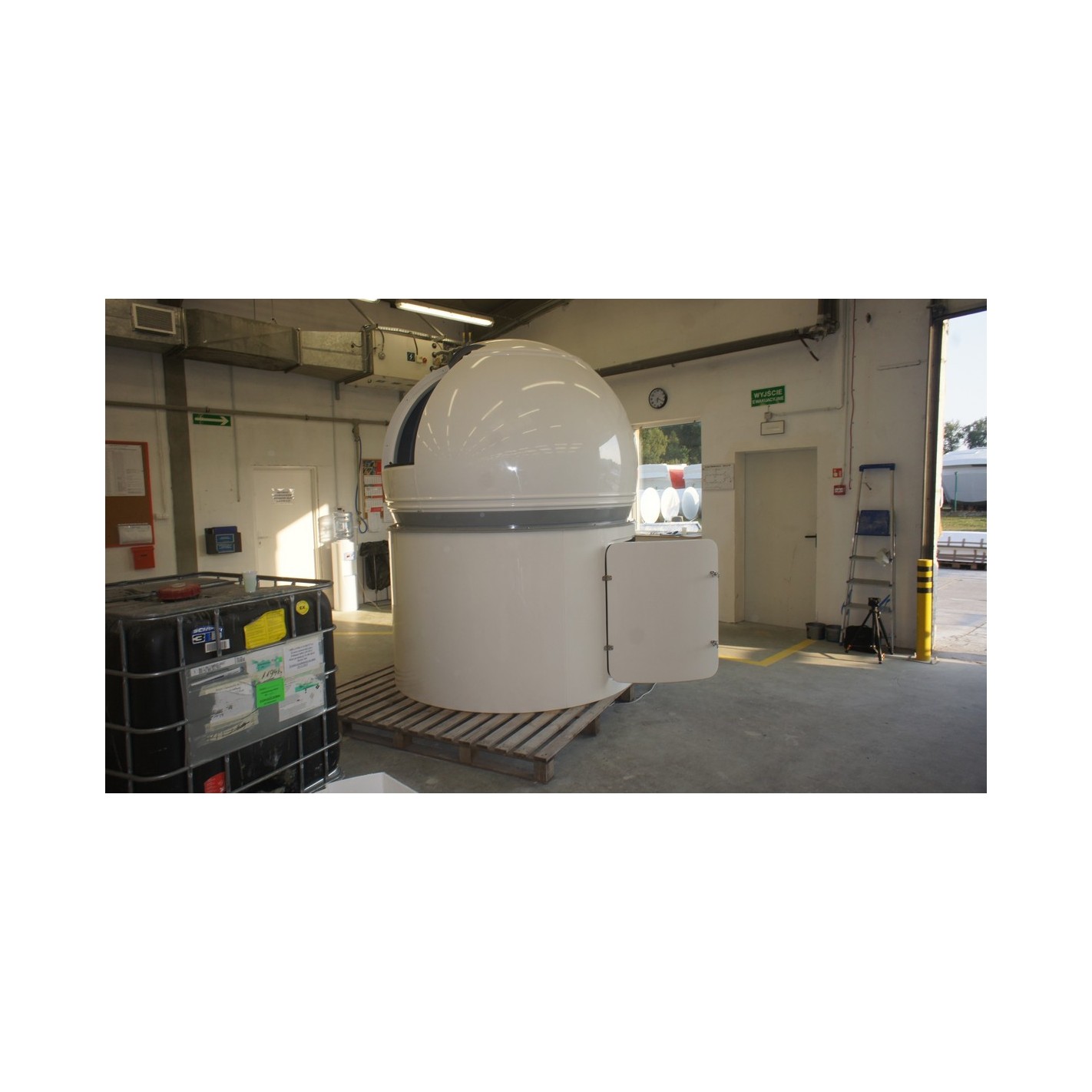

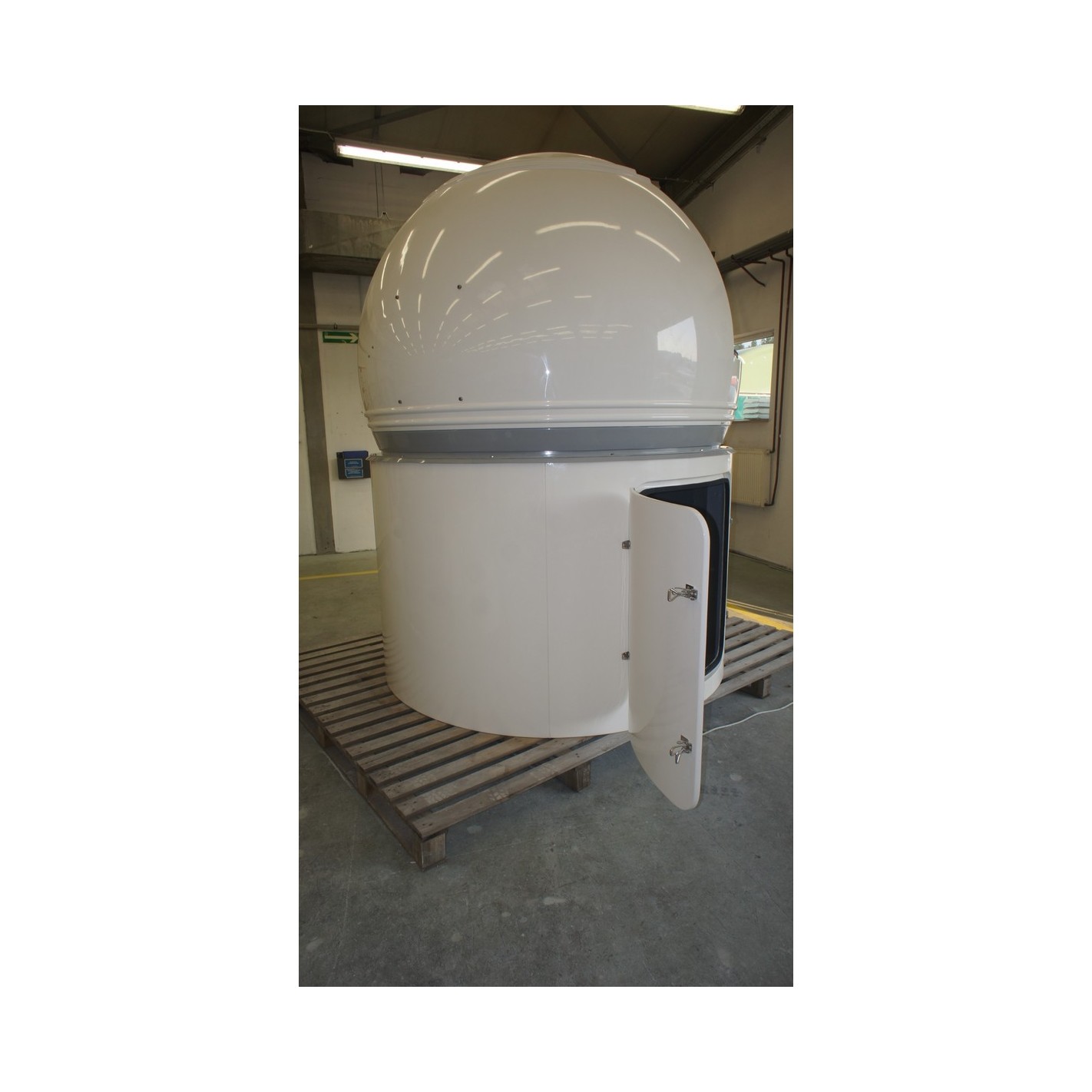

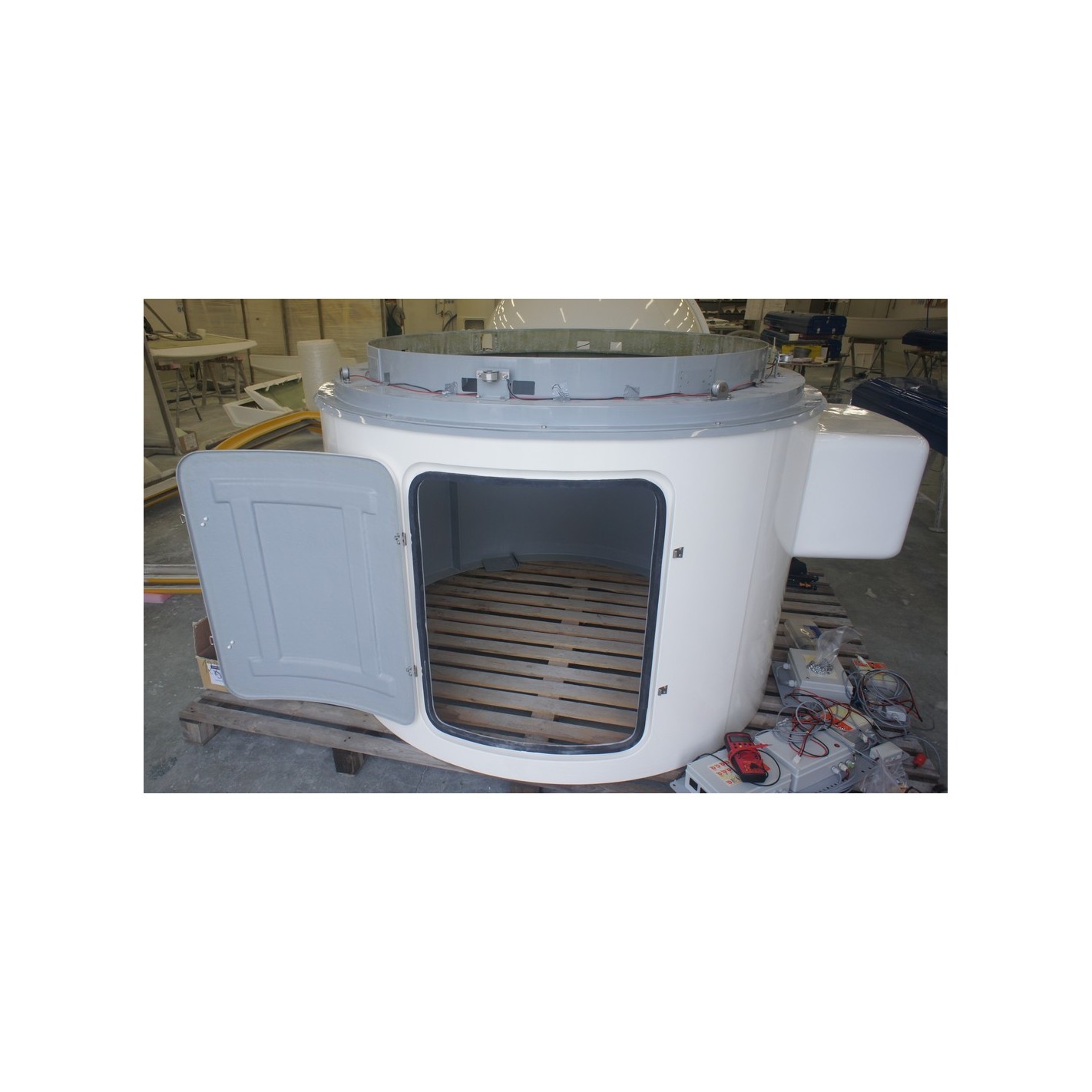

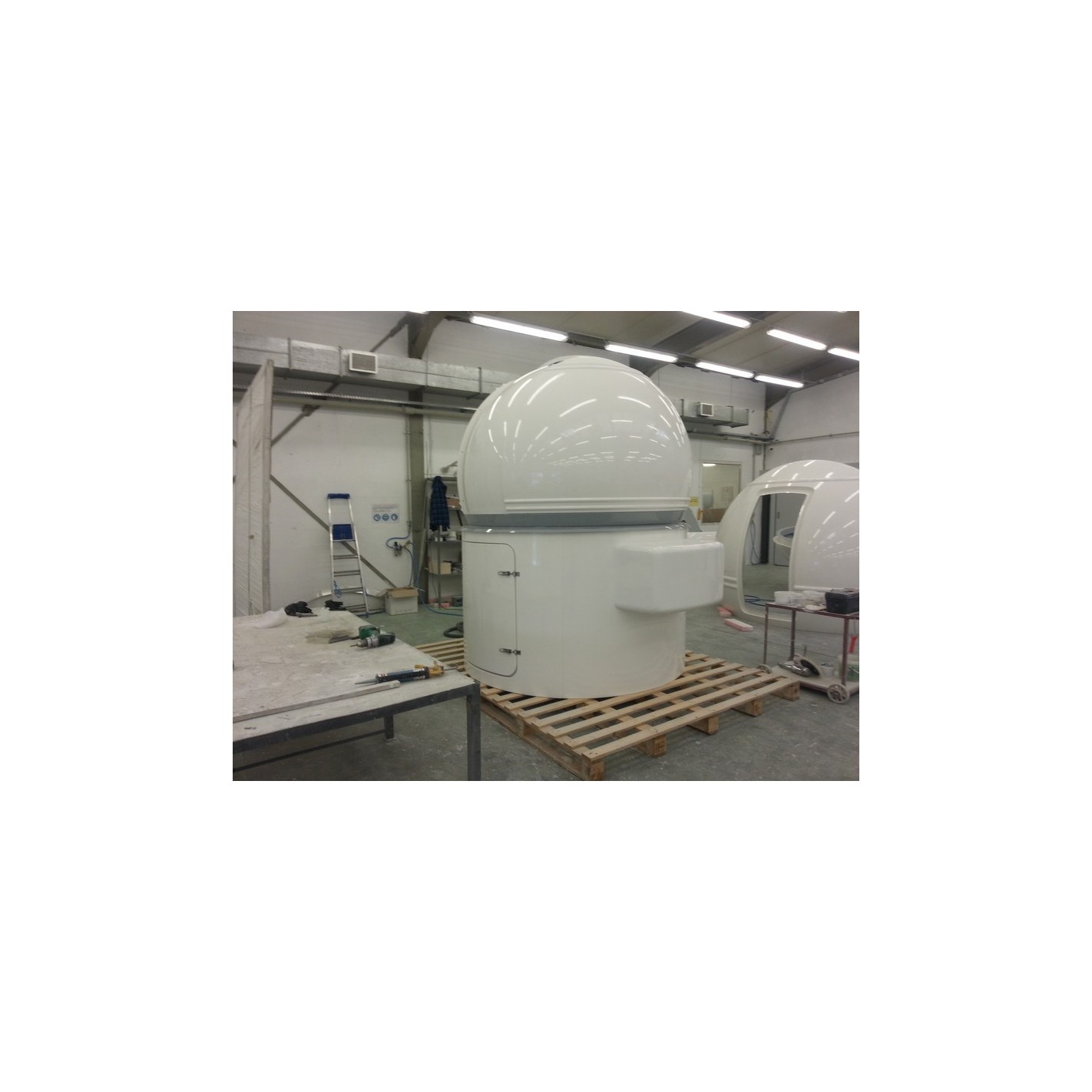

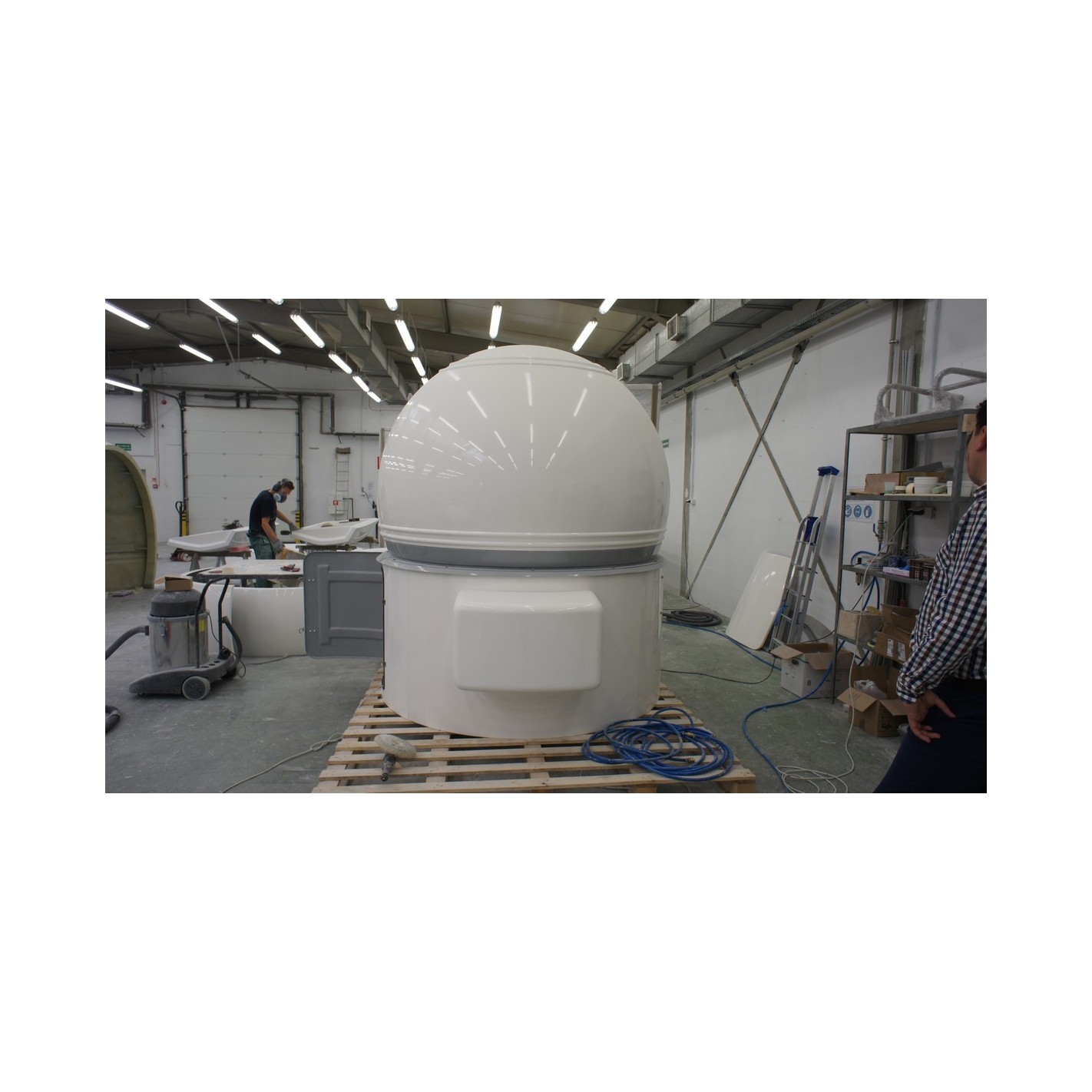

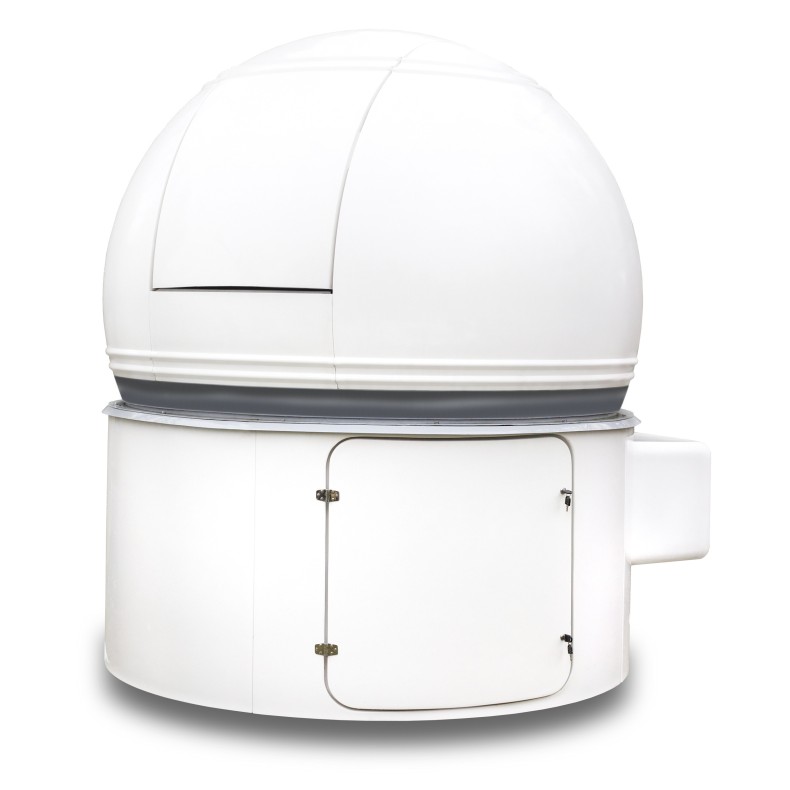

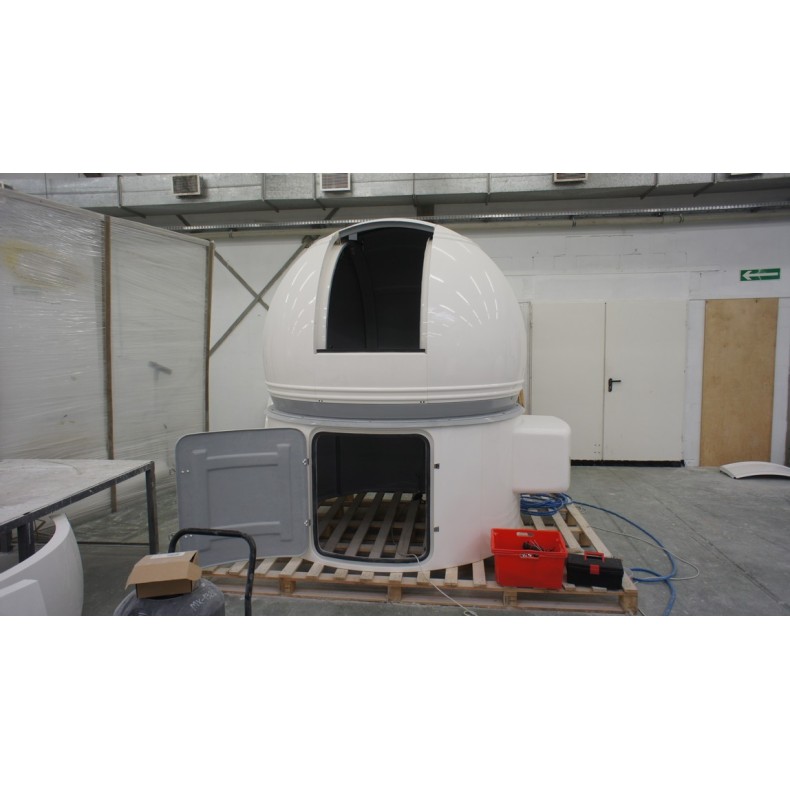

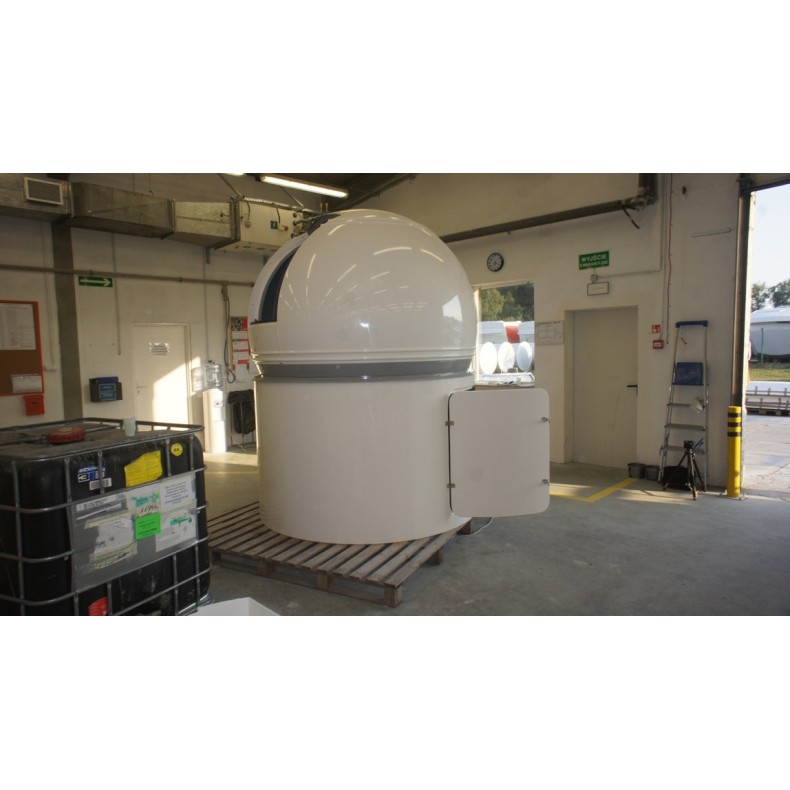

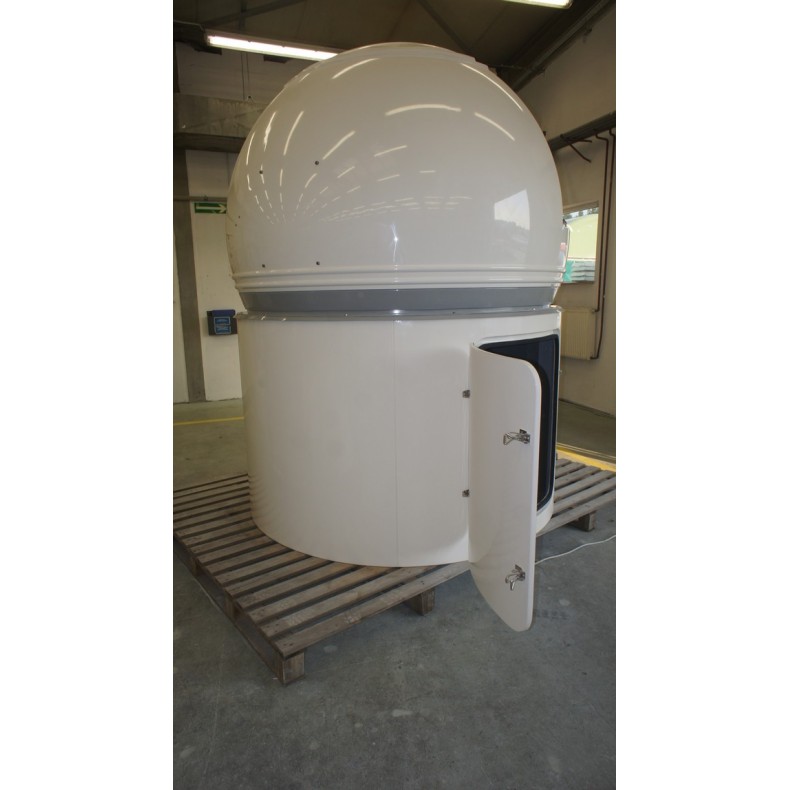

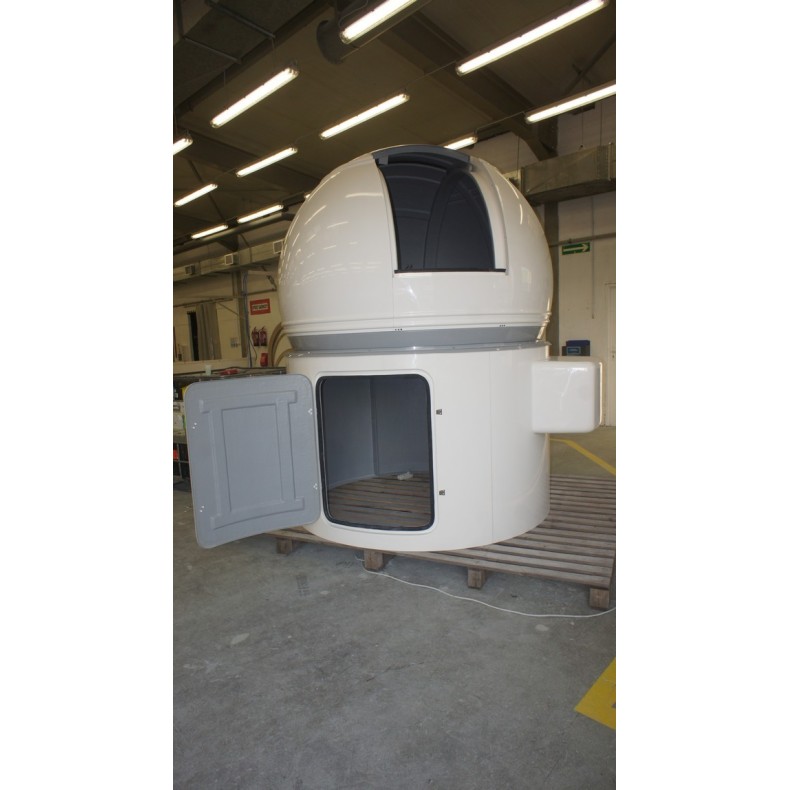

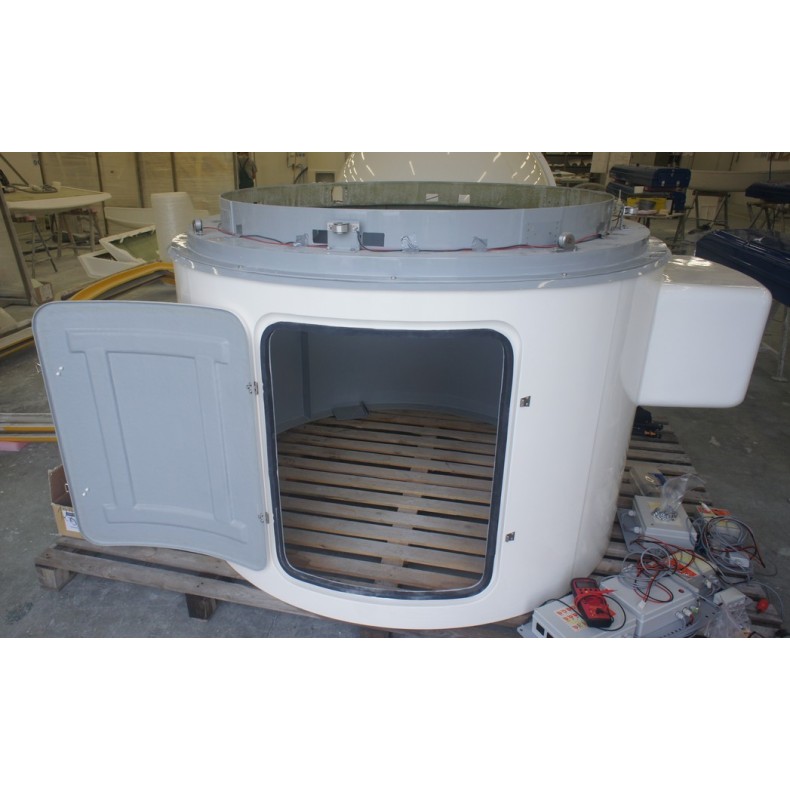

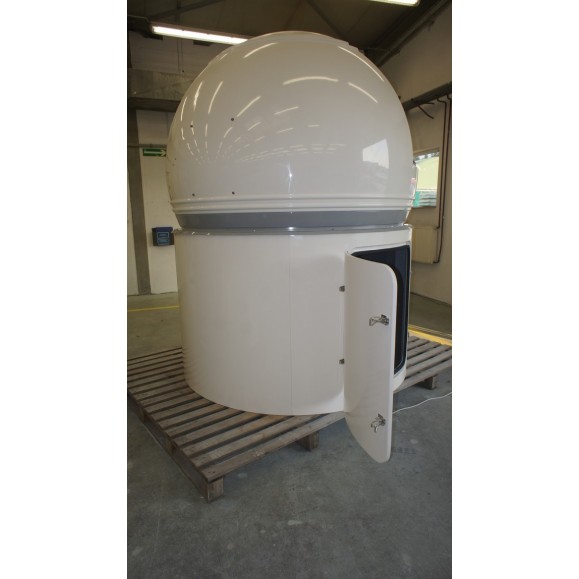

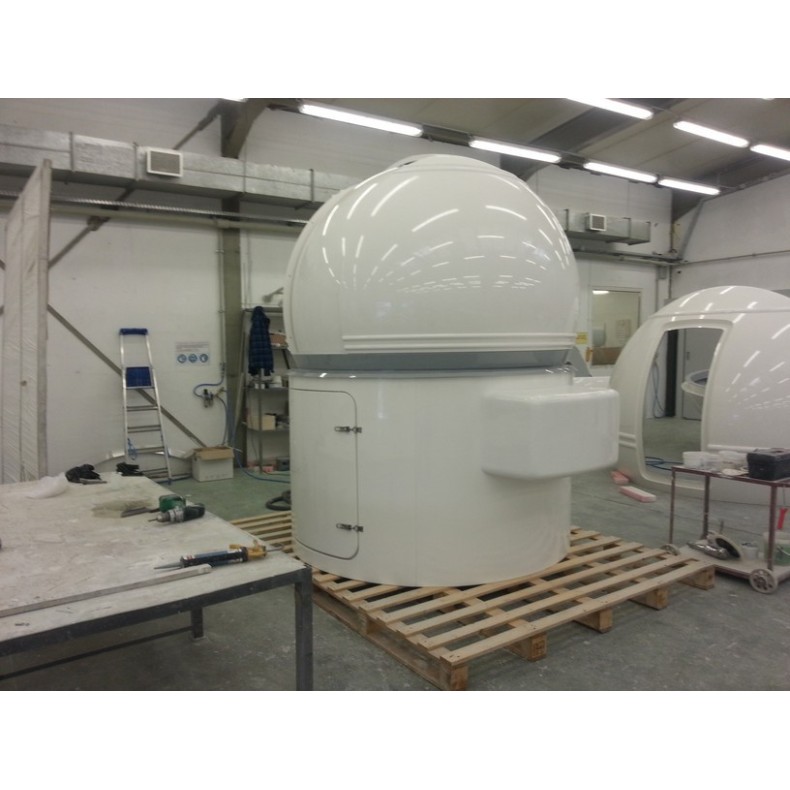

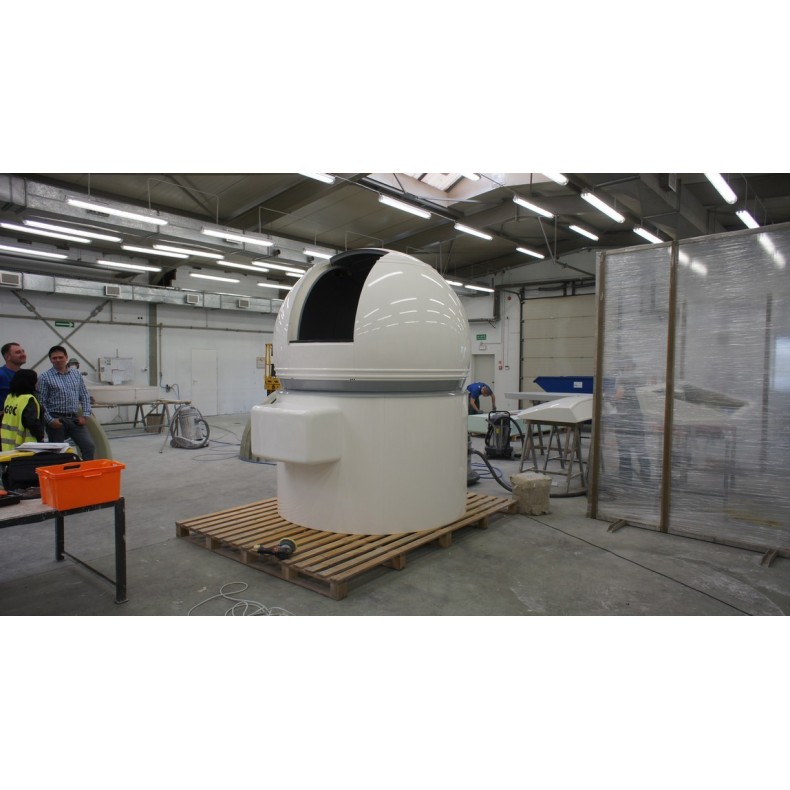

If you want to install the dome in the garden, for example on a concrete platform, you can optionally add an additional tower with entrance door. There are two different heights: 80 and 120 cm. Each of the towers is equipped as standard with a front door and a shelf for the equipment. And you can also order the tower with two or three shelves for a more orderly placement of your equipment (THIS OPTION IS NOT INCLUDED WITH THIS REFERENCE)

The dome is light enough to be opened and rotated by hand in case of emergency or power failure.

The main features of the ScopeDome 2 meter dome are:

• Easy and quick installation of the dome

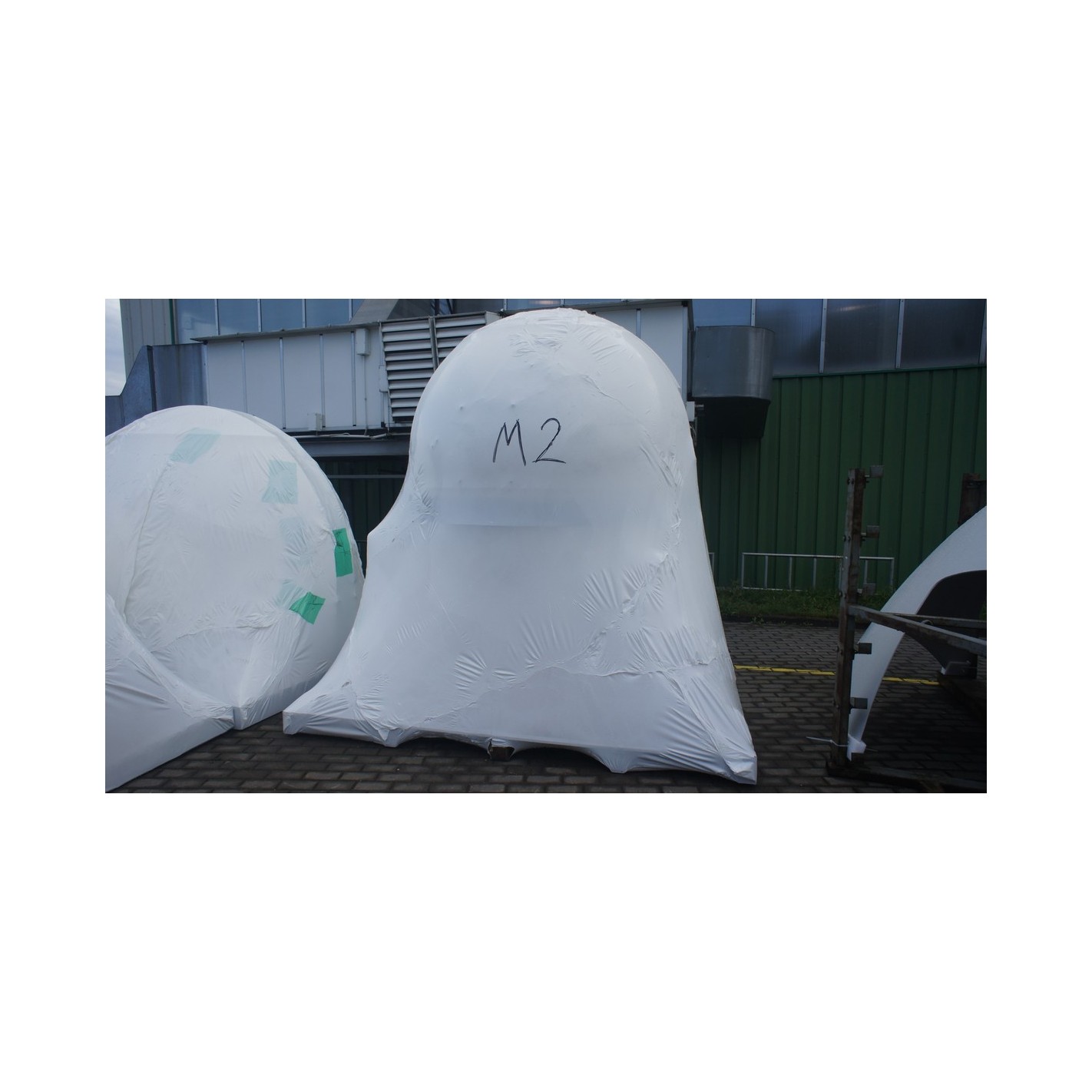

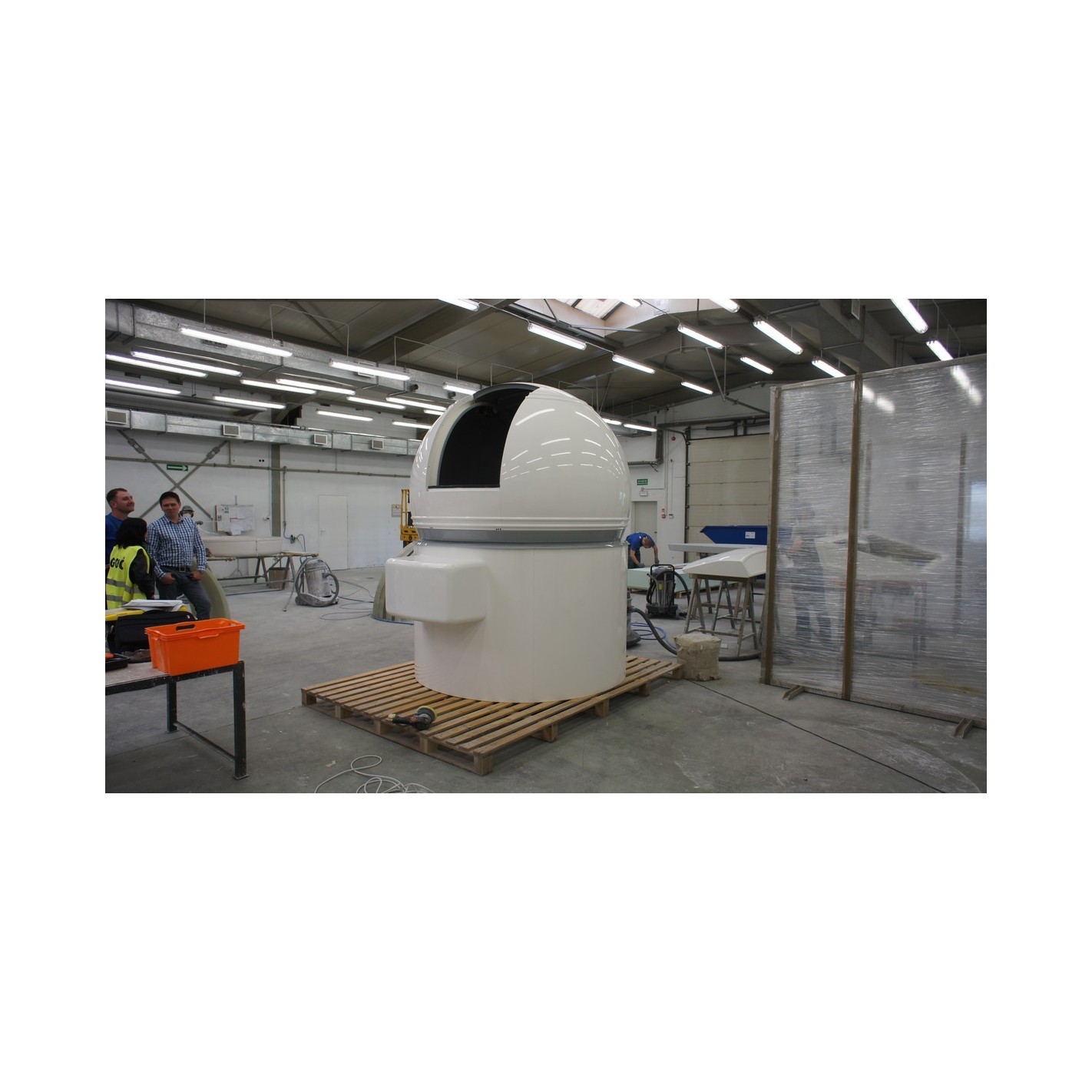

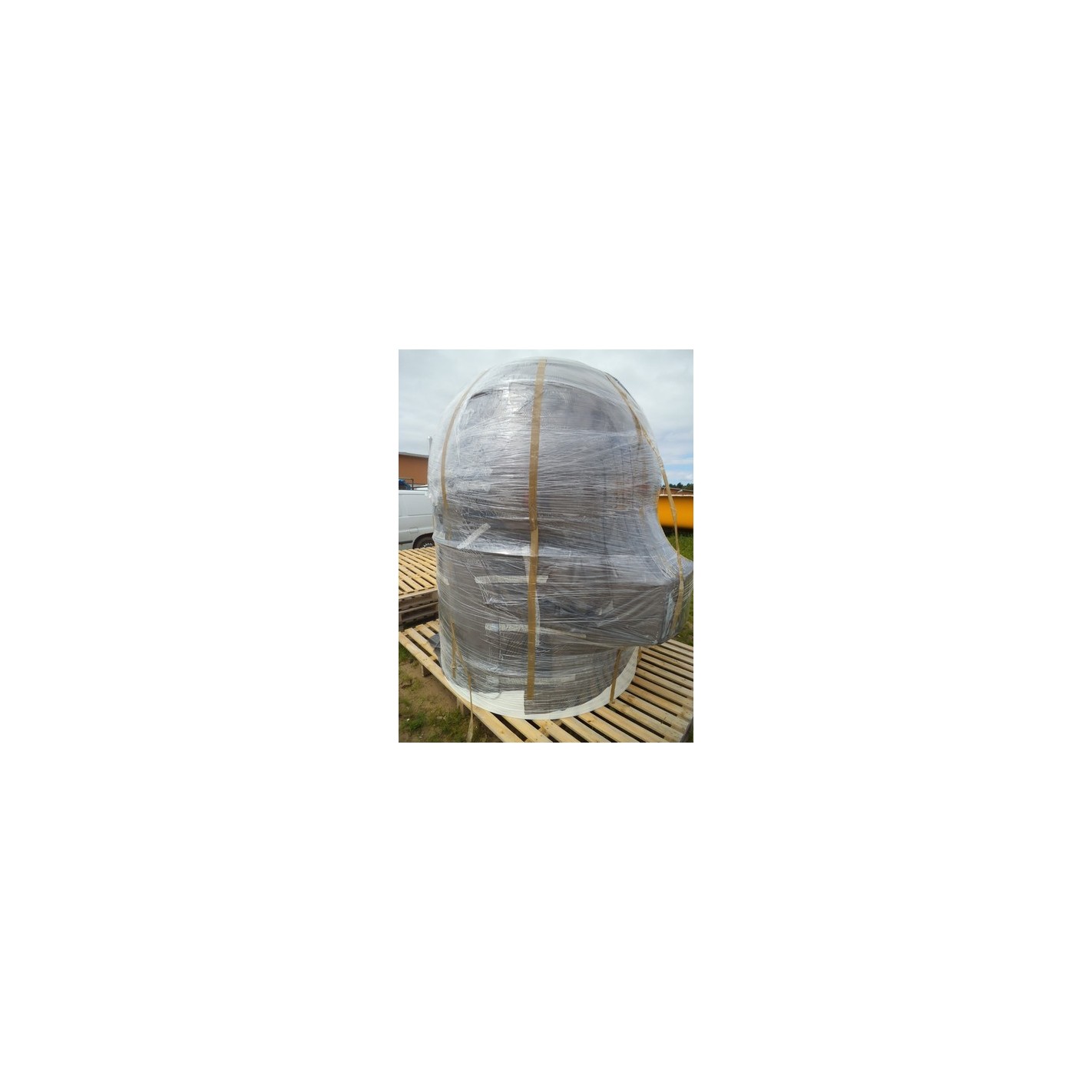

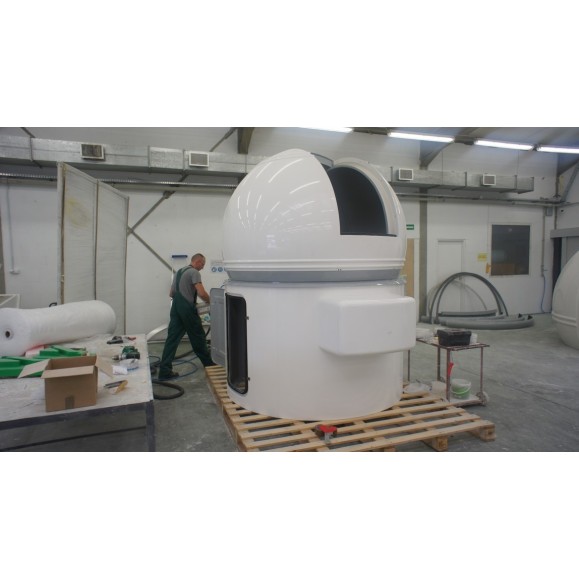

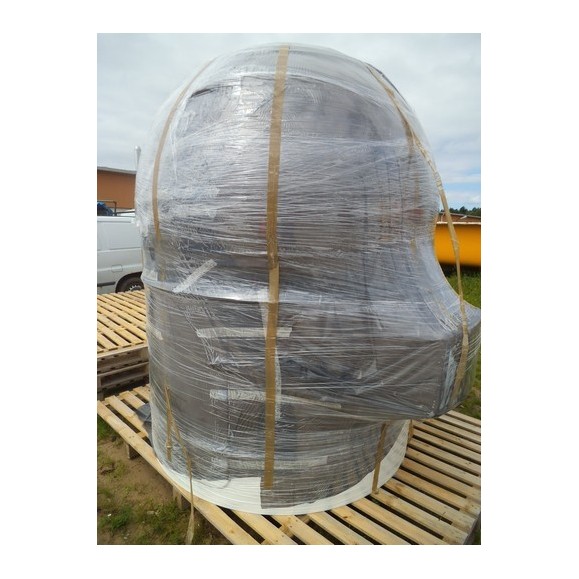

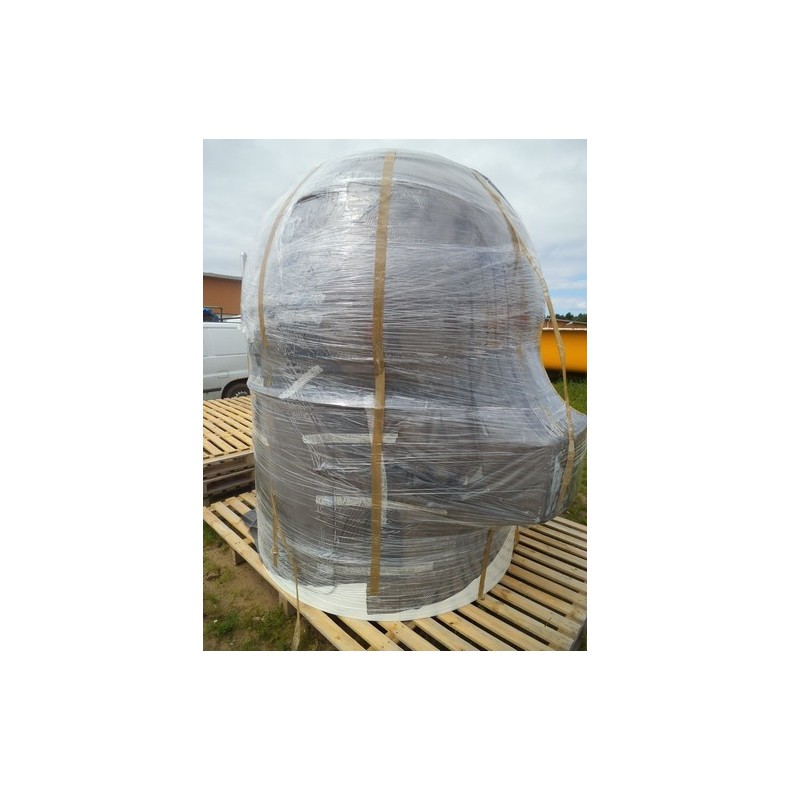

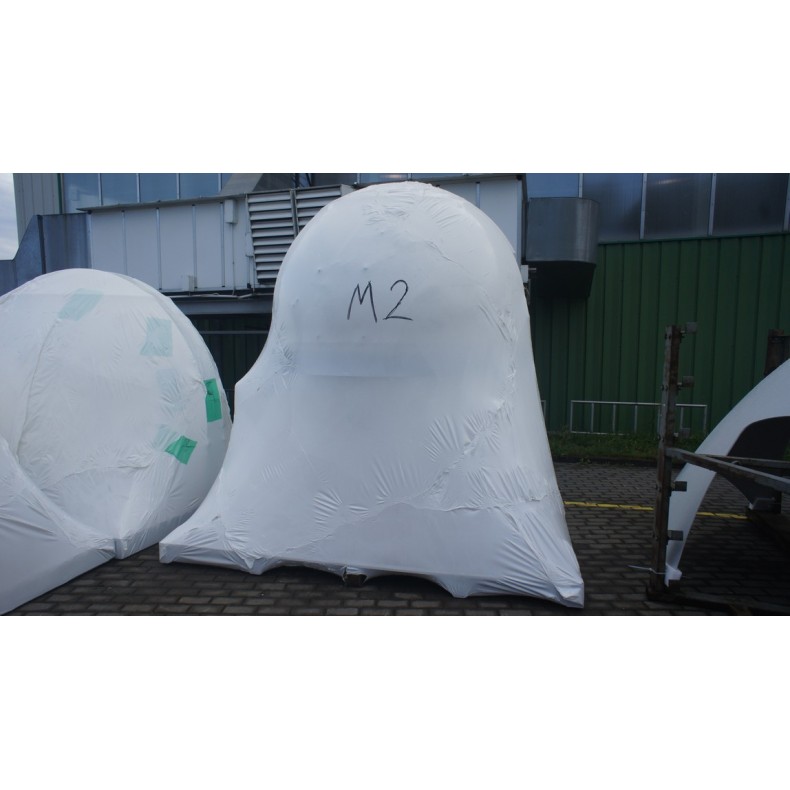

• The dome is delivered already assembled and tested, so installation is not complicated and the dome is ready for operation immediately after unpacking it

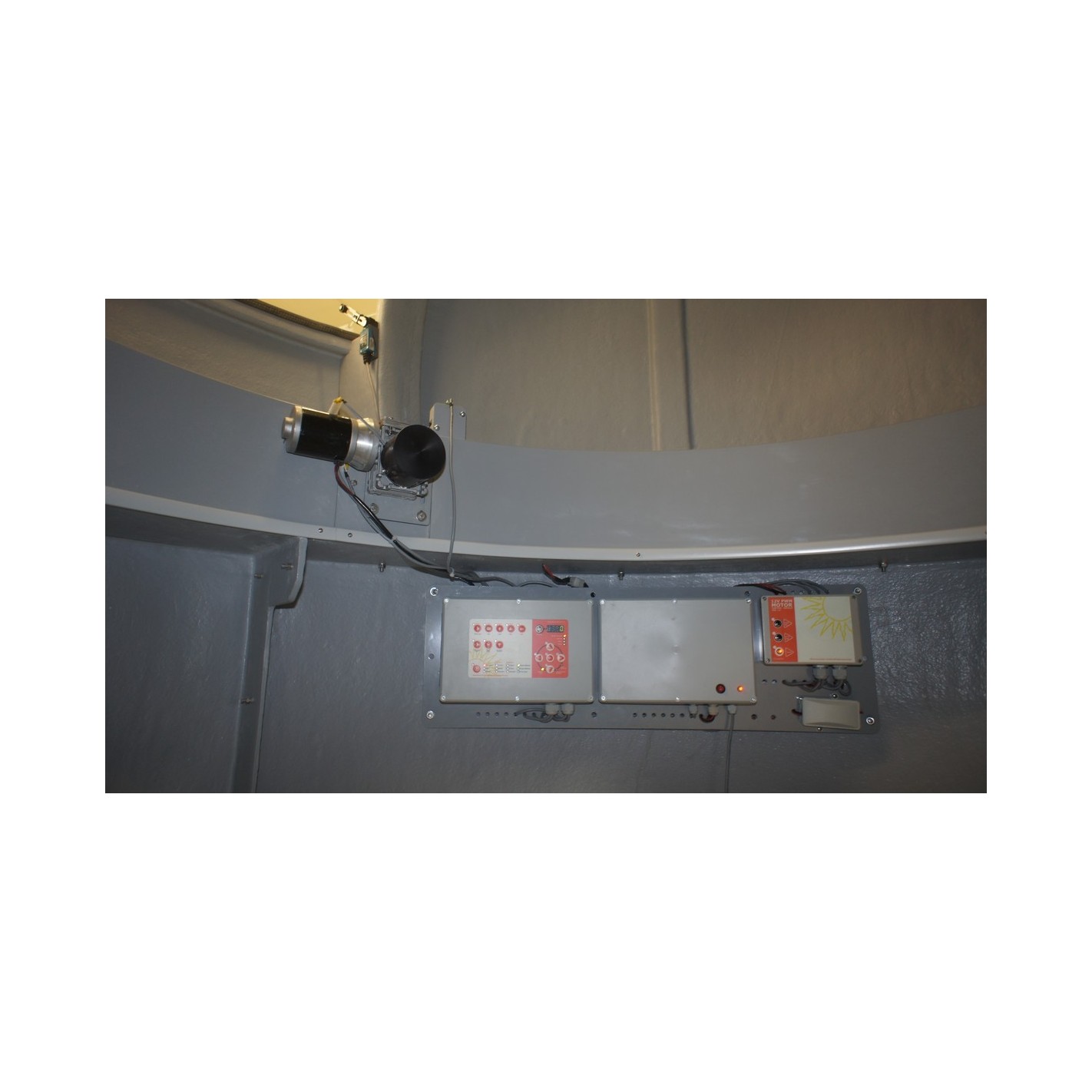

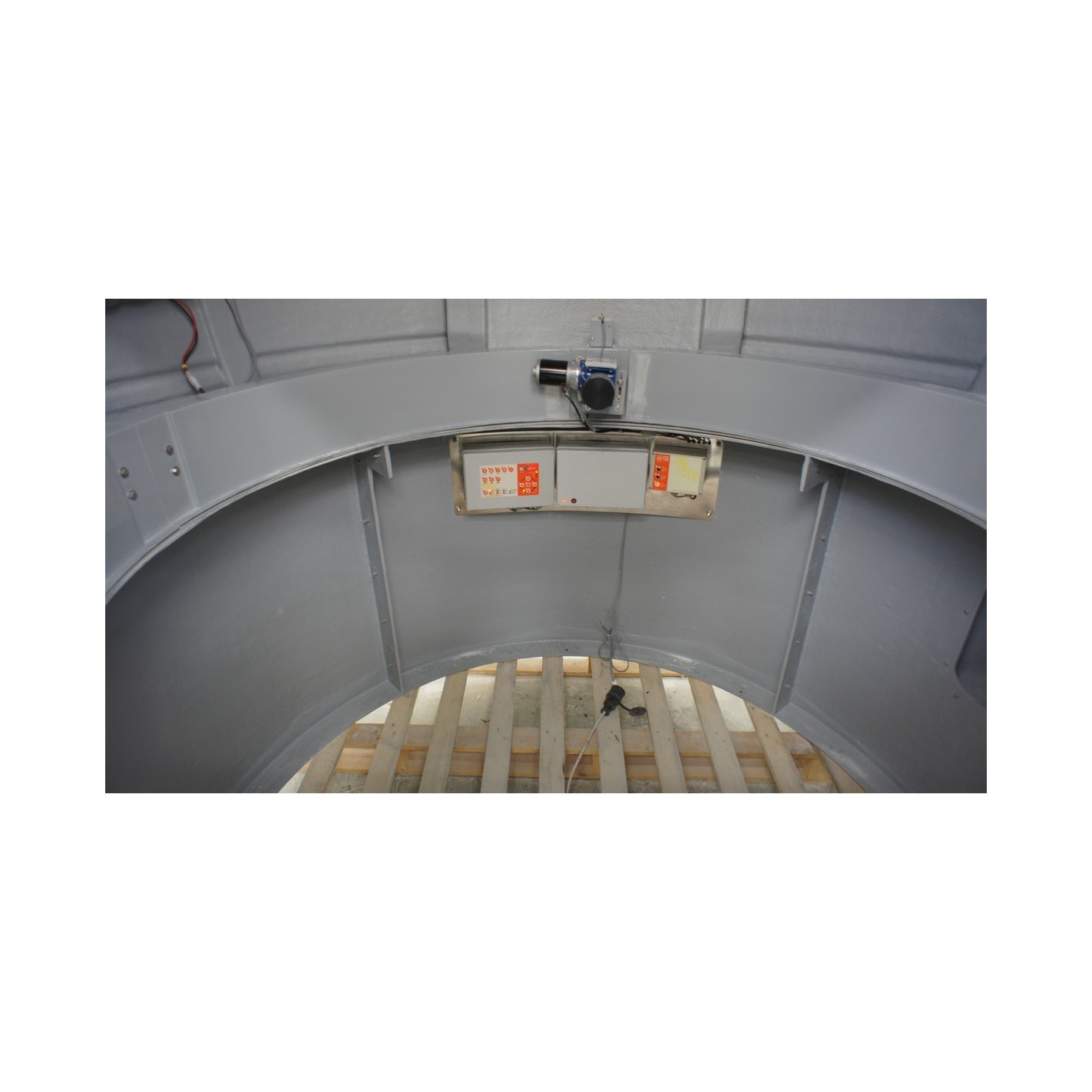

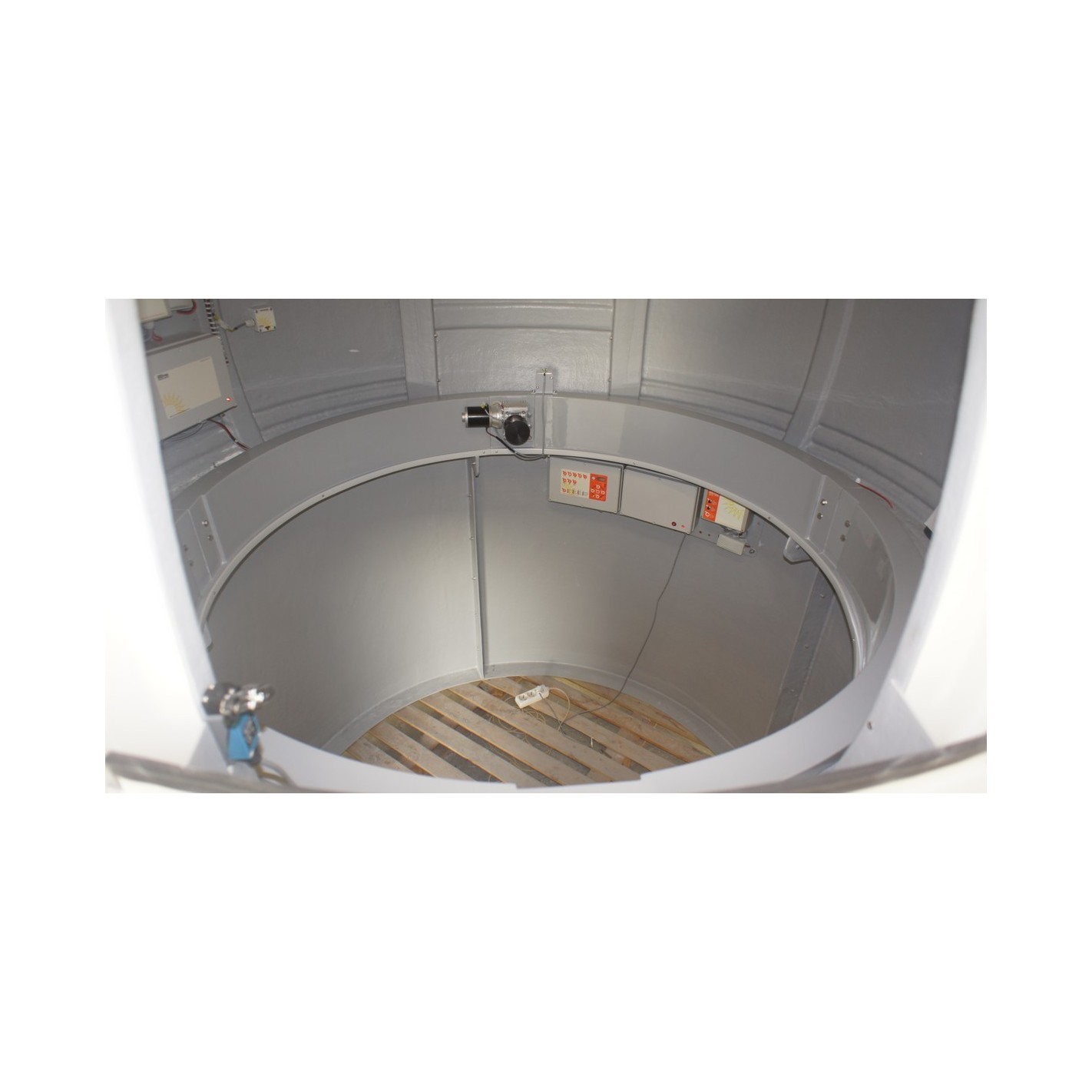

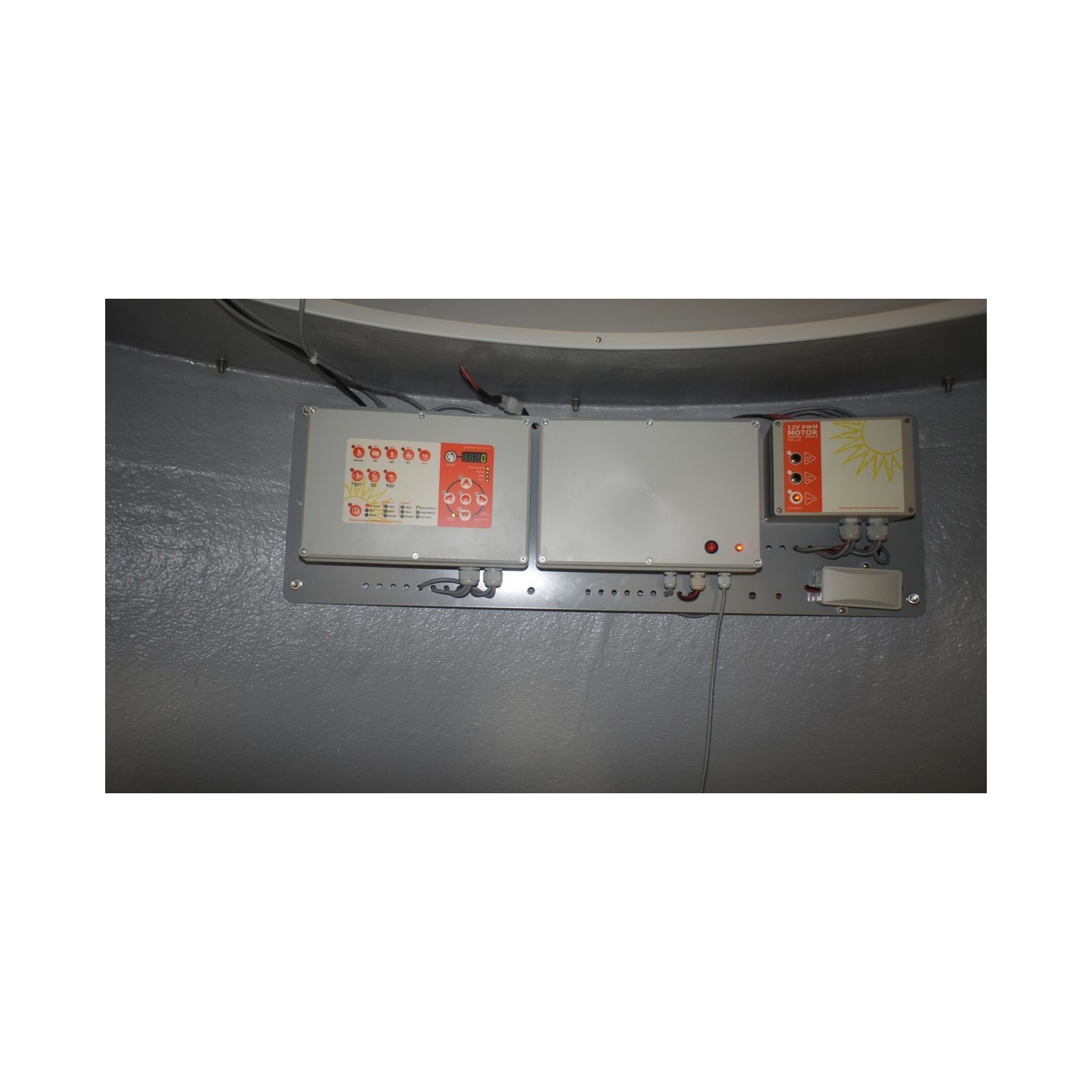

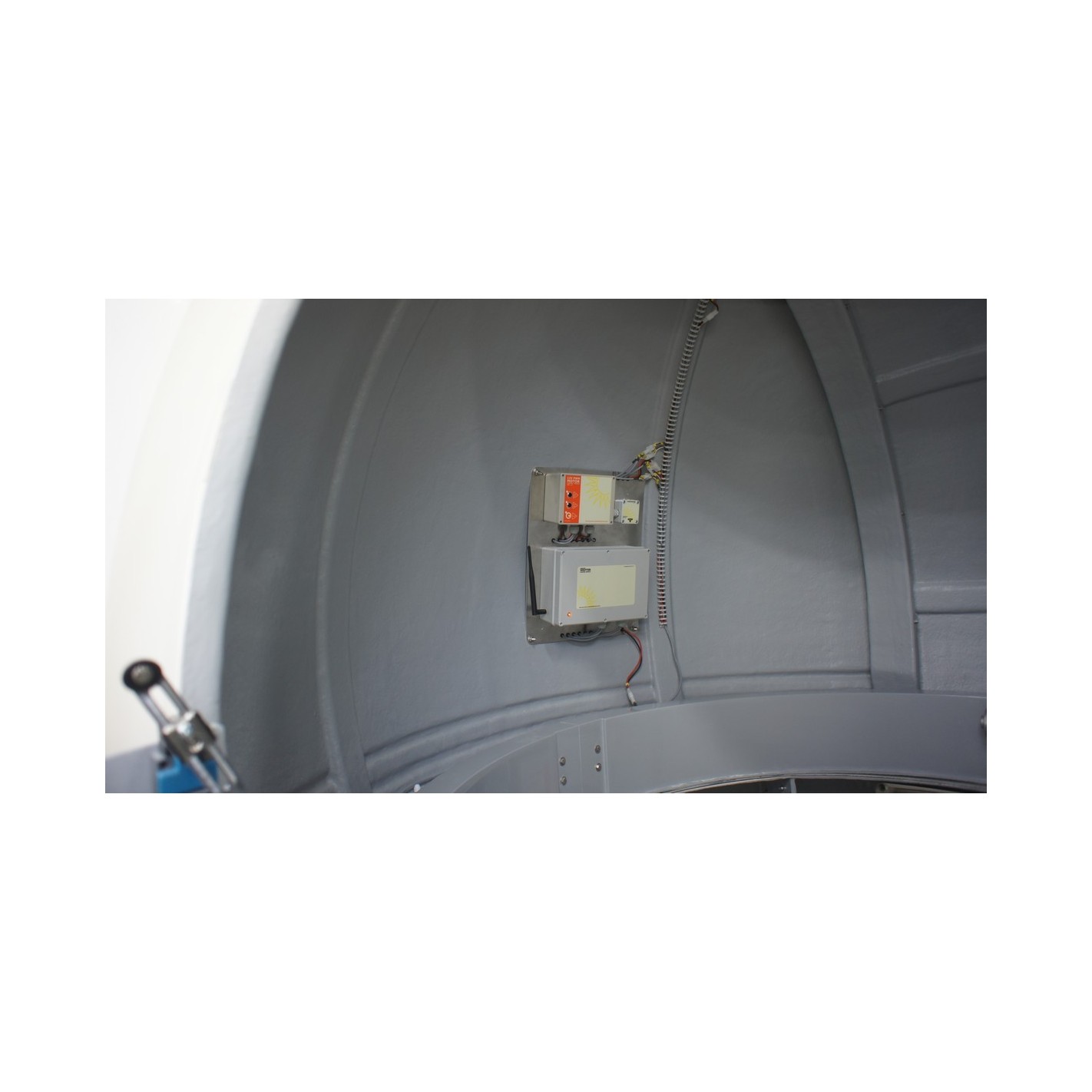

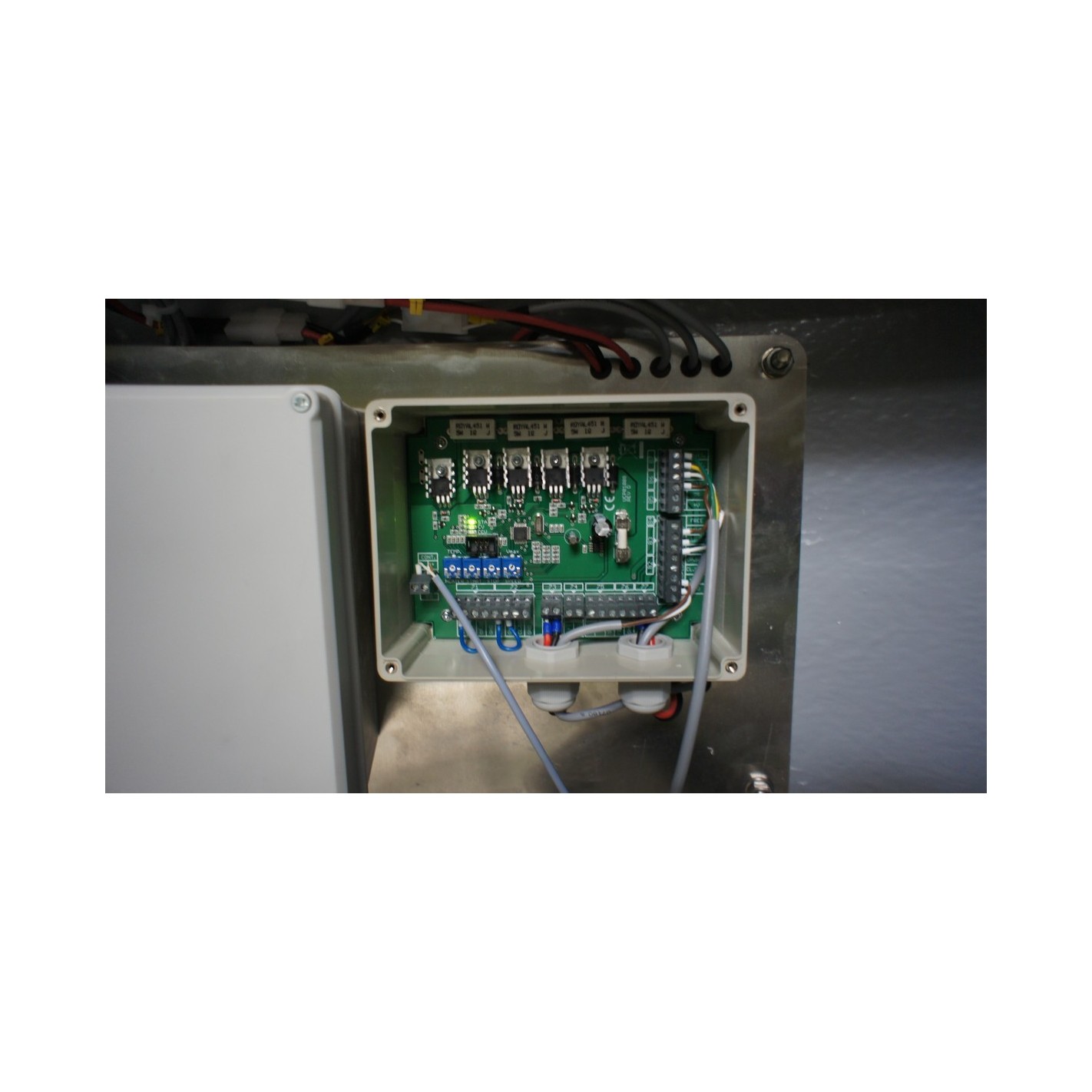

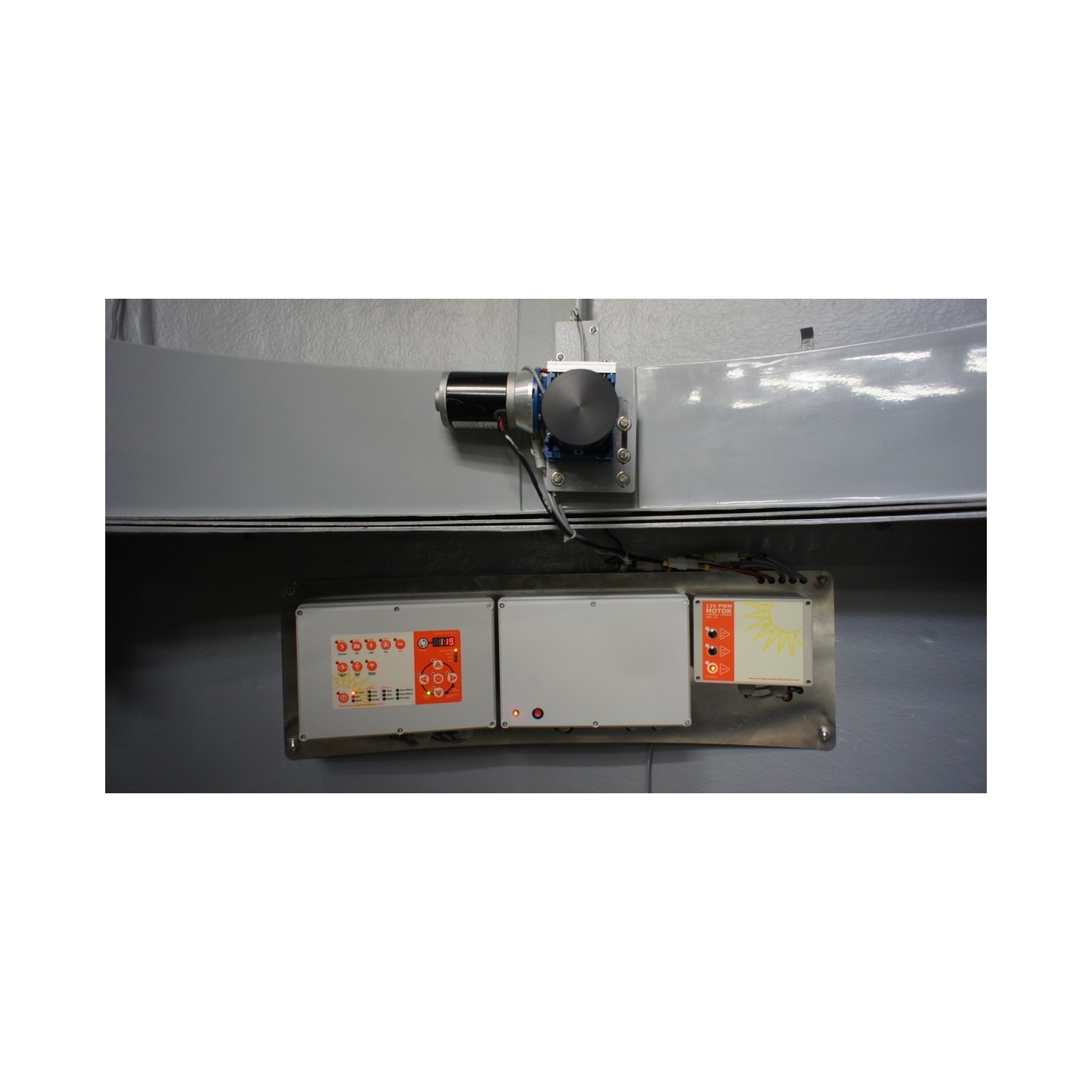

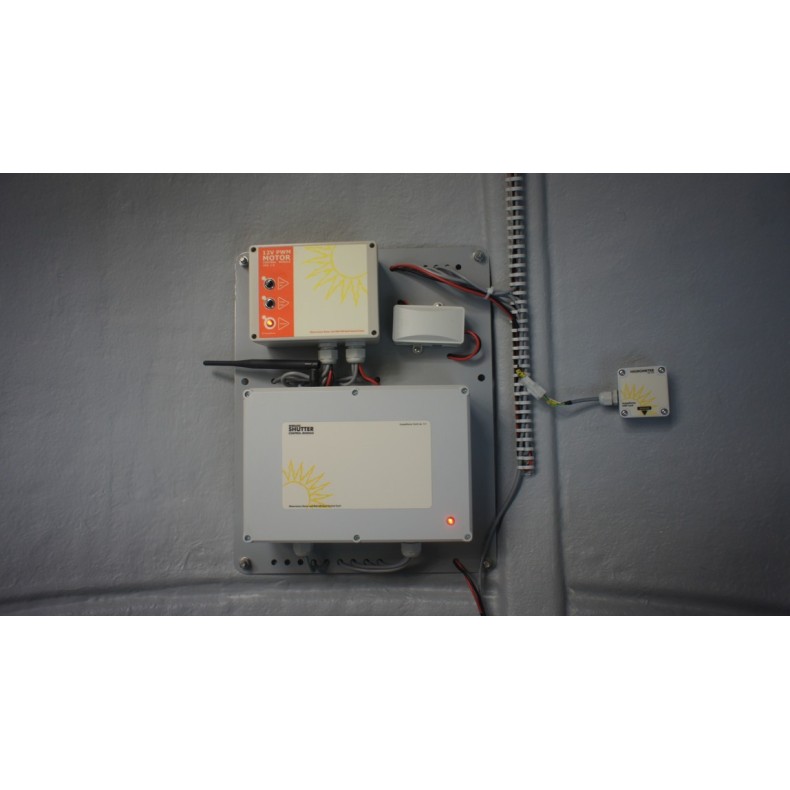

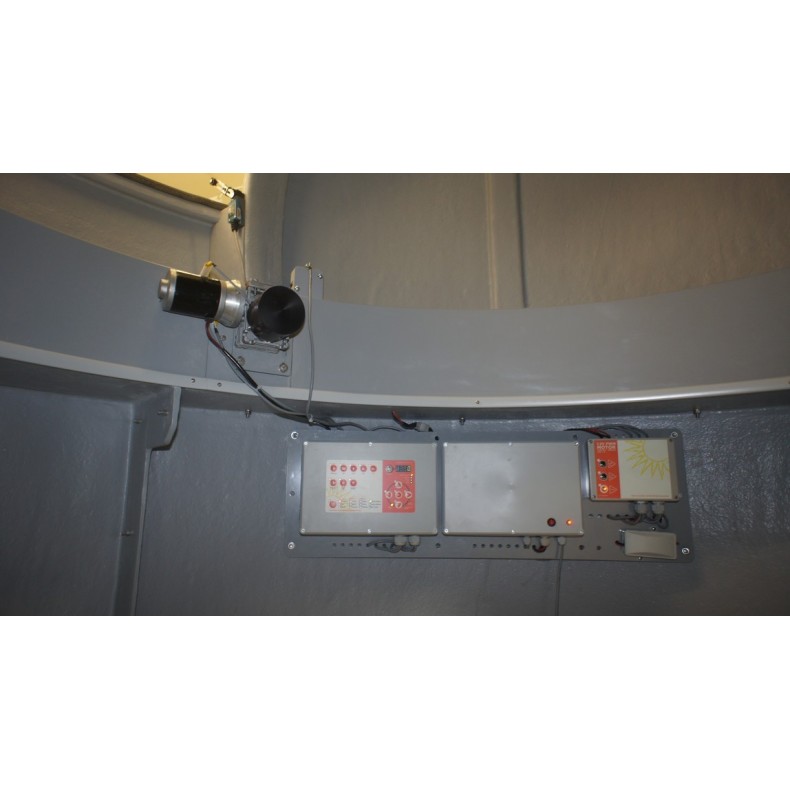

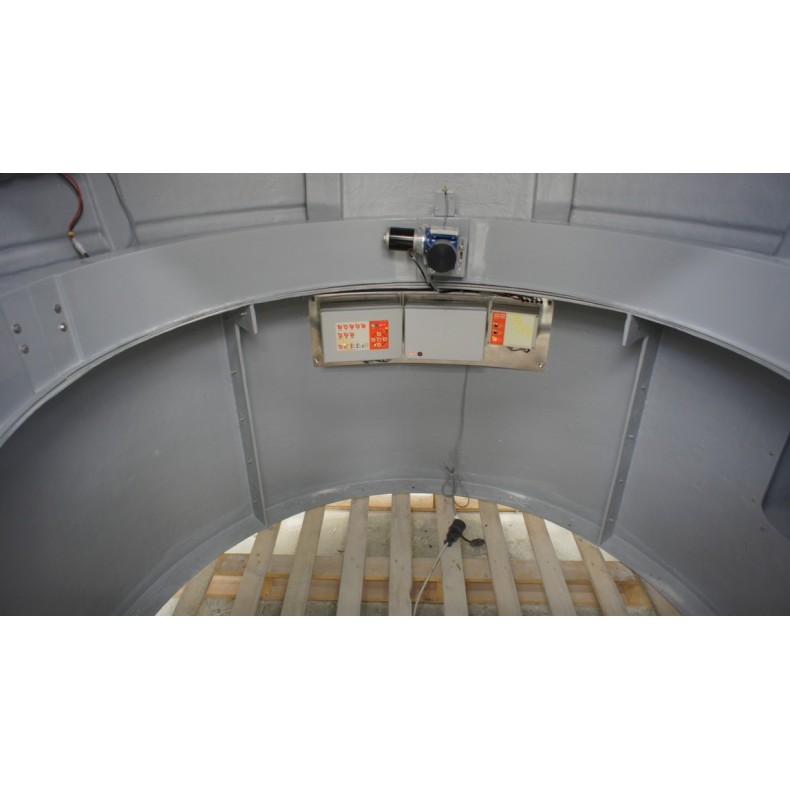

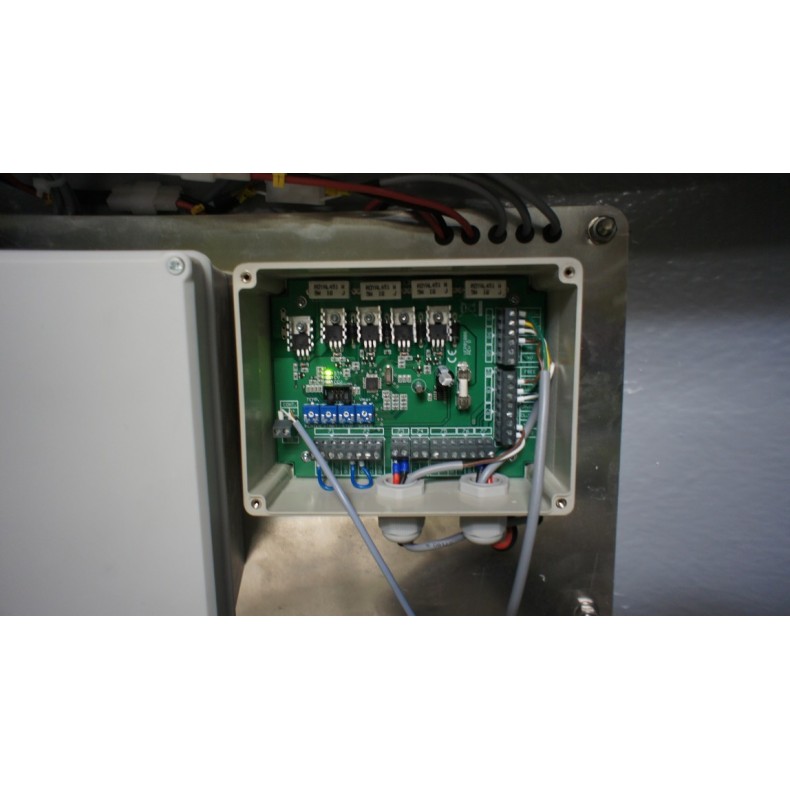

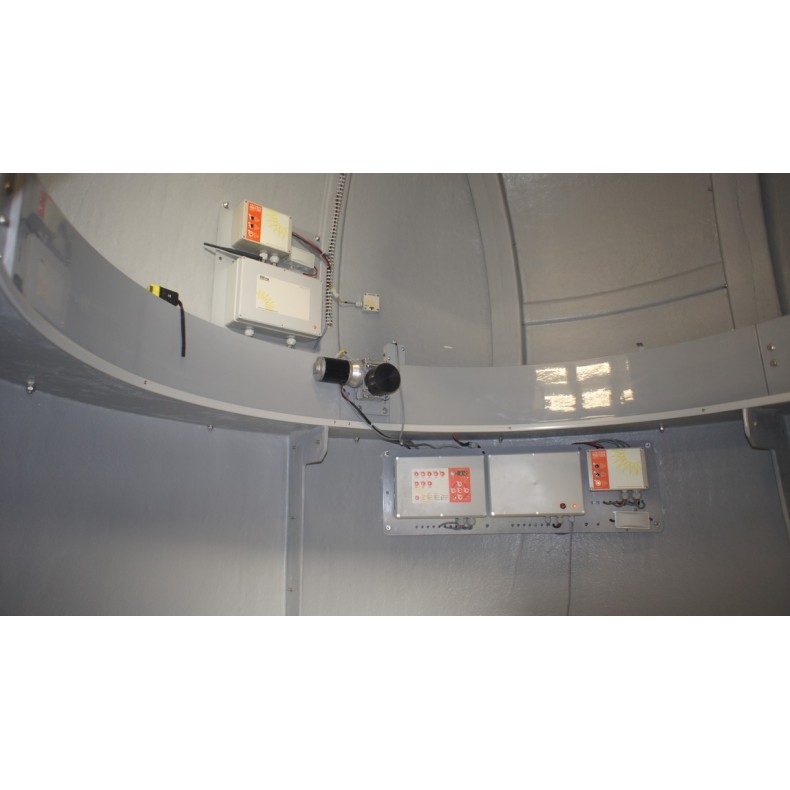

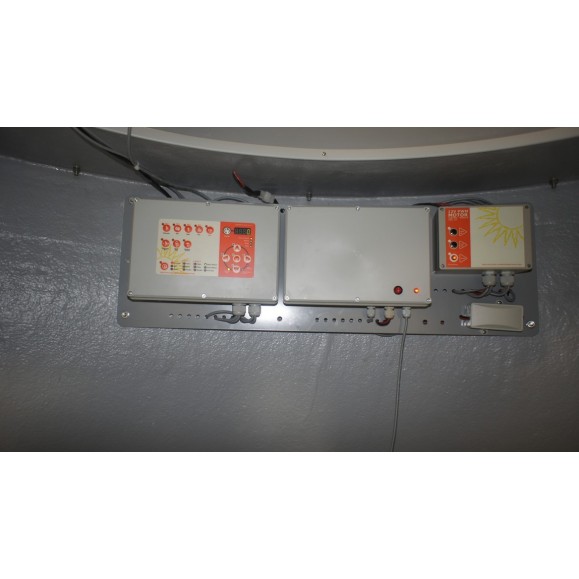

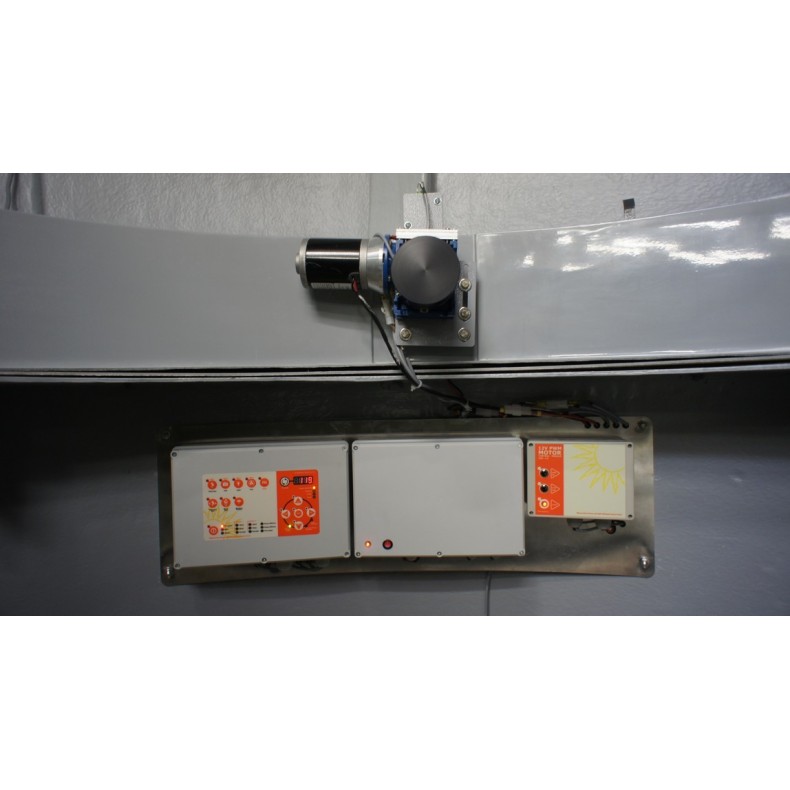

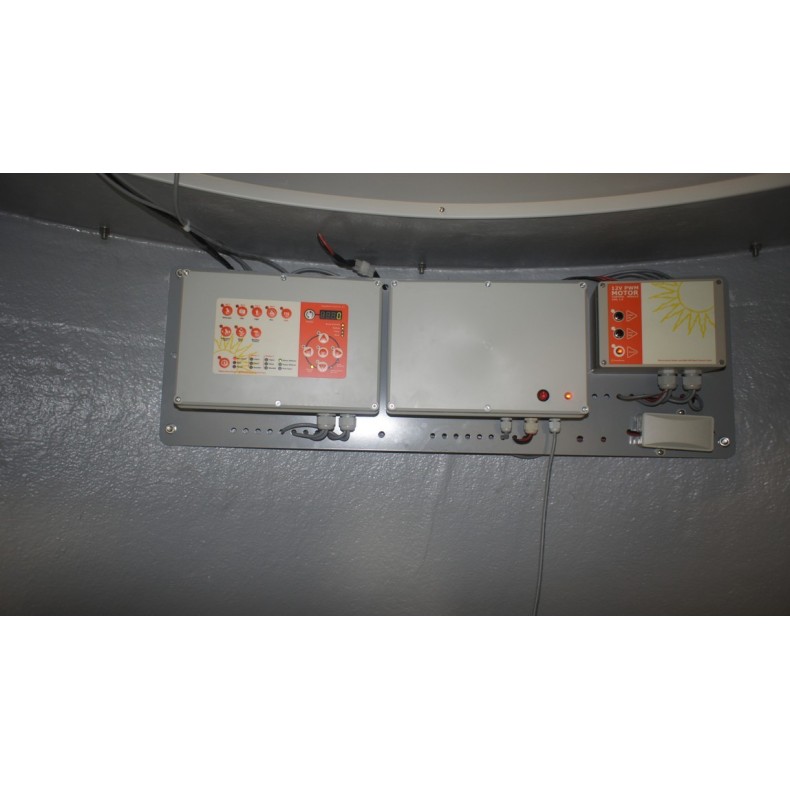

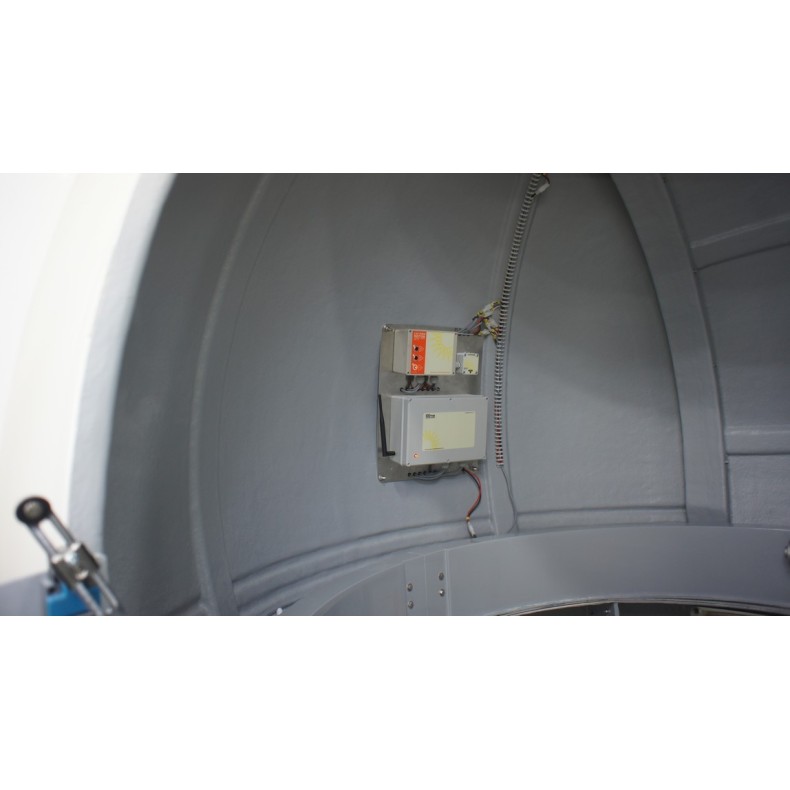

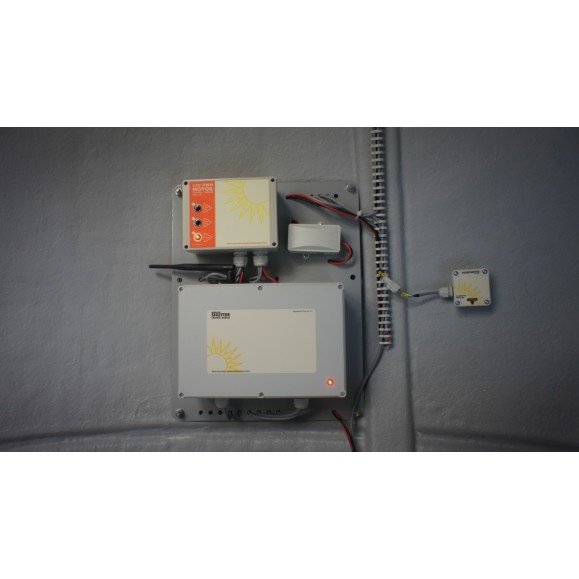

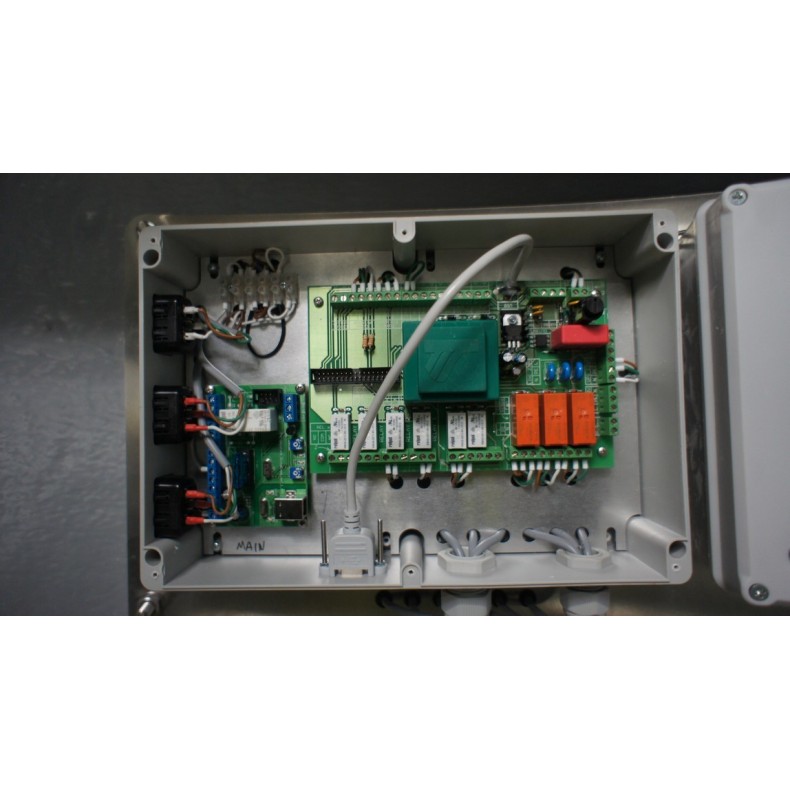

• Reliable power supply (12 V DC) for motors, control board and heating system
• The dome motors and control board can be powered directly from a 12V DC car battery

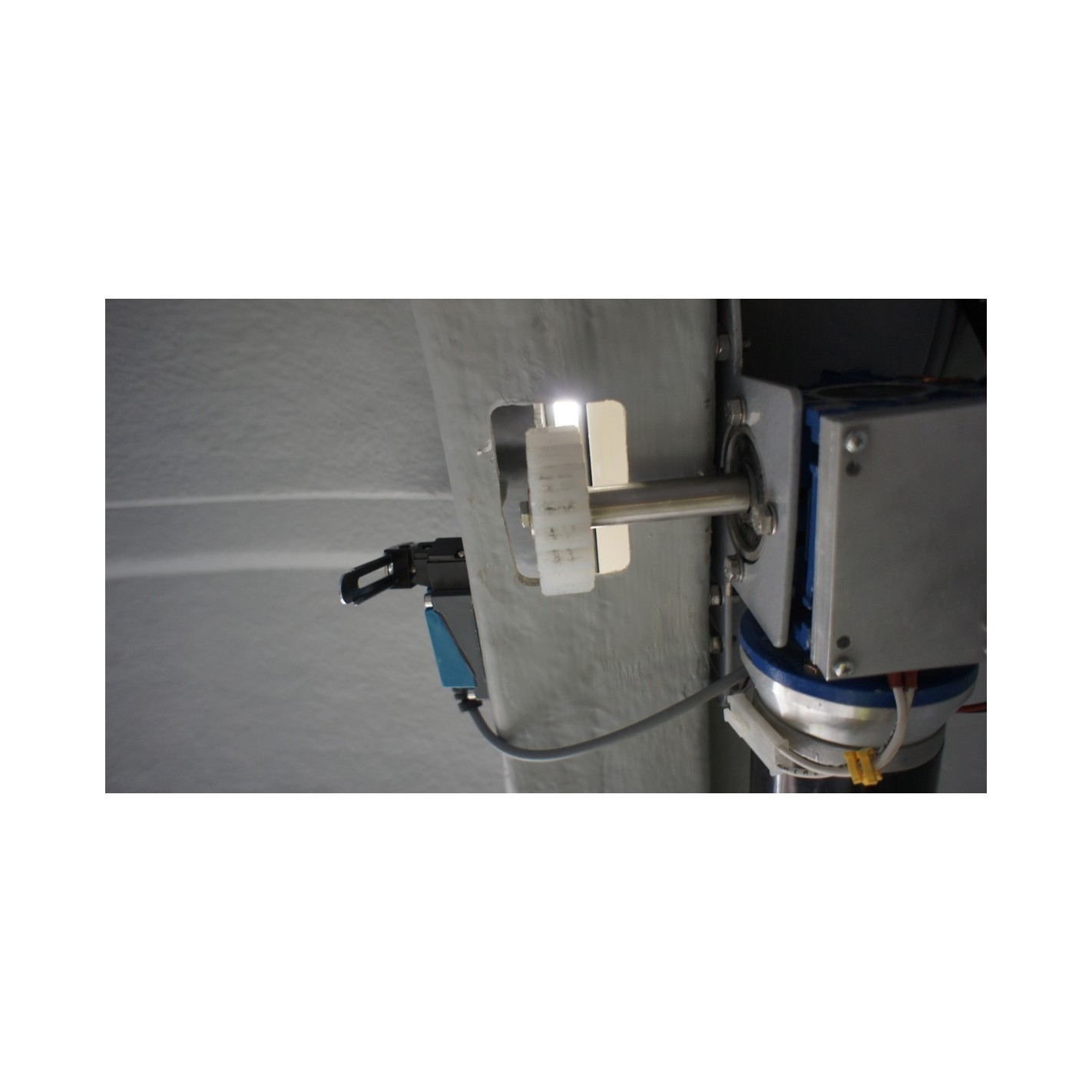

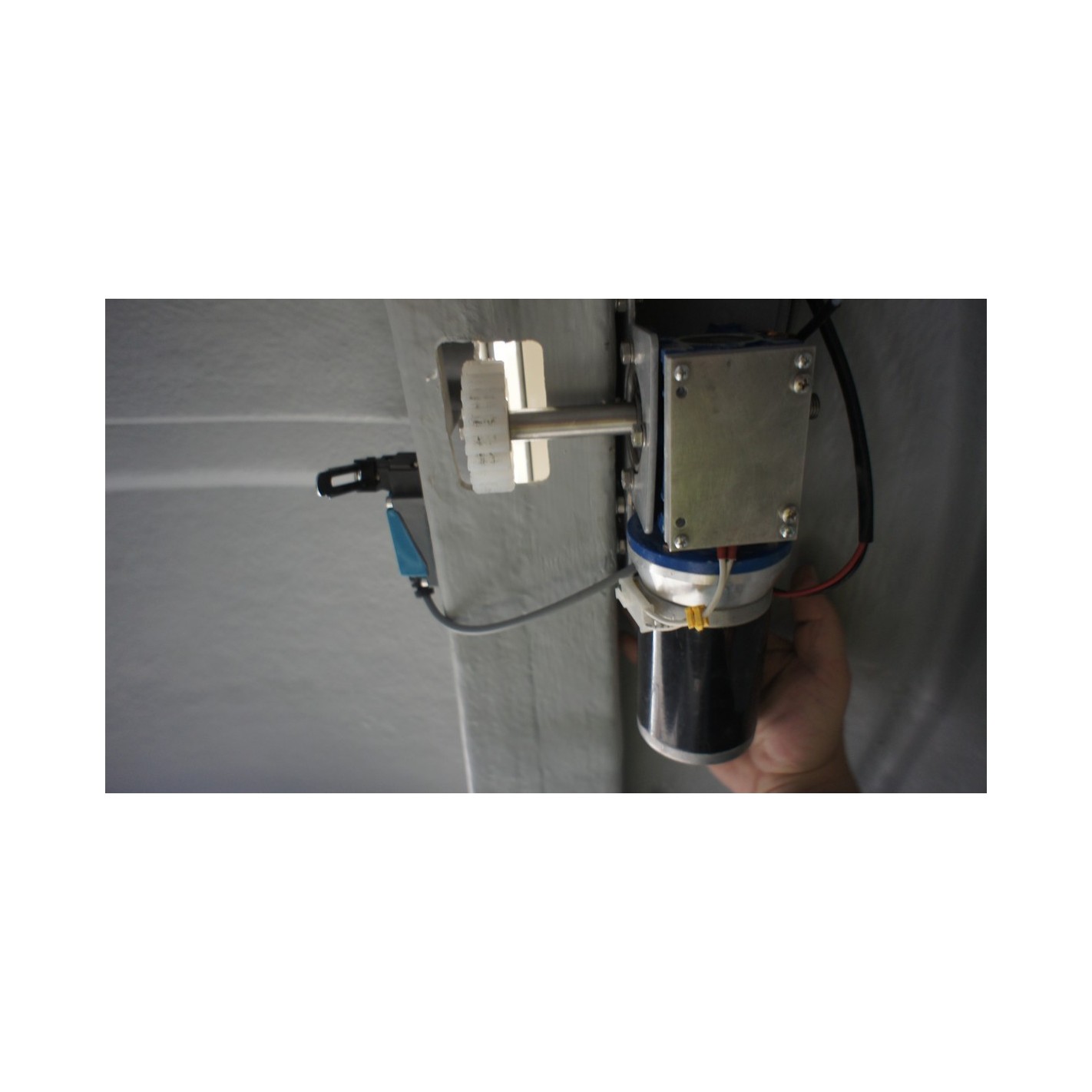

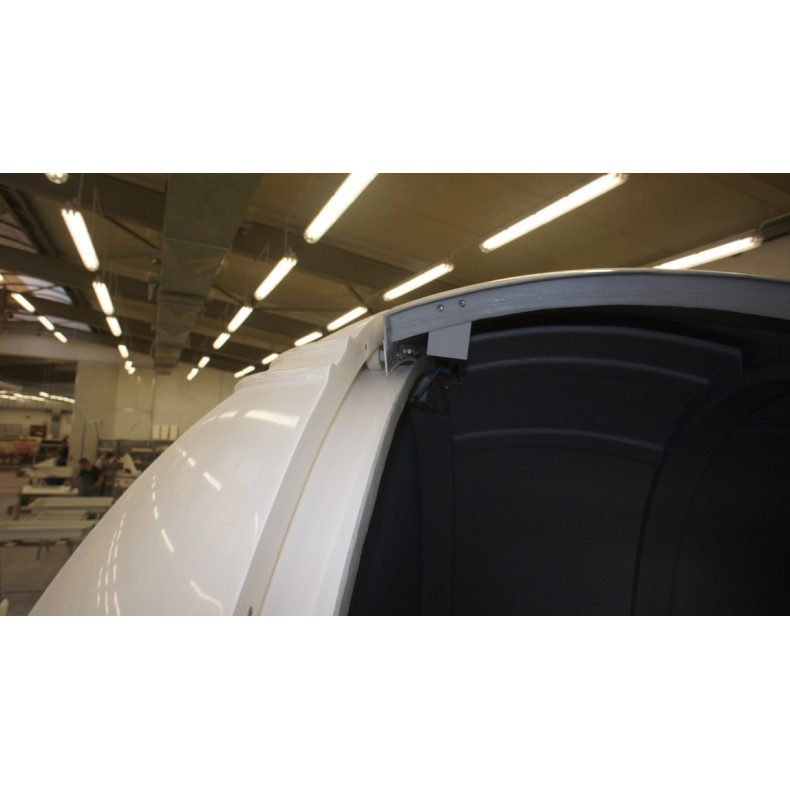

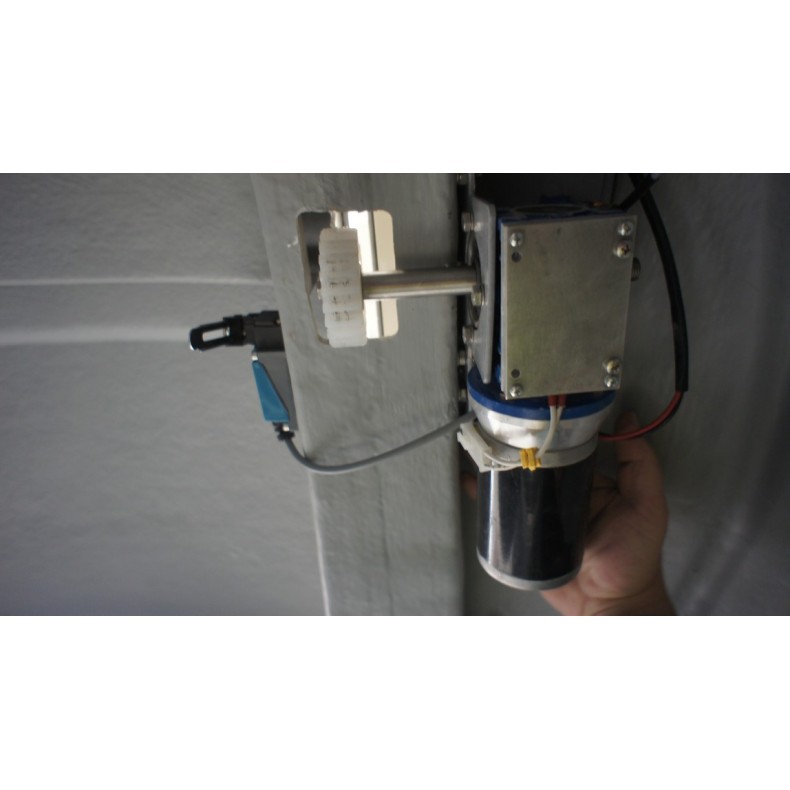

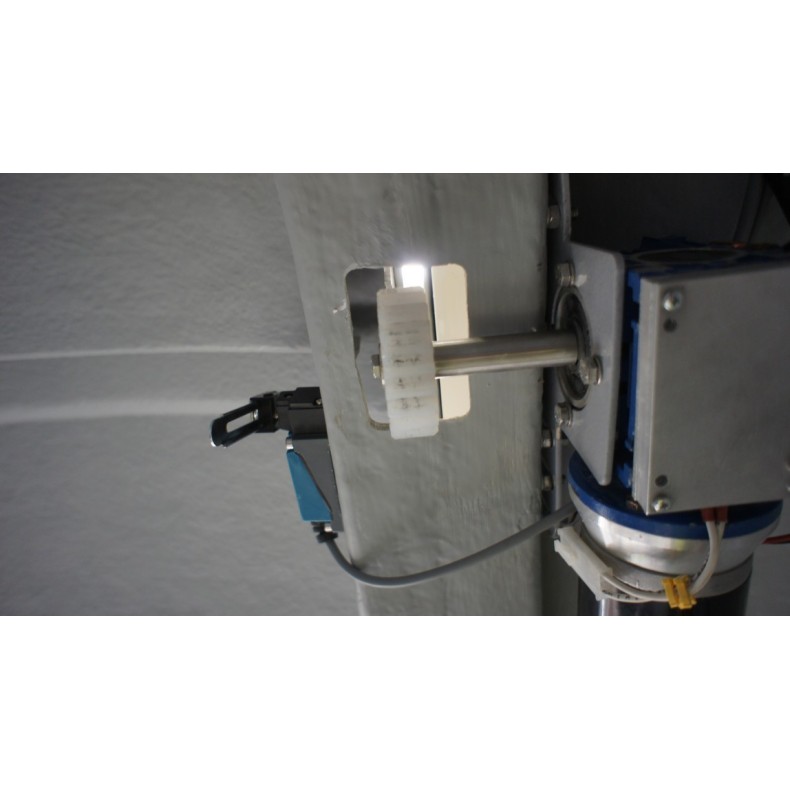

• Ability to automatically open the shutter at any azimuth using the built-in actuator mechanism

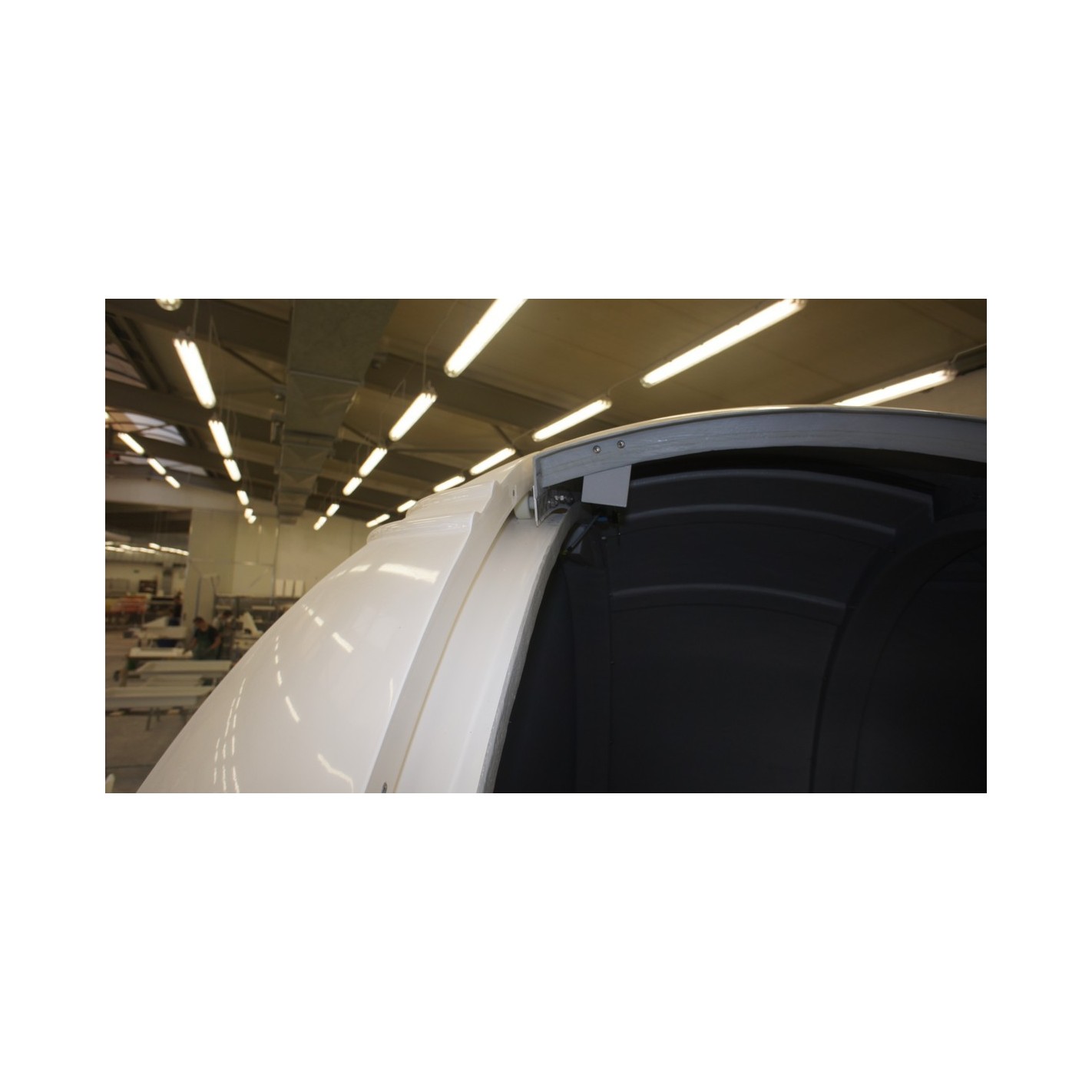

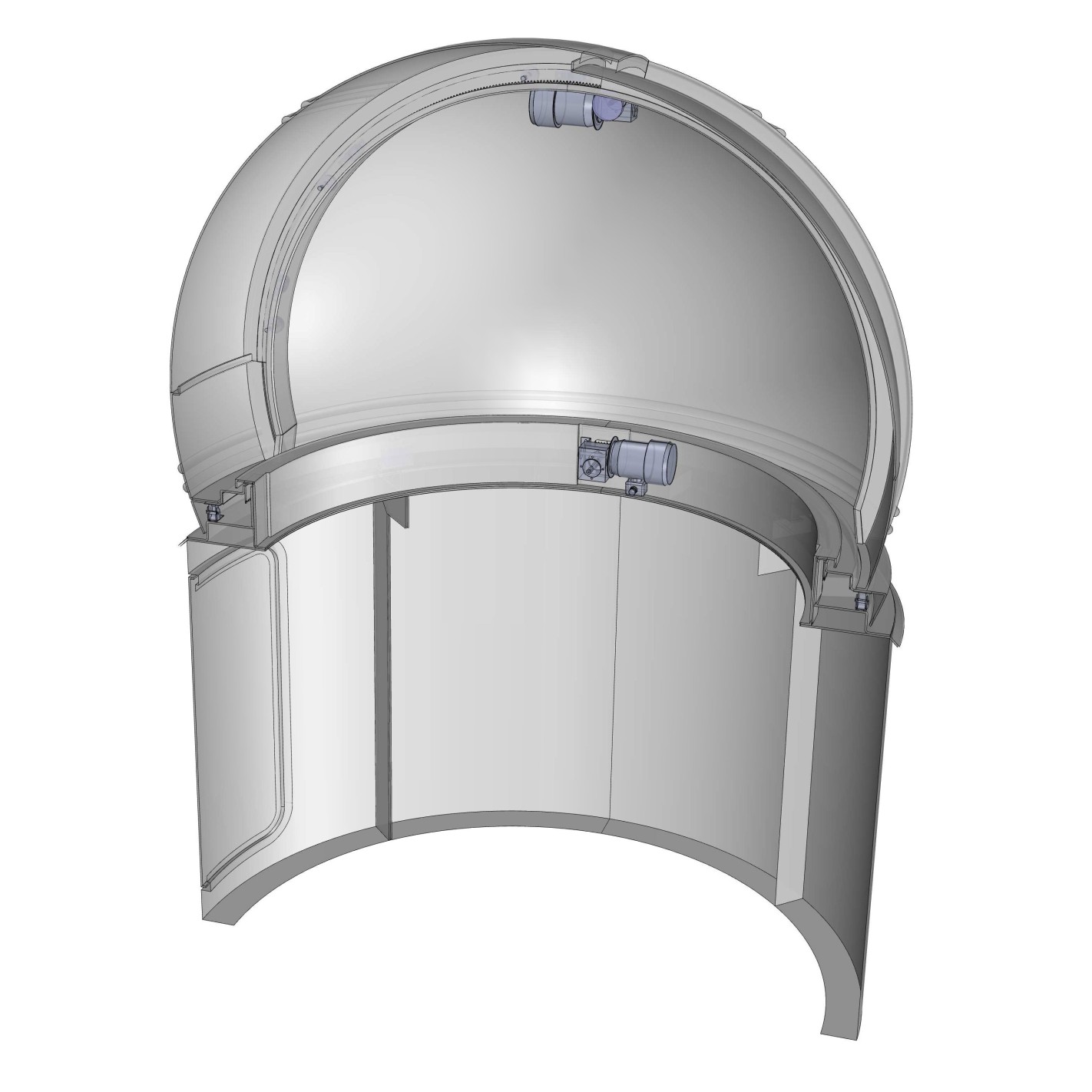

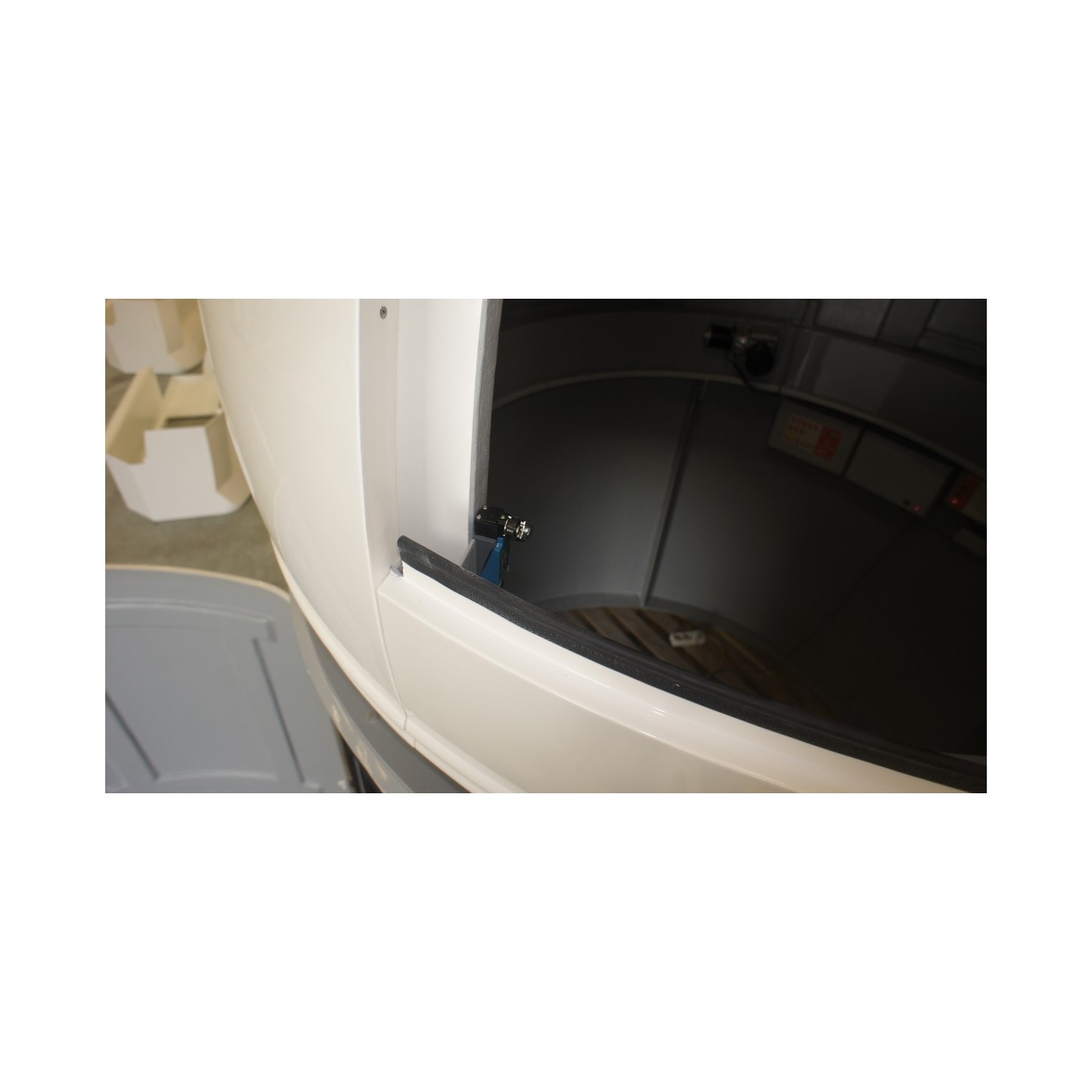

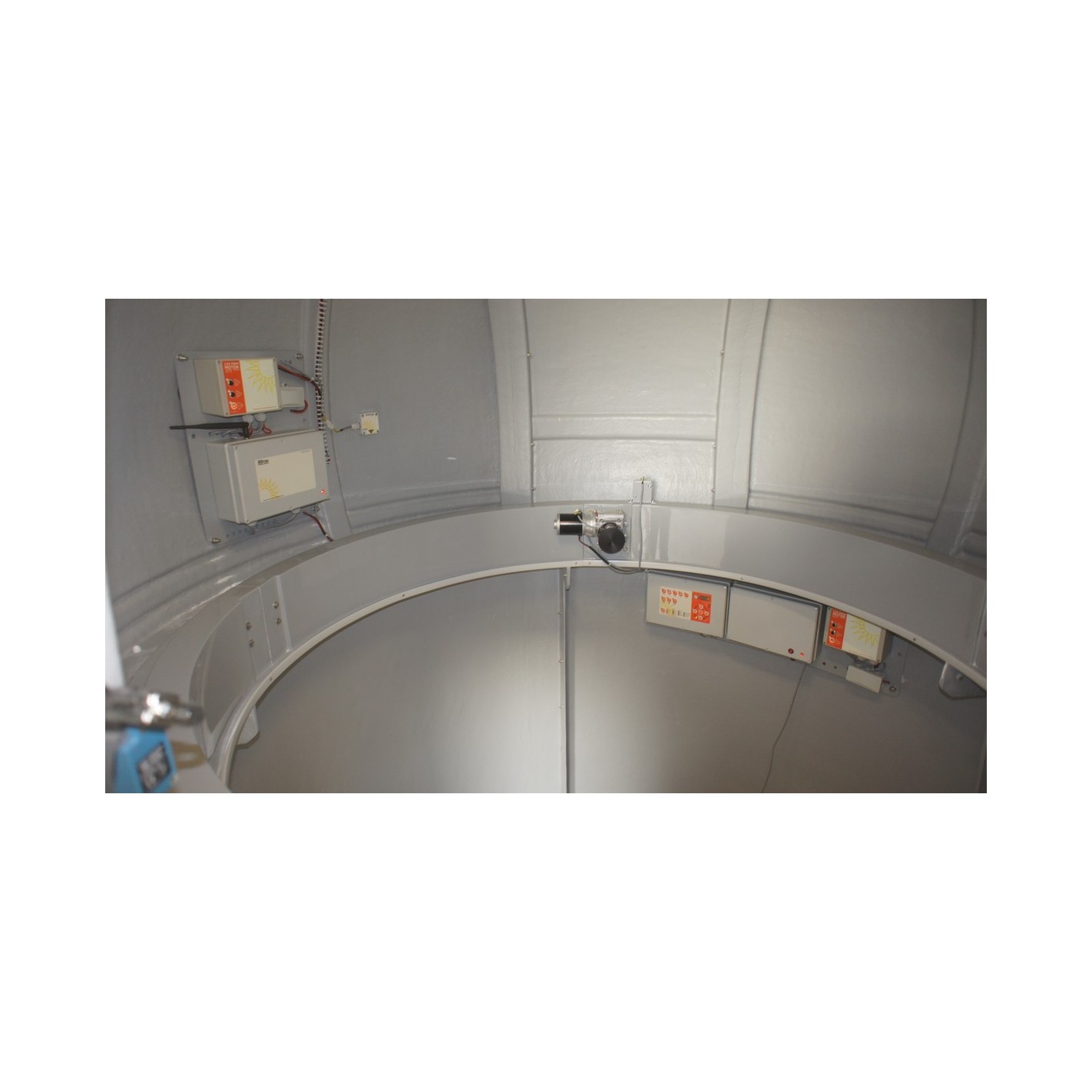

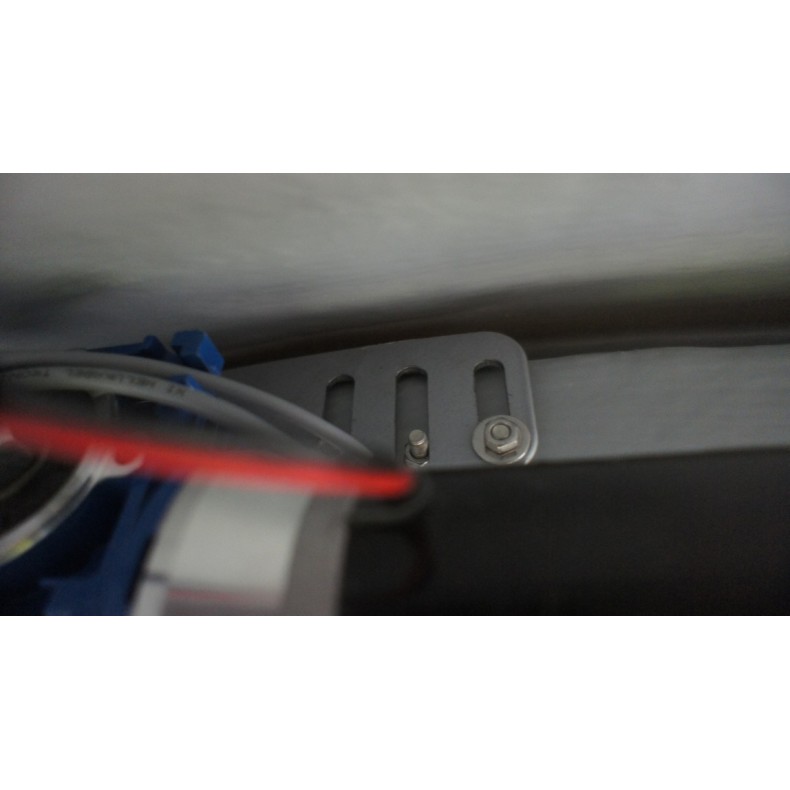

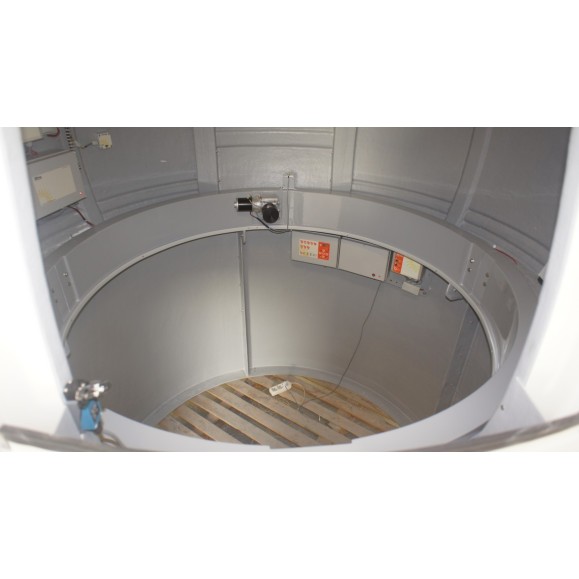

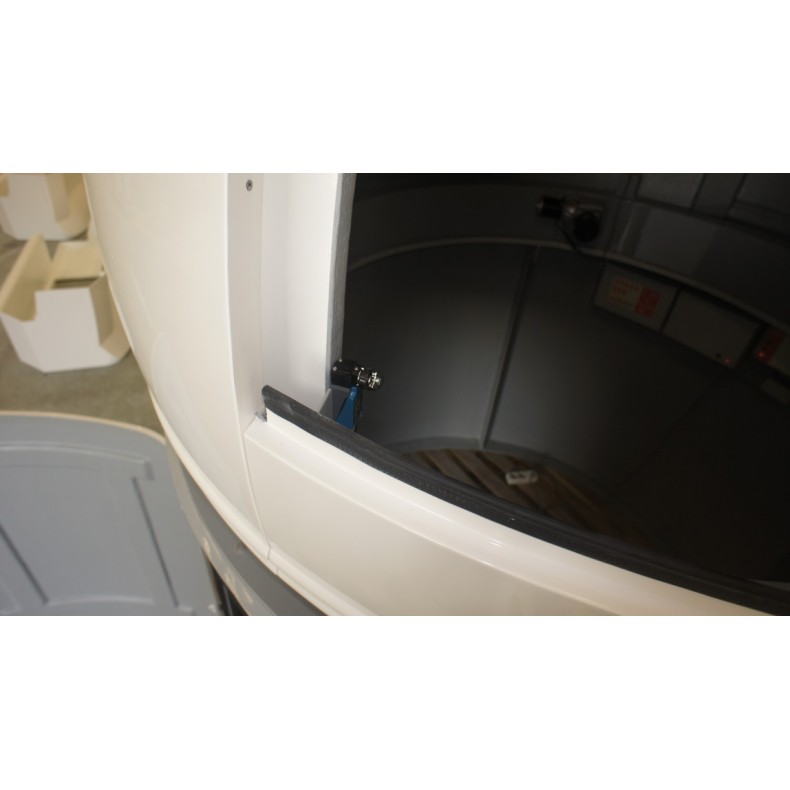

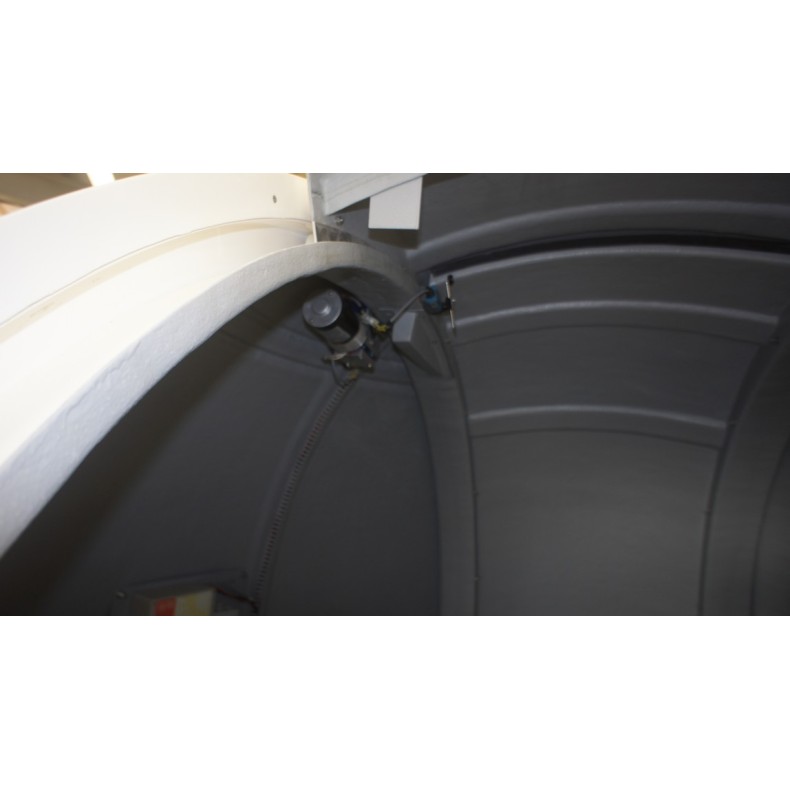

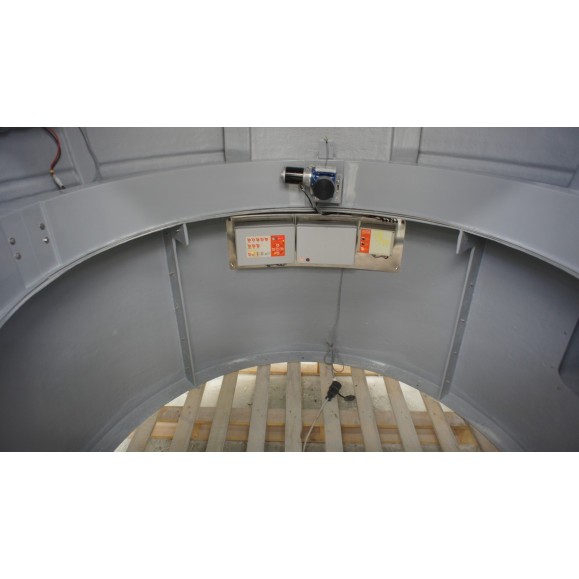

• All rollers and operating bearings of the shutter and rotation mechanism are hidden inside the dome to protect them from the weather. Thanks to its innovative design and 3D and CNC production technologies, the space between the rotating parts of the dome has been minimized, allowing it to be installed inside the dome.

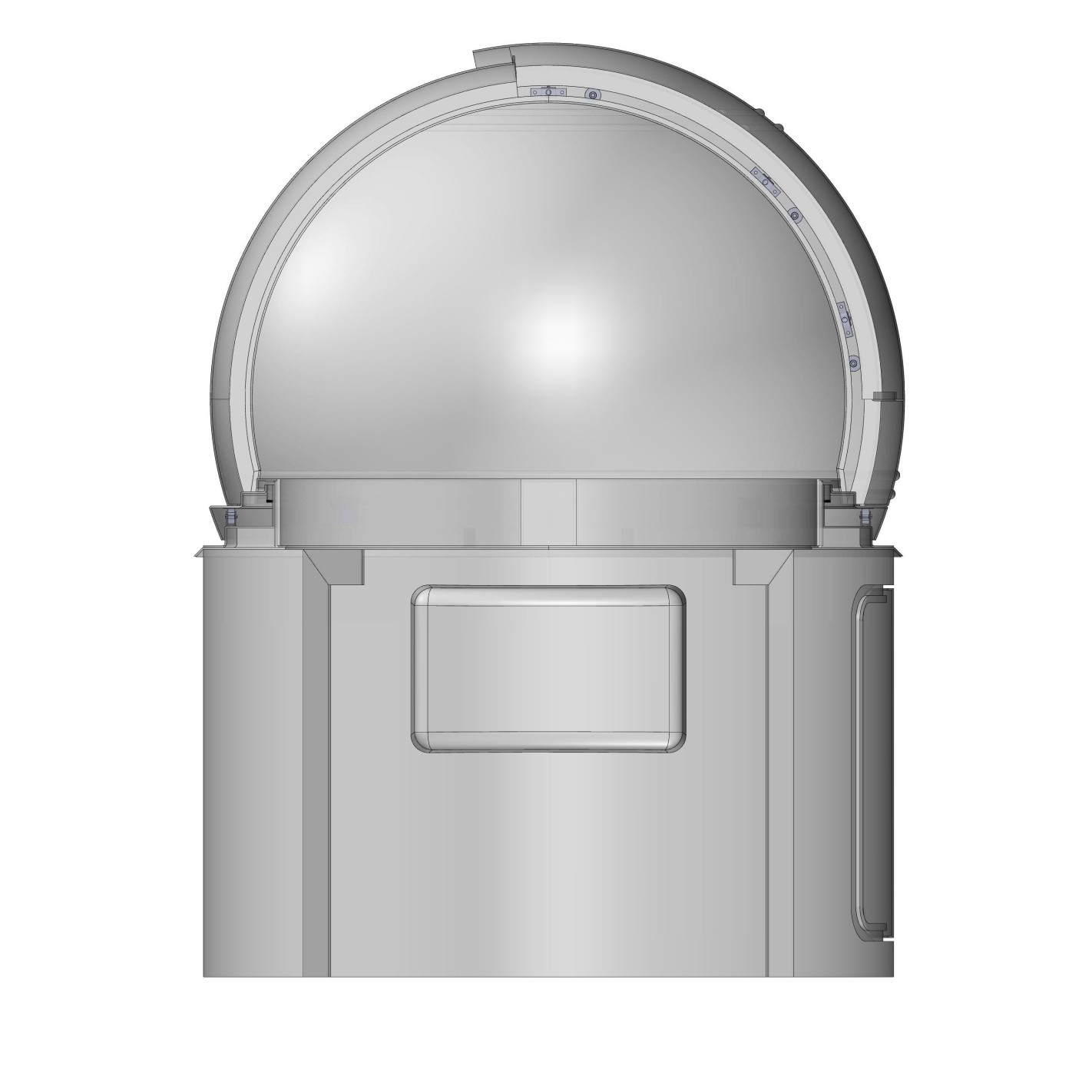

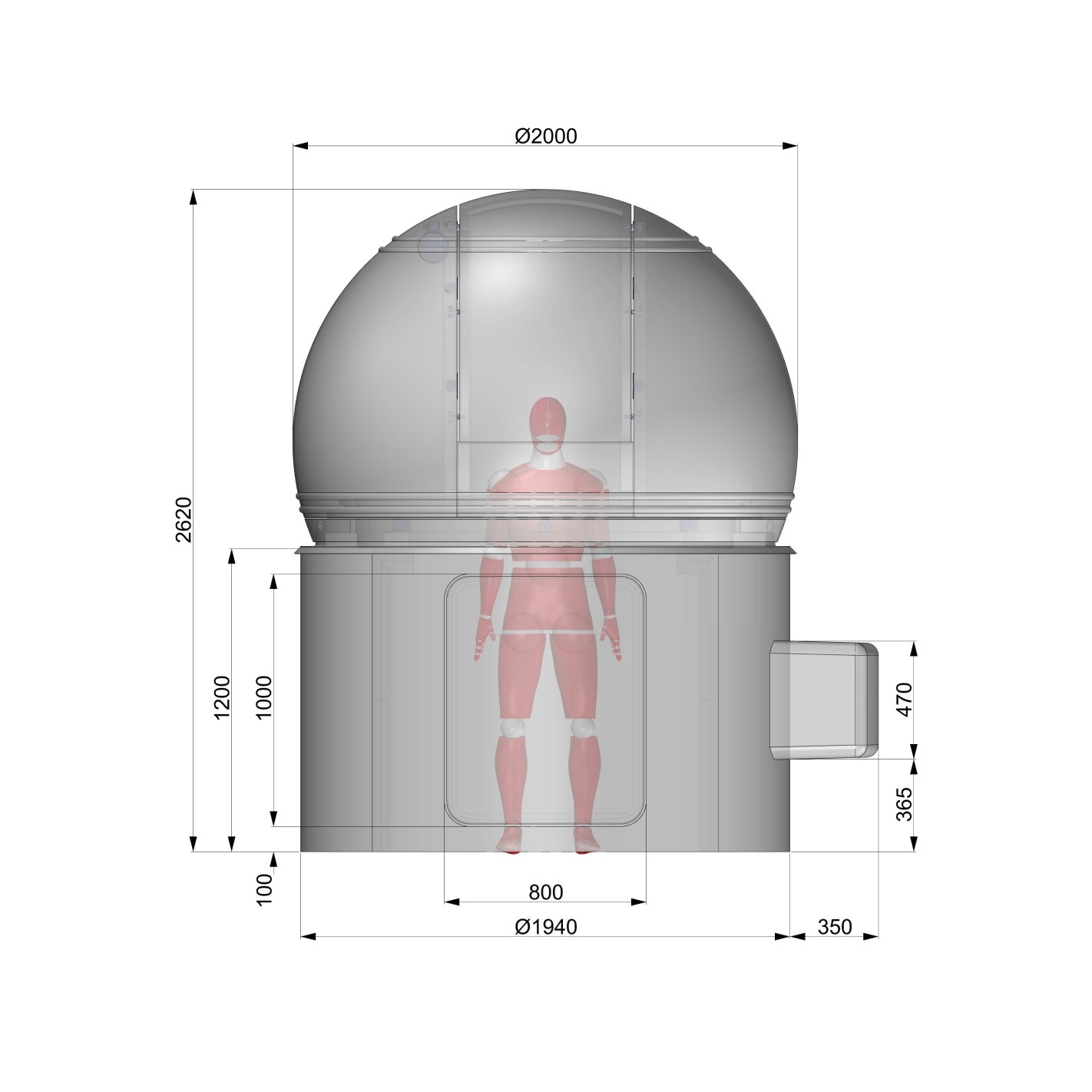

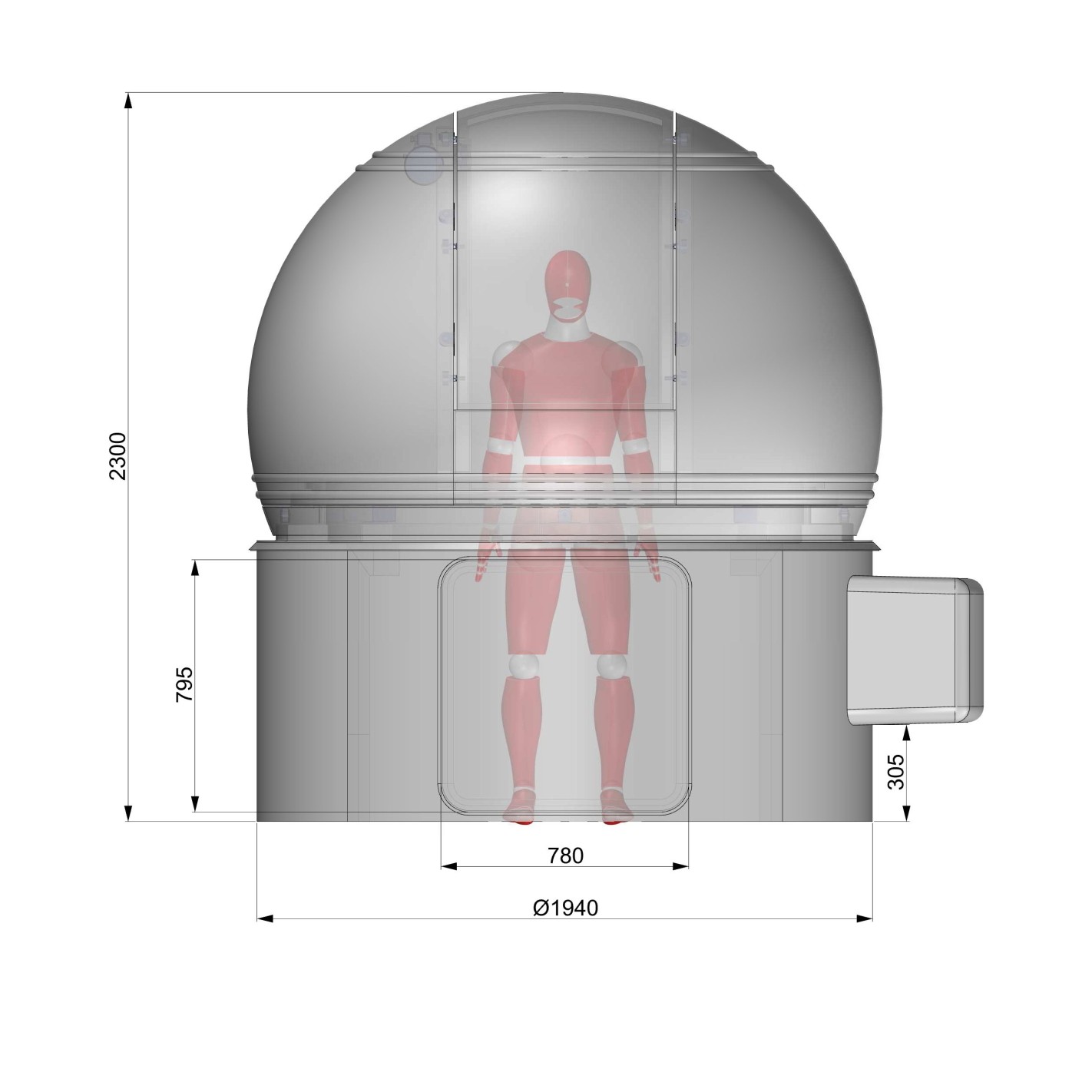

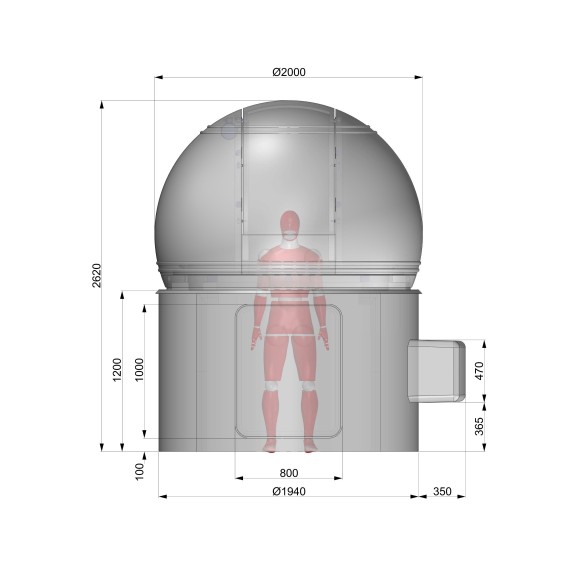

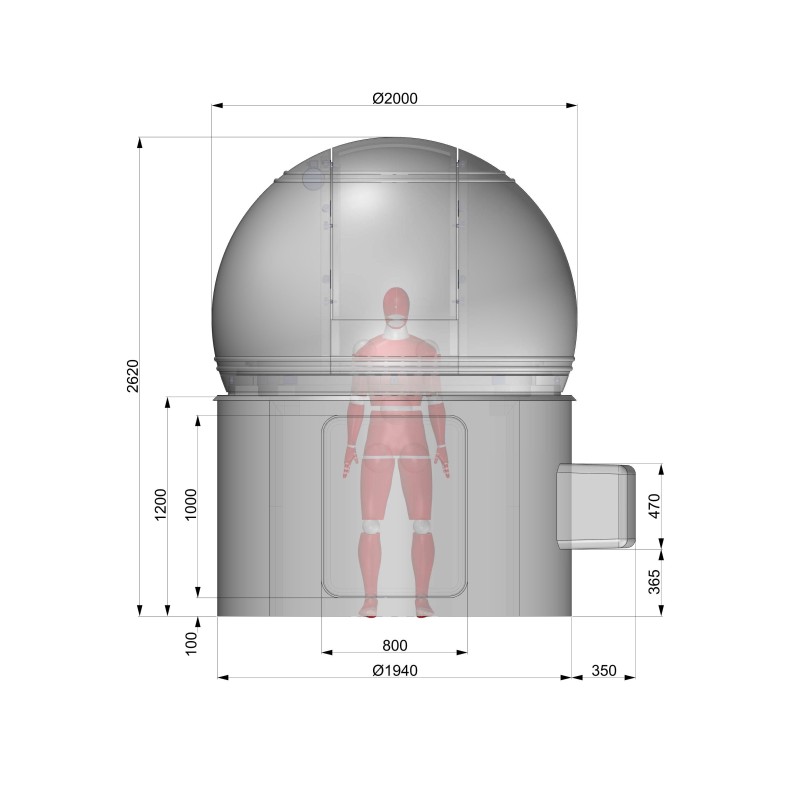

Basic data:

• Diameter of the dome: 2000 mm
• Shutter width: 615 mm
• Height of the dome: 1400 mm
• Base diameter: 1940 mm
• Outer base ring diameter: 1940 mm
• Diameter of the inner base ring: 1820 mm
• Weight (with platform): ~ 250 kg

Available options:

• Cylinder height 80 cm: 1271 €
• Cylinder height 120 cm: 1379 €
• Leveled floor: 871 €

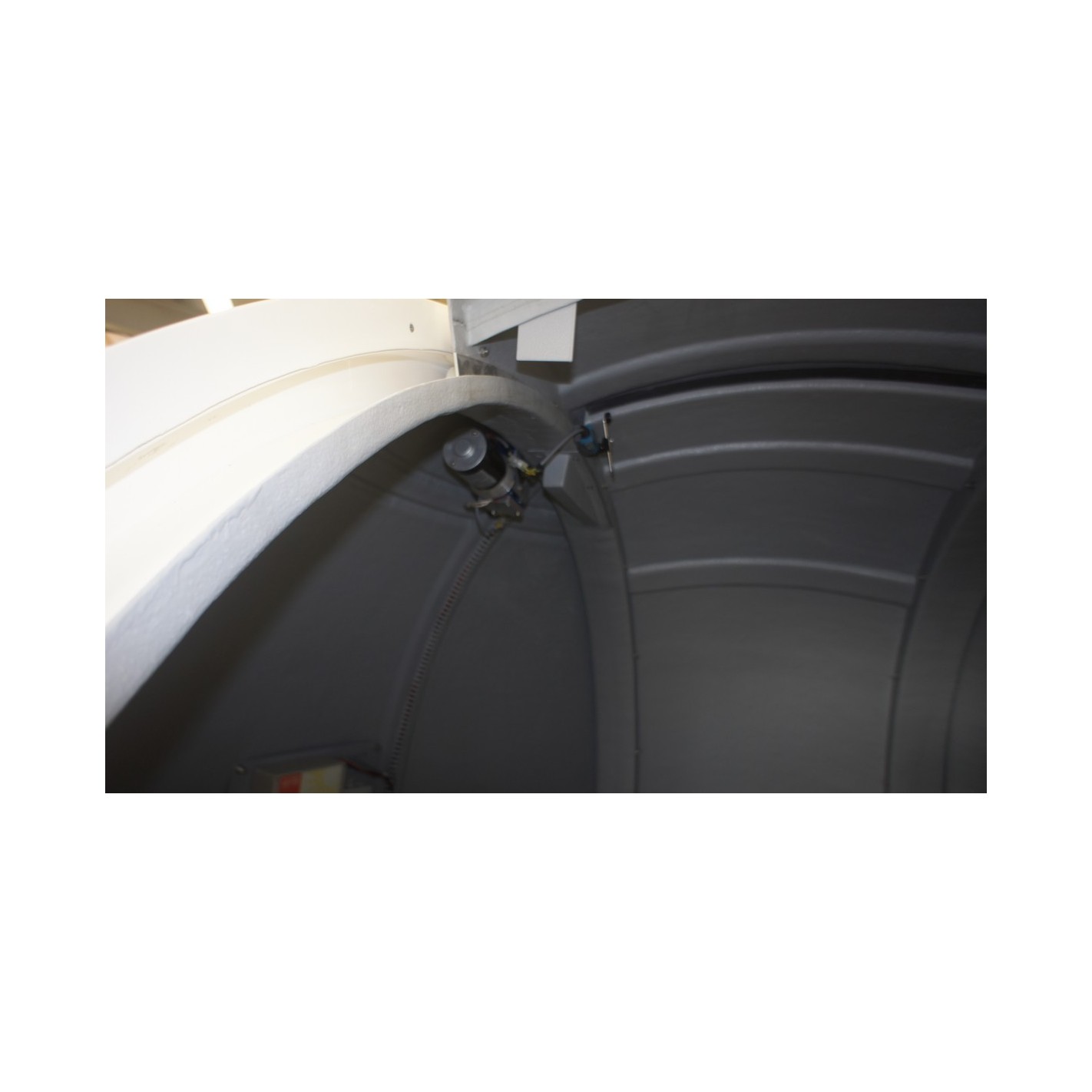

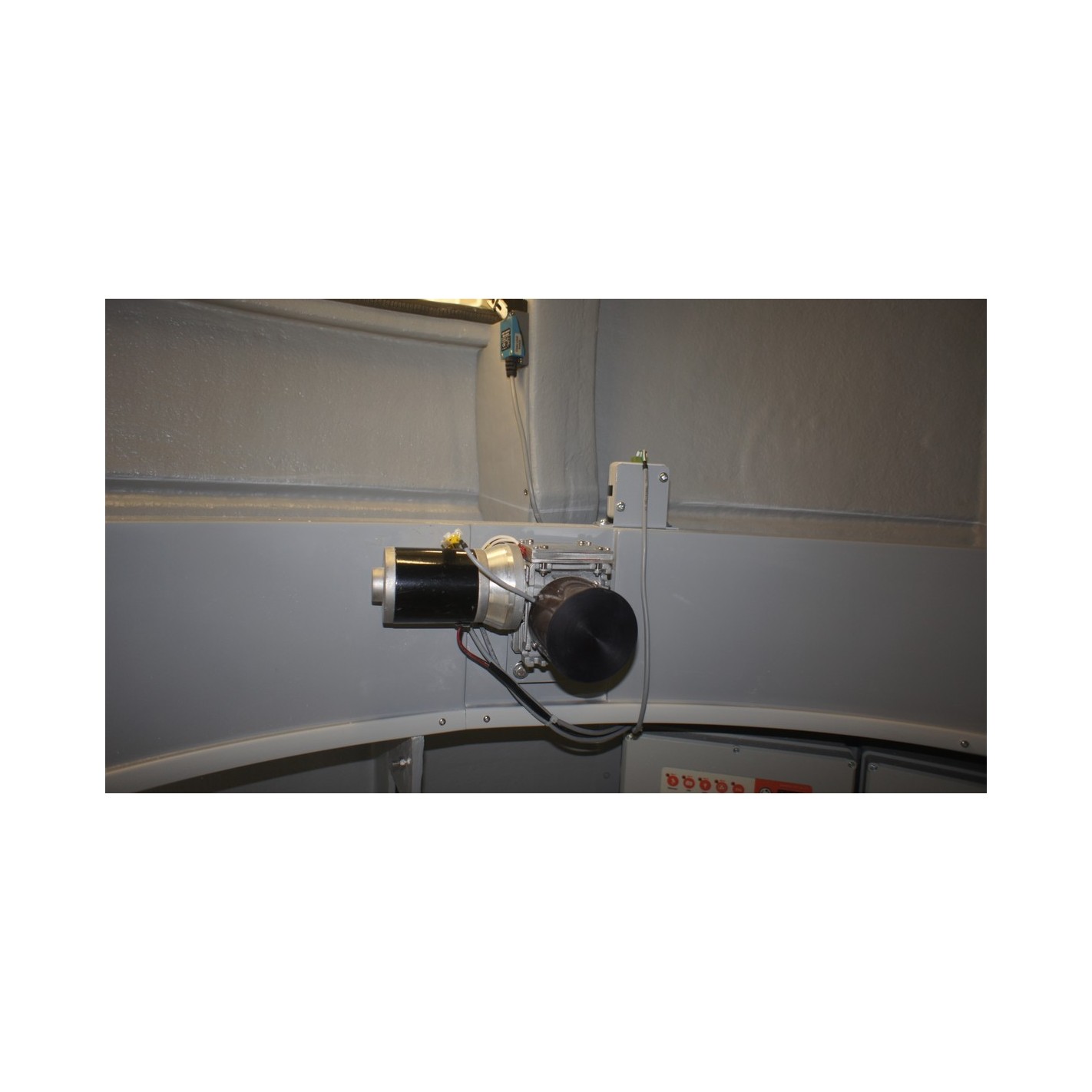

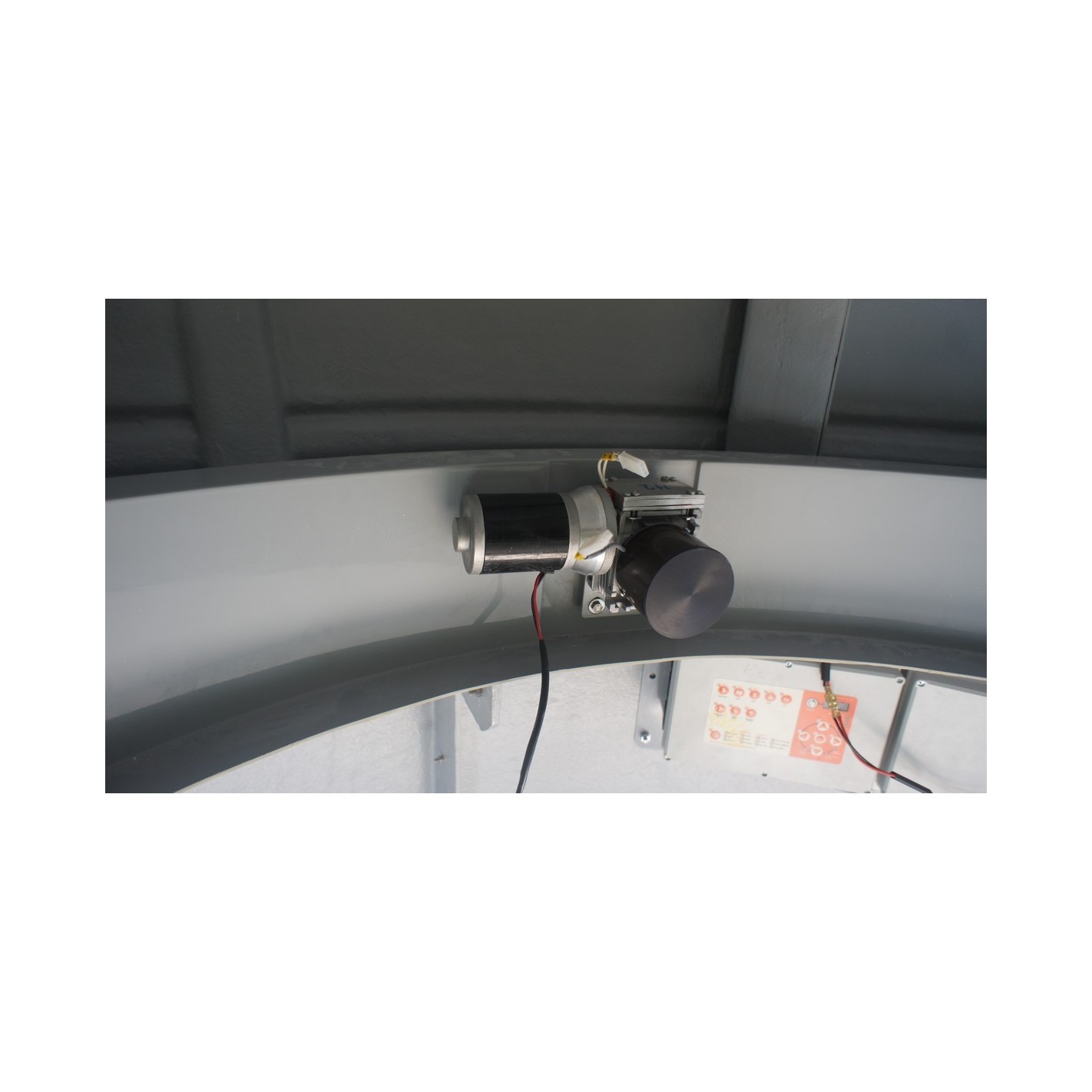

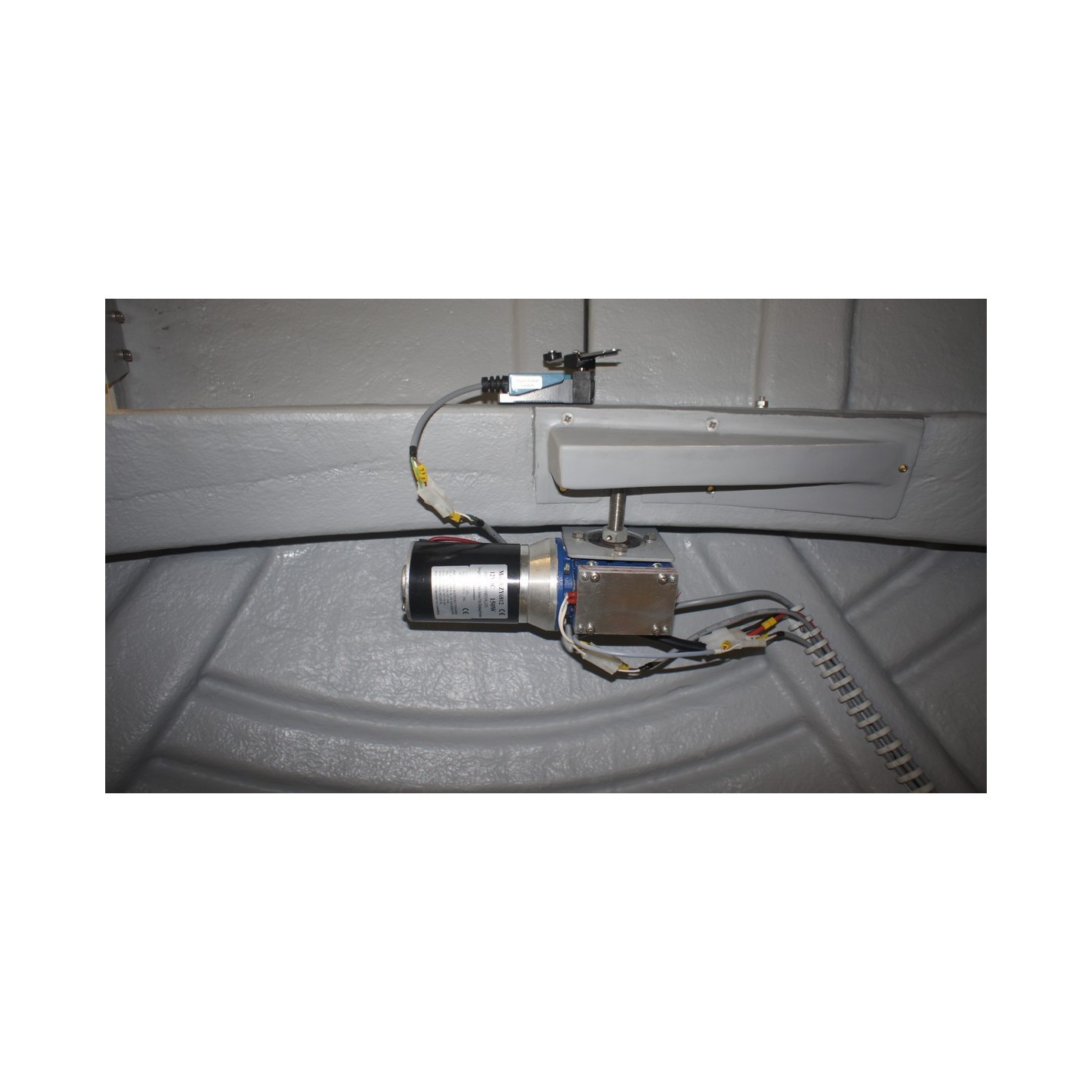

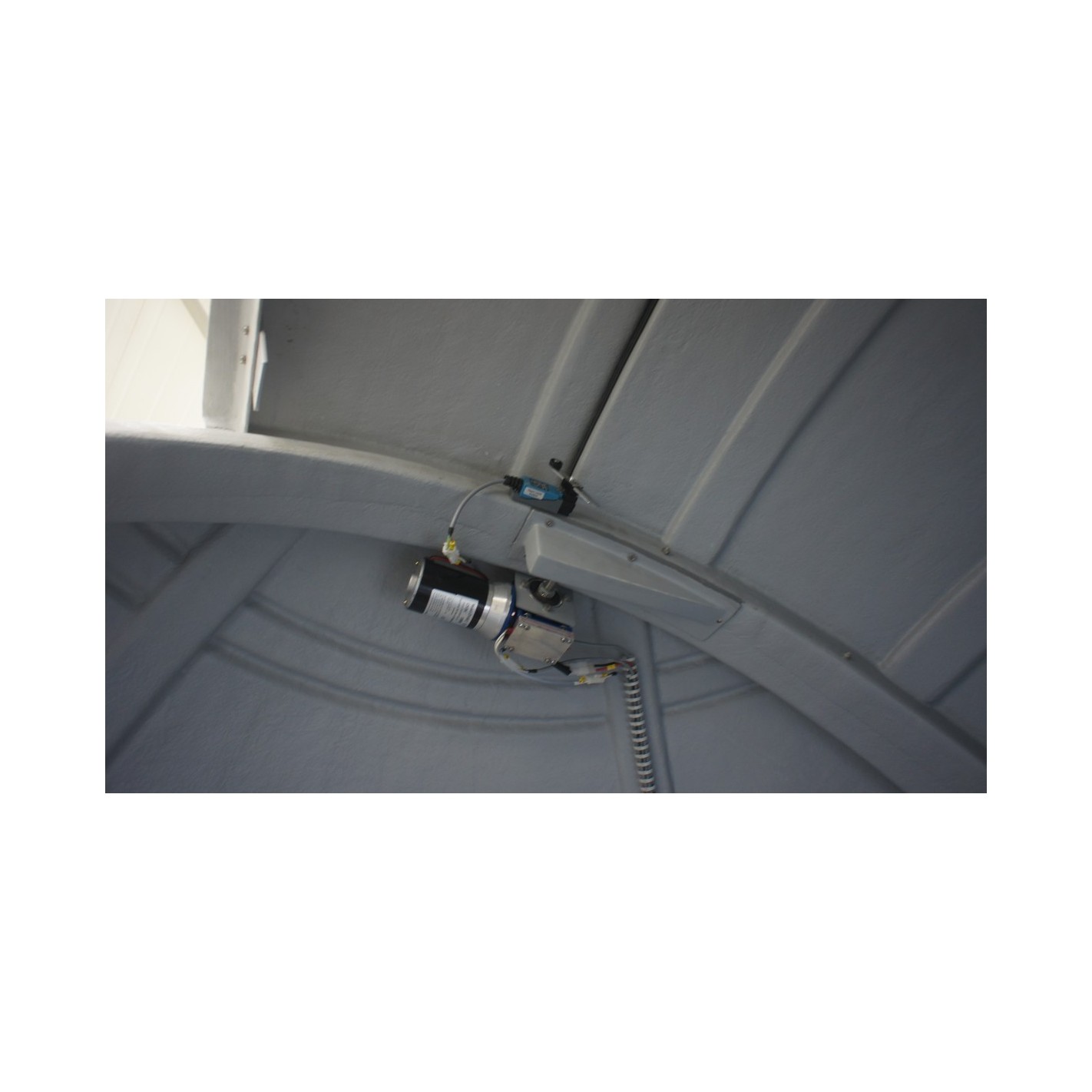

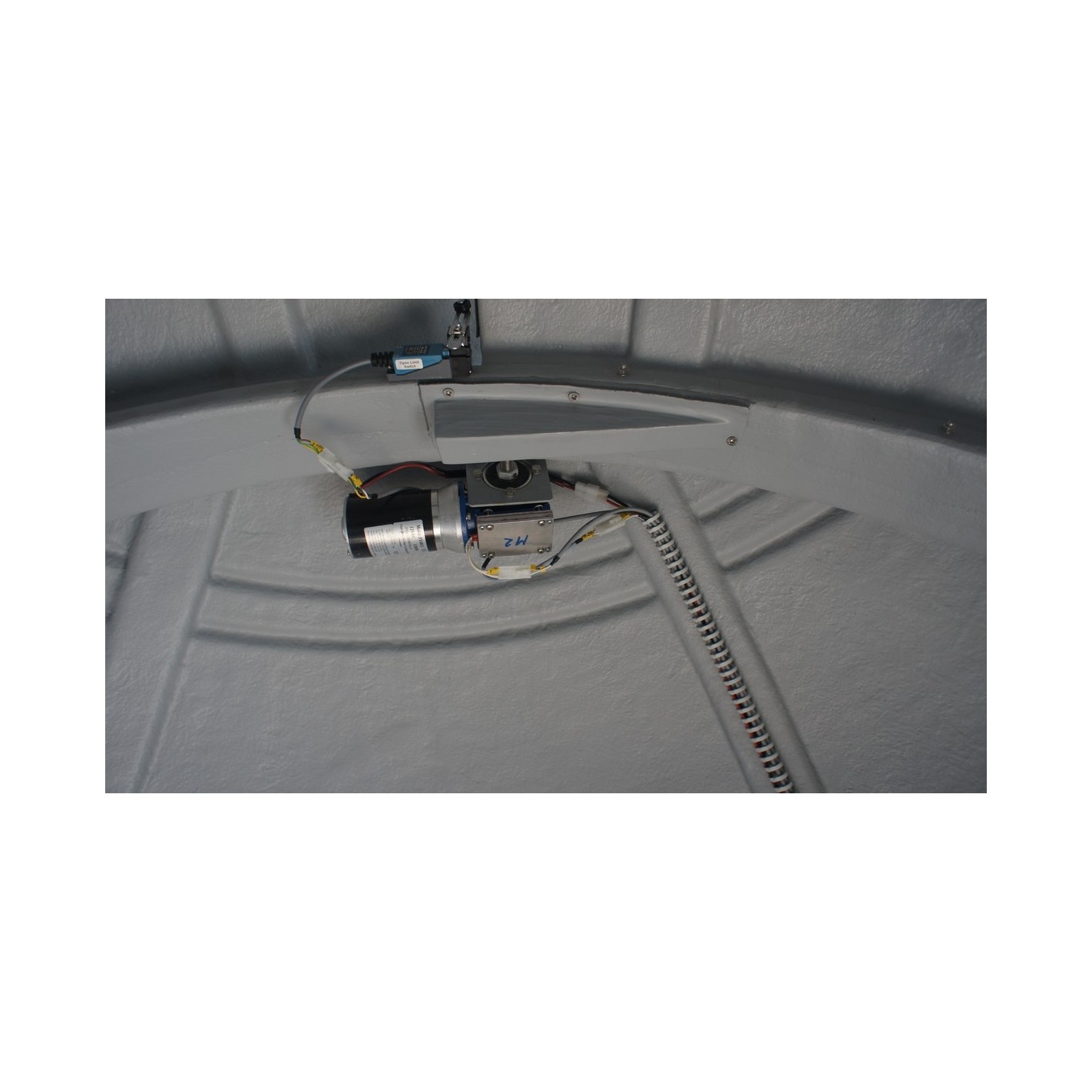

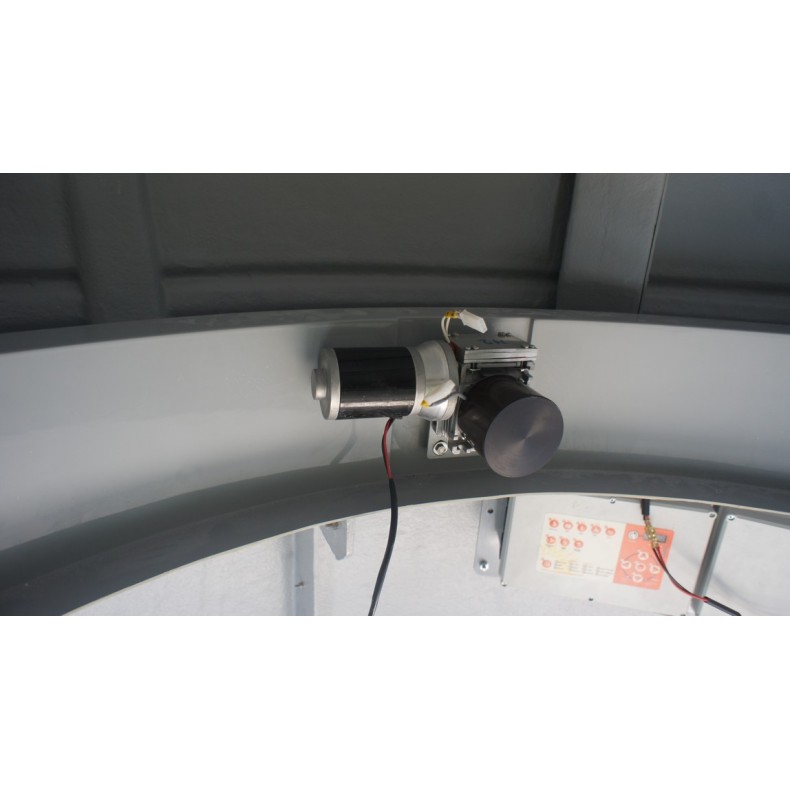

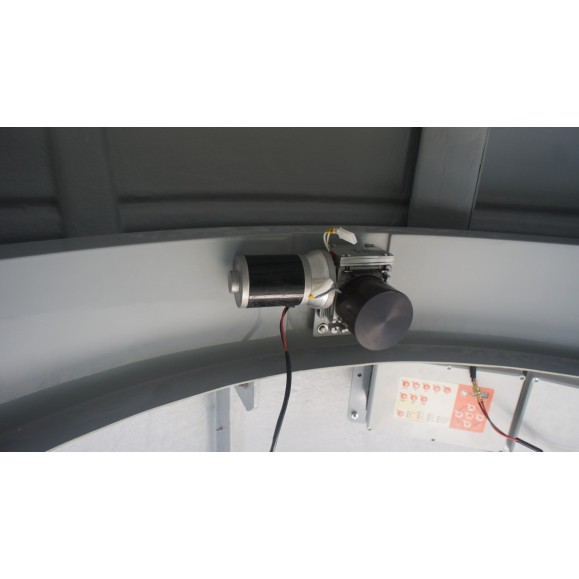

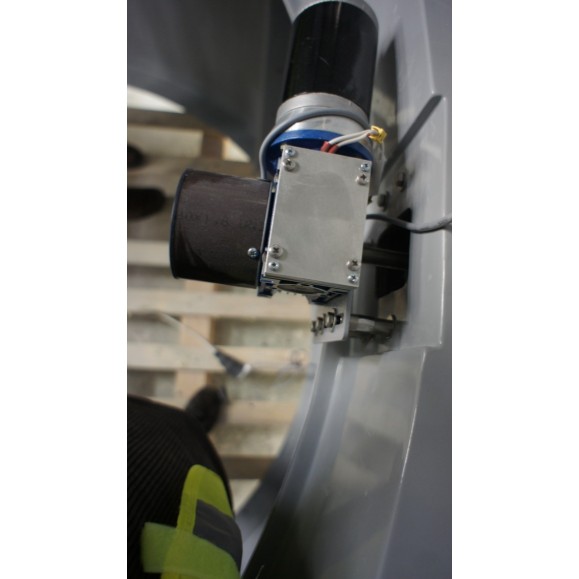

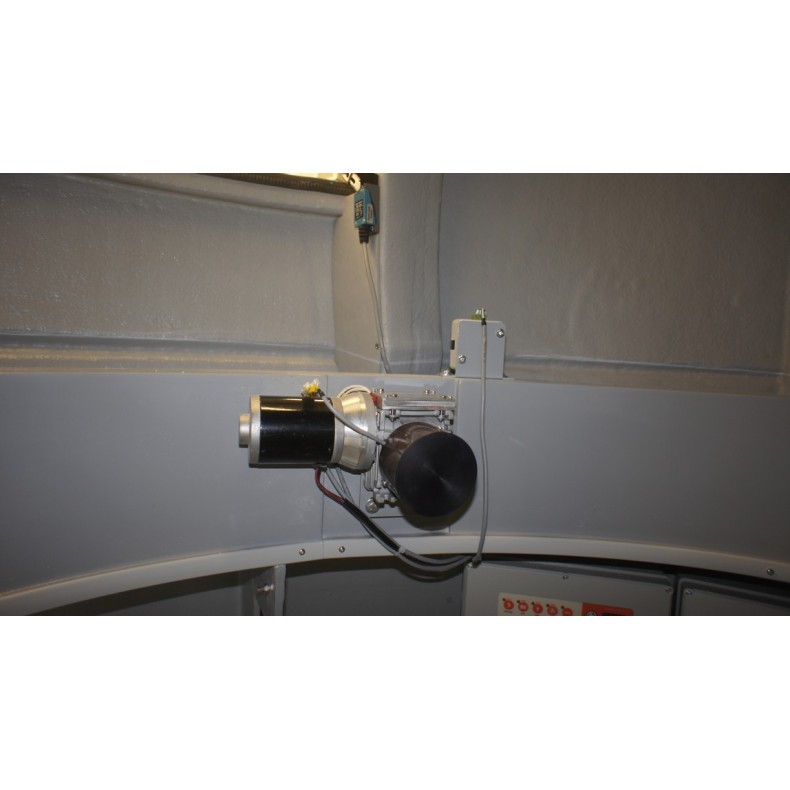

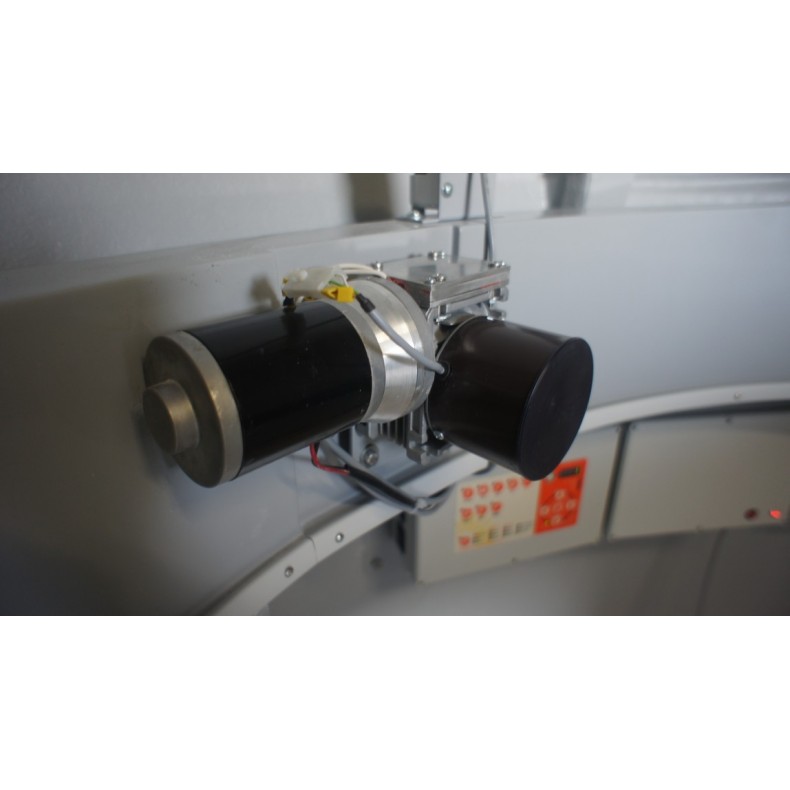

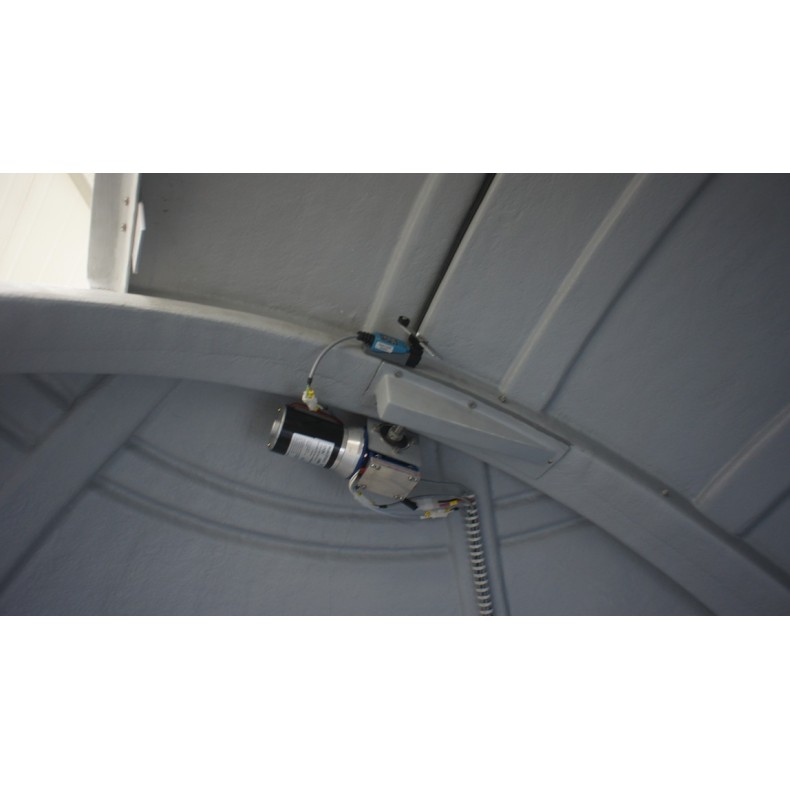

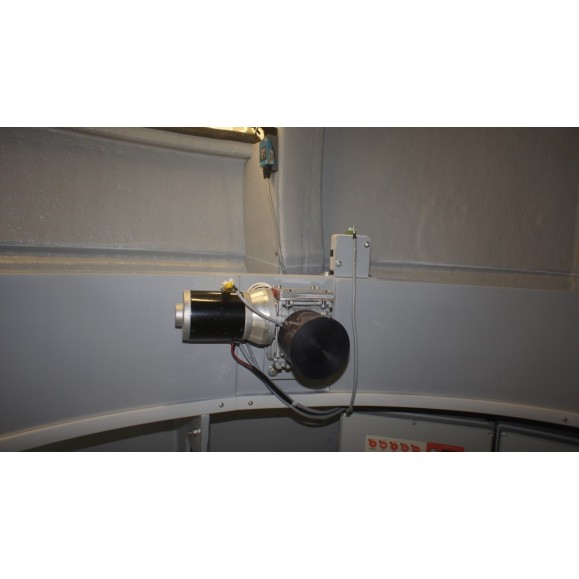

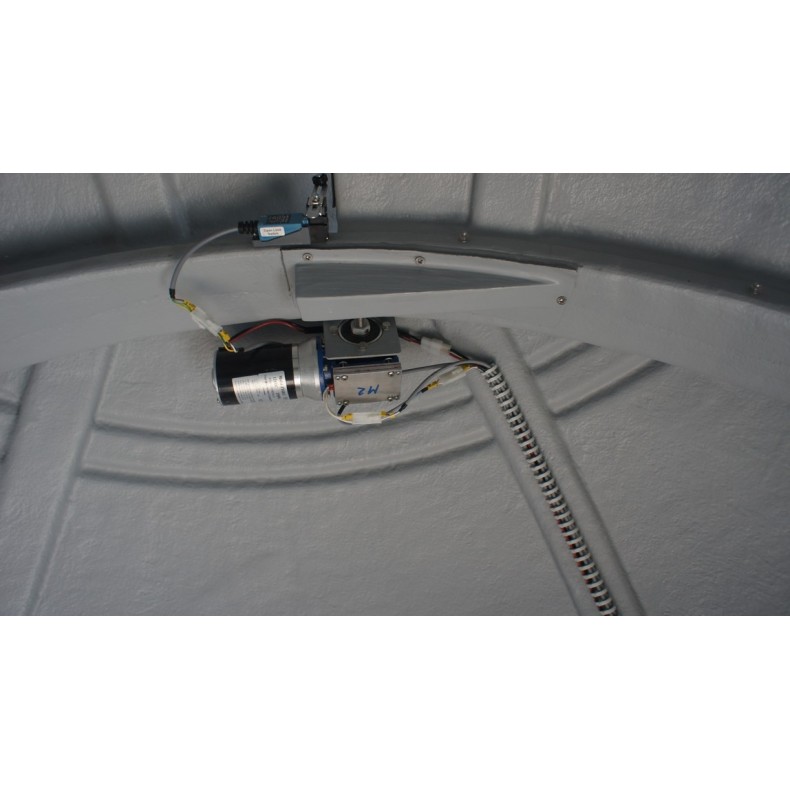

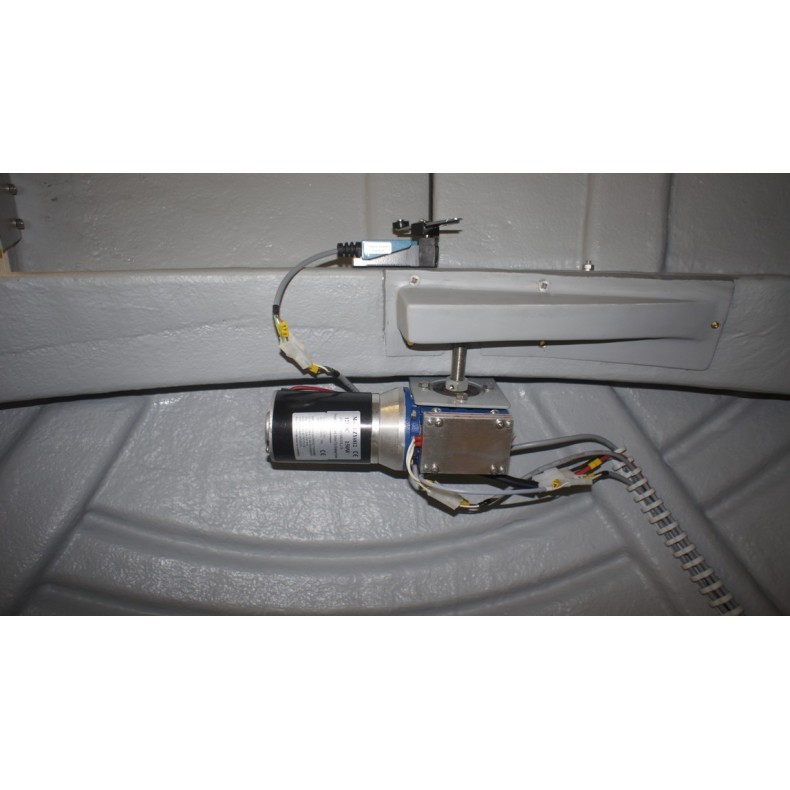

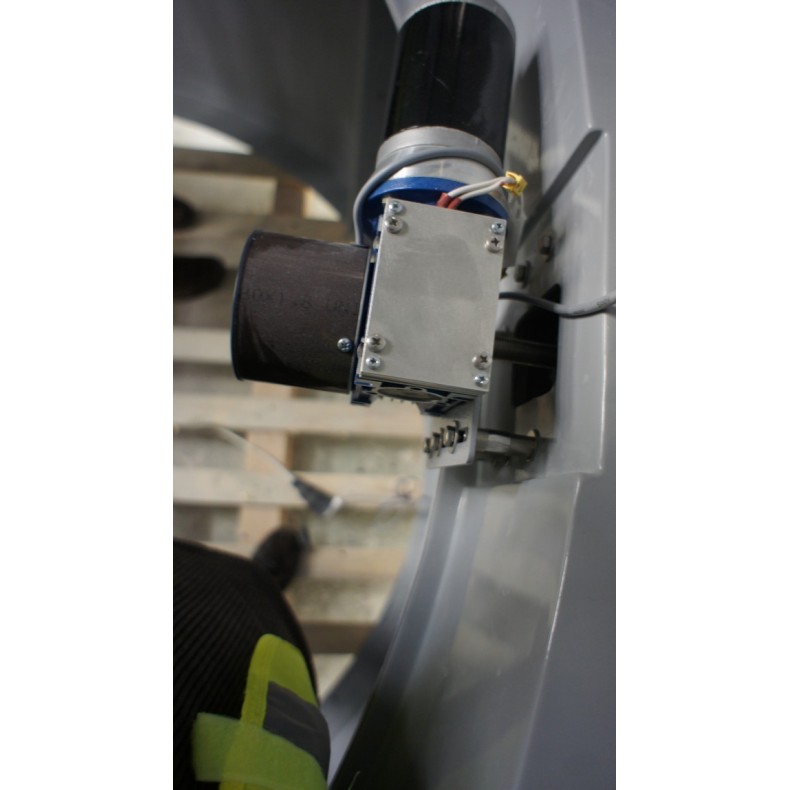

• Motor 12VDC 120W (with encoder for automatic positioning): € 472

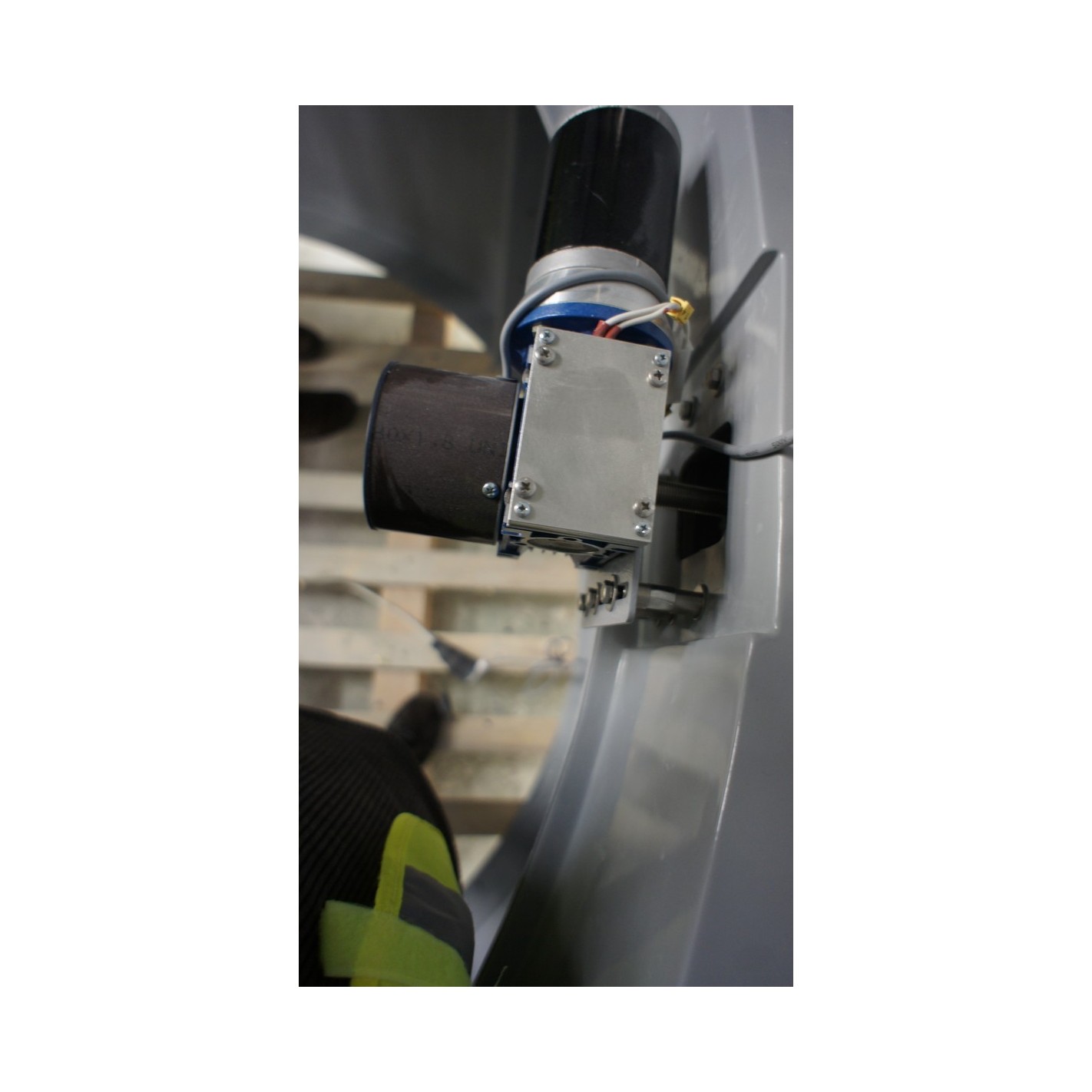

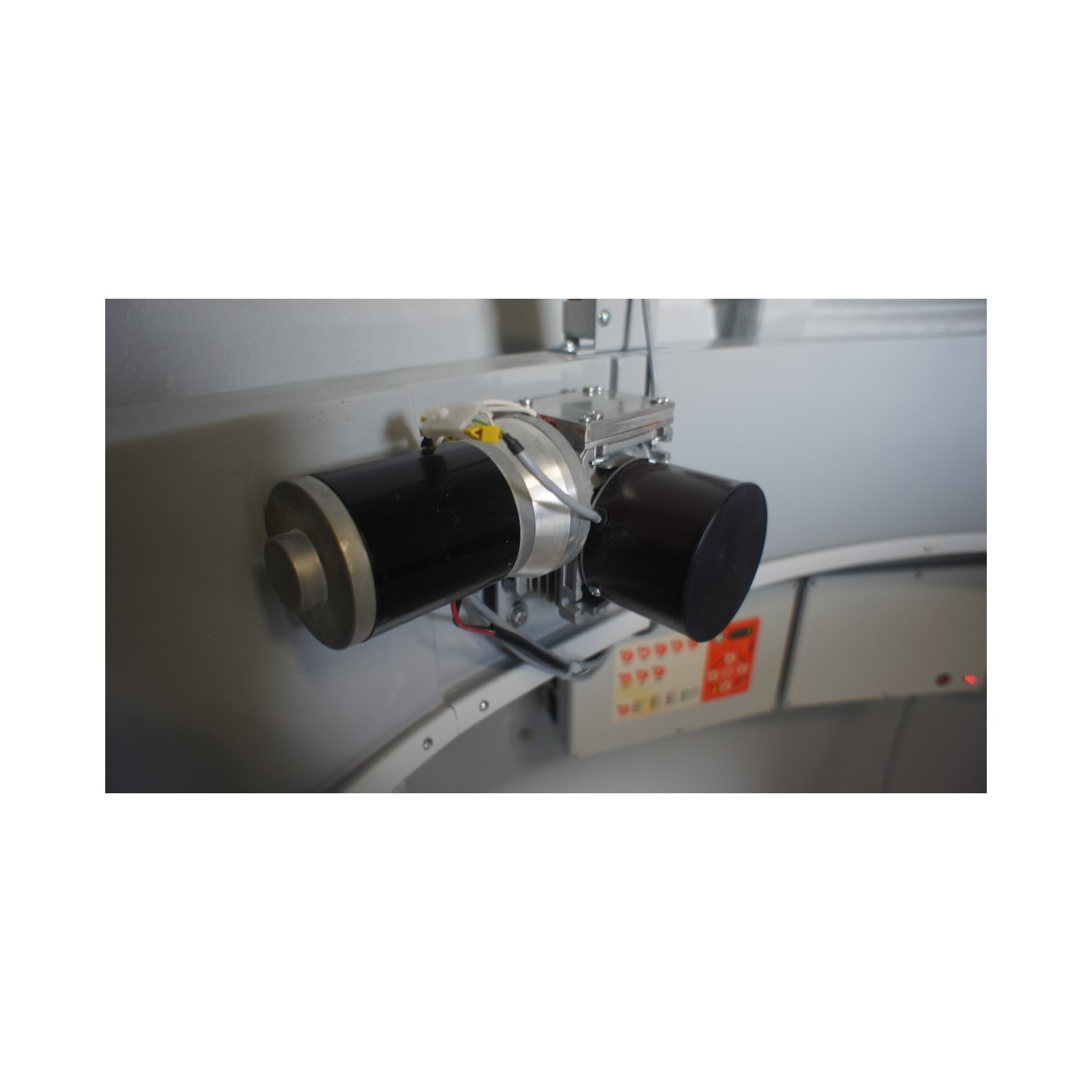

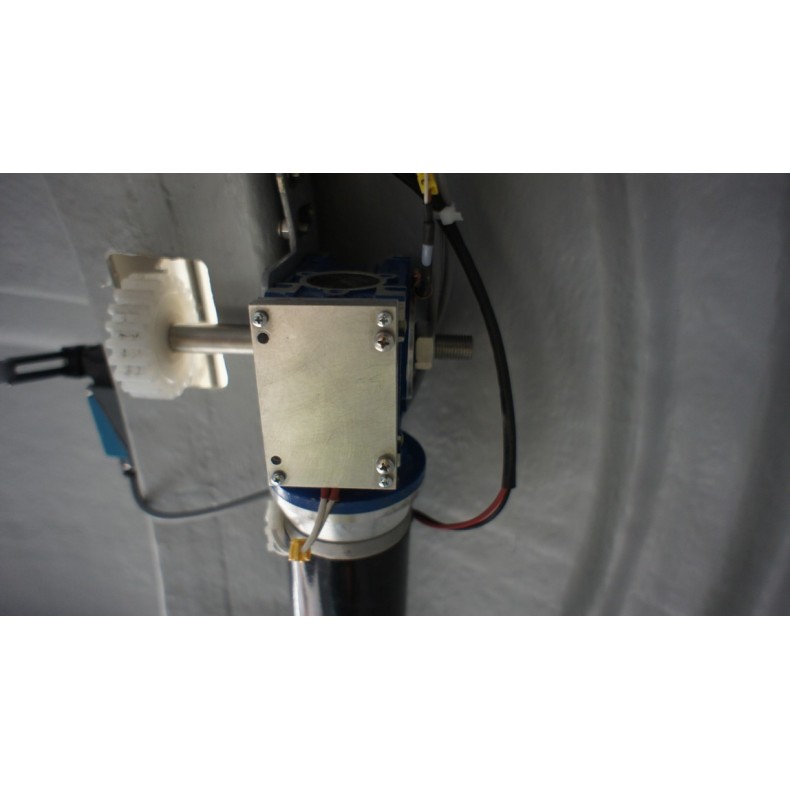

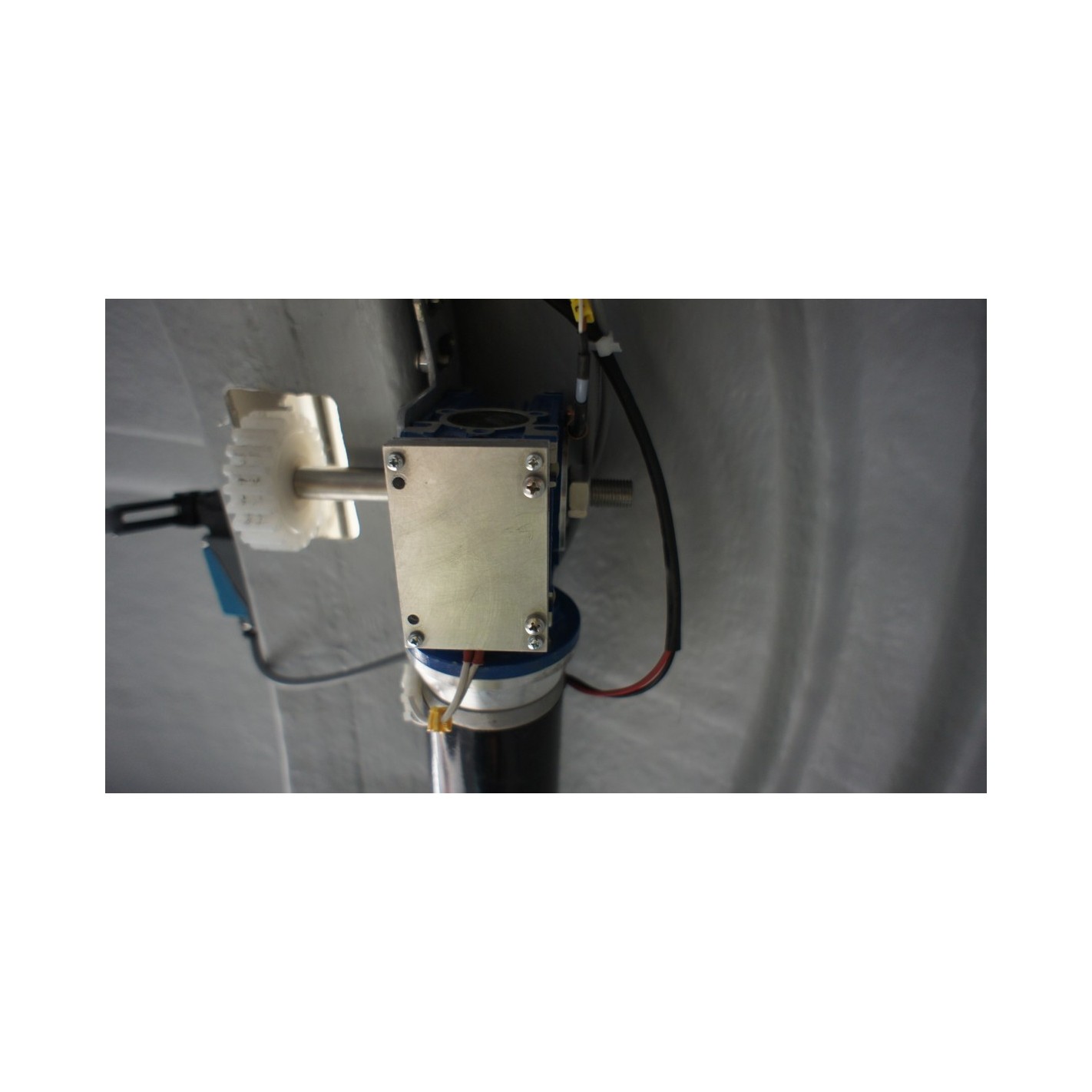

• Shutter motor 150W 12VDC: € 424

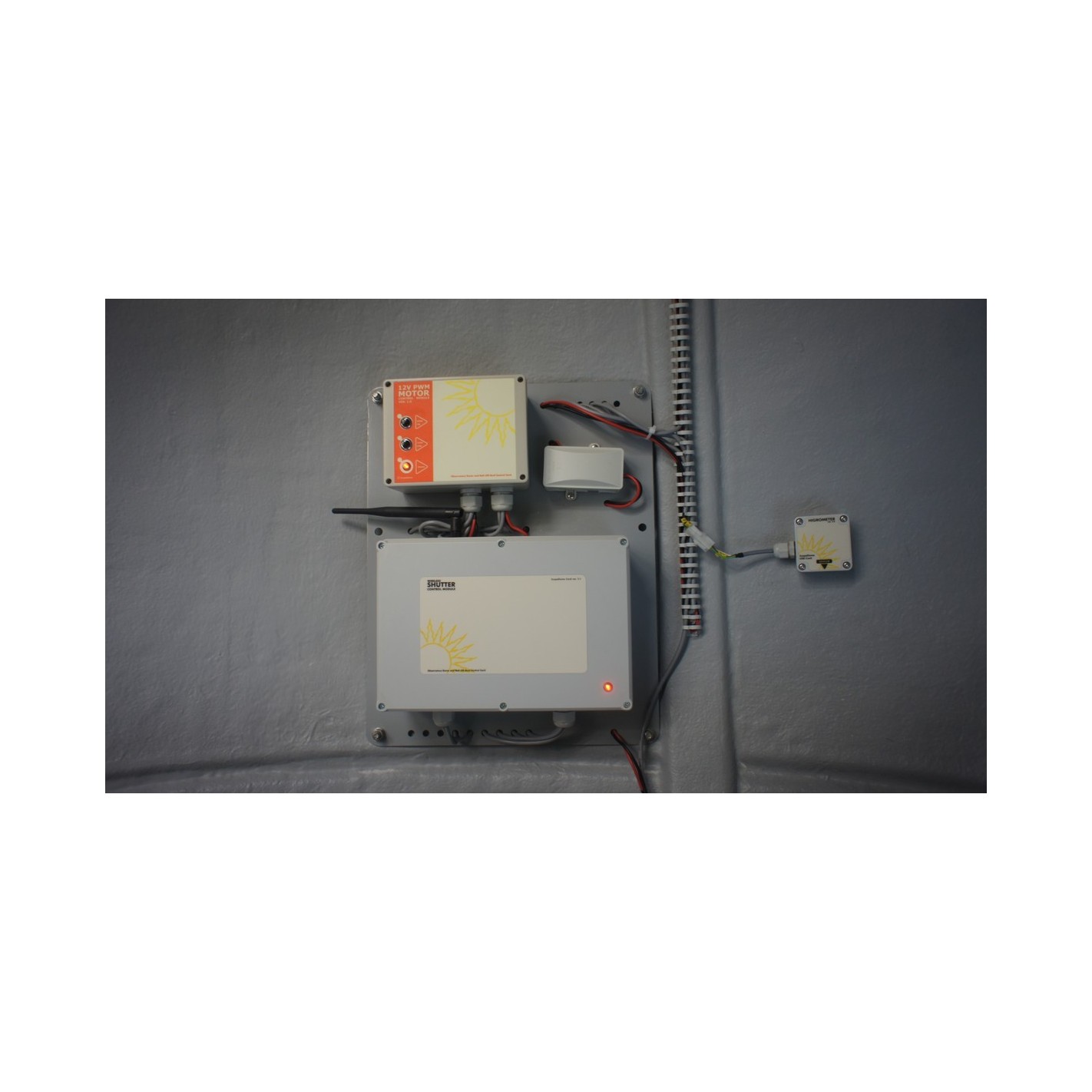

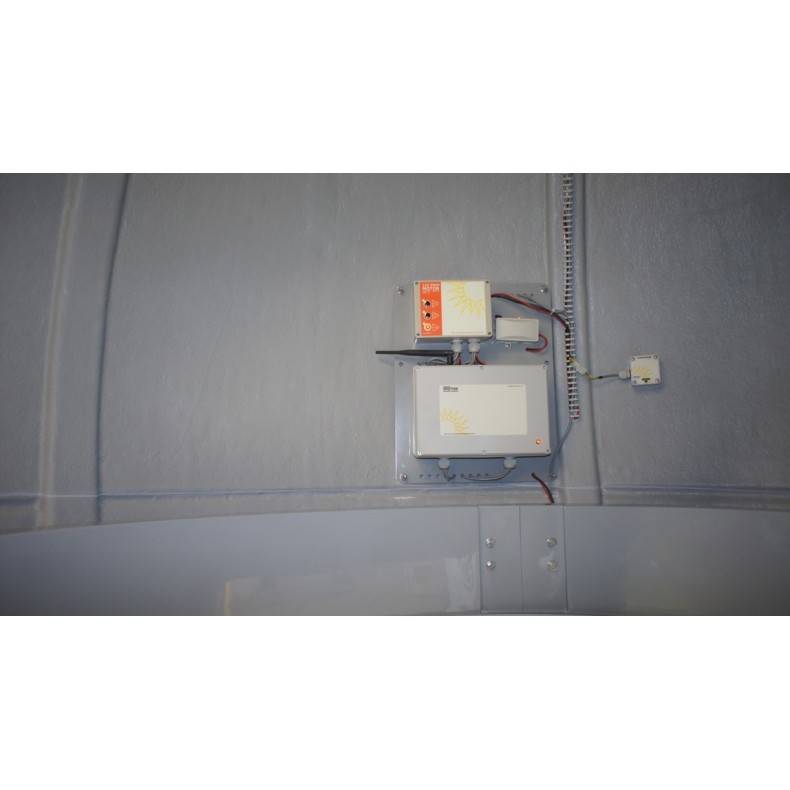

• USB 2.1 system: € 895
• Plug and Play cabling: 750 €
• Plug and Play Semi-wiring: 508 €
• Optional color: 375 €
• Additional dome tower compartment: € 145

Dome ScopeDome of 2 meters in diameter without cylinder.
