all this is possible with maximum reliability and safety!
The main advantages of the observatory design are its compactness and intuitive use. Merlino is equipped with a PC, a router and a dedicated electronic board that manages a whole series of sensors for a complete control of your system, both in terms of functionality and security. The system is controlled from a software interface developed entirely by Avalon Instruments that allows the Merlino to be used in a very similar way compared to a typical mobile configuration.
For example, many commonly known software applications are integrated into the system to increase ease of use .
ease of use is our number one goal for your Merlino!

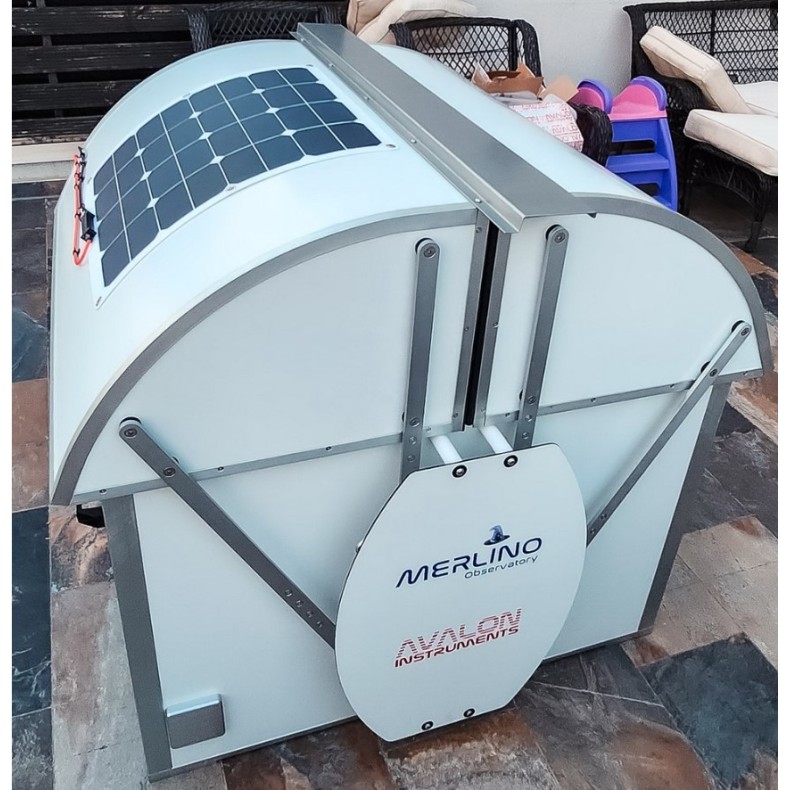

Thanks to its compact size, Merlino can be used on your terrace, in your backyard garden or in almost any available space. The internal 3G router connects your Merlino to a local area network (Intranet) or via the web (Internet). Of course, the Internet connection allows you to use your Merlino from a remote location.

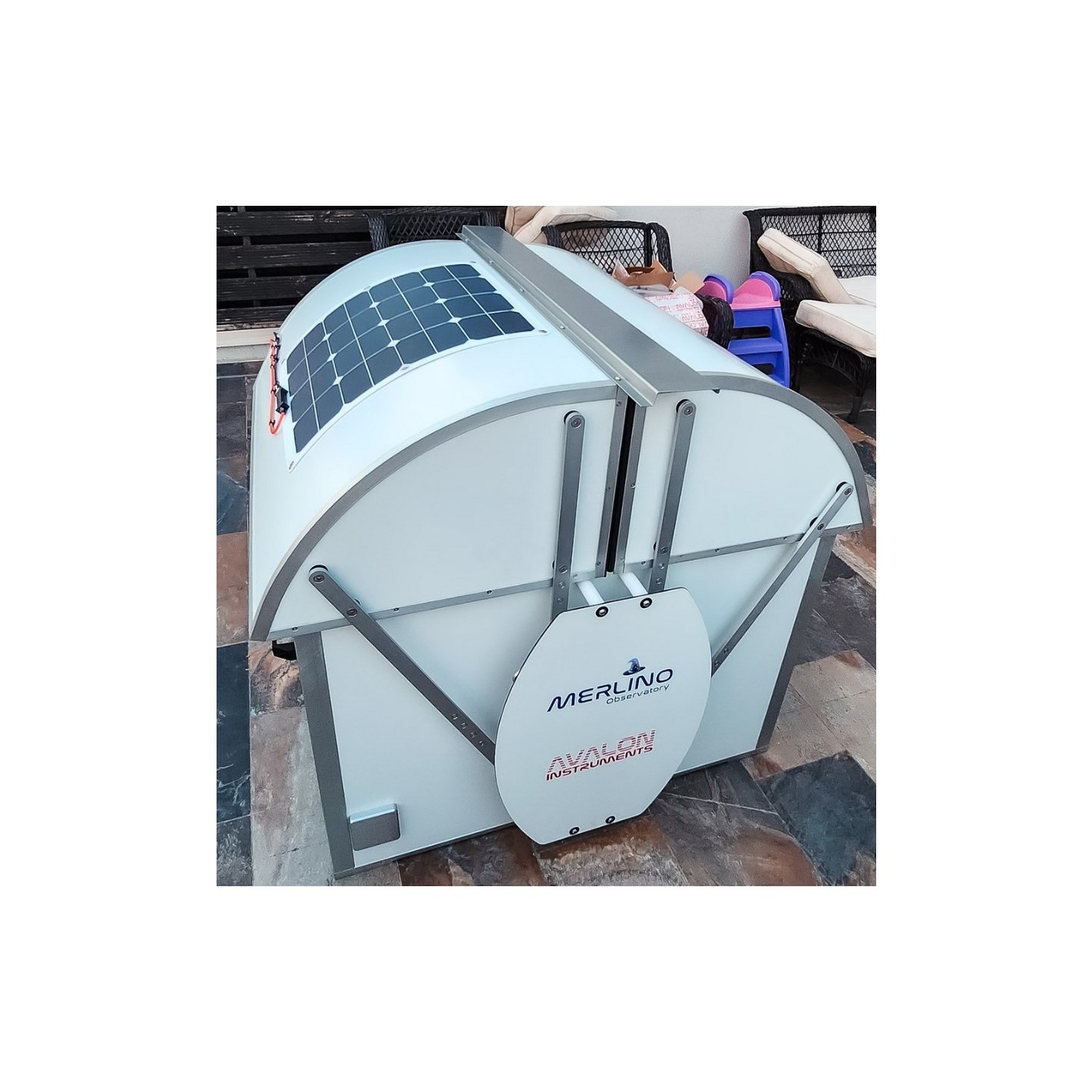

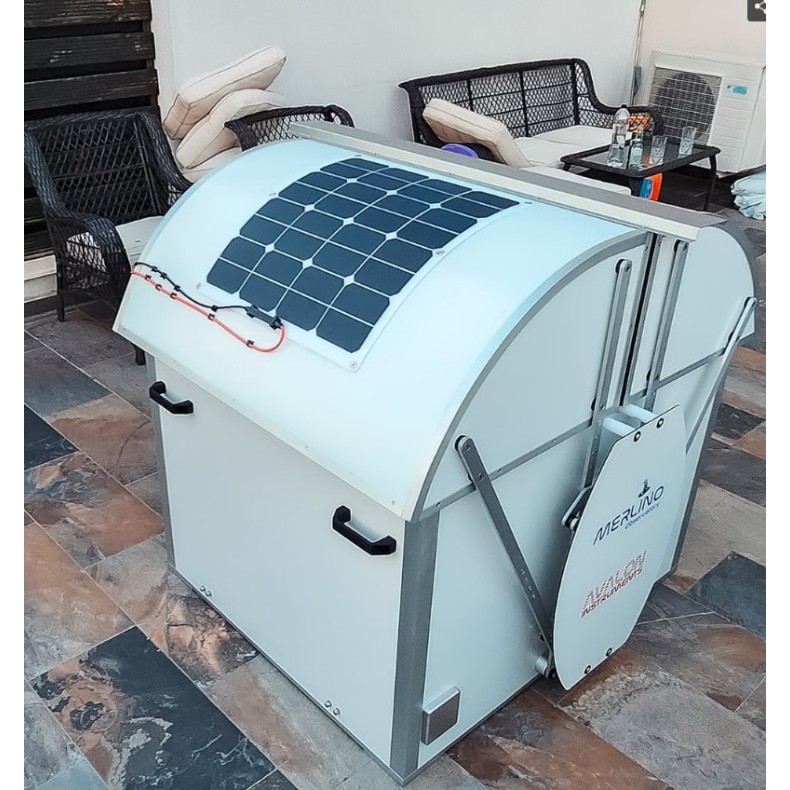

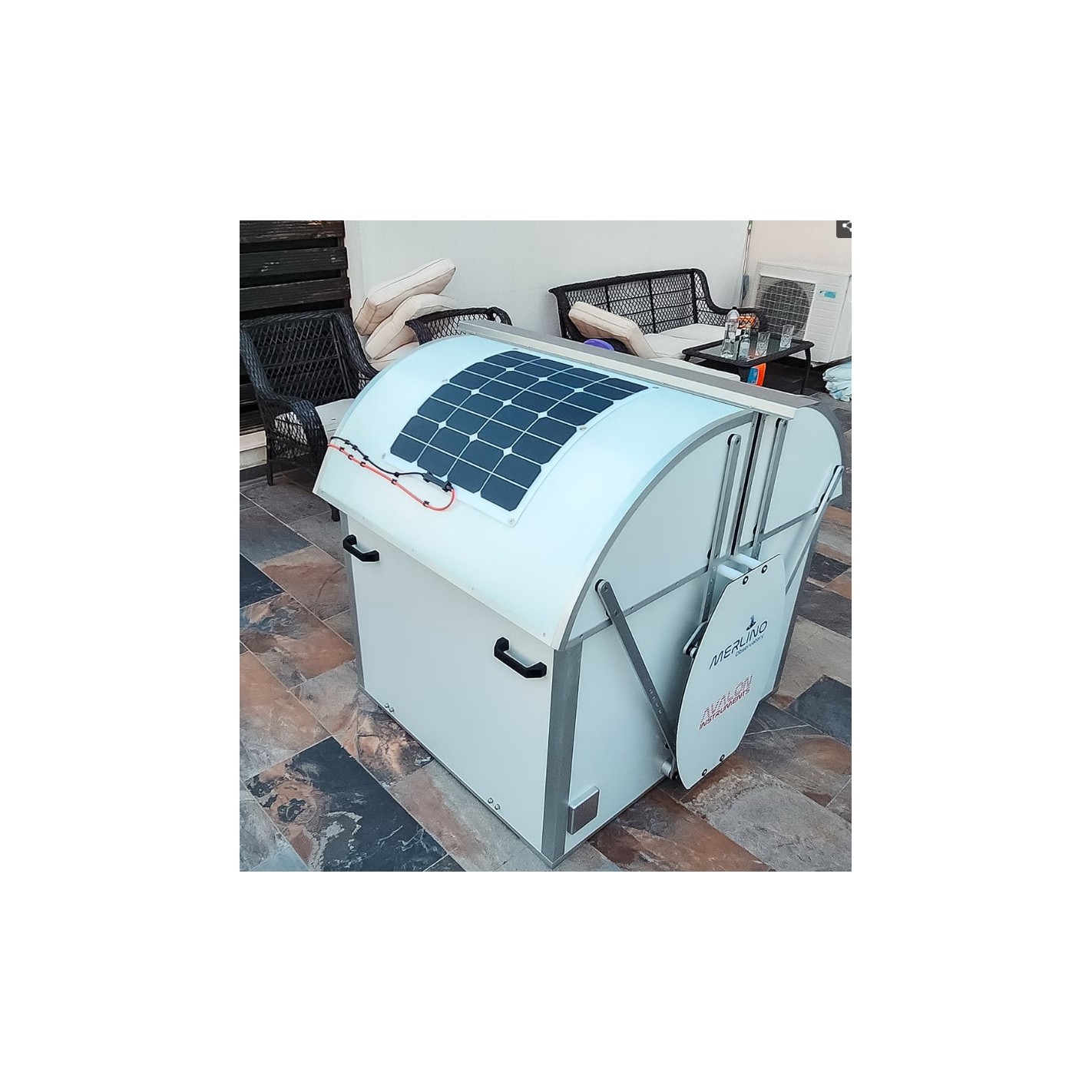

Of course, the Internet connection allows you to use the Merlino from a remote location. The Merlino runs entirely on 12 volt power, a sealed AGM battery in the range of 100 to 150 Ah (battery not included in the package) and solar panelsare recommended , allowing you to quickly log off and automatically recover in case of power outage.
The Merlino project solves most of the problems related to the management of a remote Observatory thanks to its special features.
The optional motorized polar alignment kit allows to adjust the Polr alignment remotely through the StarGo/Merlino software.
Merlino also allows to program photo sessions using macros created directly by the user, using the macro editor included as standard.
This allows to automate both the startup (startup) and shutdown (shutdown) of various operations. The Merlino is able to autonomously shut down the system in case of unexpected events or problems, thanks to the included rain sensor, thus ensuring the safety of your system.
Suggested base for Merlino:
The Merlino comes without a floor, it is provided with four floor stands that allow to firmly fix the Observatory.
It is suggested to place the observatory on an apartment surface such as a concrete base or similar.
| Monitored parameters |
- Temperature
- Rainfall
- Battery voltage (battery not included in the package)
- internet connection
- Full management control software
- Auto-guiding star quality (during imaging)
|
| Merlino comes standard with the following features: |

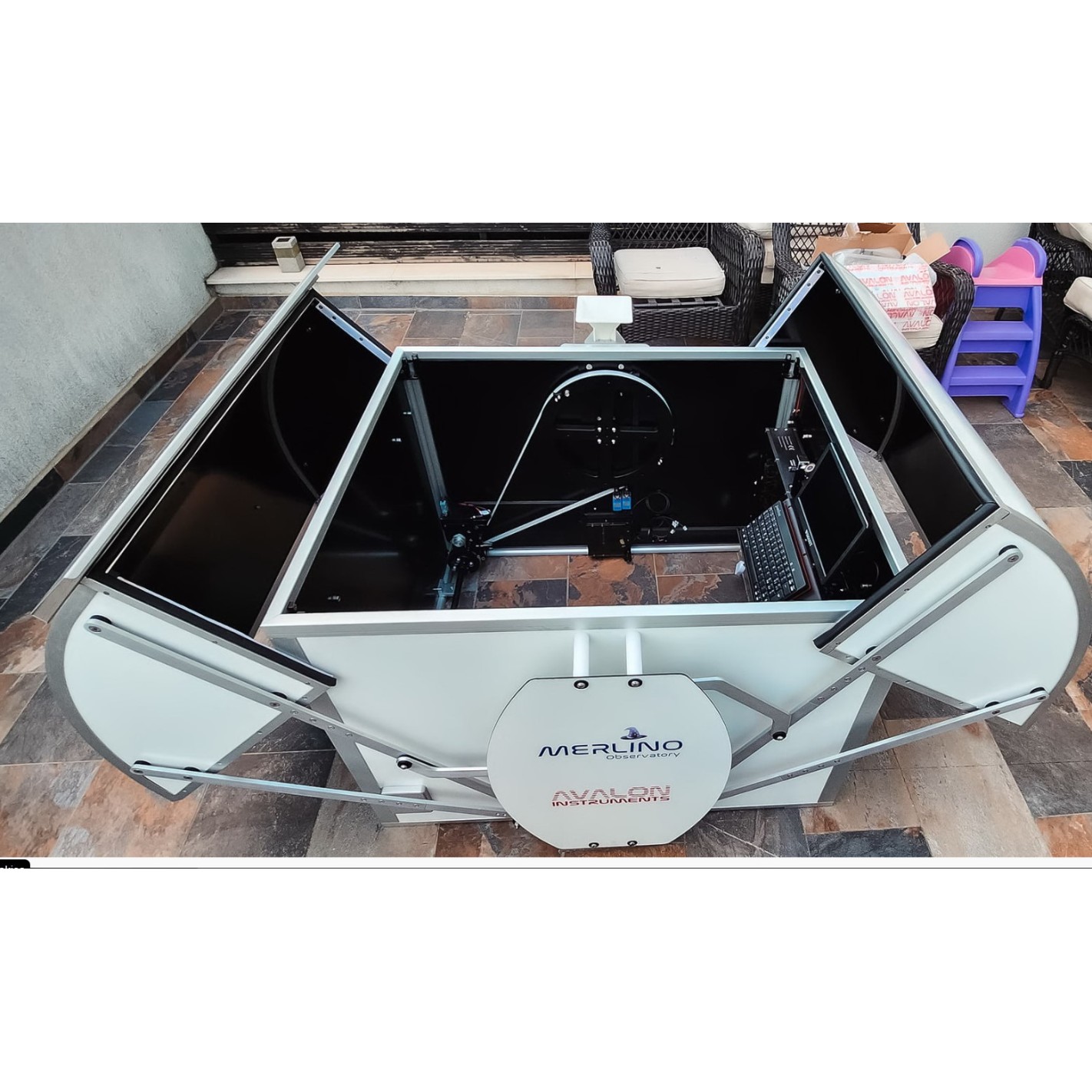

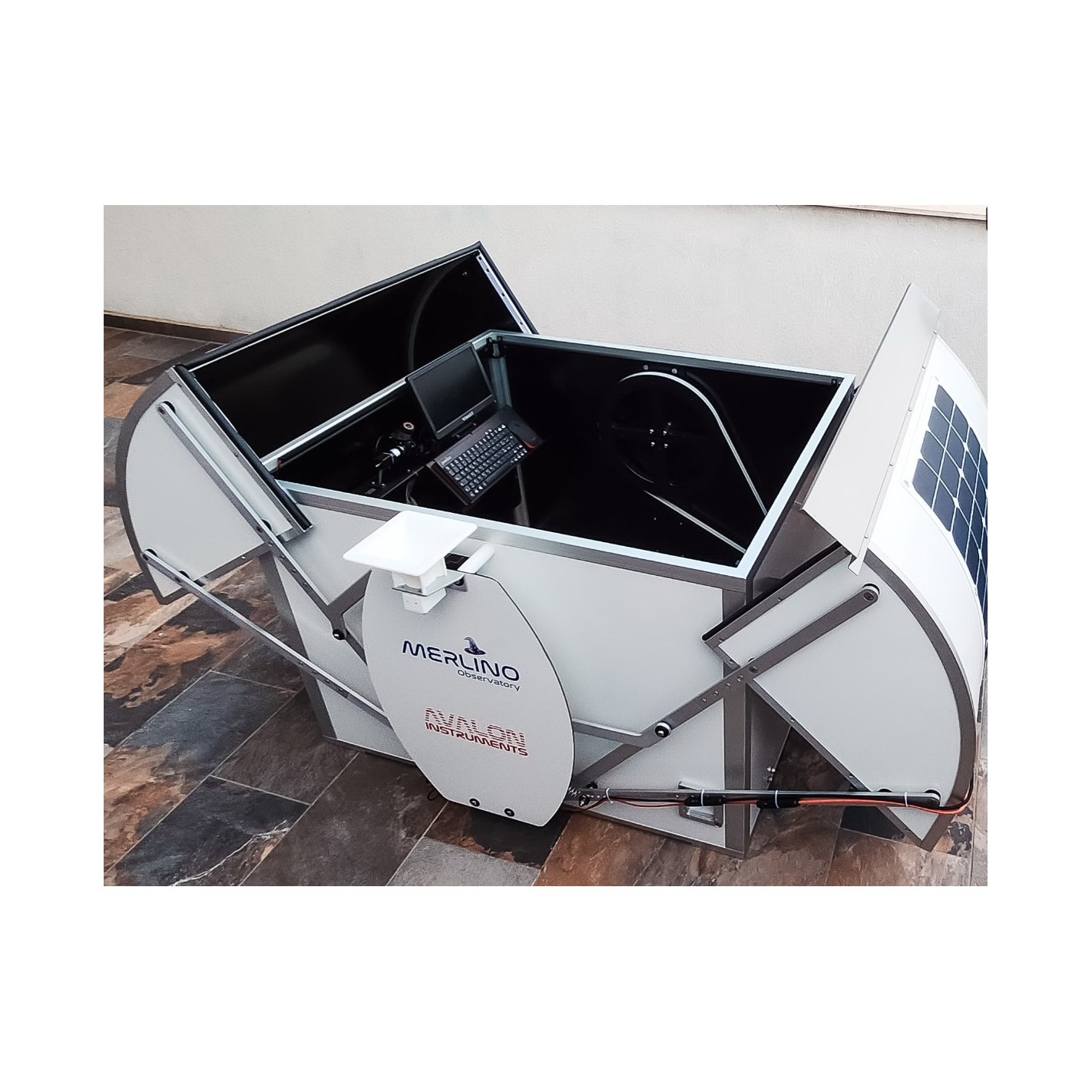

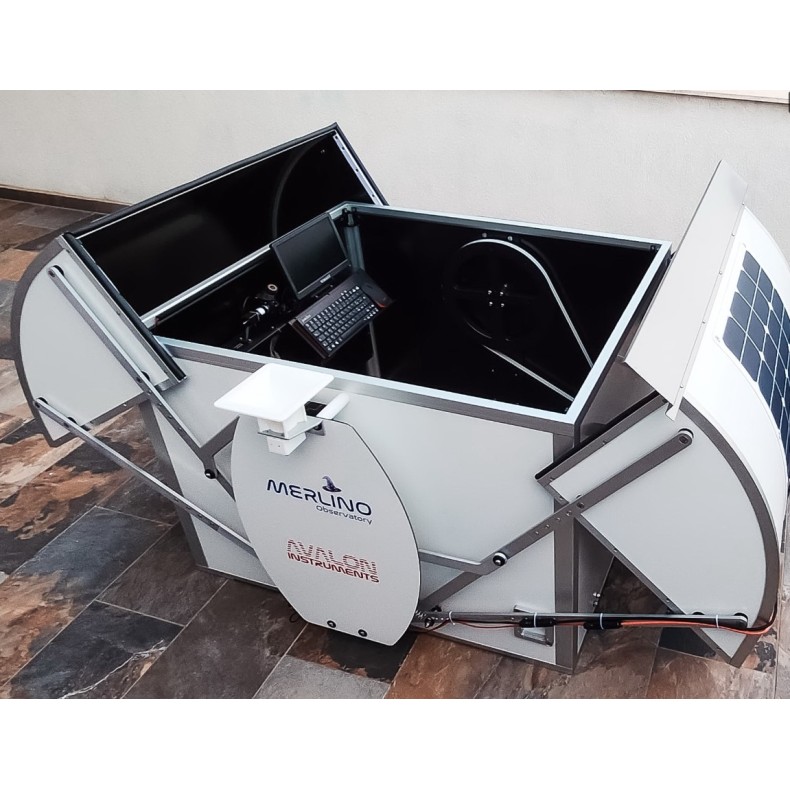

- Anodized aluminum structure with external cover, roof and panels.
- Motorized opening/closing mechanical shutter with remote control

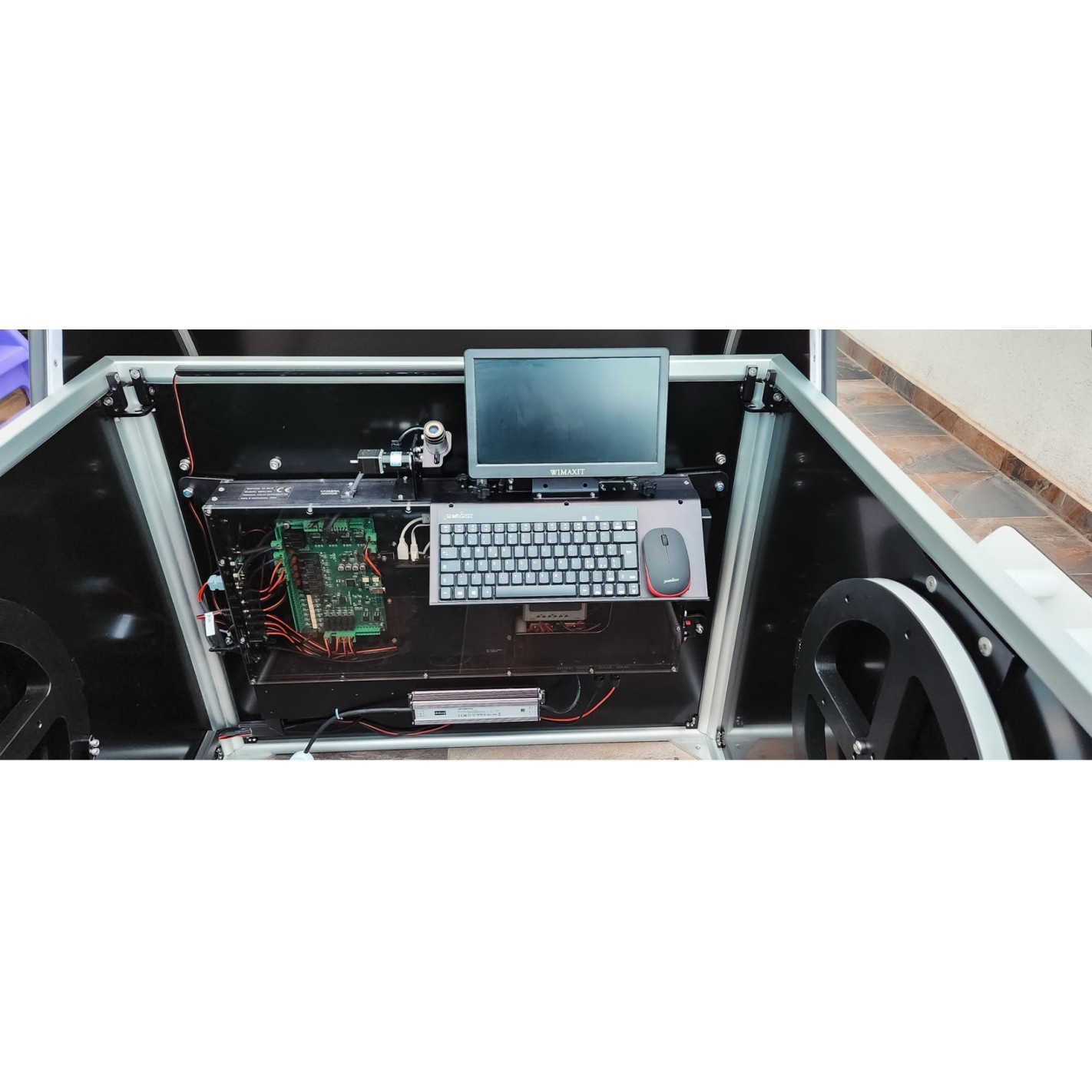

- PC with Windows software (English language) to control Merlino functions (no keyboard, no monitor)
- I/O electronic control board (diagram below)
- WiFi router with provision for 3G internet sim device input.

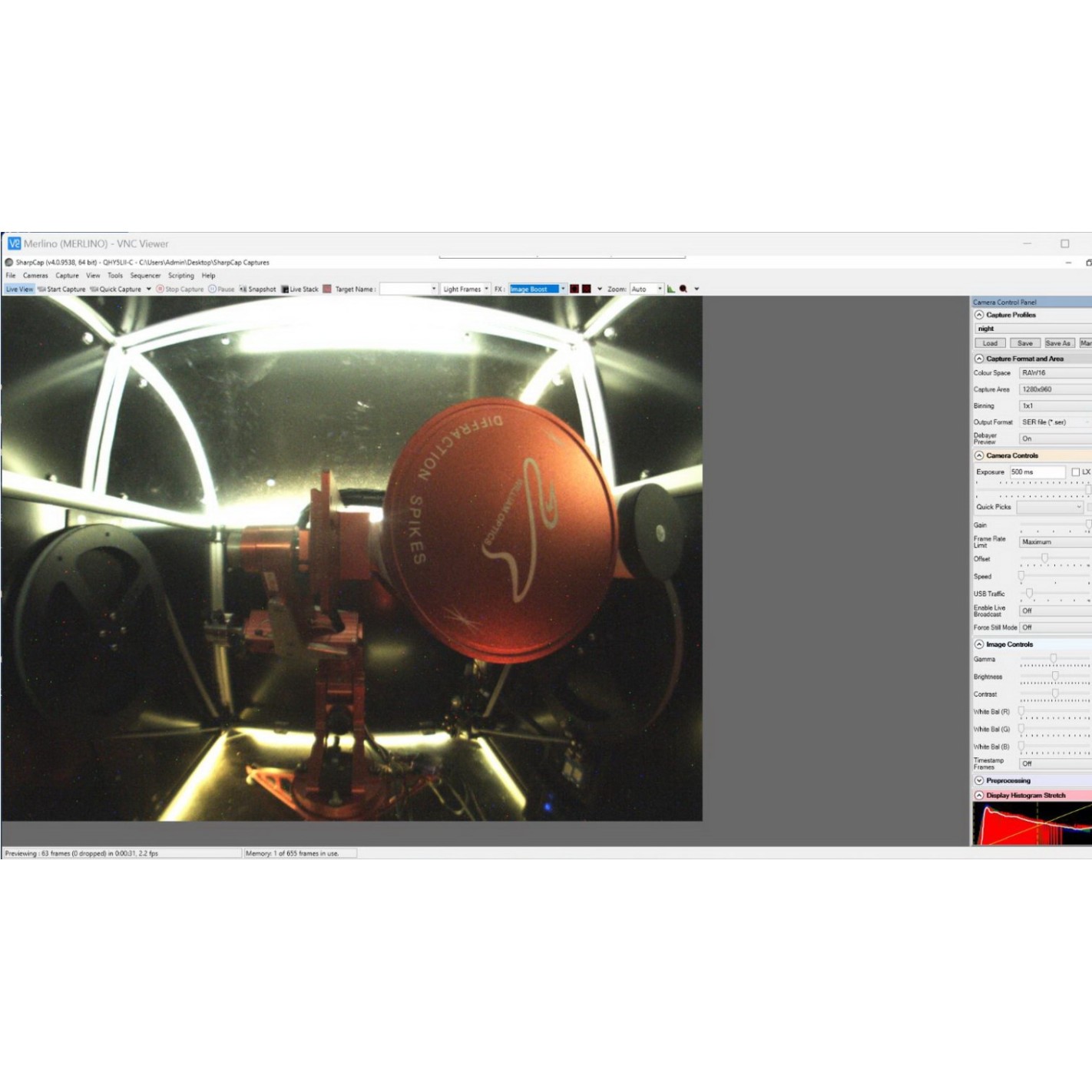

- Motorized webcam for internal inspection and visual monitoring of the sky (rain)
- Rain detector.
- Software management system for PRO Merlino
- Electrical system isolated and internally wired.
- Power supply with 12VDC
- Instruction manual in English.
|
