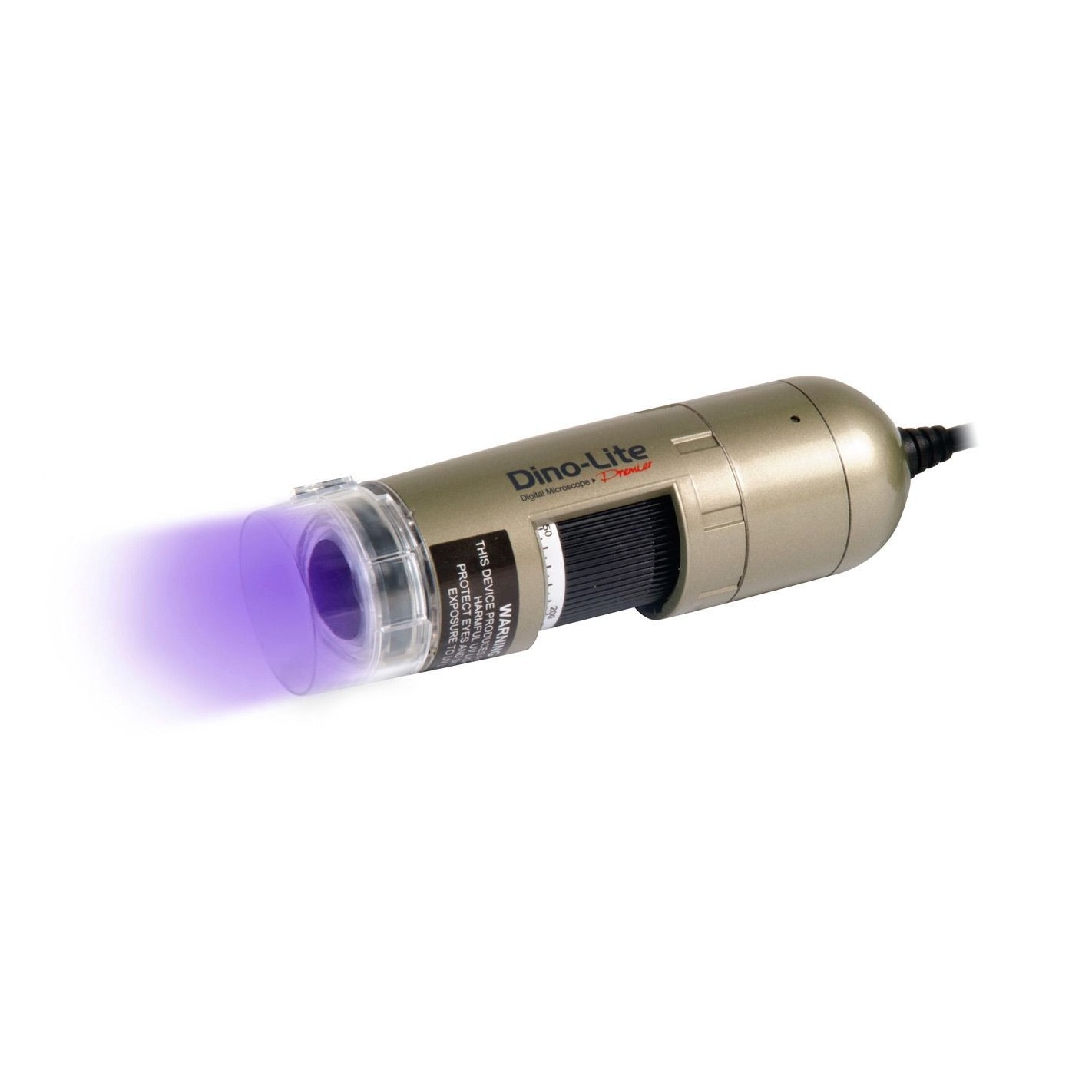

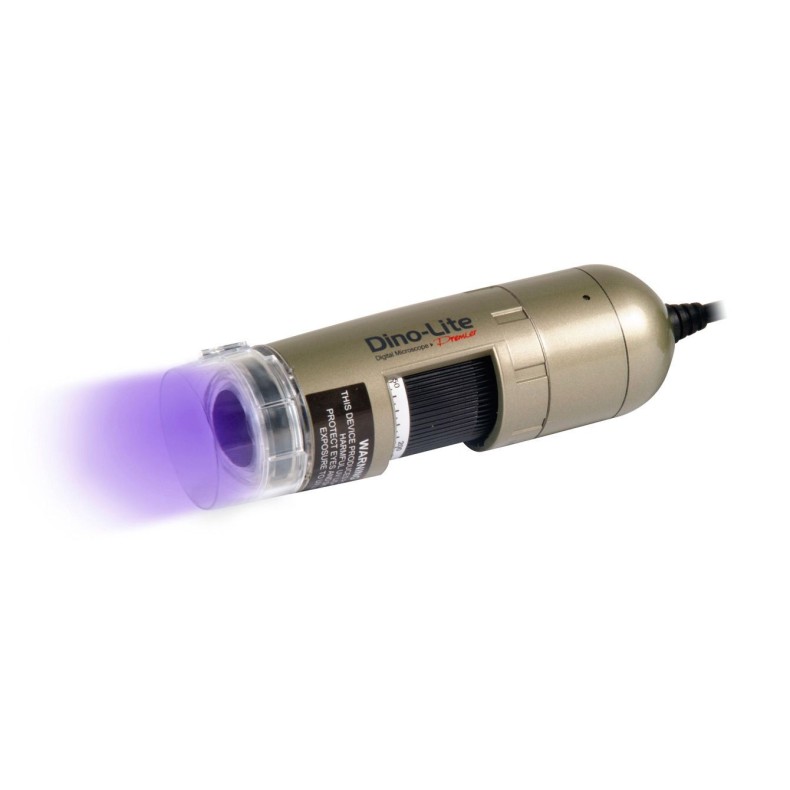

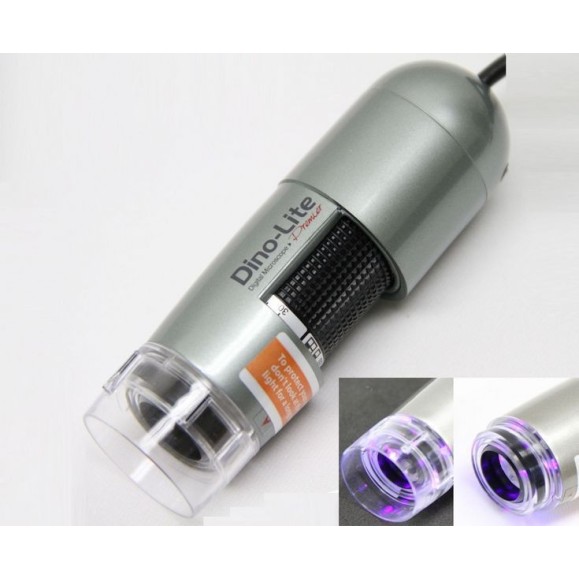

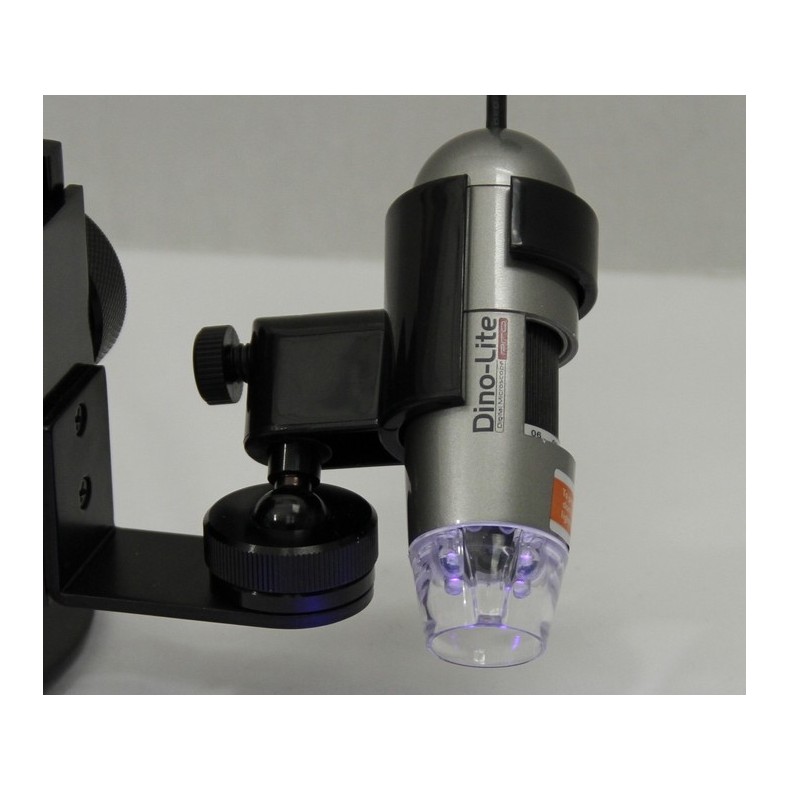

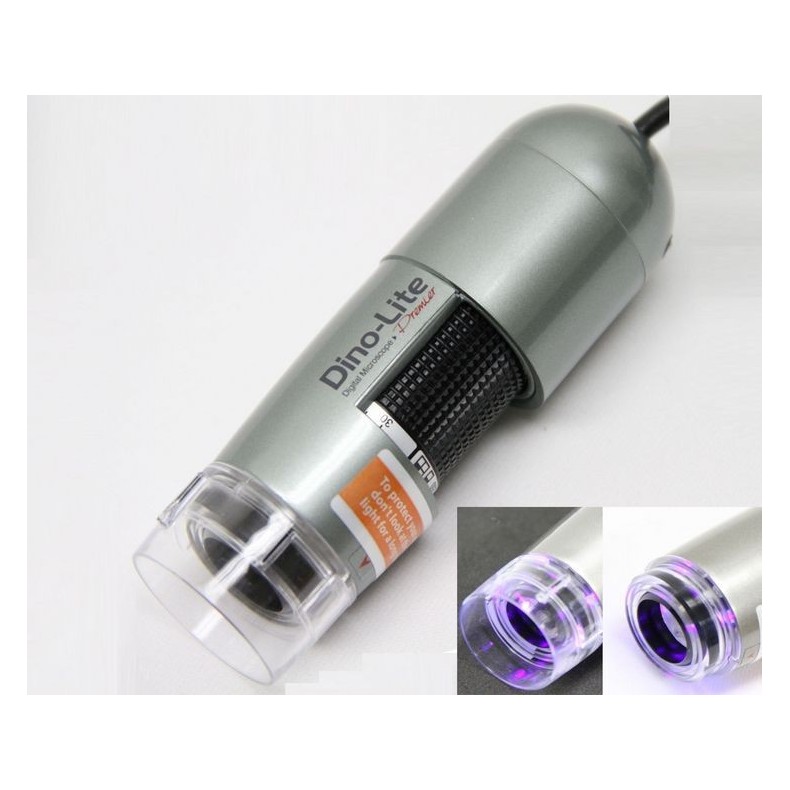

Digital Microscope Dino-Lite AD4113T-I2V with IR and UV light

Digital Microscope Dino-Lite AD4113T-I2V with IR and UV light

The Universal series of Dino-Lite provides a wide range of products with the highest image quality as well as user-friendly software with comprehensive measurement functions and several unique hardware and software features to satisfy the most demanding users.

This range consists of models Dino-Lite with USB connection and up to 200x magnification, as well as an image resolution of 1.3 or 5 megapixels. For working with reflective objects, you can choose models with integrated polarization filter, with adaptive polarization. We offer models with robust aluminum alloy housing, for the best look and feel, as well as increased durability.

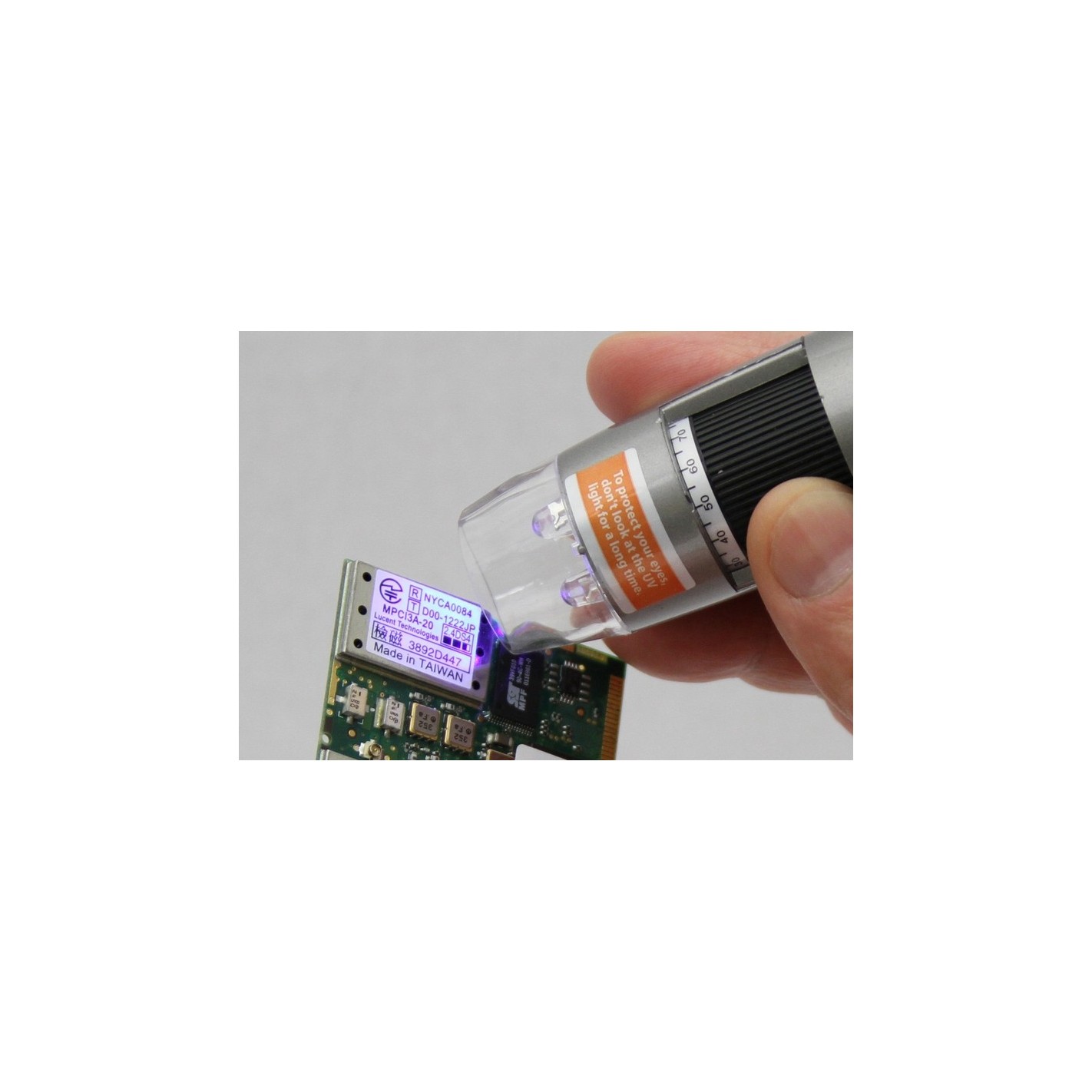

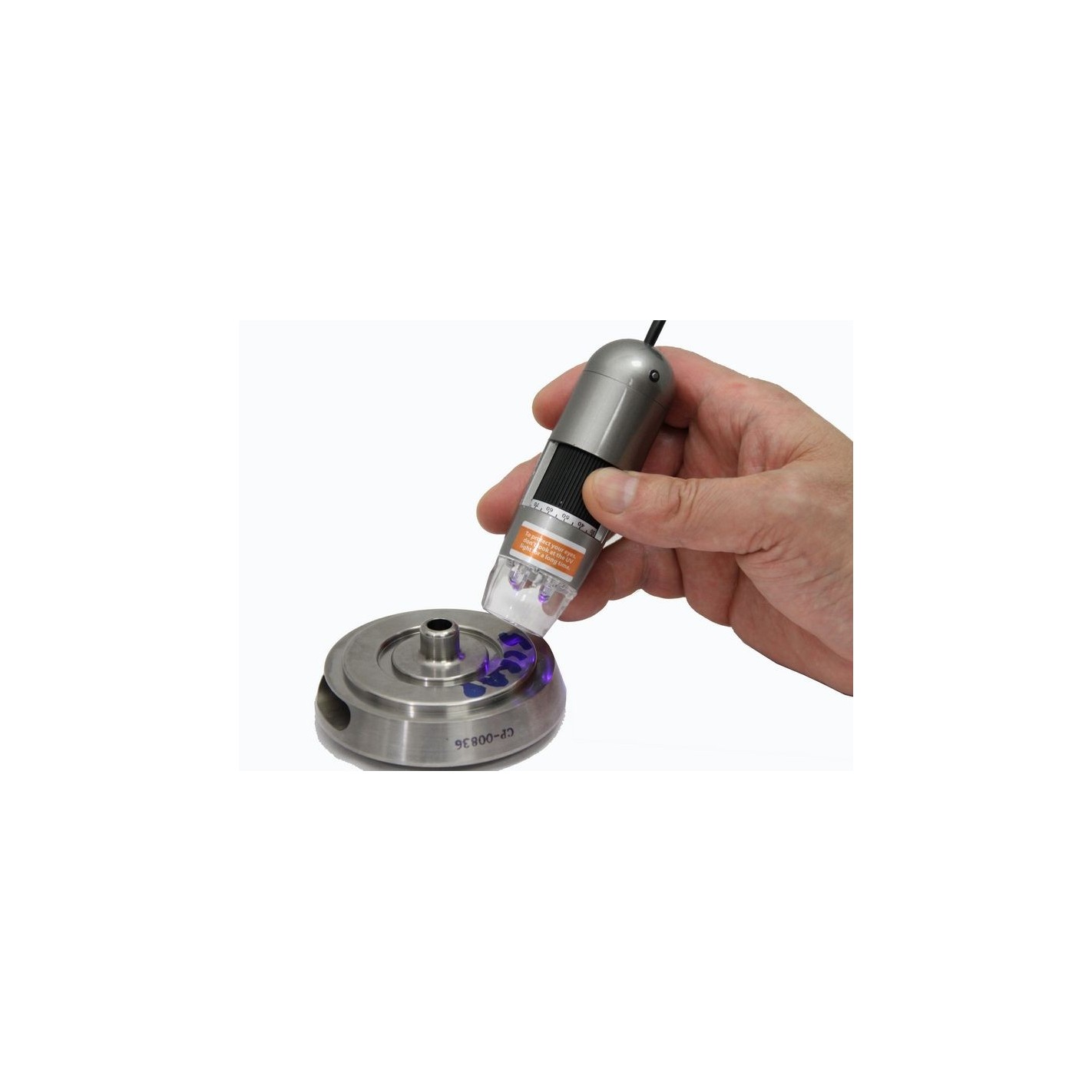

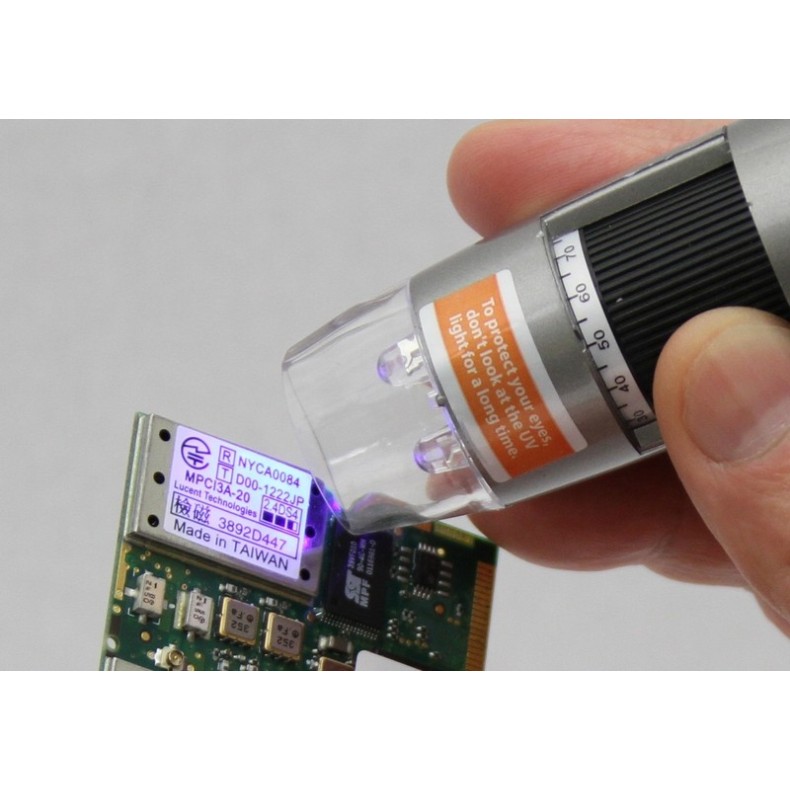

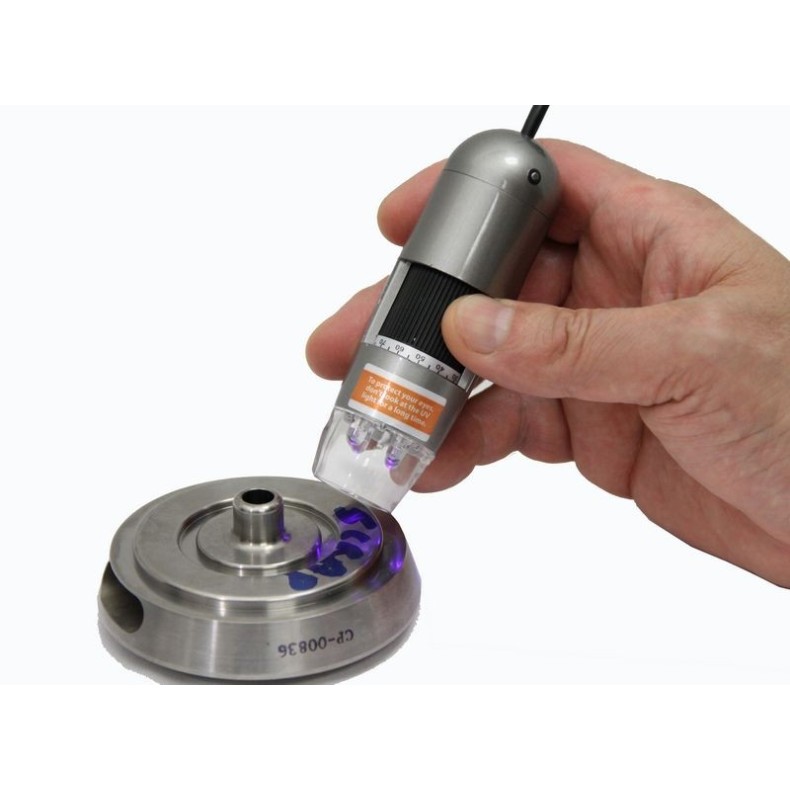

Dino-lite offers a range of special illuminations. Multiple illumination options offer the ability to view objects with magnification under normal external light sources, such as white light or near infrared, or ultraviolet illumination, simply by switching from one to the other. Infrared can be used in document examination and the new enhanced ultraviolet system provides improved fluorescence contrast for use in forensic, biomedical or electronic vision applications.

Technical comments:

It is equipped with a high quality 1.3 megapixel sensor that offers crystal clear image quality and natural color reproduction, allowing you to view and capture objects with the highest level of detail. This model is supplied with DinoCapture 2.0 software for Windows and DinoXcope software for MacOS, allowing you to make calibrated measurements on images taken with Dino-Lite. The aluminum housing provides enhanced protection and durability and has the best look and feel

Technical Specifications:

• LIGHT
• Light/ LED Type: ~395 nm UV + ~940 nm Infrared
• Number of LEDs: 4+4
• LED on/off switch: Yes
• Infrared Filter: No
• Diffuser available: No
• Emission filter: No
• Polarizer: No
• OPTICS
• Magnification: 20-200x
• Macro Zoom: No
• Working Distance: Standard
• Lens Type: Glass with anti-reflective coatings
• SENSOR
• Sensor Type: CMOS
• Resolution: 1.3 Megapixels (1280x1024)
• Maximum frame rate: 30 fps
• COMPATIBILITY
• Interface: USB 2.0
• Operating System: Windows XP, Vista, 7 & 8, MacOS 10.4 and above
• Included Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported Image Formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supportedimage formats (MacOS): JPEG, PNG
• Supportedvideo formats (MacOS) :MOV
• Image capture standards: DirectShow, UVC
• MICROSCOPE BODY
• Material: Plastic composite housing
• Magnification fixation: Yes
• Dimensions: 10.5cm (L) x 3.2cm (D)
• Weight: 105g
• Cable length: 1.8m
• FEATURES
• Special features: No
• Measuring: Yes
• Calibration: Yes
• MicroTouch Sensor: Yes

• ESD Safe: No
• INFORMATION
• Box Contents: Microscope, carrying case, CD with Software, calibration standard, User's Manual.
• Warranty: 2 years against factory defect
