Digital Microscope Dino-Lite Portable Recorder AMK4012TL-D15

Digital Microscope Dino-Lite Portable Recorder AMK4012TL-D15

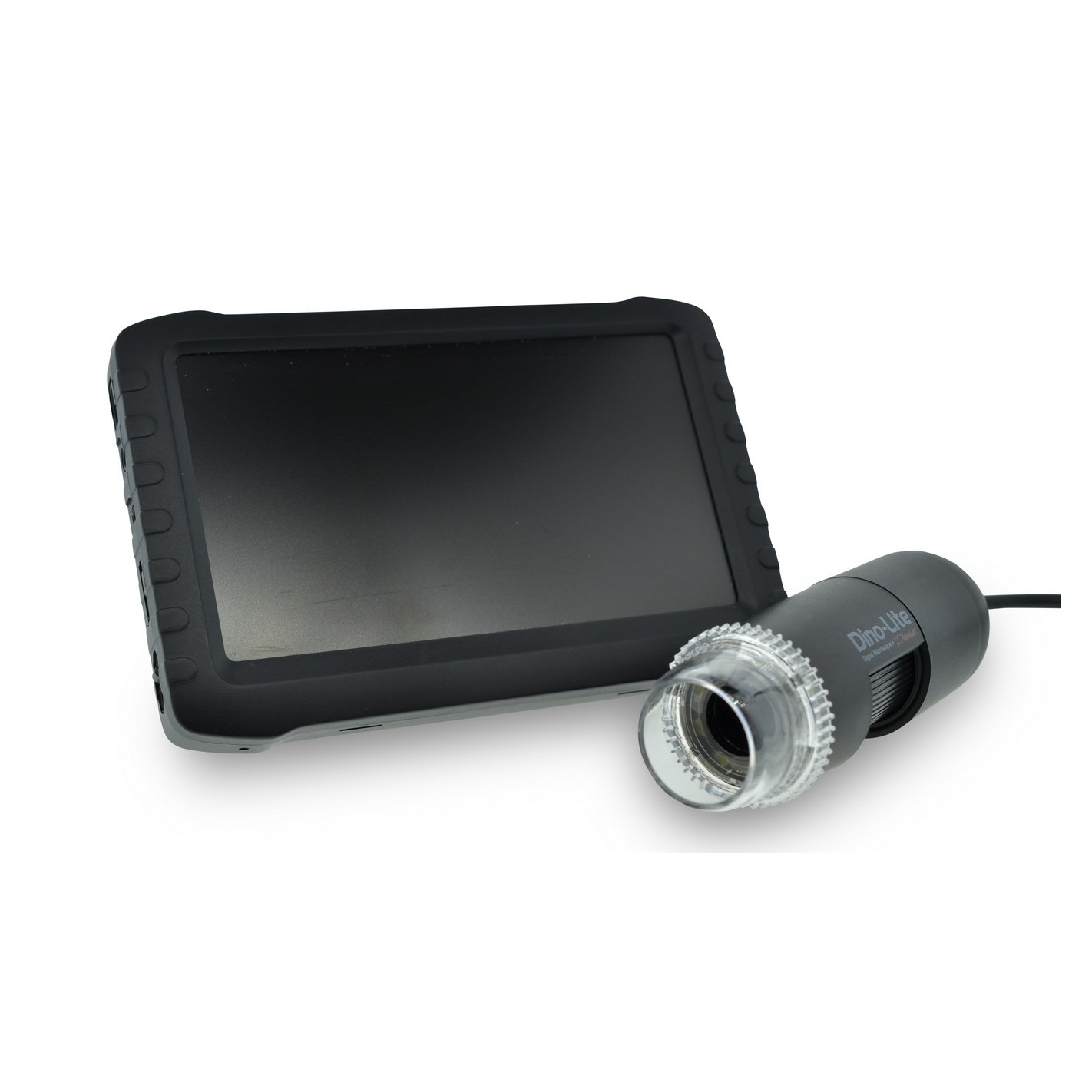

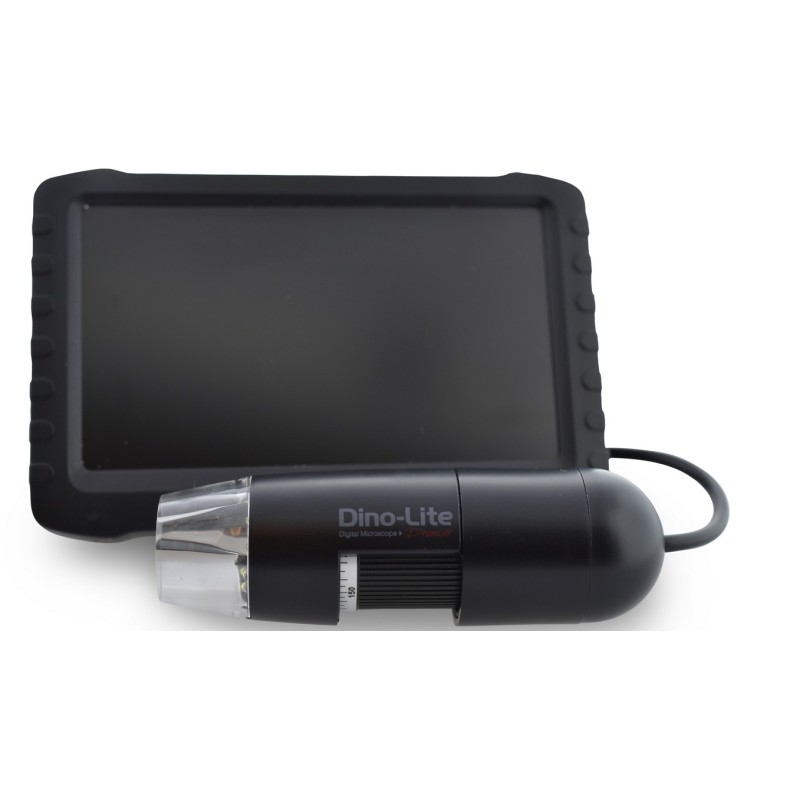

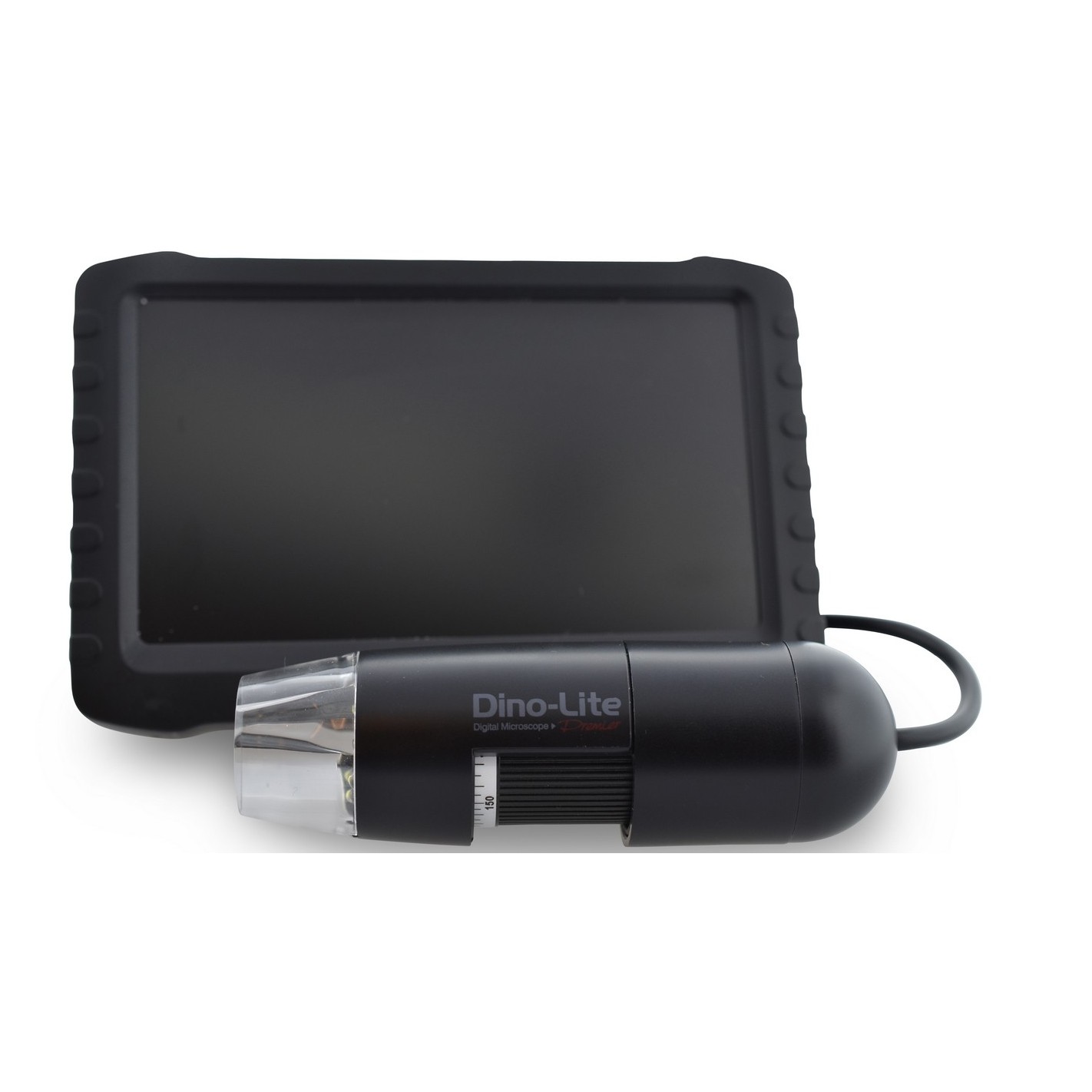

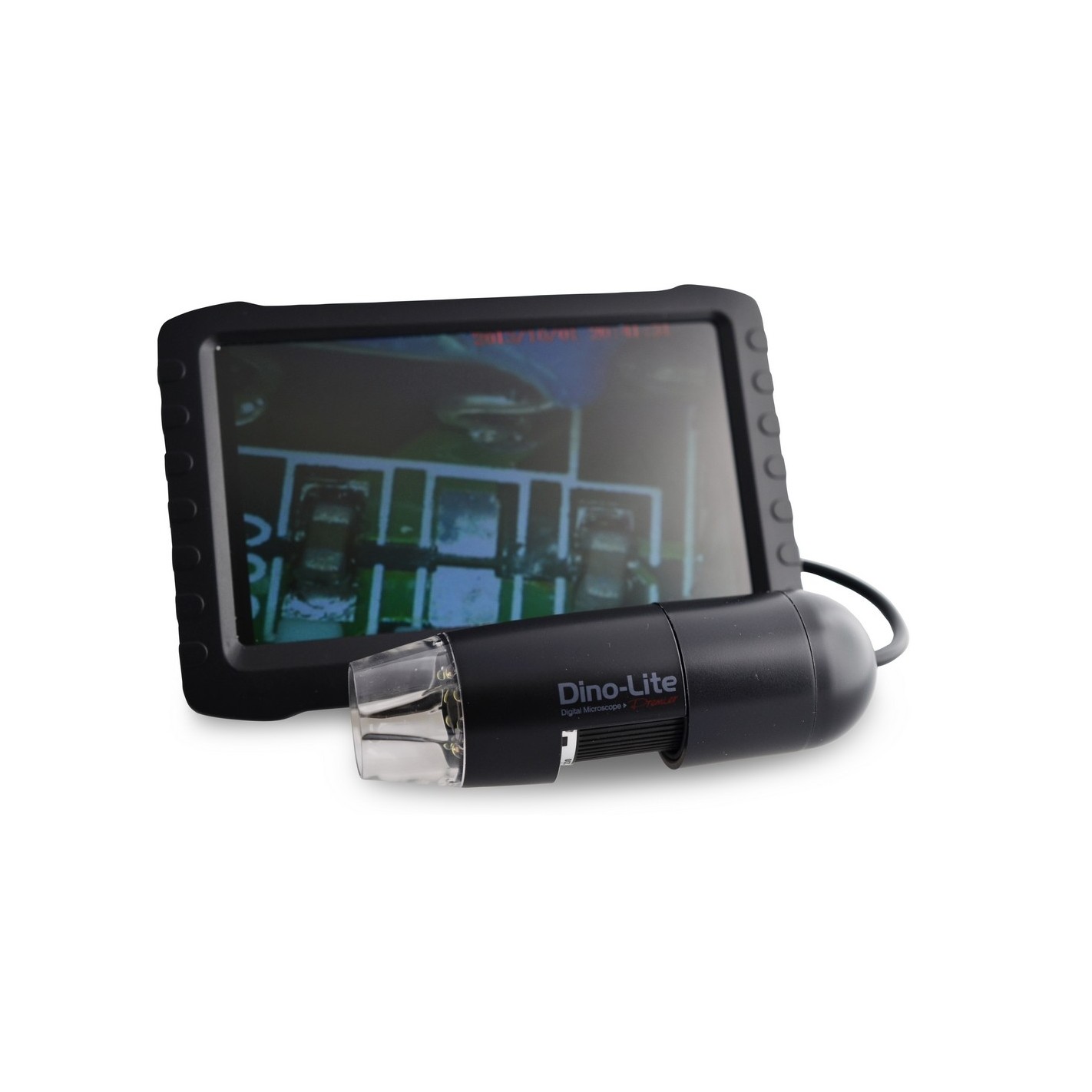

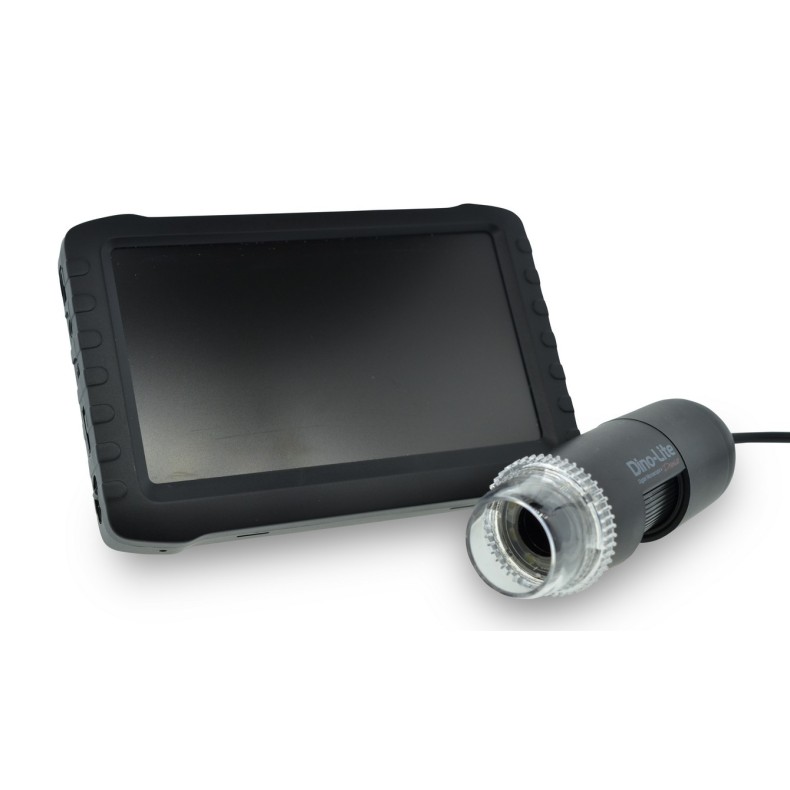

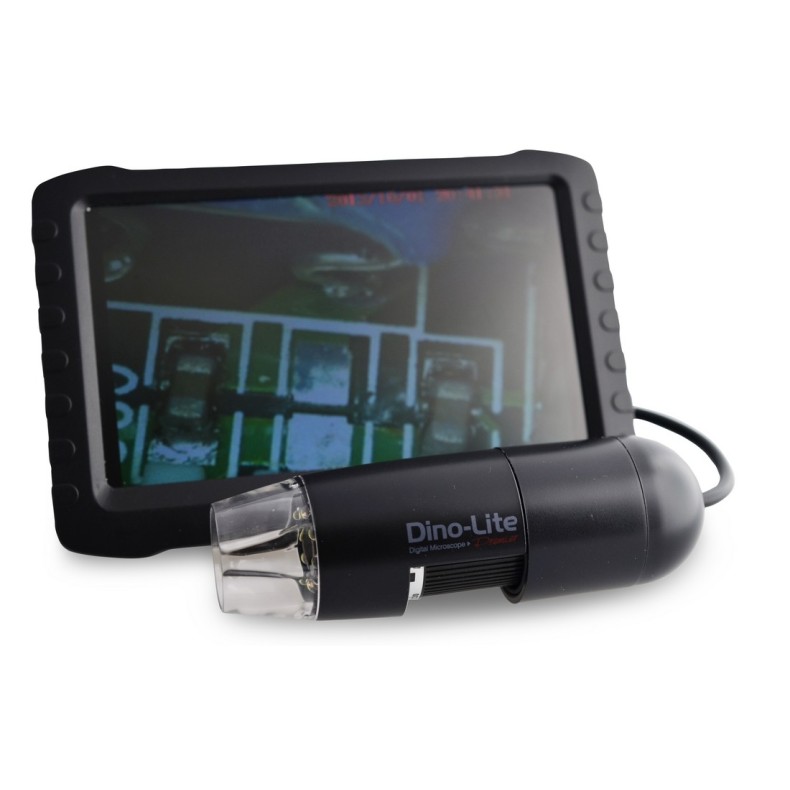

The ultimate solution in portable microscopy, a special combination of a digital microscope Dino-Lite with high magnification and a portable digital recorder with a 5-inch LCD panel

Features:

- Lightweight
- Pocket size
- Real-time imaging/video capture options

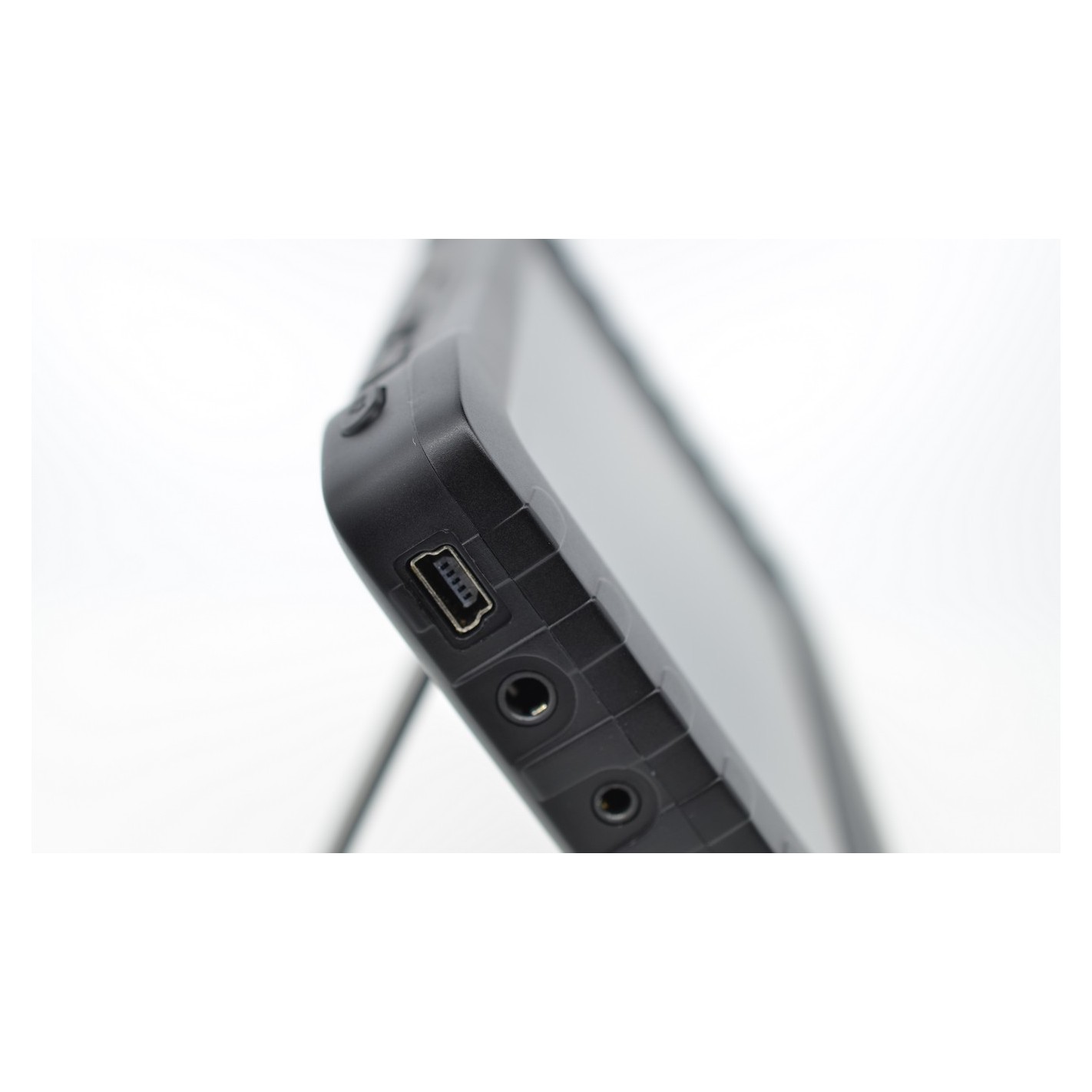

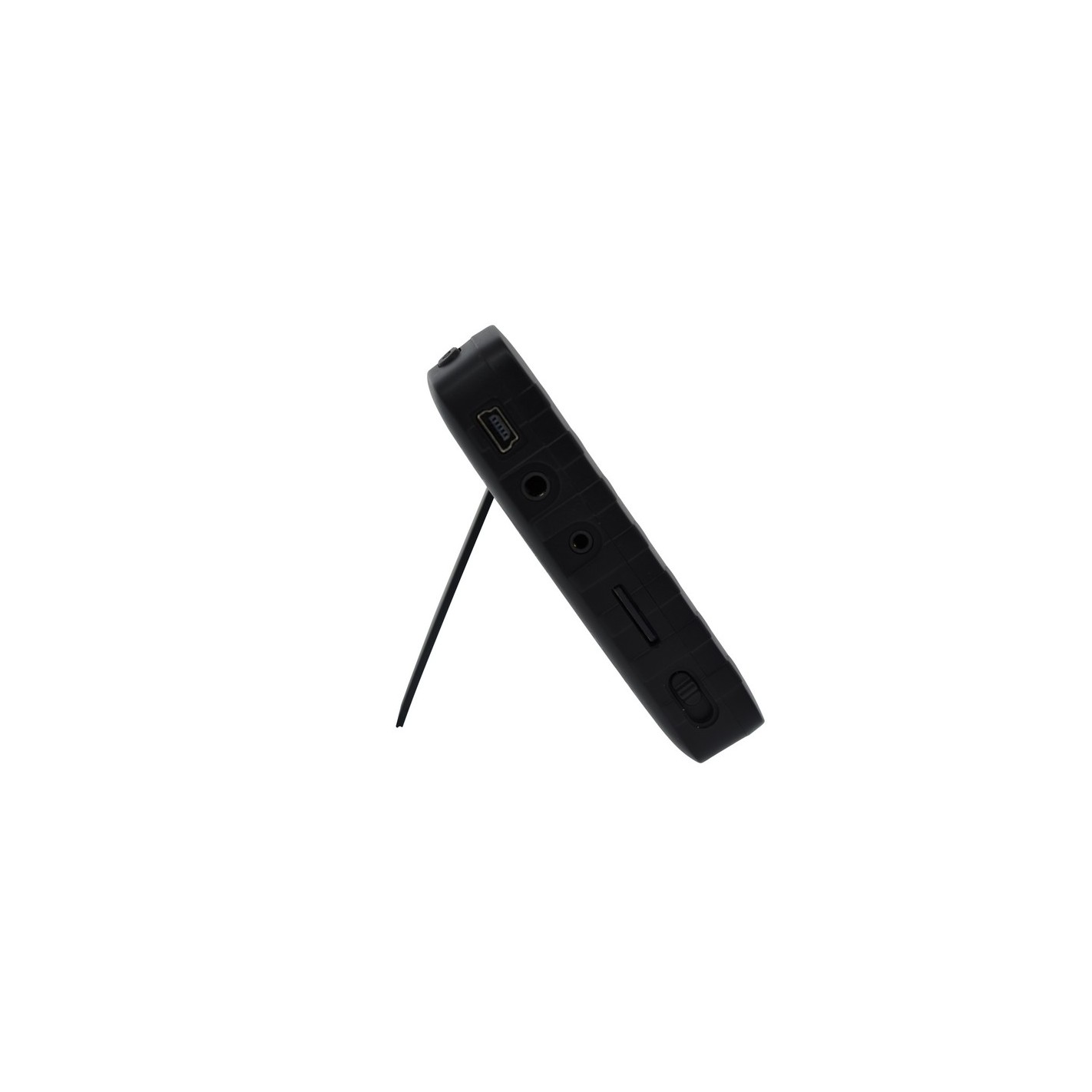

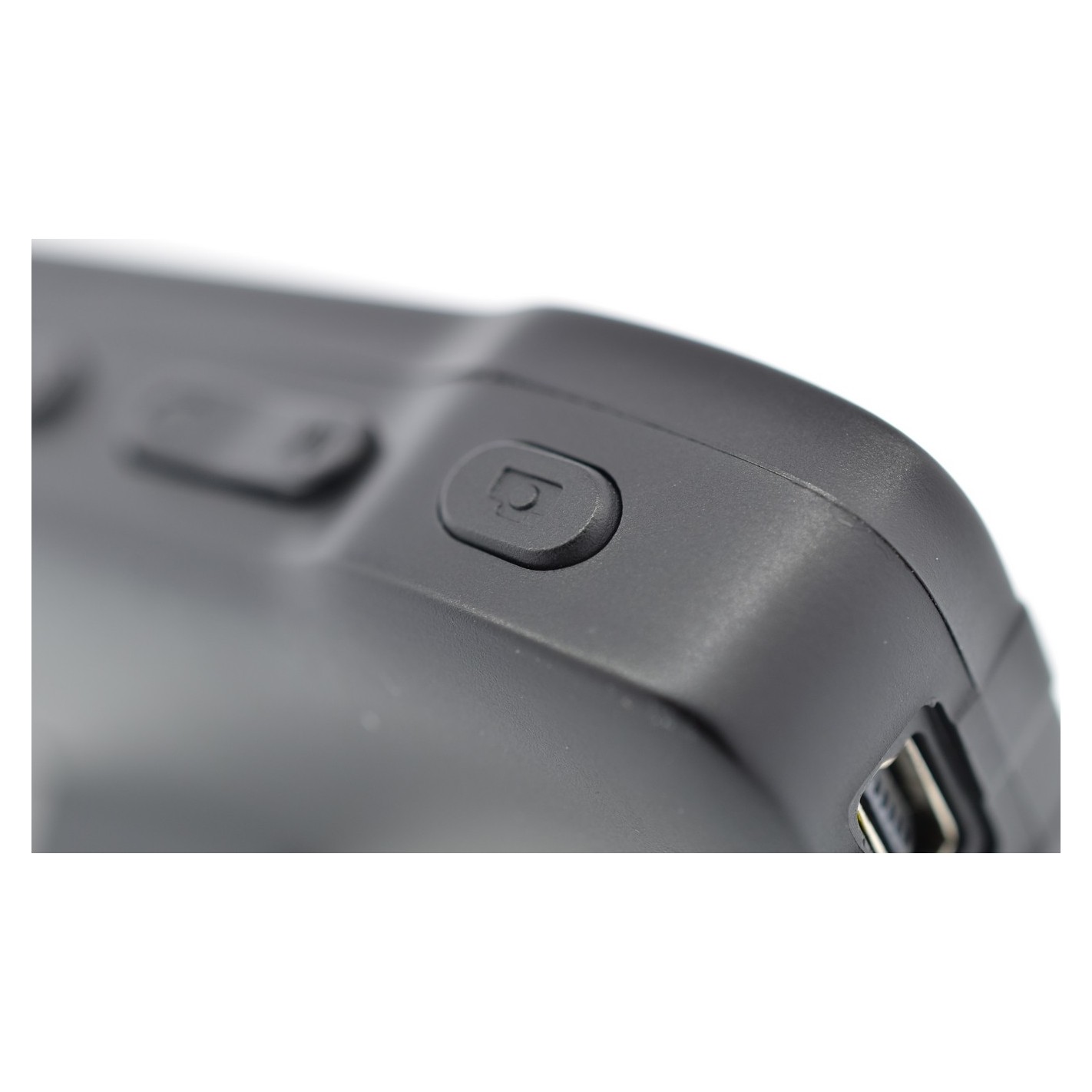

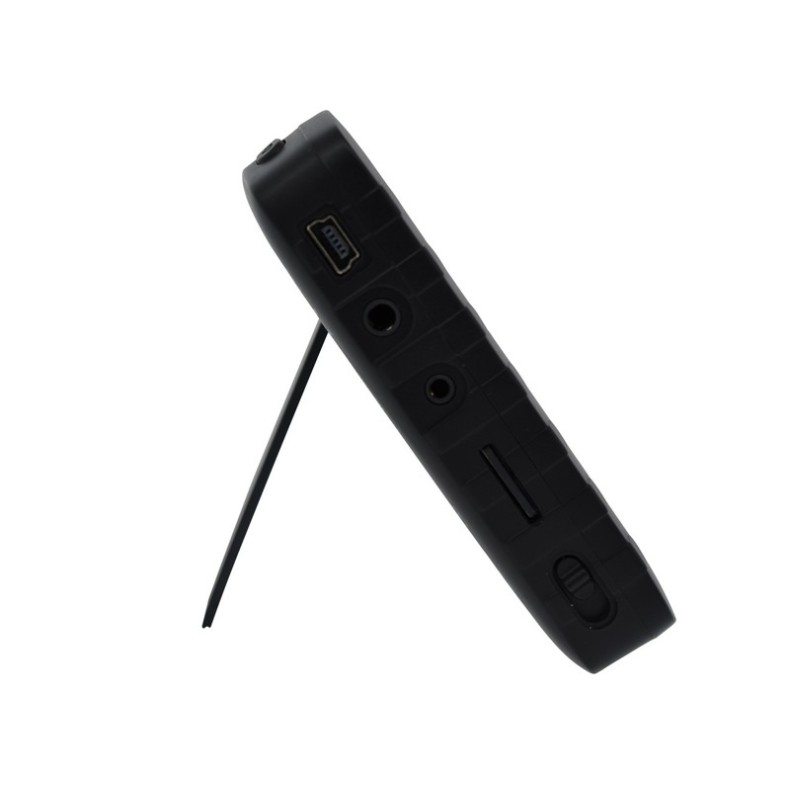

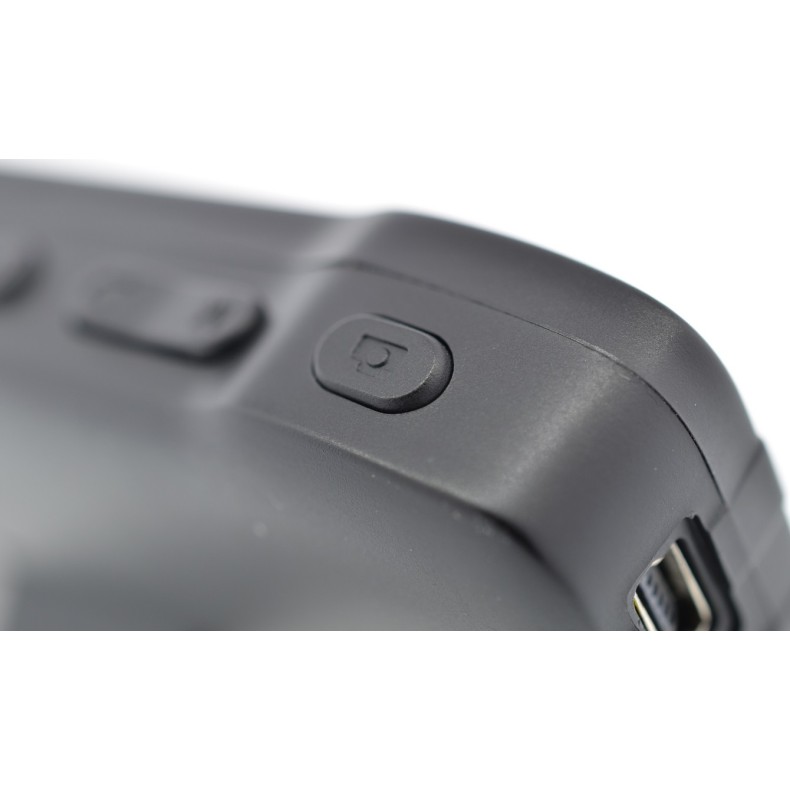

The D15 LCD recorder is a lightweight, pocket-sized inspection device with real-time imaging/video capture options. Images and videos can be recorded to a MicroSD card, so they can be transferred to a computer with a USB cable or MicroSD card. A great tool for research in the scientific or medical field or for quality control in production environments.

APPLICATIONS:

A wide range of applications, especially where it is undesirable or impractical to use a computer or laptop.

- Research in the scientific/medical field
- Inspection in industrial/production environments
- On-site forensics
- In the field of biological research

Technical comments:

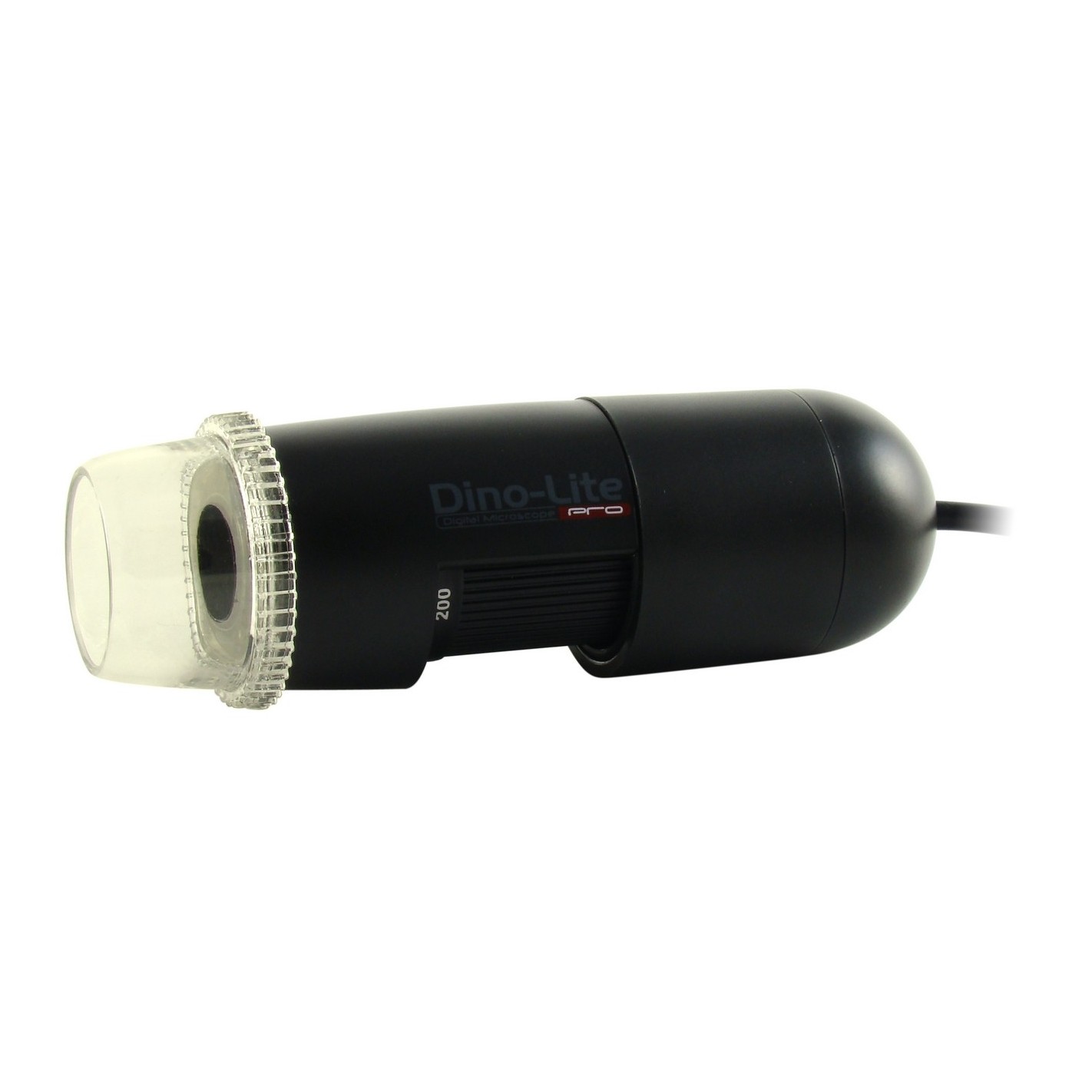

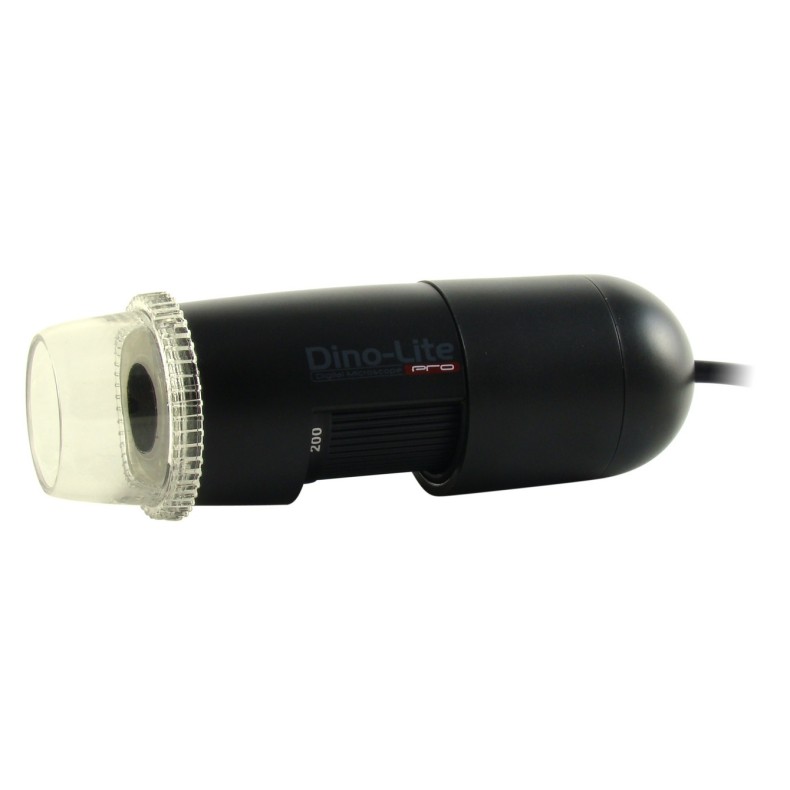

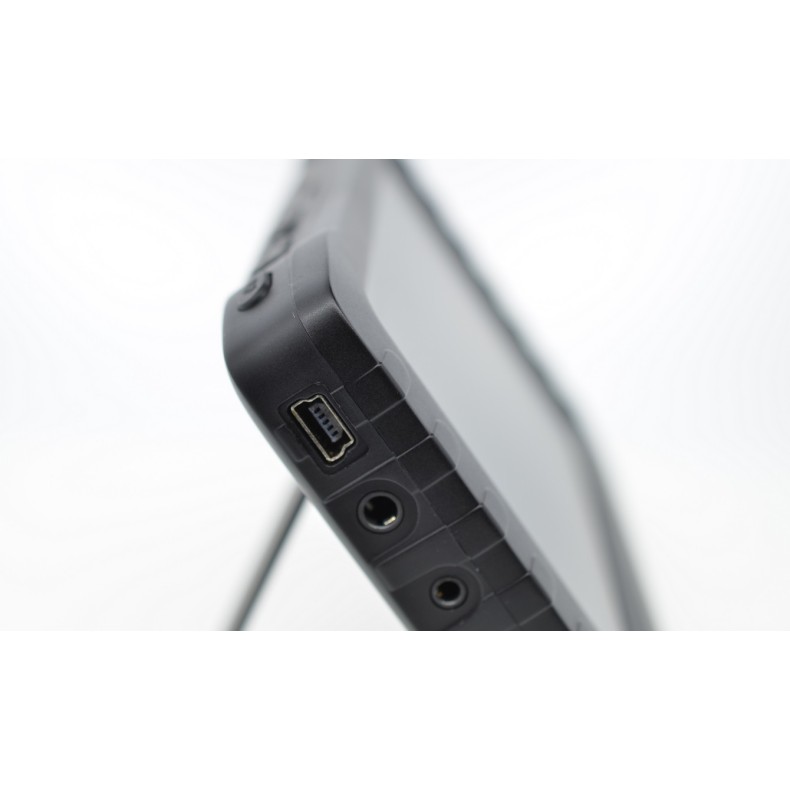

For mobile applications, the AMK4012TL-D15 is a superb combination of a digital microscope Dino-Lite with long working distance and a portable digital recorder (D15).The long working distance of up to 15 cm makes it possible to work under the microscopes (precision assembly/welding, etc.). The recorder has a 5 inch LCD panel and images and videos can be recorded on a MicroSD card (4GB)

Technical Specifications:

• LIGHTING
• Light/ LED Type: White
• Number of LEDs: 8
• LED on/off switch: Yes
• Infrared Filter: IR blocking filter >650 nm
• Diffuser available: MSAA111A1 (optional accessory)
• Emission filter: No
• Polarizer: No
• OPTICS

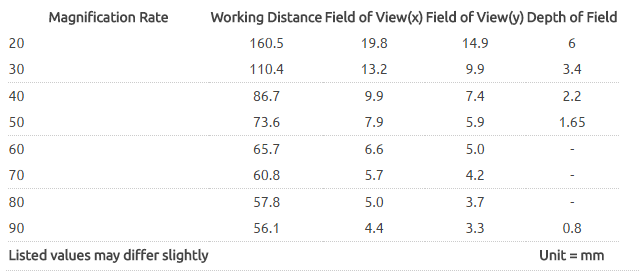

• Magnification:10-90x
• Macro Zoom: No
• Working Distance: Long
• Lens Type: Glass with anti-reflective coatings
• SENSOR
• Sensor Type: CMOS
• Resolution: 720x576 pixels
• Maximum frame rate: 30 fps
• COMPATIBILITY
• Interface: TV (RCA) PAL
• MICROSCOPE BODY
• Material: composite/plastic
• Magnification fixation: No
• Dimensions: 10.5cm (L) x 3.2cm (D)
• Weight: microscope 95gr; recorder 200gr.
• Cable length: 1.8m
• FEATURES
• Special features: No
• Measuring: No
• Calibration: No
• MicroTouch sensor: Yes
• INFORMATION

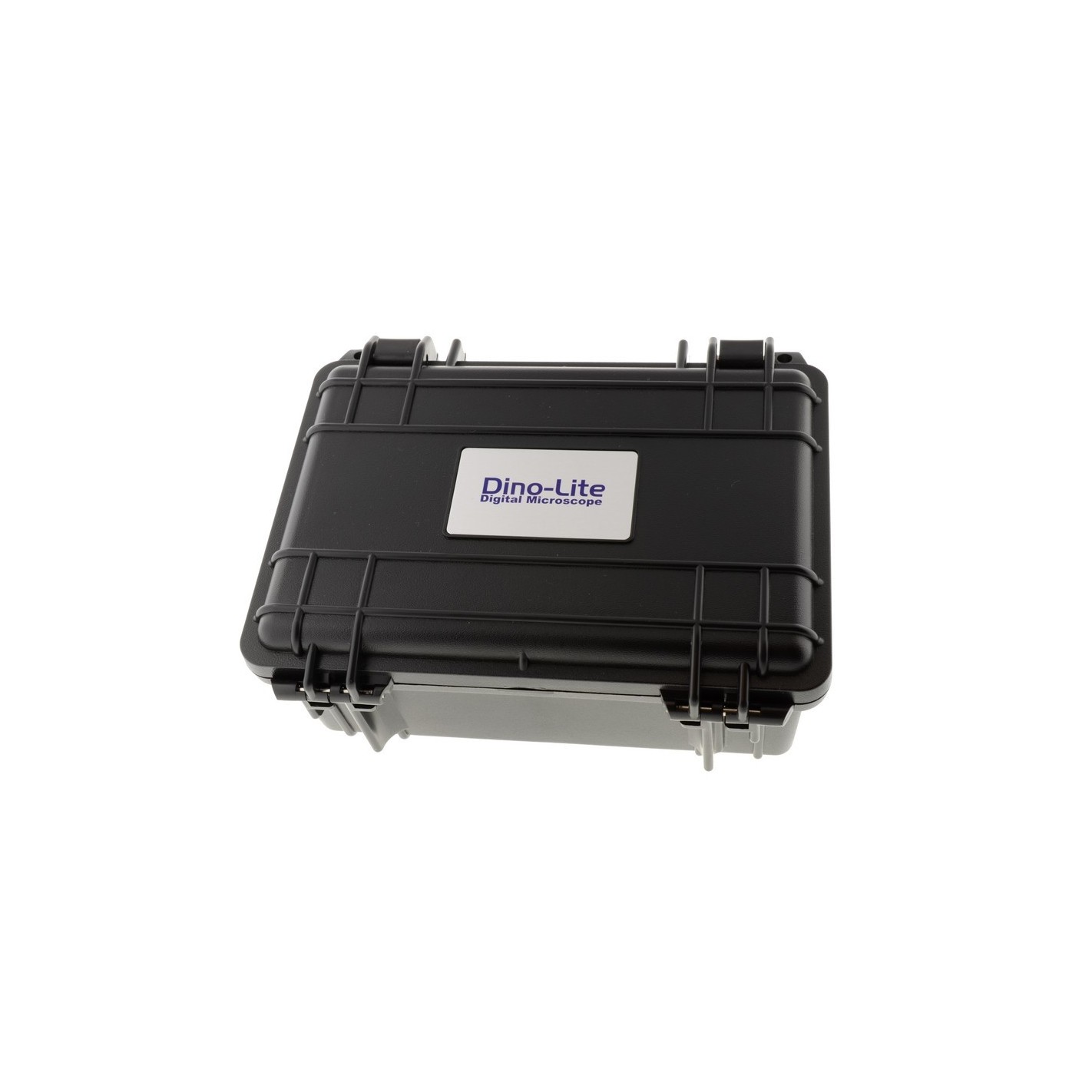

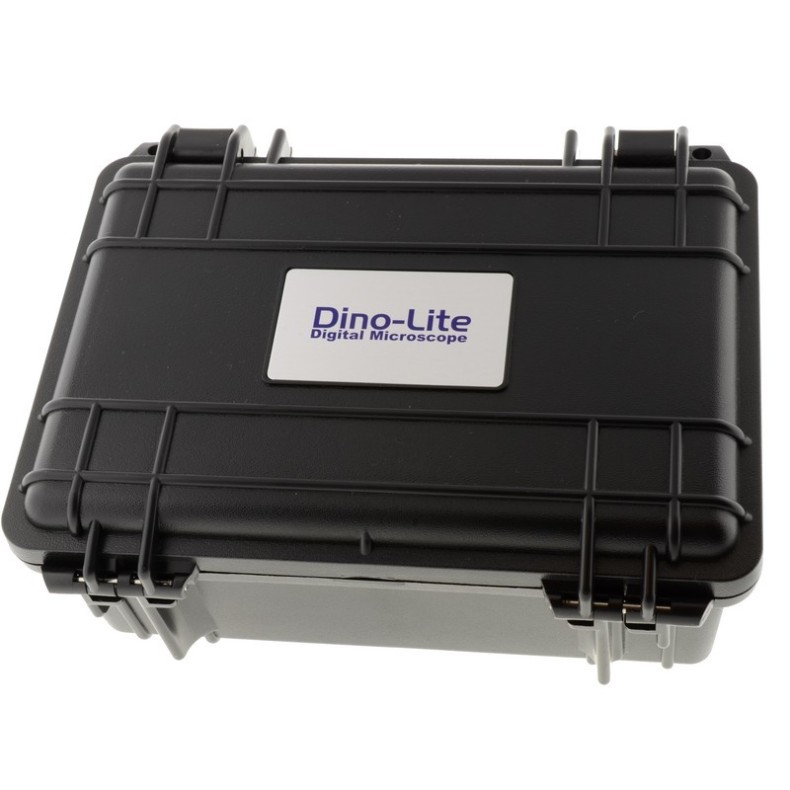

• Box Contents: Microscope, 5" portable monitor/recorder, 4 GB MicroSD card , USB connection cable, 110/240V power supply, rechargeable battery, recording clamp, airtight storage box and user's manual.
• Warranty: 2 years against factory defect
