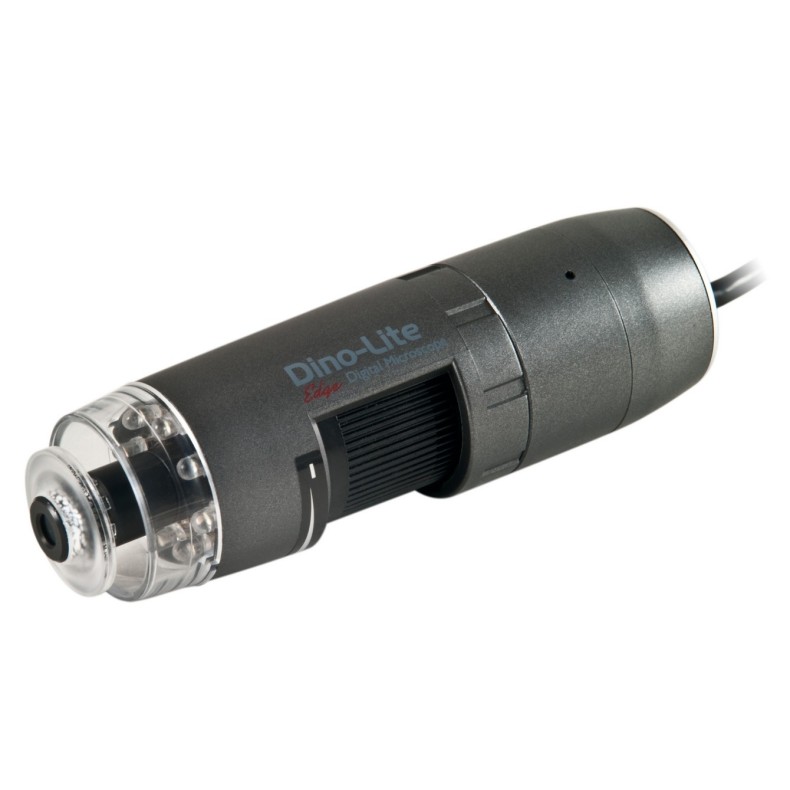

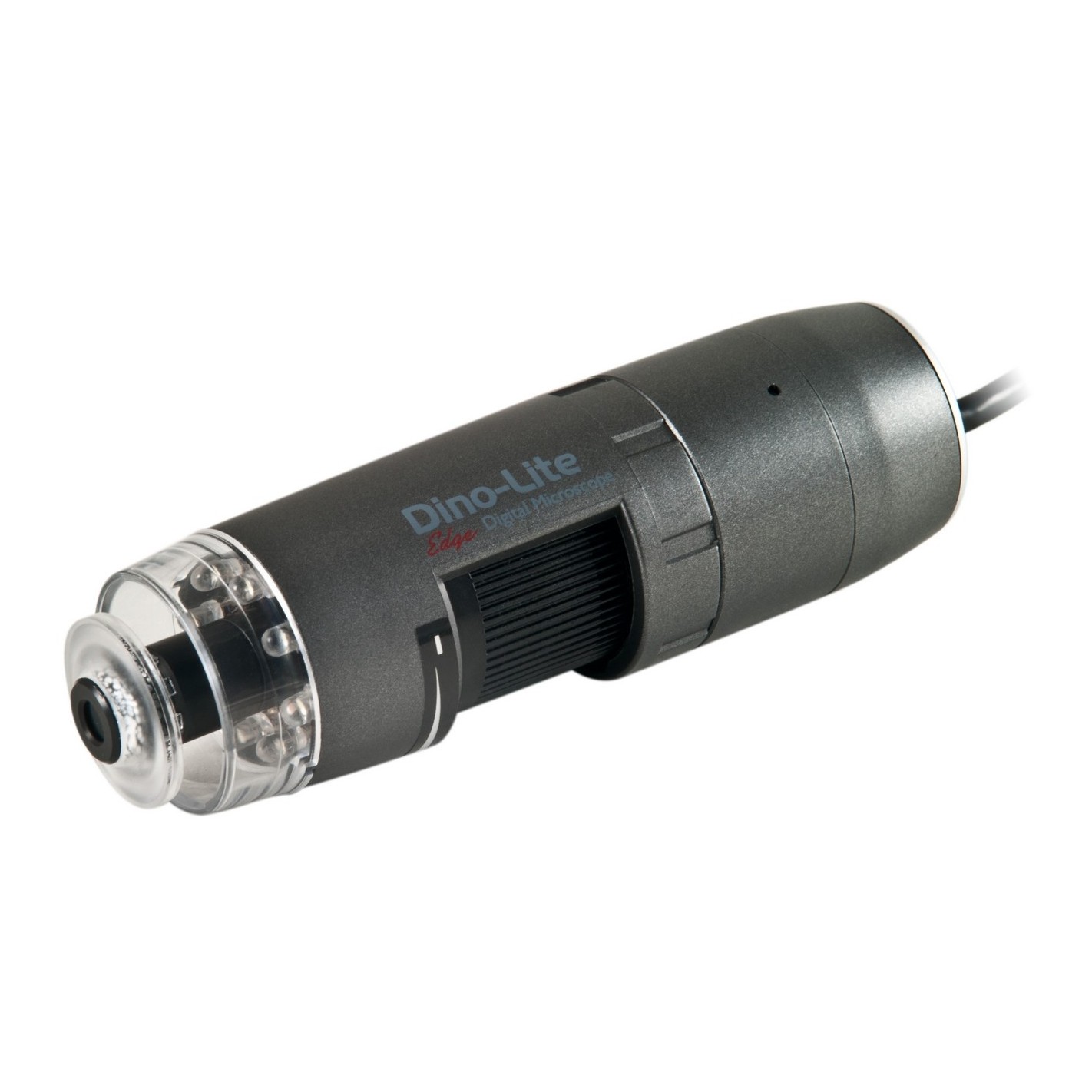

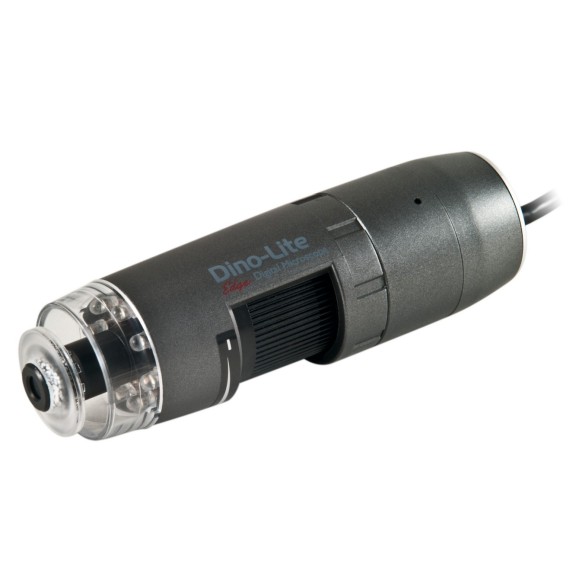

Digital Microscope Dino-Lite AM4515T8 EDGE

The High Magnification series of Dino-Lite provides a wide range of products with the highest image quality as well as user-friendly software with comprehensive measurement functions and several unique hardware and software features to satisfy the most demanding users.

This range consists of models Dino-Lite with USB connection and a magnification of up to 900x (depending on the model), as well as an image resolution of 1.3 or 5 megapixels. For working with reflective objects, you can choose models with integrated polarization filter, with adaptive polarization. We offer models with solid aluminum alloy housing, for the best look and feel, as well as increased durability.

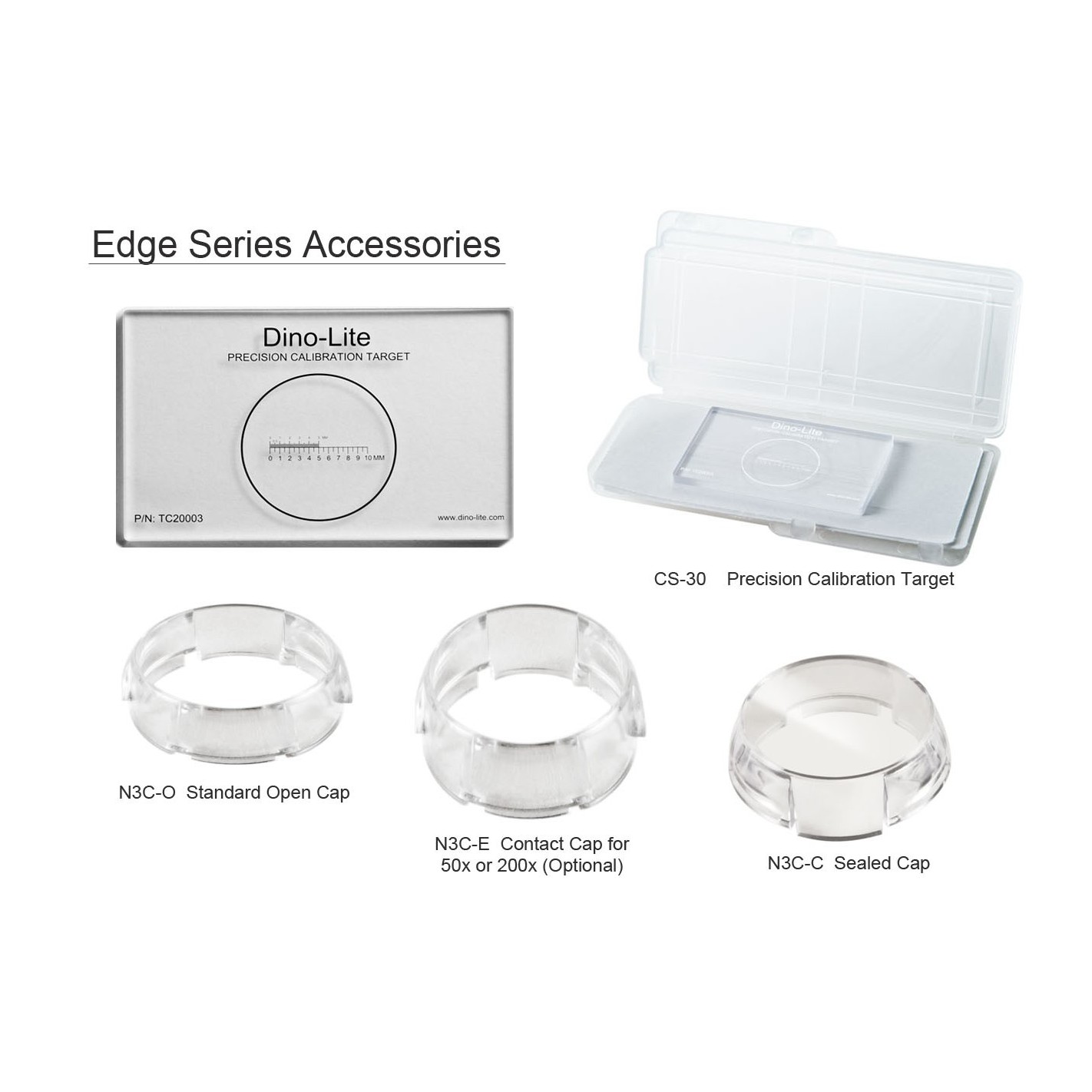

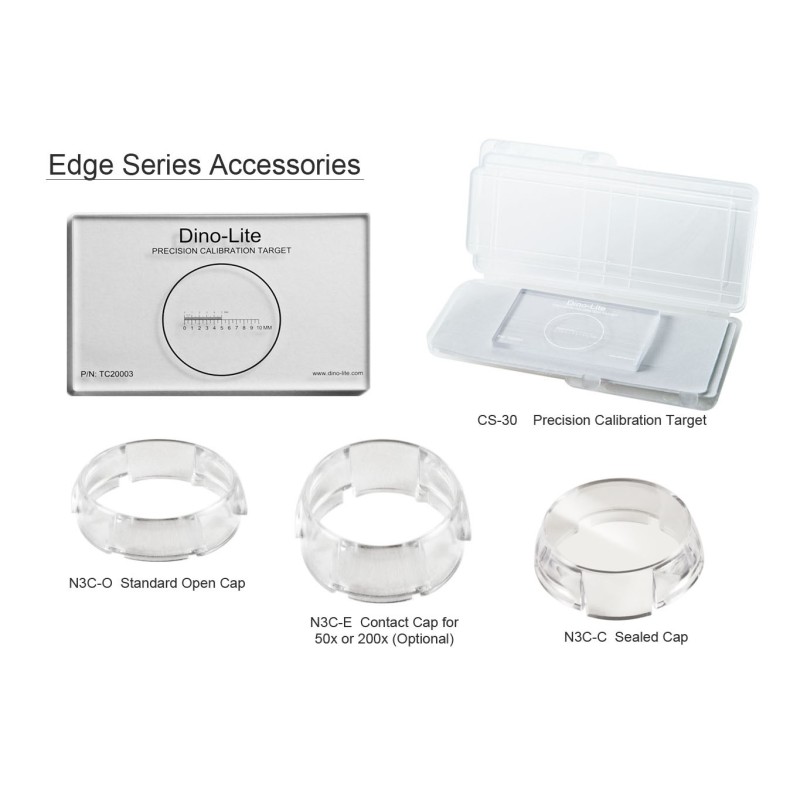

The Dino-Lite Edge series is a special category within the High Magnification range. The Edge series offers even better image quality and greater flexibility. The high-quality optics provide a very sharp, bright, natural color image with very low aberration and vignetting. Interchangeable caps provide even more flexibility for use in all kinds of professional applications

Technical comments:

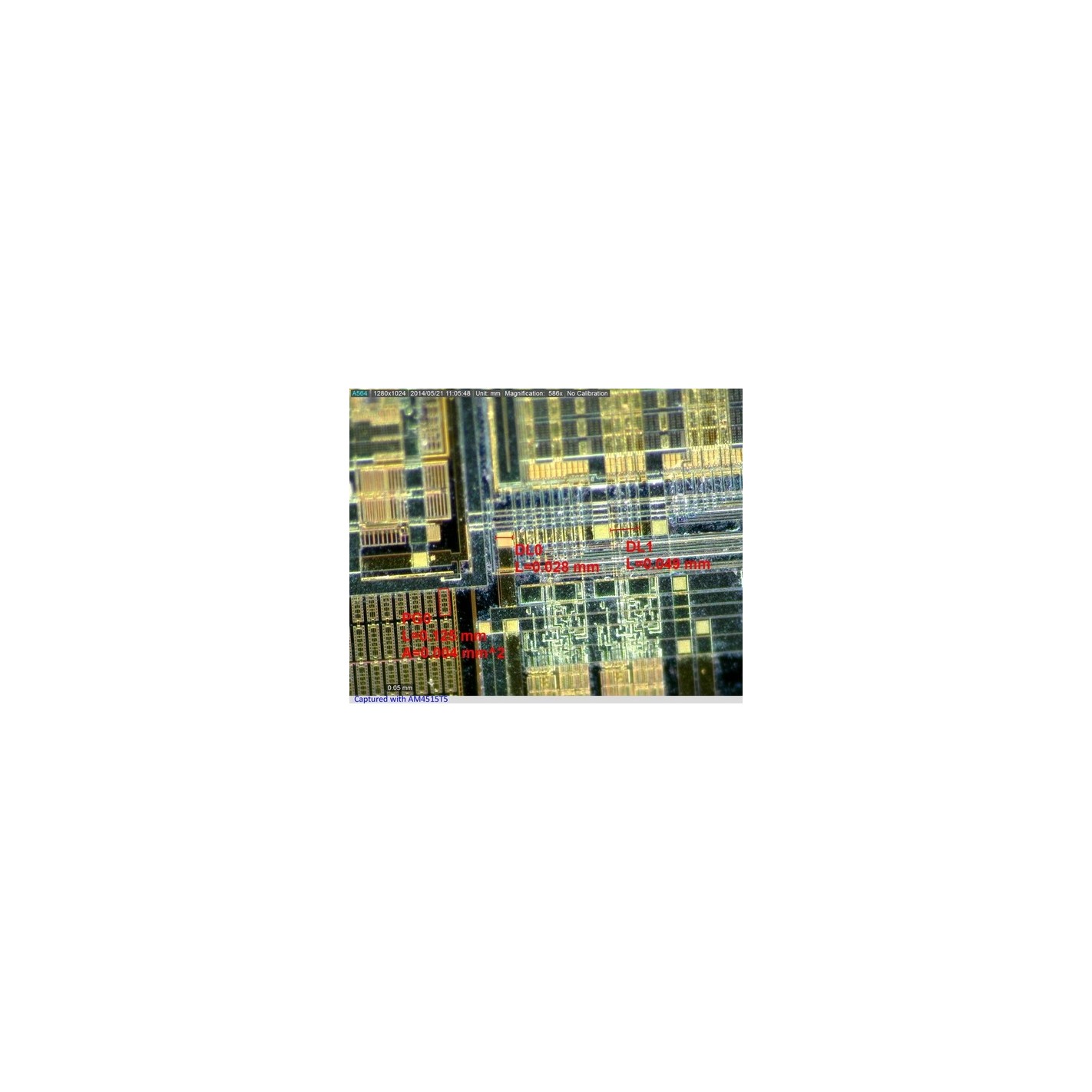

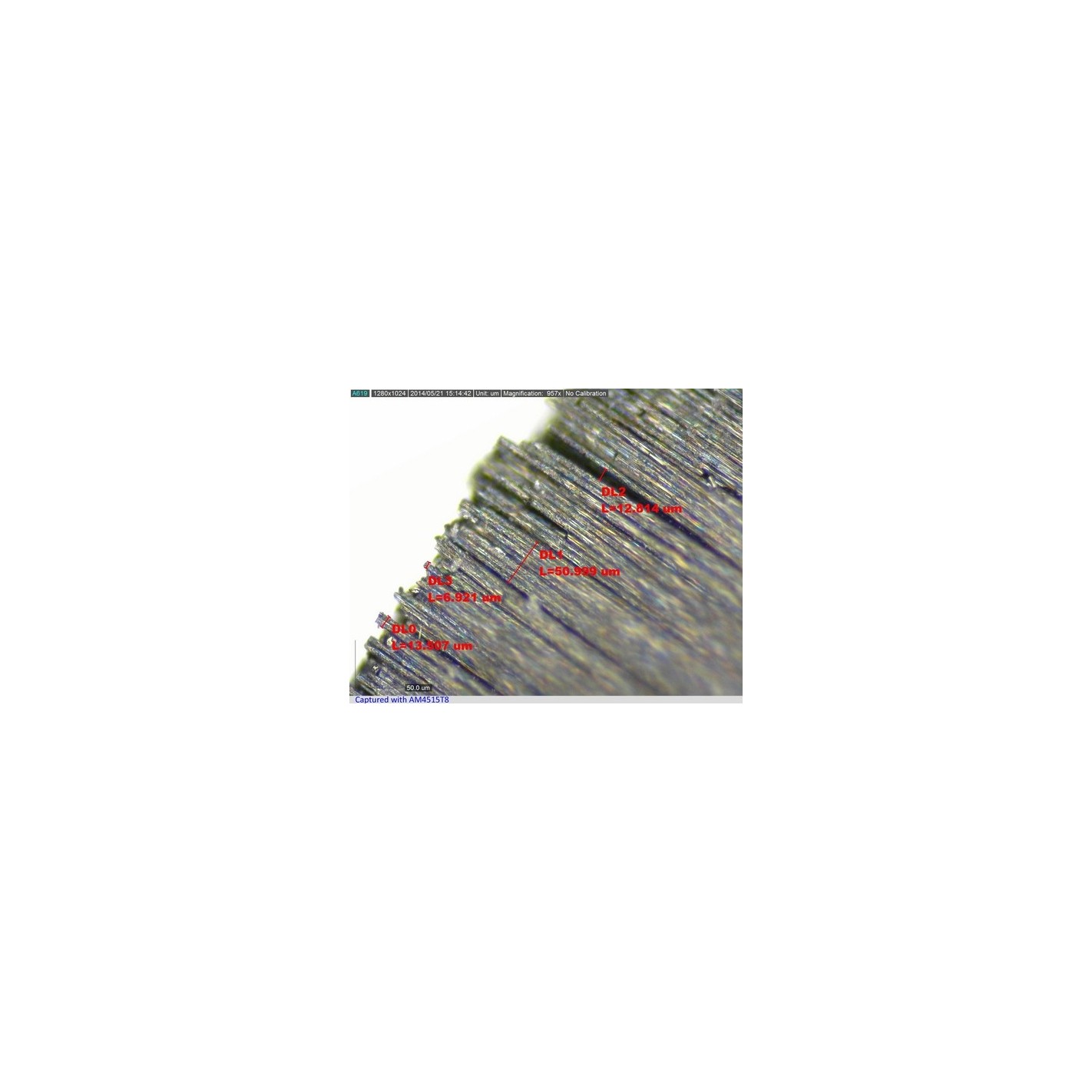

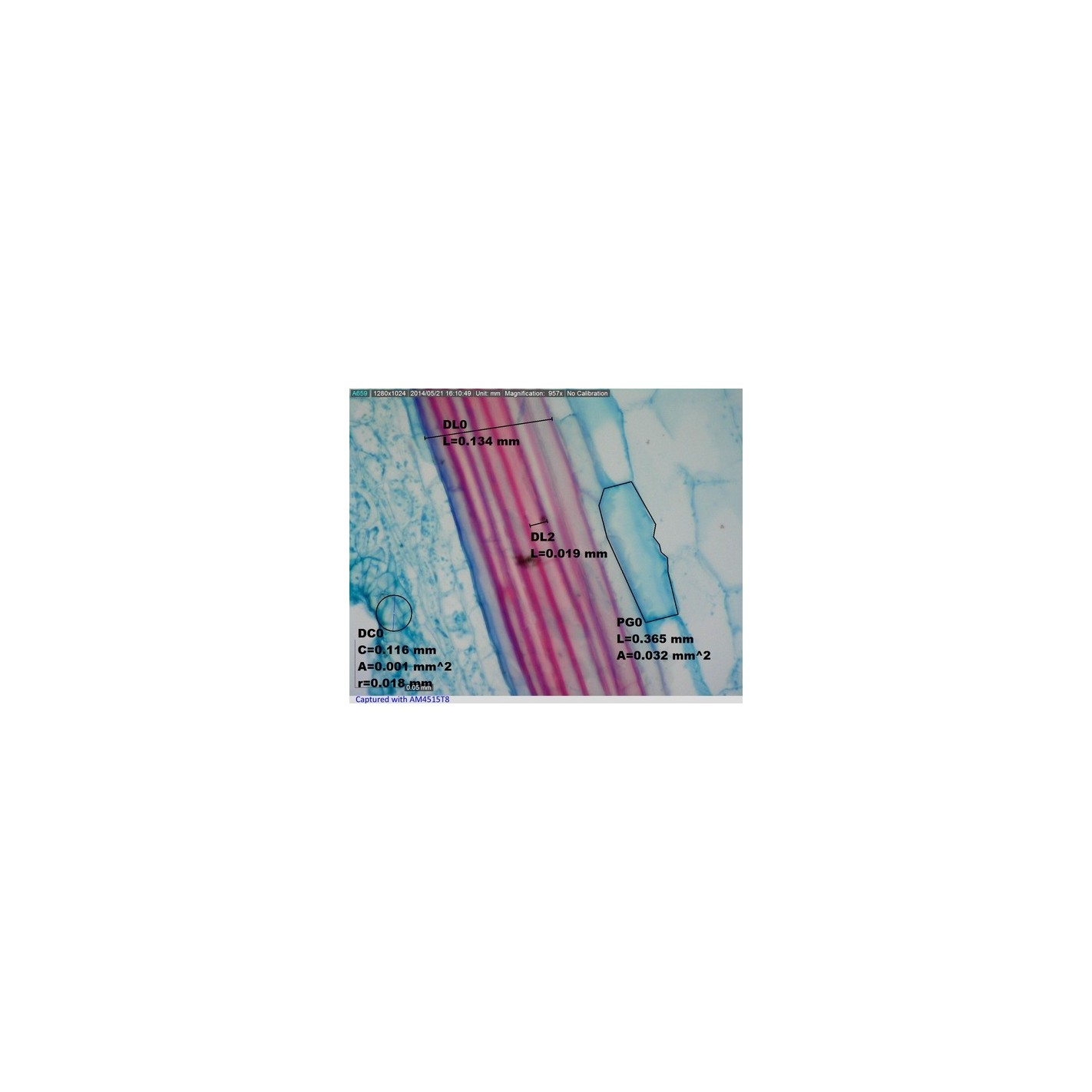

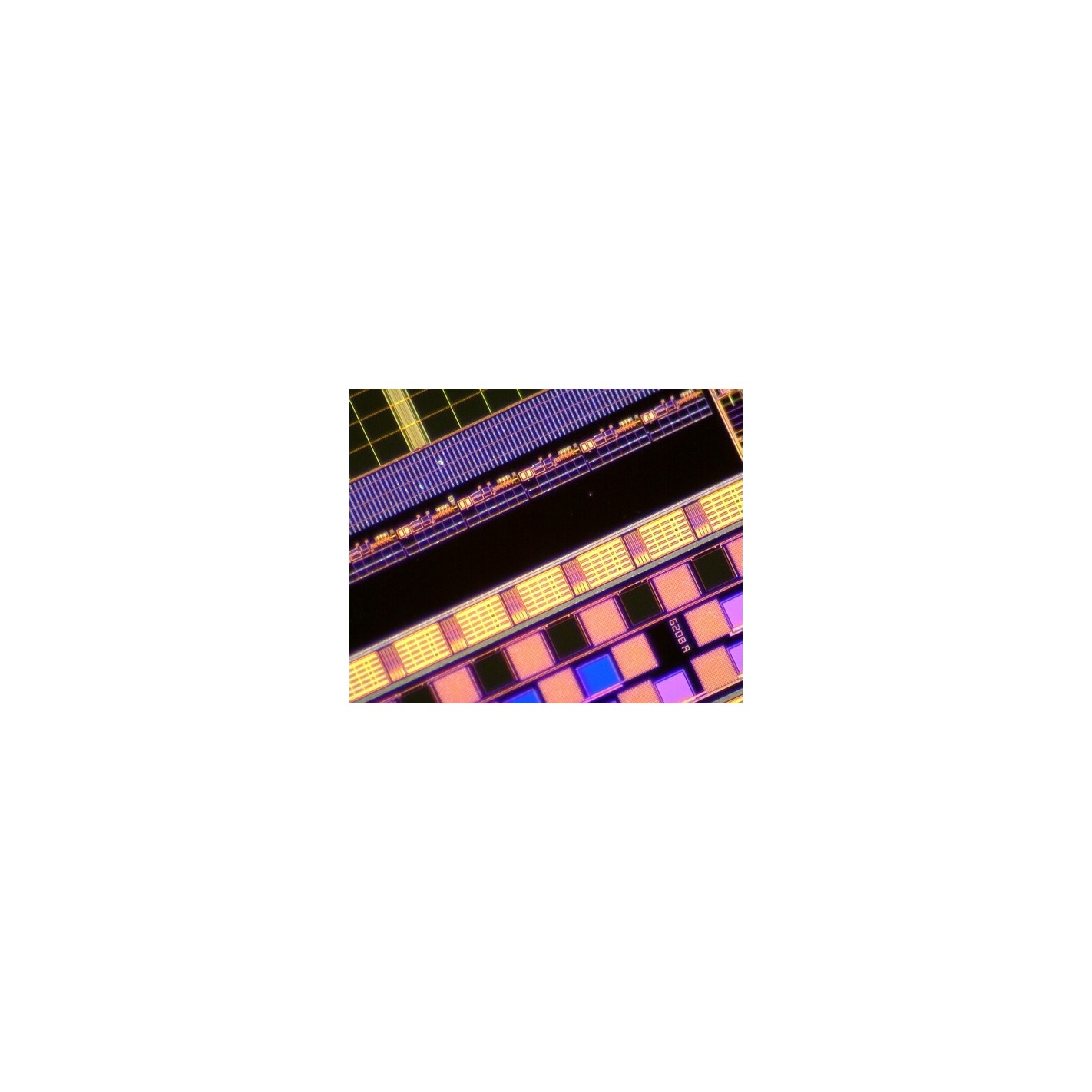

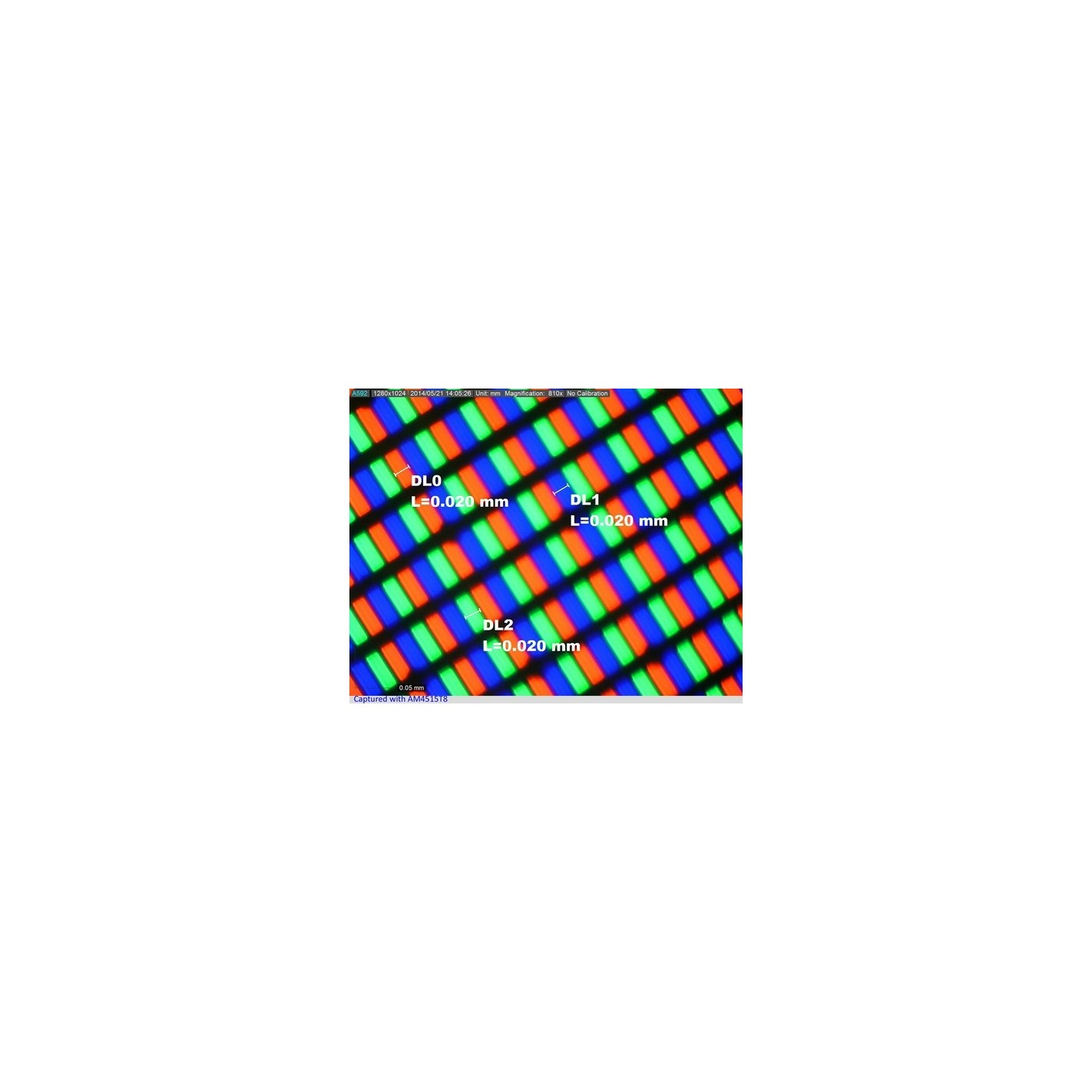

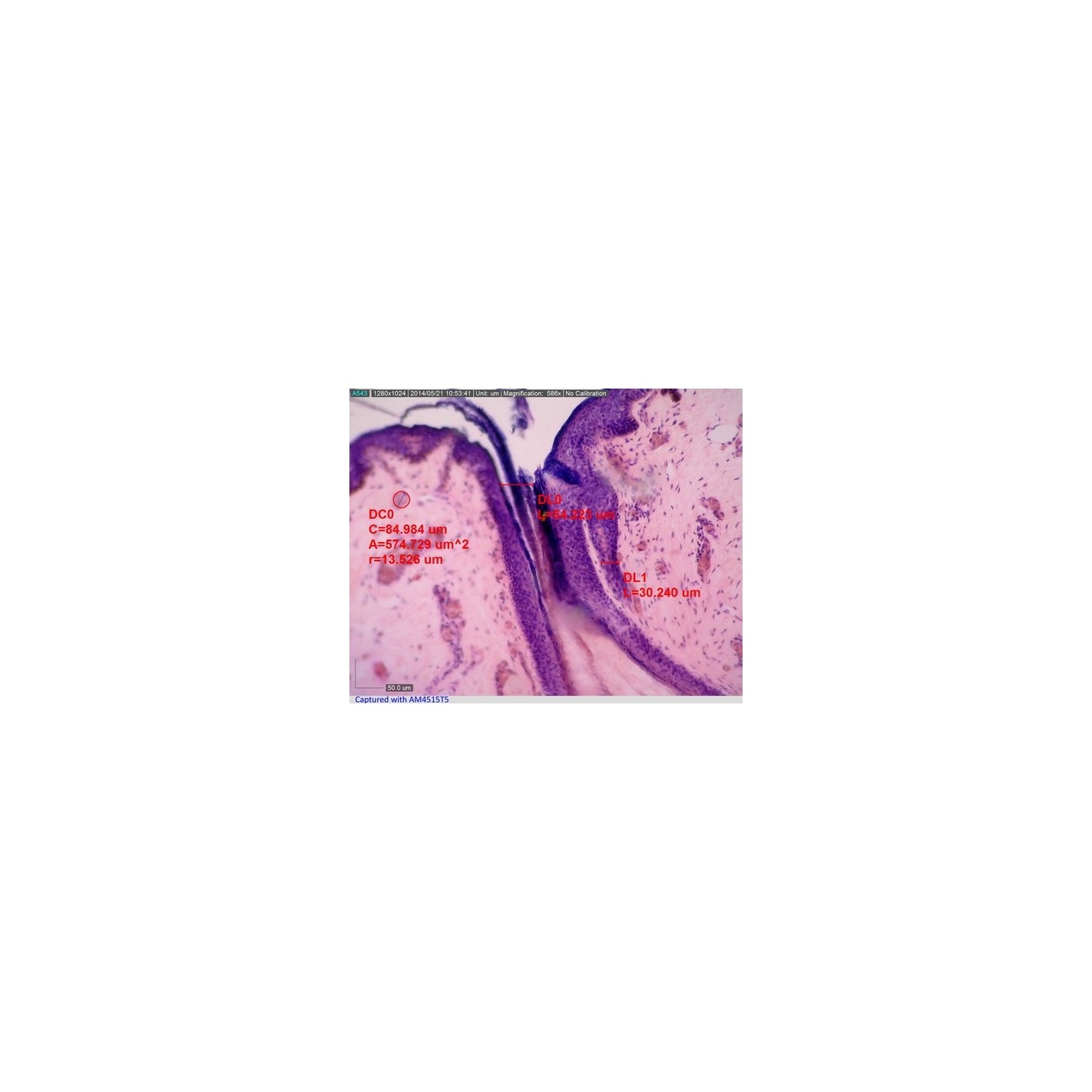

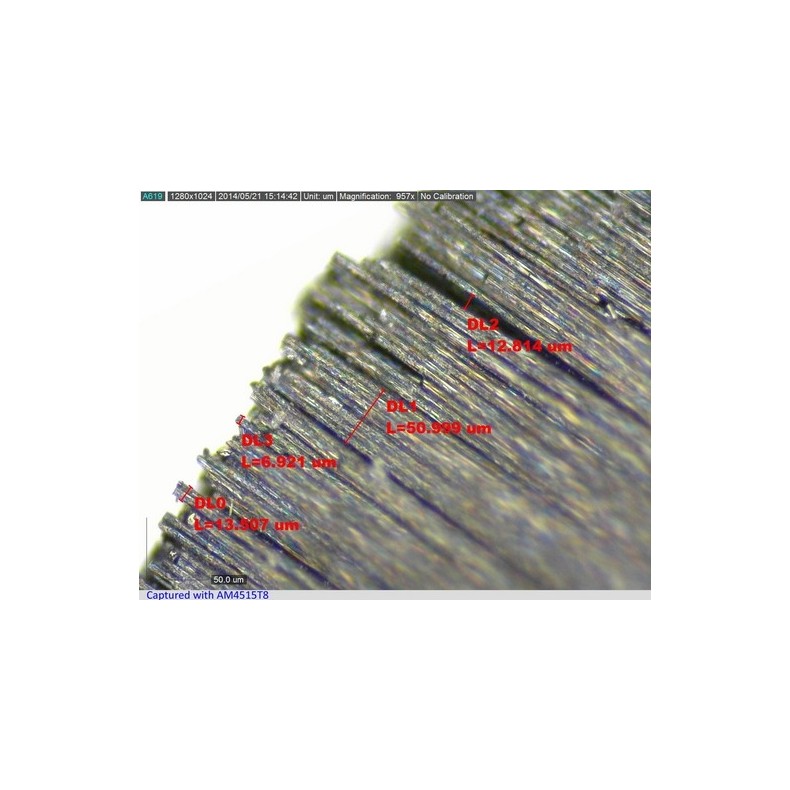

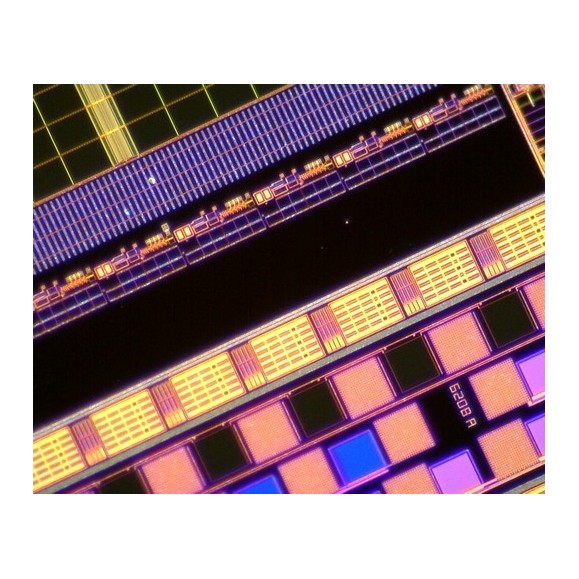

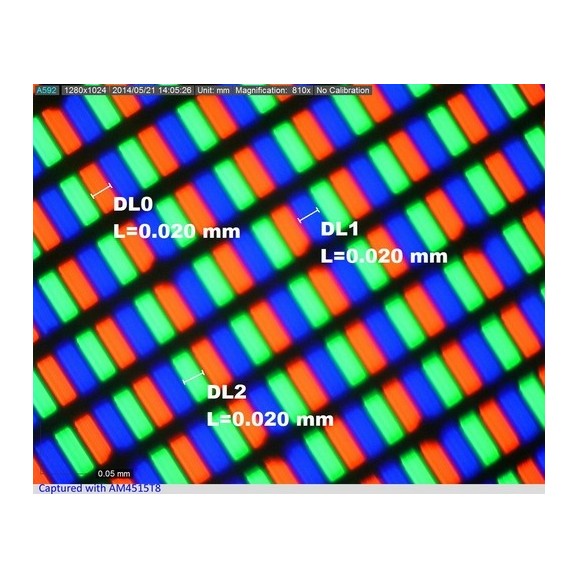

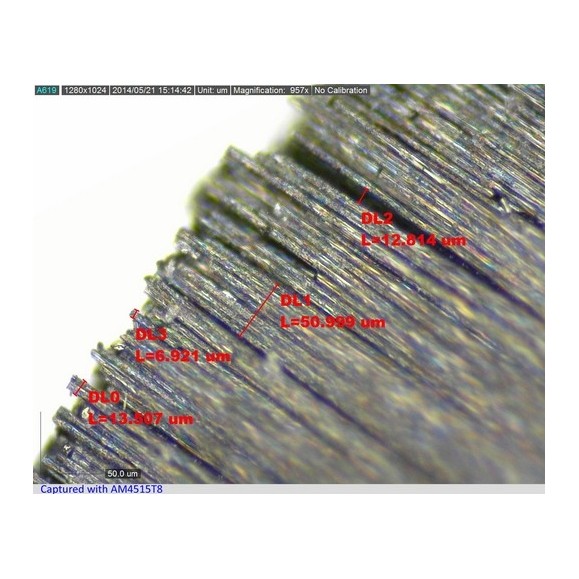

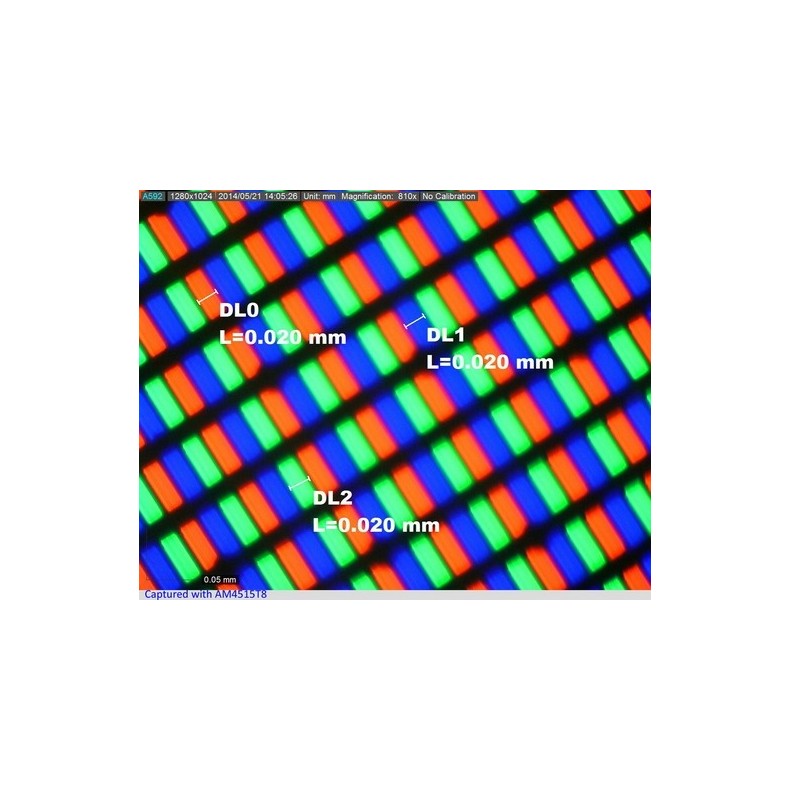

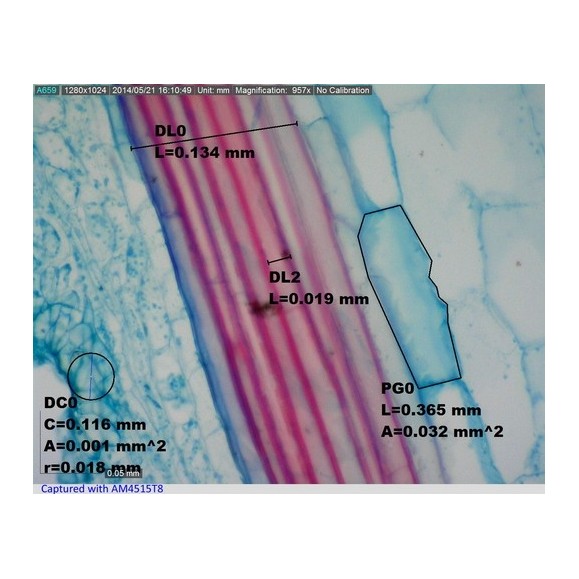

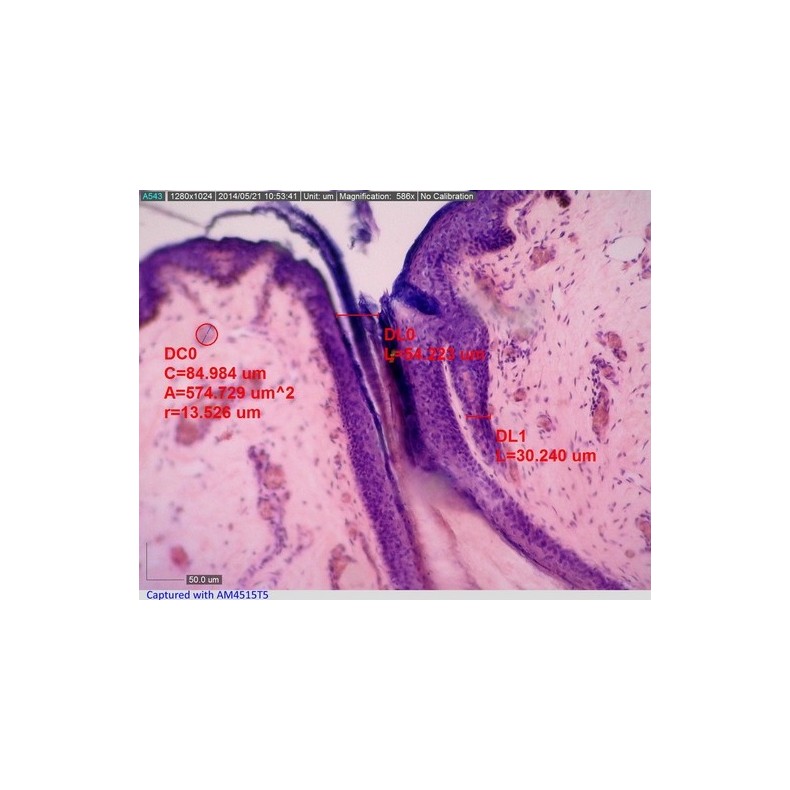

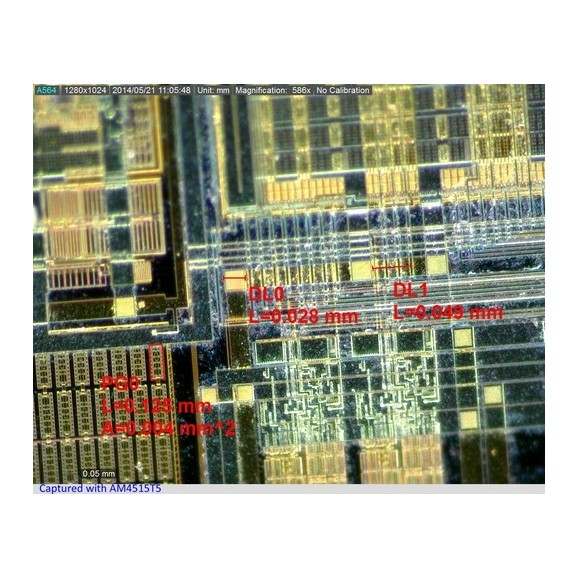

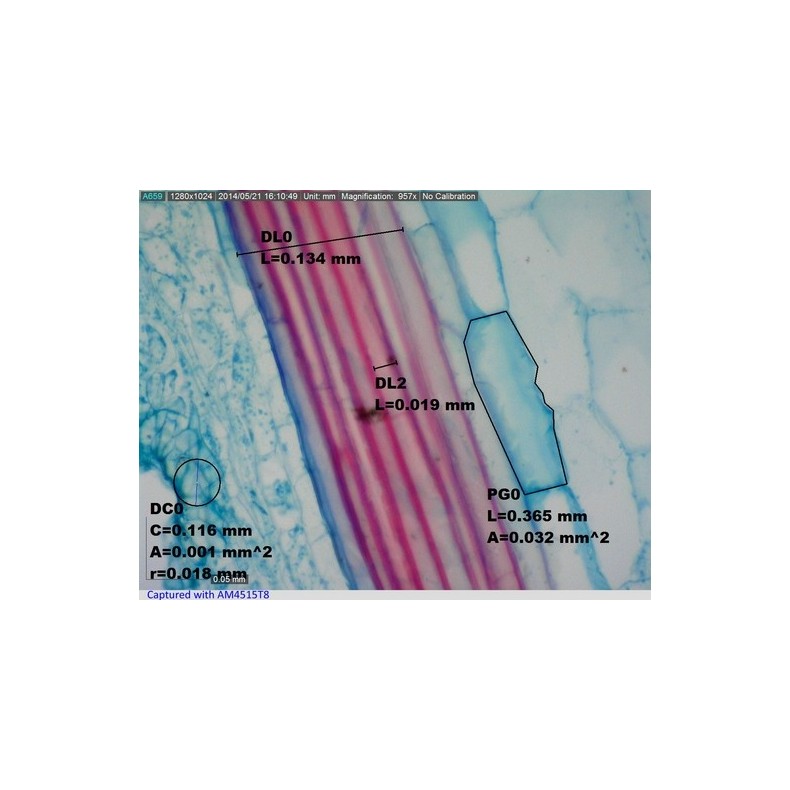

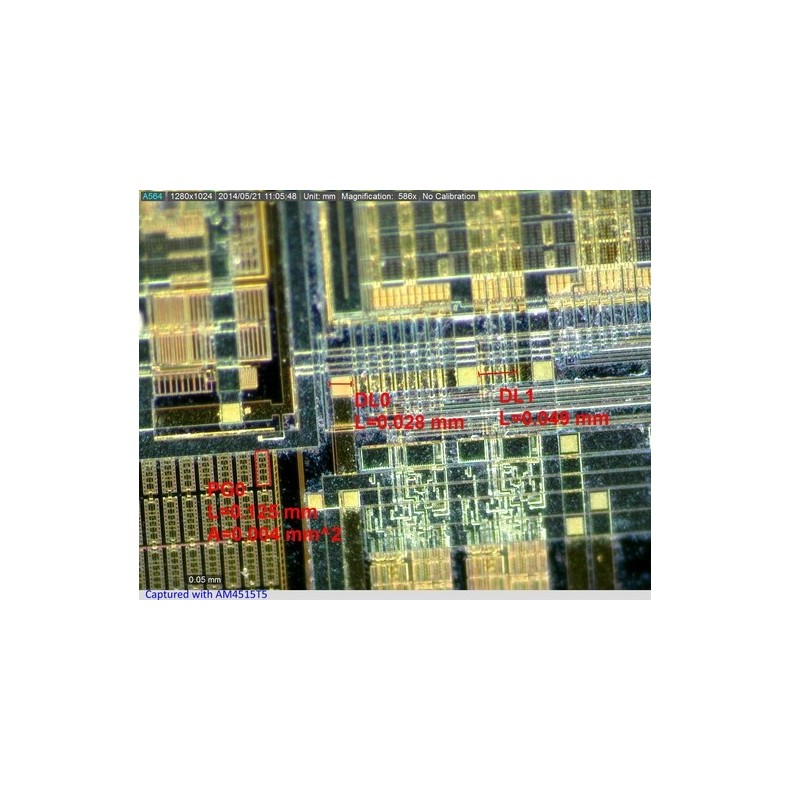

These unique features make the AM4515T8 from Dino-Lite a superb inspection tool for biomedical and scientific research, materials analysis, electronic inspection or any similar application requiring high magnification, versatility and mobility. The AM4515T8 model from Dino-Lite comes equipped with the easy-to-use DinoCapture 2.0 software. For this model it includes features such as automatic magnification readout (AMR), calibration, measurement, image capture and annotation, and video recording. Although the AM4515T8 can be used handheld, a high-precision stand is recommended. The RK-10A from Dino-Lite is, for example, a superb complement. It is a high-end, sturdy and stable stand, made of rugged stainless steel and lightweight aluminum, and offers very precise fine focus adjustment.

Technical Specifications:

• LIGHTING
• Light/ LED Type: White
• Number of LEDs: 8
• LED on/off switch: Yes
• Infrared Filter: IR blocking filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: No
• OPTICS
• Magnification: 700-900x
• Macro Zoom: No
• Working Distance: Standard
• Lens Type: Glass with anti-reflective coatings
• SENSOR
• Sensor Type: CMOS
• Resolution: 1.3 Megapixels (1280x1024)
• Maximum frame rate: 30 fps
• COMPATIBILITY
• Interface: USB 2.0
• Operating System: Windows XP, Vista, 7 & 8, MacOS 10.4 and higher
• Included Software: DinoCapture 2.0 (Windows)
• Supported Image Formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): -
• Supportedvideo formats (MacOS) :-
• Image capture standards: DirectShow, UVC
• MICROSCOPE BODY
• Material: Aluminum alloy
• Magnification fixation: Yes
• Dimensions: 10.5cm (L) x 3.2cm (D)
• Weight: 105g
• Cable length: 1.8m
• FEATURES
• Special features: AMR (Automatic Reading Reading)
• Measure: Yes
• Calibration: Yes
• MicroTouch Sensor: Yes
• INFORMATION
• Box Contents: Microscope, carrying case, CD with Software, calibration standard, User's Manual.
• Warranty: 2 years against factory defect
