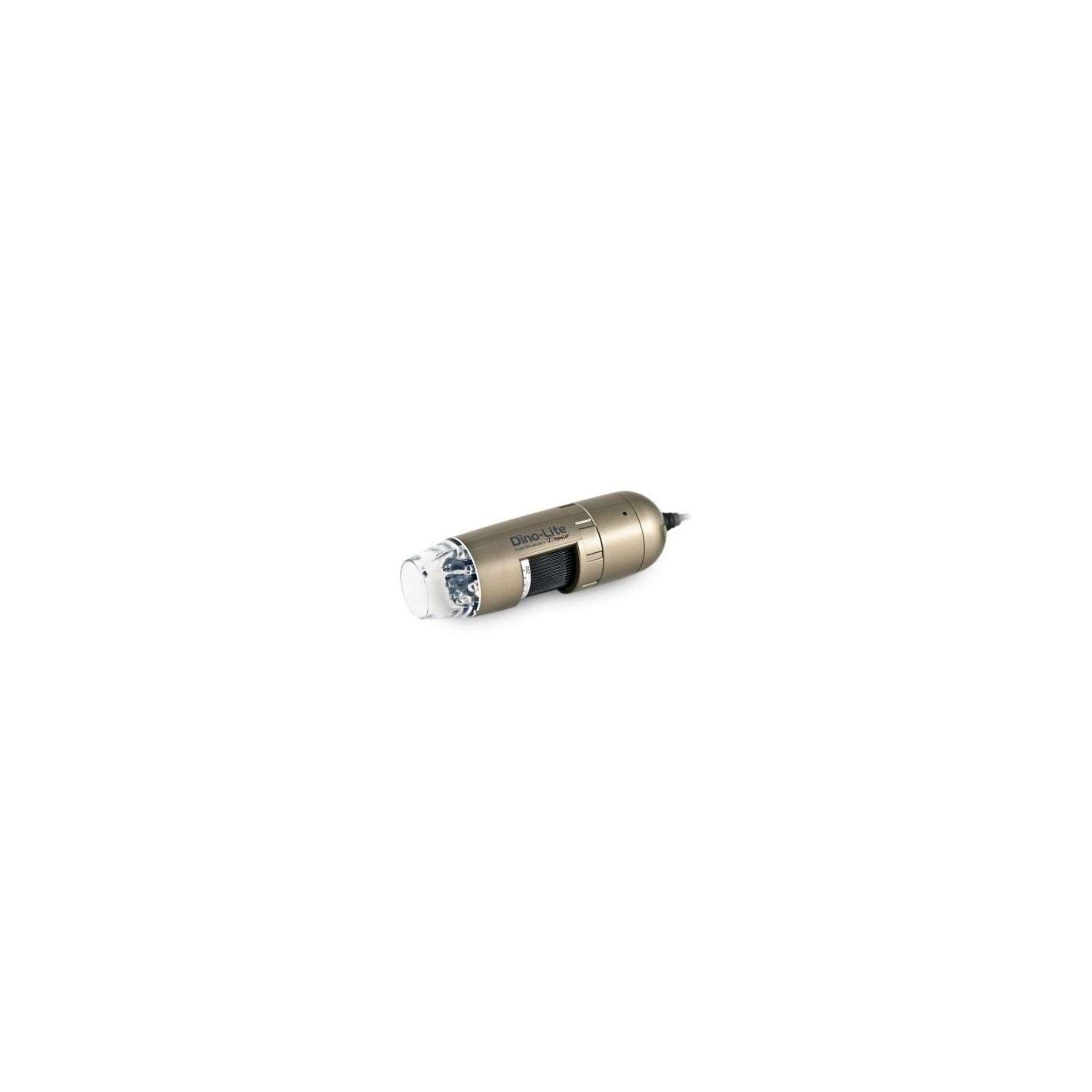

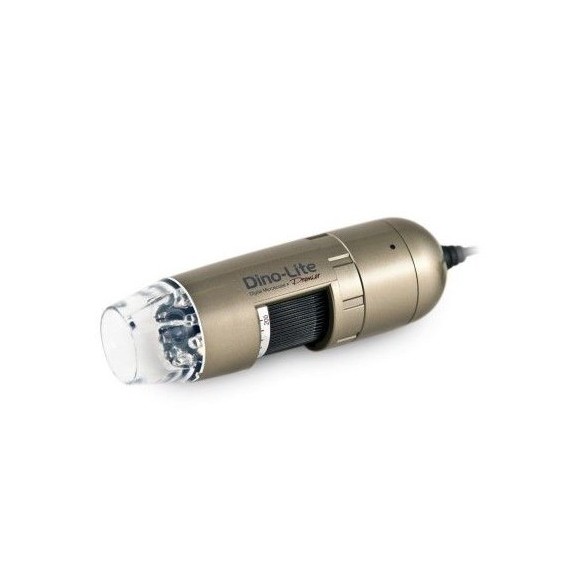

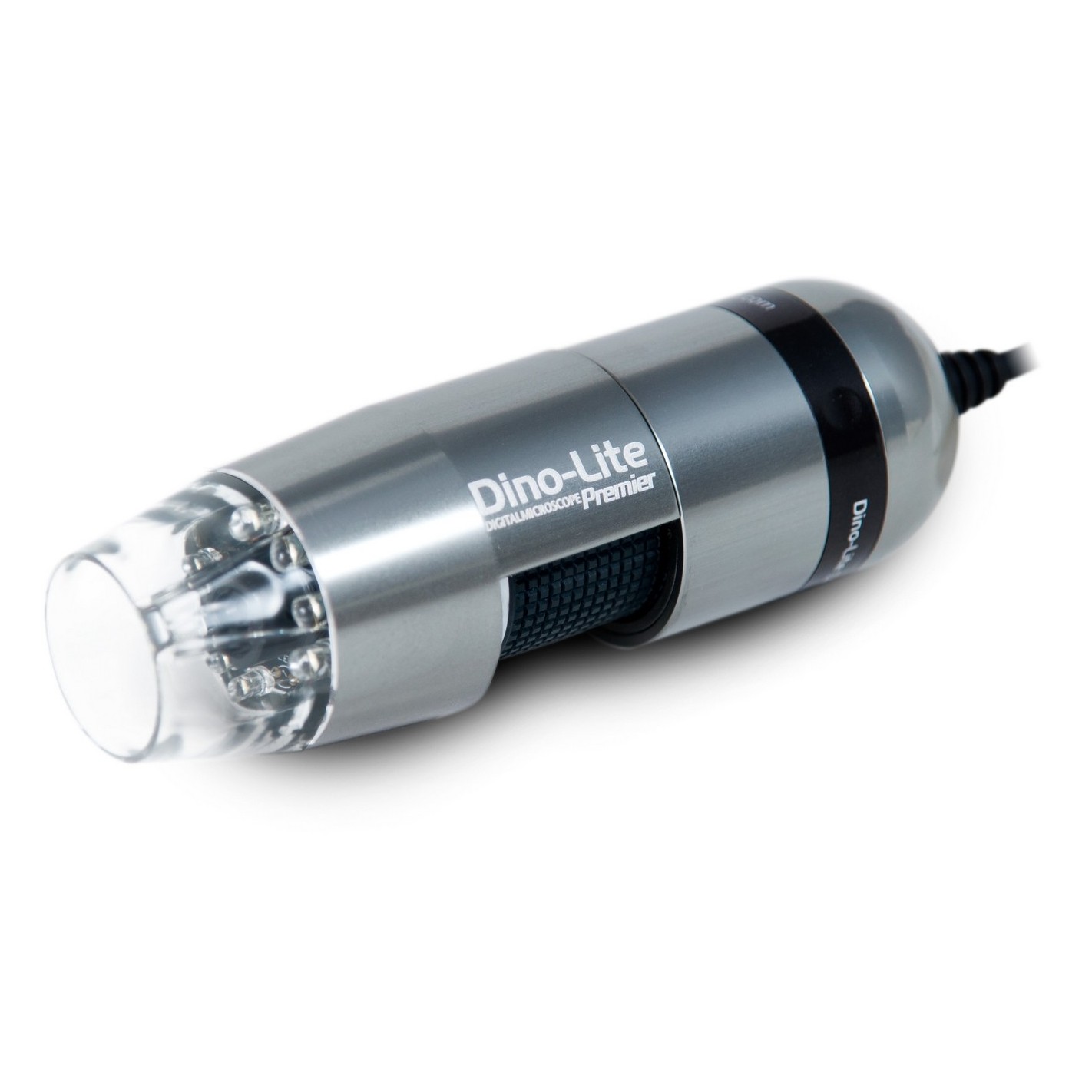

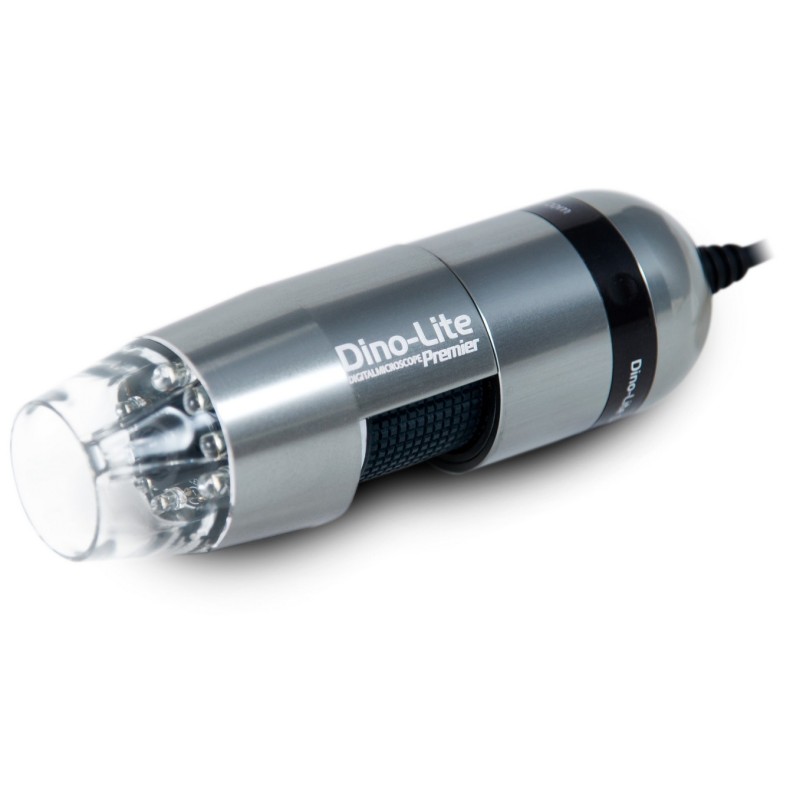

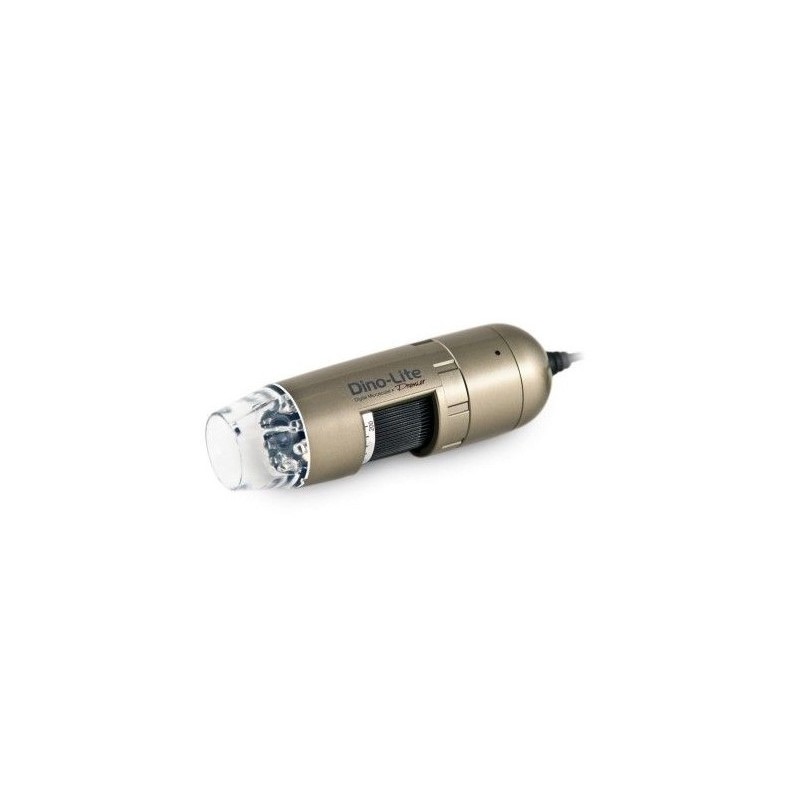

Digital Microscope Dino-Lite Universal USB AM4113T

Digital Microscope Dino-Lite Universal USB AM4113T

The Universal series from Dino-Lite provides a wide range of products with the highest image quality as well as user-friendly software with comprehensive measurement functions and several unique hardware and software features to satisfy the most demanding users.

This range consists of models Dino-Lite with USB connection and up to 200x magnification, as well as an image resolution of 1.3 or 5 megapixels. For working with reflective objects, you can choose models with integrated polarization filter, with adaptive polarization. We offer models with solid aluminum alloy housing, for the best look and feel, as well as increased durability.

The Dino-Lite Edge series is a special category within the Universal range. The Edge series offers even better image quality and greater flexibility. The high-quality optics provide a very sharp, bright and natural color image with very low aberration and vignetting. Interchangeable caps provide even more flexibility for use in all kinds of professional applications

If you are looking for products Dino-Lite with long working distance, special illumination such as ultraviolet or infrared, or models with up to 900x magnification, please see one of the other categories.

Technical comments:

It is equipped with a high quality 1.3 megapixel sensor that offers crystal clear image quality and natural color reproduction, allowing you to view and capture objects with the highest level of detail. This model is supplied with DinoCapture 2.0 software for Windows and DinoXcope software for MacOS, allowing you to make calibrated measurements on images taken with Dino-Lite. The aluminum housing provides enhanced protection and durability and has the best look and feel

Technical Specifications:

• LIGHTING
• Light/ LED Type: White
• Number of LEDs: 8
• LED on/off switch: Yes
• Infrared Filter: IR blocking filter >650 nm
• Diffuser available: MSAA111A1 (optional accessory)
• Emission filter: No
• Polarizer: No
• OPTICS
• Magnifications: 10-70x, 200x
• Macro Zoom: No
• Working Distance: Standard
• Lens Type: Glass with anti-reflective coatings
• SENSOR
• Sensor Type: CMOS
• Resolution: 1.3 Megapixels (1280x1024)
• Maximum frame rate: 30 fps
• COMPATIBILITY
• Interface: USB 2.0
• Operating System: Windows XP, Vista, 7 & 8, MacOS 10.4 and later
• Included Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported Image Formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supportedimage formats (MacOS): JPEG, PNG
• Supportedvideo formats (MacOS) :MOV
• Image capture standards: DirectShow, UVC
• MICROSCOPE BODY
• Material: Aluminum alloy
• Magnification fixation: No
• Dimensions: 10.5cm (L) x 3.2cm (D)
• Weight: 140g
• Cable length: 1.8m
• FEATURES
• Special Features: No
• Measuring: Yes
• Calibration: Yes
• MicroTouch sensor: Yes
• INFORMATION
• Box Contents: Microscope, carrying case, CD with Software, calibration standard, User's Manual.
• Warranty: 2 years against factory defect
