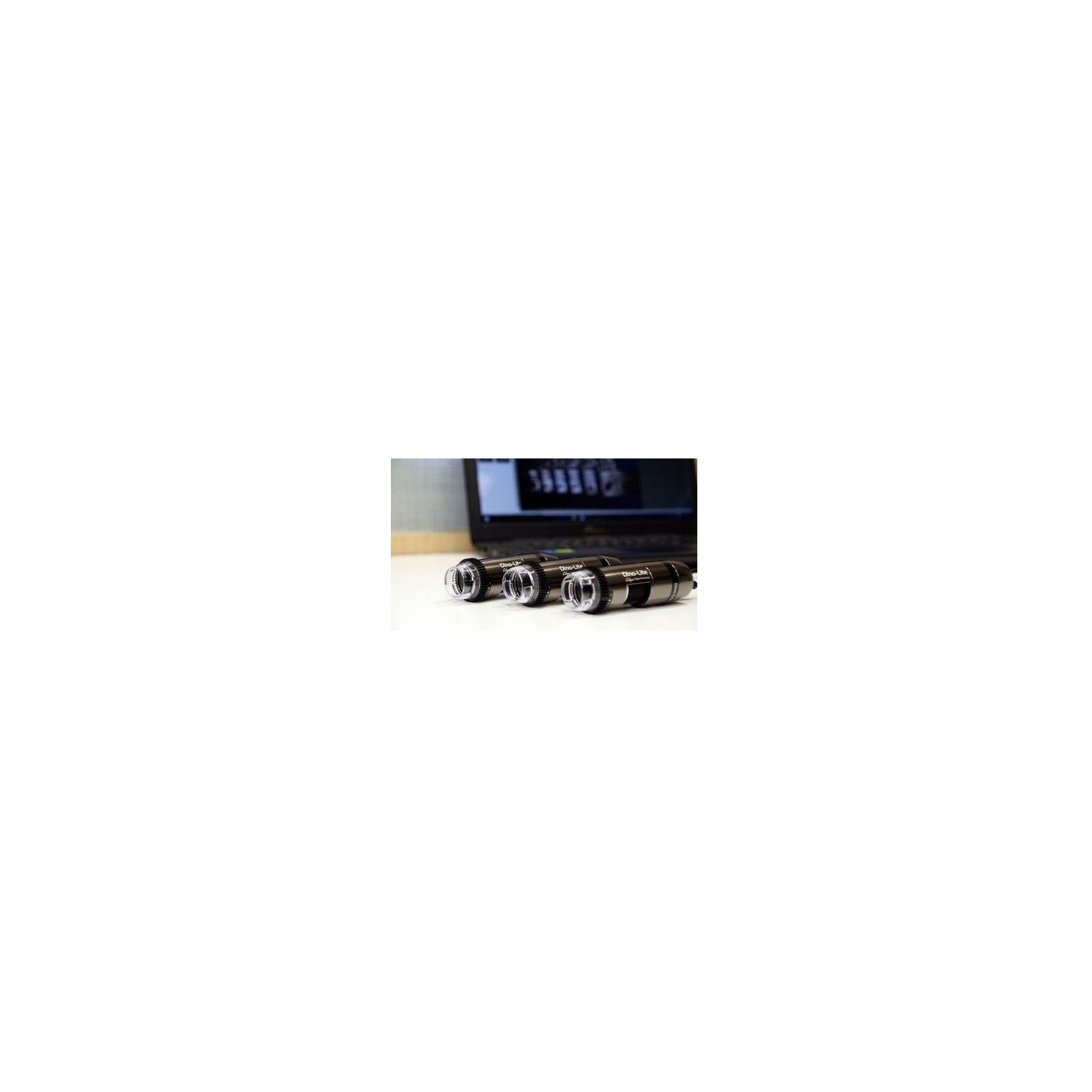

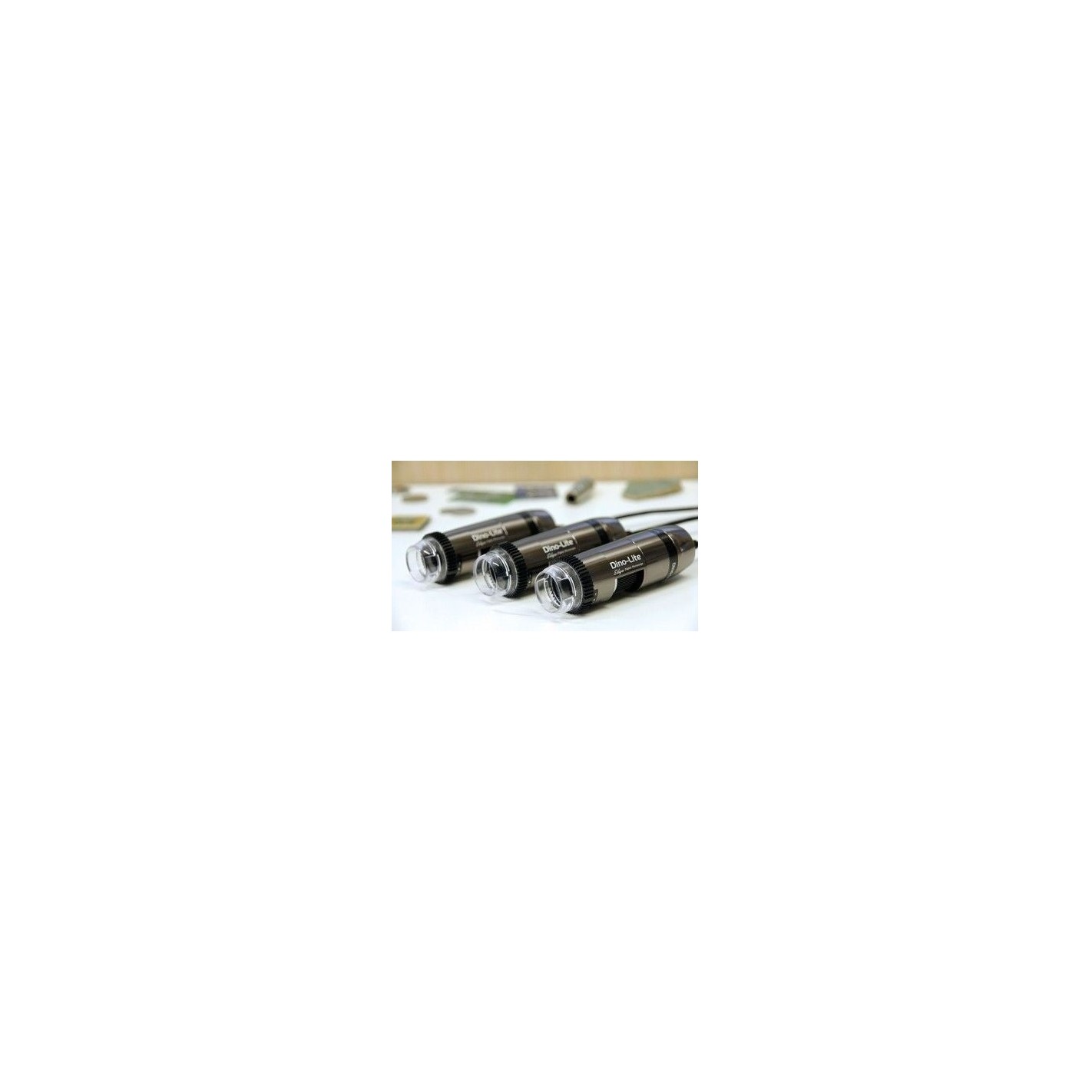

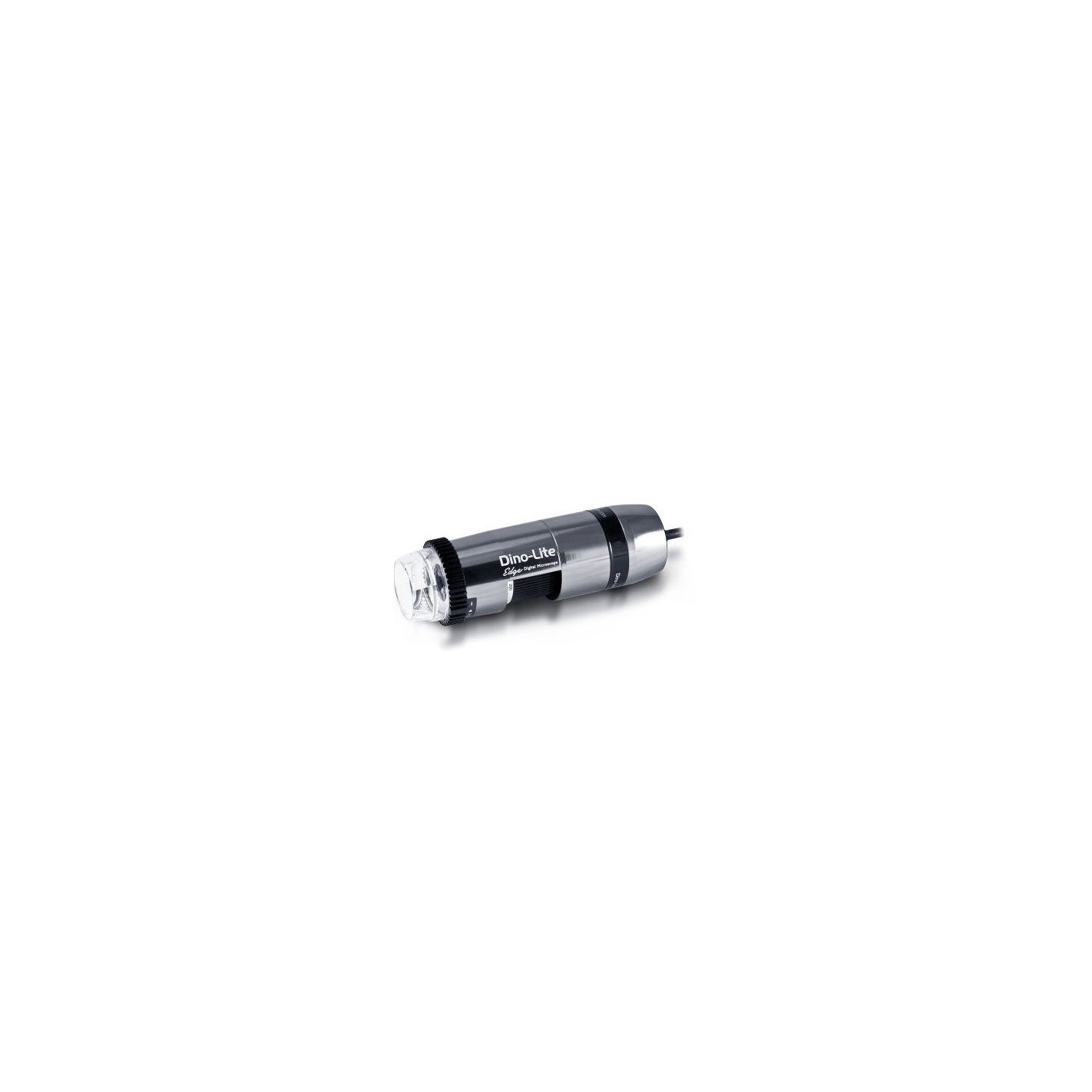

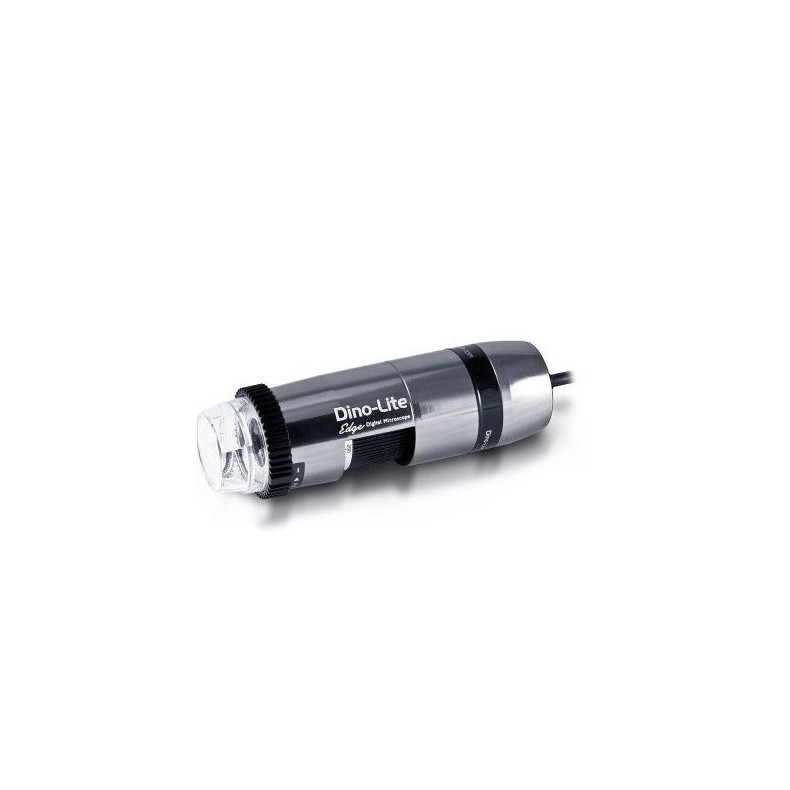

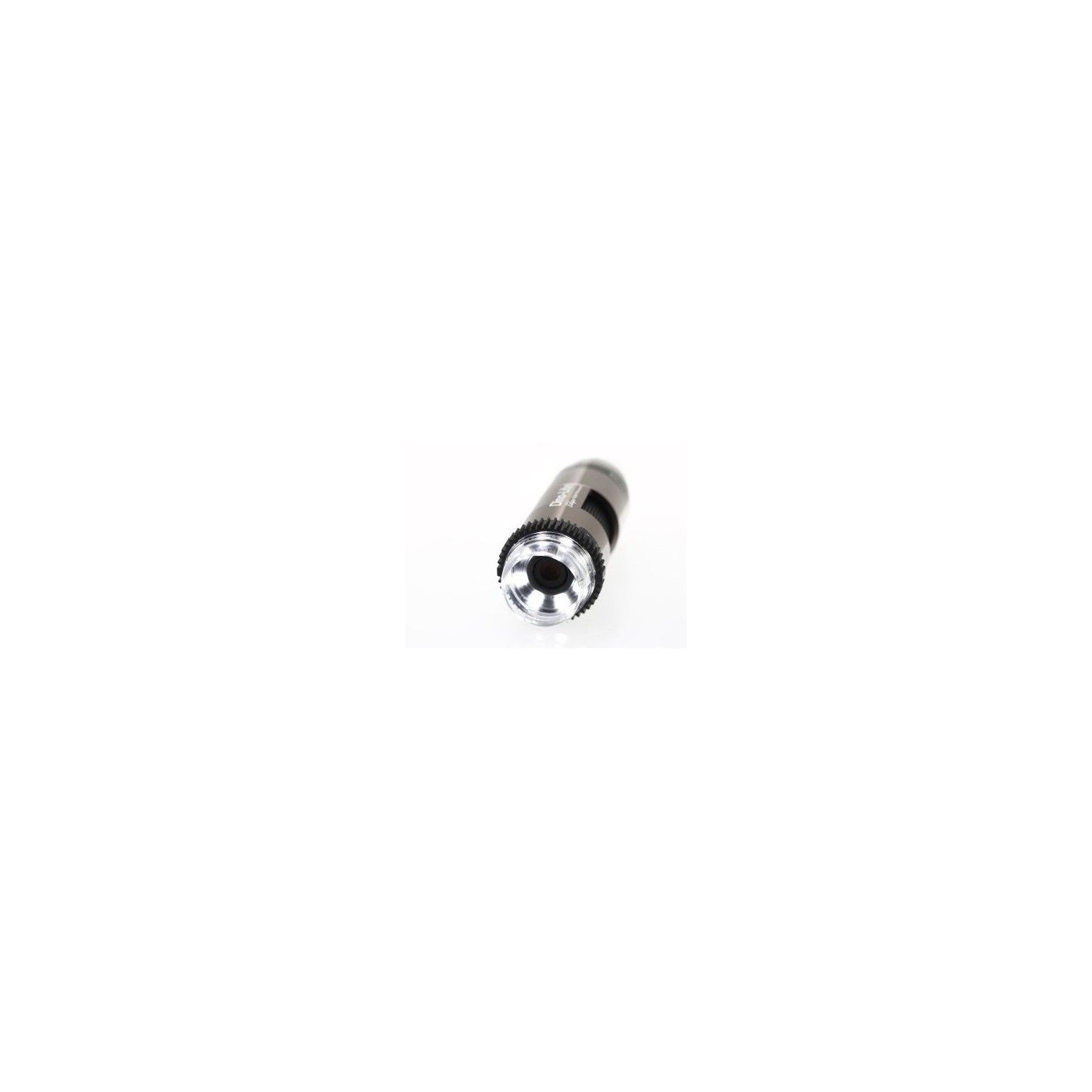

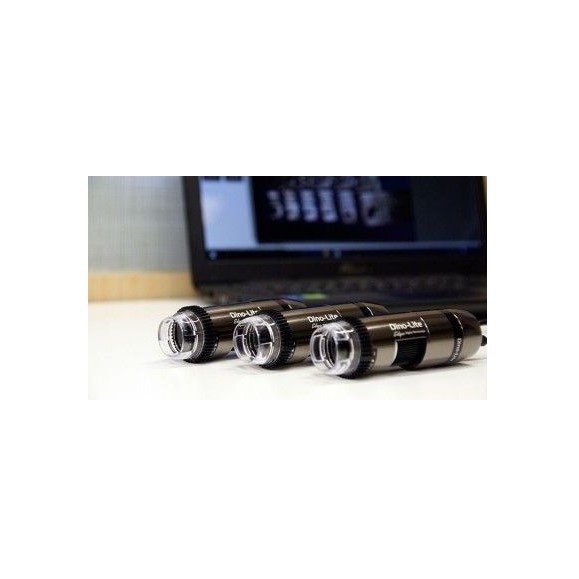

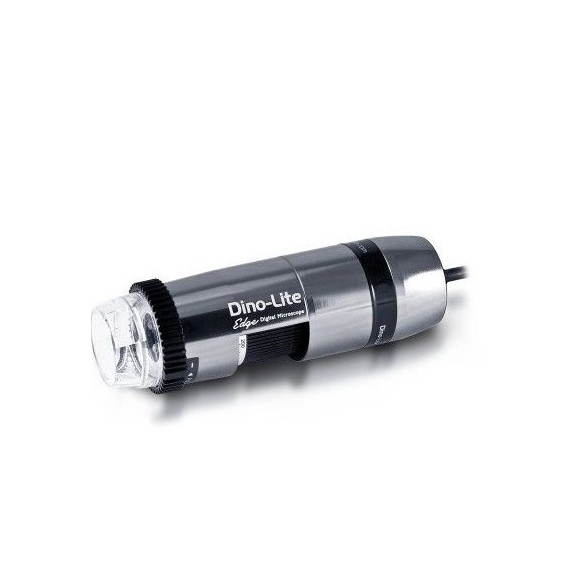

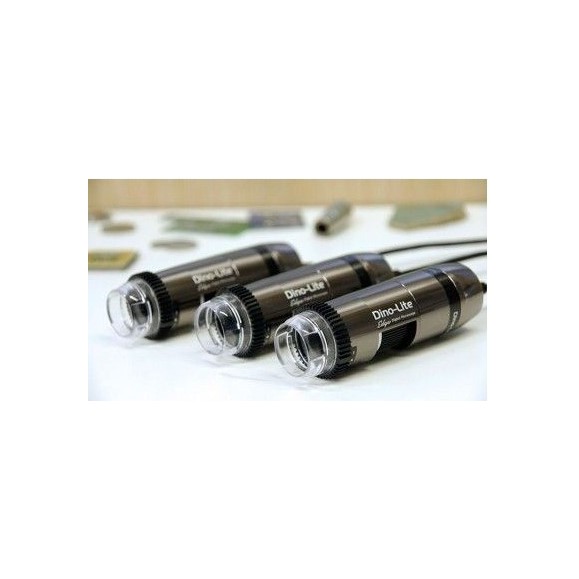

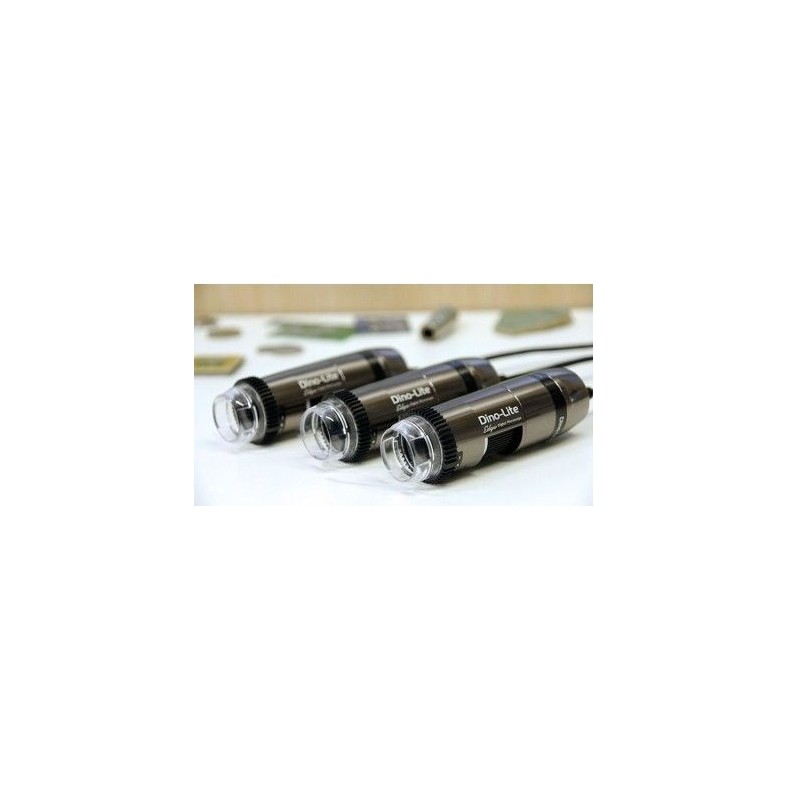

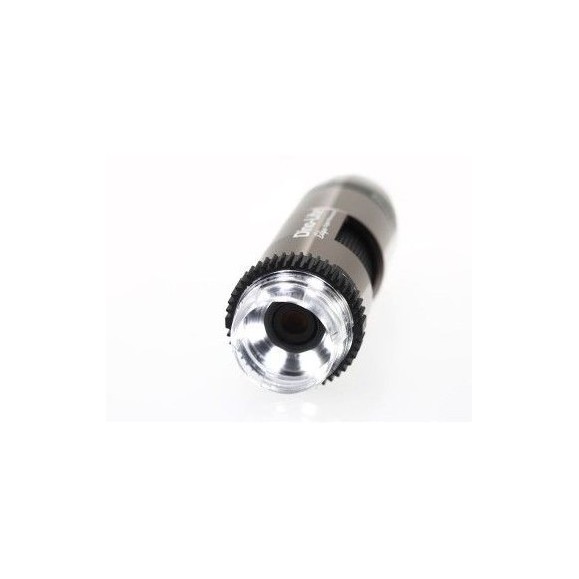

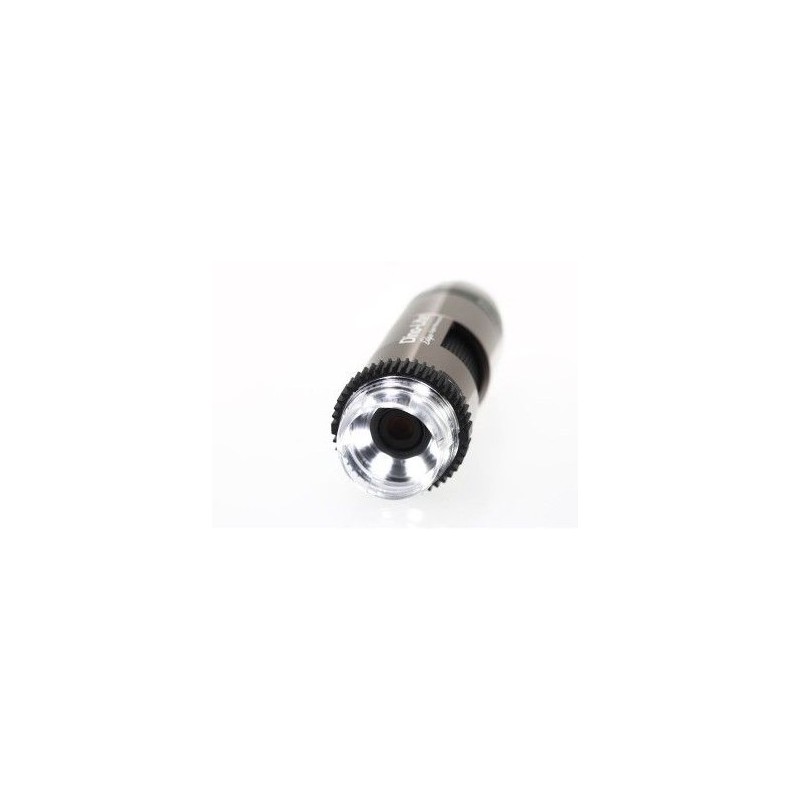

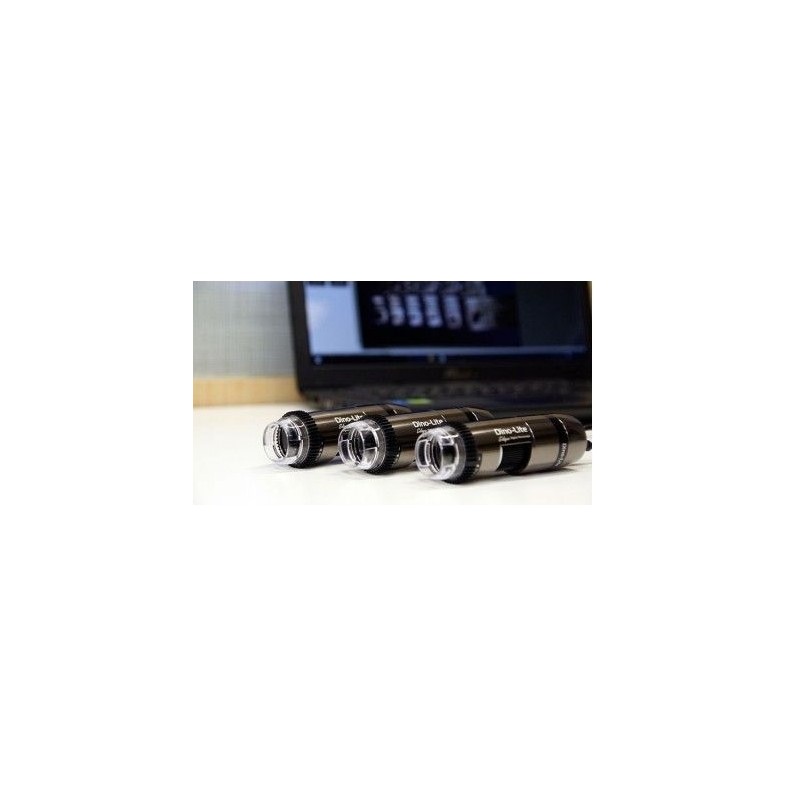

Thanks to the use of the latest and most innovative optics, a completely new 5-megapixel sensor and several special features, such as flexible LED control (FLC), automatic magnification readout (AMR) and solid aluminum construction, the AM7515MZT of Dino-Lite is a marvel of technology and the best choice for the most demanding professional.
The AM7515MZT model of Dino-Lite offers superb image quality and color reproduction in a robust, compact and attractive housing.
AM7515MZT is part of the universal range and with its standard working distance and wide magnification range from 20 to 220x, it is suitable for a wide range of applications. Thanks to the integrated polarization filter, this model is ideal when working with shiny or reflective objects, such as metal, plastic, glass, jewelry, electronic components, etc. The AMR function is of particular importance when frequently using the measuring functions.
The main features of the AM7515MZT are:
- 5 megapixel edge sensor
- 20-220x magnification
- Aluminum frame
- Automatic Magnification Reading (AMR)
- Flexible LED Control (FLC)
- Extensive measurement functions
- Calibration
- Interchangeable front caps
- And much more...
| Turning on |
|---|
| Type of light/LED |
White |
| Number of LEDs |
|
| LED on/off switchable: |
Yes |
| infrared filter |
IR cut-off filter >650 nm |
| Diffuser available |
Yes (N3C-D included) |
| Emissions filter |
No |
| polarizer |
yes, linear |
| Optics |
|---|
| Increase |
20-220x |
| Macro zoom |
No |
| working distance |
Standard |
| Lens type |
Anti-reflective coated glass |
| Sensor |
|---|
| Sensor type |
CMOS |
| Resolution |
5 megapixels (2592x1944) |
| Maximum frame rate |
30fps |
| Compatibility |
|---|
| Interface |
USB 2.0 |
| Operating system |
Windows 7, 8, 10 and 11, MacOS 10.9 and higher |
| bundled software |
DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) |
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX, PGX, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) |
WMV, FLV, SWF |
| Supported image formats (MacOS) |
JPEG, PNG |
| Supported video formats (MacOS) |
MOV (maximum 1.3MP) |
| Image standards |
DirectShow, UVC |
| Wifi |
Ready for wireless connection, requires WF-10 WiFi transmitter (optional) |
| Lodging |
|---|
| Housing material |
Metal housing |
| Dimensions |
10.5 cm (length) x 3.2 cm (depth) |
| Weight |
135gr |
| Cable length |
1,8 m |
| Features |
|---|
| Special feature |
Automatic magnification readout (AMR), flexible LED control (FLC). |
| Measurement |
Yes |
| Calibration |
Yes |
| Microtouch sensor |
Yes |
| ESD safe |
Yes |
| Information |
|---|
| Package contents |
Microscope, carrying bag, software CD, calibration standard, user's manual, N3C-O- Open lid, N3C-C- Closed lid, N3C-D- Diffuser lid, N3C-E- Extension lid, N3C-L- Long lid, N3C -S- Side light lid |
| Warranty information |
2 years European warranty |
| Regulatory approval |
CE, FCC, ROHS, UKCA - available on request - marketing@dino-lite.eu |
