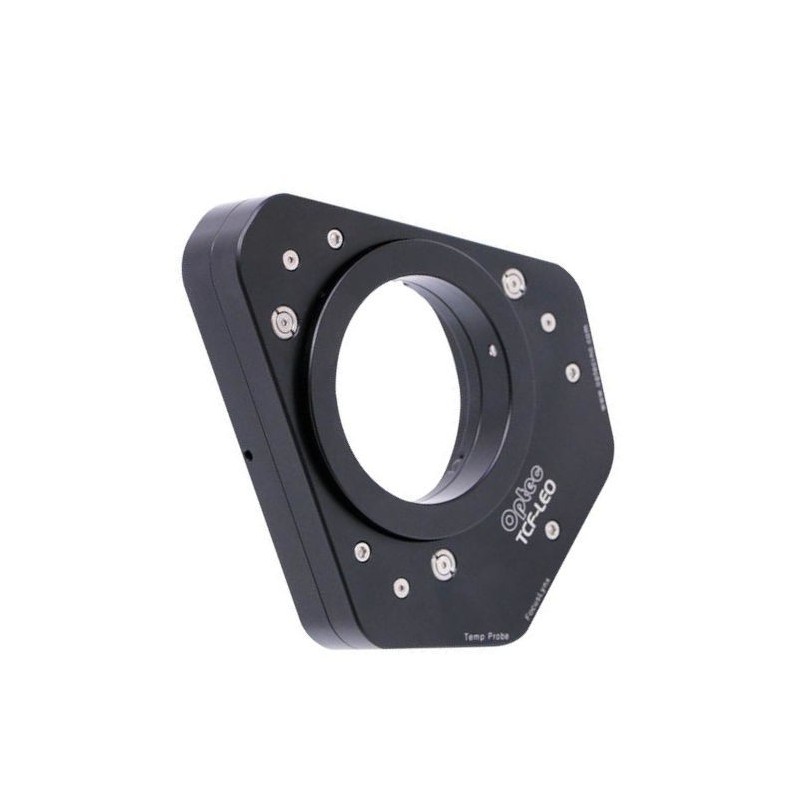

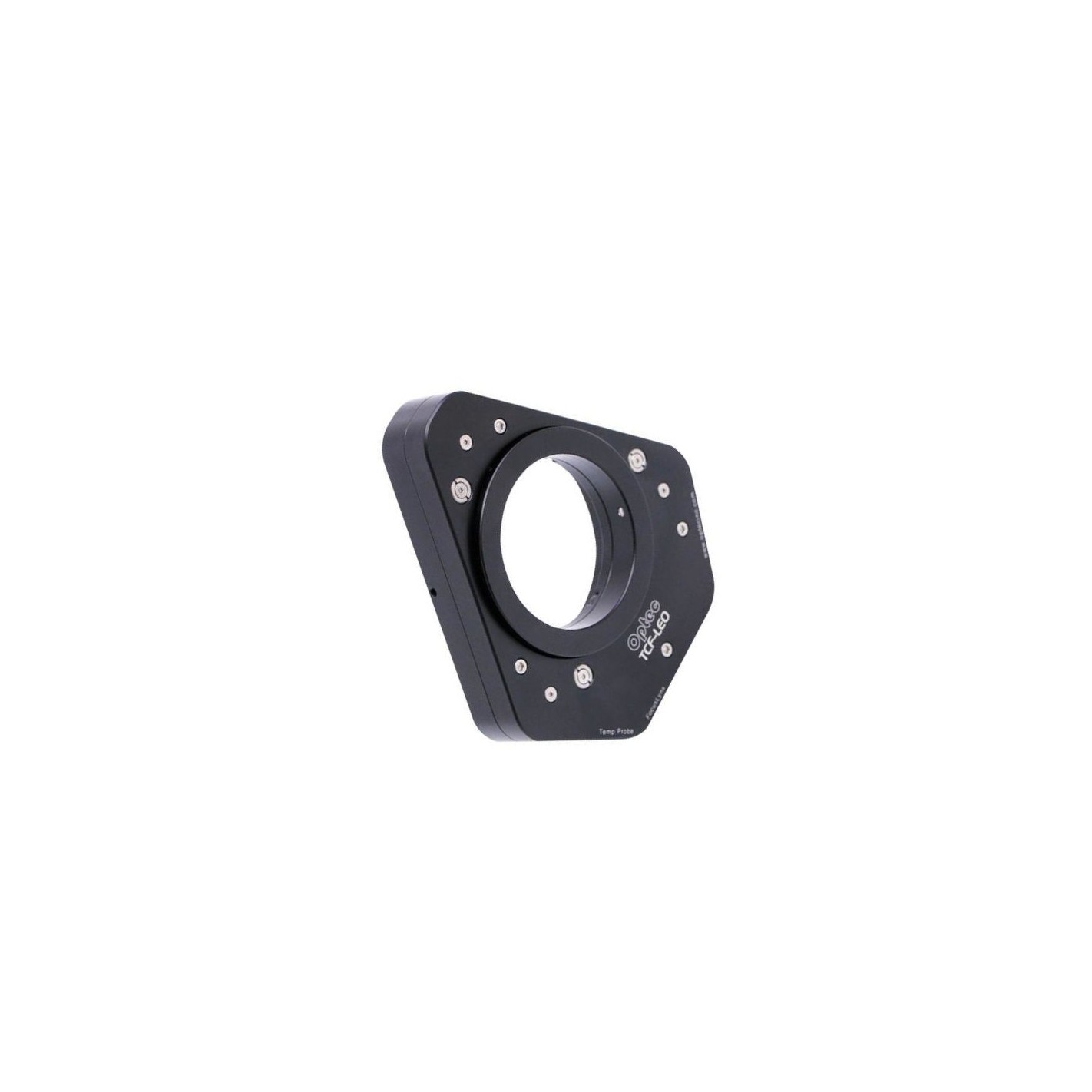

Engineers at Optec have developed a new low-profile, yet extremely robust, 3-inch focuser for telescope installations where back-focusing is crucial. With the typical 1-1/4" eyepiece pitch, the TCF-Leo provides a unique focusing solution for the Celestron EdgeHD and other telescopes with limited flange-to-focus distances. The proven FocusLynx control system is included with every TCF-Leo and can be expanded to provide control for a second focuser. The FocusLynx system includes optional 802.11 WiFi and manual control accessories.

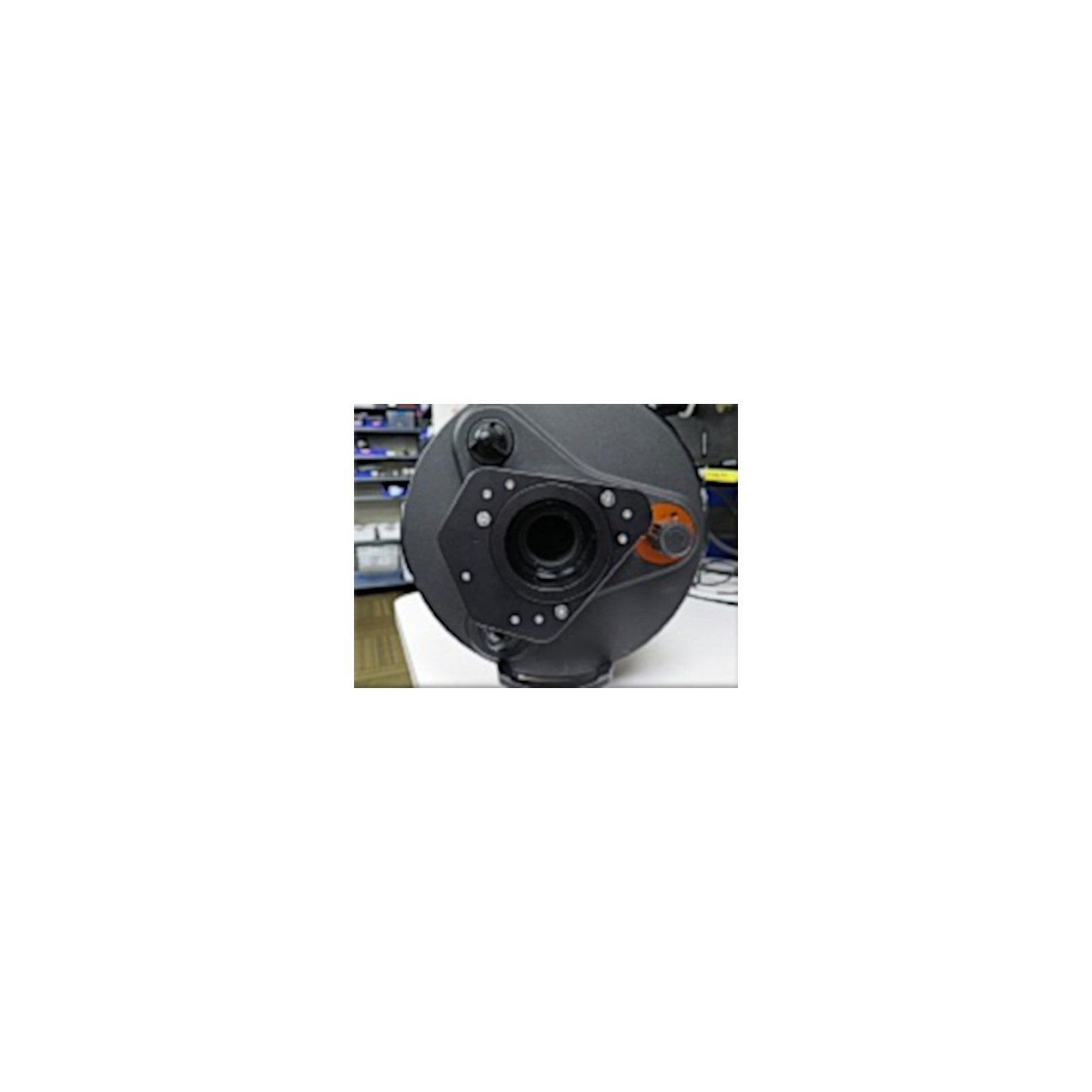

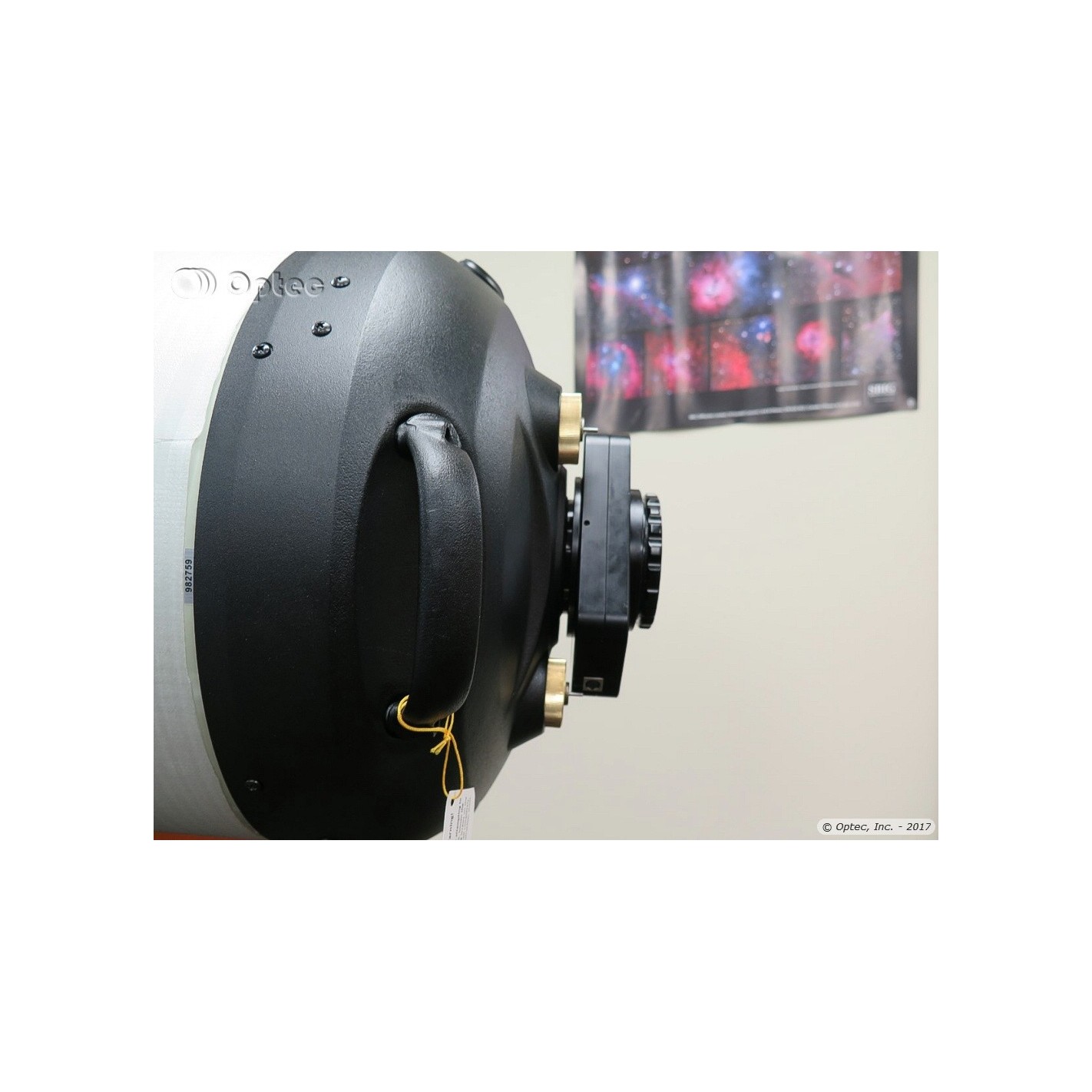

The shape of the TCF-Leo is designed to fit snugly between the locking and focusing knobs of the Celestron EdgeHD C-11 OTA scope. With a center-to-edge distance of approximately 2.2 inches (55 mm), the TCF-Leo works exceptionally well with the Innovation Foresight on-axis guide, providing clearance for large cameras and filter wheels over any of the TCF-Leo's flat edges. In addition, the TCF-Leo's 3600 receiver fits directly into the large 3-inch port of the Perseus Instrument Selector for ultra-fine focusing of a large-format camera.

For owners of EdgeHD Celestron C1400 C1400 scopes, Optec offers a set of replacement knobs for the original locking knobs that provide clearance for the TCF-Leo. The Sure-Lock Mirror Bracket Clutch Upgrade # 19792 includes two replacement brass locking knobs that install easily without tools.

With standard Optec adapters on the telescope and camera side, almost any imaging system can be configured for a given telescope.

As a full 3-inch focuser, the TCF-Leo accepts any of the OPTEC-3000 adapters developed for the TCF-S3 and TCF-Lynx3 heavy focusers. The optional precision centering adapter allows any large 2-inch eyepiece or diagonal to be added behind the focuser. Users making visual observations will certainly appreciate the FocusLynx handheld controller with fine focus rotary knob for non-contact adjustment of the telescope focus.

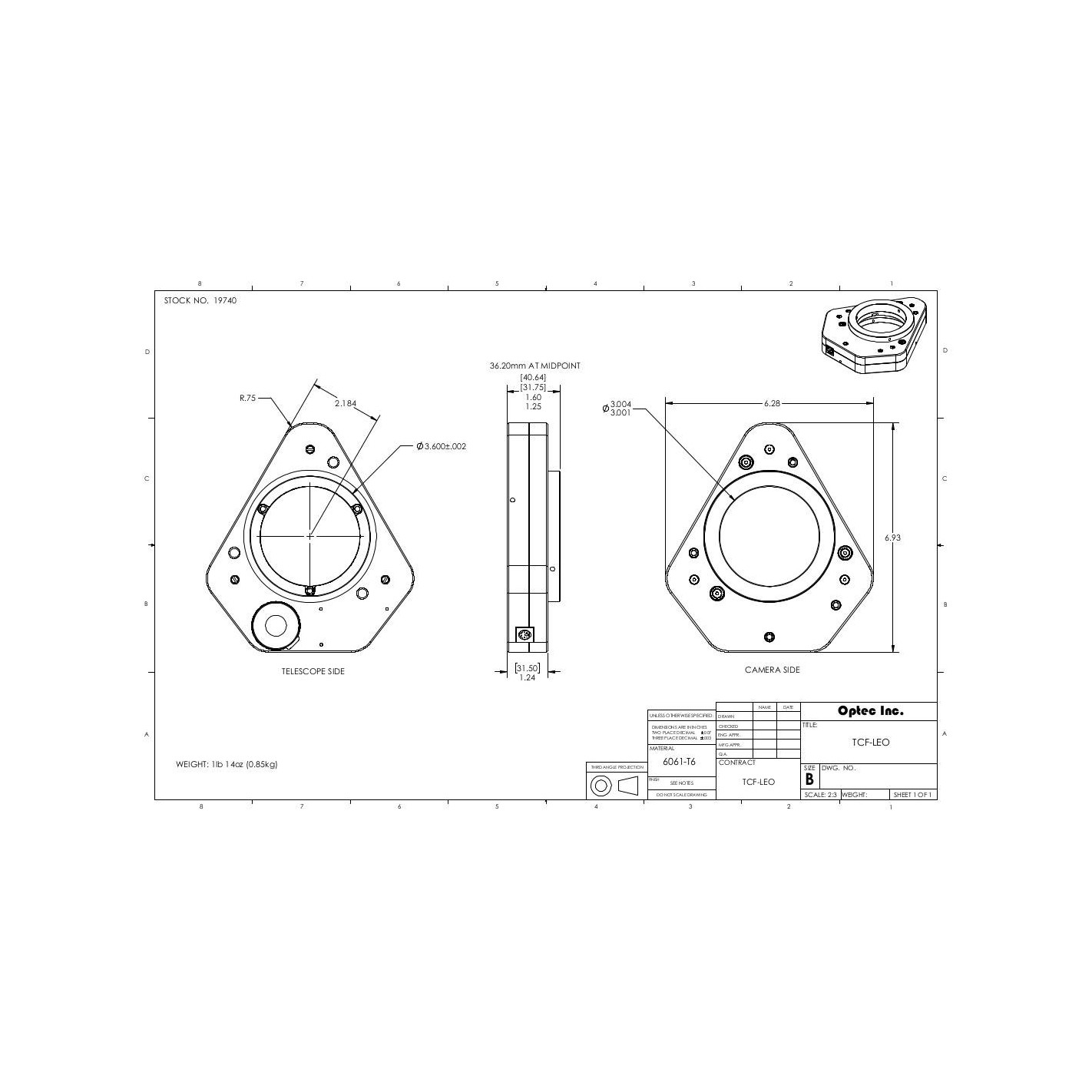

TCF-Leo Specifications

• Overall Thickness: 1.25" (31.8 mm) to 1.6" (40.6 mm)
• Focuser travel: 0.35" (8.9 mm)
• Focuser midpoint: 1.425" (36.2 mm)
• Total step travel: 112,000 steps
• Step resolution: 0.08 microns
• Weight: 0.85 kg
• Payload capacity: 9 kg
• Telescope side mount: dovetail OPTEC-3600
• Camera side mount: 3-inch OPTEC-3000 tube
• Control system: FocusLynx controller (included)

FocusLynx controller specifications

• Stepper motor control: Bipolar and unipolar stepper motors
• Resolution: 16-bit controller with a range of 65,535 steps per focuser
• PC connectivity: USB / serial, Ethernet or WiFi 802.11 optional
• Manual control: 2 optional buttons with digital readout
• WiFi connection: 802.11b / g compatible optional
• Second step-by-step: optional daughterboard, plug-in
• Input power: 12VDC universal power supply (110 to 230VAC input)
• Alternate power supply: field battery voltage (13.8VDC) with optional car cigarette lighter socket
• Software drivers: ASCOM local server, X2 native drivers for TheSky X
• FocusLynx Connection Ports:
• Focuser 1: RJ45 connector for standard Cat-5e / Cat-6 to the focuser
• Focuser 2: optional second pass-through card for RJ45 connector,
• Power: 12VDC input, 2.5 x 5.5 mm connector, center pin positive
• Network: standard RJ45 Ethernet connector
• Hand-held controller: RJ22 connector (for standard telephone handset cable)
• Serial: RJ12 connector for USB / serial cable Optec (included).

Package includes:

• TCF-Leo Low Profile Focuser
• focusLynx controller
• USB / serial communications cable Optec, 1.8m in length
• CAT-5e / CAT-6 Ethernet cable, 1.8m long
• 12VDC 1.25A power supply - 110-240VAC input
• UL / CSA compliant UL / CSA compliant house plug cable
