Baader SteelTrack Diamond S/C Focuser...

Baader SteelTrack Diamond S/C Focuser 2957220

Baader SteelTrack Diamond S/C Focuser 2957220

Name: Baader SteelTrack Diamond S/C Focuser 2957220
Brand: Baader Planetarium
SKU: BAD2957220
Price: 301.65 EUR
Availability: PreOrder

Reference BAD2957220

Stock at Supplier

301.65

VAT excluded Shipping 5/7d

New Crayford focuser from Baader Planetarium for S/C telescopes (Schmidt Cassegrains). After several years of redesign the NEW STEELTRACK is here!

Buy it now and receive it between on Friday, 3 January and Friday, 10 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Friday, 3 January - Friday, 10 January

Home delivery - International

Estimated delivery:
Friday, 3 January - Friday, 10 January

✖

Description
Product Details

Baader SteelTrack Diamond S/C Focuser 2957220

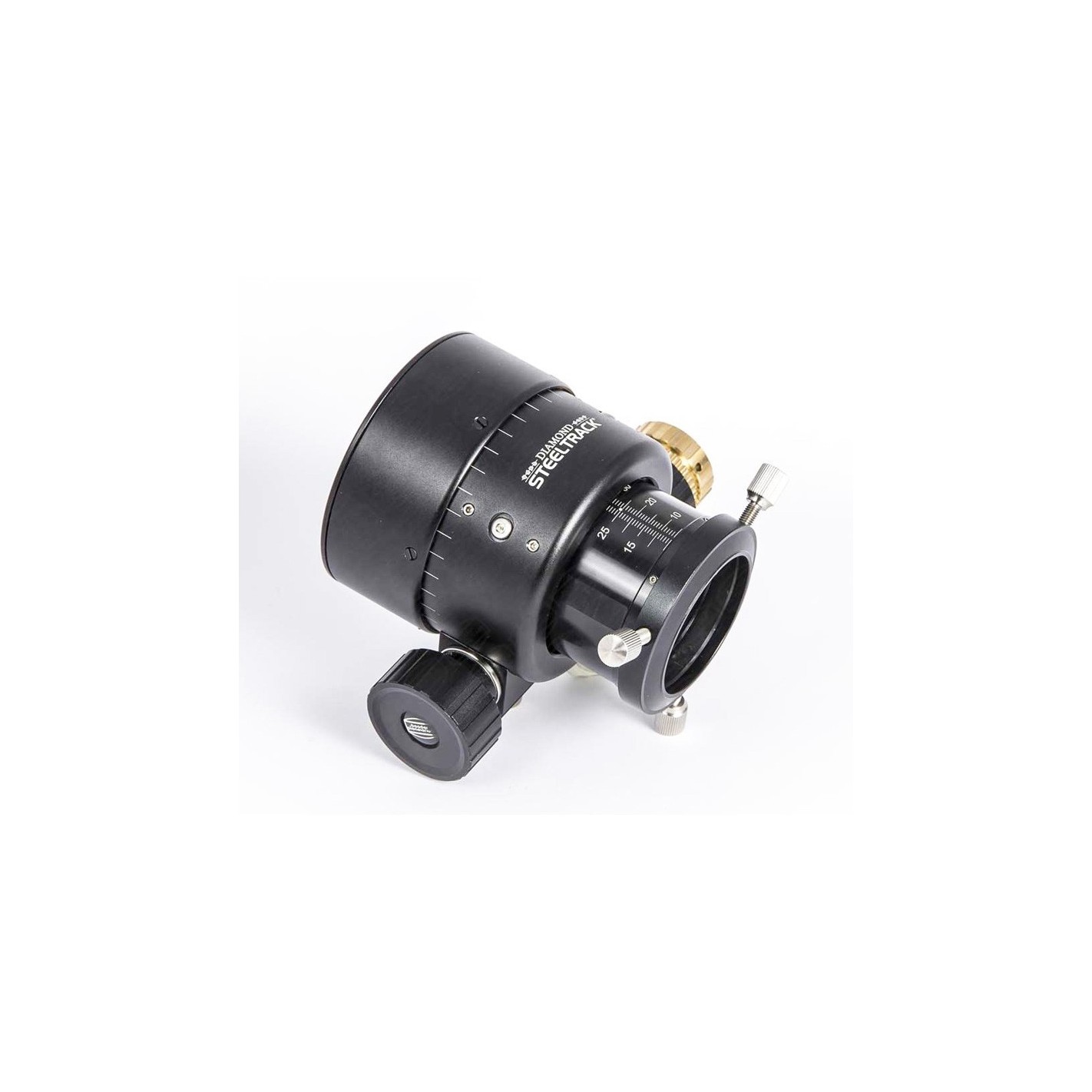

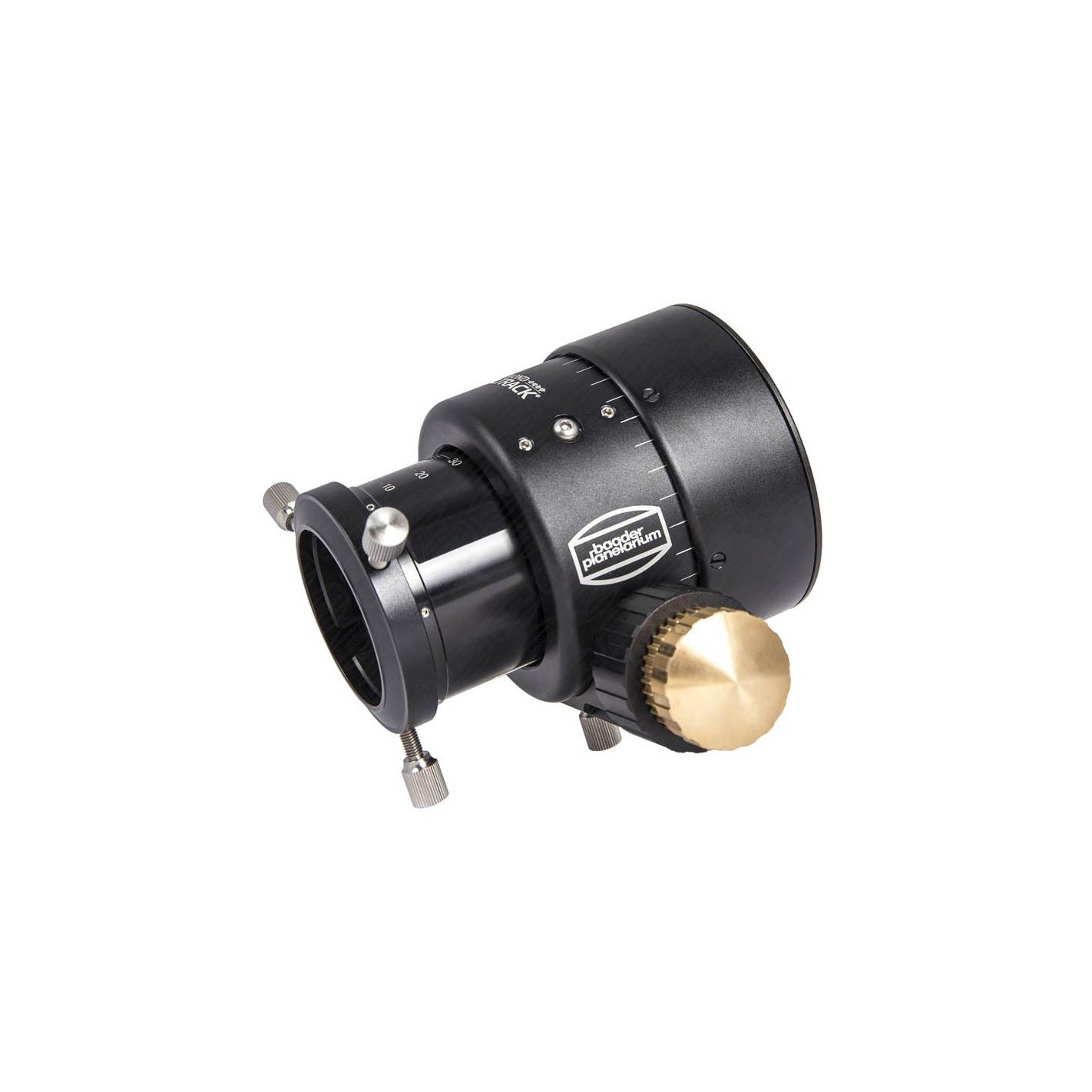

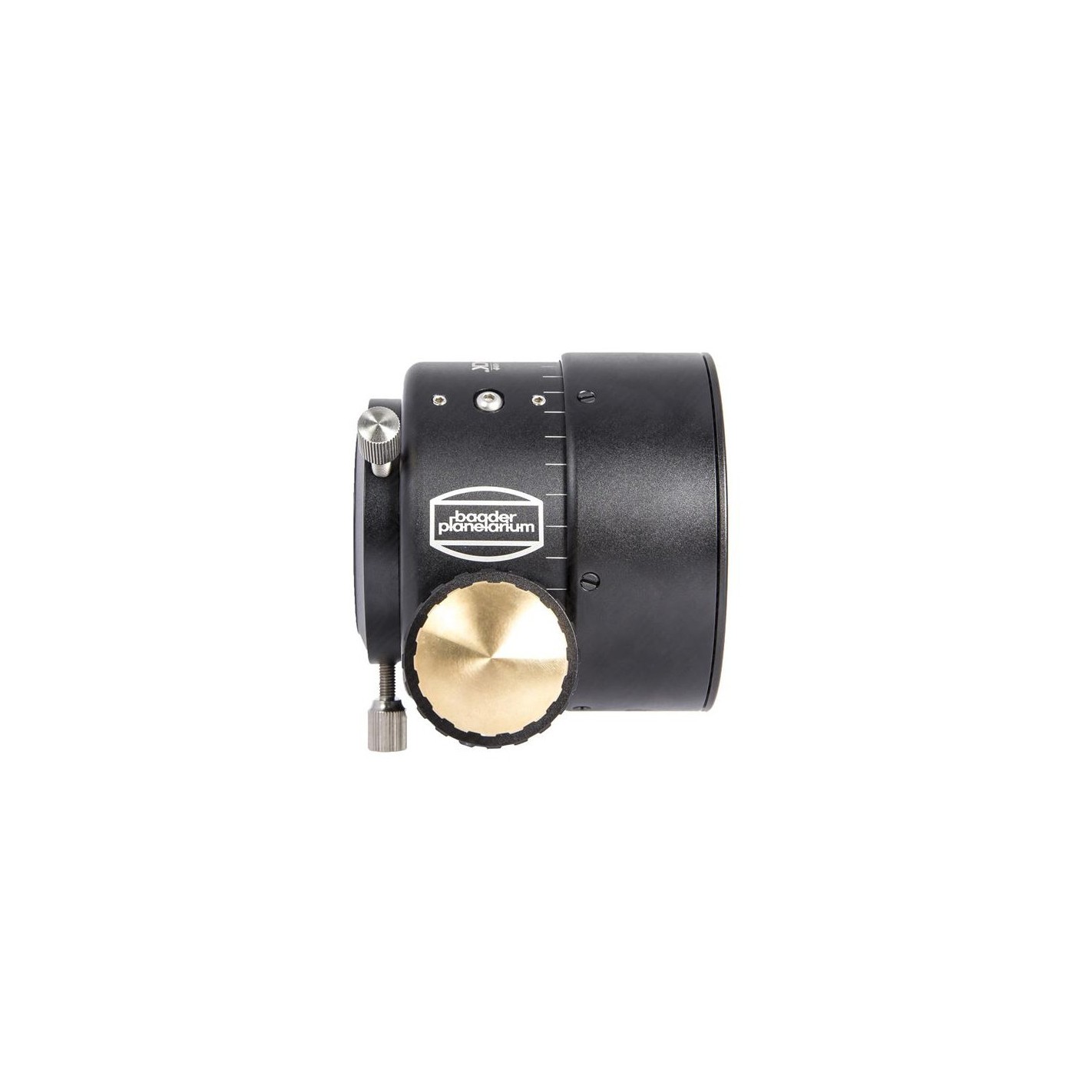

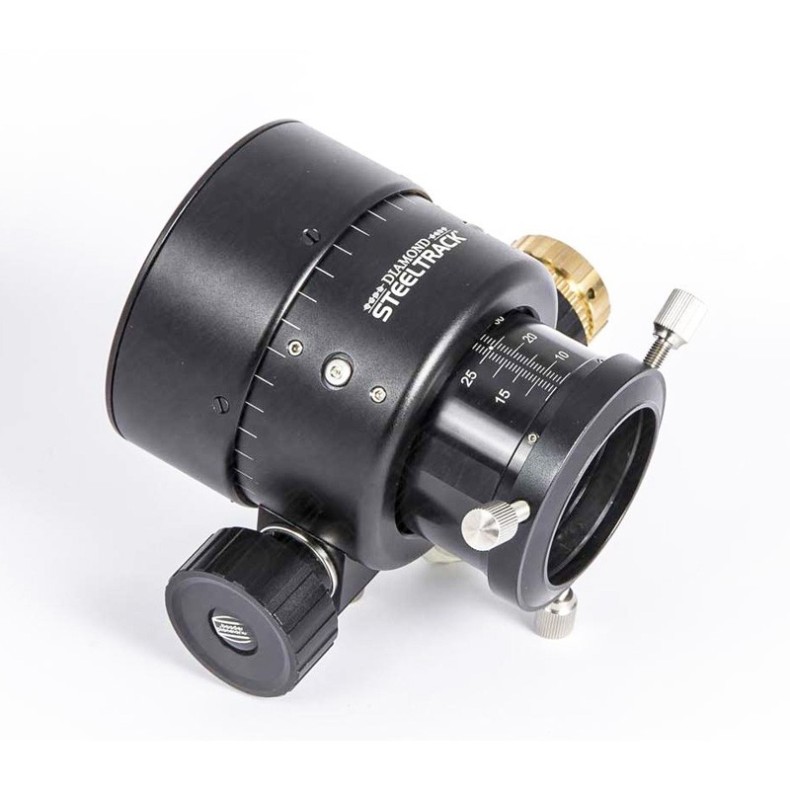

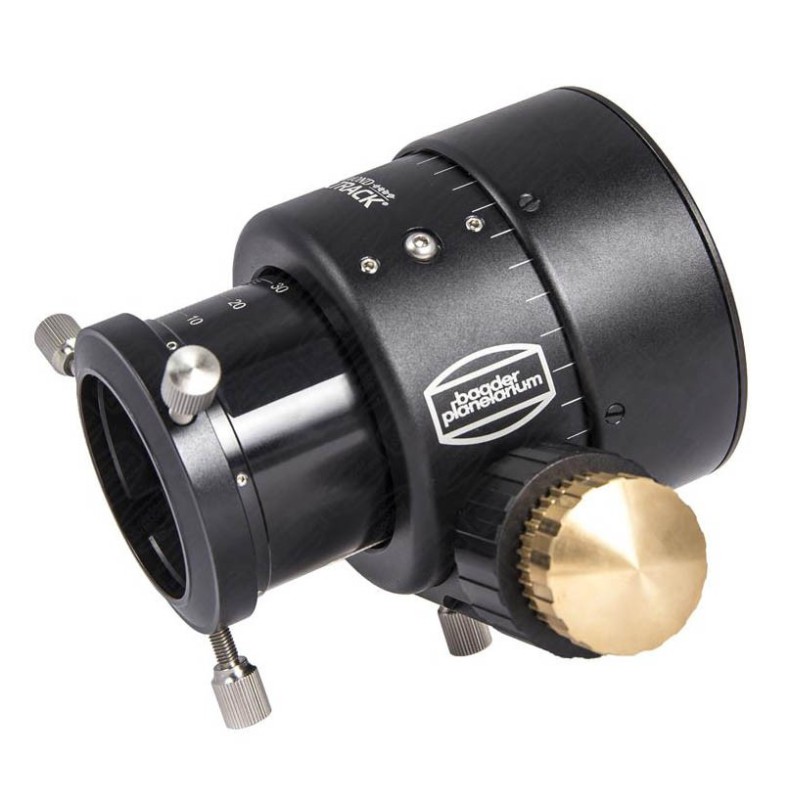

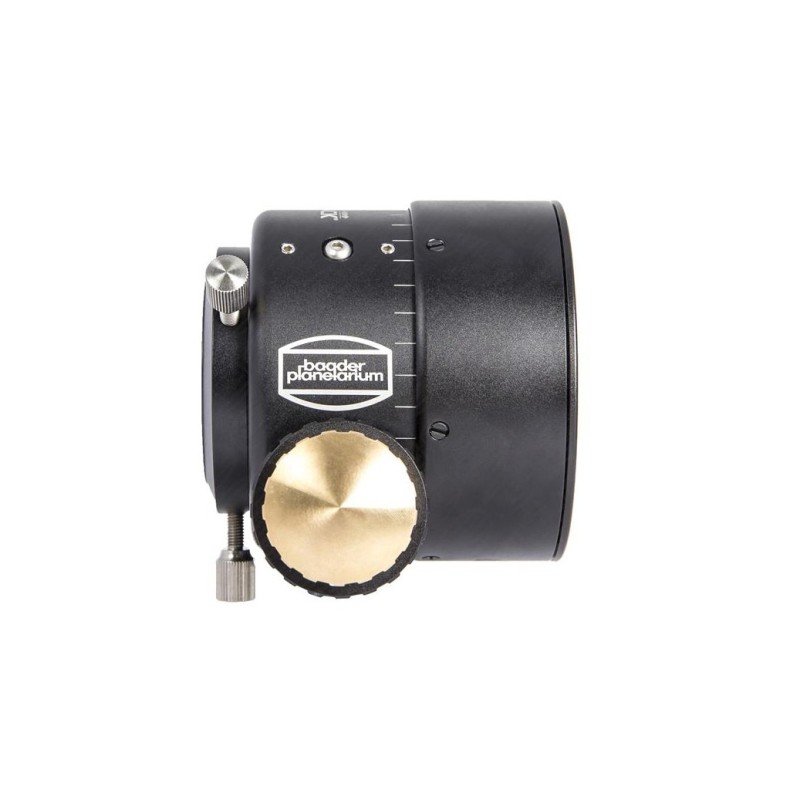

New low profile Crayford Steel Track Diamond focusers from Baader Planetarium for Schmidt-Cassegrain type telescopes. 55 mm clearance on the focusing tube, height from base 93 mm with 2" adapter, standard 2" output but allows for M58 threaded adapters. The displacement tube of these eyepiece holders ends in an M58 female thread and allows the various adapters to be fitted and direct attachment of T-2, M48, M68 and S58 threads. There is also a specific ClickLock for Steel Track eyepiece holders. Super thin, high load resistance of 6 kg. In these models, some of the components of their predecessors, the standard Steel Track models, which are no longer in production, have been modified and improved. The most relevant improvements, apart from the thread system in the focusing head, are the incorporation of more dimensioned bearings where the focusing tube slides, high resistance and hardness treatments in the parts where both the bearings and the axis of the Crayford system slide. total weight 1 Kg. With macro and micrometric focus. Maximum focus displacement: 30 mm. It offers the possibility of motorizing and remoting with the Steel Drive control system, which is offered as standard with a temperature probe and everything necessary for connection to a computer via a USB 2.0 interface.

In Telescopiomanial we recommend Seletek Armadillo systems from Lunático. Ask our specialists for the final configuration.

Baader SteelTrack Diamond S/C Focuser 2957220
